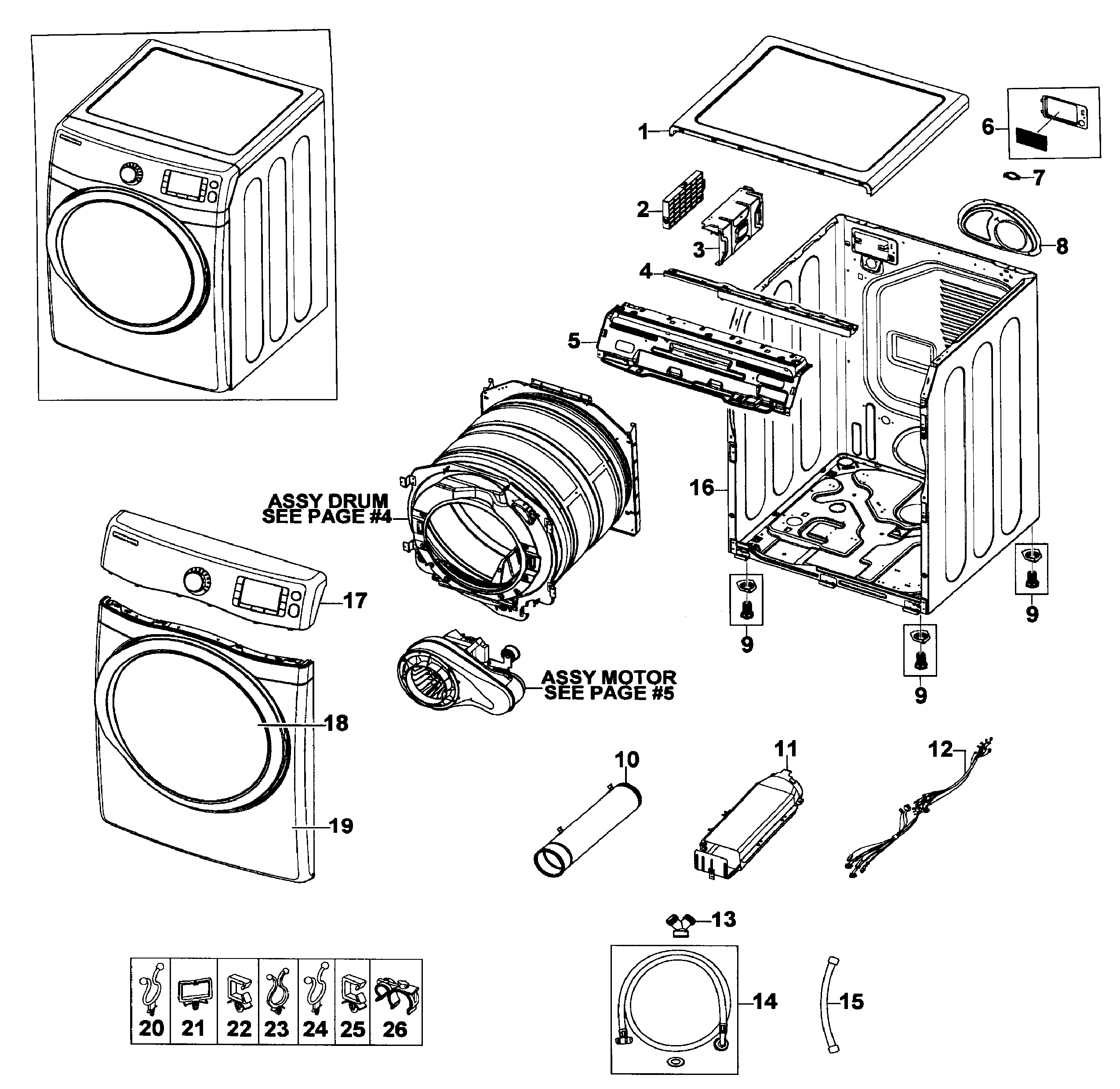

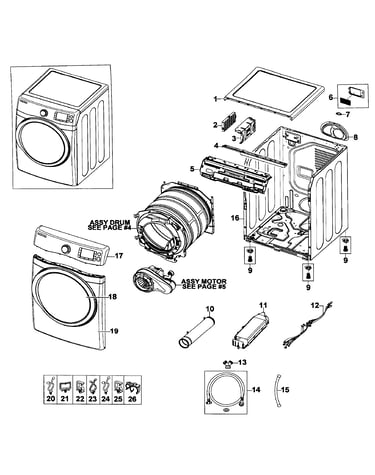

Samsung DV520AEP/XAA-01 dryer Parts

A bad thermal fuse in your Samsung DV520AEP dryer is typically open (no continuity), which prevents the dryer from heating and often stops it from running at all. We confirm it by testing the fuse with a multimeter after unplugging the dryer and accessing the fuse on the heater or blower housing.

Quick symptoms that point to a blown thermal fuse

• Dryer will not start (some models stop completely when the fuse opens)
• Dryer runs but produces no heat
• Cycle ends early or clothes stay damp
• Burning smell or the dryer feels unusually hot before it fails
• You recently had a clogged vent or heavy lint buildup

How we test the thermal fuse (safe, reliable method)

1. Unplug the dryer (electric shock risk).

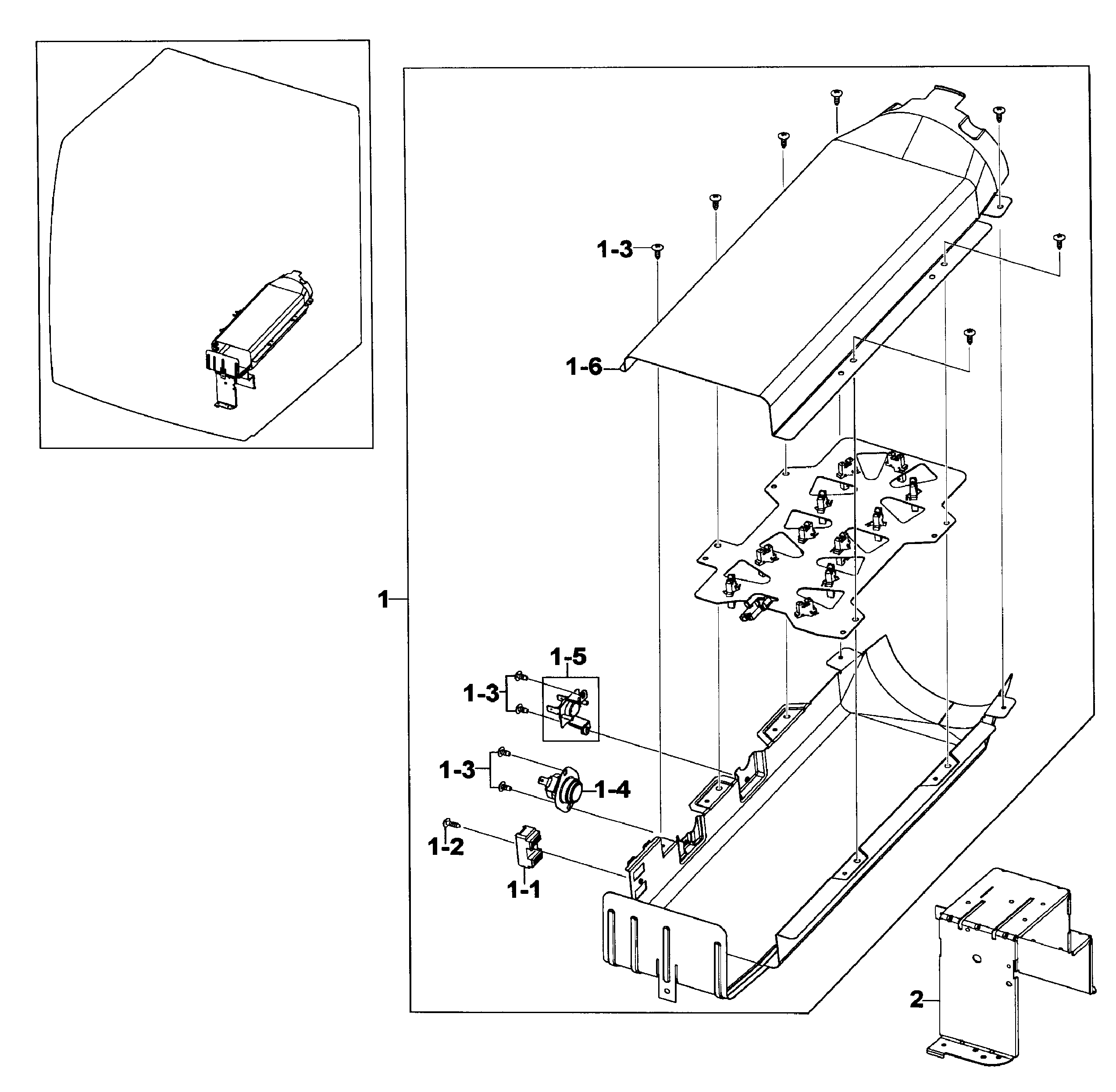

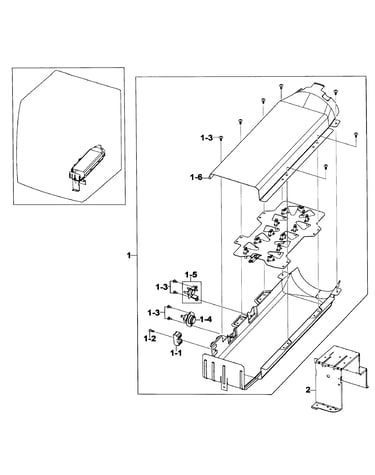

2. Remove the appropriate panel to access the heater housing or blower housing (panel removal steps and screw locations are shown in the DV520AEP owner's manual).
3. Pull the two wires off the fuse terminals (note their positions).
4. Set a multimeter to continuity or the lowest ohms setting.
5. Touch a probe to each terminal.

What the meter reading means

Meter result	What it means	What to do next
Beep / near 0 ohms	Fuse is good (closed)	Check heating element, thermostats, airflow
No beep / OL / very high ohms	Fuse is bad (open)	Replace the fuse and fix the overheating cause

Parts that commonly relate to a thermal fuse failure

A thermal fuse usually opens because the dryer overheated. On DV520AEP, these parts are often involved in the same “no heat” or overheating diagnosis:

• Dryer thermal cut-off fuse DC96-00887A (the fuse itself)
• Dryer high-limit thermostat DC47-00018A (can trip from overheating)
• Samsung dryer heating element assembly DC93-00154A (can short or overheat)
• Dryer thermistor DC32-00007A (temperature sensing issues)

Why it matters

Replacing only the fuse without correcting airflow problems (lint screen, lint chute, vent duct, outside hood) often leads to another blown fuse. Restoring proper airflow protects the heater circuit and helps drying performance.

If you need to order parts for your DV520AEP, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common issues we see with the Samsung DV520AEP dryer are no heat or weak heat, long dry times, not starting, loud thumping or squealing, and the drum not tumbling. These problems usually trace to airflow restrictions, door or safety switches, or wear parts in the drive and heating circuits.

Common symptoms and what typically causes them

• No heat or not enough heat: failed heater circuit parts such as the Samsung dryer heating element assembly DC93-00154A, a high-limit safety device, or a temperature sensor.
• Long dry times: clogged lint path or venting, crushed exhaust duct, or a restricted blower housing.
• Won’t start: door not fully latching, a failed dryer door switch DC64-00828B, or a control issue.
• Loud noise (thump, squeal, rumble): worn drum support rollers or a worn belt.
• Drum won’t turn but motor runs or hums: broken belt or a belt safety issue.

Quick checks we recommend first

1. Clean the lint screen and confirm strong airflow at the outside vent.
2. Check the exhaust duct for kinks, long runs, or lint buildup.
3. Confirm the door closes firmly and the latch engages.
4. Run a timed dry cycle and listen for belt slip, roller rumble, or scraping.
5. If the dryer heats briefly then stops, inspect the heating circuit safeties.

Parts that commonly solve these problems

Symptom	Common part to check	What it does
No heat	Samsung dryer heating element assembly DC93-00154A	Produces heat for drying
Overheats or shuts heat off	Dryer high-limit thermostat DC47-00018A	Limits heater temperature
No heat (safety open)	Dryer thermal cut-off fuse DC96-00887A	Cuts power to heater if overheated

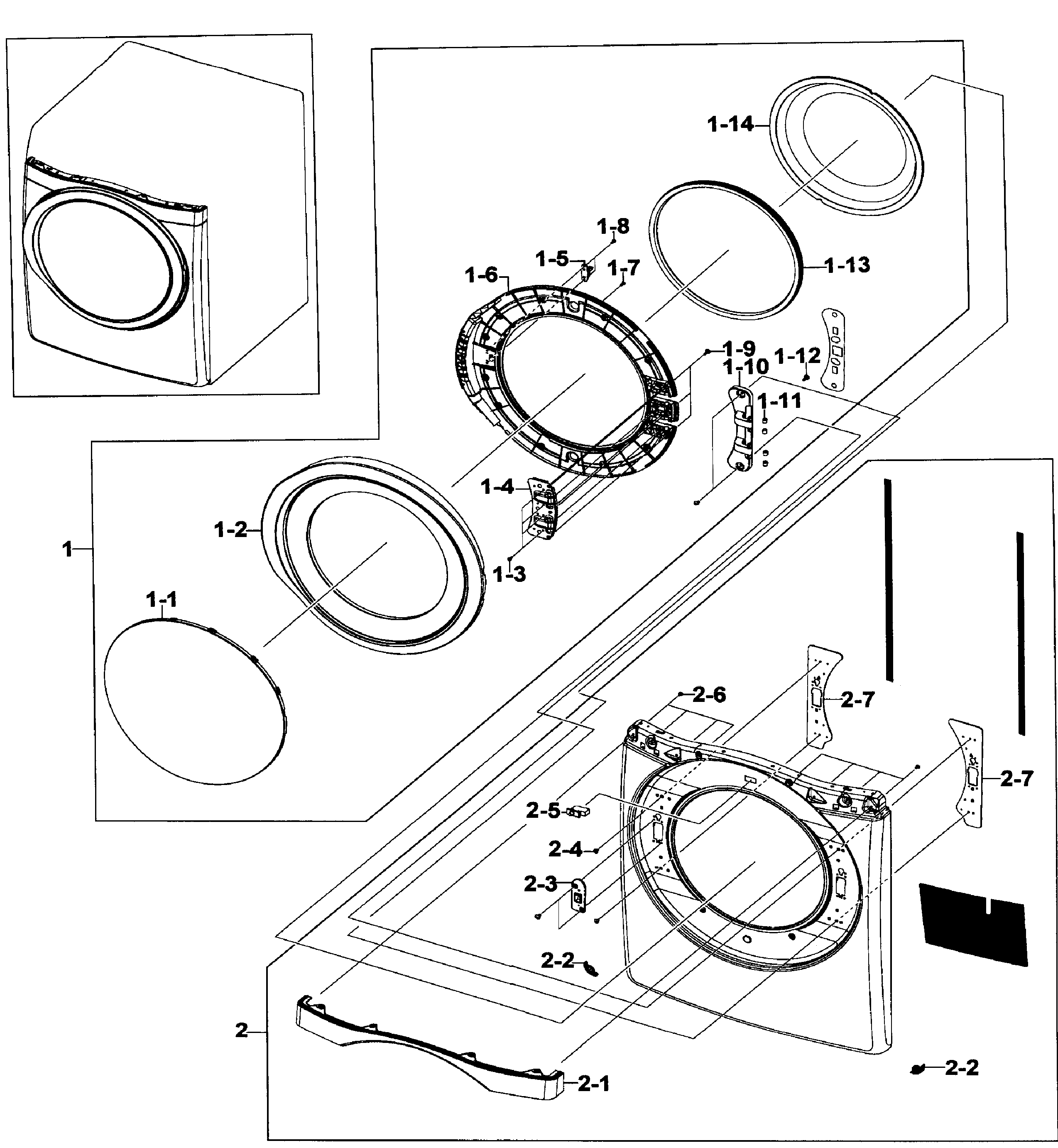

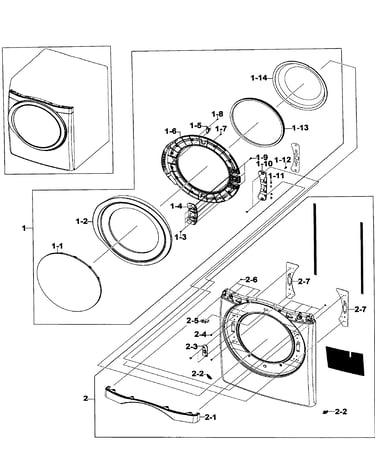

Won’t start when door closes	Dryer door switch DC64-00828B	Confirms door is closed

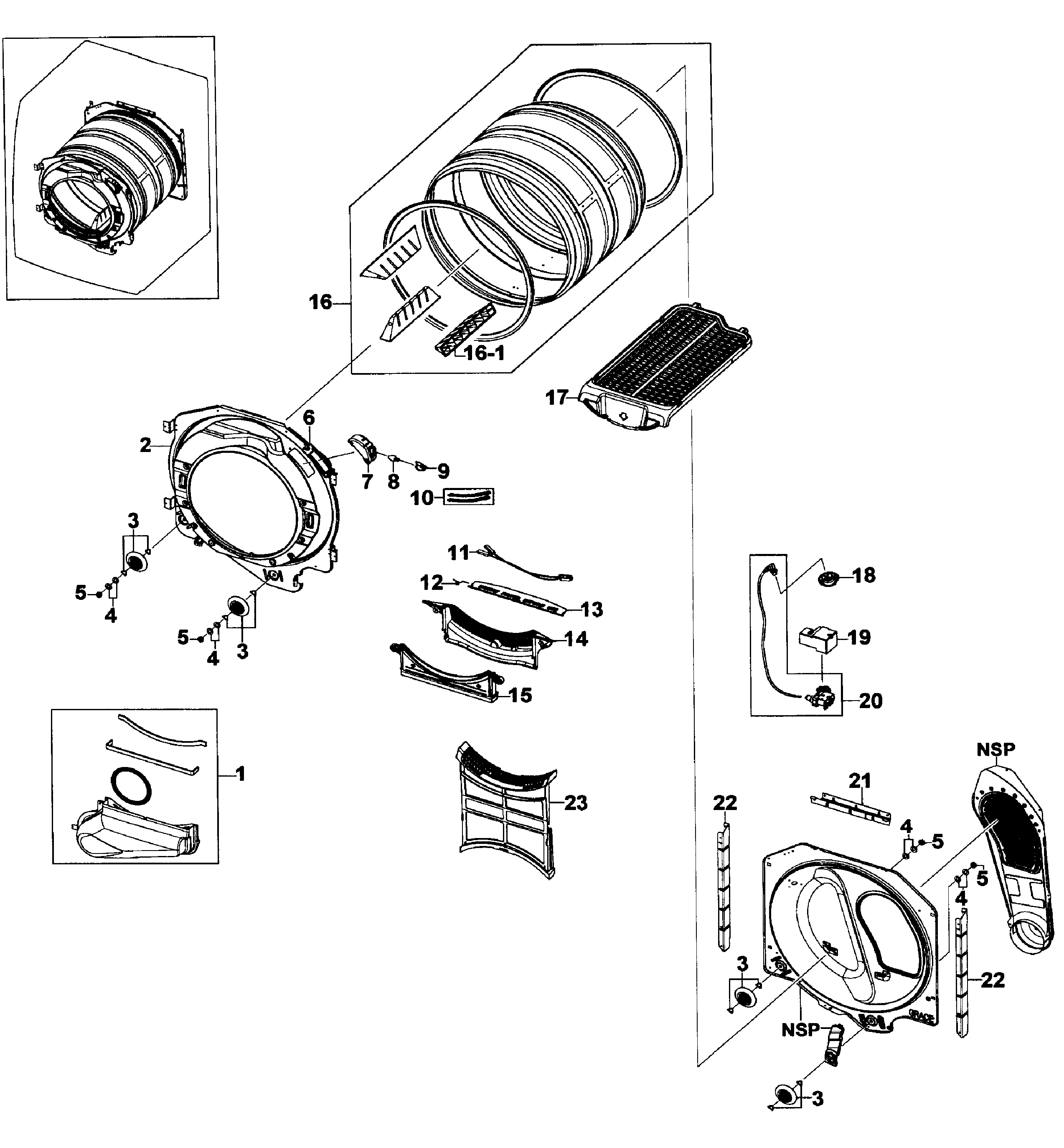

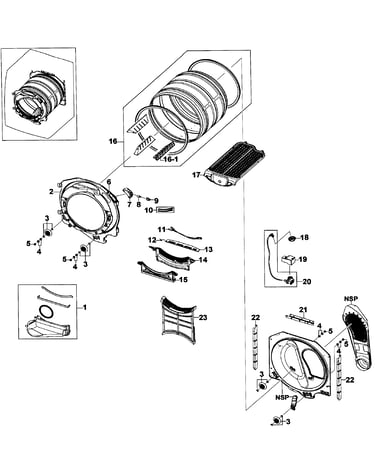

Thumping/squealing	Samsung dryer drum support roller DC97-16782A	Supports drum as it turns

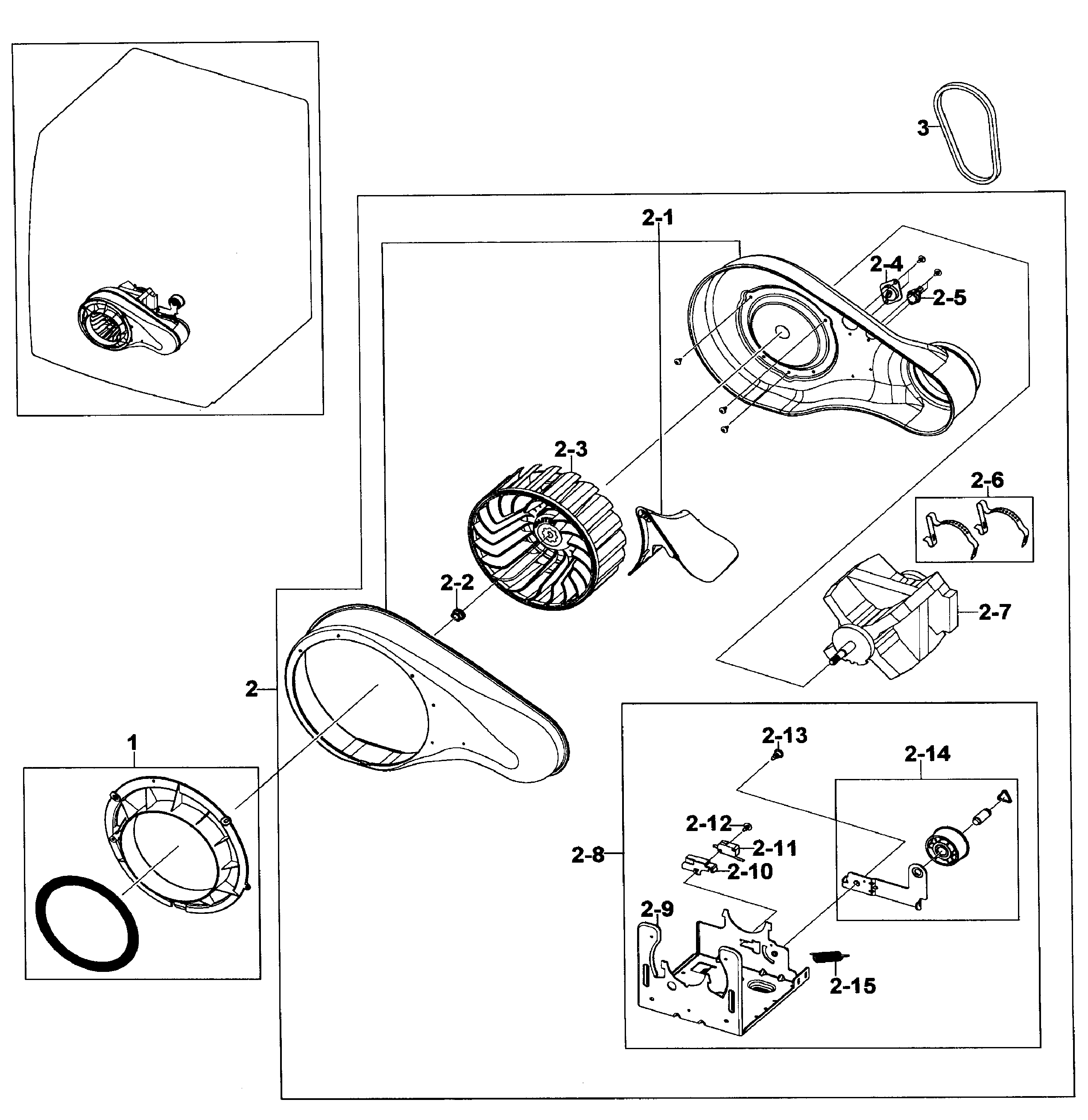

Drum not tumbling	Samsung dryer drum belt 6602-001655	Turns the drum

Why it matters

Dryer issues often stack; for example, restricted venting can overheat the heater housing and open a thermal cut-off, then the dryer tumbles but won’t heat. Fixing airflow first helps prevent repeat failures.

Where to find model-specific troubleshooting

Use the DV520AEP owner’s manual for cycle guidance, error indications, and model-specific checks before replacing parts.

Last updated: March 2026

A Samsung front load washer lasts 12 years. That service-life estimate applies to normal household use with routine care; good cleaning habits, correct detergent, and avoiding chronic overloading keep the washer running reliably for its full lifespan.

Typical lifespan and what affects it

A washer’s lifespan is driven by moisture control, load size, and routine cleaning.

• Use HE detergent and measure it; overdosing leaves residue that stresses components
• Avoid chronic overloading; it accelerates bearing, suspension, and motor wear
• Leave the door slightly open between loads to reduce mildew and seal deterioration
• Wipe the door boot and glass regularly to prevent leaks and odors
• Run a monthly tub-clean cycle (hot cycle if no tub-clean option)

Common wear items as a washer ages

These are the most frequent failure points on front-load washers:

• Door boot (bellows) leaks or mold buildup
• Drain pump or filter clogs causing slow drain
• Bearings becoming noisy during spin
• Shock absorbers or springs causing excessive vibration
• Inlet valve screens clogging and slowing fill

Quick reference: age vs. what to do

Washer age	What we recommend	Why it matters
0 to 5 years	Focus on cleaning and correct loading	Prevents early seal and drain issues
6 to 10 years	Watch for noise, vibration, slow drain	Catches wear before major damage
11 to 12 years	Compare repair cost vs. overall condition	Helps avoid repeated breakdowns

Why it matters

Knowing the 12-year lifespan helps you decide when maintenance is enough versus when repeated repairs signal end-of-life for the washer.

For care and safety guidance related to your Samsung dryer model DV520AEP, use the DV520AEP owner’s manual. If you need dryer replacement parts, you can order from the parts list for this model page or search by model number on Sears PartsDirect.
