Model # DC14 Official Dyson vacuum

Here are the diagrams and repair parts for Official Dyson DC14 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

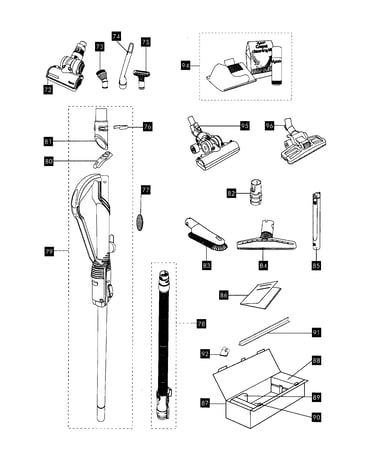

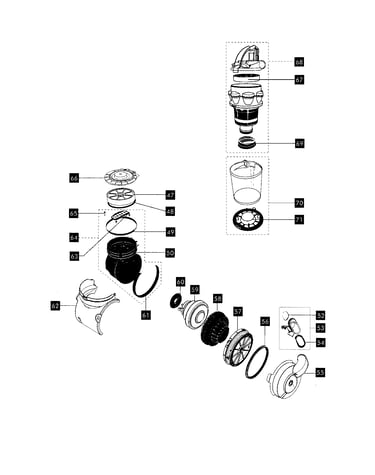

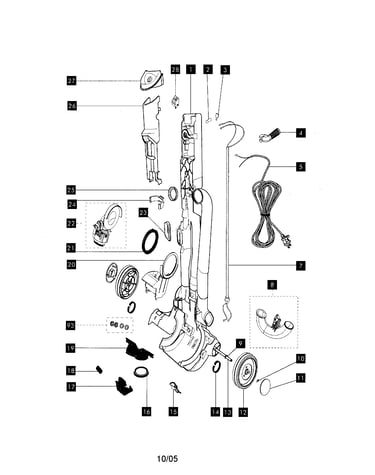

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Vacuum Clutch Actuator (violet) 900298-10

#35A

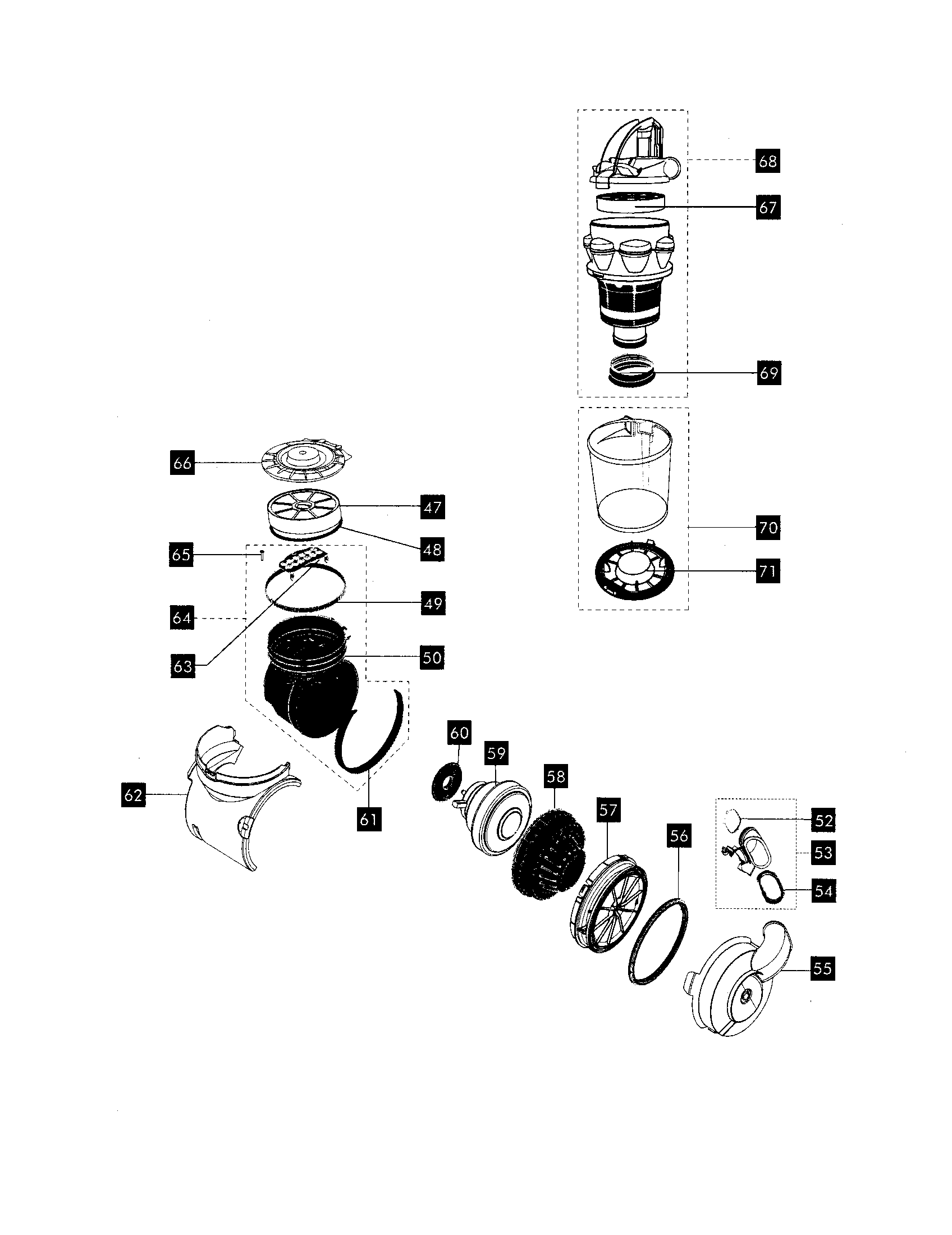

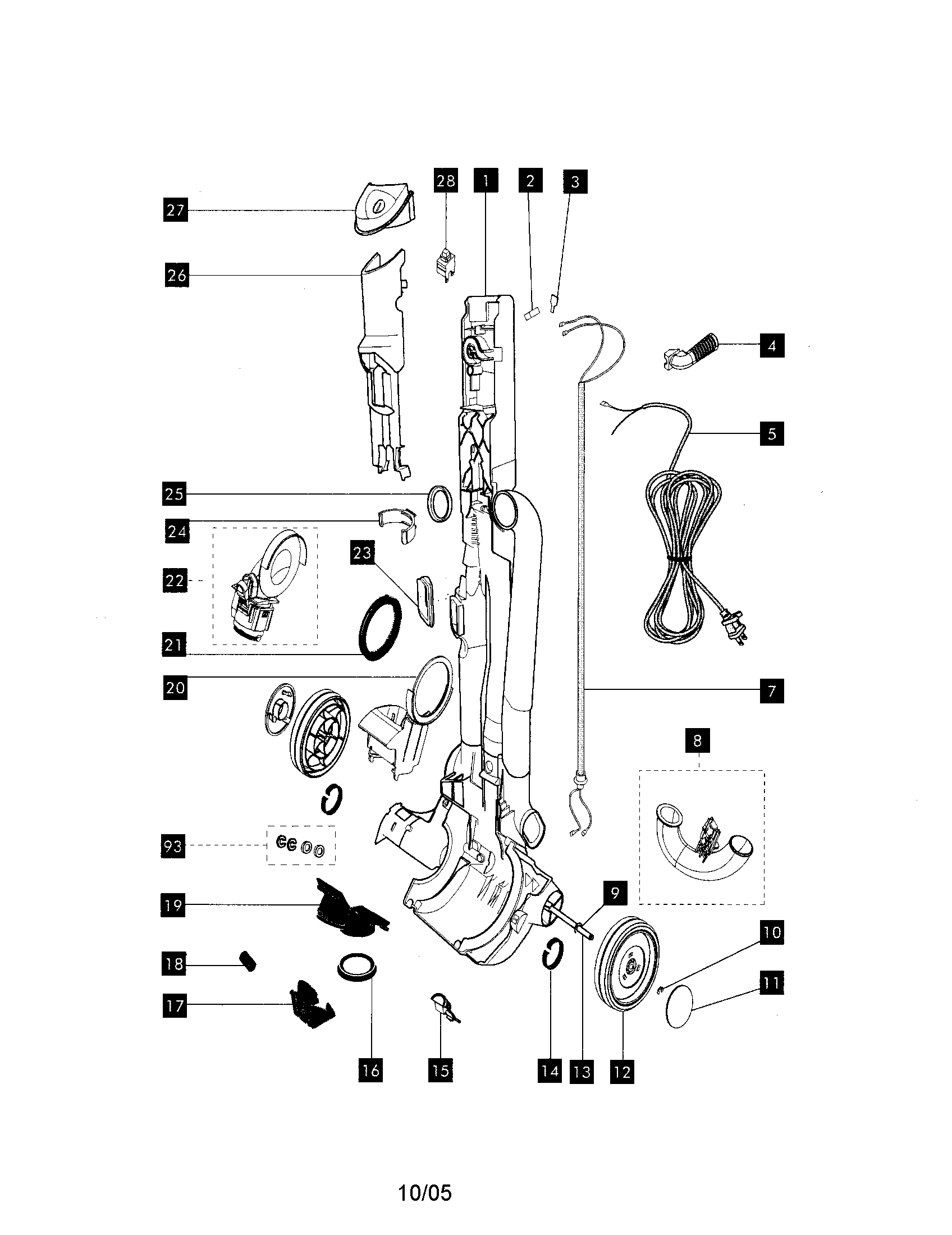

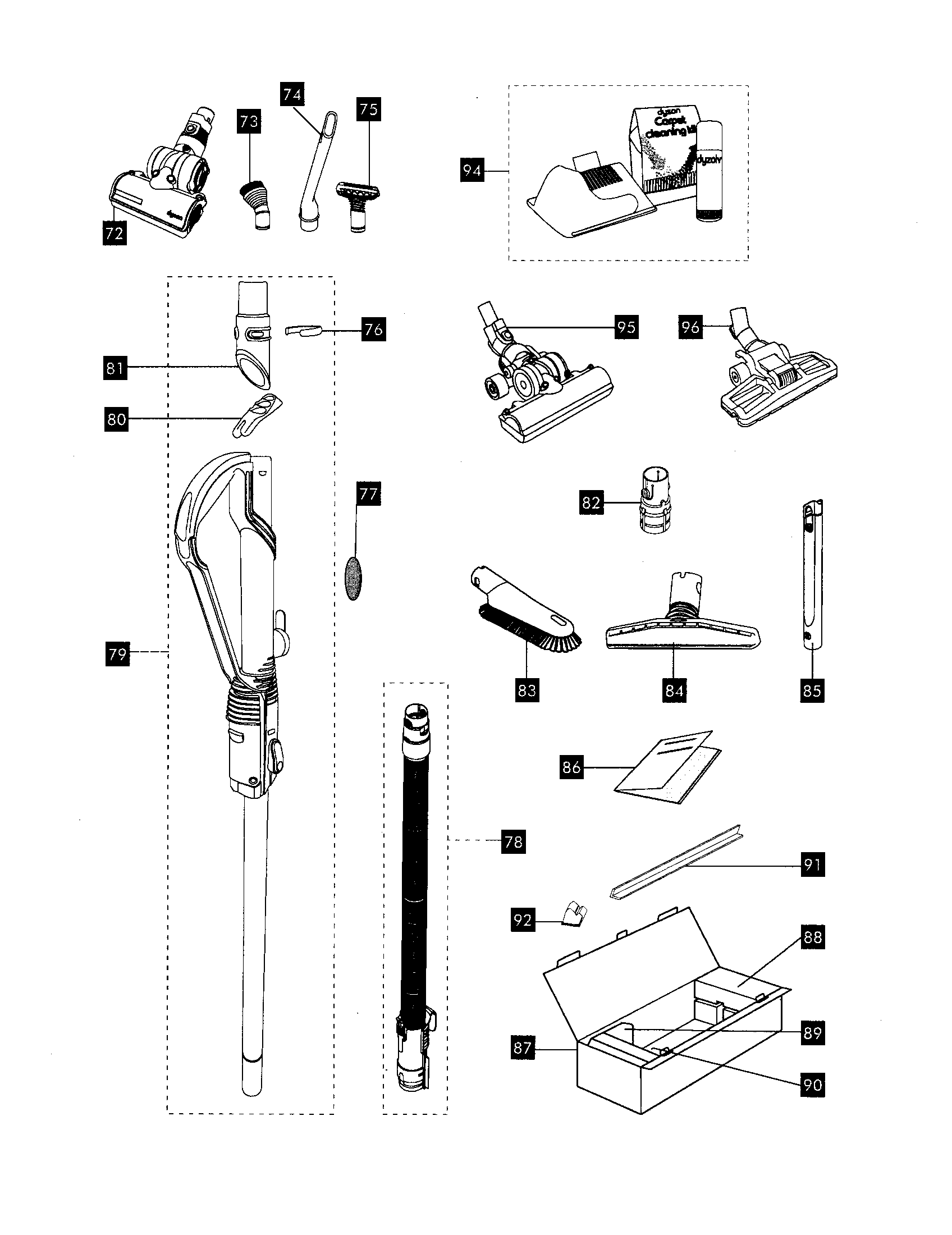

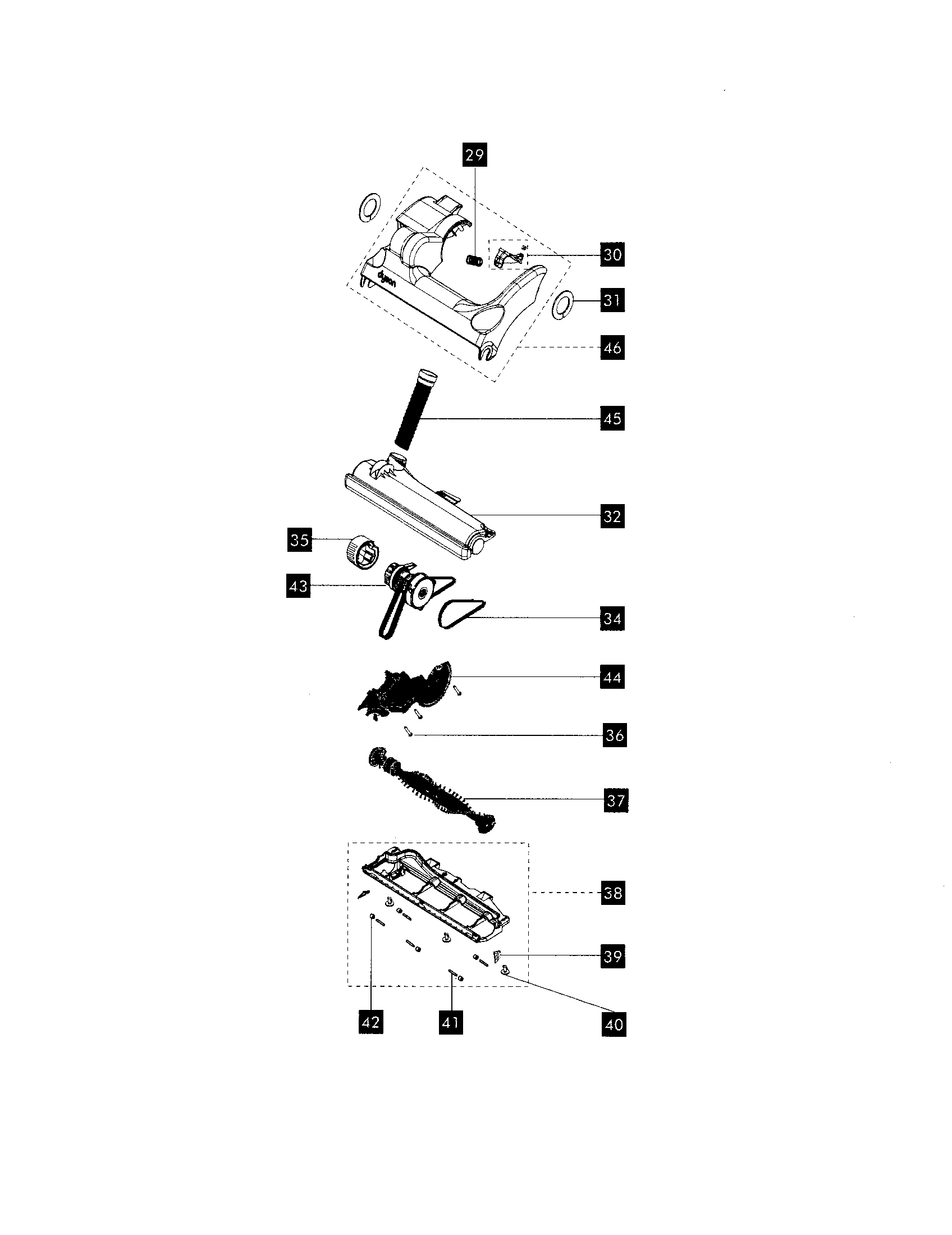

All parts diagram

Vacuum clutch actuator (violet)

Part #900298-10

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cyclone Assembly (trans-orange) 908658-07

#68B

All parts diagram

Vacuum cyclone assembly (trans-orange)

Part #908658-07

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Housing Cover, Upper (steel) 907749-01

#62

All parts diagram

Vacuum motor housing cover, upper (steel)

Part #907749-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing Assembly 908654-01

#32

All parts diagram

Vacuum beater bar housing assembly

Part #908654-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing 908654-03

#32B

All parts diagram

Vacuum beater bar housing

Part #908654-03

The manufacturer no longer makes this part, and there's no substitute part

Lock 901223-03

#17

All parts diagram

Lock

Part #901223-03

The manufacturer no longer makes this part, and there's no substitute part

Valve Pipe 904246-15

#22C

All parts diagram

Valve pipe

Part #904246-15

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cyclone Assembly (trans-violet) 908658-05

#68

All parts diagram

Vacuum cyclone assembly (trans-violet)

Part #908658-05

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing Assembly (trans-violet) 908654-02

#32A

All parts diagram

Vacuum beater bar housing assembly (trans-violet)

Part #908654-02

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 904193-08

#12A

All parts diagram

Vacuum wheel

Part #904193-08

The manufacturer no longer makes this part, and there's no substitute part
