Model #917289104 Official Craftsman tractor lt2000
Here are the diagrams and repair parts for Craftsman 917289104 tractor lt2000, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

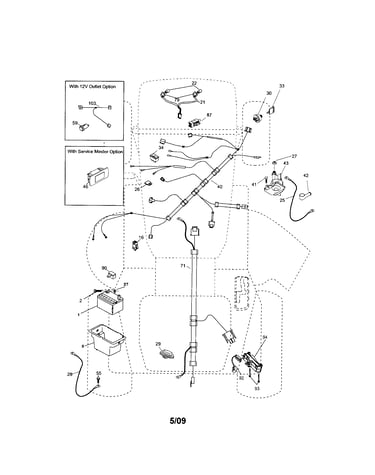

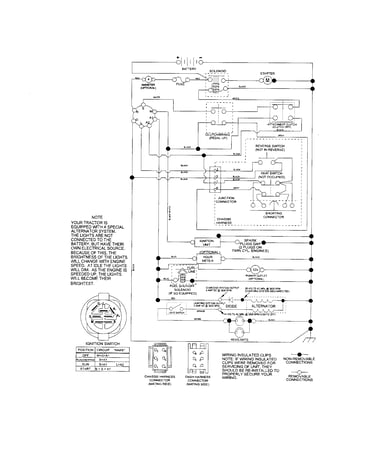

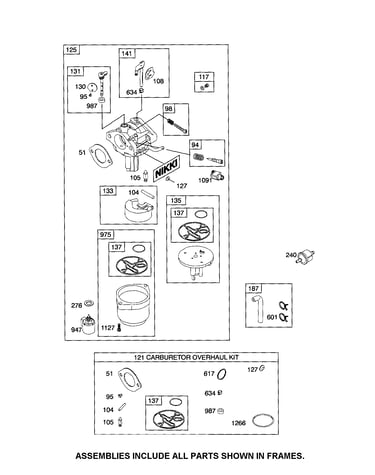

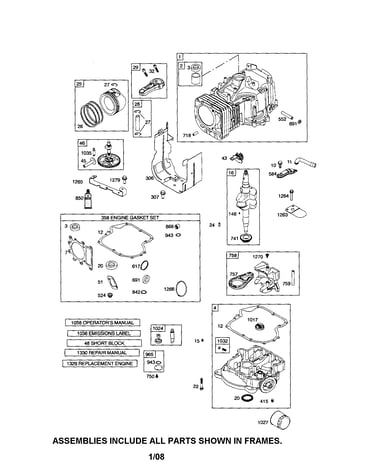

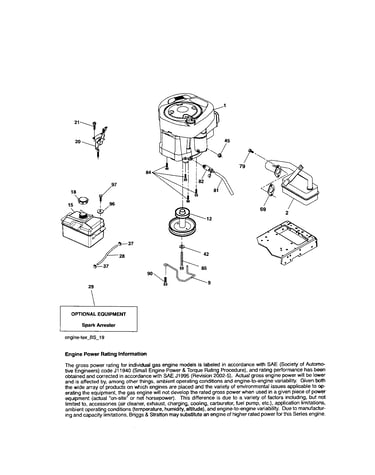

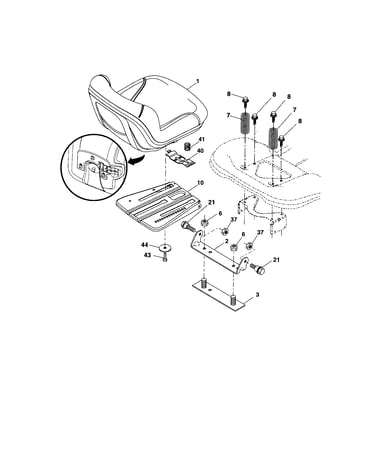

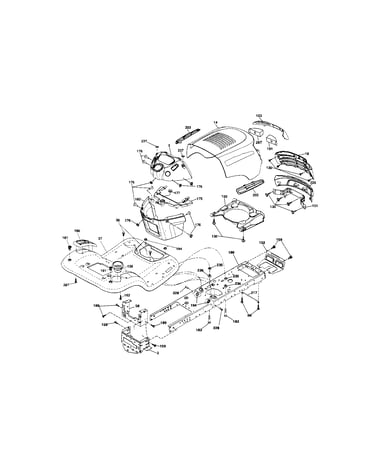

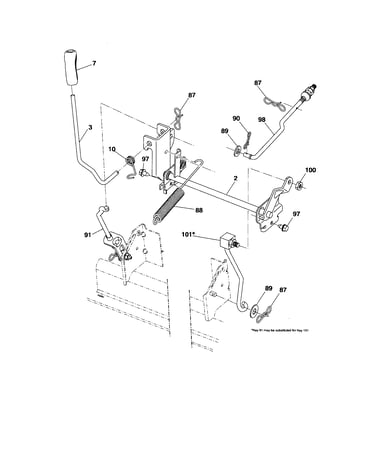

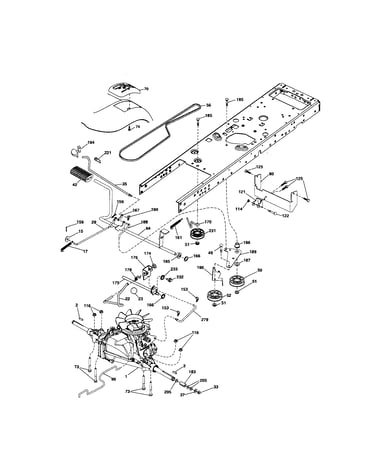

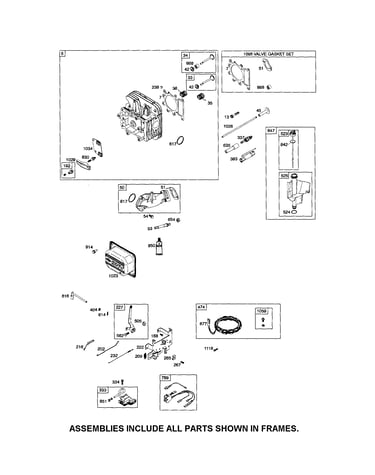

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 537 parts

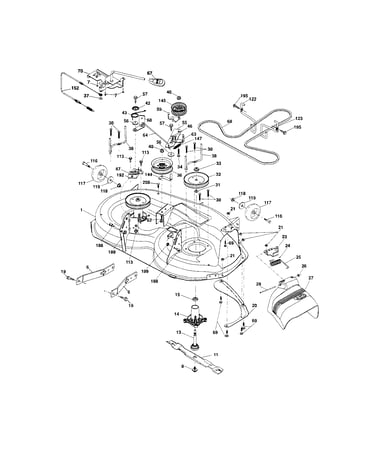

Lawn tractor mandrel housing
Part #187281
Replaced by #587819701
?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
In Stock
$36.07 |
31% OFF
MSRP: $52.50
#NI02
All parts Diagram
Lawn tractor mandrel assembly
Part #192870
Replaced by #587819701
?
Manufacturer substitution
This part replaces 192870. Substitute parts can look different from the original.
In Stock
$36.07 |
31% OFF
MSRP: $52.50
Lawn tractor mandrel shaft assembly
Part #192872
Replaced by #587819701
?
Manufacturer substitution
This part replaces 192872. Substitute parts can look different from the original.
In Stock
$36.07 |
31% OFF
MSRP: $52.50
