On the Whirlpool WFE540H0ES0 electric range, we check the oven temperature sensor by safely disconnecting power, accessing the sensor connector, and measuring sensor resistance with a multimeter. If the resistance is far from the normal range at room temperature, the sensor or its wiring is likely the problem.

Safety first

• Turn off the breaker (240V) before removing panels or touching wiring.
• Let the oven cool completely.
• Use work gloves; sheet metal edges can be sharp.
• Do not test resistance with power connected.
• If you smell burning or see damaged wiring, stop and have the range serviced.

Where the sensor is (typical on this model family)

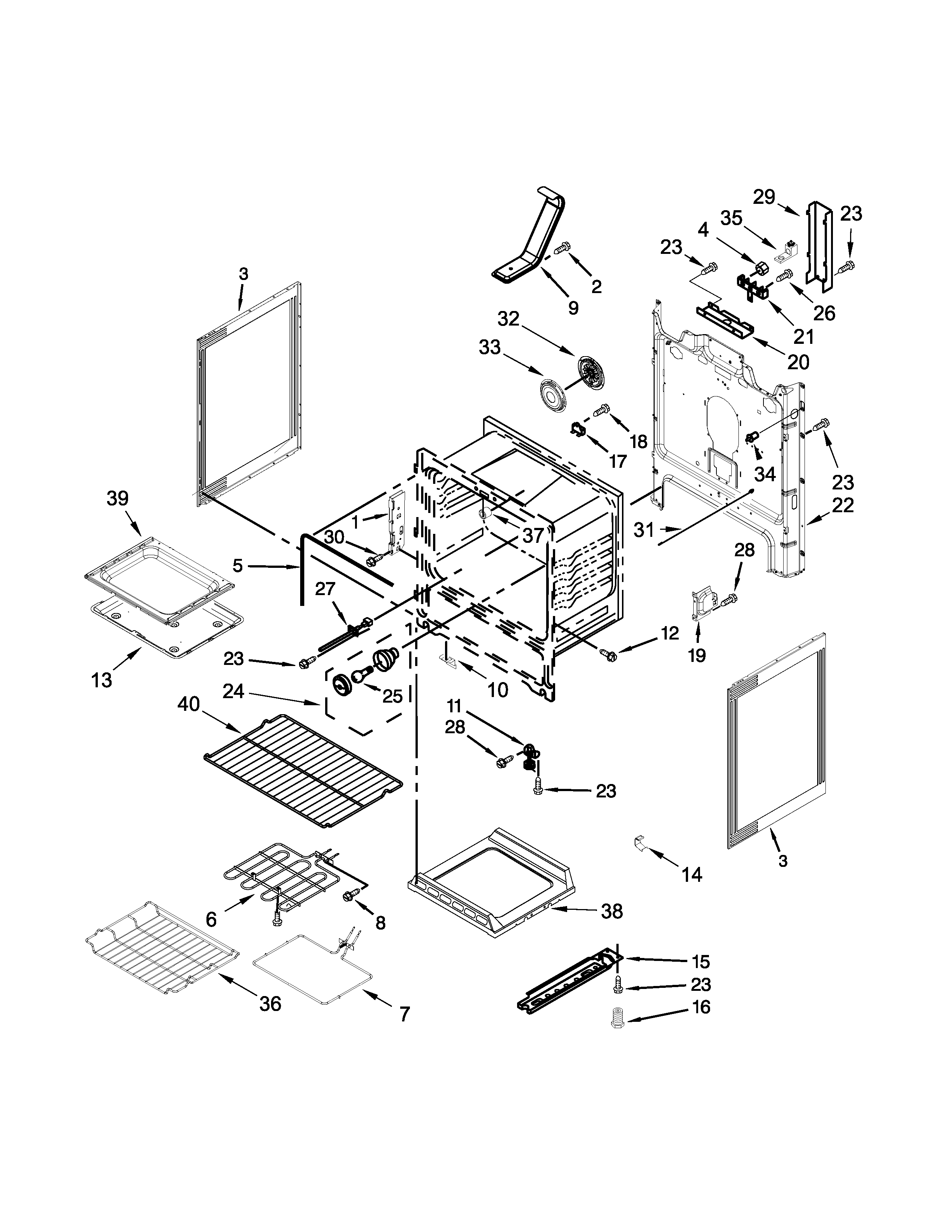

On WFE540H0ES0-STYLE Whirlpool ranges, the oven temperature sensor is typically mounted inside the oven cavity near the upper rear wall, with a thin probe extending into the oven and wires running through the back.

For diagrams and access notes specific to your range, use the WFE540H0ES0 use & care manual.

How to test the sensor with a multimeter

1. Disconnect power at the breaker.
2. Locate the sensor probe inside the oven (usually upper rear area).
3. Access the connector (often from the back panel). Remove the rear cover if needed.
4. Unplug the sensor connector so you are not reading through the control board.
5. Set your multimeter to resistance (ohms, Ω).
6. Measure across the two sensor terminals.

What readings usually mean

Meter reading	What it suggests	Next step
Around 1,080 Ω at room temp	Sensor likely OK	Check wiring/connector, then control issues
OL / infinite	Open sensor circuit	Replace sensor or repair broken wire
Very low Ω	Shorted sensor circuit	Replace sensor or repair pinched wire

Why it matters

A bad oven temperature sensor can cause inaccurate baking temperatures, long preheat times, error codes, or an oven that will not heat properly.

Related DIY help

If you need step-by-step replacement guidance, use how to replace an oven temperature sensor on an electric range.

Last updated: January 2026

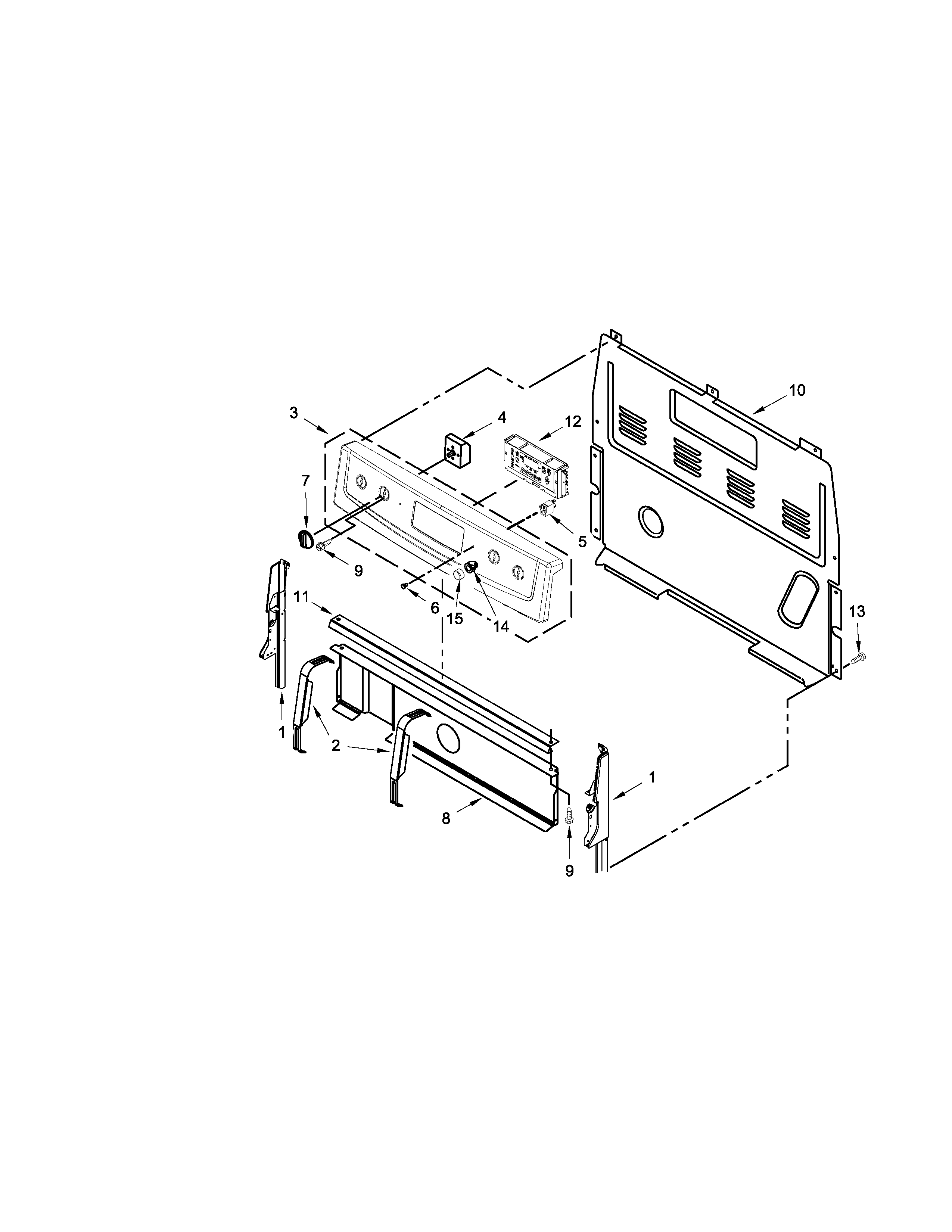

On the Whirlpool WFE540H0ES0 electric range, a failing oven control board commonly shows up as a dead or flashing display, unresponsive or incorrect keypad behavior, or error codes that keep coming back after you clear them. Use the WFE540H0ES0 owner’s manual to confirm normal display messages and control functions for this model.

Common symptoms on WFE540H0ES0

• Display is blank, flashing, dim, or resets after a power interruption
• Keypad presses do nothing, respond slowly, or start the wrong function
• Oven won’t start Bake or Broil, or cancels mid-cycle
• Temperature control seems erratic (wide swings, overheating, or long preheat)
• Error codes/messages reappear after pressing CANCEL
• Controls seem “locked out” even when you are not trying to use Control Lock

Quick checks before you blame the control board

These checks help rule out power, settings, and heating-circuit problems that can mimic a bad board.

• Clear a flashing time display after a power loss by pressing CANCEL; then reset the clock
• Make sure Control Lock is off (this model uses a press-and-hold START lockout)
• Verify the range has full power (a tripped breaker can cause odd display and heating issues)
• If the oven won’t heat, inspect the heating elements for visible damage
• Write down any error code before clearing it; repeating codes are important clues

What the symptom often points to

What you notice	Often points to	What to check next
Display dead/garbled	Power supply issue or control board	Check breaker and outlet first, then board
Bake won’t heat but Broil does	Bake heating circuit problem	Inspect the bake element W10779716
Broil won’t heat but Bake does	Broil heating circuit problem	Inspect the range broil element W11321472
Repeating “F” code	Control system fault	Use Whirlpool freestanding range error codes to interpret the code

Why it matters

The oven control board is the “brain” that reads the keypad and sensors and switches power to the bake and broil circuits. Catching early symptoms can prevent complete no-heat failures and mid-cook shutdowns.

Last updated: January 2026

A Whirlpool electric range like model WFE540H0ES0 typically lasts 10 to 15 years with normal household use. With consistent cleaning, correct cookware, and timely replacement of wear parts (like heating elements), many ranges reach the upper end of that range.

What affects lifespan most

A range’s life is usually determined by heat stress, spills, and how quickly small issues are fixed.

• Heavy use of high-heat cooking and frequent long bake cycles
• Boilovers and sugary spills that bake onto the cooktop or oven cavity
• Running cleaning cycles without wiping out heavy soil first
• Loose electrical connections or repeated power surges
• Delaying repairs when an element, switch, or control starts acting up

Practical ways to help your WFE540H0ES0 last longer

We recommend these habits because they reduce strain on the oven controls, wiring, and heating components.

• Keep the oven vent area clear so heat can escape properly
• Wipe spills after the range cools; clean sugary spills as soon as safely possible
• Avoid lining the oven bottom with foil (it can trap heat and damage surfaces)
• Use flat-bottom cookware sized to the surface element
• Replace failing parts early (for example, a weak bake element can overwork the control system)

Common “end of life” symptoms vs repairable issues

Symptom	Often repairable?	Typical next step
Oven not heating evenly	Yes	Inspect/replace the bake element W10779716

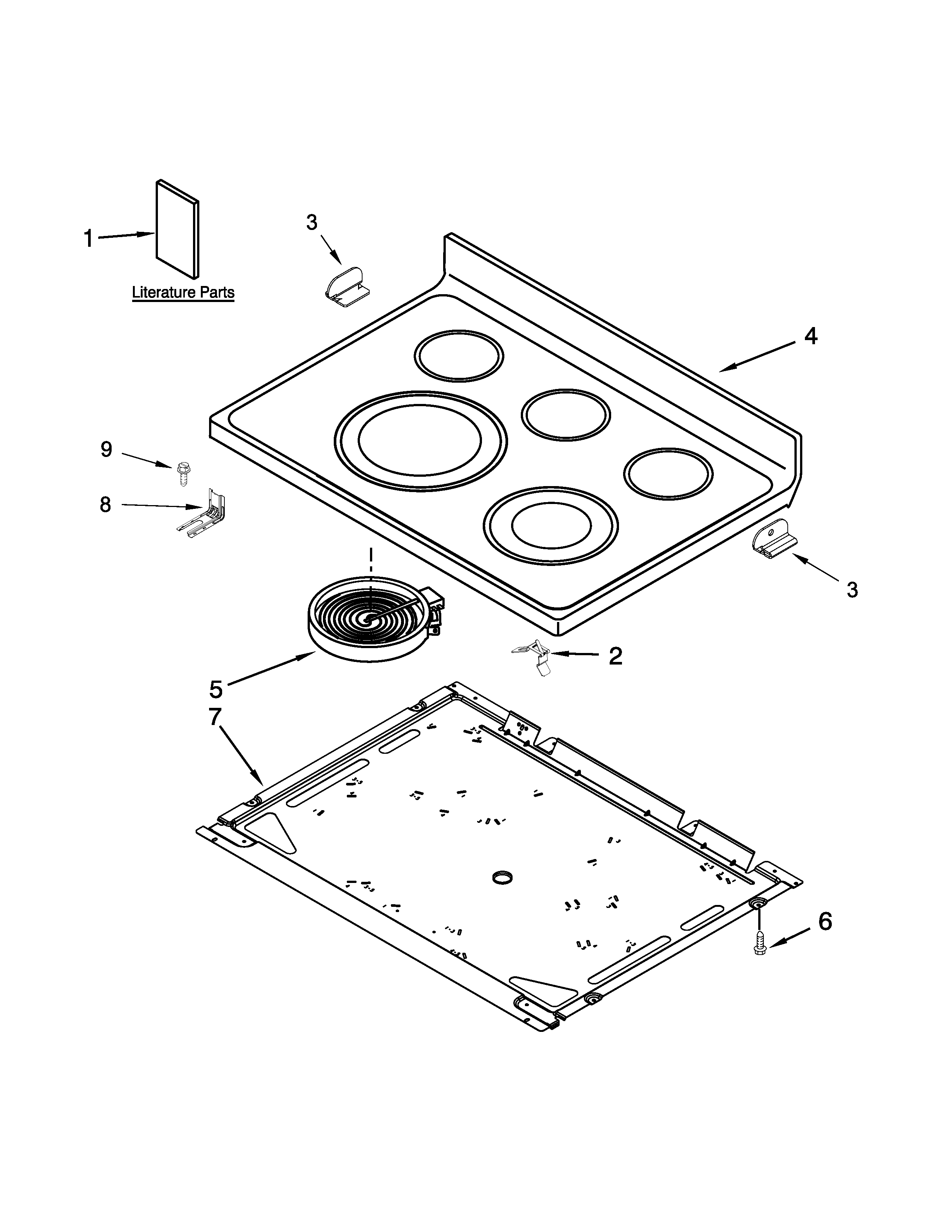

Burner not heating or cycling oddly	Often	Check element and switch, then wiring
Display issues or error codes	Often	Diagnose controls and power supply

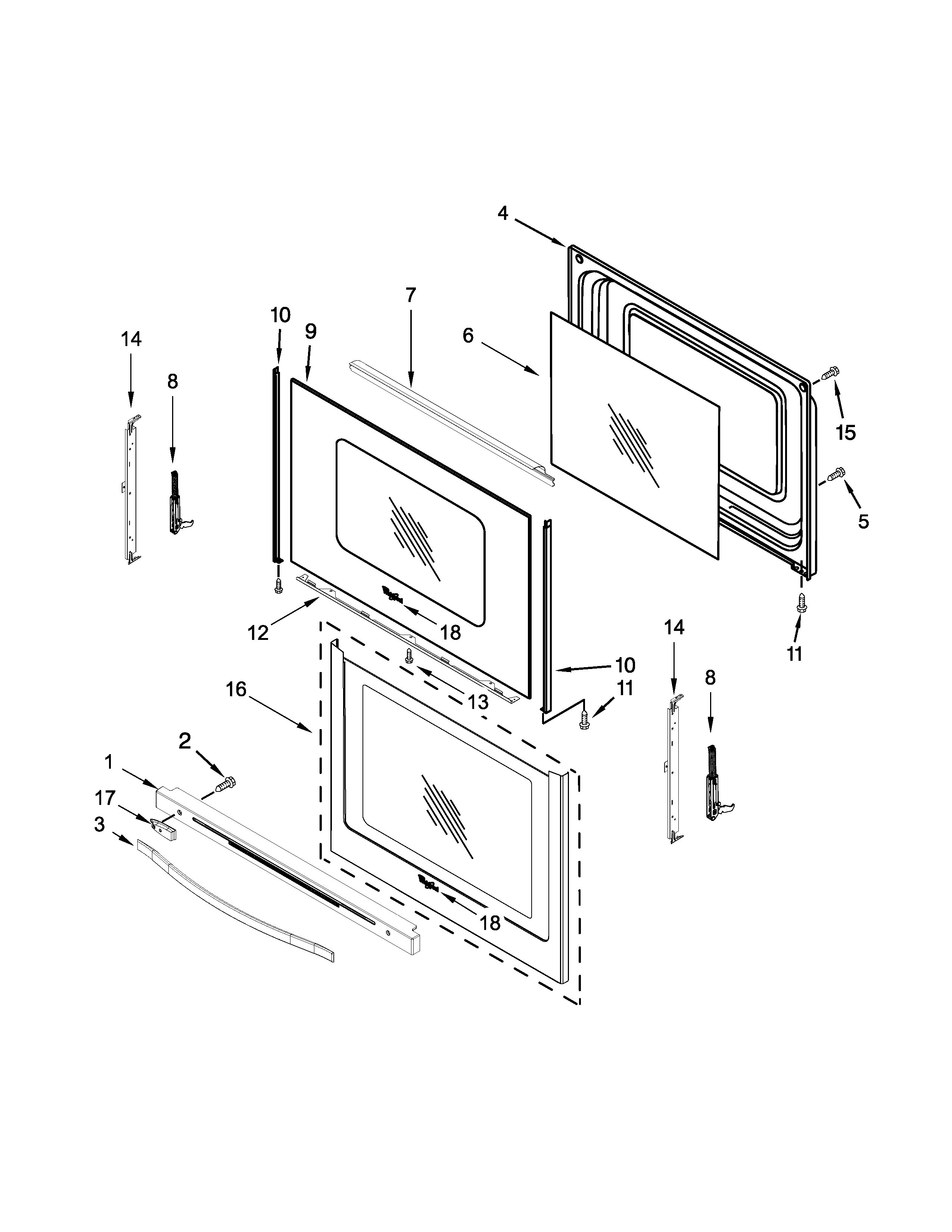

Door not sealing well	Often	Inspect gasket and hinges

Why it matters

Knowing the typical 10 to 15-year lifespan helps you decide whether to repair or replace. If your WFE540H0ES0 is within that window, replacing a key part (like a bake element) is often a cost-effective way to restore normal baking performance.

For model-specific use, care, and cleaning guidance, follow the WFE540H0ES0 use & care manual.

Last updated: January 2026

On the Whirlpool WFE540H0ES0 electric range, we find the model number (and serial number) on the oven frame behind the top right side of the oven door. Open the oven door fully and look along the frame near the upper-right corner for the rating plate.

Quick steps to locate it

• Turn the oven off and let it cool.
• Open the oven door.
• Look on the oven frame (not the door) near the top right.
• Find the rating plate label; it lists Model and Serial.
• Write the model number exactly as shown (for this range: WFE540H0ES0).

Other common label locations (if you do not see it right away)

For this model family, the rating plate is typically on the oven frame; however, some installations make it easier to spot from a slightly different angle.

Location to check	What to do	What you are looking for
Oven frame, top right (primary)	Open door and inspect the frame edge	Model/serial rating plate
Frame behind a top corner of the door	Check the opposite top corner if needed	Same rating plate

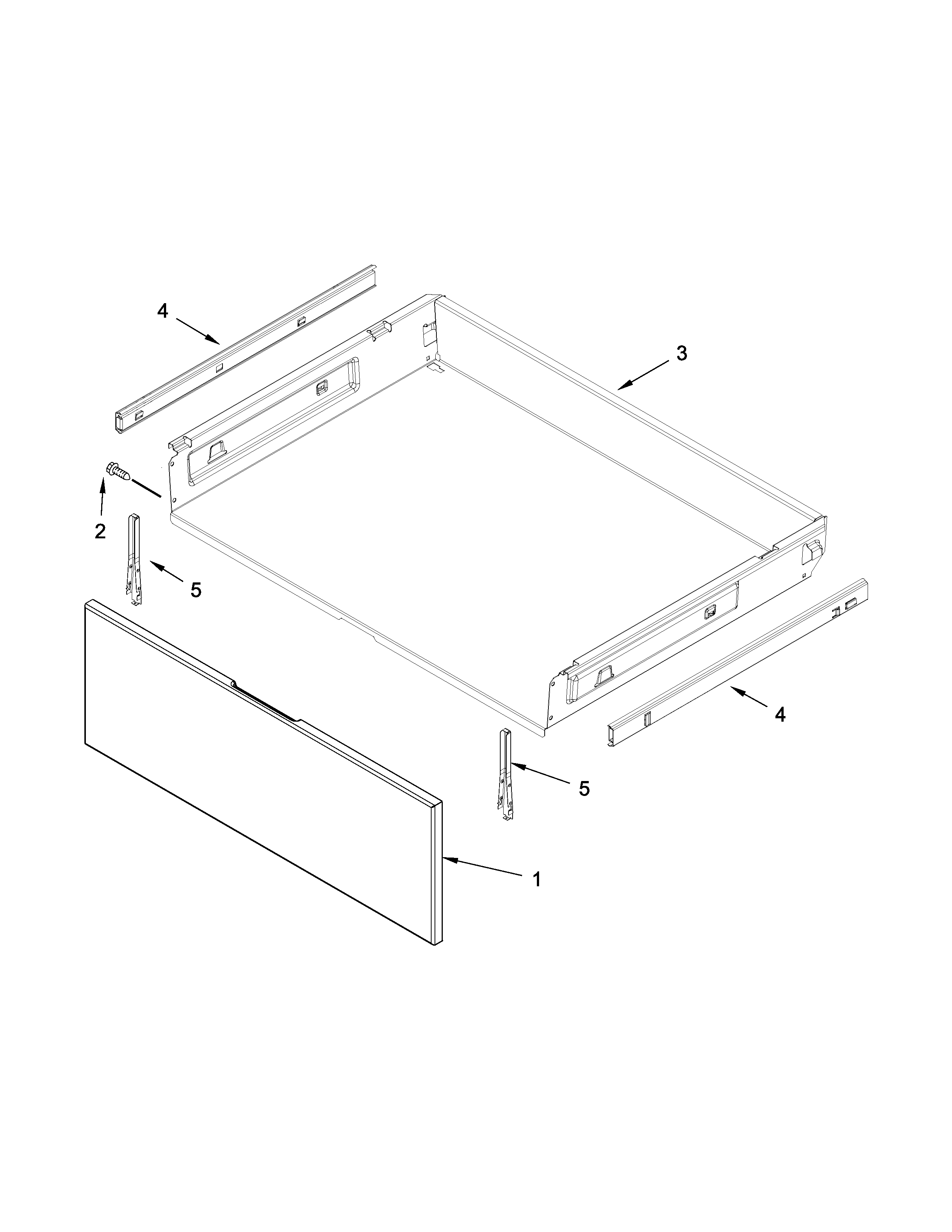

Either side of the storage drawer area	Pull the drawer out slightly and look at the frame sides	Same rating plate

Why it matters

We use the model number to match the correct Whirlpool parts, diagrams, and troubleshooting info for your exact range configuration. Even small model-number differences can change which bake element, control board, or door parts fit.

For more details and diagrams, use the WFE540H0ES0 ownermanual.
