Model #113298032 Craftsman 10" table saw

Here are the diagrams and repair parts for Craftsman 113298032 10" table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 173 parts

    Table Saw Miter Gauge Locking Clamp Knob

    #22

    Miter gauge assembly Diagram

    Table saw miter gauge locking clamp knob

    Part #62482

    The manufacturer no longer makes this part, and there's no substitute part

    Power Tool Self-Threading Nut

    #9

    Unit housing Diagram

    Power tool self-threading nut

    Part #60388

    The manufacturer no longer makes this part, and there's no substitute part

    Speed Nut

    #29

    Unit housing Diagram

    Speed nut

    Part #60354

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Screw

    #5

    Fence assembly Diagram

    Table saw screw

    Part #9404336

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Extension Wing

    #12

    Table extension Diagram

    Table saw extension wing

    Part #62590

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Rip Fence Handle

    #2

    Miter gauge assembly Diagram

    Table saw rip fence handle

    Part #62692

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Arbor Nut

    #19

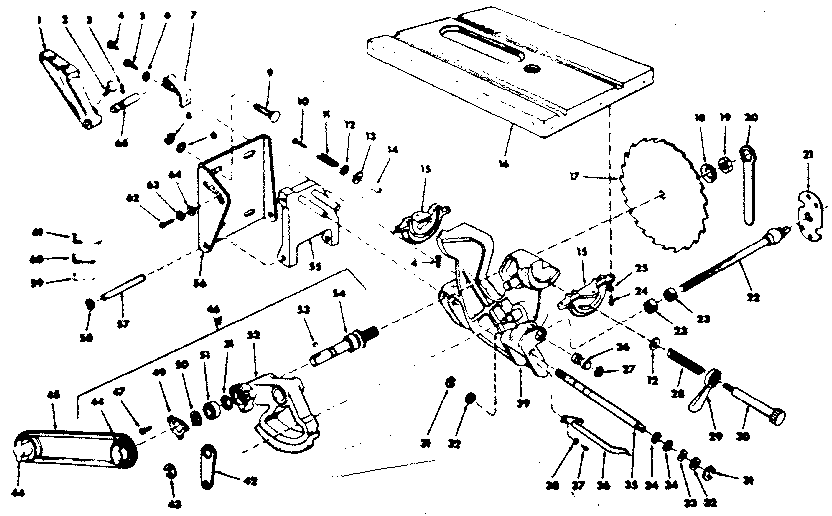

    Motor base assembly Diagram

    Table saw arbor nut

    Part #6362

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Blade Guard Support

    #7

    Motor base assembly Diagram

    Table saw blade guard support

    Part #62292

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Rip Fence Guide Spacer

    #21

    Unit housing Diagram

    Table saw rip fence guide spacer

    Part #62539

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Rip Fence Lock Rod

    #13

    Fence assembly Diagram

    Table saw rip fence lock rod

    Part #62583

    The manufacturer no longer makes this part, and there's no substitute part
