GE JKP13GP4BG electric wall oven Parts

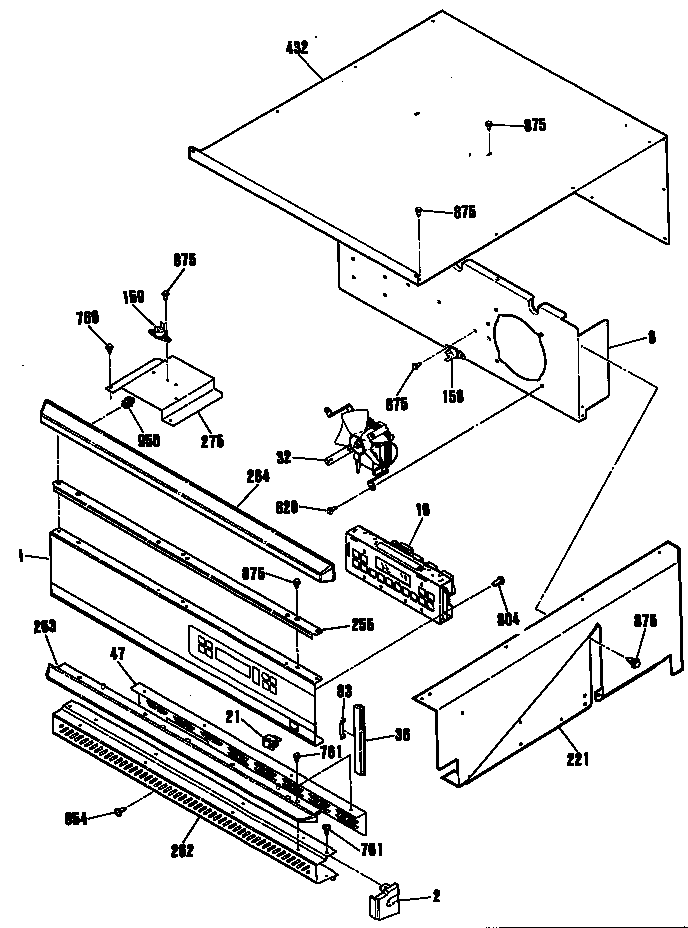

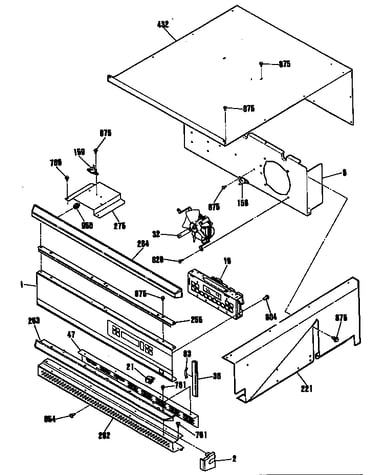

For a GE JKP13GP4BG electric wall oven, replacing the oven control panel (often the touch panel and/or electronic control board behind it) typically runs $100 to $300 for the part, and about $220 to $550 total if you hire a technician for diagnosis and installation.

• Which piece failed: a cosmetic overlay can cost less than an electronic control board.
• Diagnosis time: intermittent faults can add labor.
• Service access: wall ovens can take longer to pull and reinstall.
• Wiring condition: heat-damaged connectors can add parts and time.
• Whether you DIY: labor is usually the biggest variable.

A “dead” or glitchy control panel is sometimes caused by a safety device or temperature sensing issue.

• If the oven is completely dead after overheating, test the thermal fuse: wall oven thermal fuse WB24K5085
• If temperatures are wildly off or you get temperature-related errors, check the oven sensor: sensor WB21X5301
• If the oven will not heat but the display works, inspect the bake element: GE range bake element WB44K5013

Control panels are expensive compared to many wall oven parts, so a quick check of the thermal fuse, sensor, and heating elements can prevent replacing the wrong component and paying for a second repair.

Last updated: February 2026

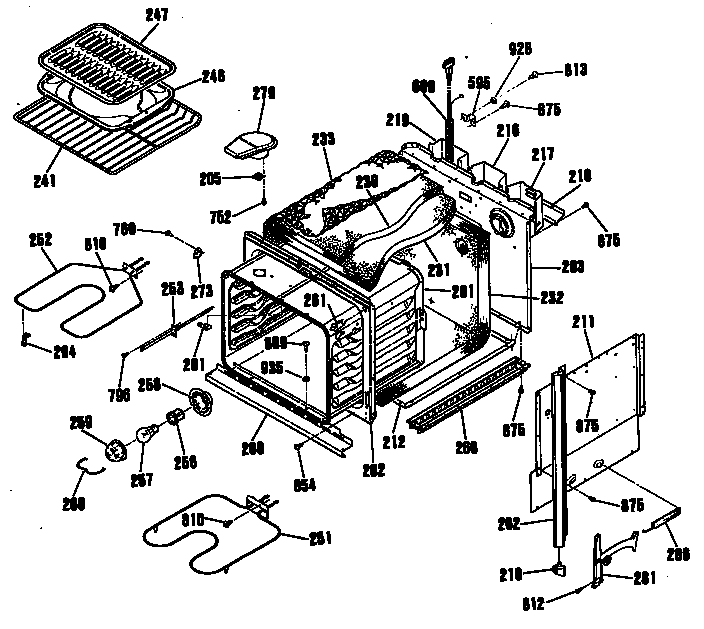

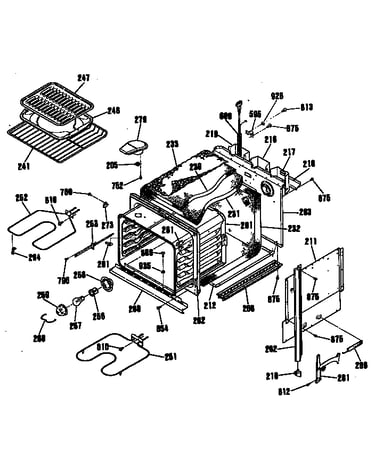

An electric oven like the GE JKP13GP4BG is built around heating, temperature sensing, and door sealing components. The most common parts you will hear about are the bake element, broil element, oven temperature sensor, oven racks, and the door gasket or seal that keeps heat inside the oven cavity.

• Bake element (bottom heat source): GE range bake element WB44K5013
• Broil element (top heat source): GE range broil element WB44K5009
• Oven temperature sensor (tells the control how hot the oven is): sensor WB21X5301
• Oven rack(s) (supports cookware): oven rack WB48T10093

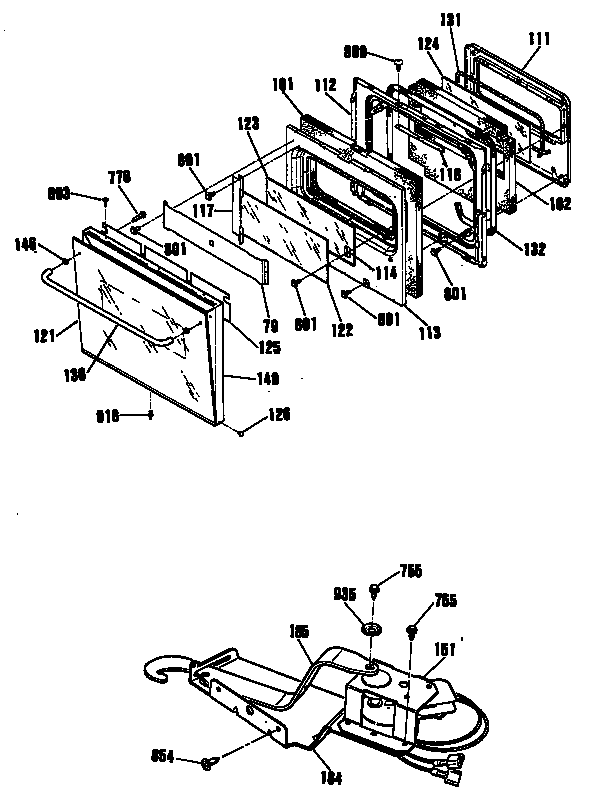

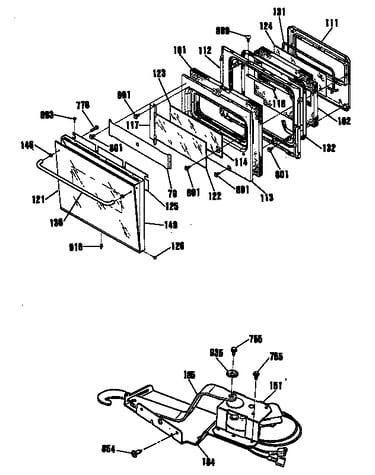

• Door gasket or seal (reduces heat loss and helps even baking): range oven door gasket WB2X9168

These parts vary by model and features, but they are common in electric wall ovens:

• Thermal fuse: shuts the oven down if it overheats
• Cooling fan limit switch: helps manage cabinet and control temperatures
• Door lock system (on self-clean models): locks the door during self-clean
• Insulation: keeps heat in the oven and protects surrounding cabinetry

Knowing the main electric oven parts helps you troubleshoot faster and order the right replacement for your GE JKP13GP4BG. For example, a weak bake element can cause underbaking, while a drifting sensor can make temperatures run hot or cold.

Last updated: February 2026

You can order replacement parts for your GE JKP13GP4BG electric wall oven by using the parts list for this model and matching the part you need by description and part ID. For common repairs, we often see orders for heating elements, door seals, and temperature sensors.

• Confirm the full model number is JKP13GP4BG (use the model tag on the oven frame).
• Identify the symptom first (no heat, uneven baking, door not sealing, self-clean won’t lock).
• Match the part by part name + part ID, not just by a similar-looking photo.
• If you are replacing an electrical part, shut off power at the breaker before inspecting.
• Order any mounting hardware you need at the same time (screws, supports) to avoid delays.

If your issue matches one of these, start with the corresponding part page:

Ordering by the exact JKP13GP4BG model and the correct part ID helps ensure proper fit and electrical rating. That prevents repeat repairs, poor baking performance, and avoidable returns.

Use a quick diagnostic approach:

• No heat at all: check power supply, then the thermal fuse.
• Uneven baking: check the bake element and sensor.
• Self-clean lock issues: check the lock motor and lock lever.

A good next step for electrical troubleshooting is how to tell if a fuse is blown.

Last updated: February 2026

If your GE JKP13GP4BG electric wall oven is not heating, the most common causes are a tripped breaker, a failed bake or broil heating element, a bad temperature sensor, or a safety device (thermal fuse or limit switch) opening the circuit. Start with power checks, then test the heating circuit parts.

• Confirm the oven is getting full power; electric wall ovens typically need a dedicated 240V circuit.
• Reset the household breaker by switching it fully OFF, then back ON.
• Make sure the oven is not in a timed delay or self-clean lockout state.
• Try both Bake and Broil; if one works and the other does not, the failed element is usually the issue.
• If the display is blank or the oven is completely dead, focus on power supply and safety cutoffs.

These parts are frequently involved when an oven will not heat or heats inconsistently:

• Shut off power at the breaker before removing panels or touching wiring.
• Inspect the bake and broil elements for blisters, cracks, or burn spots.
• Use a multimeter to check continuity on the element and sensor wiring.
• If the oven overheated recently, test the thermal fuse and limit switch for continuity.
• Check for loose or heat-damaged wire connections at the element terminals.

Helpful DIY references:

• How to tell if a fuse is blown
• How to use a multimeter to test electrical parts video

A wall oven that will not heat is usually a simple open circuit (element, fuse, switch, or wiring). Finding the exact open point prevents replacing good parts and helps restore safe, reliable temperature control.

Last updated: February 2026
