Model # MAVT754EWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MAVT754EWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

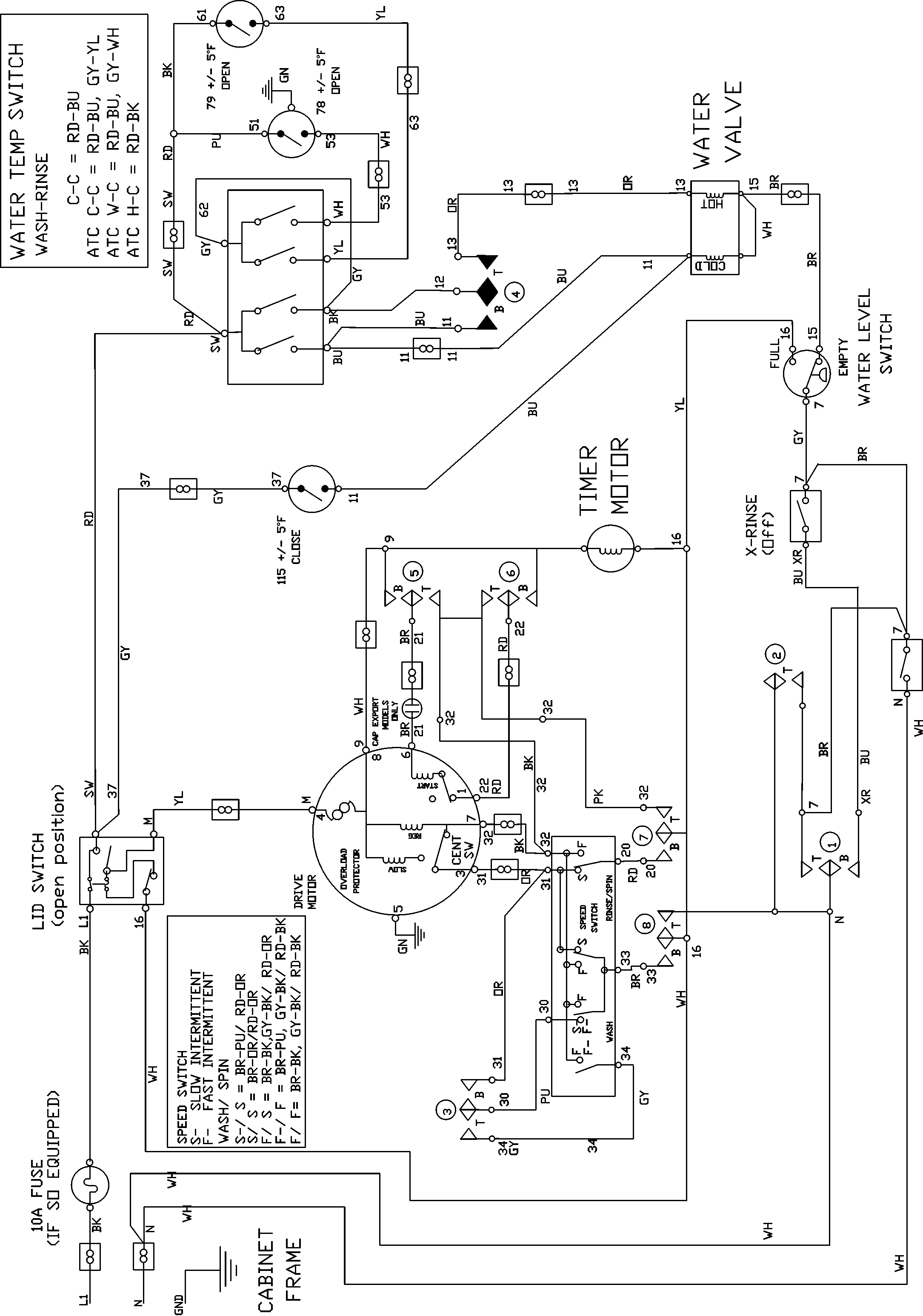

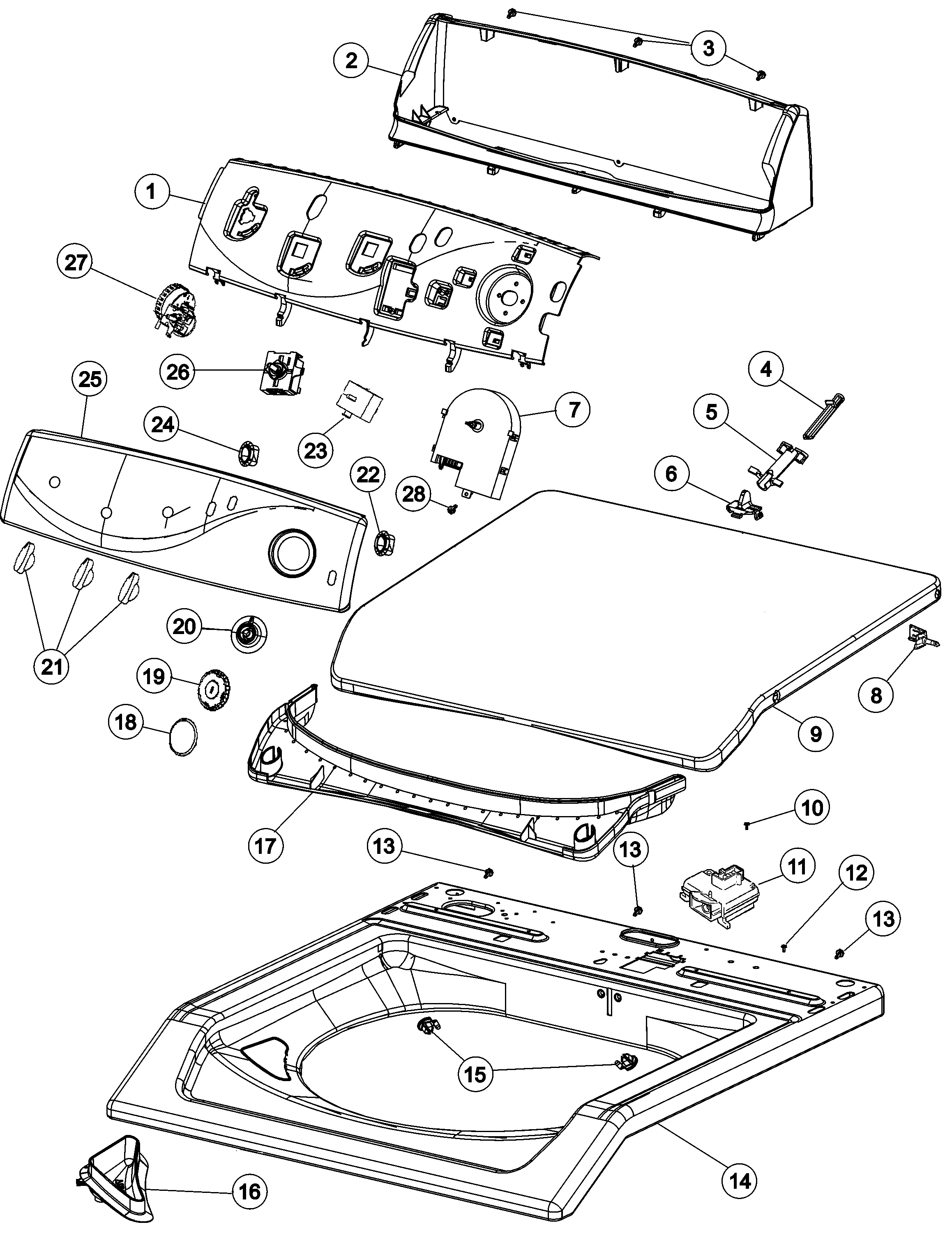

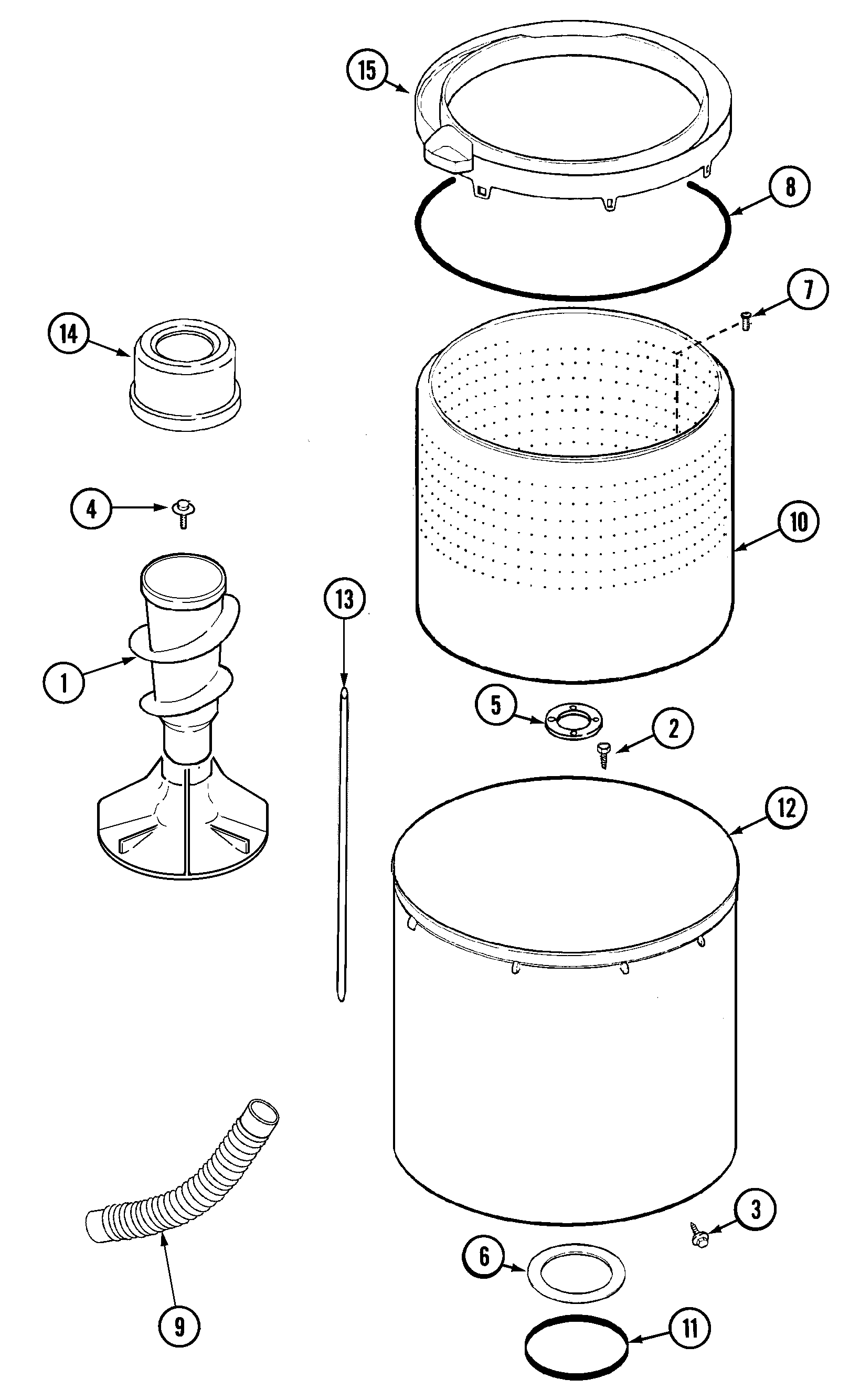

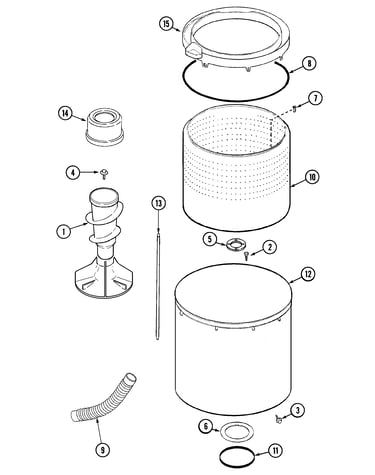

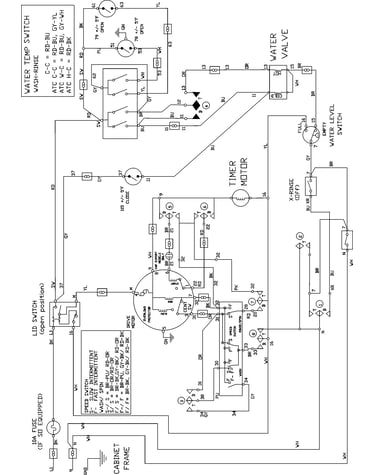

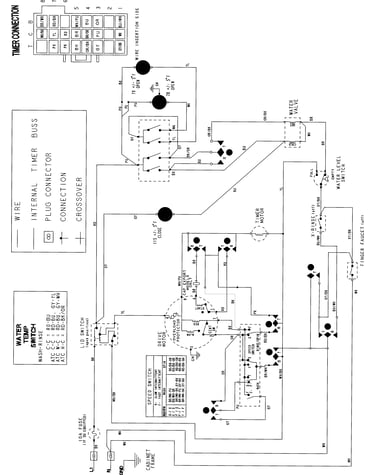

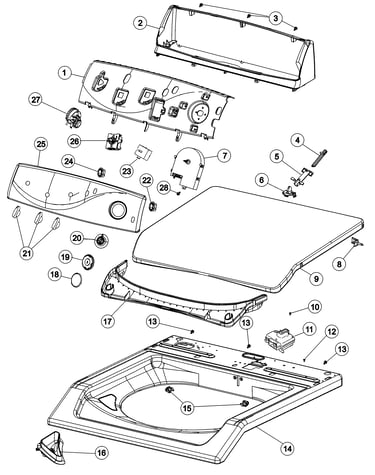

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Hose Clamp 22002853
#13

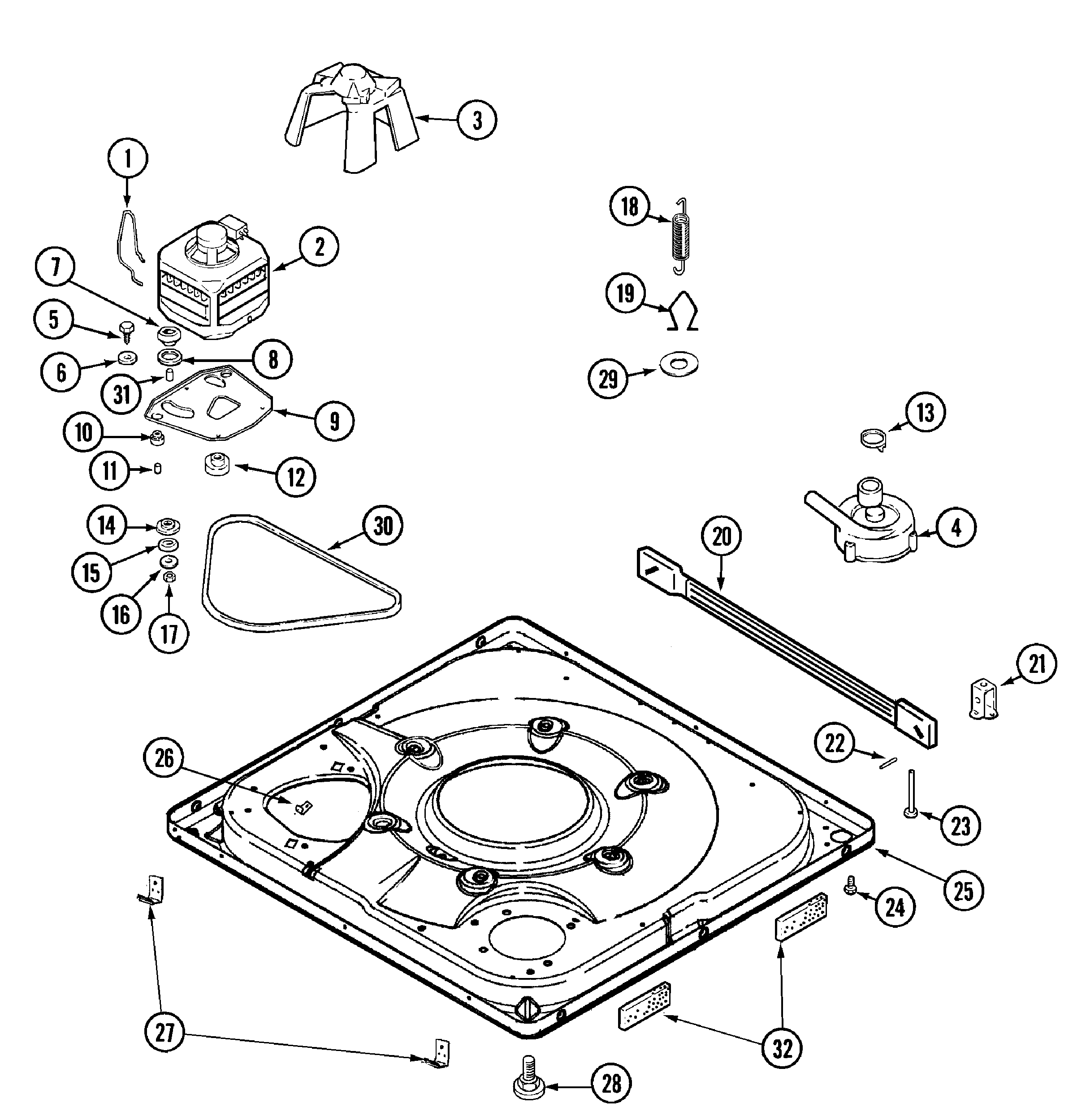

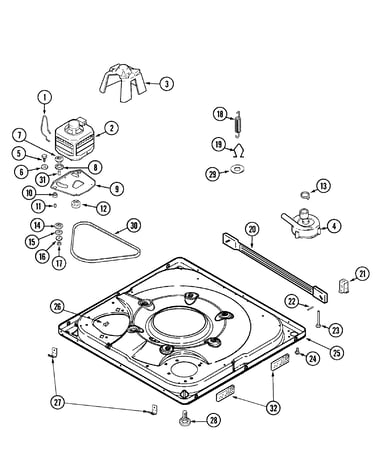

Base diagram

Hose clamp

Part #22002853

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22002853. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Drive Belt 22003483
#30

Base diagram

Washer drive belt

Part #22003483

Replaced by #WP22003483

?
Manufacturer substitution
This part replaces 22003483. Substitute parts can look different from the original.
BEST SELLER
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Inlet Hose 33-7891
#13

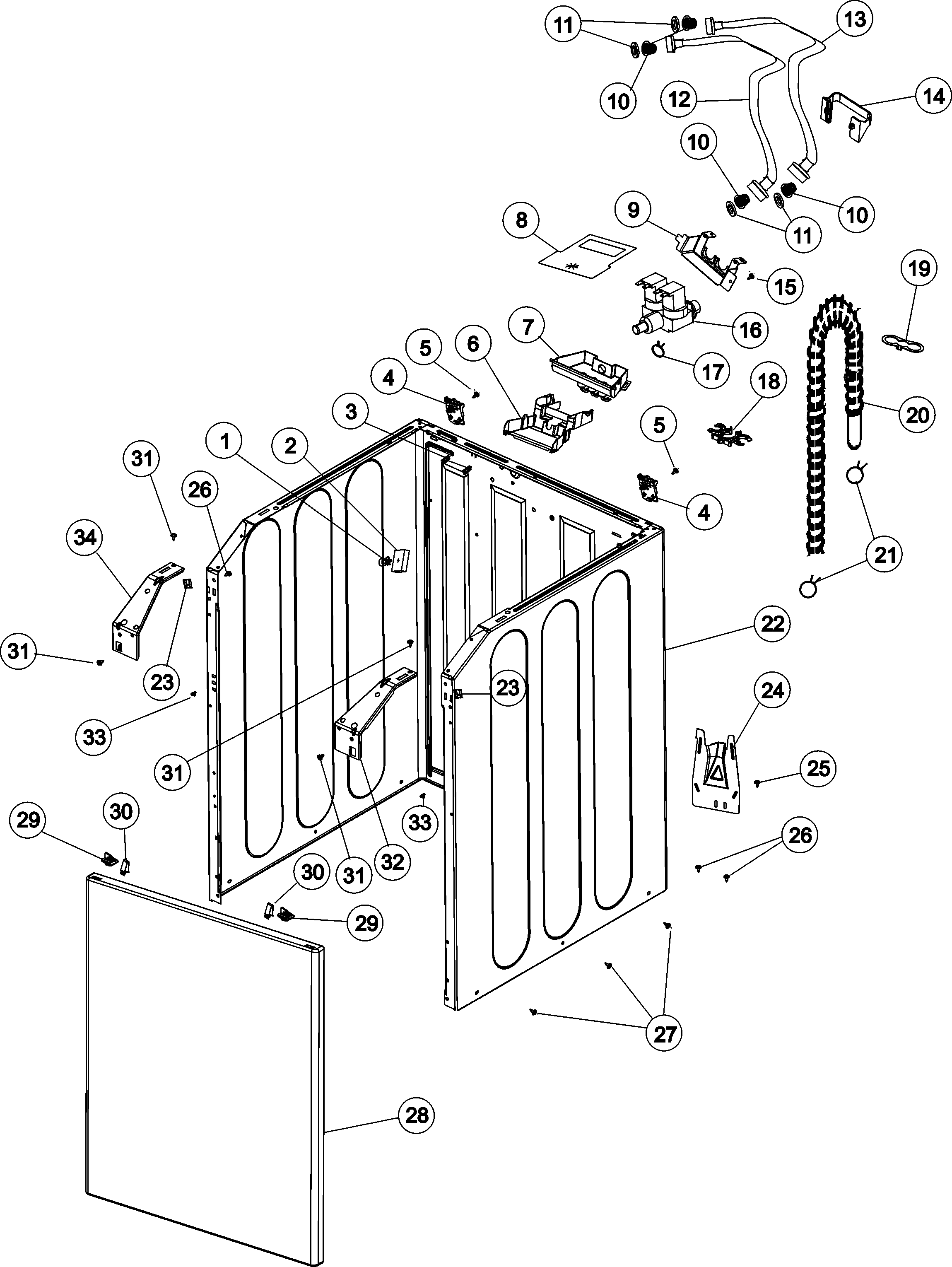

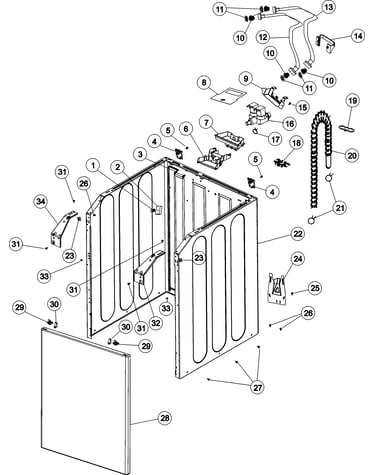

Cabinet diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Washer Drive Motor 21001506
#2A

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$136.02 |
8% OFF Phone Price : $148.02
In Stock
Pulley 22004297
#2B

Base diagram

Pulley

Part #22004297

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
BEST SELLER
$136.02 |
8% OFF Phone Price : $148.02
In Stock
Washer Drive Motor 21001950
#2

Base diagram

Washer drive motor

Part #21001950

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001950. Substitute parts can look different from the original.
BEST SELLER
$136.02 |
8% OFF Phone Price : $148.02
In Stock
Snubber 21001161
#22

Transmission diagram

Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Washer Suspension Spring 21001598
#18

Base diagram

Washer suspension spring

Part #21001598

Replaced by #WP21001598

?
Manufacturer substitution
This part replaces 21001598. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw, Serra 22003817
Screw, serra

Part #22003817

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22003817. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw 22002019
#3A

Base diagram

Screw

Part #22002019

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 22002019. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
