Model # 25A-258J766 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt 25A-258J766 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Lawn & Garden Equipment Hex Bolt, 3/8-24 X 1-1/2-in (replaces 910-1044) 710-1044
#38

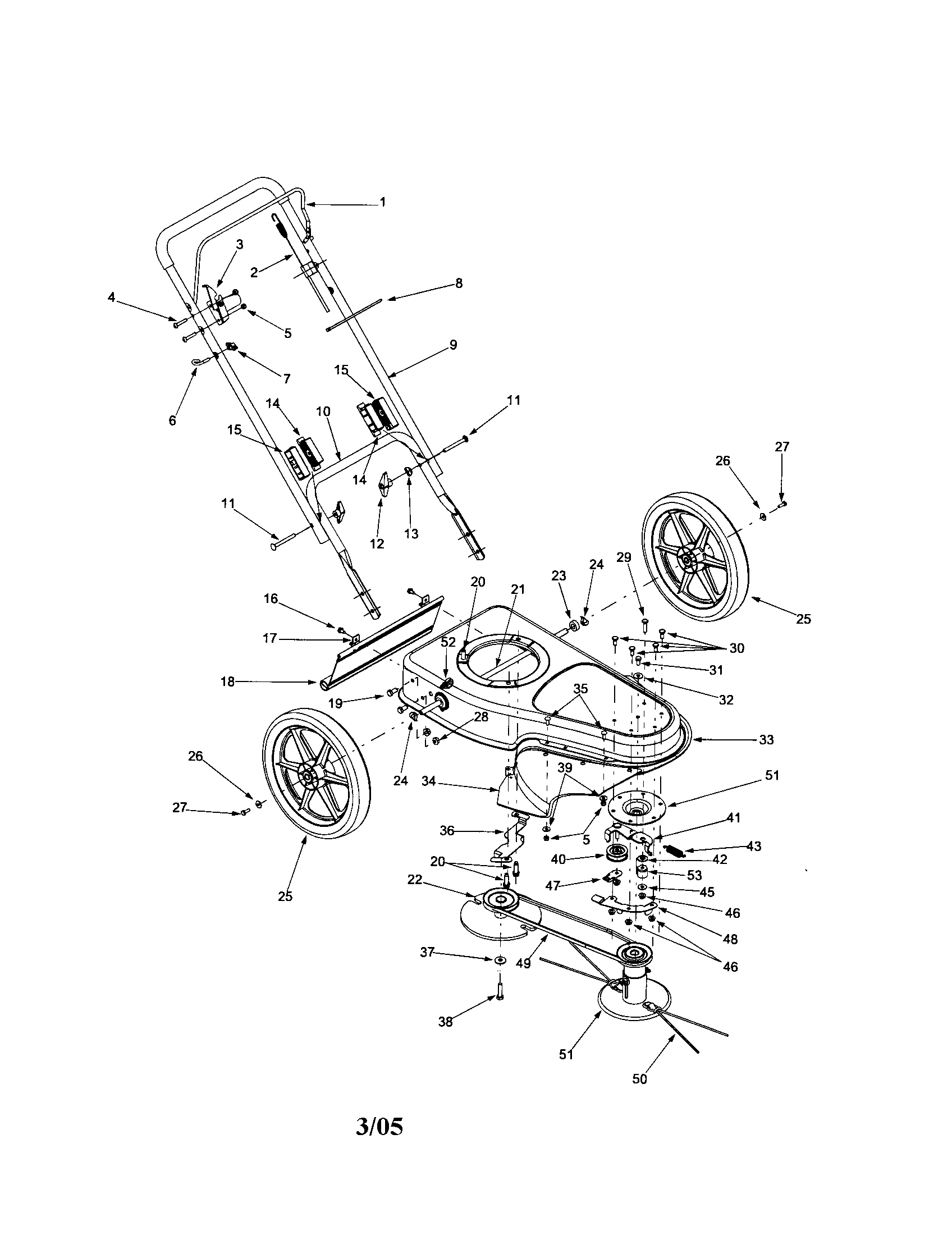

22" string trimmer mower diagram

Lawn & garden equipment hex bolt, 3/8-24 x 1-1/2-in (replaces 910-1044)

Part #710-1044

BEST SELLER
This item is not returnable
$3.20
50% OFF MSRP : $6.40
In Stock
Knob Wing Nut 720-0284
#12

22" string trimmer mower diagram

Knob wing nut

Part #720-0284

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-0284. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.77
48% OFF MSRP : $11.00
In Stock
Cable Tie 726-0240
#8

22" string trimmer mower diagram

Cable tie

Part #726-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 726-0240. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn & Garden Equipment Hex Screw 710-3015
#27

22" string trimmer mower diagram

Lawn & garden equipment hex screw

Part #710-3015

This item is not returnable
$5.12
16% OFF Phone Price : $6.12
In Stock
Lawn & Garden Equipment Nut 712-0324
#5

22" string trimmer mower diagram

Lawn & garden equipment nut

Part #712-0324

This item is not returnable
$4.72
17% OFF Phone Price : $5.72
In Stock
Lawn & Garden Equipment Screw 710-0502A
#20

22" string trimmer mower diagram

Lawn & garden equipment screw

Part #710-0502A

In Stock
Handle Control 747-0824
#1

22" string trimmer mower diagram

Handle control

Part #747-0824

Replaced by #747-0824B-0637

?
Manufacturer substitution
This part replaces 747-0824. Substitute parts can look different from the original.
$71.88
13% OFF MSRP : $83.00
In Stock
Clutch Cable 746-1116A
#2

22" string trimmer mower diagram

Clutch cable

Part #746-1116A

Replaced by #946-1116A

?
Manufacturer substitution
This part replaces 746-1116A. Substitute parts can look different from the original.
In Stock
Lawn & Garden Equipment Flat Washer 736-0371
#45

22" string trimmer mower diagram

Lawn & garden equipment flat washer

Part #736-0371

This item is not returnable
In Stock
Lawn & Garden Equipment Flange Lock Nut 712-3004A
#46

22" string trimmer mower diagram

Lawn & garden equipment flange lock nut

Part #712-3004A

This item is not returnable
$4.92
17% OFF Phone Price : $5.92
In Stock
