Whirlpool W5TXEWFWB00 refrigerator Parts
Here are the diagrams and repair parts for Whirlpool W5TXEWFWB00 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM

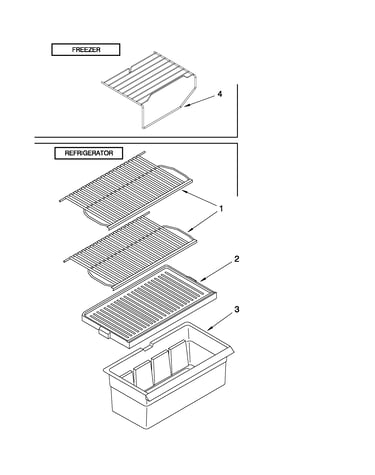

Browse Parts for W5TXEWFWB00 Refrigerators

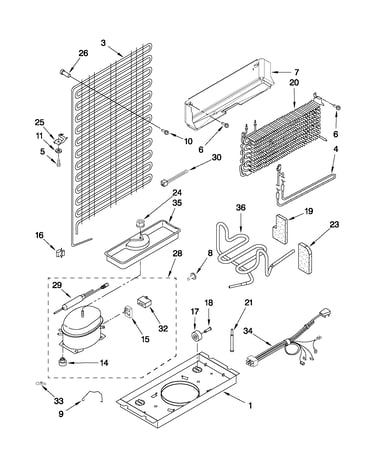

Unit parts diagram
Refrigerator Uv Filter Dryer
Part #W10143759Replaced by #WPW10143759
Manufacturer substitutionThis part replaces W10143759. Substitute parts can look different from the original.In Stock$22.1621% OFF Phone Price : $28.16
Qty

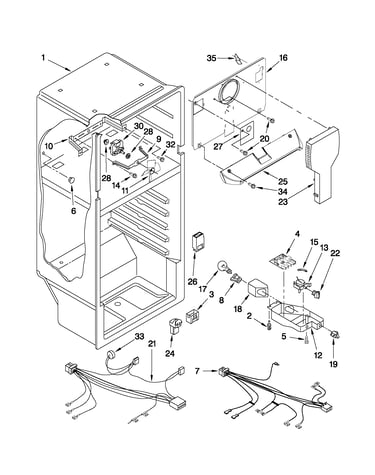

Liner parts diagram
Refrigerator Defrost Bi-metal
Part #2266066Replaced by #WPW10225581
Manufacturer substitutionThis part replaces 2266066. Substitute parts can look different from the original.In Stock$33.3815% OFF Phone Price : $39.38QtyRefrigerator Run Capacitor
Part #2264017Replaced by #WPW10662129
Manufacturer substitutionThis part replaces 2264017. Substitute parts can look different from the original.In Stock$43.7412% OFF Phone Price : $49.74QtyLiner parts diagram
Refrigerator Evaporator Fan Motor
Part #2315539Replaced by #WP2315539
Manufacturer substitutionThis part replaces 2315539. Substitute parts can look different from the original.In Stock$52.0210% OFF Phone Price : $58.02QtyUnit parts diagram
Refrigerator Compressor
Part #W10164016Replaced by #W10233960
Manufacturer substitutionThis part replaces W10164016. Substitute parts can look different from the original.In Stock$357.09$12.00 OFF Phone Price : $369.09QtyCabinet parts diagram
Refrigerator Washer
Part #487576Replaced by #WP487576

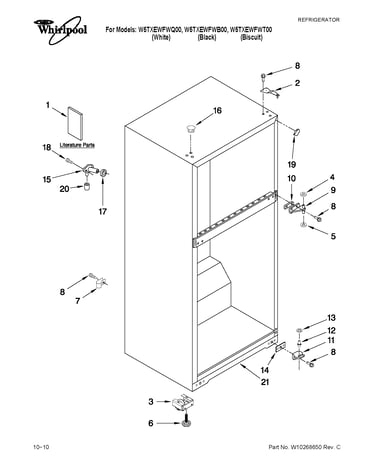

Manufacturer substitutionThis part replaces 487576. Substitute parts can look different from the original.In Stock$7.3912% OFF Phone Price : $8.39QtyCabinet parts diagram
Refrigerator Screw
Part #2262176Replaced by #WP488729
Manufacturer substitutionThis part replaces 2262176. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyOptional parts (not included) diagram
Spray Paint (white)
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyCabinet parts diagram
Washer
Part #489341Replaced by #WP489467

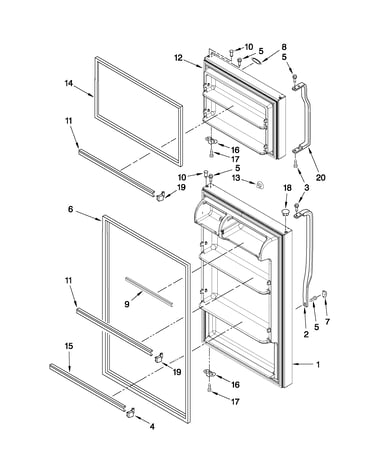

Manufacturer substitutionThis part replaces 489341. Substitute parts can look different from the original.In Stock$8.7110% OFF Phone Price : $9.71QtyDoor parts diagram
Refrigerator Door Shelf Trim End Cap
Part #2156003Replaced by #WP2156003
Manufacturer substitutionThis part replaces 2156003. Substitute parts can look different from the original.In Stock$9.609% OFF Phone Price : $10.60Qty
