Homelite
Gas Chainsaw

Model # SXL-AO-UT-10045C Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite SXL-AO-UT-10045C chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

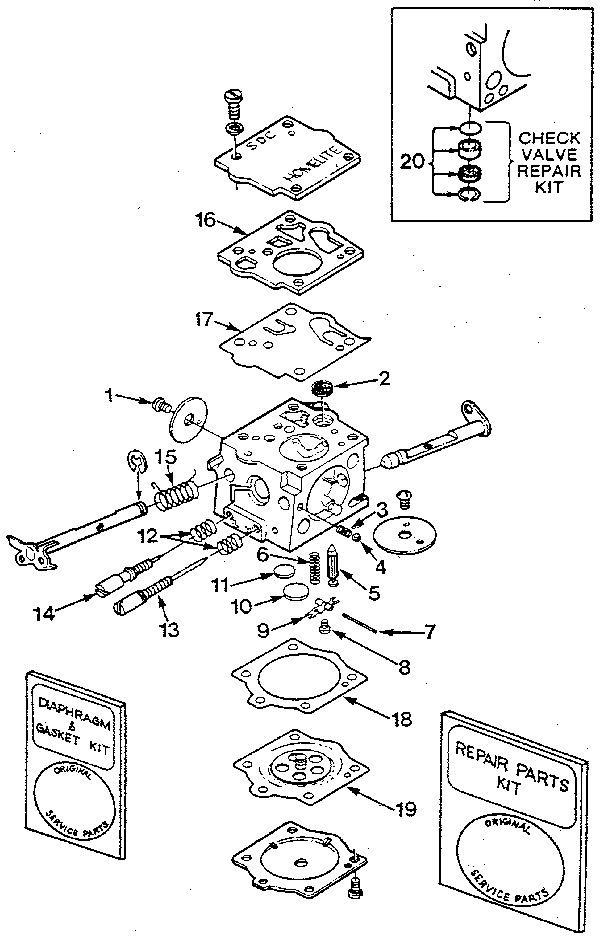

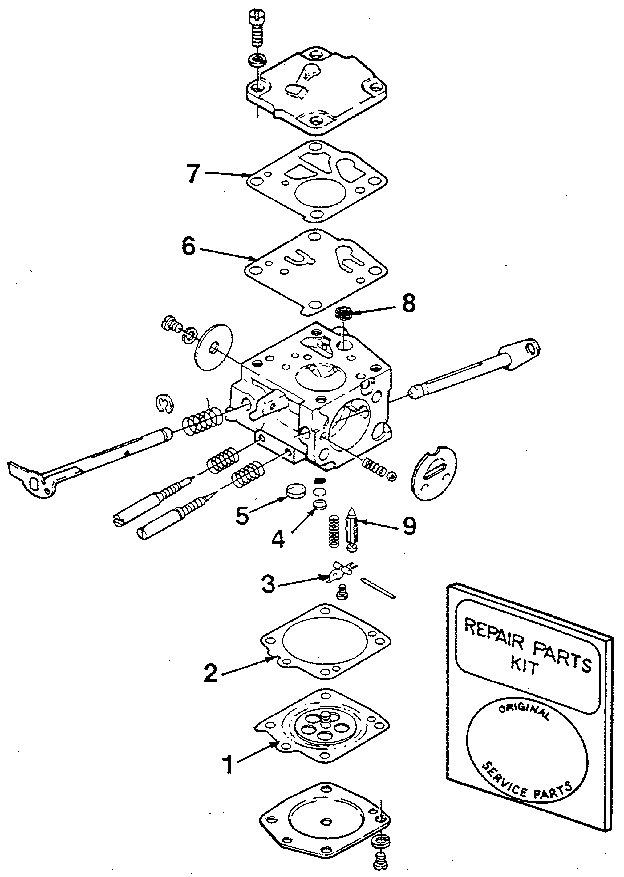

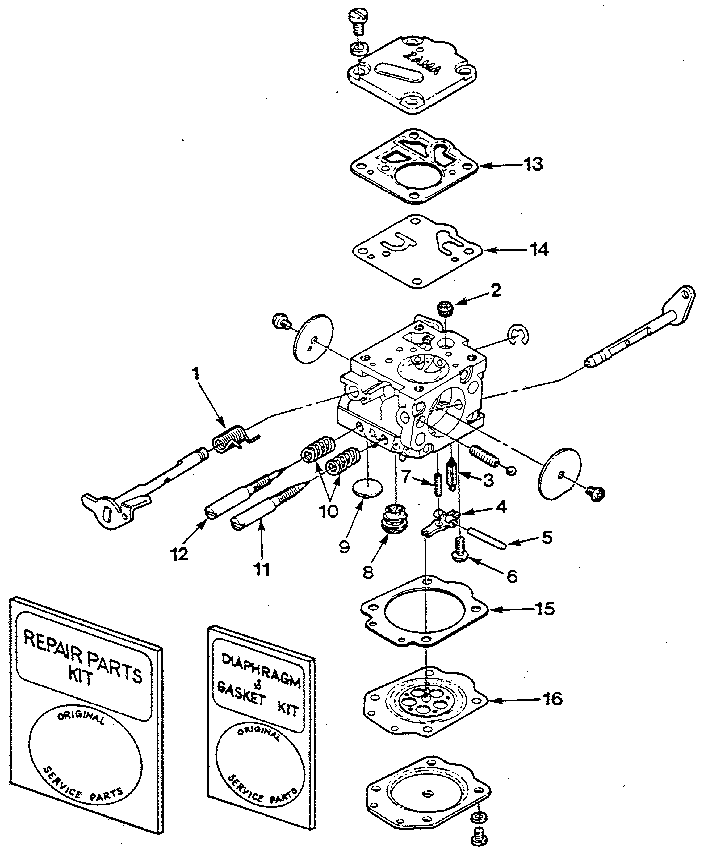

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |
Screw 82256-A
#15

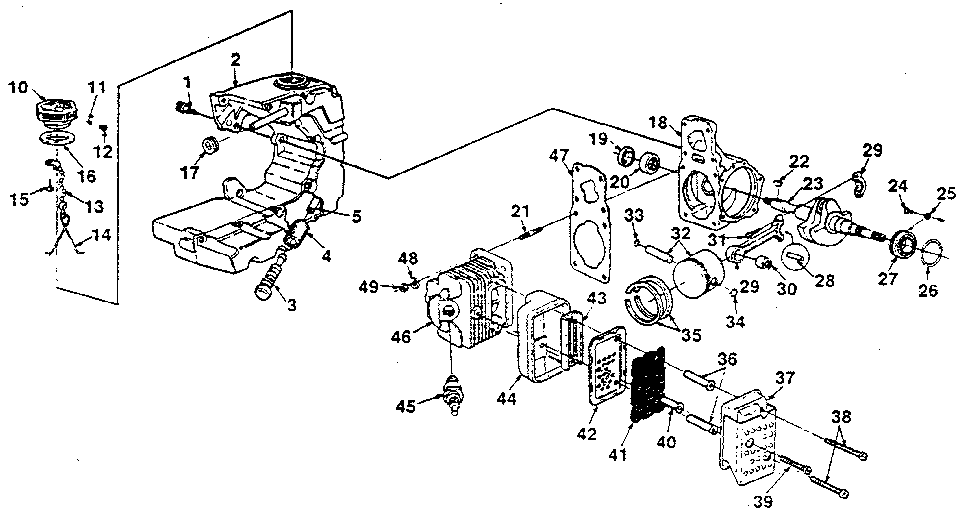

Figure 5 diagram

Screw

Part #82256-A

The manufacturer no longer makes this part, and there's no substitute part

Bushing 67177
#3

Figure 1 diagram

Bushing

Part #67177

The manufacturer no longer makes this part, and there's no substitute part

Screw 80921
#21

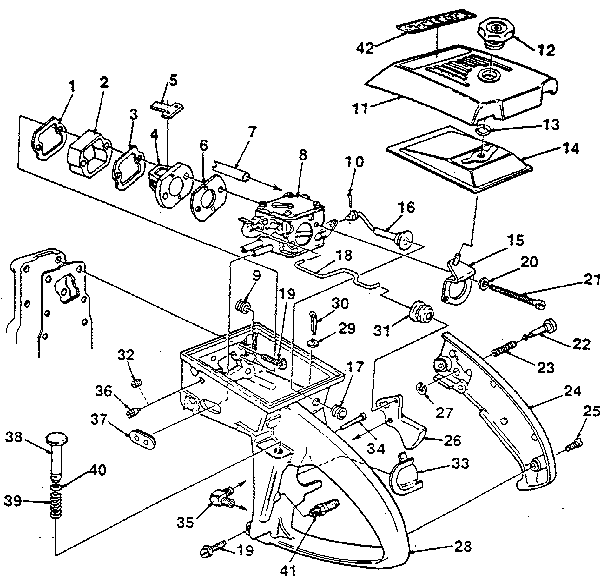

Figure 6 diagram

Screw

Part #80921

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59710
#14

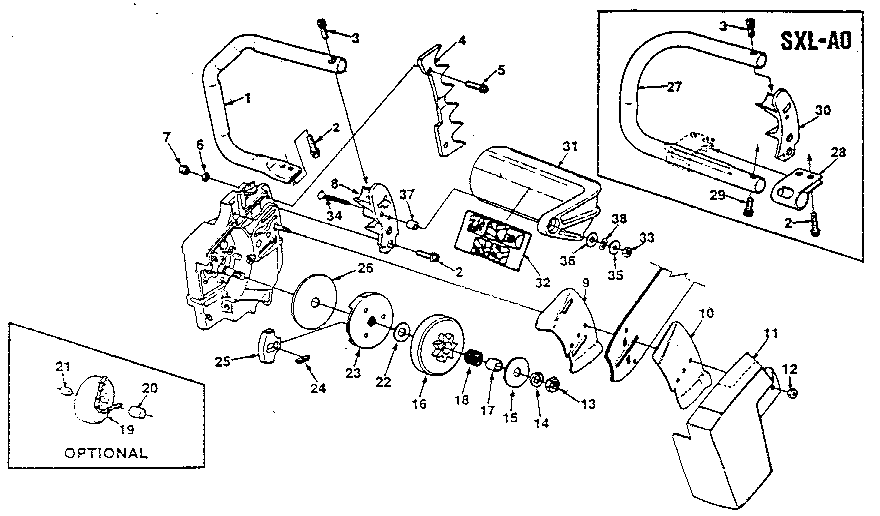

Figure 4 diagram

Gasket

Part #59710

The manufacturer no longer makes this part, and there's no substitute part

Bumper Kit - Spiked (accessory) Includes Items 5-7 DA-59043
#4

Figure 3 diagram

Bumper kit - spiked (accessory) includes items 5-7

Part #DA-59043

The manufacturer no longer makes this part, and there's no substitute part

Shaft Seal 12282-A
#19

Figure 5 diagram

Shaft seal

Part #12282-A

The manufacturer no longer makes this part, and there's no substitute part

Spark Shield 93209
#33

Figure 6 diagram

Spark shield

Part #93209

The manufacturer no longer makes this part, and there's no substitute part

Decal 96990
Decal

Part #96990

The manufacturer no longer makes this part, and there's no substitute part

Plunger Spring A-93783
#38

Figure 6 diagram

Plunger spring

Part #A-93783

The manufacturer no longer makes this part, and there's no substitute part

Tool A-17146

#NI

All parts diagram

Tool

Part #A-17146

The manufacturer no longer makes this part, and there's no substitute part
