How to replace a chainsaw carburetor

How to replace a chainsaw carburetor

This DIY chainsaw repair guide explains how to replace a chainsaw carburetor. The carburetor mixes air and gas, which ignites in the cylinder to power the engine. If the engine won’t start when the tank is full of fresh fuel, test the carburetor by removing the air filter and pouring about a teaspoon of fuel into the carburetor. Pull the starter rope. If the engine starts and then quickly dies, the carburetor is likely the problem. Replace the carburetor using the manufacturer-approved chainsaw part.

Use these steps to replace the carburetor in Craftsman, Poulan, McCulloch, Snapper, Husqvarna, Troybilt and MTD chainsaws.

If you prefer rebuilding the carburetor, How to Rebuild a Chainsaw Carburetor shows how.

Quick links
Tools required
Allen wrench
7/16-inch socket driver
Needle-nose pliers
Approved fuel container
Rags
Work gloves
Safety glasses
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less

Instructions

  1. 01.

    Drain the fuel tank

    In a well-ventilated area, remove the fuel cap and the drain the tank into an approved storage container.

    PHOTO: Open the fuel cap.

    PHOTO: Open the fuel cap.

  2. 02.

    Remove the cylinder shield

    Using an Allen wrench, remove the screws that hold the cylinder shield to the engine. Lift off the cylinder shield.

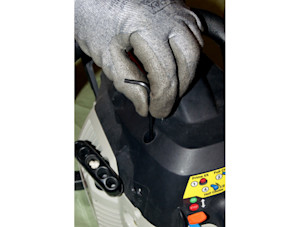

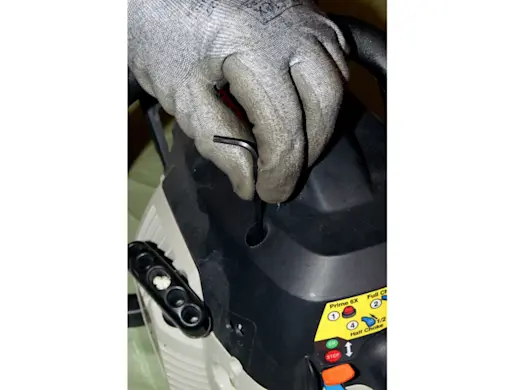

    PHOTO: Remove the screws that hold the cylinder shield.

    PHOTO: Remove the screws that hold the cylinder shield.

    PHOTO: Remove the cylinder shield.

    PHOTO: Remove the cylinder shield.

  3. 03.

    Disconnect the spark plug wire and remove the air filter

    Disconnect the wire from the spark plug. Pull the cover off the air filter housing and remove the filter.

    PHOTO: Disconnect the spark plug wire.

    PHOTO: Disconnect the spark plug wire.

    PHOTO: Remove the air filter cover.

    PHOTO: Remove the air filter cover.

    PHOTO: Remove the air filter.

    PHOTO: Remove the air filter.

  4. 04.

    Remove the carburetor mounting nuts

    Using a 7/16-inch socket, remove the two mounting nuts that secure the carburetor to the engine.

    PHOTO: Remove the mounting nuts.

    PHOTO: Remove the mounting nuts.

  5. 05.

    Detach the air filter housing

    Pull the air filter housing off the carburetor.

    PHOTO: Remove the air filter housing.

    PHOTO: Remove the air filter housing.

  6. 06.

    Disconnect the fuel lines

    Pull the carburetor away from the engine block. Be careful not to bend the throttle linkage or damage the gas lines. Use needle-nose pliers to detach the gas lines from the carburetor.

    Tip: For accurate reassembly, take digital photos of the throttle linkage on the carburetor and the gas line connections.
    PHOTO: Carefully pull the carburetor forward on the mounting studs

    PHOTO: Carefully pull the carburetor forward on the mounting studs

    PHOTO: Pull the fuel lines off of the carburetor.

    PHOTO: Pull the fuel lines off of the carburetor.

  7. 07.

    Remove the carburetor

    Disconnect the throttle linkage. Pull the carburetor completely off the mounting studs. Check the mounting gasket and replace it if necessary.

    PHOTO: Pull the carburetor off the mounting studs.

    PHOTO: Pull the carburetor off the mounting studs.

  8. 08.

    Install the new carburetor

    Connect the throttle linkage on the new carburetor. Slide the new carburetor onto the mounting studs. Connect the fuel lines.

  9. 09.

    Fasten the carburetor in place

    Slip the carburetor onto the mounting studs and push it into place. Position the air filter housing on the protruding studs.

    Replace the mounting nuts and tighten them to seal the gasket between the engine and the carburetor.

  10. 10.

    Reinstall the air filter cover and connect the spark plug

    Position the air filter on the housing and replace the cover. Reattach the spark plug wire.

  11. 11.

    Reinstall the cylinder shield

    Reinstall the cylinder shield on the chainsaw. Refill the fuel tank.
