Kenmore
Canister Vacuum

Model #1162645085 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Kenmore 1162645085 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 70 parts

    Vacuum Motor Safety Filter#22

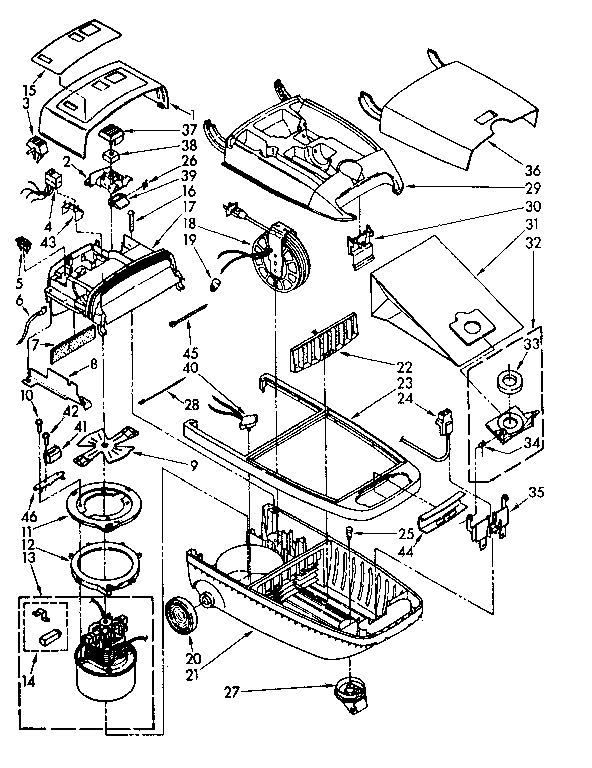

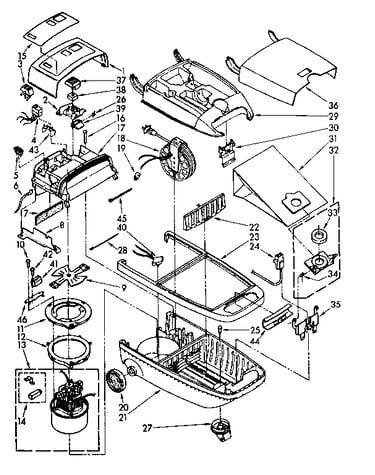

    Vacuum cleaner parts Diagram

    Filter

    Part #706061
    Replaced by #KS4152969
    ?
    Manufacturer substitution
    This part replaces 706061. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $16.19 |
    11% OFF
    Phone Price: $18.19
    Vacuum Bag Mount Assembly#32

    Vacuum cleaner parts Diagram

    Mounting bag

    Part #676246
    Replaced by #4369956
    ?
    Manufacturer substitution
    This part replaces 676246. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Contact Pin#6

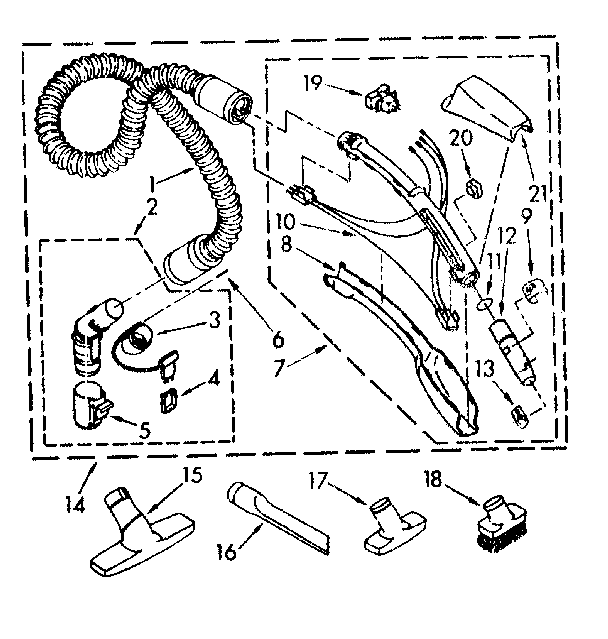

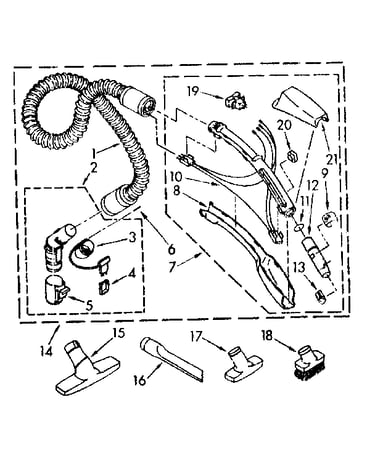

    Hose and attachment parts Diagram

    Contact pin

    Part #743337
    Replaced by #4150715
    ?
    Manufacturer substitution
    This part replaces 743337. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.49
    Vacuum Twist-On Wire Connector#19

    Vacuum cleaner parts Diagram

    Nut

    Part #596564
    Replaced by #KS4154460
    ?
    Manufacturer substitution
    This part replaces 596564. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.49
    Appliance Cable Tie#45

    Vacuum cleaner parts Diagram

    Cable tie

    Part #596702
    Replaced by #WPW10339879
    ?
    Manufacturer substitution
    This part replaces 596702. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.09 |
    28% OFF
    MSRP: $4.30
    Vacuum Upholstery Nozzle#17

    Hose and attachment parts Diagram

    Upholstery brush

    Part #4147115
    Replaced by #52651
    ?
    Manufacturer substitution
    This part replaces 4147115. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.99 |
    10% OFF
    Phone Price: $19.99
    Screw#42

    Vacuum cleaner parts Diagram

    Screw

    Part #681699

    The manufacturer no longer makes this part, and there's no substitute part

    Hose#14

    Hose and attachment parts Diagram

    Hose

    Part #4148331

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Beater Bar#15

    Hose and attachment parts Diagram

    Vacuum beater bar

    Part #747151

    The manufacturer no longer makes this part, and there's no substitute part

    Retainer#20

    Hose and attachment parts Diagram

    Retainer

    Part #747360

    The manufacturer no longer makes this part, and there's no substitute part
