Kenmore 9119332190 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119332190 electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

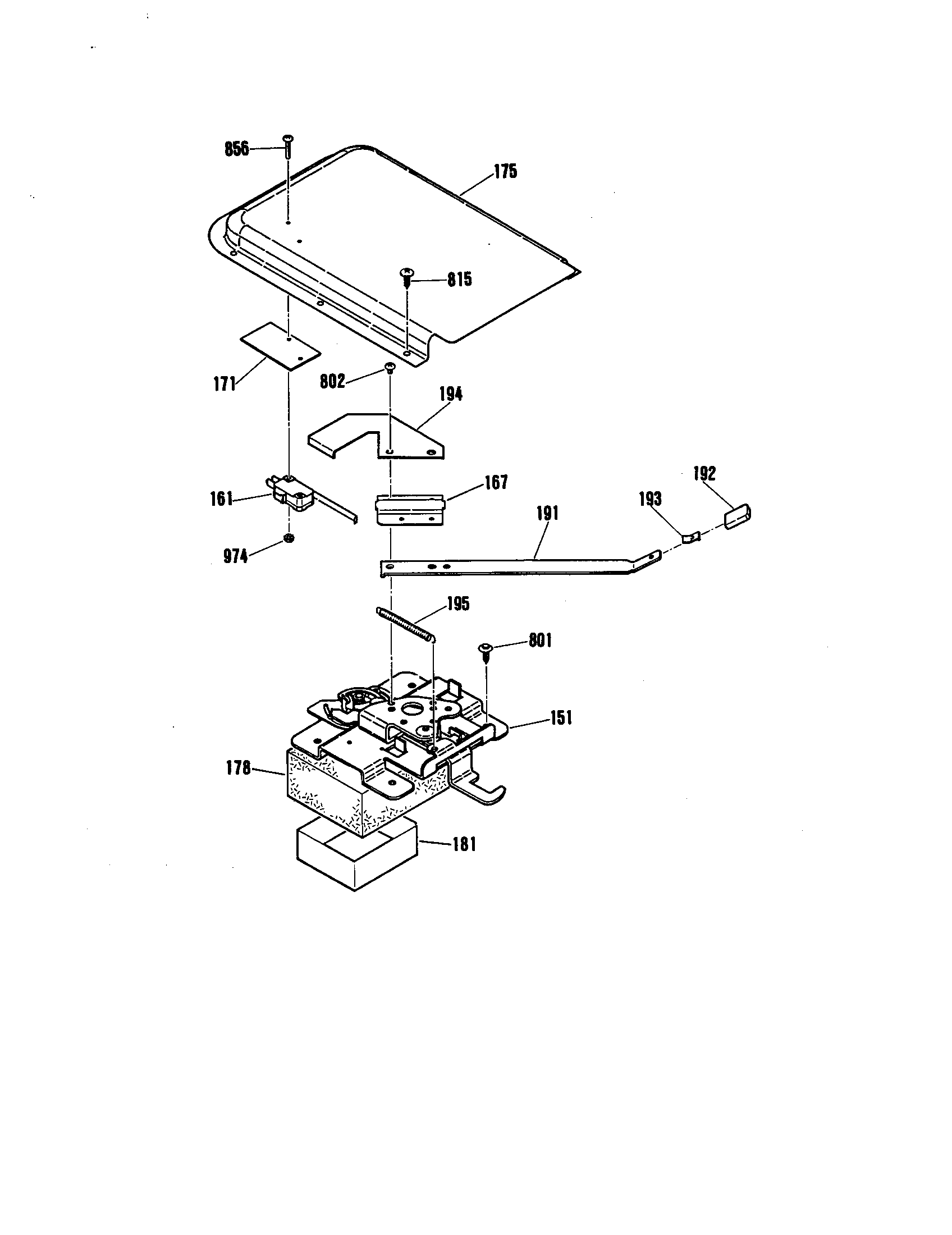

SELECT DIAGRAM
Browse Parts for 9119332190 Ranges

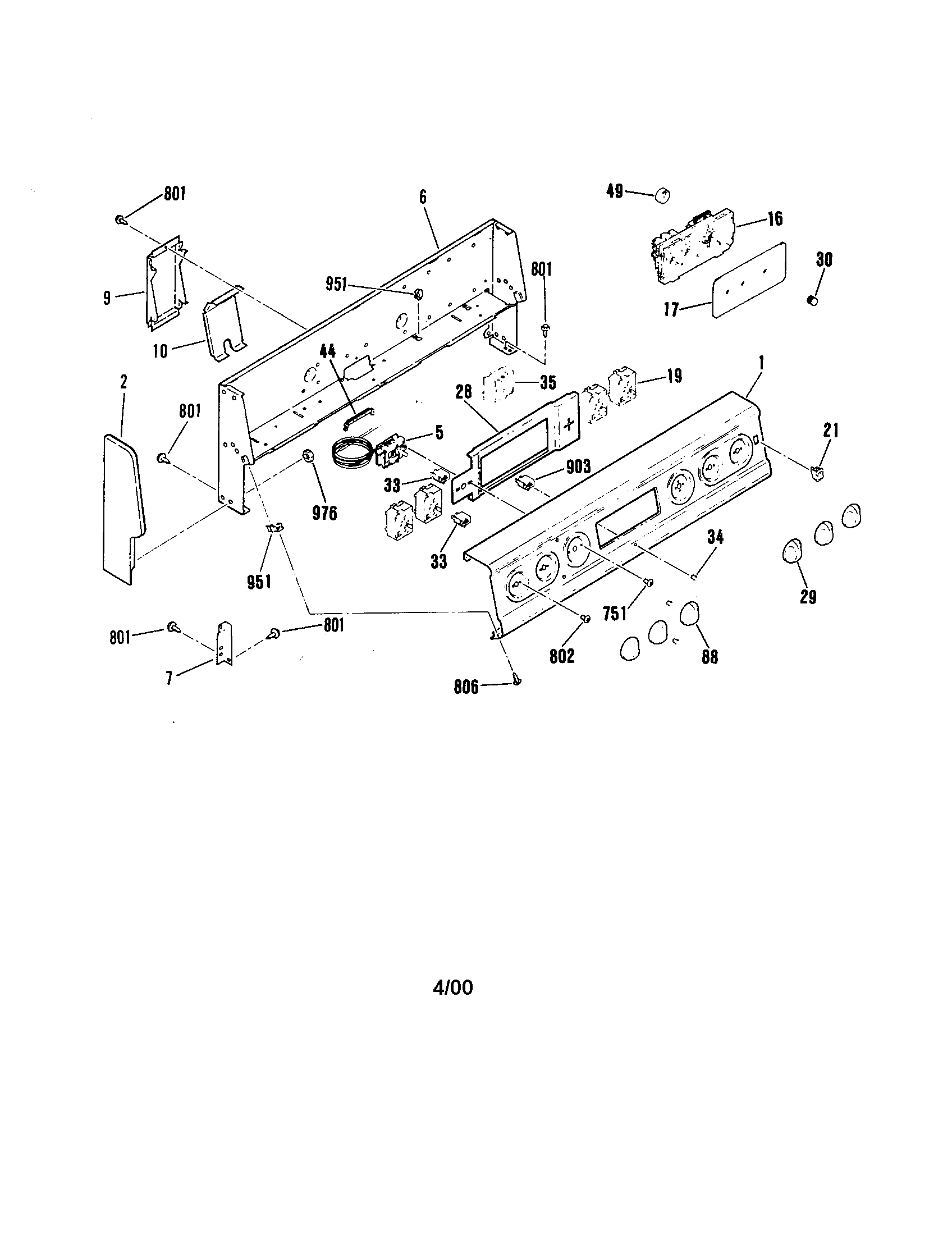

Backguard diagram
Grommet Strap
Part #WB06X0125Replaced by #WB6X125
Manufacturer substitutionThis part replaces WB06X0125. Substitute parts can look different from the original.In Stock$27.95
Qty

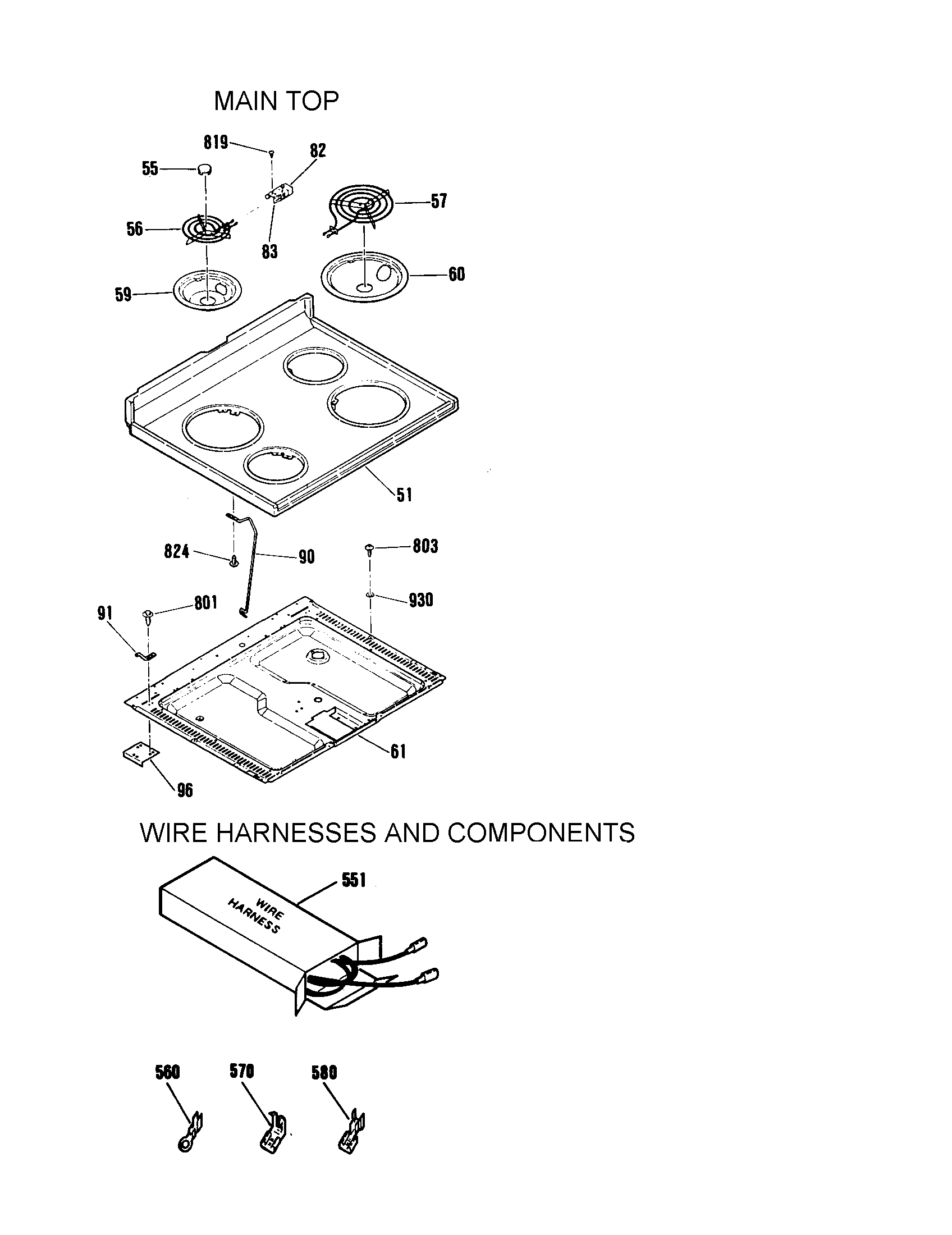

Maintop/wire harnesses/components diagram
Screw
Part #WB01X1291Replaced by #WB1X1132
Manufacturer substitutionThis part replaces WB01X1291. Substitute parts can look different from the original.In Stock$31.10QtyBody diagram
Body-side Ad
Part #WB63X0352Replaced by #WB63K5066

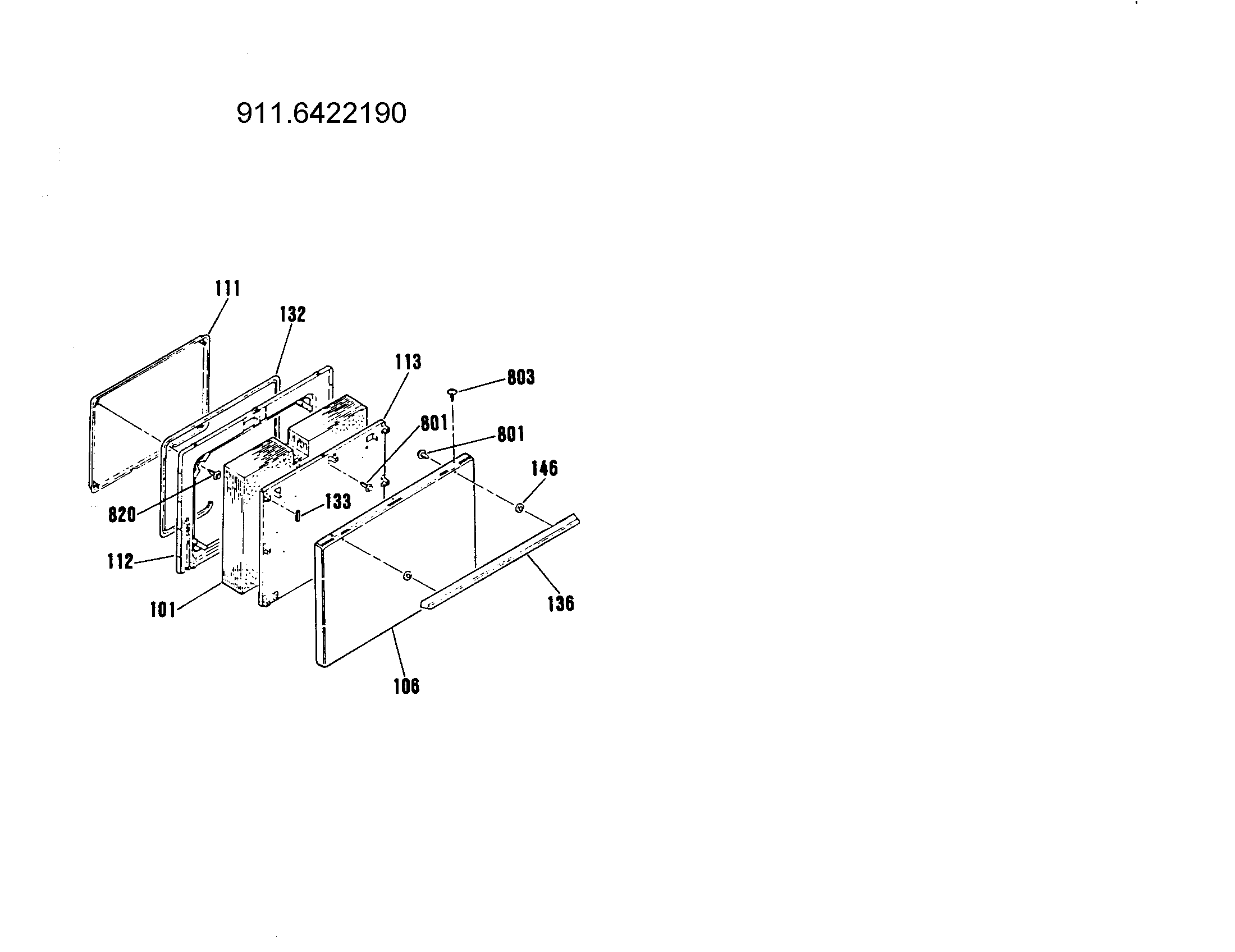

Manufacturer substitutionThis part replaces WB63X0352. Substitute parts can look different from the original.In Stock$133.24QtyFront panel diagram

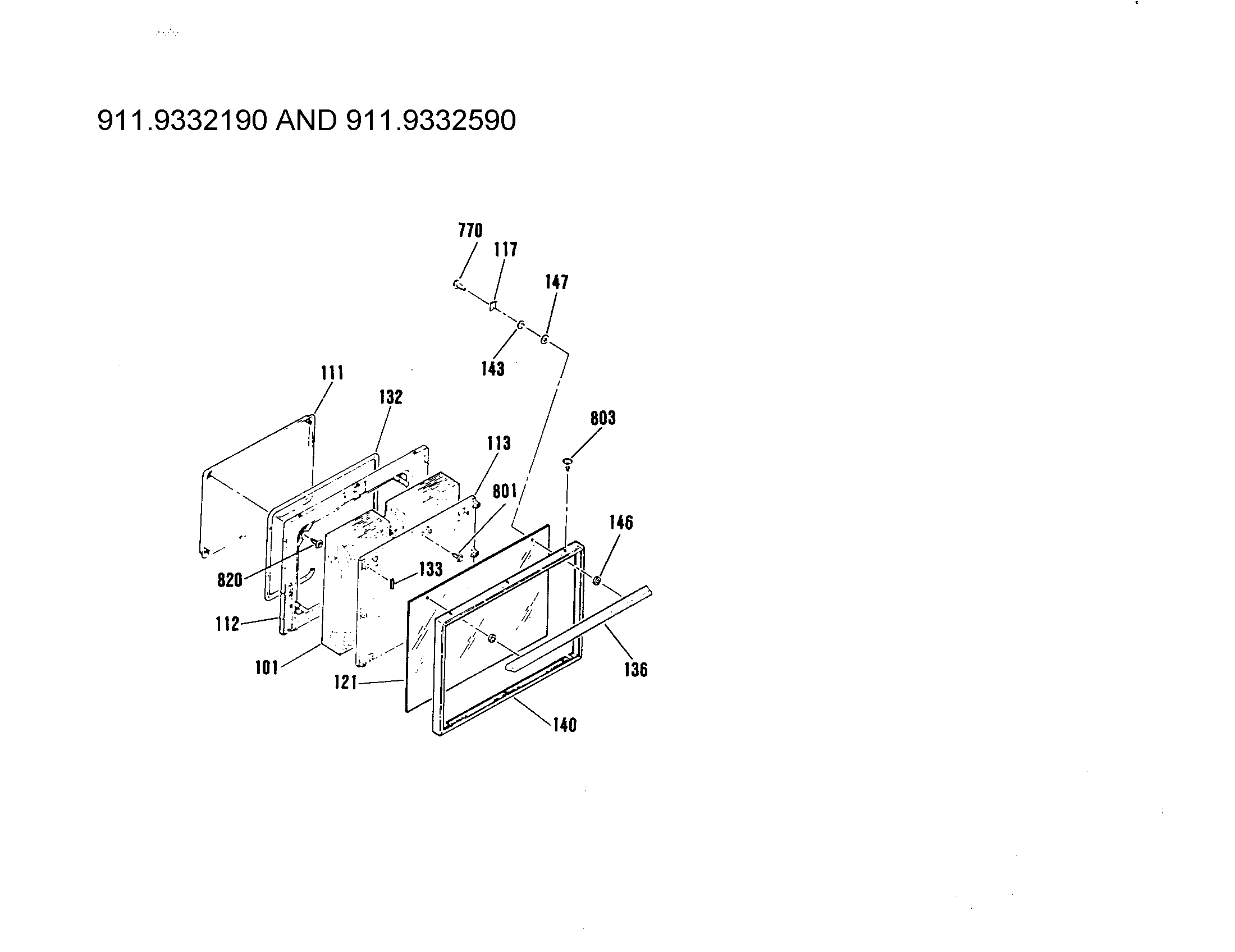

Dr Panel-wh
Part #WB56M0007Replaced by #WB56M7

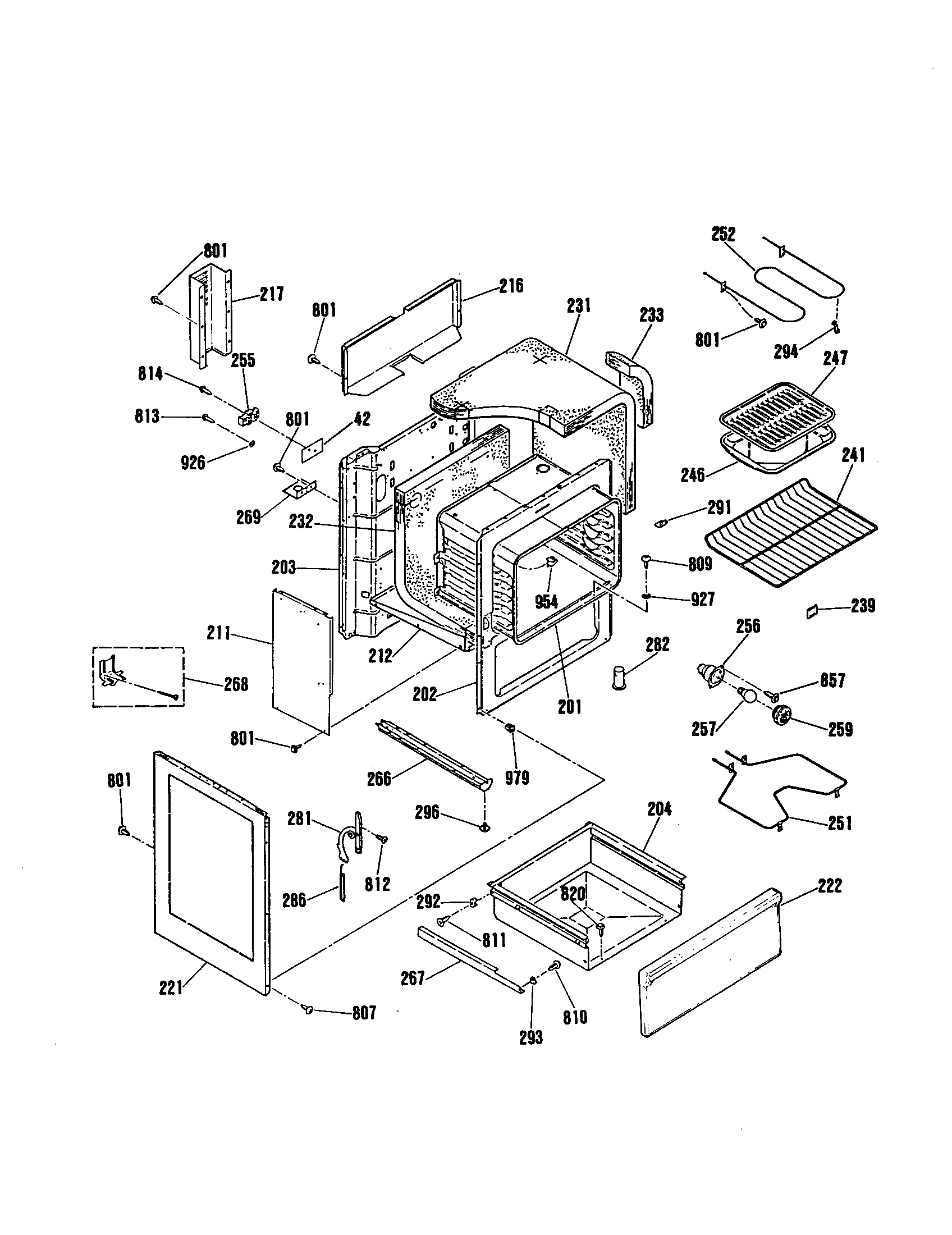

Manufacturer substitutionThis part replaces WB56M0007. Substitute parts can look different from the original.In Stock$98.24QtyBody diagram
Main
Part #WB63M0039Replaced by #WB63K5187
Manufacturer substitutionThis part replaces WB63M0039. Substitute parts can look different from the original.In Stock$156.42QtyBackguard diagram
Clock Dco
Part #WB11K5008Replaced by #WB19X10005
Manufacturer substitutionThis part replaces WB11K5008. Substitute parts can look different from the original.In Stock$126.0037% OFF Was : $199.85
QtyMaintop/wire harnesses/components diagram
Terminal Block
Part #WB17X0210Replaced by #330031
Manufacturer substitutionThis part replaces WB17X0210. Substitute parts can look different from the original.In Stock$10.0117% OFF Phone Price : $12.01QtyMaintop/wire harnesses/components diagram
Surf Unit 6"
Part #WB30X0254Replaced by #WB30X254
Manufacturer substitutionThis part replaces WB30X0254. Substitute parts can look different from the original.In Stock$58.379% OFF Phone Price : $64.37QtyBody diagram
Pwr Ring Hou
Part #WB17M0005Replaced by #WB17X5095
Manufacturer substitutionThis part replaces WB17M0005. Substitute parts can look different from the original.In Stock$83.117% OFF Phone Price : $89.11QtyMaintop/wire harnesses/components diagram
Surf Unit 8"
Part #WB30X0253Replaced by #WB30X253
Manufacturer substitutionThis part replaces WB30X0253. Substitute parts can look different from the original.In Stock$71.338% OFF Phone Price : $77.33Qty
