Bosch HGS235UC/01 freestanding range

Bosch HGS235UC/01 freestanding range Parts

Here are the diagrams and repair parts for Bosch HGS235UC/01 freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HGS235UC/01 Ranges

  • Igniter for Bosch HGS235UC/01 - Part 492431

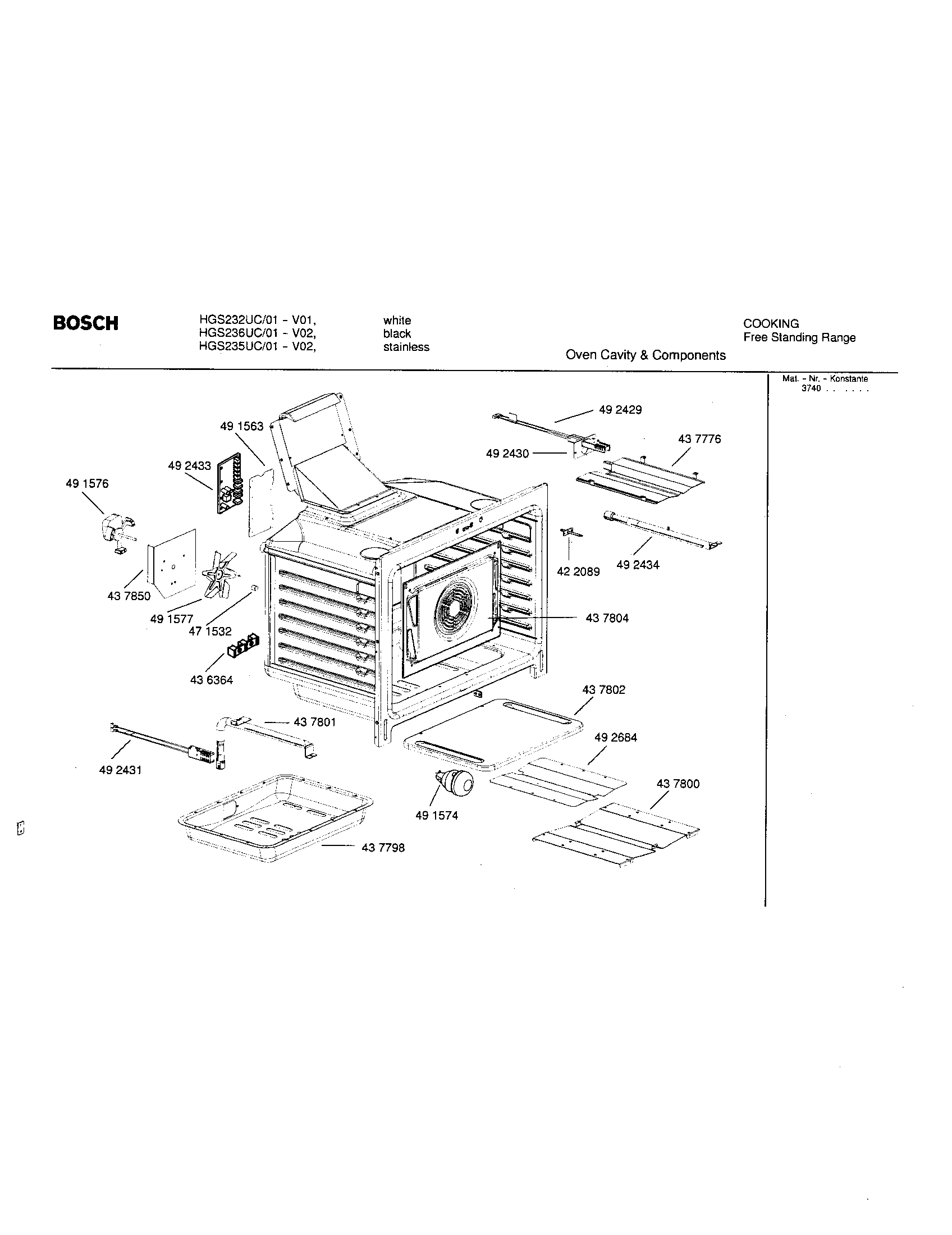

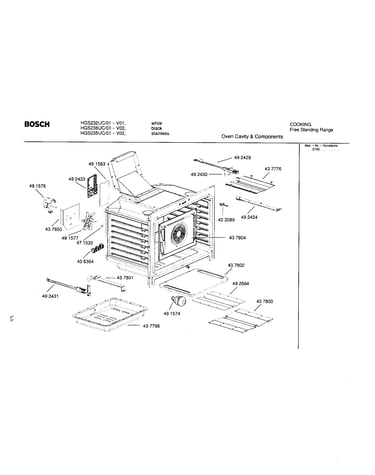

    Oven cavity components diagram

    Igniter

    Part #492431

    The manufacturer no longer makes this part, and there's no substitute part

  • Range Surface Burner Igniter And Orifice Holder for Bosch HGS235UC/01 - Part 00423485

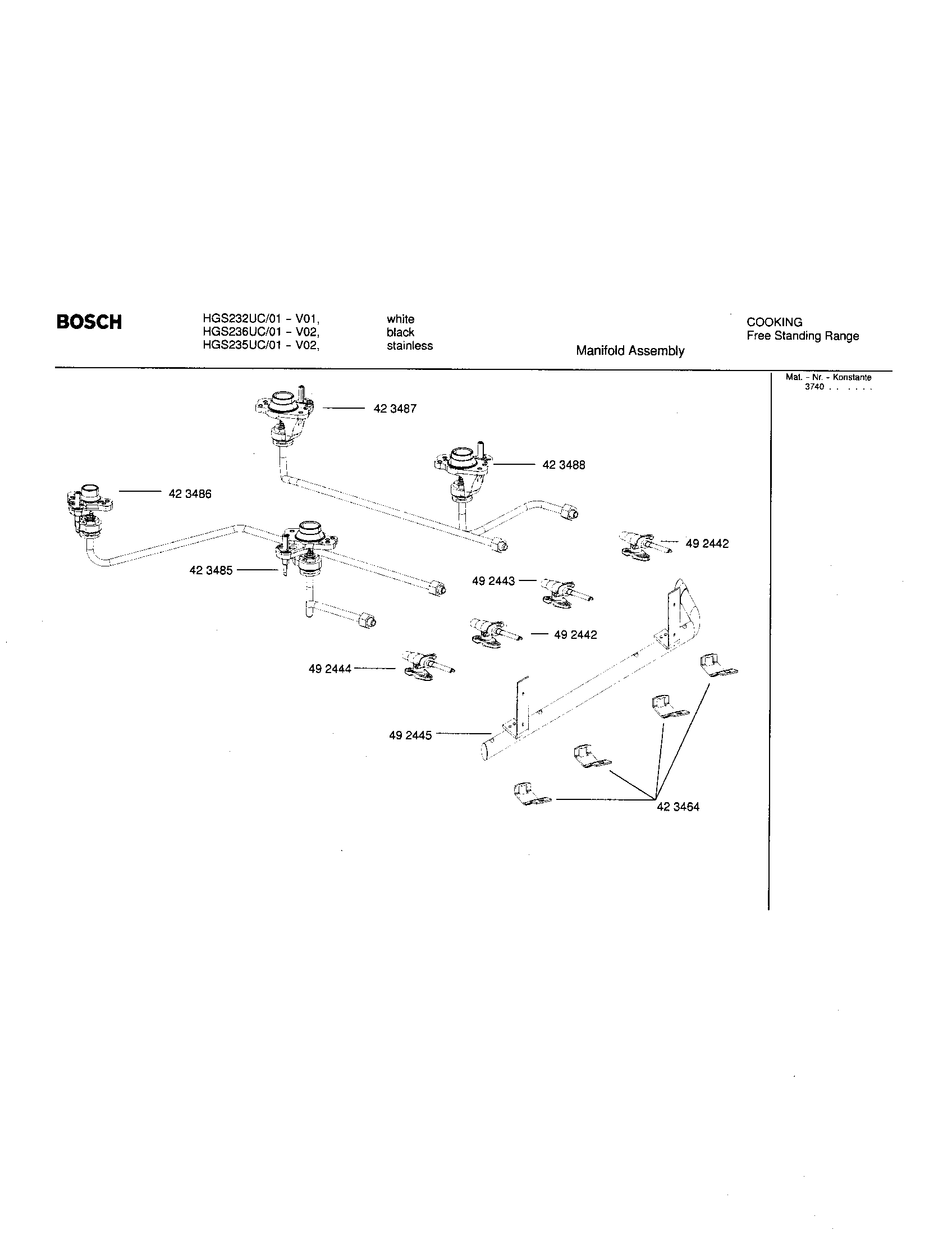

    Manifold assembly diagram

    Jet Holder

    Part #423485

    Replaced by #00423485

    Info Icon
    Manufacturer substitution
    This part replaces 423485. Substitute parts can look different from the original.
    In Stock
    $110.00
    Minus Item
    Qty
    Plus Item
  • Range Broil Igniter for Bosch HGS235UC/01 - Part 00492429

    Oven cavity components diagram

    Range Oven Broil Igniter

    Part #492429

    Replaced by #00492429

    Info Icon
    Manufacturer substitution
    This part replaces 492429. Substitute parts can look different from the original.
    In Stock
    $140.12
    8% OFF Phone Price : $152.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Tube And Orifice for Bosch HGS235UC/01 - Part 00423486

    Manifold assembly diagram

    Jet Holder

    Part #423486

    Replaced by #00423486

    Info Icon
    Manufacturer substitution
    This part replaces 423486. Substitute parts can look different from the original.
    In Stock
    $120.55
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for Bosch HGS235UC/01 - Part 00415045

    Oven cavity components diagram

    Lamp Assembly

    Part #491574

    Replaced by #00415045

    Info Icon
    Manufacturer substitution
    This part replaces 491574. Substitute parts can look different from the original.
    In Stock
    $68.00
    18% OFF Was : $82.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Burner for Bosch HGS235UC/01 - Part 00423446

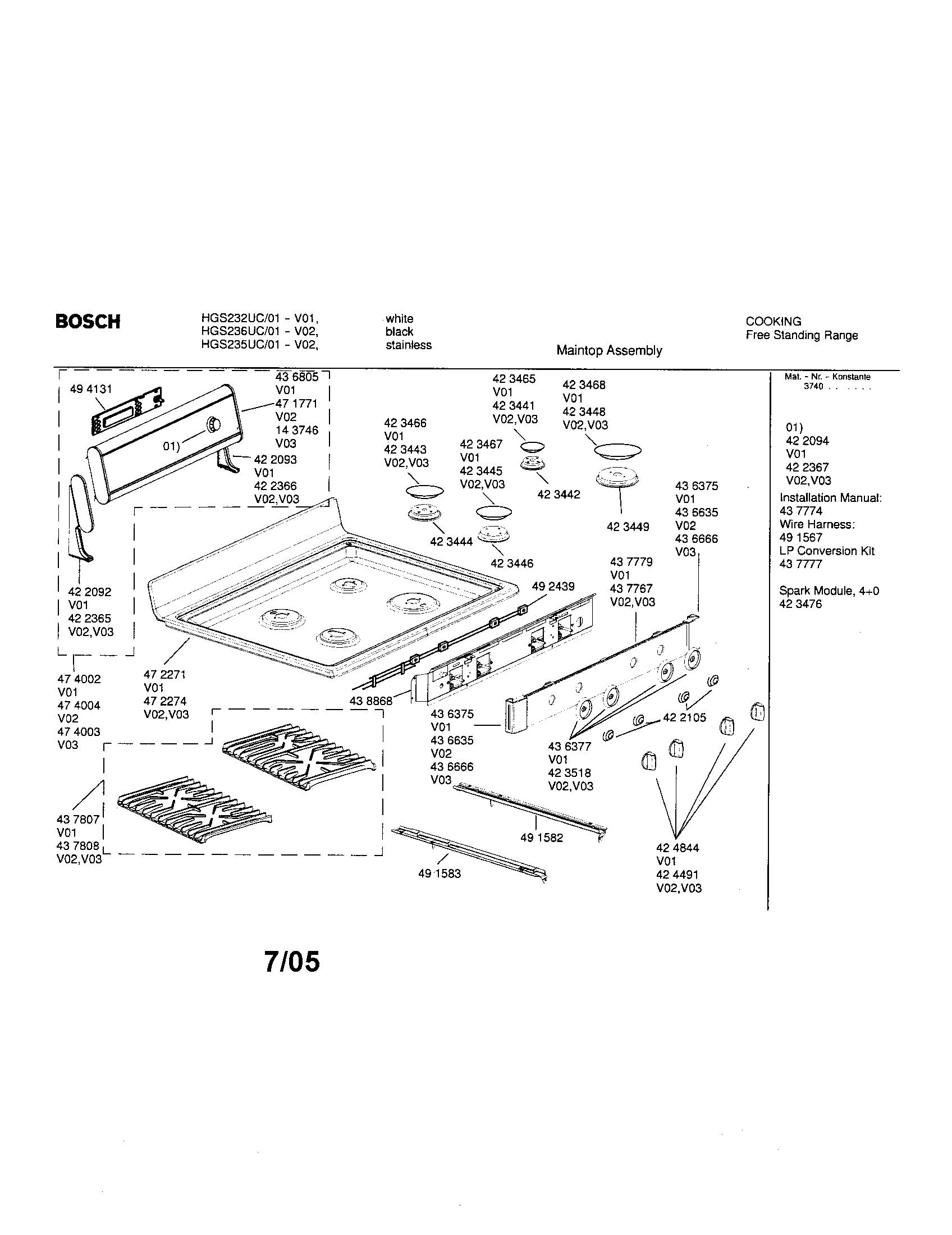

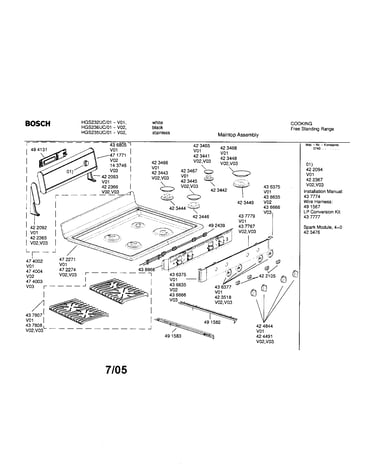

    Maintop assembly diagram

    Burner Housing

    Part #423446

    Replaced by #00423446

    Info Icon
    Manufacturer substitution
    This part replaces 423446. Substitute parts can look different from the original.
    In Stock
    $109.10
    Minus Item
    Qty
    Plus Item
  • Range Oven Bottom Heat Shield for Bosch HGS235UC/01 - Part 00144307

    Oven cavity components diagram

    Shield

    Part #492684

    Replaced by #00144307

    Info Icon
    Manufacturer substitution
    This part replaces 492684. Substitute parts can look different from the original.
    In Stock
    $343.86
    $12.00 OFF Phone Price : $355.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermador Wall Oven Terminal Block for Bosch HGS235UC/01 - Part 00436364

    Oven cavity components diagram

    Terminal Box

    Part #436364

    Replaced by #00436364

    Info Icon
    Manufacturer substitution
    This part replaces 436364. Substitute parts can look different from the original.
    In Stock
    $96.68
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Head for Bosch HGS235UC/01 - Part 00423442

    Maintop assembly diagram

    Burner Housing

    Part #423442

    Replaced by #00423442

    Info Icon
    Manufacturer substitution
    This part replaces 423442. Substitute parts can look different from the original.
    In Stock
    $107.76
    Minus Item
    Qty
    Plus Item
  • Screw for Bosch HGS235UC/01 - Part 00422137

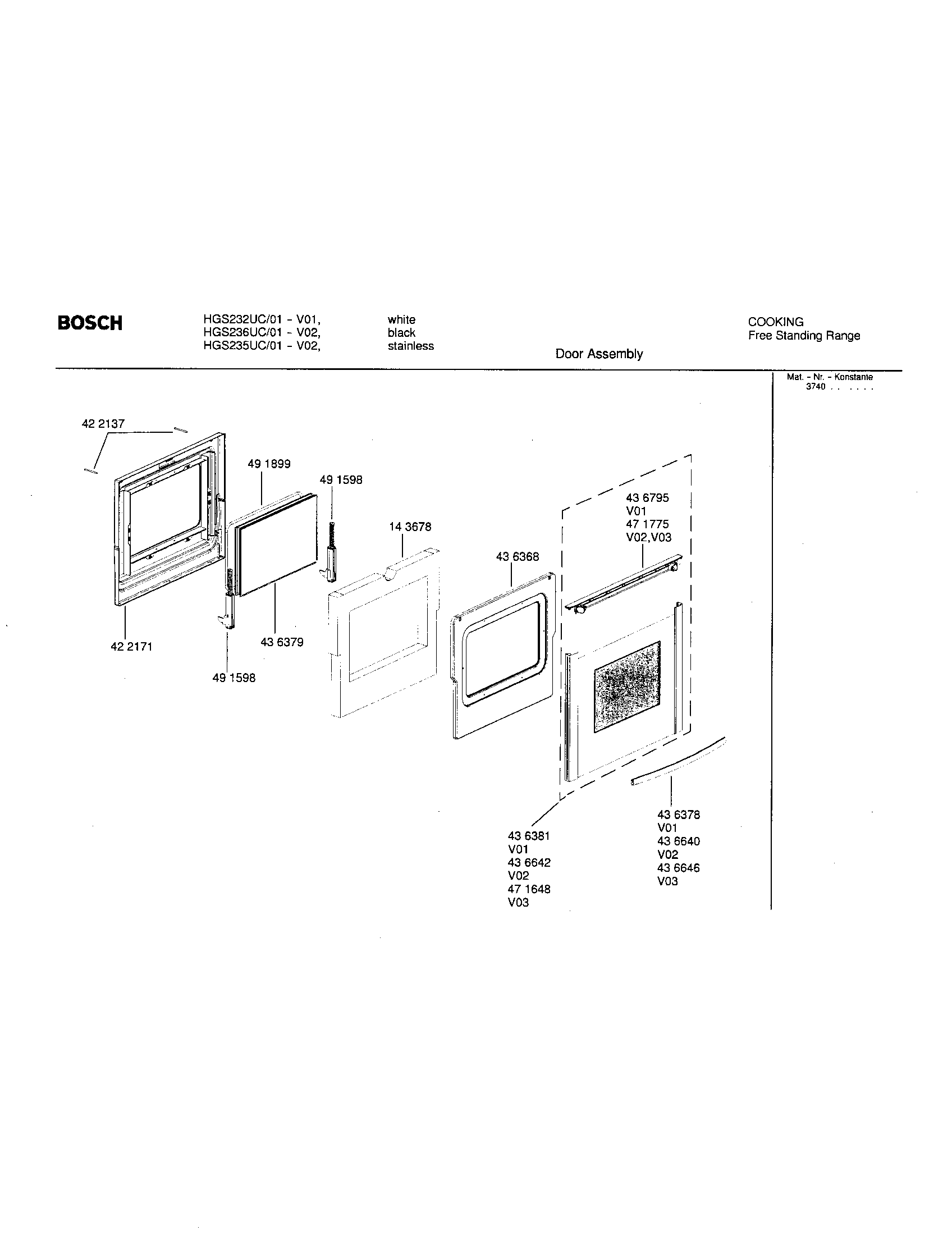

    Door assembly diagram

    Screw

    Part #422137

    Replaced by #00422137

    Info Icon
    Manufacturer substitution
    This part replaces 422137. Substitute parts can look different from the original.
    In Stock
    $57.83
    Minus Item
    Qty
    Plus Item
