Maytag MDE8600AYW dryer Parts

The Maytag MDE8600AYW dryer has an oversize drum capacity of about 6.0 cubic feet, which is the typical capacity class for this 27-inch Maytag IntelliDry (MD-16) platform. For cycle details and operating features tied to your exact control panel, use the owner's manual.

We recommend verifying the exact capacity statement using model-identification details and the product literature.

• Check the model tag on the lower center of the door opening (model and serial label)
• Match the model number exactly: MDE8600AYW
• Review the specifications or feature summary section in the manual
• If you have multiple Maytag dryers in the home, confirm you are reading the correct guide

Capacity affects how you load the drum, how long cycles take, and how well the dryer can tumble bulky items.

• Overloading reduces airflow and can cause longer dry times
• Underloading can lead to uneven tumbling for single heavy items
• Proper load size helps the automatic dryness control work more accurately

If the dryer seems to take too long to dry, capacity is rarely the root cause; restricted airflow is. Use dryer takes a long time to dry to check venting, lint buildup, and airflow basics.

Last updated: February 2026

A Maytag dryer typically lasts about 13 years. Many Maytag dryers reach 14 to 16 years with normal household use, especially when airflow is kept clear and worn parts are replaced promptly. For your Maytag MDE8600AYW, follow the care and operating guidance in the owner's manual.

• Average dryer lifespan: ~13 years
• Well-maintained Maytag dryers: often 14 to 16 years
• Heavy use or poor venting: can shorten life significantly

These are the issues we see most often when a dryer starts failing earlier than expected:

• Restricted exhaust venting (overheating, long dry times)
• Worn drum support parts (squealing, thumping)
• Heating failures (no heat or intermittent heat)
• Motor wear (humming, slow start, shutdown)
• Lint buildup inside the cabinet (heat stress and nuisance shutdowns)

• Clean the lint screen after every load; replace a damaged filter such as the dryer lint filter WP33001808 if it no longer seals or screens properly.
• Keep the exhaust duct short, smooth, and as straight as possible; clean it regularly.
• Do not overload; heavy loads strain the motor, drum supports, and belt.
• If you hear squealing or grinding, service drum support parts early (for example, the dryer drum bearing kit 306508 when applicable).
• If dry times suddenly increase, troubleshoot airflow first before replacing heat parts.

A dryer’s heating system and motor depend on steady airflow to control temperature. When lint or vent restrictions trap heat, components run hotter and wear faster, which reduces the overall life expectancy of the dryer.

Last updated: February 2026

If your Maytag MDE8600AYW dryer runs but does not dry, the most common causes are restricted airflow (lint filter, exhaust duct, or outside hood), an incorrect cycle or heat setting (Air-Fluff/no heat), or a heating problem on gas or electric. Start with airflow checks first. See the MDE8600AYW owner's manual for the model’s “Doesn’t dry” checklist.

• Clean the lint filter before every load; a coated filter can block airflow.
• Inspect the exhaust duct for lint buildup; we recommend inspecting and cleaning it annually.
• Confirm the outside exhaust hood opens and closes freely while the dryer runs.
• Avoid overloading; the manual guideline is 1 wash load = 1 dryer load.
• Sort heavy items (towels, jeans) from lightweight items; bulky loads may need repositioning.
• If the load is very small, add a few towels so items tumble properly.

Use this to narrow the problem quickly:

If airflow is strong and settings are correct but there is still no heat, common repair parts for this model include the gas igniter 4391996, gas sensor WP338906, and dryer thermal fuse, 243-degree f WP307473 (depending on whether your unit is gas or electric and the symptom).

Poor airflow is the number one reason a dryer takes too long to dry; it also overheats the dryer and can trip safety devices like a thermal fuse. Restoring proper venting usually improves drying time immediately.

• Use rigid 4-inch metal ducting for best airflow, as recommended in the manual.
• For step-by-step symptom help, use our dryer takes a long time to dry guide.

Last updated: February 2026

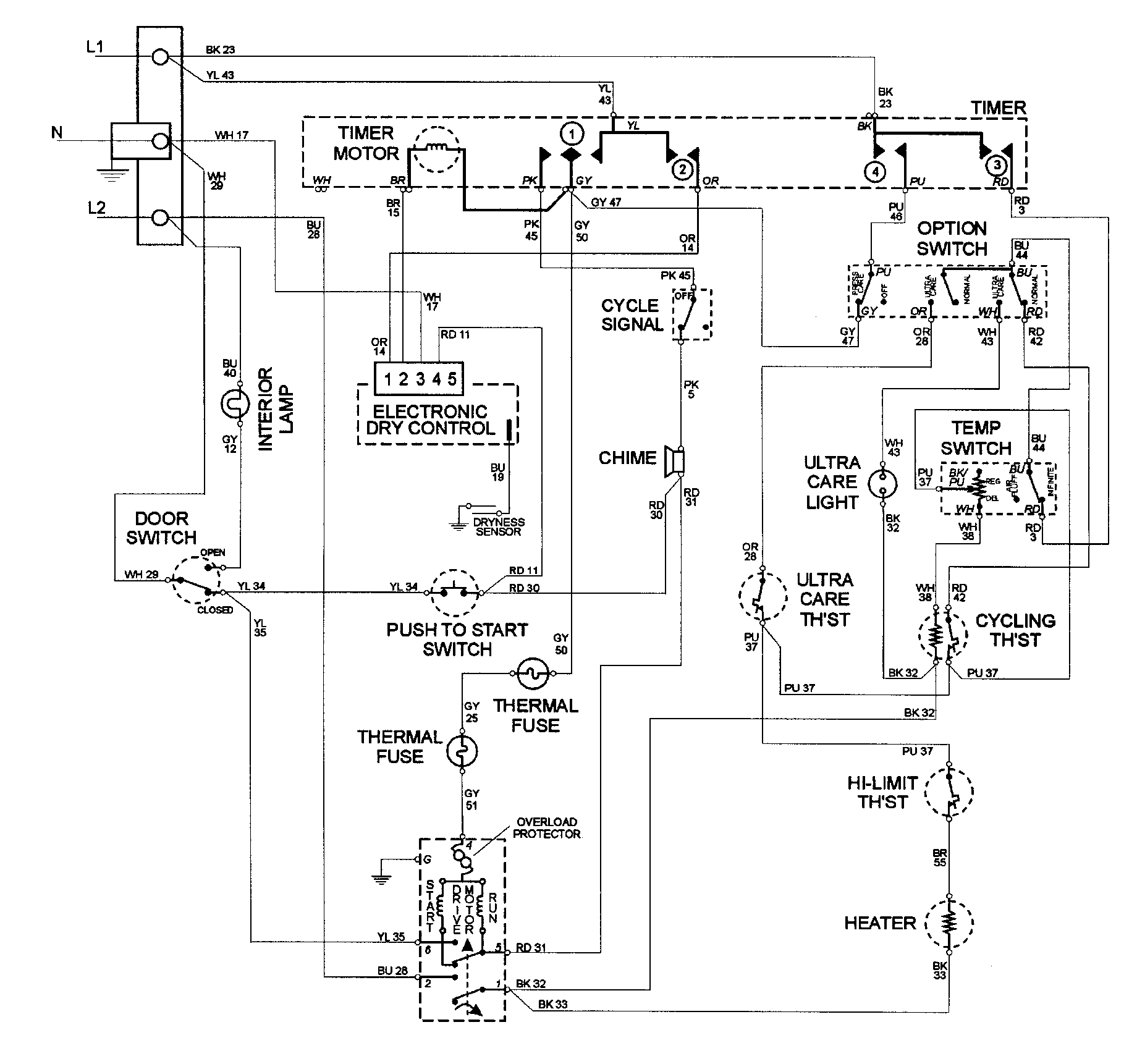

MDE8600AYW is the Maytag model number that identifies your specific dryer. We use it to match the correct parts list, wiring and component diagrams, and operating information for your exact machine; it is not a phone area code.

Model numbers are a manufacturer code. For Maytag dryers like MDE8600AYW, the characters typically indicate the product line and key design details, and the last characters identify the exact version.

Commonly, you can treat it like this:

• MDE: Maytag dryer series identifier
• 8600: Design or feature family within that series
• AYW: Version, color, or engineering revision code

Your dryer’s complete model number is printed on the data plate.

Check these spots:

• Lower center of the door opening (most common)
• Door frame area near the latch
• Inside the door opening on the cabinet front
• On the data plate along with the serial number

For the exact location and how it’s shown, use the owner's manual.

Even small model-number differences can change which parts fit (especially on gas ignition and airflow components).

Here are examples of model-matched parts shown for MDE8600AYW:

Using the full model number MDE8600AYW helps us keep your repair accurate the first time, so you get the right Maytag dryer parts and the correct troubleshooting steps for your exact configuration.

Last updated: February 2026
