Craftsman 917276782 tractor Parts

For Craftsman lawn tractor model 917276782, the operator’s manual identifies it as a 20.0 HP, 42-inch mower tractor with a low-emission engine, but it does not specify the engine manufacturer (such as Briggs & Stratton) in the excerpted documentation. Use the 917276782 owner's manual to match the exact engine model and service parts.

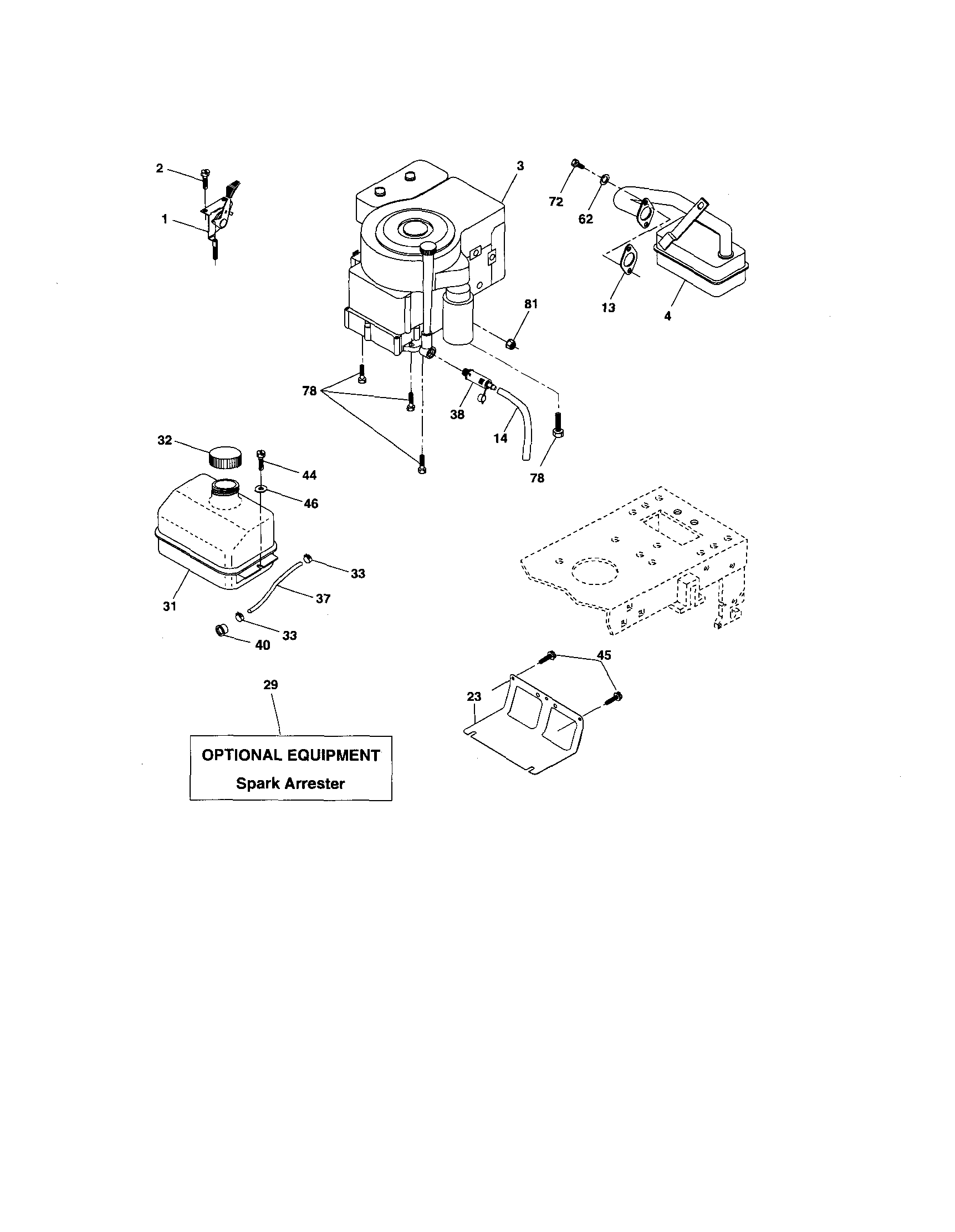

How to identify the exact engine on 917276782

We recommend confirming the engine by reading the engine ID tag and comparing it to the manual’s specifications section.

• Turn the engine off, remove the key, and let the engine cool completely
• Lift the hood and locate the engine identification label (often on the blower housing or valve cover)
• Record the engine model, type, and code (or serial number)
• Compare those numbers to the engine information listed in the manual
• Use the engine numbers when ordering tune-up parts (air filter, spark plug, fuel filter)

Common engine brands used on Craftsman tractors (what to expect)

Craftsman front-engine lawn tractors in this class commonly use single-cylinder engines from major small-engine makers. The exact brand varies by production run, so the engine tag is the deciding factor.

What you’re checking	Where to find it	Why it matters
Engine model/type/code	Engine ID label	Ensures correct parts and service specs
Horsepower rating	Manual and engine label	Confirms you are matching the right engine family
Deck size (42-inch)	Manual/model info	Helps match blade and deck parts correctly

Why it matters

The engine manufacturer and model determine the correct maintenance specs (oil type/amount, spark plug, air filter) and troubleshooting steps. Using the engine ID prevents ordering the wrong parts even when the tractor model number is correct.

Last updated: February 2026

For Craftsman lawn tractor model 917276782, we use high-quality detergent 4-cycle engine oil that meets API service classification SG-SL. The correct viscosity depends on temperature: SAE 30 above 32°F and SAE 5W-30 below 32°F (see the 917276782 owner's manual).

Oil type and capacity for model 917276782

Use these specs when selecting oil and when refilling after a change:

• Oil type (above 32°F): SAE 30
• Oil type (below 32°F): SAE 5W-30
• Oil rating: API SG-SL (or better within that range)
• Oil capacity with filter: 56 oz
• Oil capacity without filter: 48 oz

Outside temperature	Recommended oil viscosity	Notes
Above 32°F	SAE 30	Best choice for warm-weather mowing
Below 32°F	SAE 5W-30	Helps cold starting

How to avoid oil-related engine problems

We recommend these habits for reliable starting and longer engine life:

• Check the oil level on level ground before starting.
• Reinsert and tighten the dipstick fully before reading the level.
• Fill only to the FULL mark; do not overfill.
• If you run 5W-30 in warmer weather, check oil more often (it can consume faster).
• Change oil every 50 hours of operation or at least once a year.

Why it matters

Using the correct SAE viscosity for the season keeps the engine properly lubricated at startup and at operating temperature. That reduces wear, helps prevent overheating, and supports consistent power under load.

Last updated: February 2026

Craftsman model 917276782 was made during the era when Craftsman sold the 20.0 HP, 42-inch deck, electric start, automatic transmission lawn tractor covered by the same operator manual family as models 917.276781 / 917.276782 / 917.276783; the exact build year is identified on the tractor’s product ID label and purchase documentation. Use the 917276782 owner's manual to confirm the correct label location and model family details.

How to find the exact year for your 917276782

Use these checks in order; they are the fastest ways to pin down the year:

• Check the product ID label (commonly under the seat, on the frame rail, or near the rear fender pan).
• Record the model number (917276782) and any serial number/date code shown.
• Compare the label info to the manual cover page and specifications section.
• If you still have it, use the original receipt; the purchase date is often close to the build year.
• If the engine has its own tag (Briggs and Stratton or Kohler), record the engine model and code; it can help date the engine.

What we can confirm from the manual family

The operator’s manual for this model family identifies the tractor configuration, which helps narrow the production era even when the exact year is not printed in the manual.

Item	What to look for	Why it helps
Manual model family	917.276781 / 917.276782 / 917.276783	Confirms you have the correct platform
Deck size	42-inch mower deck	Matches blade and deck parts selection
Starting system	Electric start	Helps match wiring and solenoid parts
Drive type	Automatic transmission	Helps match transaxle and belt routing

Why it matters

The build year affects parts compatibility (deck components, wiring, safety switches, and transmission variations). When ordering wear items like blades, matching by model and serial prevents fit issues.

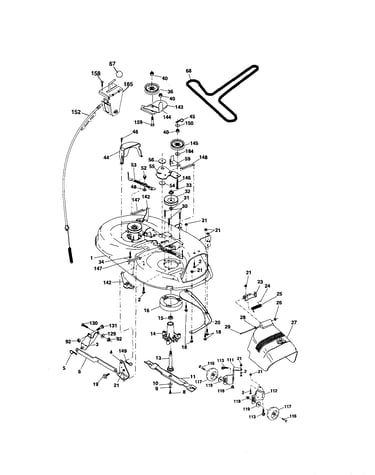

If you are replacing deck blades, match the deck style first; common options for this tractor include a mulching blade like the husqvarna lawn tractor mulching blade, 21-in 532134149 or a high-lift blade like the lawn tractor 42-in deck high-lift blade 532138971 (use the deck and blade mounting pattern to choose correctly).

Last updated: February 2026

To drain the oil on your Craftsman riding lawn mower model 917276782, warm the engine briefly, park on a level surface, then use the built-in oil drain valve and drain tube to empty the crankcase into a suitable container. Follow the steps in the 917276782 owner's manual.

Step-by-step: changing engine oil (drain valve style)

• Park the tractor on a level surface and set the parking brake.
• Let the engine run a few minutes, then shut it off; warm oil drains faster.
• Remove the oil fill cap/dipstick (this helps the crankcase vent while draining).
• Remove the yellow cap from the end of the oil drain valve.
• Install the drain tube onto the drain valve fitting.
• Unlock the drain valve by pushing in slightly and turning counterclockwise.
• Pull out on the drain valve to start the flow; drain completely.
• Close and lock the valve by pushing in and turning clockwise until locked; remove tube and reinstall the yellow cap.

Refill and verify the oil level

After draining, refill through the dipstick tube and confirm the level on the dipstick.

Checkpoint	What we do	What “good” looks like
Fill level	Add oil slowly	Oil reaches the FULL line (not above)
Dipstick reading	Seat cap fully before checking	Consistent reading on the gauge
Final step	Tighten dipstick cap	Cap is secure before running

Safety steps that prevent injuries and messes

• Depress the clutch/brake fully and set parking brake.
• Place the motion control in neutral (N).
• Set the attachment clutch to DISENGAGED.
• Turn key to STOP and remove it.
• Wait for all moving parts to stop.
• Disconnect the spark plug wire so the engine cannot start accidentally.

Why it matters

Fresh oil protects the engine from heat and wear. Draining oil correctly (with the valve locked afterward) helps prevent leaks, low-oil operation, and hard starting.

Last updated: February 2026

Yes, the Craftsman riding mower model 917276782 can have an engine oil filter; the maintenance schedule and oil-change instructions call out an oil change “with oil filter” and list “replace oil filter (if equipped).” Use the 917276782 owner's manual to confirm whether your exact engine configuration includes one.

How to tell if your 917276782 is equipped with an oil filter

We recommend a quick visual check on the engine block (typically on the side of the engine). An oil filter looks like a small metal canister that screws on.

• Look for a spin-on canister filter near the oil fill/dipstick tube area
• Check for an oil filter part number listing in the maintenance section
• Compare your oil-change procedure: “with oil filter” vs “without oil filter”
• If you see only an oil drain valve and no canister filter, your engine is the “without oil filter” setup
• If the engine has a filter, replace it every season or every other oil change when you run over 100 hours per year

Oil change guidance (with vs without filter)

If your tractor is equipped with an oil filter, you typically change the oil and filter together so the fresh oil is not immediately contaminated by the old filter media.

Setup on your tractor	What to do at service time	Typical result
With oil filter	Change engine oil and replace the oil filter	Best protection under heavy use
Without oil filter	Change engine oil on schedule	Good protection when oil is changed regularly

Why it matters

Using the correct oil-change routine for your 917276782 helps prevent loss of power and premature engine wear, especially when mowing in heat, dust, or heavy grass.

Related maintenance tip

If you are doing seasonal service, we also recommend inspecting the mower deck drive components and blades for damage and buildup. For example, a bent or worn blade can hurt cut quality; the lawn tractor 42-in deck high-lift blade 532138971 is one of the blade options listed for this model.
