Samsung RF23HCEDTSR/AA-04 refrigerator Parts

To reset the bottom freezer ice maker on your Samsung RF23HCEDTSR, pull out the ice bucket and press the ice maker Test button on the right side of the ice maker until you hear the chime, then release it. Reinstall the bucket and allow time for a new harvest cycle.

Reset steps (bottom freezer ice maker)

• Remove the ice bucket/bin completely.
• Locate the Test button on the right side of the ice maker.
• Press and hold until you hear the chime, then release.
• Reinstall the ice bucket fully and make sure it seats straight.
• Wait for the ice maker to cycle and refill.

Important do’s and don’ts

• Do release the Test button as soon as the chime sounds.
• Do not press the Test button repeatedly when the tray is full of ice or water; overflow or a jam can occur.
• Do confirm Control Lock is off; when Control Lock is on, the dispenser will not dispense ice or water.
• Do check that the water line is connected and water is supplied; running the ice maker with no water supply can cause valve noise.

Quick checks if it still won’t make ice

What to check	What it affects	What to do
Ice maker is turned off	Stops ice production	Make sure Ice Maker Off is not selected
Ice bucket fit/jam	Blocks harvest or dispensing	Reseat bucket; clear clumped ice
Freezer temp	Slow or no ice	Set freezer near 0°F and allow 24 hours
Door closing	Safety interlock can stop auger	Close doors gently and fully

Why it matters

A proper reset forces the ice maker to run a test cycle so you can confirm the motor and harvest sequence are working. If the reset works but ice production stays inconsistent, the issue is usually water supply, temperature, or an ice maker component.

Parts that commonly relate to ice issues

If you’re troubleshooting ongoing ice problems, these model-matched parts are often involved:

• Samsung refrigerator ice maker assembly DA97-07603B (complete assembly replacement)
• Refrigerator ice maker module DA59-00294B (drive/module issues)
• Refrigerator water filter DA29-00019A (restricted flow can reduce ice output)

For button locations and control settings specific to this model, use the RF23HCEDTSR owner's manual. For ordering, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Samsung refrigerators like model RF23HCEDTSR are cooling issues and ice maker troubles. These usually trace back to airflow restrictions, frost buildup from a defrost/drain problem, or a failed sensor or control component; all of these can cause warm temperatures, ice clumps, and leaks.

Most common symptoms customers notice

• Fresh food section gets warm while the freezer still seems cold
• Ice maker stops producing ice or makes small, hollow cubes
• Frost or ice buildup on the evaporator cover area
• Water pooling under crisper drawers or in the freezer bottom
• Dispenser issues (slow ice delivery, chute frosting)

What to check first (fast, no-tools steps)

1. Confirm airflow: Do not block interior vents with food packages (blocked vents can overcool or create uneven temps).
2. Power reset correctly: If you unplug the refrigerator, wait at least 5 minutes before plugging it back in.
3. Water supply basics for ice maker: Make sure the shutoff valve is fully open and household water pressure is in the 20 to 125 psi range.
4. If you will be away: Close the water valve to reduce the chance of leaks.

Common causes and the parts that often solve them

Problem area	What happens	Parts that commonly apply on RF23HCEDTSR
Temperature sensing	Temps swing, food warms, unit runs oddly	Refrigerator temperature sensor DA32-10104N
Defrost system	Frost buildup, weak airflow, warm fridge	Refrigerator defrost heater DA47-00244U
Drain system	Water leaks, ice buildup near drain	Refrigerator drain tube kit DA97-04049E
Ice maker system	No ice, clumping, slow production	Samsung refrigerator ice maker assembly DA97-07603B

Why it matters

Cooling and ice maker complaints are often connected. When frost builds up or airflow is restricted, the refrigerator compartment warms and the ice maker can stall or freeze up. Fixing the root cause prevents food spoilage, repeat icing, and water leaks.

Helpful DIY guidance

For step-by-step troubleshooting focused on ice production failures, use our guide: why your Samsung fridge stopped making ice and how to fix it. For model-specific operating and care details, use the owner's manual.

Last updated: February 2026

Your Samsung RF23HCEDTSR model number is printed on the refrigerator’s rating label (model and serial tag). On French door, bottom-mount units like this, the label is typically inside the fresh food compartment on a side wall or near the ceiling; confirm the exact label location in the RF23HCEDTSR owner's manual.

Where to look first (fastest checks)

• Open the fresh food (upper) doors and check the left and right interior side walls.
• Look near the top front edge of the fresh food compartment (ceiling area).
• Check behind the crisper drawers or on the wall just above them.
• If you do not see it, check the freezer drawer side walls or upper rim.
• Wipe the area with a damp cloth; labels can be hard to read under residue.

What the label looks like and what to copy

The rating label usually includes multiple identifiers. Copy the model number exactly as printed, including any slashes or suffixes.

Label item	What it’s used for	Example format
Model number	Correct parts lookup and diagrams	RF23HCEDTSR/AA-04
Serial number	Production details and service history	Letters and numbers
Electrical ratings	Verifying power requirements	Volts/amps

Why it matters

Samsung often uses similar-looking refrigerators with different internal parts (ice maker, control board, sensors, door gasket). Using the full model number from the rating label helps us match the correct replacement parts and avoid fit or wiring differences.

Tips for ordering the right parts

• Use the full model number from the label, not just “RF23HCEDTSR”.
• Match the part name and part number when possible (example: refrigerator water filter DA29-00019A).

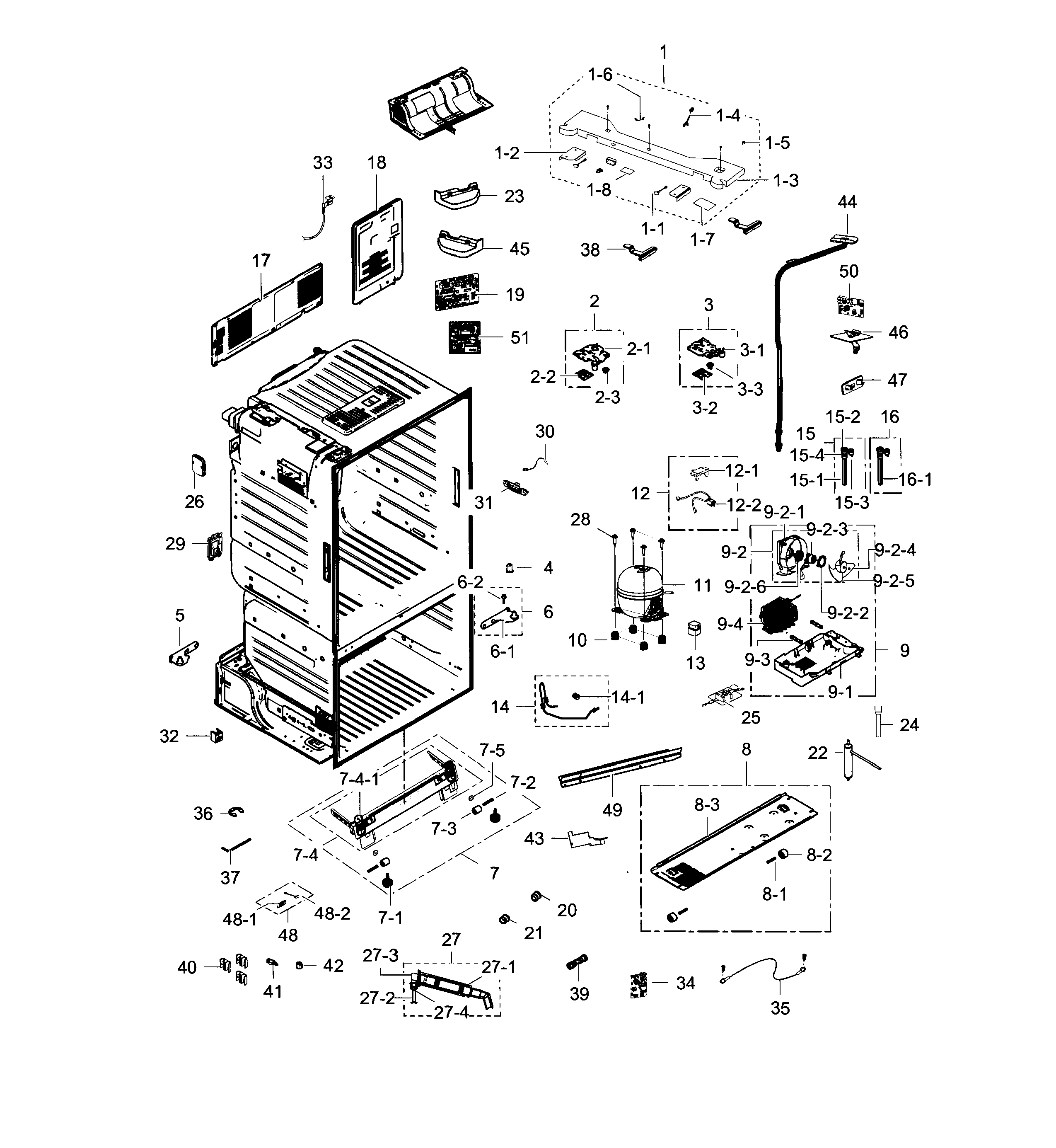

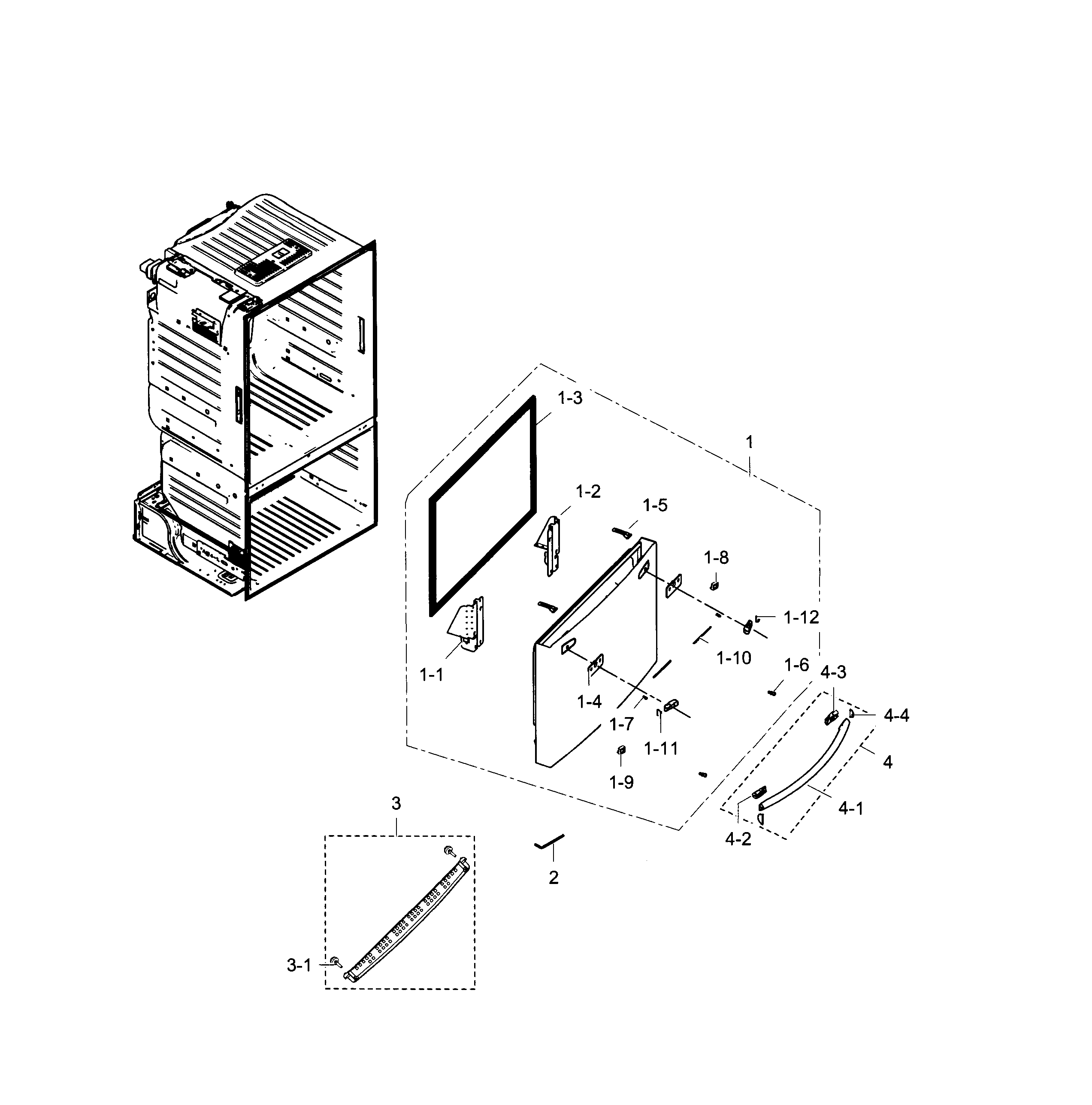

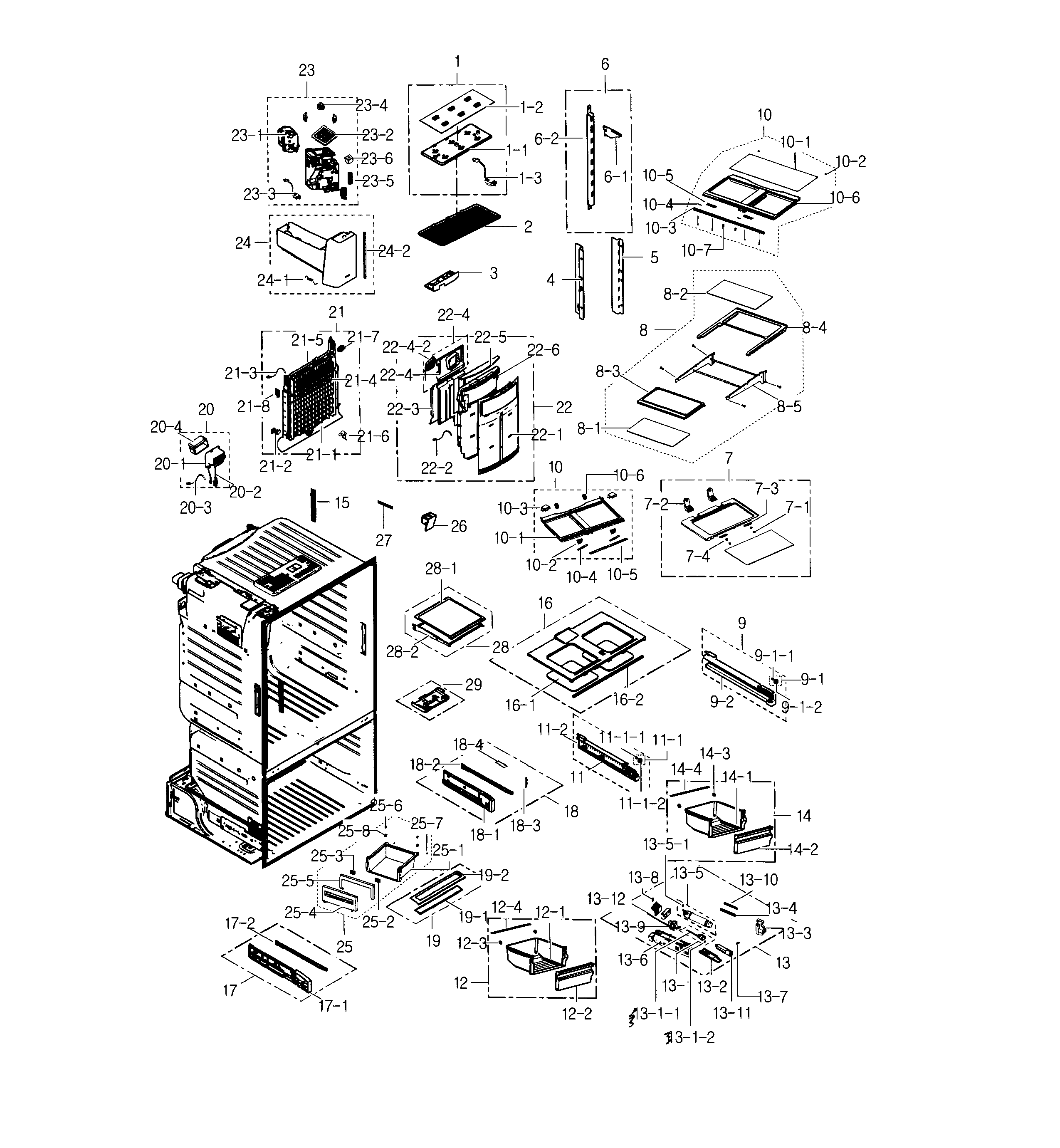

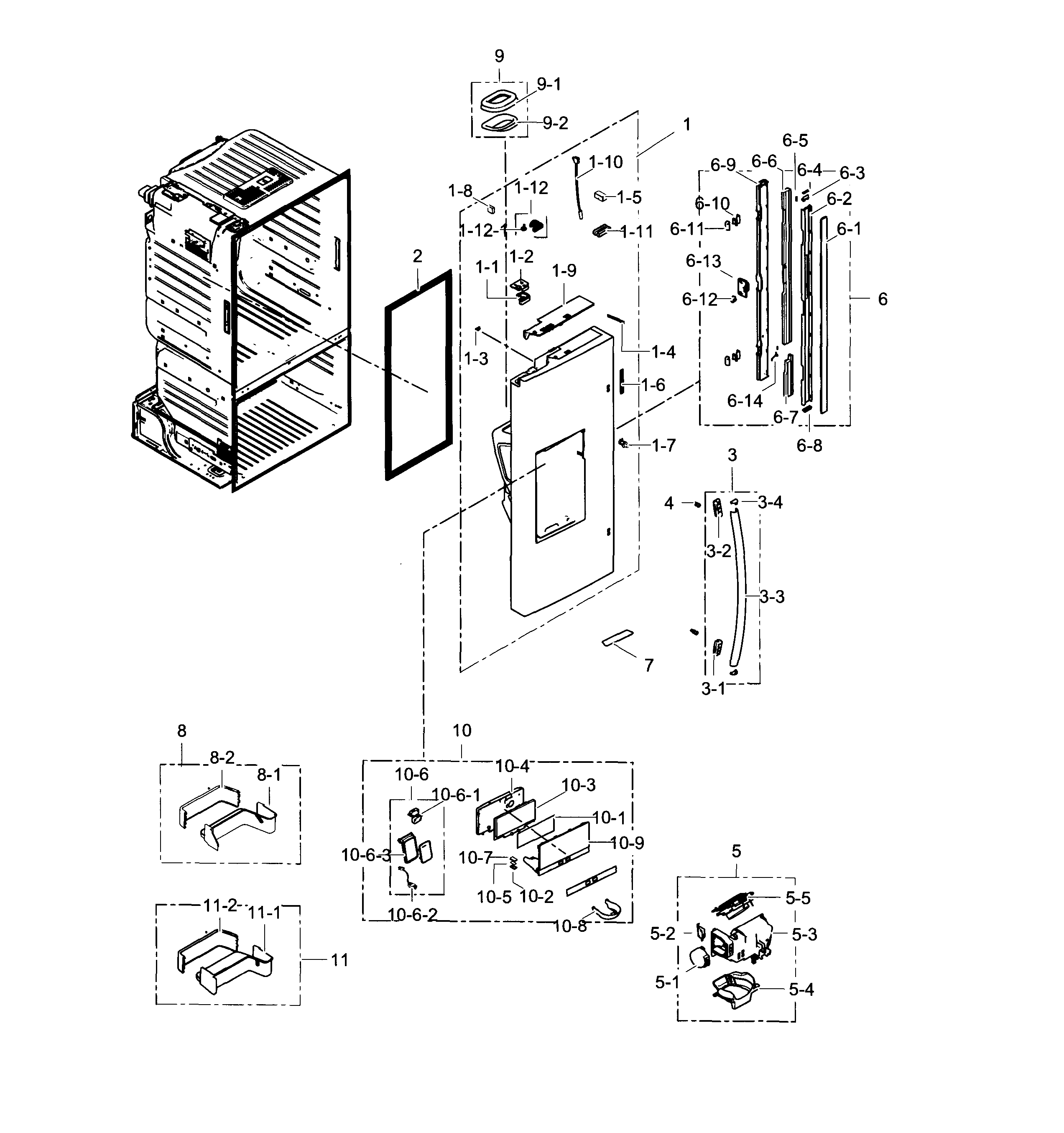

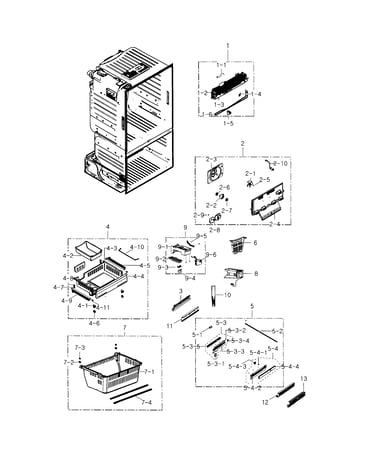

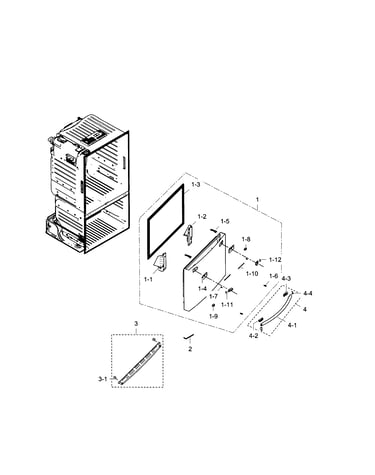

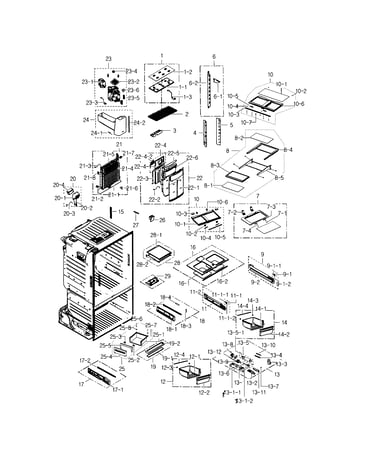

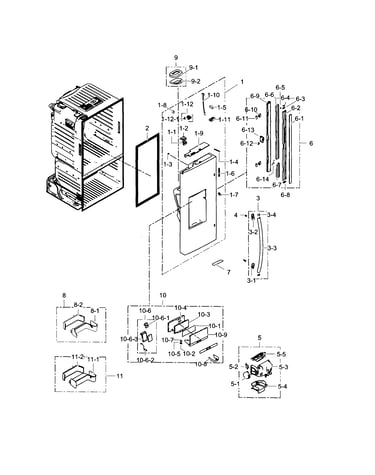

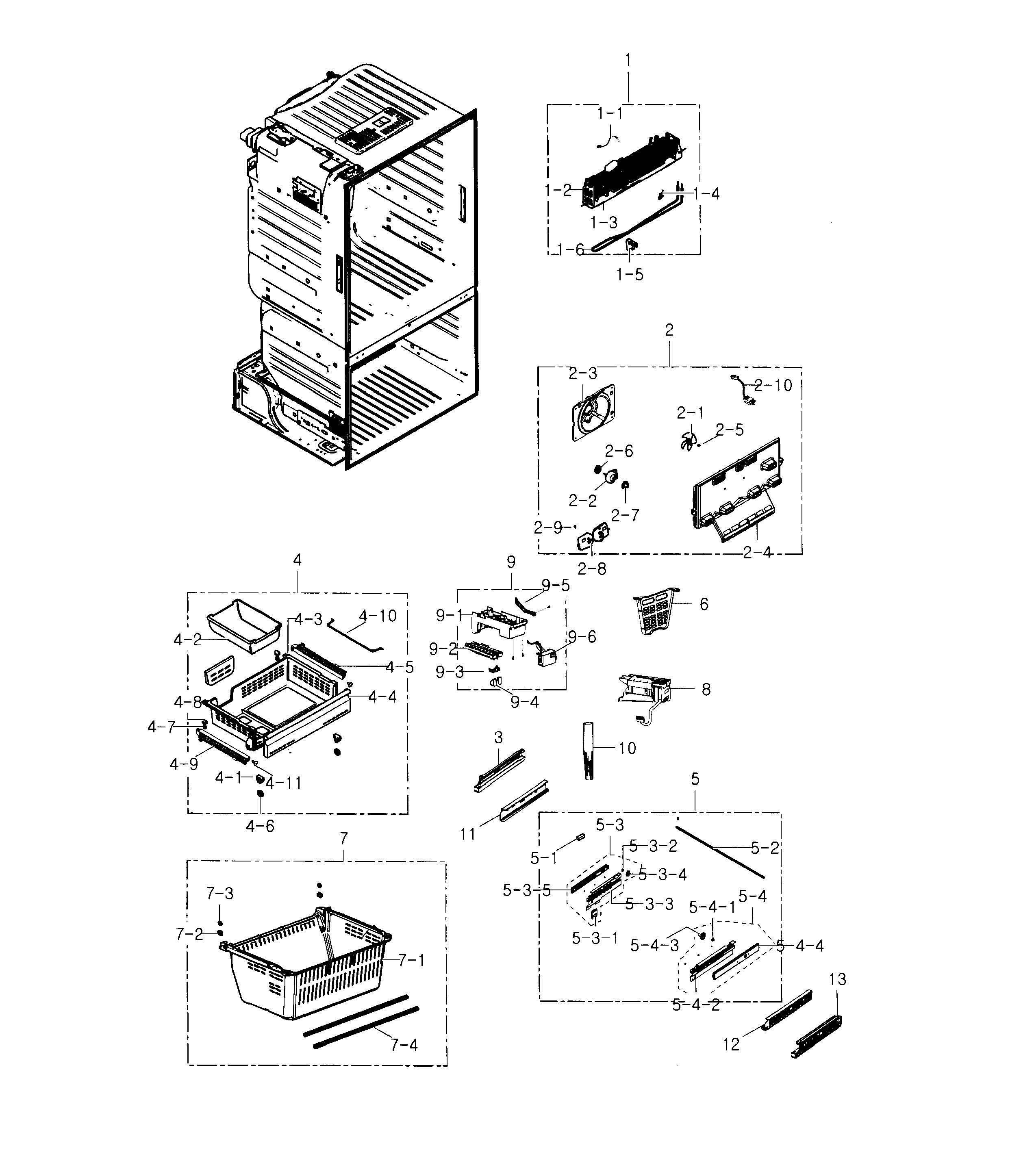

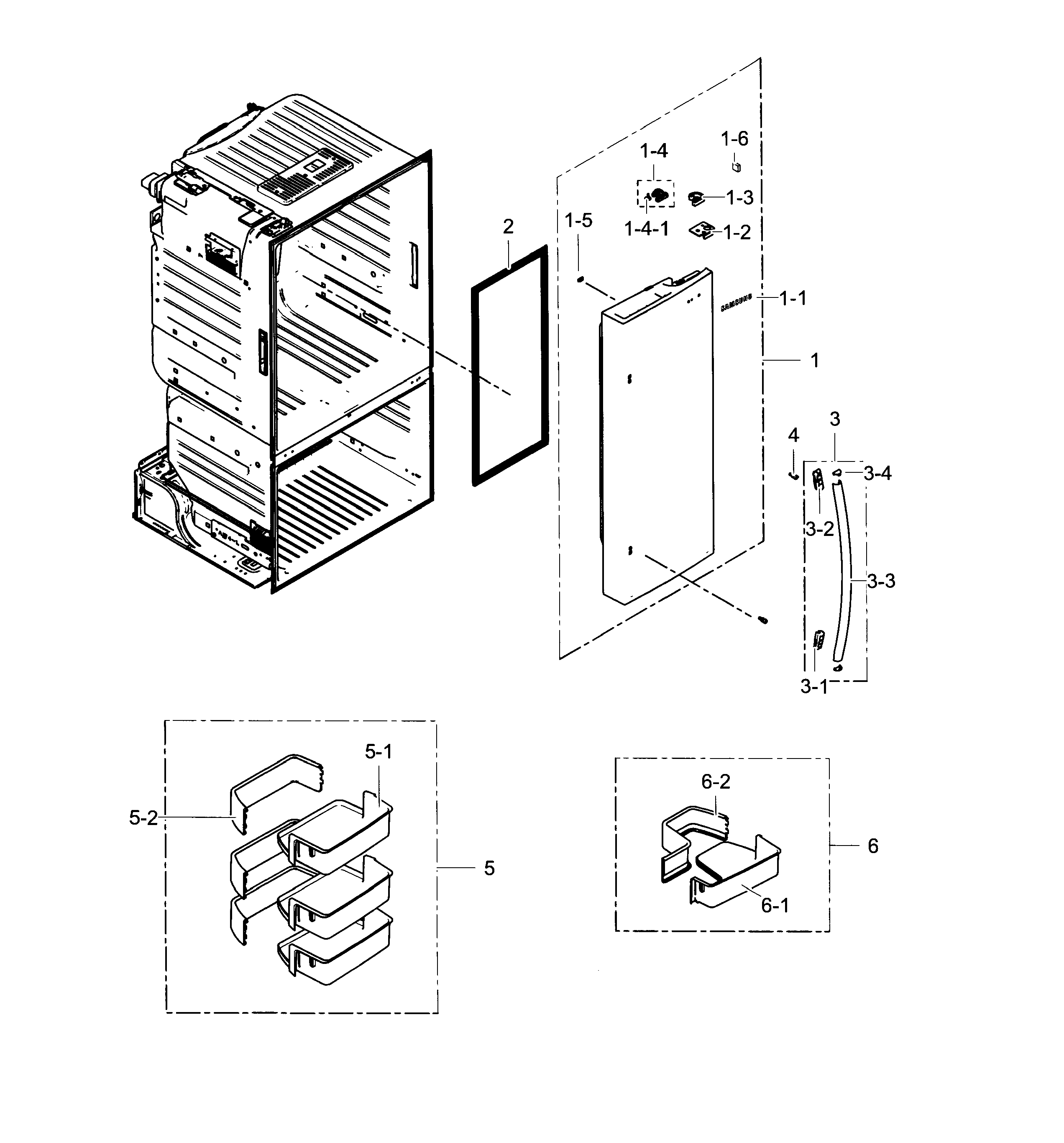

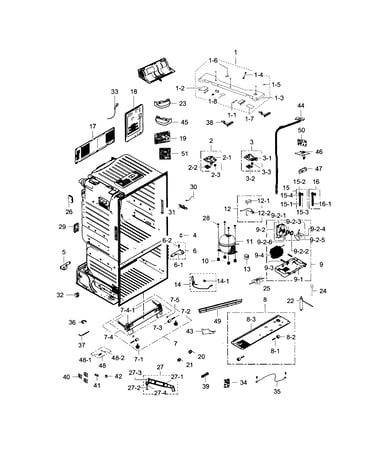

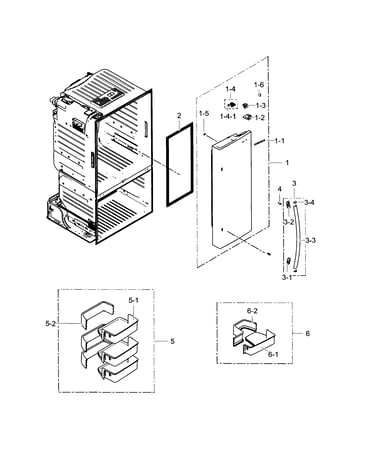

• If you are replacing an ice maker, match the assembly style shown in the diagrams.

Last updated: March 2026
