Craftsman 917255275 36" 10-hp riding lawn tractor Parts
Here are the diagrams and repair parts for Craftsman 917255275 36" 10-hp riding lawn tractor, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM

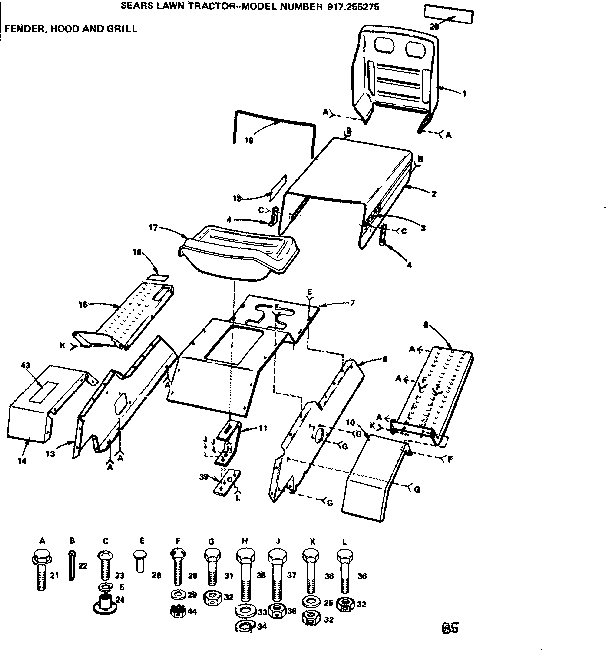

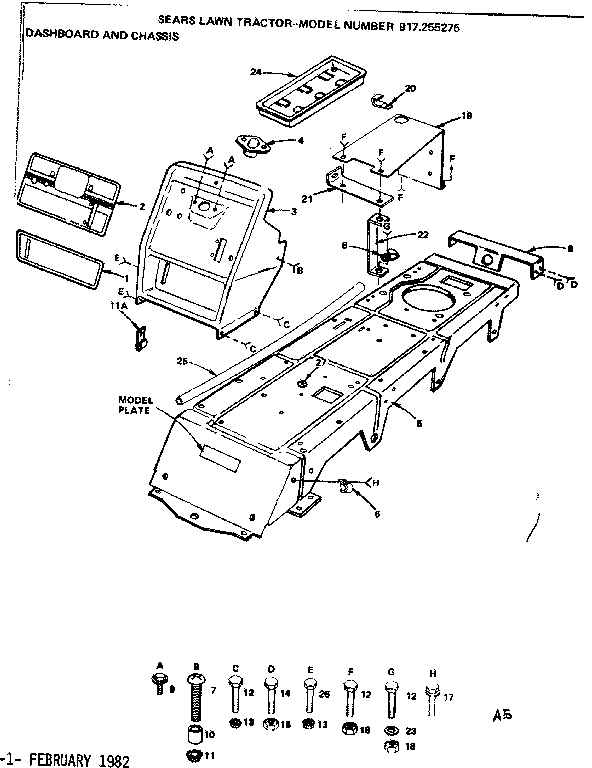

Browse Parts for917255275 Riding Mowers & Tractors

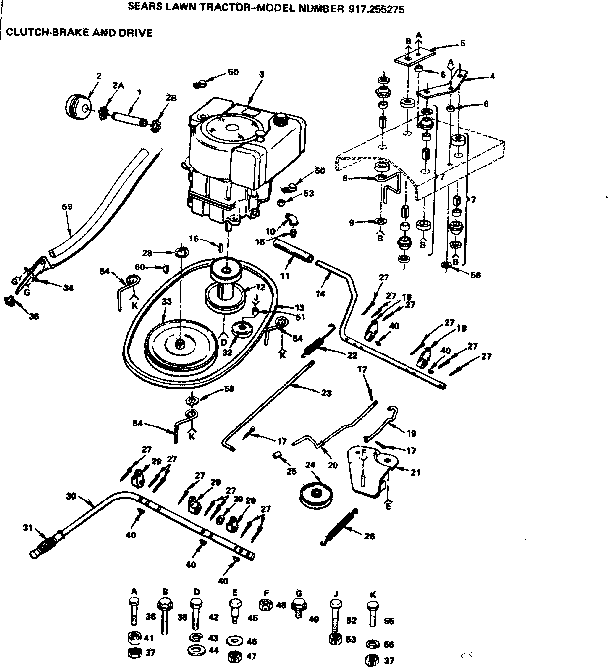

Clutch-brake & drive diagram
Brake Spring
Part #1635JReplaced by #583685701
Manufacturer substitutionThis part replaces 1635J. Substitute parts can look different from the original.In Stock$44.36
Qty

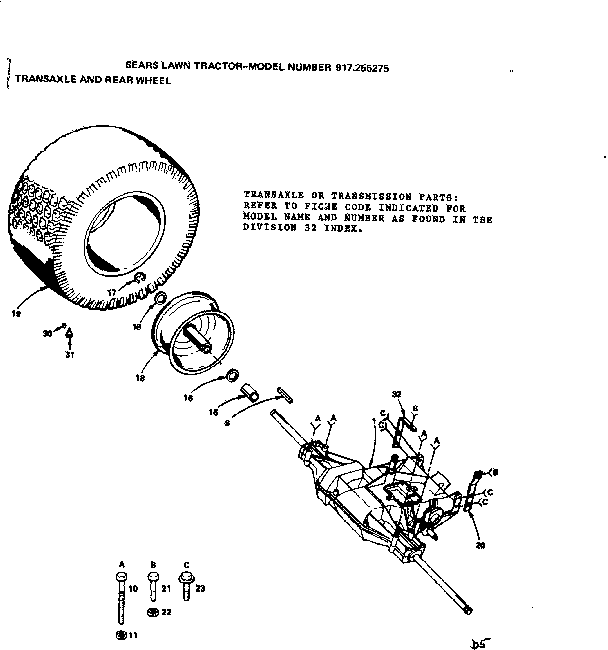

Transaxle and rear wheel diagram
Rim
Part #71652Replaced by #532106108
Manufacturer substitutionThis part replaces 71652. Substitute parts can look different from the original.In Stock$115.619% OFF Phone Price : $127.61
QtyFlat Washer
Part #1507PReplaced by #STD551025

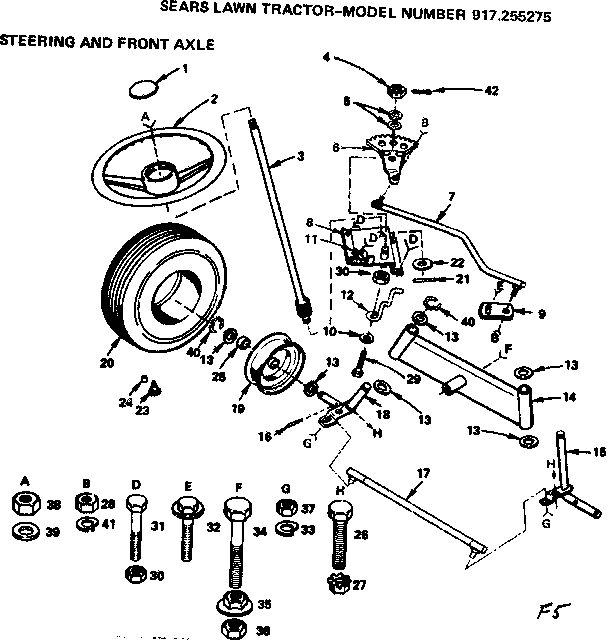

Manufacturer substitutionThis part replaces 1507P. Substitute parts can look different from the original.In Stock$36.61QtySteering and front axle diagram
Keps Nut
Part #518PReplaced by #873510600
Manufacturer substitutionThis part replaces 518P. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyClutch-brake & drive diagram
Muffler
Part #420JReplaced by #392989

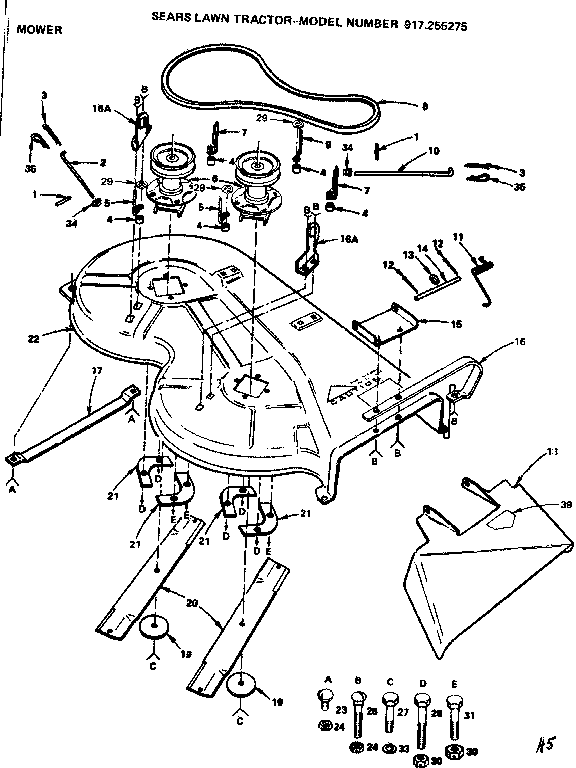

Manufacturer substitutionThis part replaces 420J. Substitute parts can look different from the original.In Stock$61.67QtyMower diagram
Spring Retainer
Part #4921HReplaced by #532004921

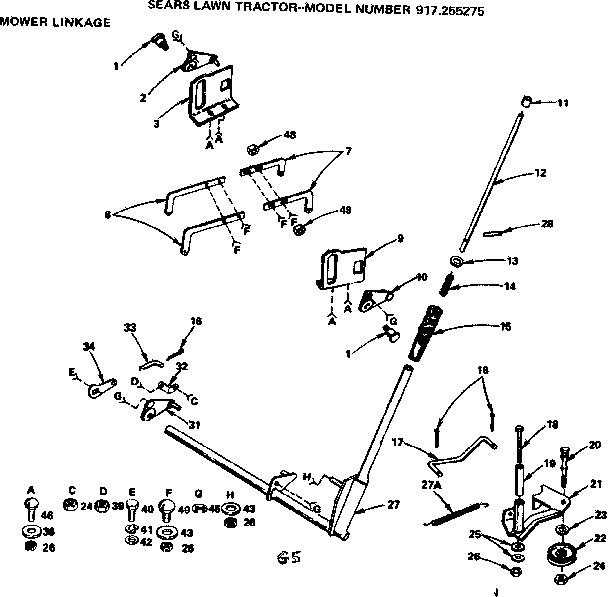

Manufacturer substitutionThis part replaces 4921H. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyMower linkage diagram
Nut
Part #595PReplaced by #596433401

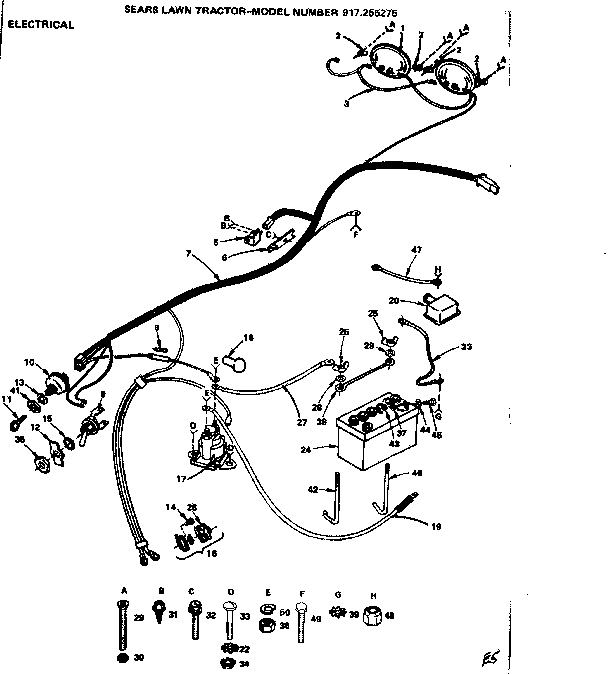

Manufacturer substitutionThis part replaces 595P. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyElectrical diagram
Solenoid
Part #2008JReplaced by #532146154
Manufacturer substitutionThis part replaces 2008J. Substitute parts can look different from the original.In Stock$35.2815% OFF Phone Price : $41.28QtyWasher
Part #1552PReplaced by #532121749
Manufacturer substitutionThis part replaces 1552P. Substitute parts can look different from the original.This item is not returnableIn Stock$3.3623% OFF Phone Price : $4.36QtySteering and front axle diagram
Bolt
Part #3252PReplaced by #874930624
Manufacturer substitutionThis part replaces 3252P. Substitute parts can look different from the original.In Stock$14.83Qty
