Craftsman 917286420 tractor Parts

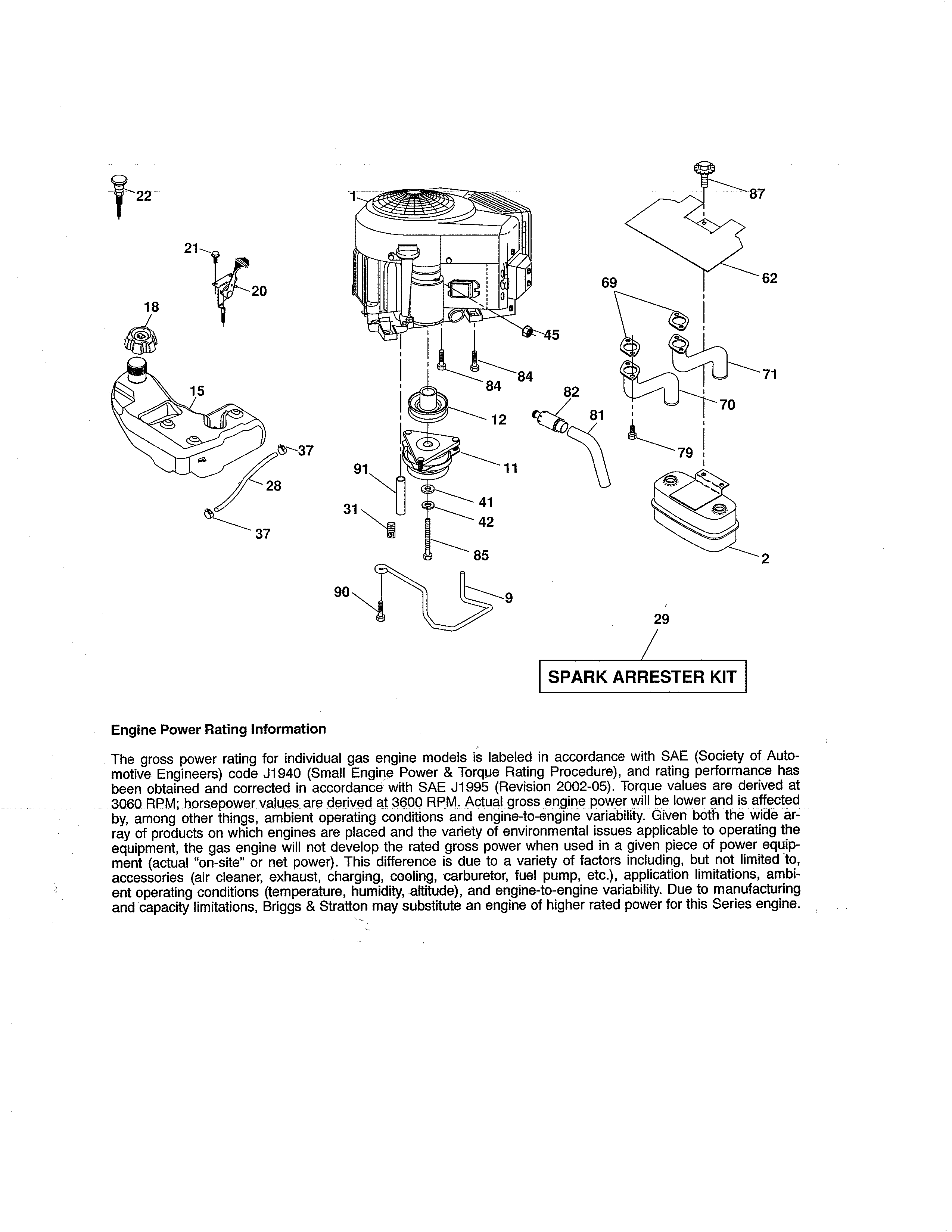

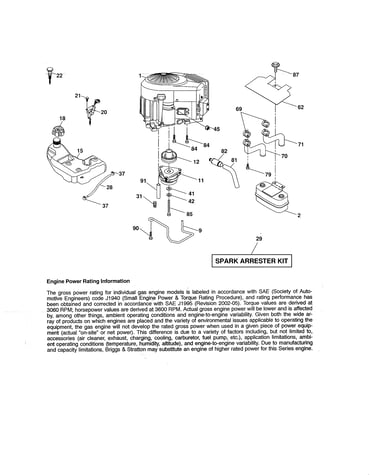

Craftsman lawn tractors can be equipped with engines from several manufacturers, but most commonly you will see Briggs & Stratton on many Craftsman riding models. For your Craftsman tractor model 917286420, confirm the exact engine make and model on the engine ID label and in the owner's manual.

Use these quick checks on your 917286420:

• Look for the engine ID label on the blower housing, valve cover, or near the starter
• Record the engine model, type, and code (or spec number)
• Match that information to the engine section in the owner's manual
• If the label is dirty, wipe it clean; numbers are often faint
• Use the engine model to choose correct tune-up parts (spark plug, air filter, oil filter)

Craftsman has used multiple engine suppliers over the years. Here is what you typically see on riding lawn tractors:

The engine brand determines the correct maintenance specs and service parts (oil type, spark plug, air filter, fuel filter). It also helps when troubleshooting no-start or clicking issues because wiring layouts and safety interlock logic can vary by engine and harness setup.

If you are diagnosing a no-crank, click, or PTO engagement problem on model 917286420, these model-matched parts are commonly involved:

• Lawn tractor starter solenoid 582042802 (no-crank or clicking)
• Switch.pto 582107601 (PTO will not engage or cuts out)
• Husqvarna lawn tractor ignition harness 532401104 (intermittent start or safety circuit issues)

You can order replacement parts for your Craftsman 917286420 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

To find the right Craftsman parts for your model 917286420 front-engine lawn tractor, we match parts to your exact model number and diagrams so you get the correct fit the first time. Start with the parts list for model 917286420, then confirm the part location and description in the 917286420 owner's manual.

• Use the exact model number 917286420 (not just “Craftsman tractor”).

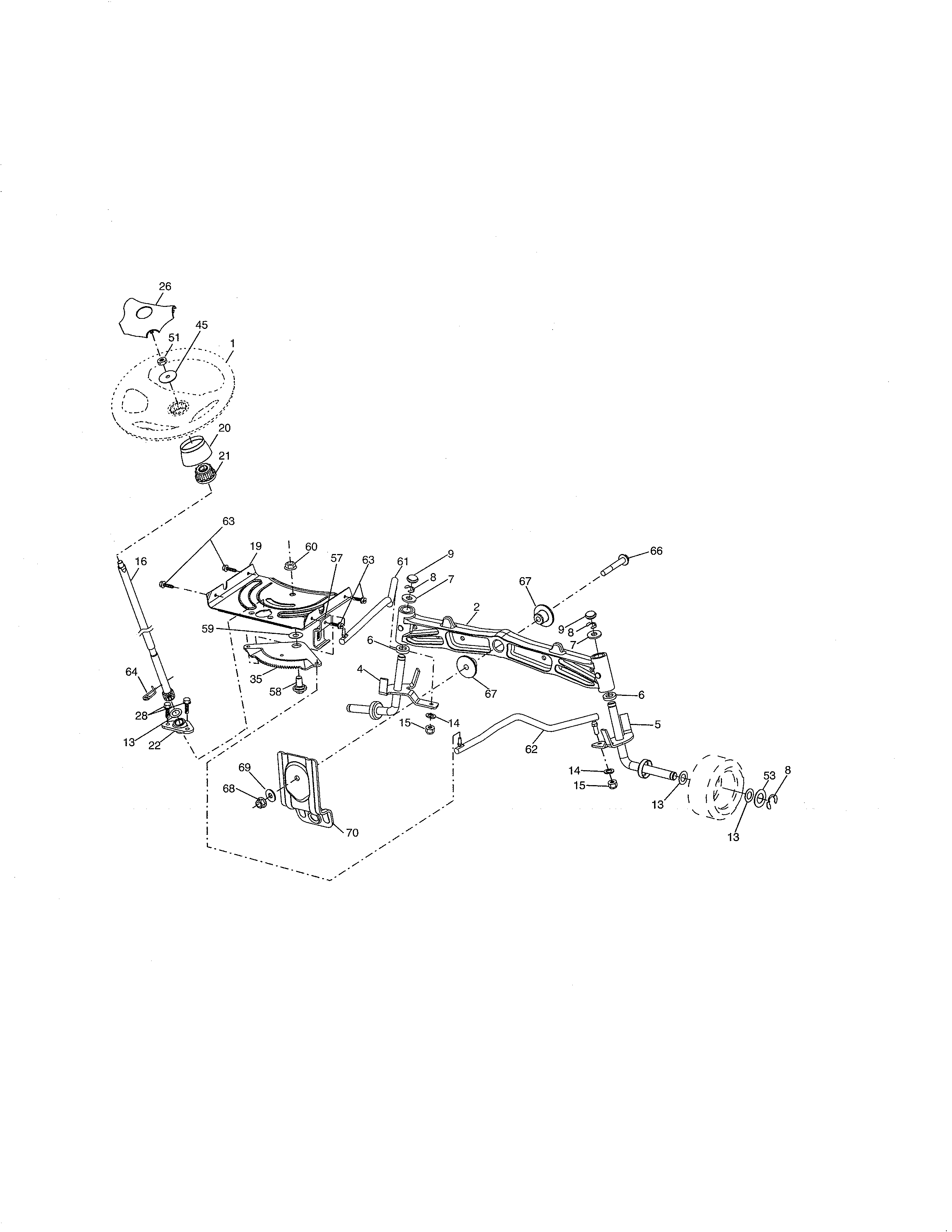

• Identify the system you are repairing (mower deck, ground drive, steering, electrical).
• Compare the part name to the diagram callout and your old part.
• Verify mounting style and belt routing before ordering.

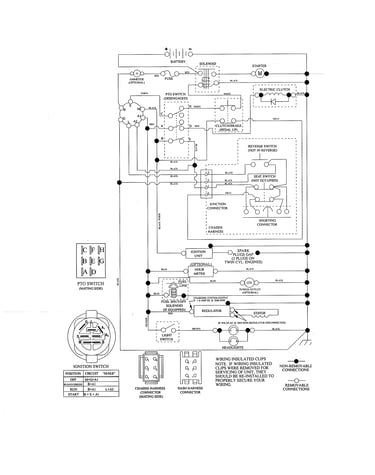

• If the tractor will not crank or only clicks, check the starting circuit before replacing parts.

These are examples of parts available for Craftsman 917286420 that often come up during repairs:

Your Craftsman 917286420 operator’s manual includes the maintenance schedule, troubleshooting section, and key operating checks. Using it helps you avoid ordering the wrong belt, pulley, or electrical part and speeds up diagnosis.

• Match the part name and part ID to your parts list for model 917286420.
• Replace worn fasteners when needed (for example, lock nuts) so parts stay tight.
• For tune-up and seasonal prep, stock common wear items and inspect belts and pulleys.
• If you want to search beyond the parts shown for this model, use Sears PartsDirect and search by 917286420.

Last updated: February 2026

Common problems on the Craftsman 917286420 front-engine lawn tractor include no-crank or clicking starts (battery, wiring, solenoid, safety switches), hard starting or power loss (air filter, spark plug, stale fuel), and cutting issues like poor discharge or blades not rotating (belt, idler pulley, mandrel, deck buildup). Use the 917286420 owner's manual troubleshooting chart to match symptoms to the fastest checks.

• Engine will not turn over: brake pedal not depressed, PTO engaged, weak battery, blown fuse, corroded terminals
• Engine clicks but will not start: weak battery, bad connections, loose wiring, faulty solenoid or starter
• Hard to start / loss of power: dirty air filter, bad spark plug, dirty fuel filter, stale fuel, carburetor adjustment

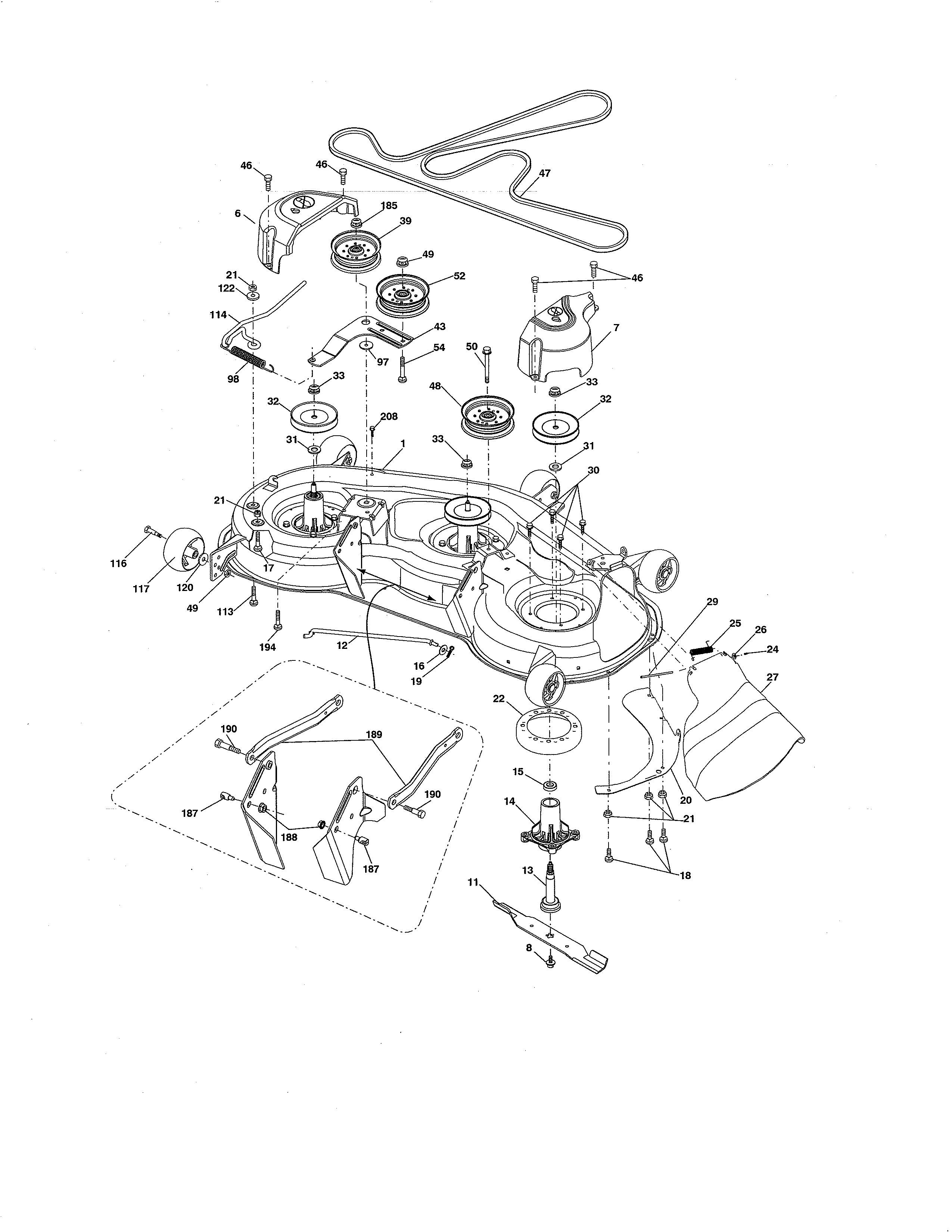

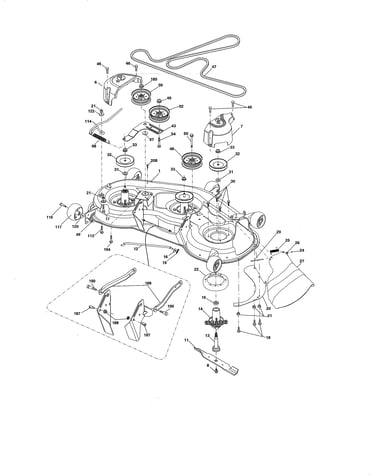

• Blades will not rotate: obstruction in clutch mechanism, worn belt, frozen idler pulley, frozen blade mandrel
• Poor grass discharge: engine speed too slow, mowing too fast, wet grass, deck not level, low tire pressure, deck packed with clippings

• Set throttle to FAST when mowing; slow ground speed if the cut looks uneven.
• Confirm the brake pedal is fully depressed and the PTO is disengaged before starting.
• Inspect battery terminals for corrosion; tighten and clean connections.

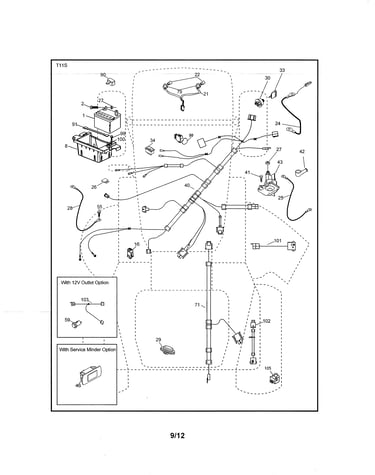

• Look for loose or damaged wiring at the battery, ignition switch, and starter area.
• Check for grass and debris buildup under the deck and around mandrels; clean after the engine cools.

If your symptoms point to a worn drive component or an electrical no-start, these model-matched parts are common solutions:

Most “big” mower problems start as small maintenance issues. Keeping fuel fresh, airflow clean, and the deck clear of packed clippings helps prevent hard starting, loss of power, and belt or mandrel failures. It also reduces fire risk from dry debris contacting hot engine parts.

For step-by-step diagnosis of a click-no-start condition, use riding lawn mower engine clicks but doesnt turn over video. For ordering additional parts beyond the examples above, search by model number on Sears PartsDirect.

Last updated: February 2026

Craftsman model 917286420 is a model series used on Craftsman riding lawn tractors; the exact build year is not encoded in the model number itself. To identify the year for your specific tractor, match the product/serial number label on the tractor to the identification details and ranges shown in the owner's manual.

Look for the product identification label (often under the seat, on the frame near the rear wheels, or under the hood). Then use these checks:

• Record the model number and serial number exactly as shown
• Compare the serial number format to the identification section in the manual
• Note any engine model/type/code stamped on the engine (helpful for dating)
• If the label is damaged, check for a second label on the frame or fender pan
• Use the parts diagrams for model 917286420 to confirm major assemblies match your tractor

The operator manual for this tractor family lists the model as 917.28642 (same model family as 917286420) and describes a 26.0 HP, 48-inch mower, electric start, automatic transmission configuration. That confirms you are working with the correct Craftsman platform, but the production year still depends on the serial number.

The build year affects small but important fit details such as belt routing, deck linkage geometry, and electrical connectors. Confirming the year helps you order the right wear items (belts, pulleys, switches) the first time.

If you are troubleshooting or ordering maintenance parts, confirm your exact configuration before buying:

• Deck drive and ground drive belts (routing and length can differ)
• PTO switch and clutch wiring
• Idler pulley styles and brackets

If your issue involves drive or deck engagement, the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201 and the switch.pto 582107601 are two commonly replaced items for this model family.

You can order replacement parts from the parts list for model 917286420, or search by model number on Sears PartsDirect.

Last updated: February 2026

To look up the model number on your Craftsman riding mower or lawn tractor, we check the product identification label on the tractor itself. On Craftsman model 917286420, the model number is typically found on the frame under the seat area; once you have it, you can match parts and maintenance specs in the owner's manual.

On most Craftsman front-engine lawn tractors, the ID label is in one of these common spots:

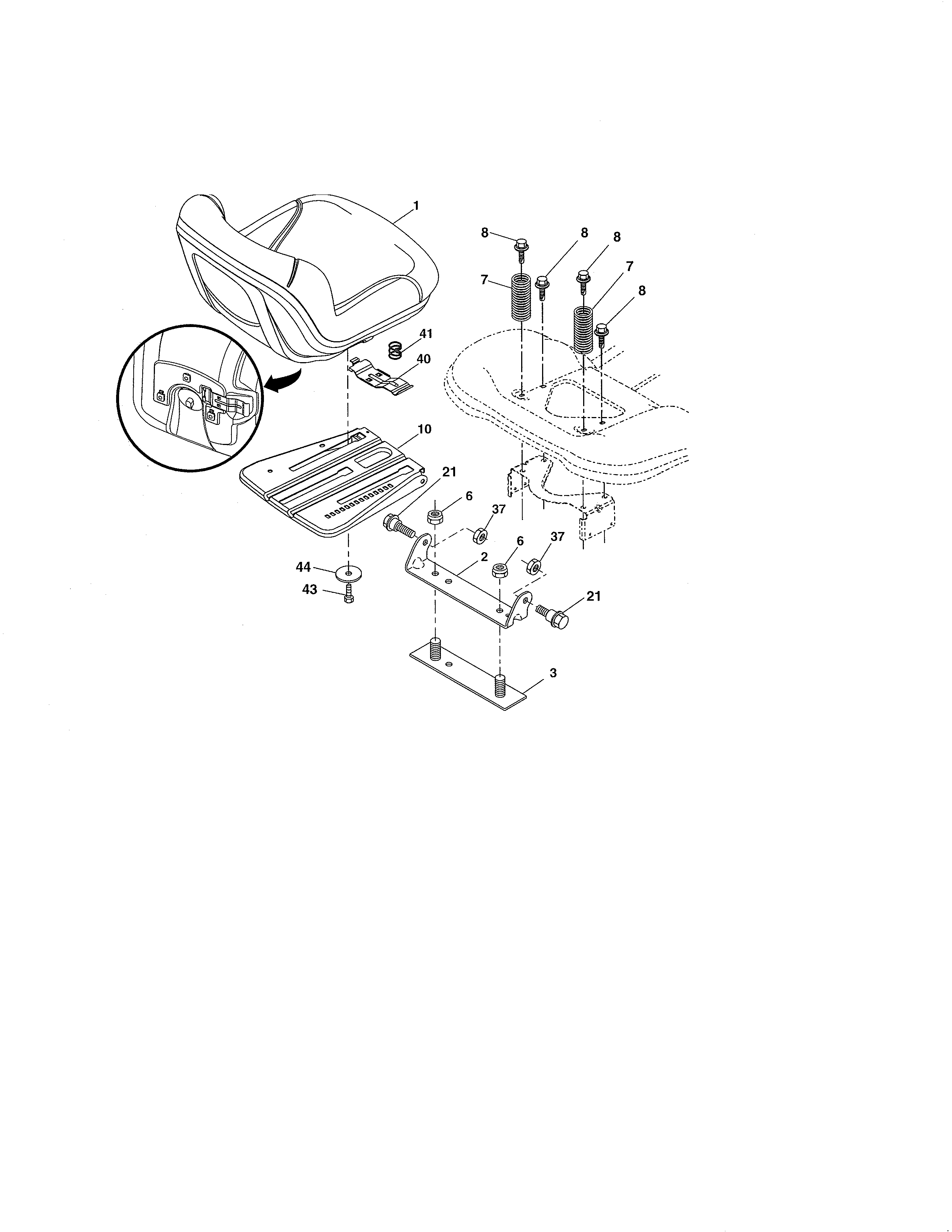

• On the frame under the seat (lift the seat to view the frame rails)
• On the underside of the seat pan
• Near the rear fender or rear frame area (close to the seat mounting points)
• Occasionally near the engine compartment on the frame (less common)

Once you have the model number, use it exactly as printed (including dots or dashes if shown) to ensure the correct parts list and diagrams.

• Enter the full model number (example: 917286420) when searching
• Use the parts diagrams to identify the exact component you need
• Confirm the part description and fit before ordering
• Keep the serial number handy if you are comparing production variations

Craftsman tractors often share similar looks across different years and deck sizes (for example, 48-inch mower decks). Using the correct model number prevents ordering the wrong belt, PTO switch, or deck-related parts and helps you follow the right maintenance schedule.

If you are ordering parts, start with the parts list for model 917286420 on this page; you can also search by model number on Sears PartsDirect.
