Whirlpool ED5VHEXVQ07 refrigerator Parts

The Whirlpool ED5VHEXVQ07 is a full-size side-by-side refrigerator; most Whirlpool side-by-sides in this class are about 25 cubic feet and measure roughly 33 inches wide, 66 to 70 inches tall, and 32 to 35 inches deep (depth varies with handles). For exact capacity and dimensions, use the ED5VHEXVQ07 owner's manual.

What “big” usually means (capacity vs. dimensions)

When customers ask how big a refrigerator is, we usually confirm two things:

• Capacity (cu. ft.): how much food it holds
• Width: determines if it fits between cabinets
• Height: determines if it clears upper cabinets
• Depth: determines how far it sticks out (especially with handles)
• Door swing clearance: determines if doors open fully without hitting walls

Typical size range for a Whirlpool side-by-side like ED5VHEXVQ07

These are the most common real-world ranges for this Whirlpool style.

Spec	Typical range	What affects it most
Total capacity	24 to 26 cu. ft.	cabinet design, shelf layout
Width	32 1/2 to 33 1/2 in.	trim, hinge caps
Height	66 to 70 in.	leveling legs, hinge height
Depth	32 to 35 in.	handles, door thickness

How to measure your ED5VHEXVQ07 accurately

Use a tape measure and capture the “fit” dimensions that matter for installation.

• Measure width at the widest point (often hinge side)
• Measure height from floor to top of hinge cover (include leveling leg setting)
• Measure depth to the front of the handles (and also without handles if needed)
• Allow extra space behind for the water line and airflow
• Confirm clearance for the ice/water dispenser door area if it protrudes

Why it matters

Correct dimensions prevent common headaches like doors not opening fully, the cabinet rubbing, or the water line kinking behind the unit. If you are replacing a filter or troubleshooting dispenser flow, knowing the model also helps match the correct parts, such as the refrigerator water filter EDR3RXD1.

Last updated: January 2026

On a Whirlpool ED5VHEXVQ07 side-by-side refrigerator, the model number is printed on the appliance identification label inside the fresh food compartment. We use that exact model number to match diagrams and ensure parts fit; confirm the full number before ordering.

Where to look (most common spots)

• Inside the refrigerator section on a side wall near the top front.
• On the ceiling of the fresh food compartment near the light housing.
• Along the door frame area, visible when the refrigerator door is open.
• Sometimes behind the crisper drawers on the side wall.

What the label looks like

The label typically includes:

• Model (for example, ED5VHEXVQ07)
• Serial number
• Electrical ratings (volts/amps)
• Sometimes a type or engineering code

Tips to avoid ordering the wrong part

• Copy the model number exactly, including all letters and numbers.
• If there is a dash or additional suffix on the tag, include it.
• Use the model number to confirm the correct part list in the ED5VHEXVQ07 owner's manual.

Example: model vs. part identifiers

Item	What it identifies	Example
Model number	The refrigerator version	ED5VHEXVQ07
Part ID	Sears PartsDirect identifier for a specific part	EDR3RXD1
Part number	Manufacturer number for the part	4396841

Why it matters

Whirlpool often uses similar-looking cabinets across multiple models; the exact model number ensures you get the correct refrigerator water filter, ice maker, door bin, or control board for your unit.

Last updated: March 2026

For your Whirlpool ED5VHEXVQ07 side-by-side refrigerator, start troubleshooting by identifying the symptom (not cooling, ice maker not working, water dispenser slow, leaks, or unusual noise) and then checking the most common causes in a simple order. Use the ED5VHEXVQ07 owner's manual for model-specific control settings and diagnostic steps.

Quick checks we recommend first

• Confirm the refrigerator is plugged in and the outlet has power.
• Verify temperature settings; target about 37°F fresh food and 0°F freezer.
• Make sure doors close fully and gaskets seal all the way around.
• Check for blocked air vents (overpacked shelves can stop airflow).
• Clean condenser area if dusty; poor heat release causes warm temps.

Symptom-based troubleshooting

Symptom	Most common causes	What to do next
Not cooling or weak cooling	Dirty condenser, airflow blockage, defrost issue	Clean coils, clear vents, look for frost buildup on freezer back wall
Ice maker not making ice	Water supply off, frozen fill tube, failed ice maker	Confirm water valve is open, dump old cubes, inspect fill tube
Water dispenser slow/no water	Clogged filter, air in line, inlet valve issue	Replace filter, purge air, test water flow
Water puddles	Defrost drain clog, loose water line	Check drain area, inspect tubing connections

Parts that commonly solve water and ice problems

If your symptom points to filtration or water supply, these model-matched parts are common fixes:

• Refrigerator water filter EDR3RXD1 (restricted flow, bad taste, slow dispensing)
• Refrigerator water inlet valve W10408179 (no water to dispenser or ice maker)

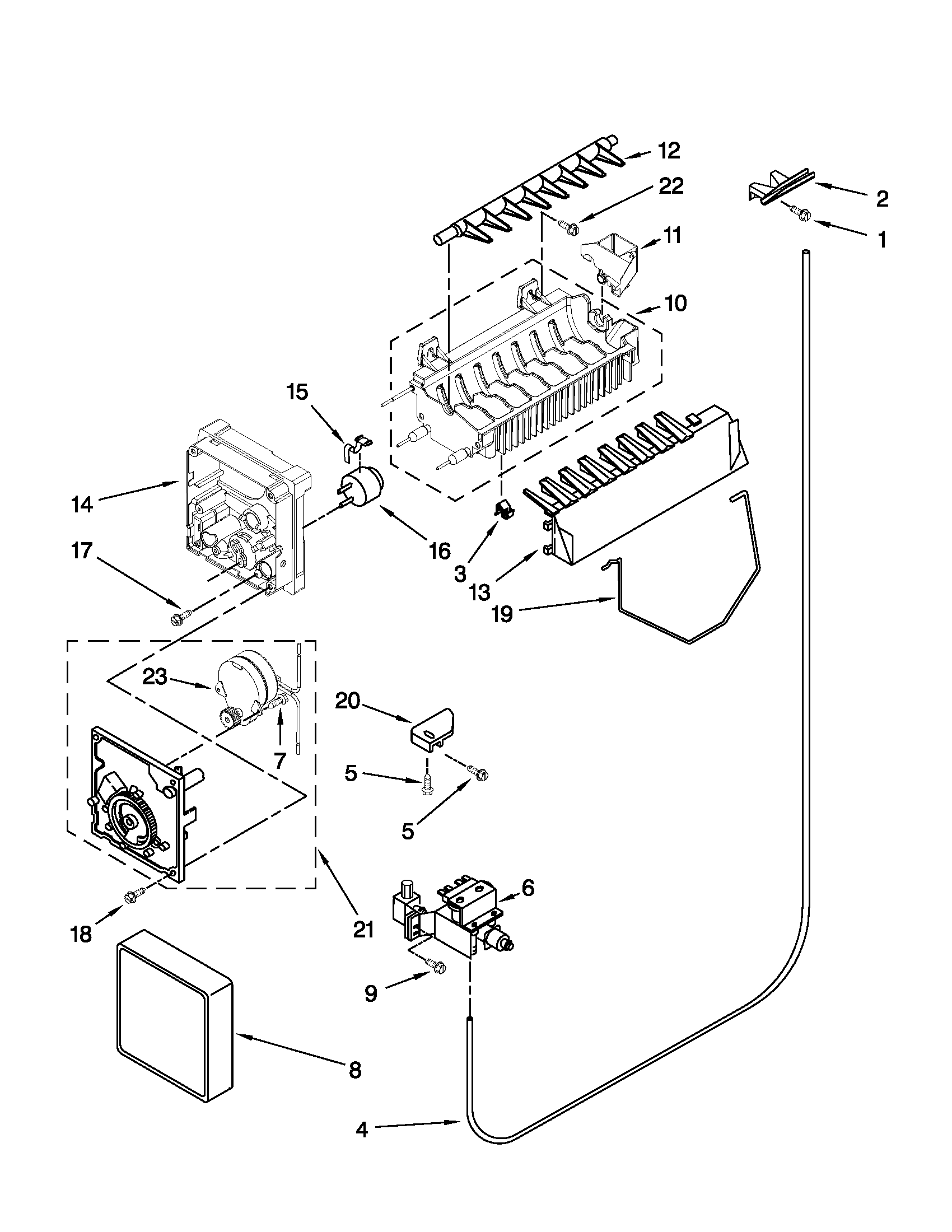

• Refrigerator ice maker WPW10190965 (no ice production with good water supply)

Why it matters

Troubleshooting in a set order prevents unnecessary part replacement and helps protect food safety by restoring proper temperatures quickly.

For electronic or display-related issues, use Whirlpool refrigerator error codes to match the code to the right checks.

Last updated: March 2026
