Craftsman 917255272 36" 10-hp riding lawn tractor Parts
Here are the diagrams and repair parts for Craftsman 917255272 36" 10-hp riding lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

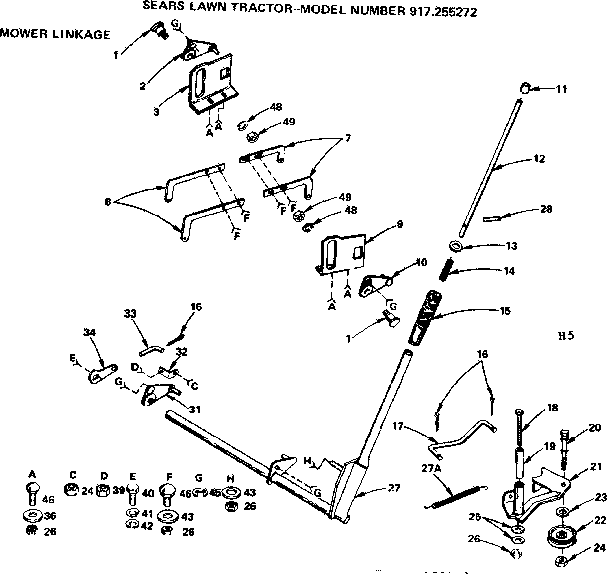

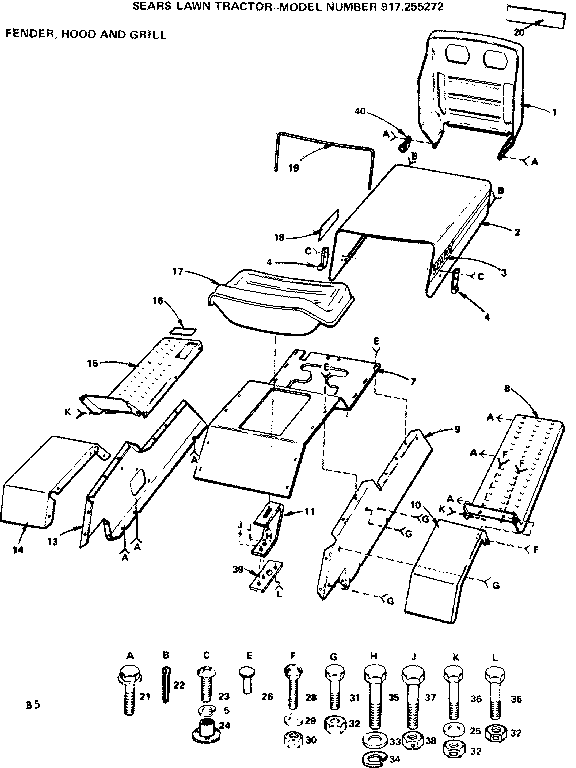

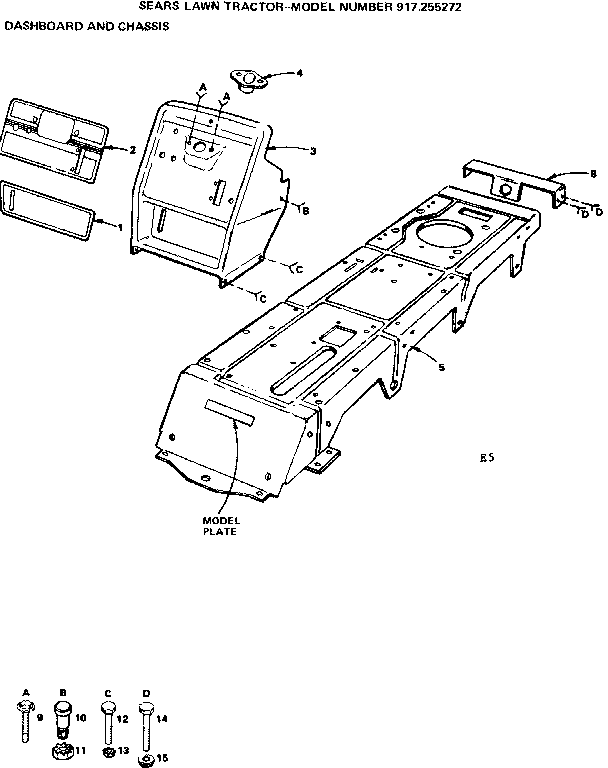

Browse Parts for 917255272 Riding Mowers & Tractors

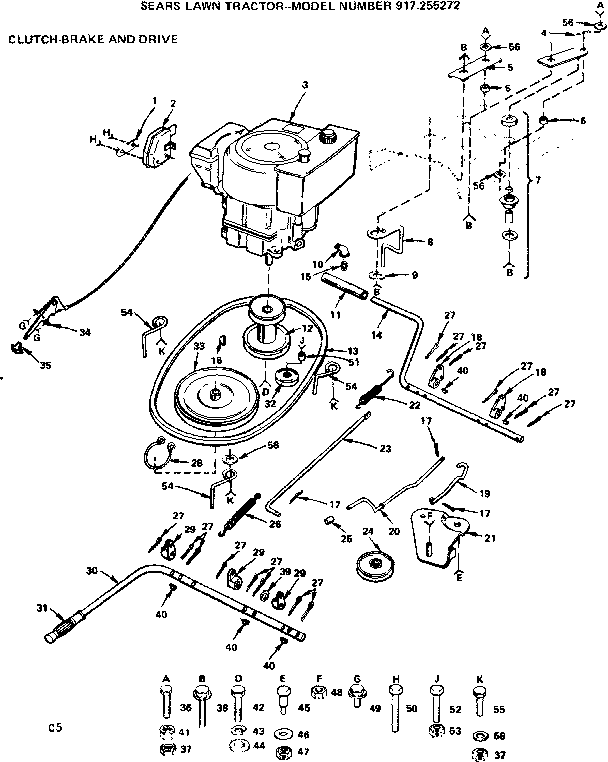

Clutch-brake and drive diagram
Brake Spring
Part #1635JReplaced by #583685701
Manufacturer substitutionThis part replaces 1635J. Substitute parts can look different from the original.In Stock$44.36
Qty

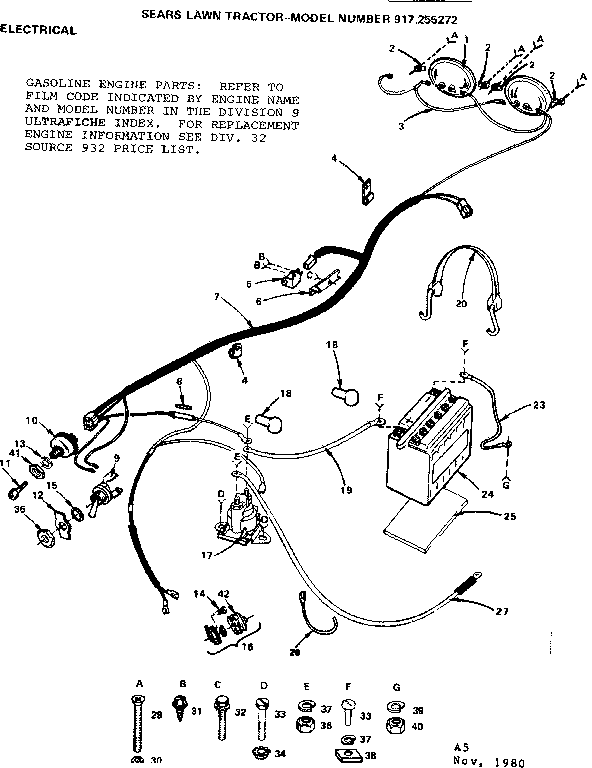

Electrical diagram
Nut
Part #67759Replaced by #532124211
Manufacturer substitutionThis part replaces 67759. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49
QtyFlat Washer
Part #1507PReplaced by #STD551025
Manufacturer substitutionThis part replaces 1507P. Substitute parts can look different from the original.In Stock$36.61QtyClutch-brake and drive diagram
Plug
Part #31927Replaced by #31927

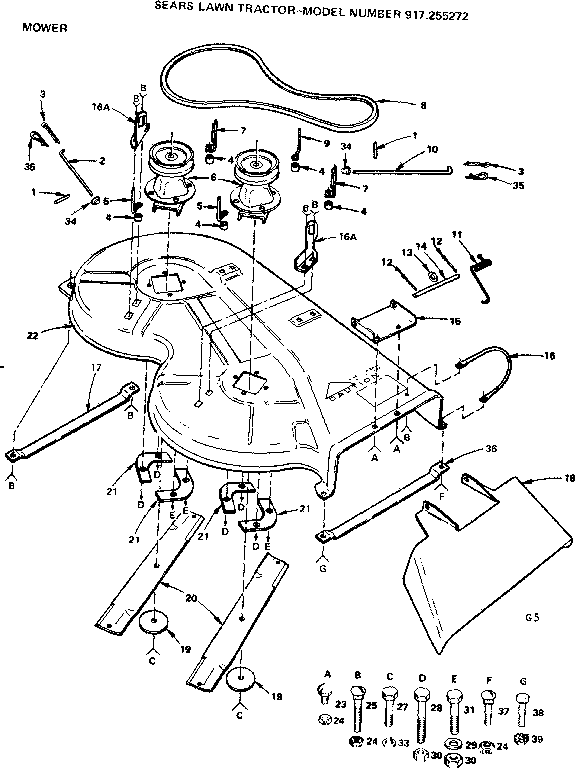

Manufacturer substitutionThis part replaces 31927. Substitute parts can look different from the original.This item is not returnableIn Stock$2.16QtyMower diagram
Spring Retainer
Part #4921HReplaced by #532004921
Manufacturer substitutionThis part replaces 4921H. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyMower diagram
Washer
Part #1623PReplaced by #819111416

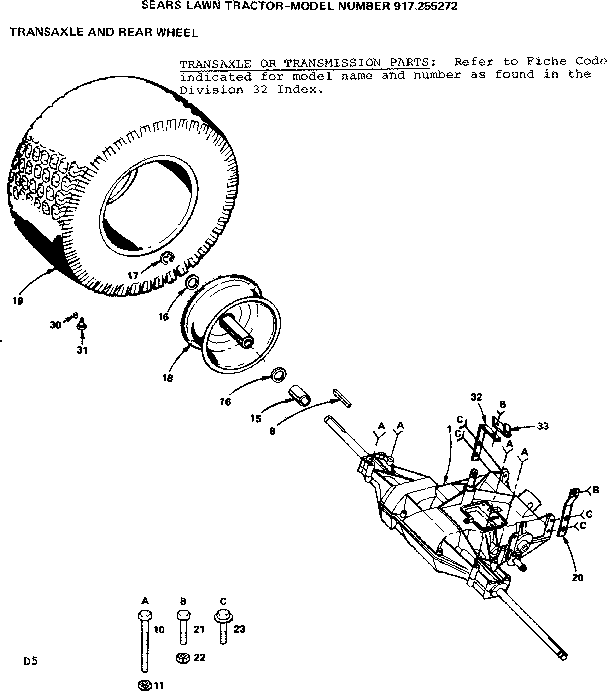

Manufacturer substitutionThis part replaces 1623P. Substitute parts can look different from the original.In Stock$12.97QtyTransaxle and rear wheel diagram
E-ring
Part #5000PReplaced by #812000029
Manufacturer substitutionThis part replaces 5000P. Substitute parts can look different from the original.This item is not returnableIn Stock$3.6522% OFF Phone Price : $4.65QtySteering and front axle diagram
Hardened Race Thrust Bearing
Part #6266HReplaced by #532006266
Manufacturer substitutionThis part replaces 6266H. Substitute parts can look different from the original.In Stock$10.6216% OFF Phone Price : $12.62QtyWizard Lawn Tractor Tire Valve Stem
Part #65139
The manufacturer no longer makes this part, and there's no substitute part

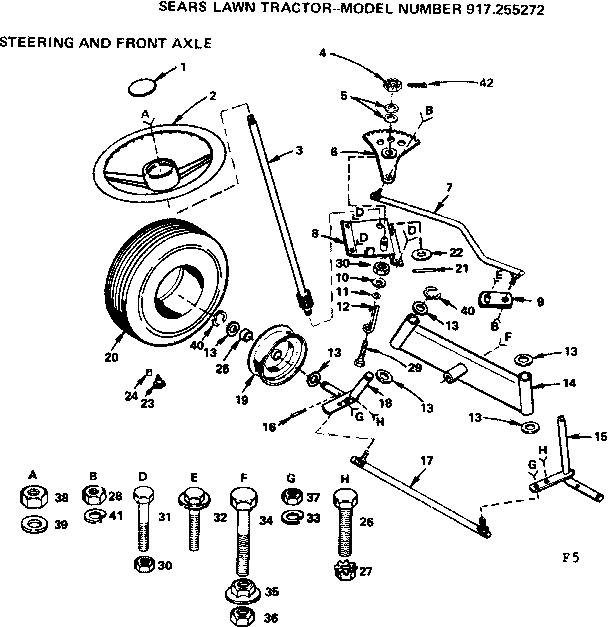

Steering and front axle diagram
Str. Wheel
Part #677A361
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace the starter solenoid on a riding lawn mower
Replace the starter solenoid if it doesn't click when you turn the ignition key.…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower fuel filter
Help your mower run better by replacing the fuel filter during your riding mower's annual tune-up.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to connect cables safely to jump-start your mower’s battery.…
