Model #919165200 Craftsman air compressor

Here are the diagrams and repair parts for Craftsman 919165200 air compressor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 60 parts

|

Air Compressor Manifold Nipple

#15

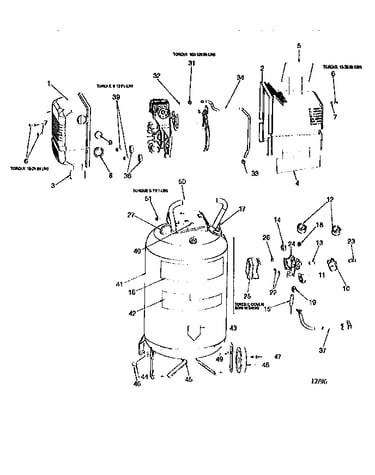

Air compressor Diagram

Air compressor manifold nipple

Part #SSP-480

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Air Filter Retainer

#8

Air compressor Diagram

Air compressor air filter retainer

Part #CAC-1373

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Fan Blade Screw

#56

Compressor pump Diagram

Air compressor fan blade screw

Part #SSF-586

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Shroud Screw Mount

#38

Air compressor Diagram

Air compressor shroud screw mount

Part #ACG-18

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut

#31

Air compressor Diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut

#33

Air compressor Diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Valve Plate O-Ring

#63

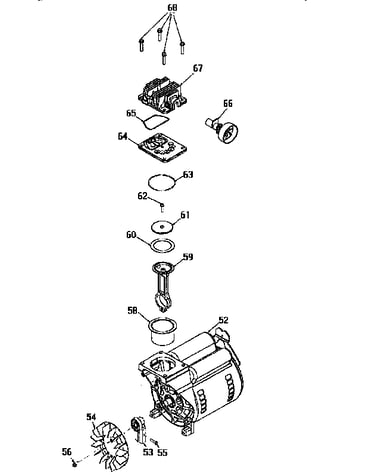

Compressor pump Diagram

$15.07

In Stock

Air Compressor Screw

#46

Air compressor Diagram

Air compressor screw

Part #SSF-925

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Power Cord

#37

Air compressor Diagram

Air compressor power cord

Part #SUDL-413-2

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Fan Blade

#54

Compressor pump Diagram

Air compressor fan blade

Part #AC-0108

The manufacturer no longer makes this part, and there's no substitute part

Showing 10 of 60 parts
