Model #FWTB59RGS0 Frigidaire washer

Here are the repair parts and diagrams for your Frigidaire FWTB59RGS0 washer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 105 parts

Laundry Appliance Screw, #8-18 x 31/100-in

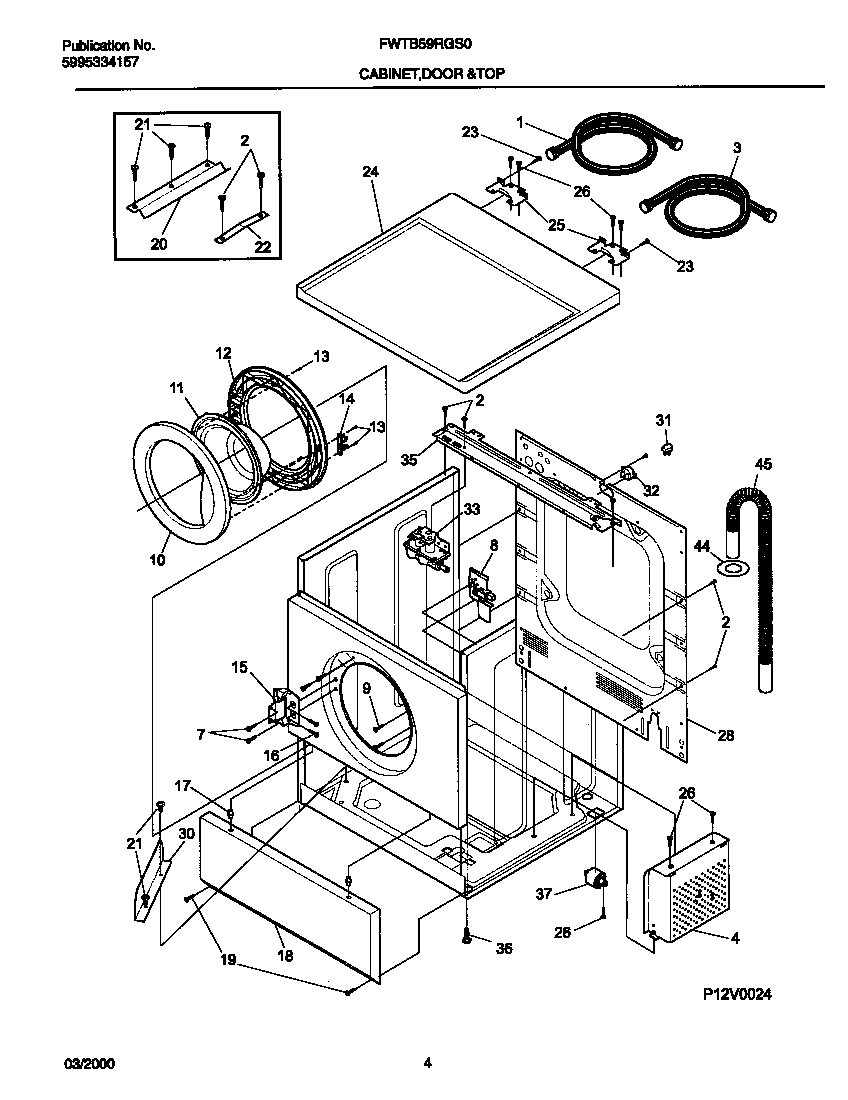

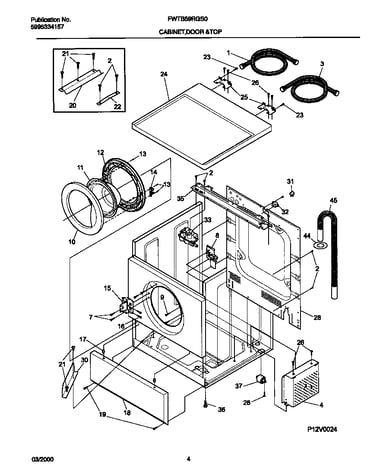

P12v0024 wshr cab,door Diagram

10% OFFMSRP:$9.20

In Stock

Washer Baffle Screw

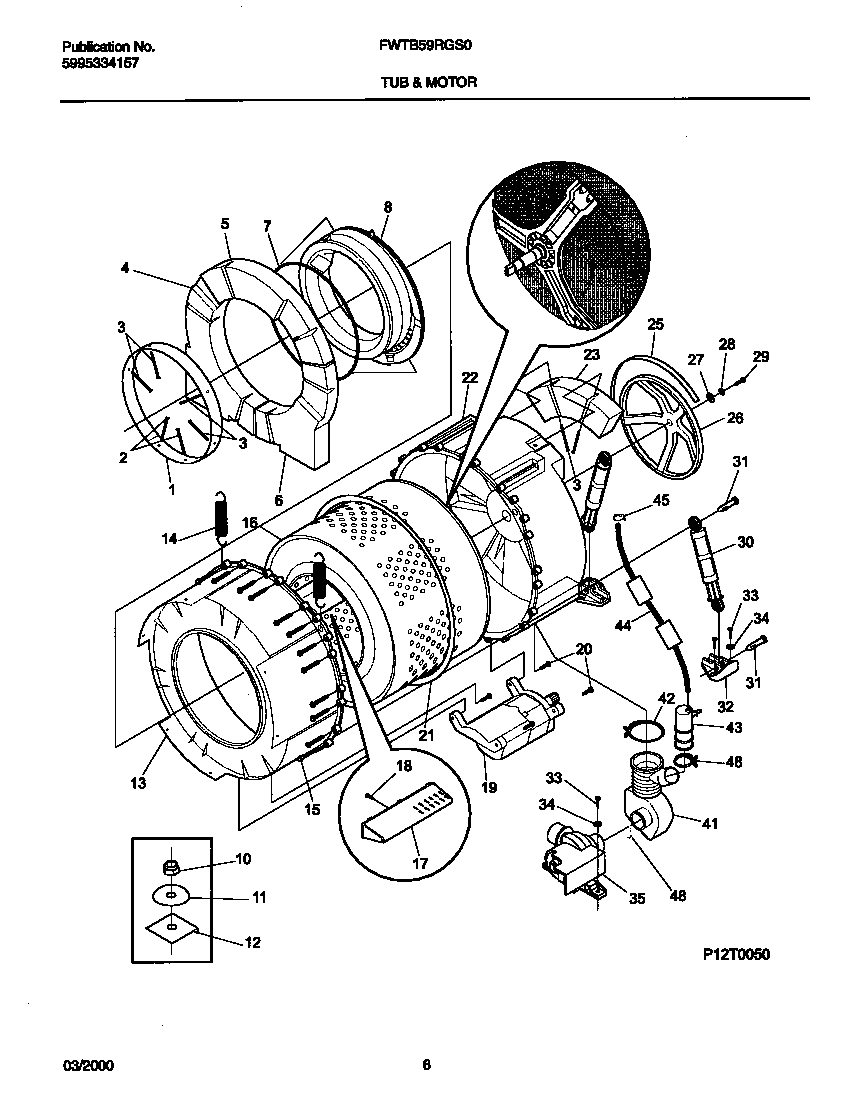

P12t0050 wshr tub,motor Diagram

Washer baffle screw

Part #131302800

In Stock

Washer Tub-to-Pump Hose


P12t0050 wshr tub,motor Diagram

Washer tub-to-pump hose

Part #131784700
31% OFFMSRP:$70.00

In Stock

Washer Screw, #10-16 x 0.75-in


P12v0024 wshr cab,door Diagram

Washer screw, #10-16 x 0.75-in

Part #131302901
This item is not returnable
7% OFFMSRP:$3.10

In Stock

Washer Dispenser Drawer Magnet

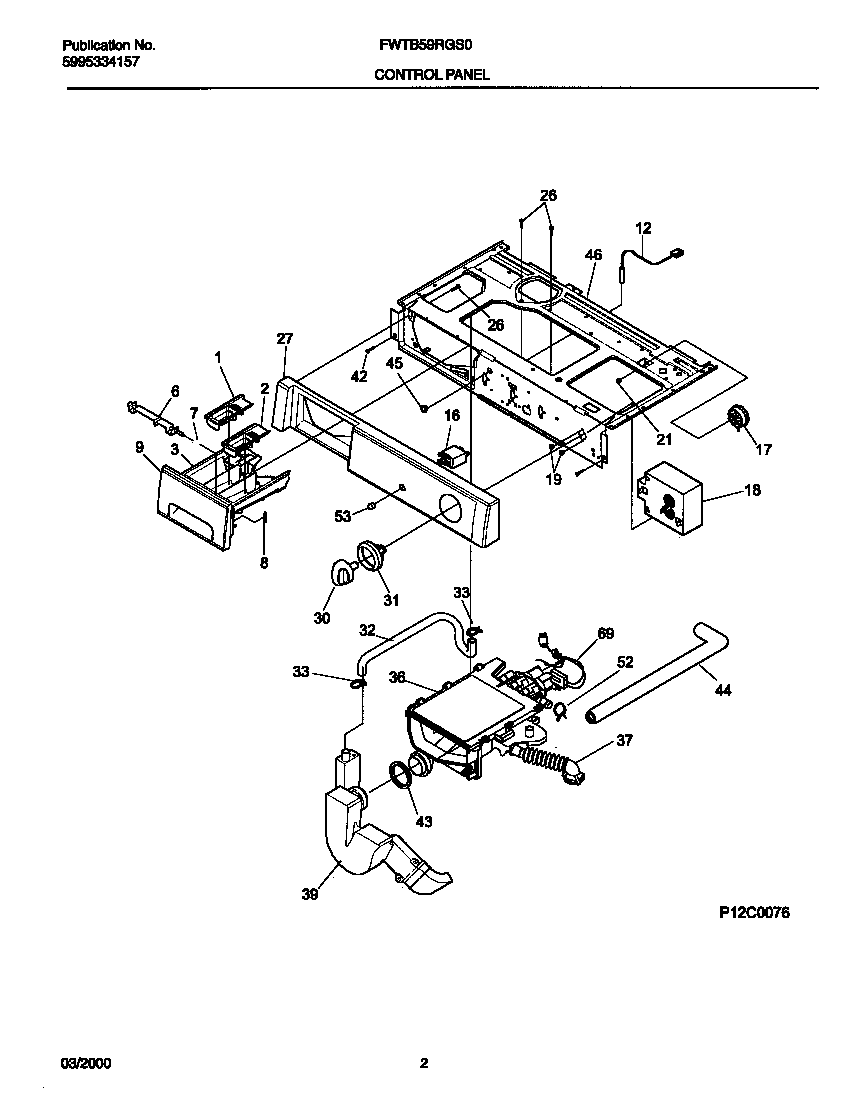

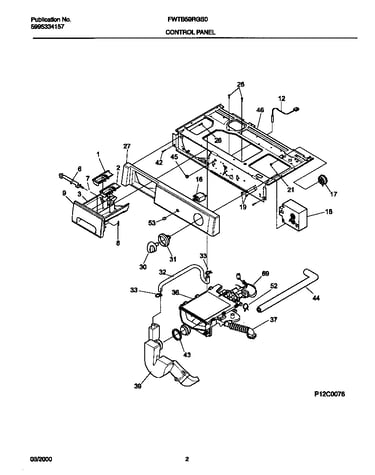

P12c0076 control panel Diagram


In Stock

Washer Dispenser Hose


P12c0076 control panel Diagram

Washer dispenser hose

Part #131271600
23% OFFMSRP:$58.00

In Stock

Washer Screw


P12v0024 wshr cab,door Diagram

Washer screw

Part #131205300
18% OFFMSRP:$10.00

In Stock

Washer Drive Pulley


P12t0050 wshr tub,motor Diagram

Washer drive pulley

Part #131304400
43% OFFMSRP:$26.00

In Stock

Washer Service Panel (White)


P12v0024 wshr cab,door Diagram

28% OFFMSRP:$190.00

In Stock

Washer Suspension Spring Retainer


All parts Diagram

42% OFFMSRP:$28.00

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
