Frigidaire FFHT1514QS0 refrigerator Parts

A top-mount refrigerator like the Frigidaire FFHT1514QS0 gives you a traditional layout with the freezer on top, typically strong usable fresh-food space, and straightforward installation and leveling. It is also easy to place in many kitchens because clearance needs are simple and well-defined.

Key advantages in everyday use

• More usable refrigerator space for fresh foods compared with many bottom-freezer designs of similar overall size.
• Frozen foods at eye level, so you do less bending to reach commonly used freezer items.
• Simple airflow and placement requirements; you typically only need modest side/top and rear clearance.
• Easier door and cabinet fit planning; top-mounts often work well in standard kitchen cutouts.
• Straightforward leveling; raising the front slightly helps doors close properly.

Installation and space planning (what to expect)

For FFHT1514QS0, plan for basic clearances and a level floor for proper air circulation and door operation. Our installation guidance also emphasizes avoiding extension cords and placing the refrigerator near a grounded outlet.

What you plan for	Typical guidance for this model type	Why it helps
Side and top clearance	About 3/8 inch	Improves airflow and reduces heat buildup
Rear clearance	About 1 inch	Helps condenser airflow and cord/water line routing
Leveling	Tilt 1/4 to 1/2 inch front-to-back	Helps doors close freely and seal evenly

For the exact steps and diagrams, use the FFHT1514QS0 installation guide.

Why it matters

Top-mount refrigerators are popular because they balance convenience and capacity: you get frequent access to fresh foods at a comfortable height, while still keeping freezer items easy to reach. When the unit is leveled correctly and has proper clearance, it also runs more efficiently and maintains steadier temperatures.

Quick tips to get the best results

• Keep the toe grille area clear so air can circulate.
• Avoid placing the refrigerator in areas below 55°F or above 110°F.
• Level the cabinet so it sits solid on all corners.
• Confirm door seals contact the cabinet on all sides.
• Recheck for water leaks 24 hours after connecting a water supply (if equipped).

Last updated: January 2026

Cooling complaints are the most common issue we see with Frigidaire refrigerators like model FFHT1514QS0, usually caused by restricted airflow (dirty condenser coils, blocked vents), a weak fan, or doors not sealing tightly, which leads to warm fresh food or soft ice.

Quick checks that fix many “not cold enough” calls

• Confirm the controls are not set to “0” (off) and allow 24 hours for temperatures to stabilize after changes.
• Make sure the refrigerator is plugged in firmly; check the breaker or a 15-amp time-delay fuse.
• Listen for the evaporator fan running when the compressor is on (freezer section airflow matters most).
• Check that food packages are not blocking air vents between the freezer and fresh food sections.

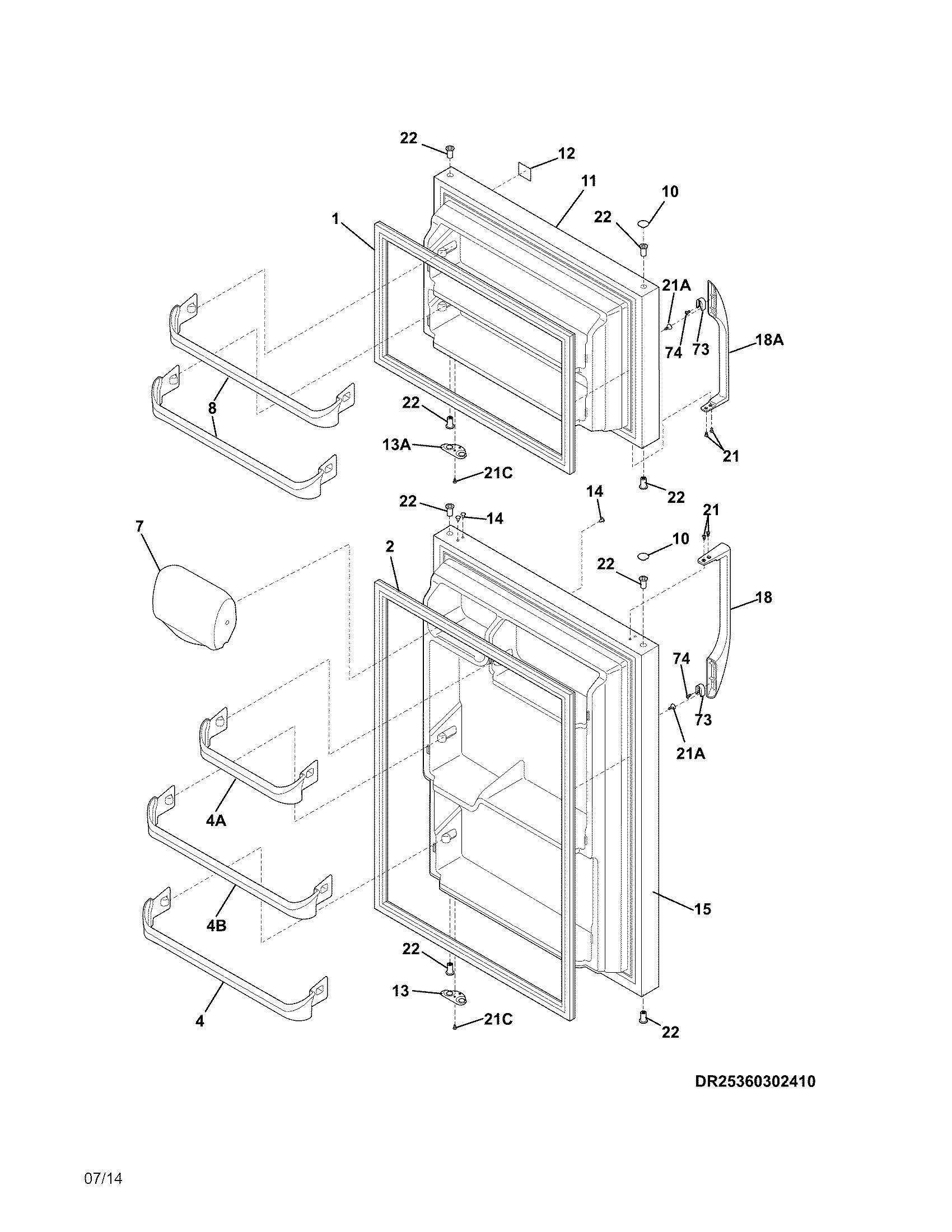

• Inspect door gaskets for gaps, tears, or areas that do not grip a dollar bill.

For model-specific operating and safety details (including power-off guidance and common occurrences), use the FFHT1514QS0 owner's manual.

Common symptoms and the most likely causes

Symptom	Most common cause	What to do first
Fresh food warm, freezer OK	Airflow restriction or evaporator fan issue	Clear vents; verify fan sound and airflow
Both sections warm	Dirty condenser area, control setting, or sealed-system issue	Clean airflow path; verify settings; allow 24 hours
Fridge runs but temps swing	Temperature sensor/thermistor drifting	Check sensor placement; test/replace if needed
Lights out but unit cools	Burned-out bulb or door switch issue	Replace bulb; check switch action

Parts that commonly relate to these problems (FFHT1514QS0)

If troubleshooting points to a failed component, these are common matches for cooling and “no light” complaints:

• Refrigerator temperature sensor 240597220 (helps the control regulate temperature)
• Refrigerator motor 242077705 (evaporator fan motor that moves cold air)
• Refrigerator light bulb 316538904 (interior light)

Why it matters

A refrigerator that is even a few degrees too warm can spoil food faster and force the compressor to run longer. Fixing airflow and sealing issues early often prevents bigger cooling failures later.

Last updated: January 2026

On a Frigidaire top-mount refrigerator like model FFHT1514QS0, the upper compartment is the freezer compartment. It is designed to keep foods frozen and typically contains the cold-air source that helps cool the fresh-food section below.

What you will find in the upper (freezer) compartment

Most top-mount freezers include a few common components and features:

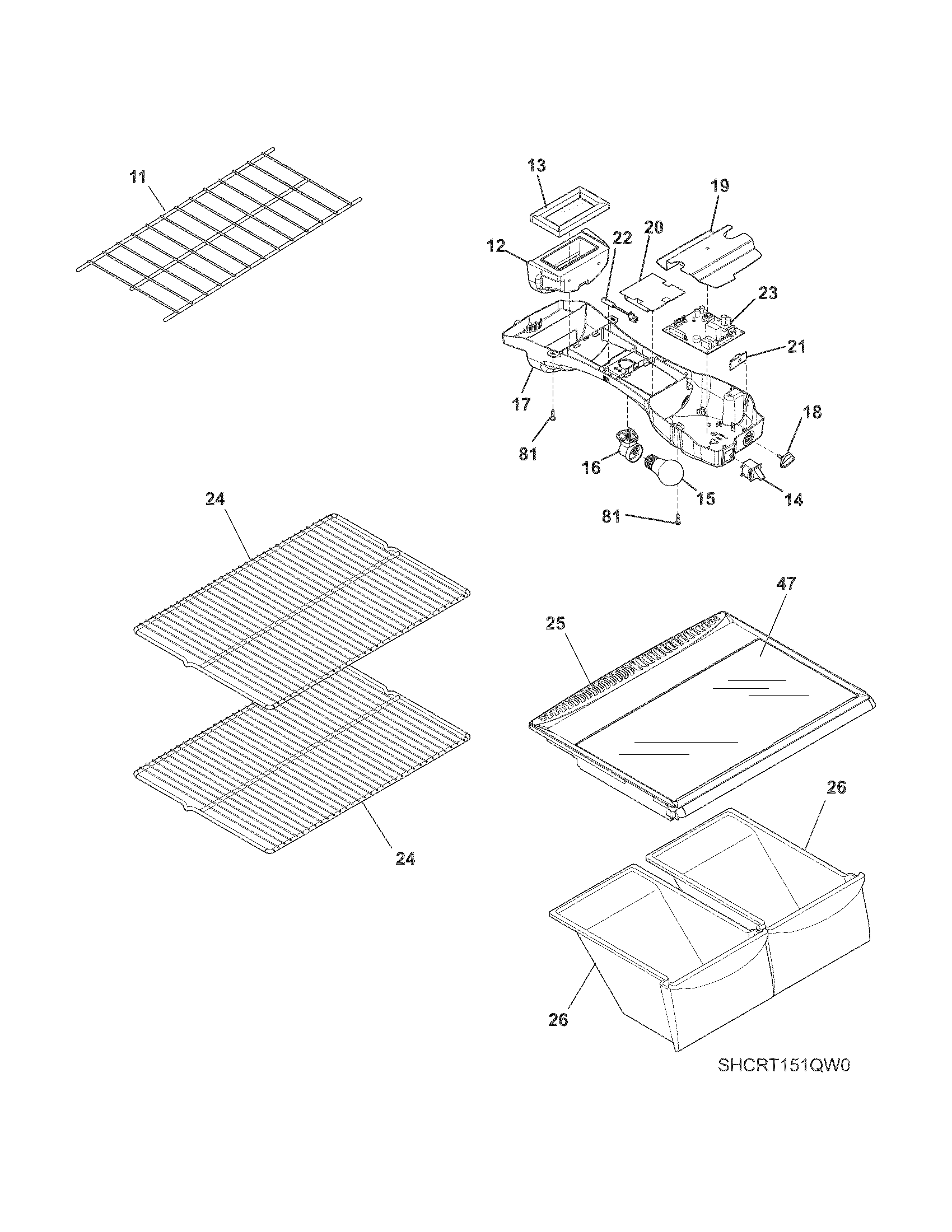

• Freezer shelves or bins for frozen food storage
• A freezer temperature control or air-flow control (varies by model)
• An evaporator area behind an interior panel (where cold is produced)
• An evaporator fan that circulates cold air to the refrigerator section
• Door bins or rails for smaller items

For model-specific operating details and control settings, use the FFHT1514QS0 use & care manual.

Freezer vs. refrigerator section: quick comparison

Section	Primary purpose	Typical temperature range	Common symptoms when it is not working right
Freezer (upper)	Freeze and store food long-term	0°F to 5°F	Soft ice cream, thawing food, frost buildup
Fresh food (lower)	Keep food cold but not frozen	34°F to 40°F	Warm milk, wilting produce, freezing in crisper

Why it matters

Knowing the correct name helps when you are troubleshooting cooling problems or ordering parts. For example, if the freezer is cold but the refrigerator is warm, the issue often involves air movement between compartments (such as the evaporator fan or air duct controls).

Helpful next steps if temperatures are off

If the freezer or fresh-food section is not holding temperature, these checks usually help:

• Confirm the controls are set to the recommended range; wait 24 hours after changes before adjusting again
• Make sure the doors seal fully on all sides and close freely
• Verify the refrigerator is level and slightly tilted back so doors self-close
• Keep the toe grille area clear for proper air circulation
• Avoid blocking vents inside the freezer with packages

Leveling and clearance guidance for this model is covered in the FFHT1514QS0 installation guide.

Last updated: January 2026

If your Frigidaire FFHT1514QS0 top-mount freezer is not freezing, the most common causes are incorrect temperature settings, poor airflow from frost buildup or a failed evaporator fan, or heat not being removed well because the condenser area is dirty. Use the FFHT1514QS0 owner’s manual to confirm control settings and basic checks.

Quick checks we recommend first

• Confirm the freezer control is not set to “0” (off); allow 24 hours after any adjustment for temperatures to stabilize.
• Make sure the freezer door closes tightly and is not being held open by packages.
• Look for heavy frost on the freezer back wall (a strong sign of a defrost problem or airflow blockage).
• Listen for the evaporator fan in the freezer; if it is silent when the compressor is running, airflow will be weak.
• Check that the refrigerator is plugged in firmly and the breaker is not tripped.

What to check next (most likely causes)

1) Airflow problem inside the freezer

Cold air has to move through the evaporator area to freeze food.

Common signs:

• Freezer is warm but you hear the compressor running
• Frost or ice buildup on the rear freezer panel
• Fridge section may also start warming

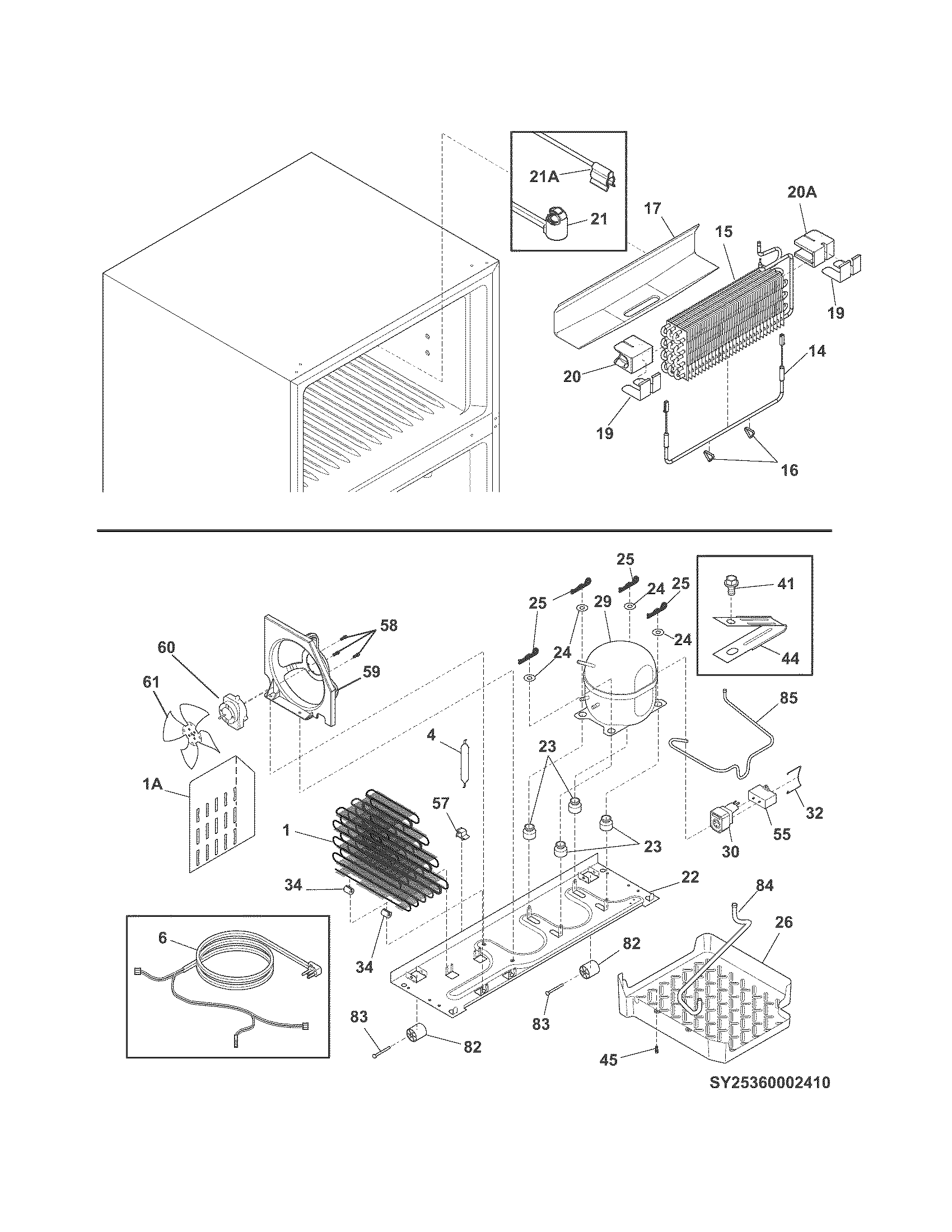

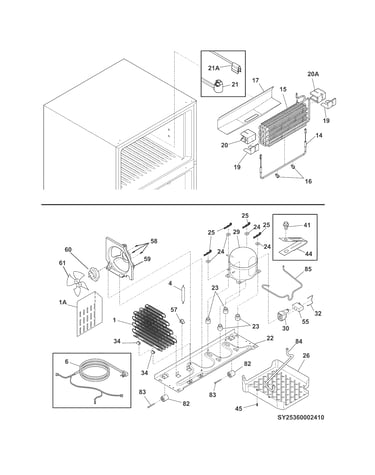

If the fan is noisy, intermittent, or not running, the evaporator fan system is a prime suspect. For this model, the fan components you may need include the refrigerator motor 242077705 and the refrigerator evaporator fan blade 242219302.

2) Temperature sensing or control issue

If the freezer temperature swings or never reaches setpoint, a sensor or control can misread temperatures and reduce cooling time. A common service part for temperature sensing on this model is the refrigerator temperature sensor 240597220.

3) Heat not being removed efficiently

When the condenser area is dirty or the condenser fan is failing, the sealed system cannot shed heat well, so freezing performance drops.

Symptoms-to-cause guide

What you notice	Most likely direction	What to do
Heavy frost on freezer back wall	Defrost or airflow issue	Defrost, check fan operation and vents
Freezer warm, compressor runs a lot	Poor heat removal or low airflow	Clean condenser area, check fans
Freezer warm, compressor rarely runs	Control/sensor issue	Verify settings, check sensor/control

Why it matters

A freezer that is not freezing can quickly lead to food spoilage and can also force the compressor to run longer than normal, increasing energy use and wear on key components.

Last updated: January 2026
