Whirlpool UXT5536AAS3 range hood

Whirlpool UXT5536AAS3 range hood Parts

Here are the diagrams and repair parts for Whirlpool UXT5536AAS3 range hood, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for UXT5536AAS3 Range Hood

  • Range Hood Light Assembly for Whirlpool UXT5536AAS3 - Part WPW10562734

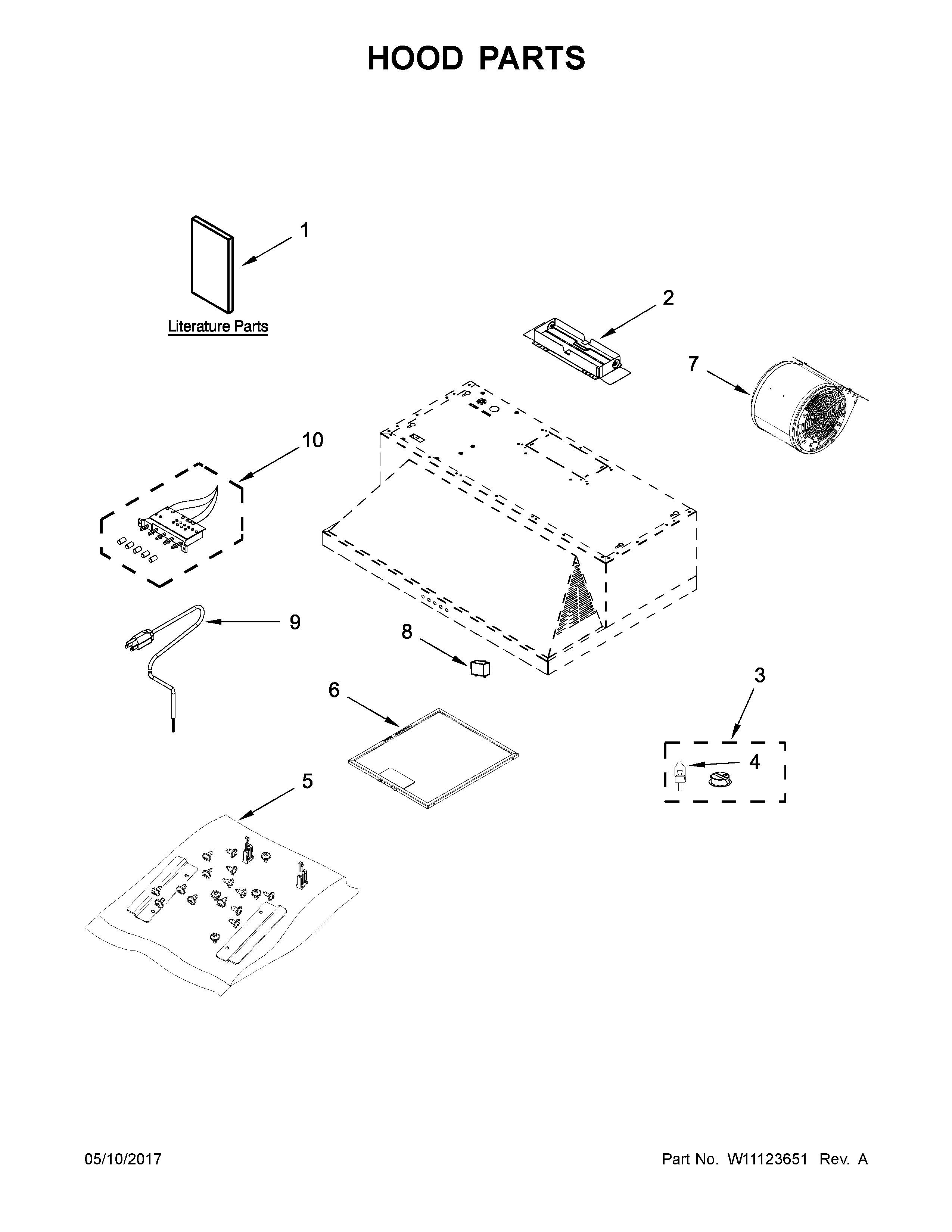

    Hood parts diagram

    Range Hood Light Bulb

    Part #W10562734

    Replaced by #WPW10562734

    Info Icon
    Manufacturer substitution
    This part replaces W10562734. Substitute parts can look different from the original.
    In Stock
    $67.16
    12% OFF Was : $76.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Light Bulb for Whirlpool UXT5536AAS3 - Part WPW10571723

    Hood parts diagram

    Range Hood Light Bulb

    Part #W10571723

    Replaced by #WPW10571723

    Info Icon
    Manufacturer substitution
    This part replaces W10571723. Substitute parts can look different from the original.
    In Stock
    $16.14
    11% OFF Phone Price : $18.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Control Motor for Whirlpool UXT5536AAS3 - Part W10851619

    Hood parts diagram

    Control Motor

    Part #W10851619
    In Stock
    $197.17
    Minus Item
    Qty
    Plus Item
  • Air Kit for Whirlpool UXT5536AAS3 - Part W10446914

    Hood parts diagram

    Air Kit

    Part #W10446914
    In Stock
    $492.27
    $12.00 OFF Phone Price : $504.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Charcoal Filter Kit for Whirlpool UXT5536AAS3 - Part W10272068

    Hood parts diagram

    Range Hood Charcoal Filter Kit

    Part #W10272068
    In Stock
    $47.88
    11% OFF Phone Price : $53.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Installation Hardware for Whirlpool UXT5536AAS3 - Part W11123666

    Hood parts diagram

    Installation Hardware

    Part #W11123666
    In Stock
    $148.94
    Minus Item
    Qty
    Plus Item
  • Power Cord for Whirlpool UXT5536AAS3 - Part W11609489

    Hood parts diagram

    Power Cord

    Part #W10291574

    Replaced by #W11609489

    Info Icon
    Manufacturer substitution
    This part replaces W10291574. Substitute parts can look different from the original.
    In Stock
    $116.76
    Minus Item
    Qty
    Plus Item
  • Range Hood Fan Motor Assembly for Whirlpool UXT5536AAS3 - Part WPW10291577

    Hood parts diagram

    Range Hood Fan Motor Assembly

    Part #W10291577

    Replaced by #WPW10291577

    Info Icon
    Manufacturer substitution
    This part replaces W10291577. Substitute parts can look different from the original.
    In Stock
    $414.34
    $12.00 OFF Phone Price : $426.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Grease Filter for Whirlpool UXT5536AAS3 - Part W10169961A

    Hood parts diagram

    Filter

    Part #W10870878

    Replaced by #W10169961A

    Info Icon
    Manufacturer substitution
    This part replaces W10870878. Substitute parts can look different from the original.
    In Stock
    $37.21
    14% OFF Phone Price : $43.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Capacitor for Whirlpool UXT5536AAS3 - Part W11328673

    Hood parts diagram

    Capacitor

    Part #W10735734

    Replaced by #W11328673

    Info Icon
    Manufacturer substitution
    This part replaces W10735734. Substitute parts can look different from the original.
    In Stock
    $49.49
    11% OFF Phone Price : $55.49Info Icon
    Minus Item
    Qty
    Plus Item
