Craftsman
Front-Engine Lawn Tractor

Model # 91725570 Official Craftsman custom 8m tractor

Here are the diagrams and repair parts for Official Craftsman 91725570 custom 8m tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#77

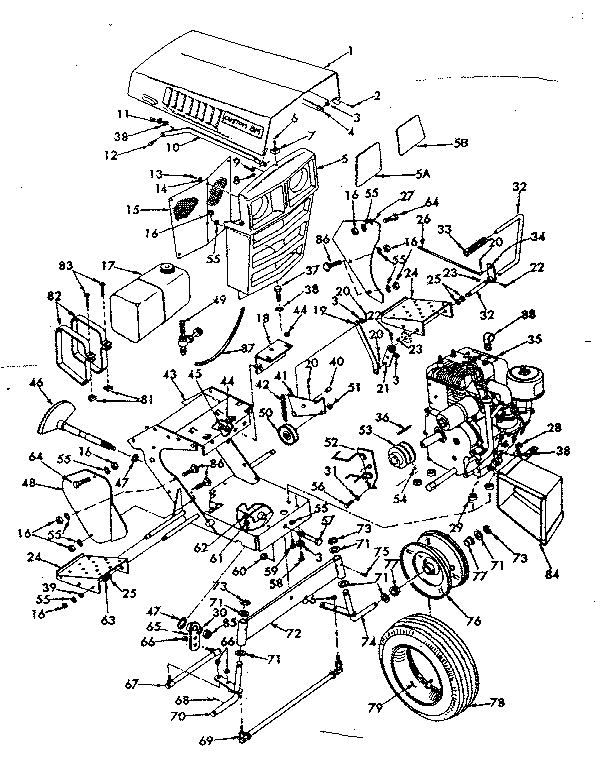

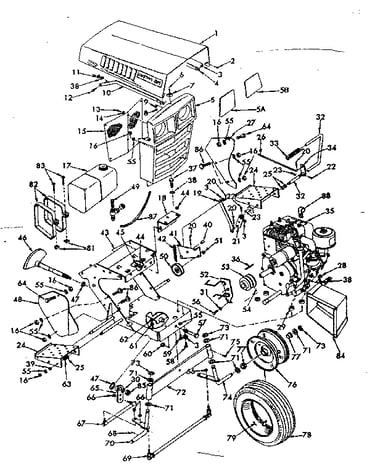

Front end diagram

Lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$5.98 |
60% OFF MSRP : $15.00
In Stock
Hardened Race Thrust Bearing 6266H
#39

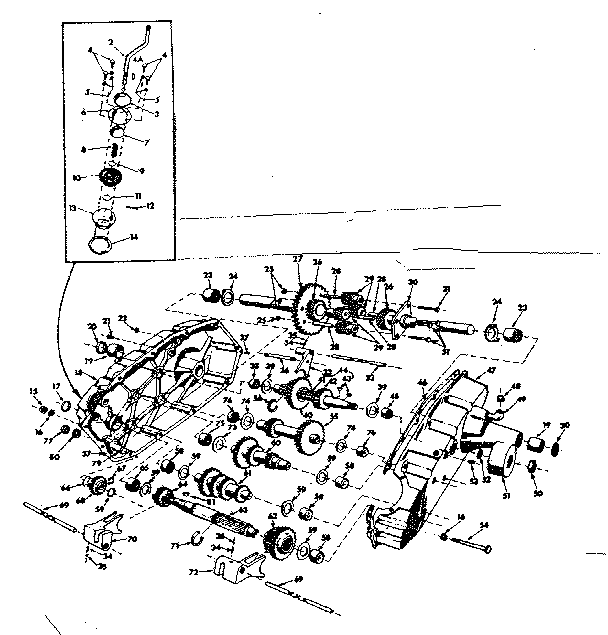

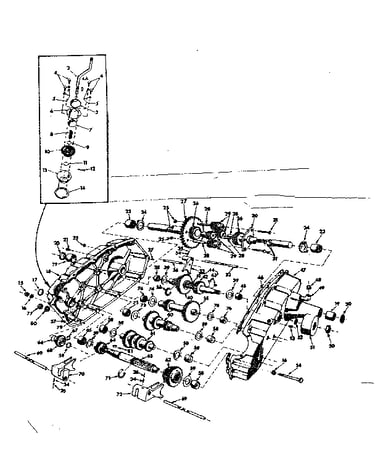

Transaxle diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$10.99 |
15% OFF Phone Price : $12.99
In Stock
Hub Bolt 1304H
#68

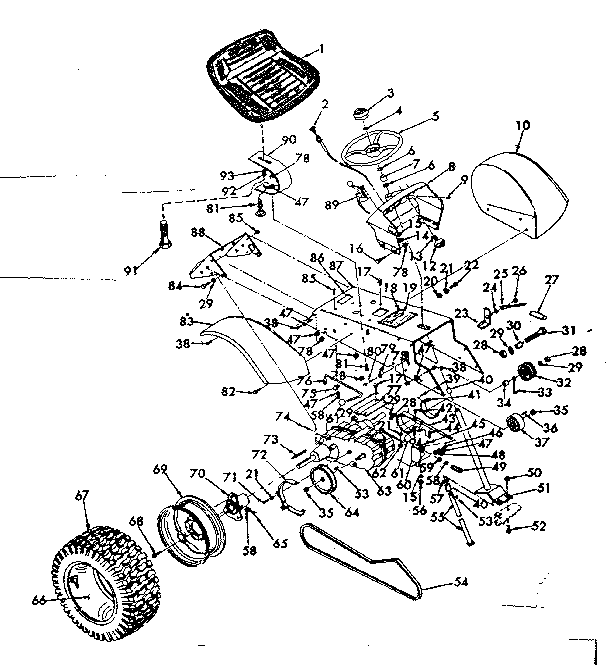

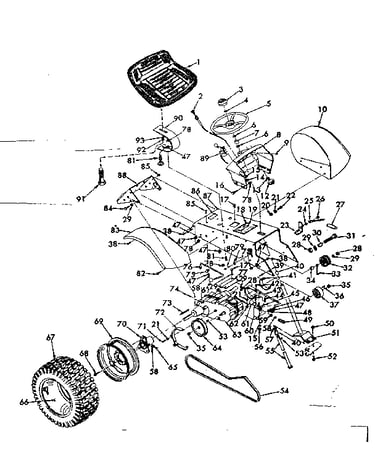

Rear section diagram

Hub bolt

Part #1304H

Replaced by #596218701

?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.56 |
28% OFF Phone Price : $3.56
In Stock
Flat Idler 6635H
#32

Rear section diagram

Flat idler

Part #6635H

Replaced by #583772001

?
Manufacturer substitution
This part replaces 6635H. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
21% OFF MSRP : $29.00
In Stock
Seal 6273H
#10

Transaxle diagram

Seal

Part #6273H

Replaced by #532110542

?
Manufacturer substitution
This part replaces 6273H. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Hex Fin Bolt 3035P
#84

Rear section diagram

Hex fin bolt

Part #3035P

Replaced by #74780720

?
Manufacturer substitution
This part replaces 3035P. Substitute parts can look different from the original.
This item is not returnable
$4.19
In Stock
Hex Fin Bolt 3159P
#42

Rear section diagram

Hex fin bolt

Part #3159P

Replaced by #596322201

?
Manufacturer substitution
This part replaces 3159P. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#75

Front end diagram

Lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Washer 1537P
#44

Front end diagram

Washer

Part #1537P

The manufacturer no longer makes this part, and there's no substitute part

Hex Fin Bolt 3034P
#17

Rear section diagram

Hex fin bolt

Part #3034P

Replaced by #596238601

?
Manufacturer substitution
This part replaces 3034P. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
