Craftsman
Front-Engine Lawn Tractor

Model # 917270532 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917270532 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

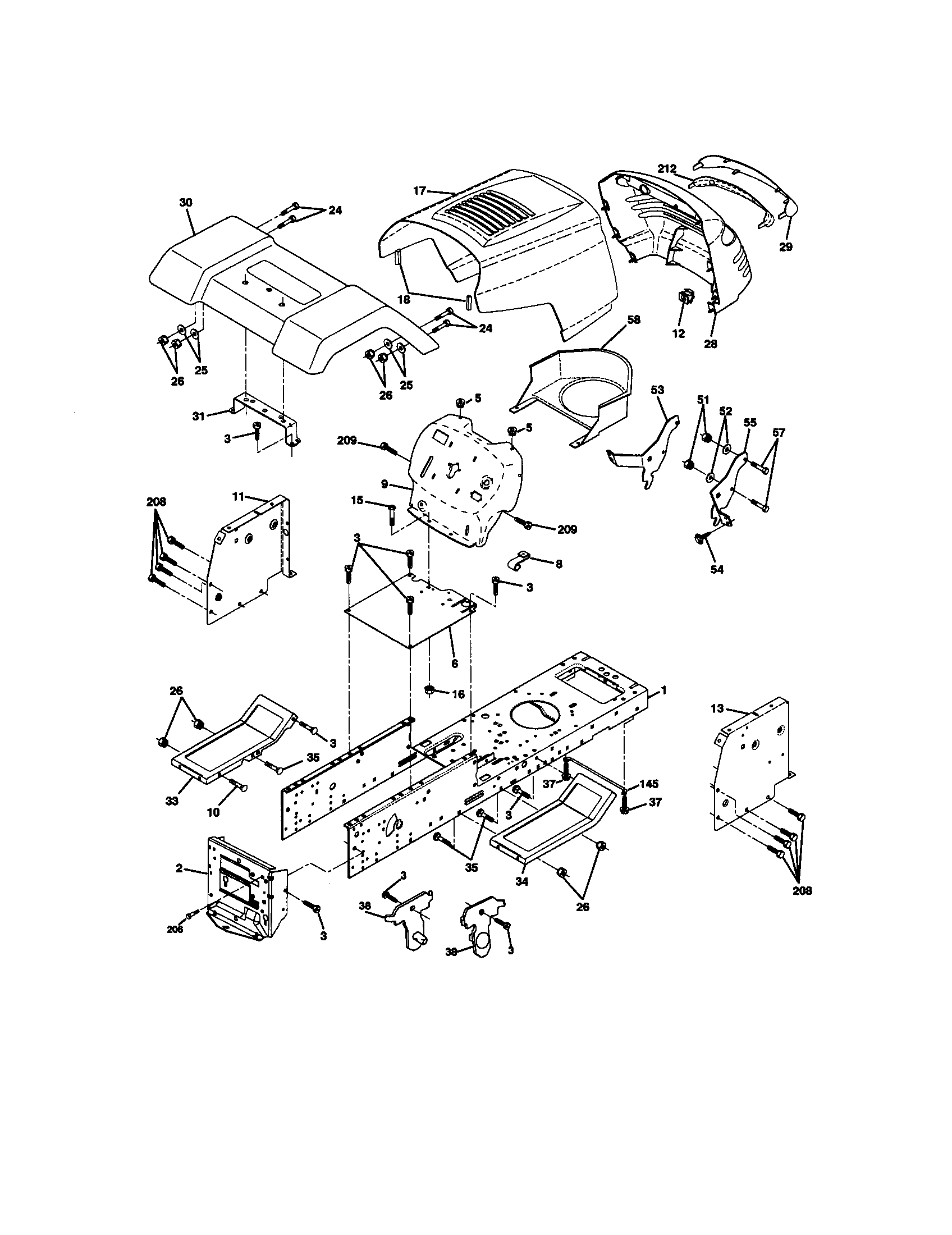

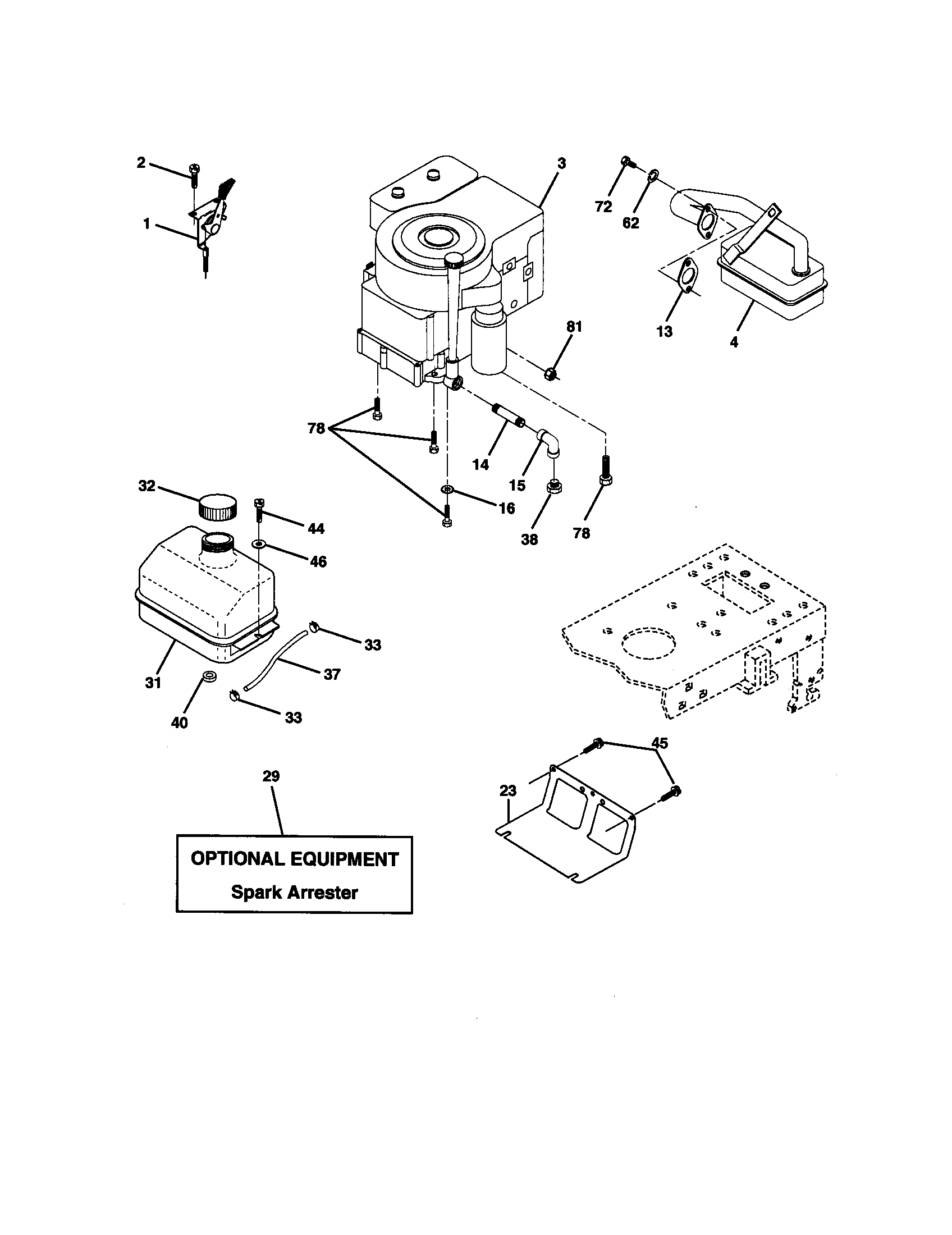

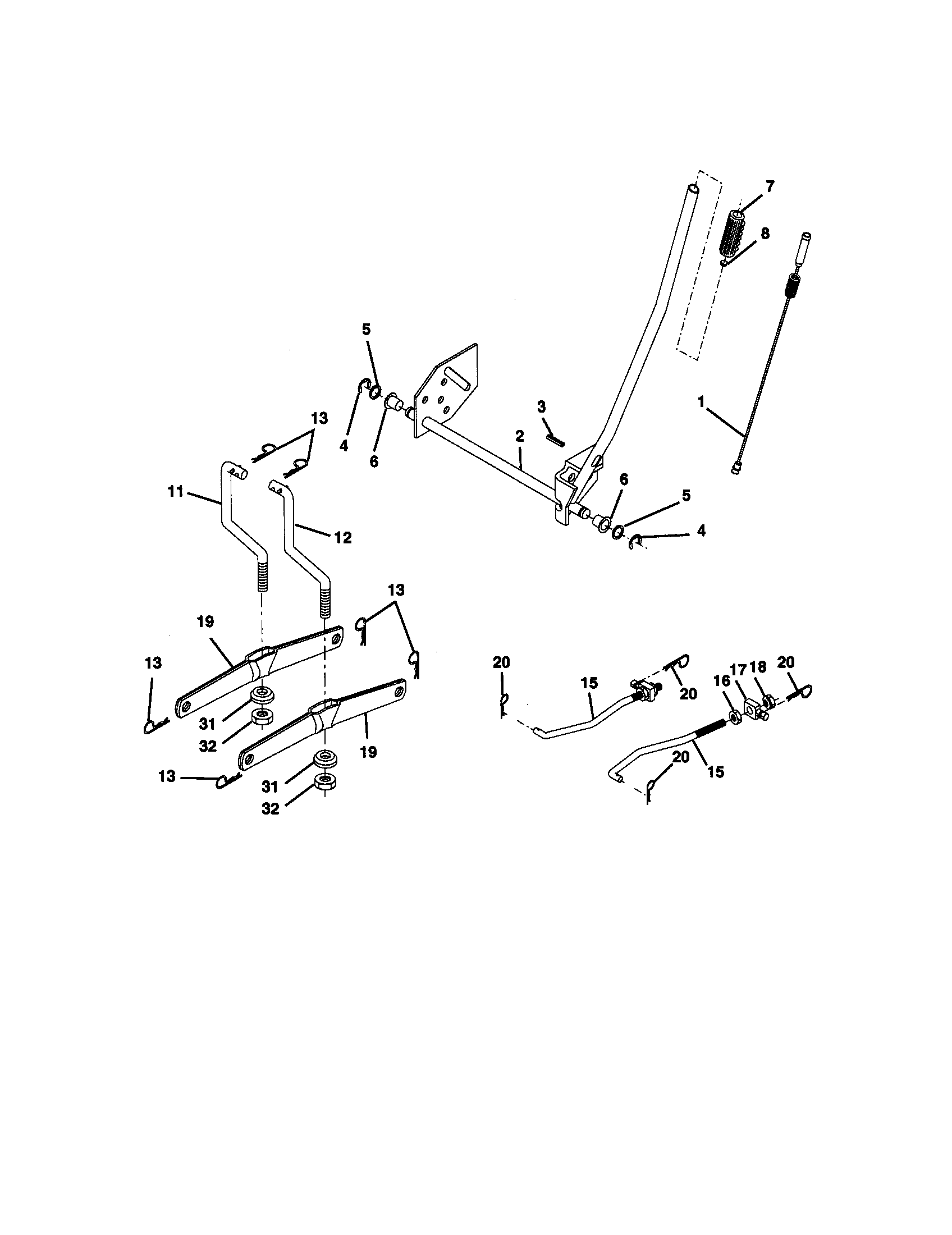

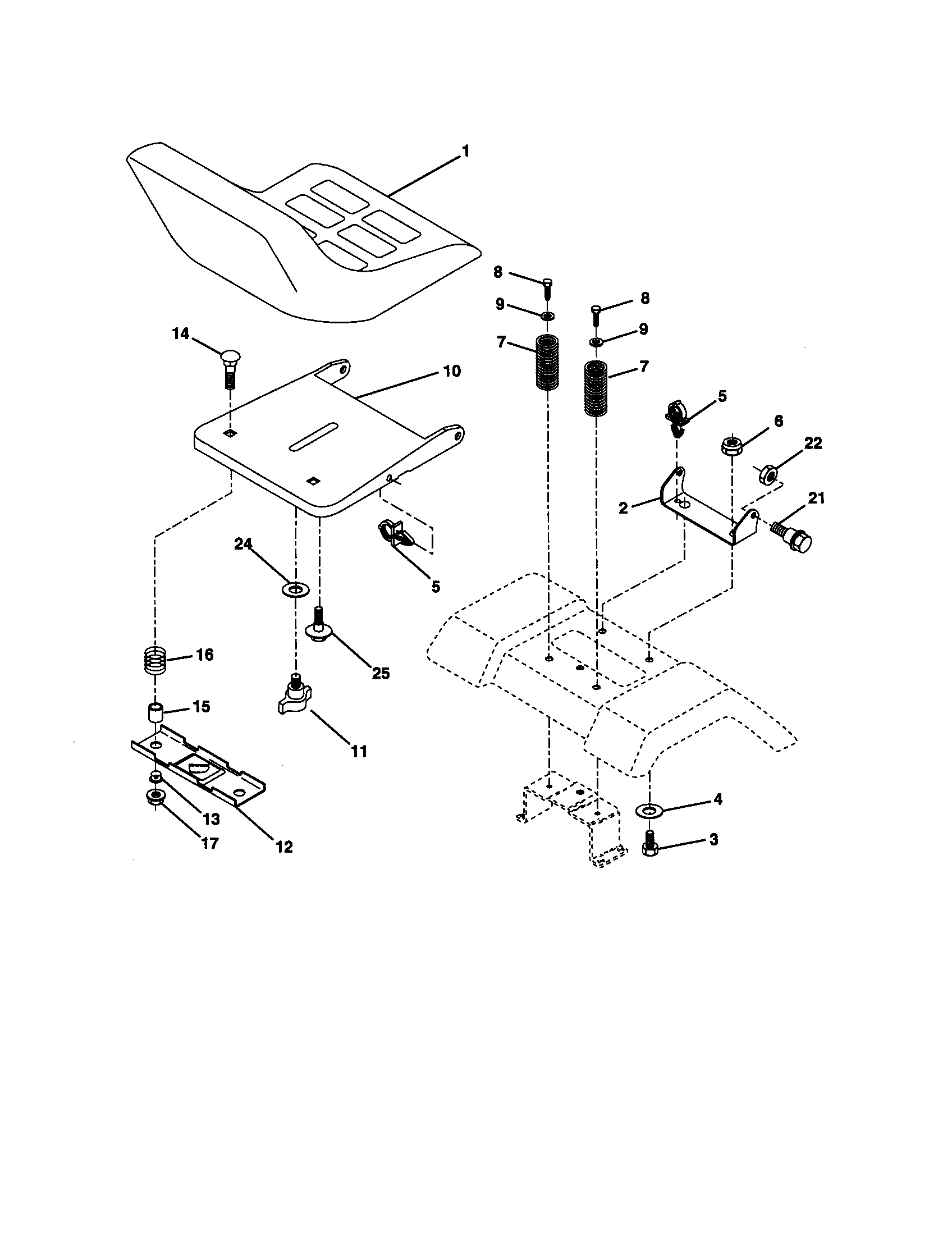

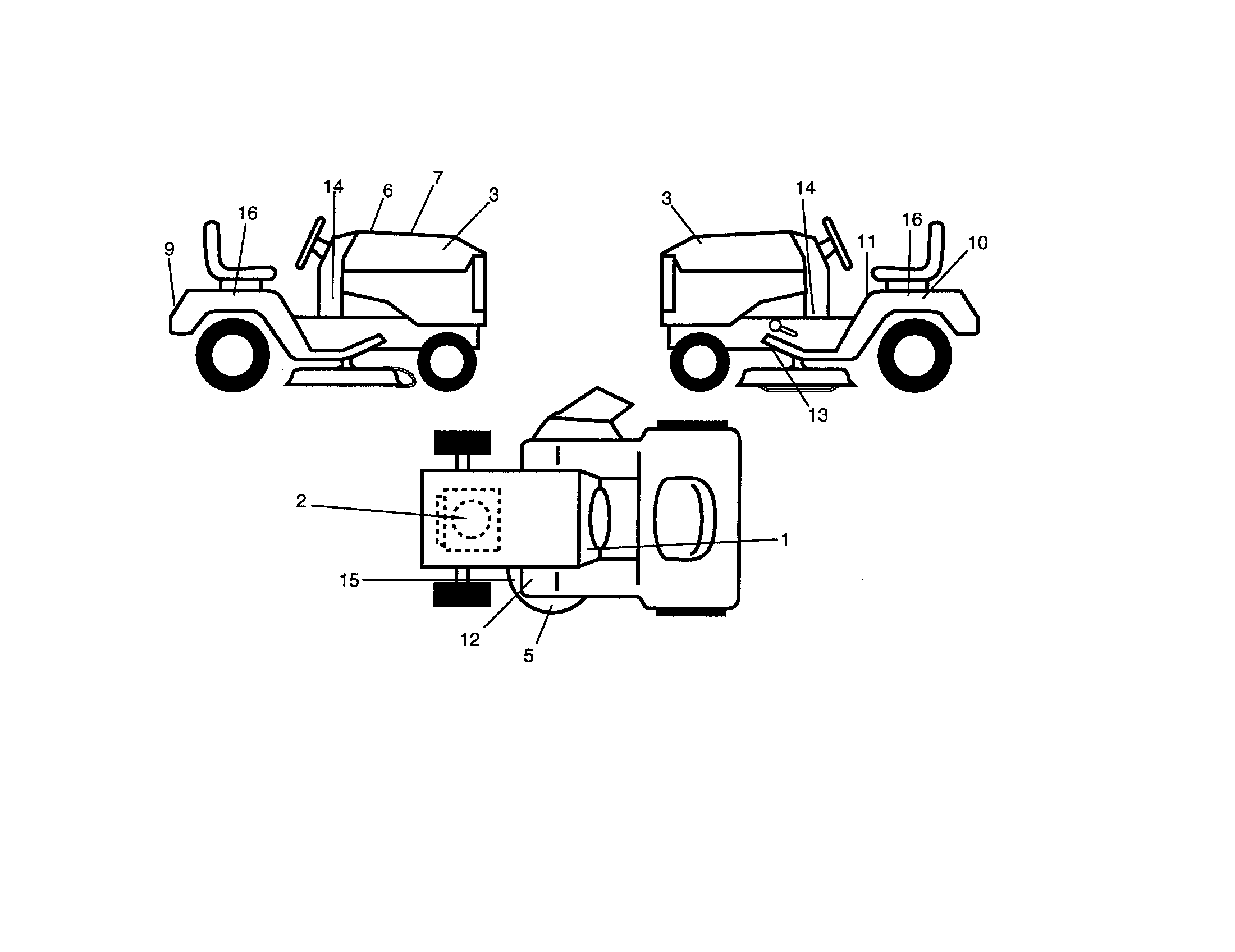

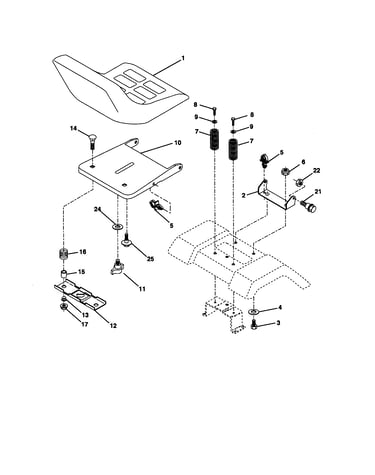

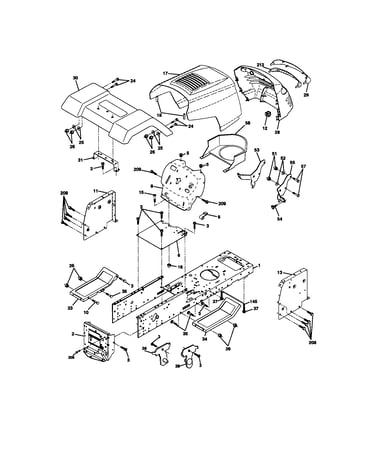

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 587 parts  |

Lawn Tractor Mulching Blade 134149
#11

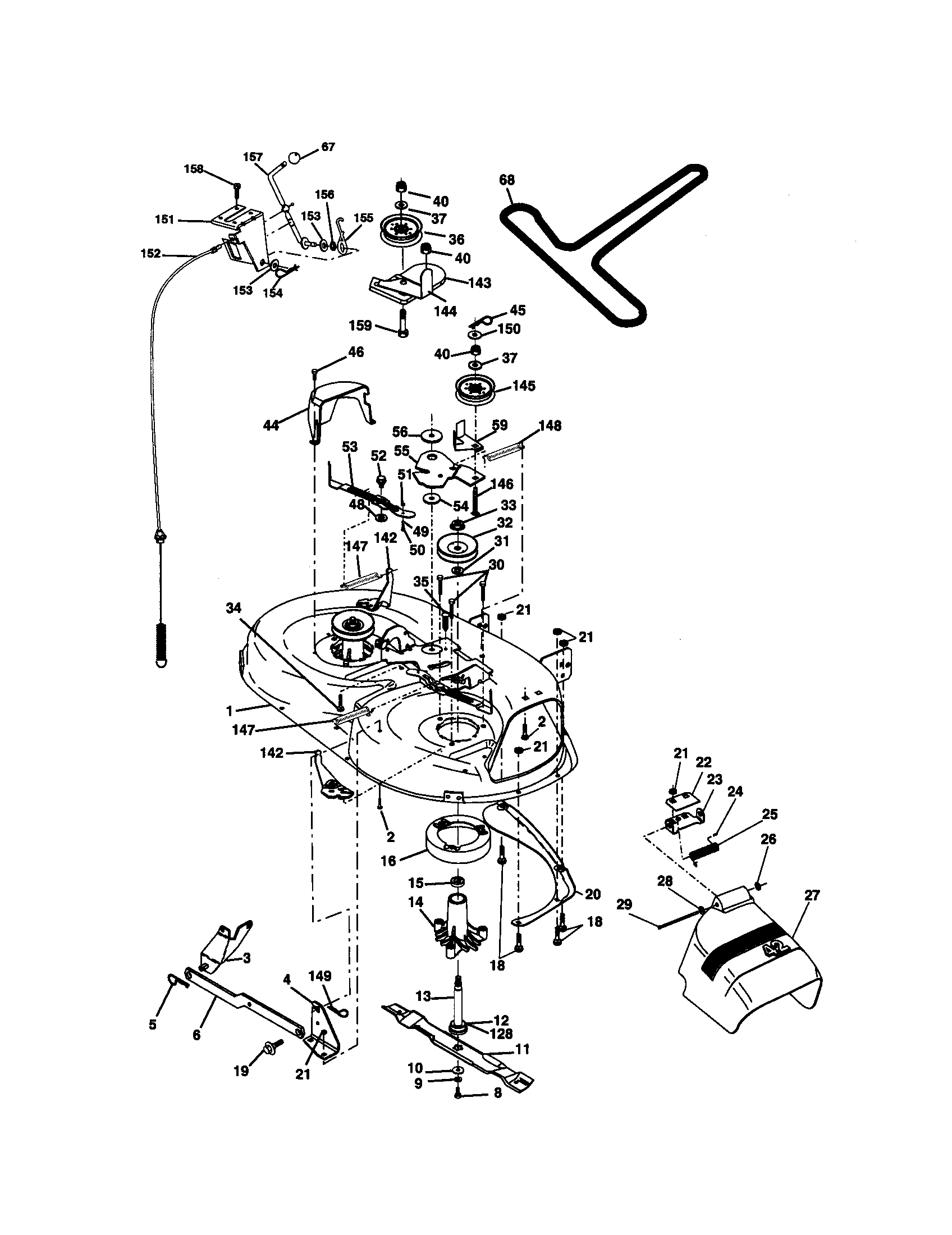

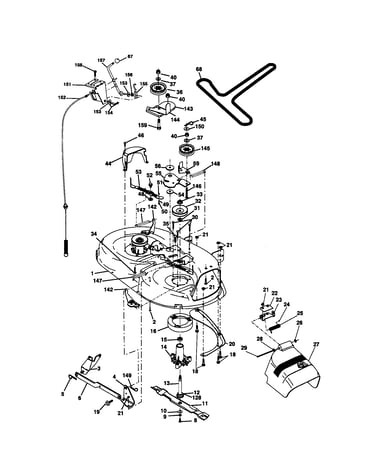

Mower deck diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14
21% OFF Phone Price : $28.14
In Stock
Hub Cap 104757X
#11

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Wizard Lawn Tractor Mandrel Assembly (replaces 130794cs, 130794ms, 130794wa, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113) 130794

#NI

All parts diagram

Wizard lawn tractor mandrel assembly (replaces 130794cs, 130794ms, 130794wa, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113)

Part #130794

BEST SELLER
$42.41
10% OFF Phone Price : $47.17
In Stock
Lawn Tractor Blade Engagement Cable 169676
#152

Mower deck diagram

Lawn tractor blade engagement cable

Part #169676

Replaced by #532175067

?
Manufacturer substitution
This part replaces 169676. Substitute parts can look different from the original.
BEST SELLER
$39.98
13% OFF Phone Price : $45.98
In Stock
V-belt 160855
#57

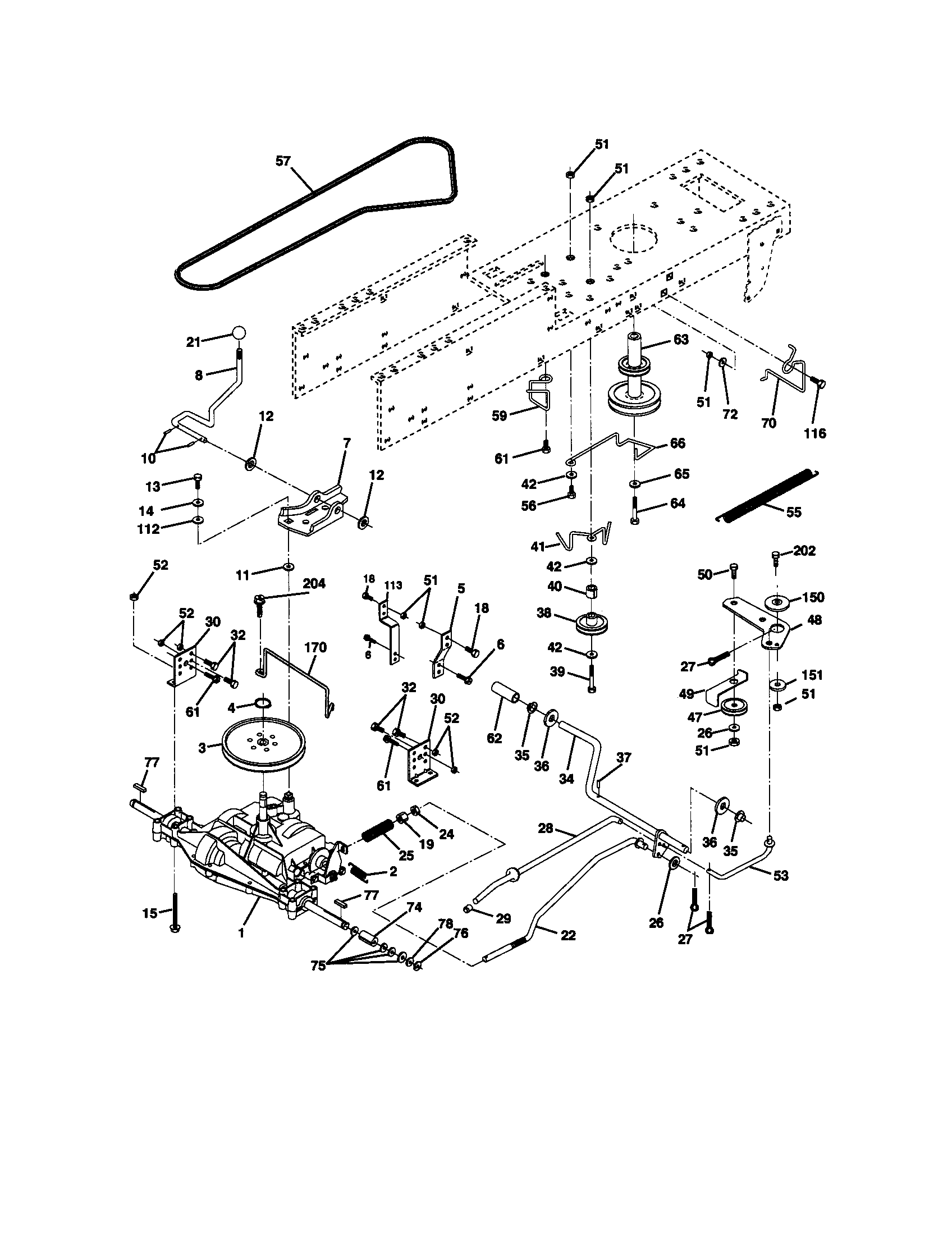

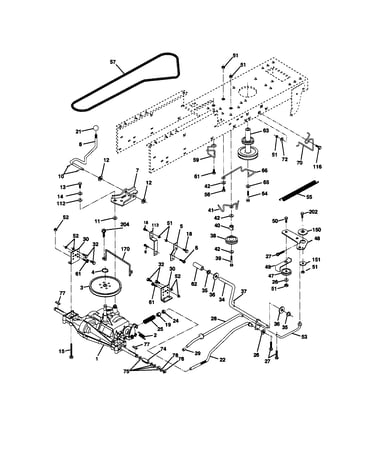

Ground drive diagram

V-belt

Part #160855

Replaced by #532138255

?
Manufacturer substitution
This part replaces 160855. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30
16% OFF Phone Price : $38.30
In Stock
Hex Flange Lock Nut 145212
#15

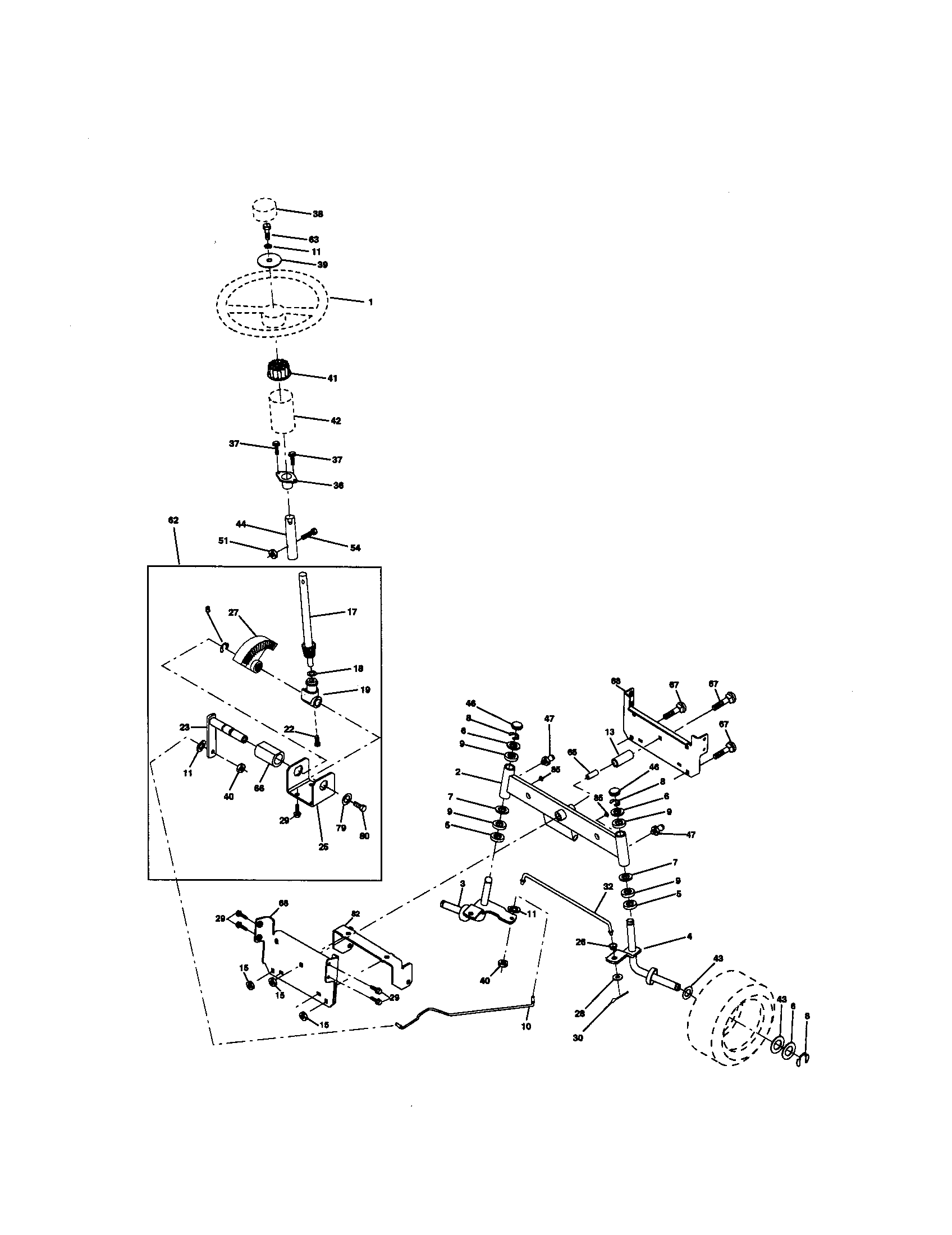

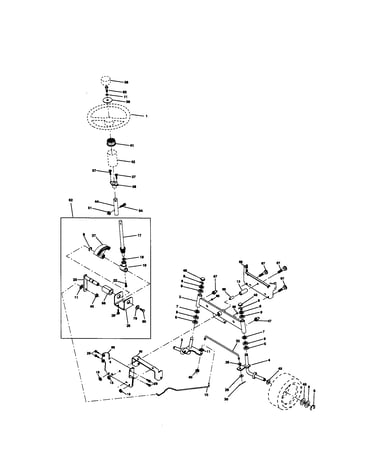

Steering diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.47
13% OFF Phone Price : $6.31
In Stock
Washer Head Thread Rolling Screw 157722
#30

Mower deck diagram

Washer head thread rolling screw

Part #157722

Replaced by #584953901

?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Mandrel Pulley 153535
#32

Mower deck diagram

Lawn tractor mandrel pulley

Part #153535

Replaced by #173436

?
Manufacturer substitution
This part replaces 153535. Substitute parts can look different from the original.
BEST SELLER
$15.49
16% OFF Phone Price : $18.43
In Stock
Solenoid 145673
#43

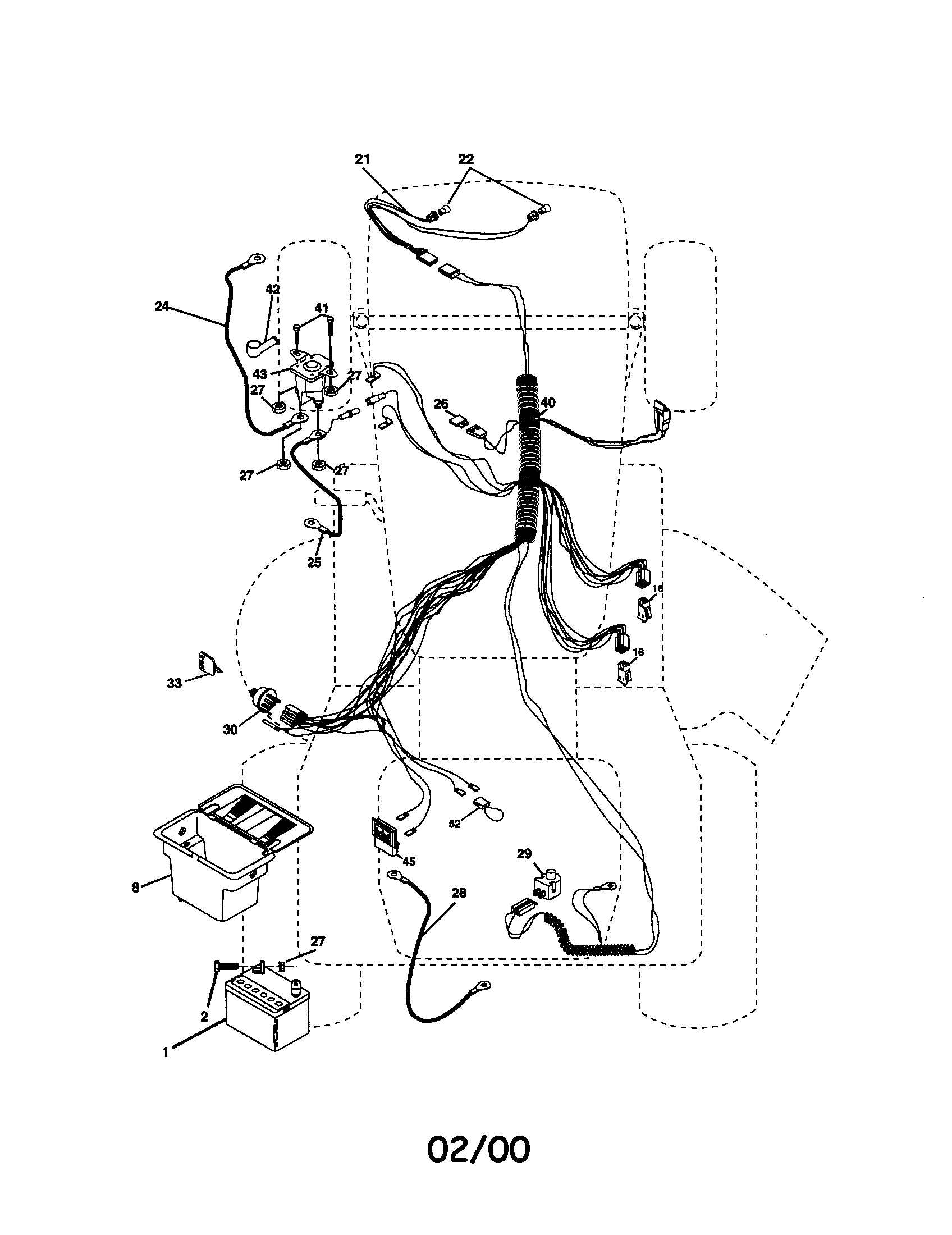

Electrical diagram

Solenoid

Part #145673

Replaced by #532146154

?
Manufacturer substitution
This part replaces 145673. Substitute parts can look different from the original.
BEST SELLER
$25.34
17% OFF Phone Price : $30.60
In Stock
Molded Ignition Key 140403
#33

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$8.22
8% OFF Phone Price : $8.98
In Stock
