Model #RF266AEPN/XAA-00 Samsung refrigerator

Here are the diagrams and repair parts for Samsung RF266AEPN-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes
?
This is the number corresponding to the part on the diagram / schematic

    Showing 10 of 238 parts

    Samsung Refrigerator Water Filter#NI

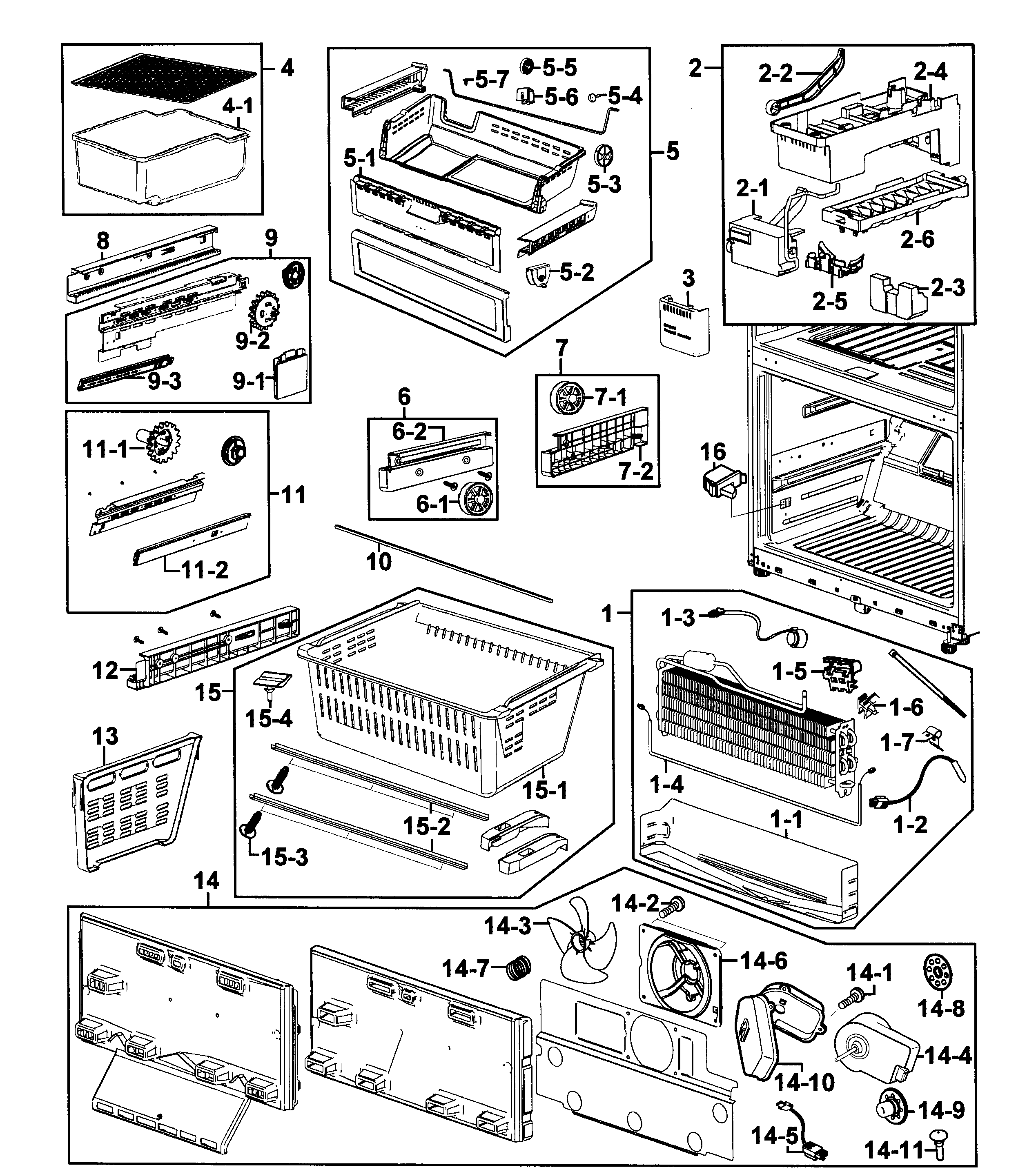

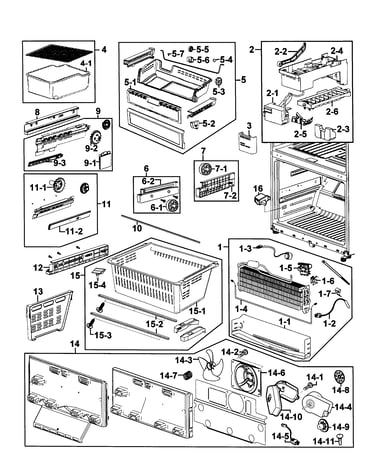

    Freezer assy Diagram

    Samsung refrigerator water filter

    Part #DA29-00003G
    Replaced by #HAFCU1
    ?
    Manufacturer substitution
    This part replaces DA29-00003G. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $49.98
    Refrigerator Spring#11-6

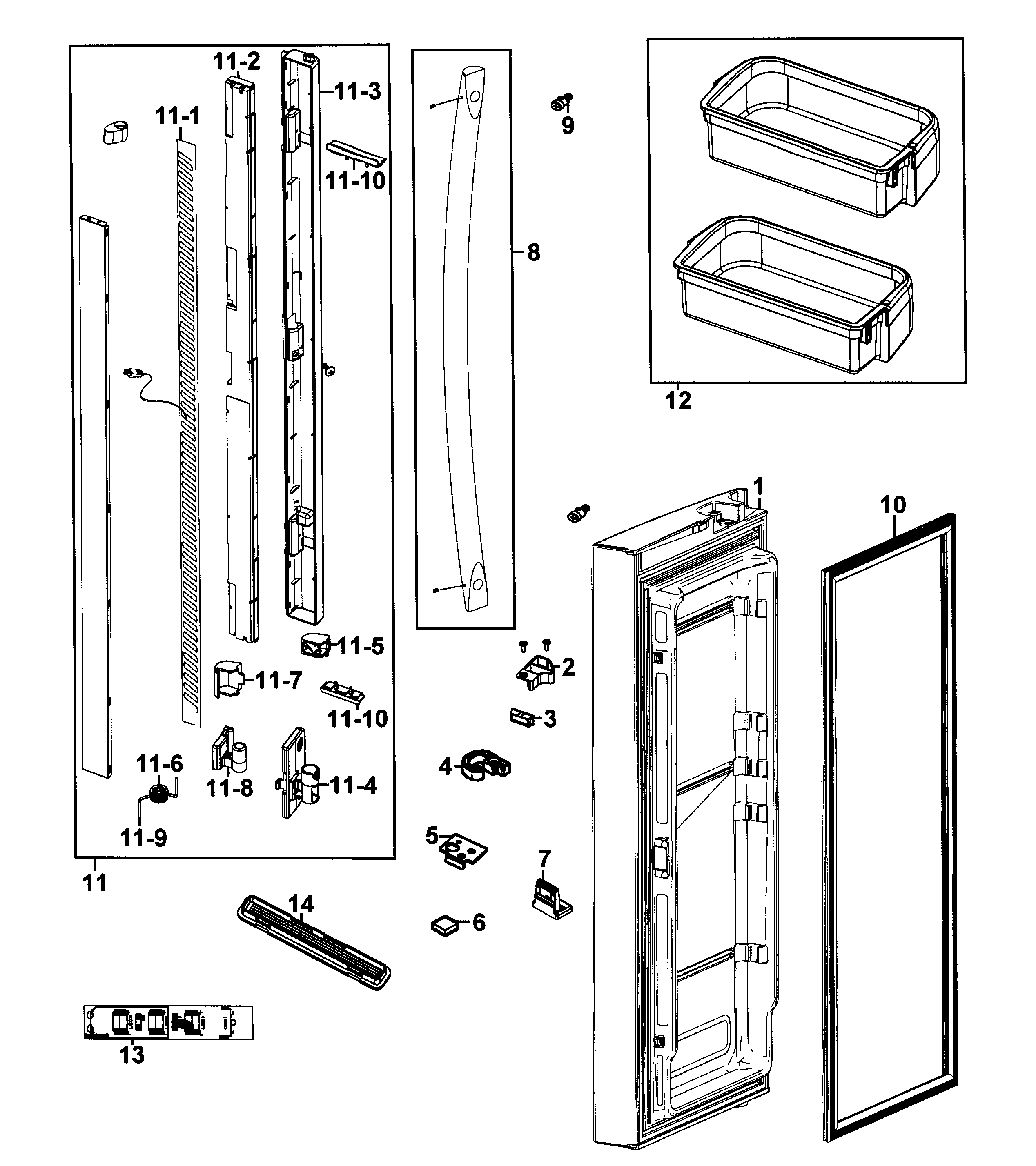

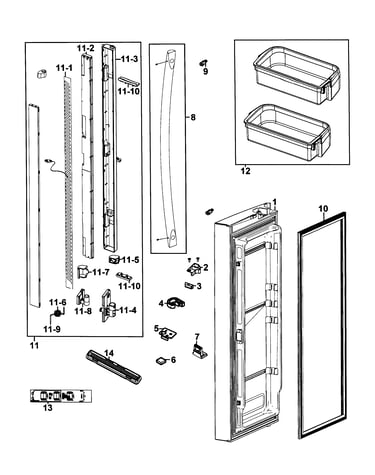

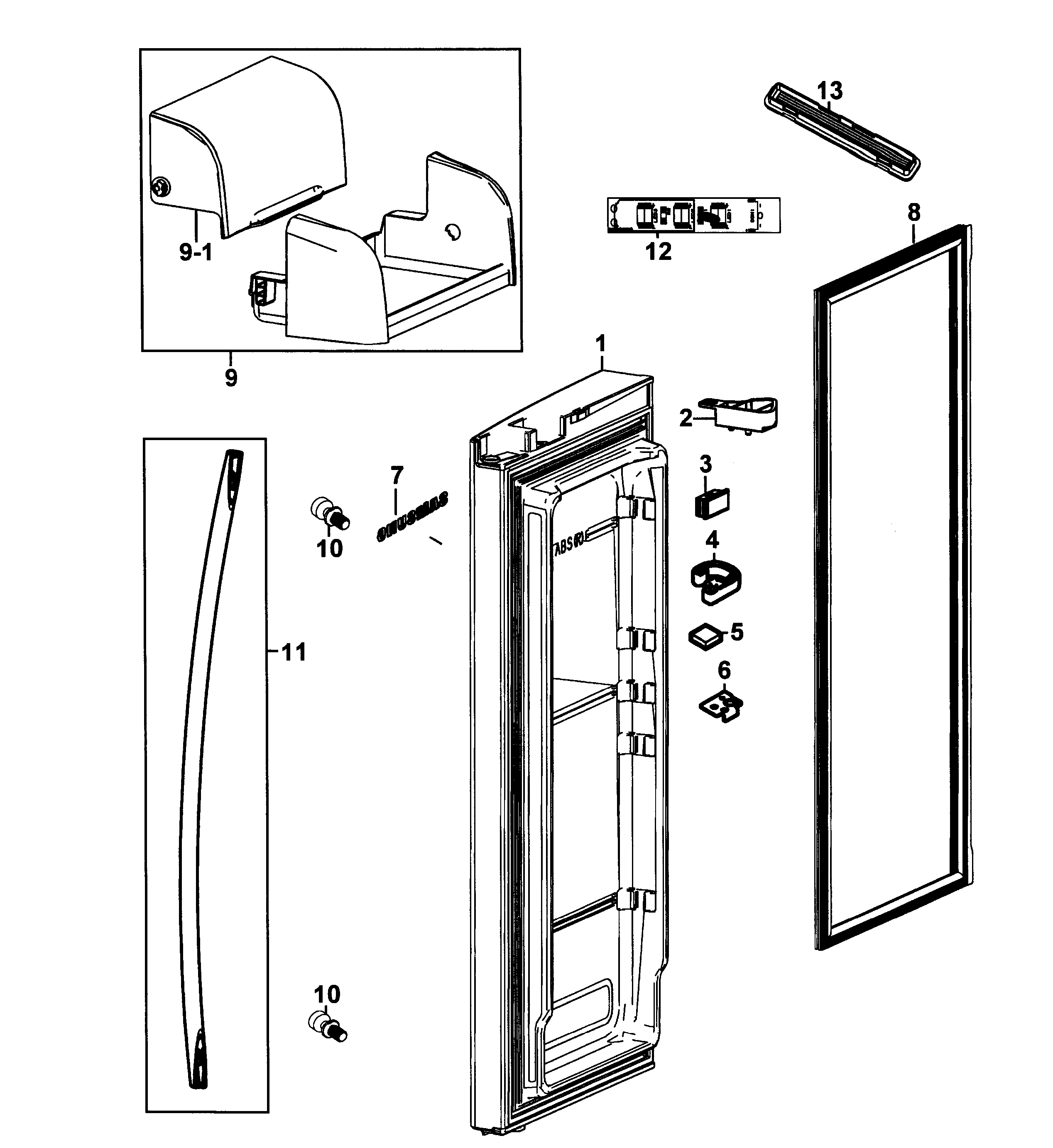

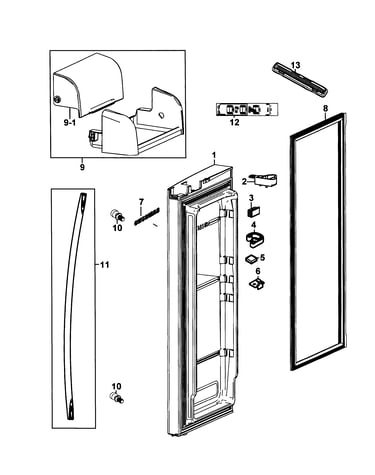

    Door left Diagram

    Refrigerator spring

    Part #DA81-01345B
    BEST SELLER
    This item is not returnable
    In Stock
    $6.69
    Refrigerator Ice Maker Assembly#2-4

    Freezer assy Diagram

    Ice maker support bracket

    Part #DA61-05227A
    Replaced by #DA97-07603B
    ?
    Manufacturer substitution
    This part replaces DA61-05227A. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $145.39
    Refrigerator Ice Maker Assembly#2

    Freezer assy Diagram

    Refrigerator ice maker

    Part #DA97-07603A
    Replaced by #DA97-07603B
    ?
    Manufacturer substitution
    This part replaces DA97-07603A. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $145.39
    Refrigerator Ice Maker Cube Tray#2-6

    Freezer assy Diagram

    Refrigerator ice maker cube tray

    Part #DA63-02284B
    BEST SELLER
    In Stock
    $25.49
    Refrigerator Freezer Door Gasket#2

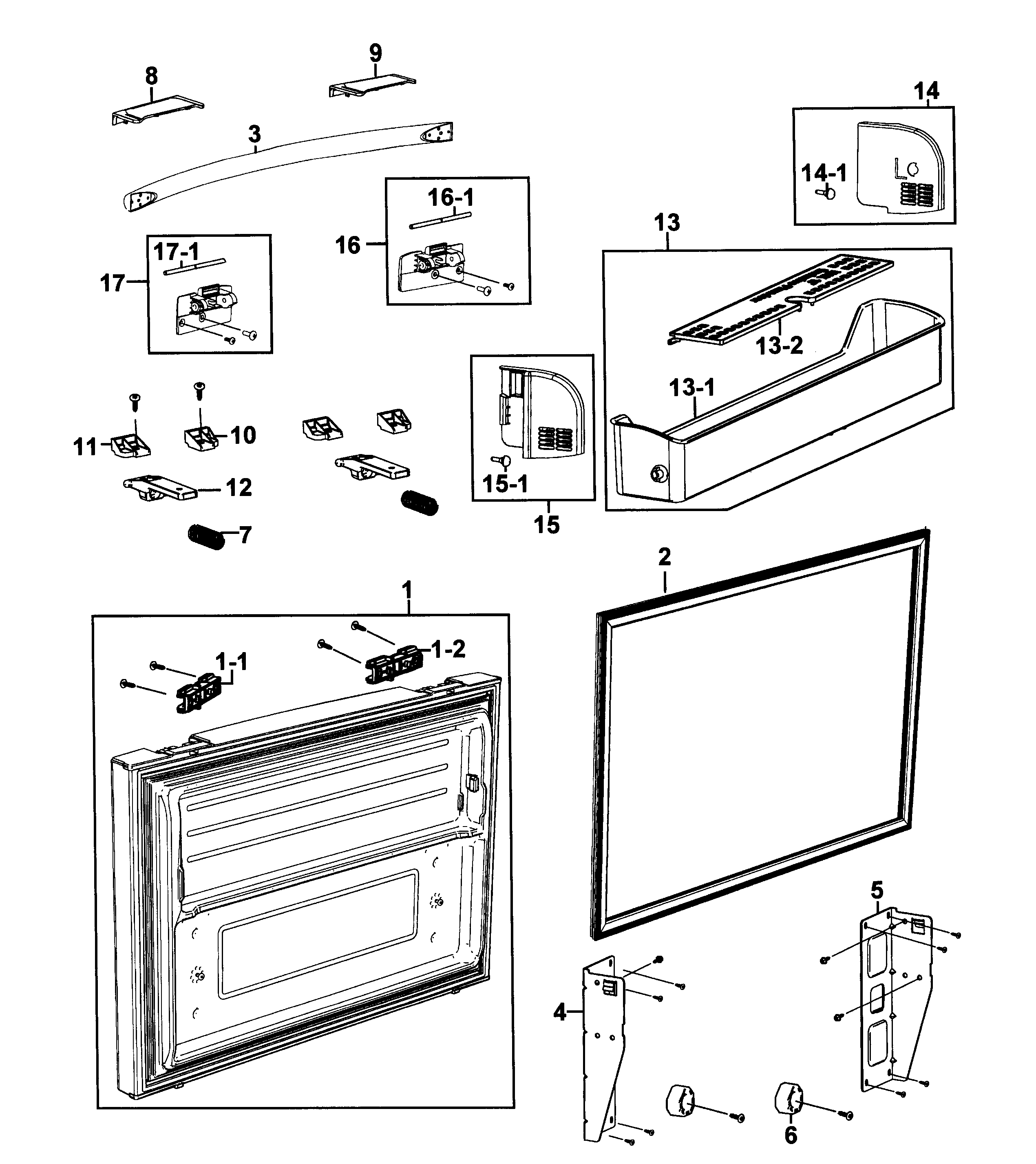

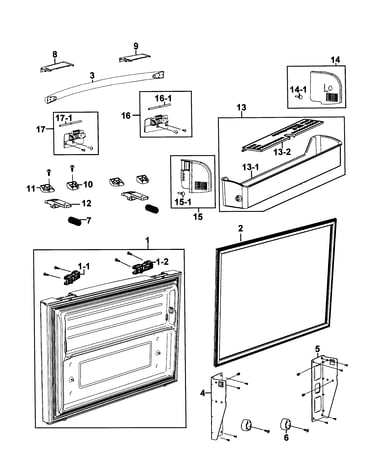

    Freezer door Diagram

    Refrigerator freezer door gasket

    Part #DA63-06541A
    Replaced by #DA63-06541D
    ?
    Manufacturer substitution
    This part replaces DA63-06541A. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $108.29
    Refrigerator Defrost Bi-Metal Thermostat#5-3

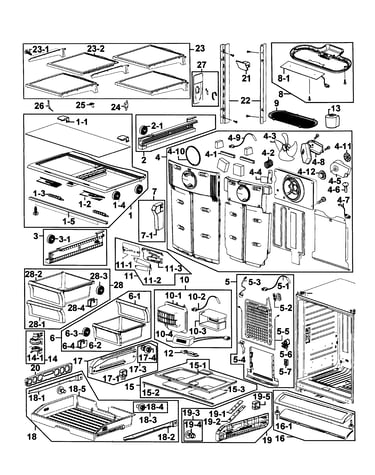

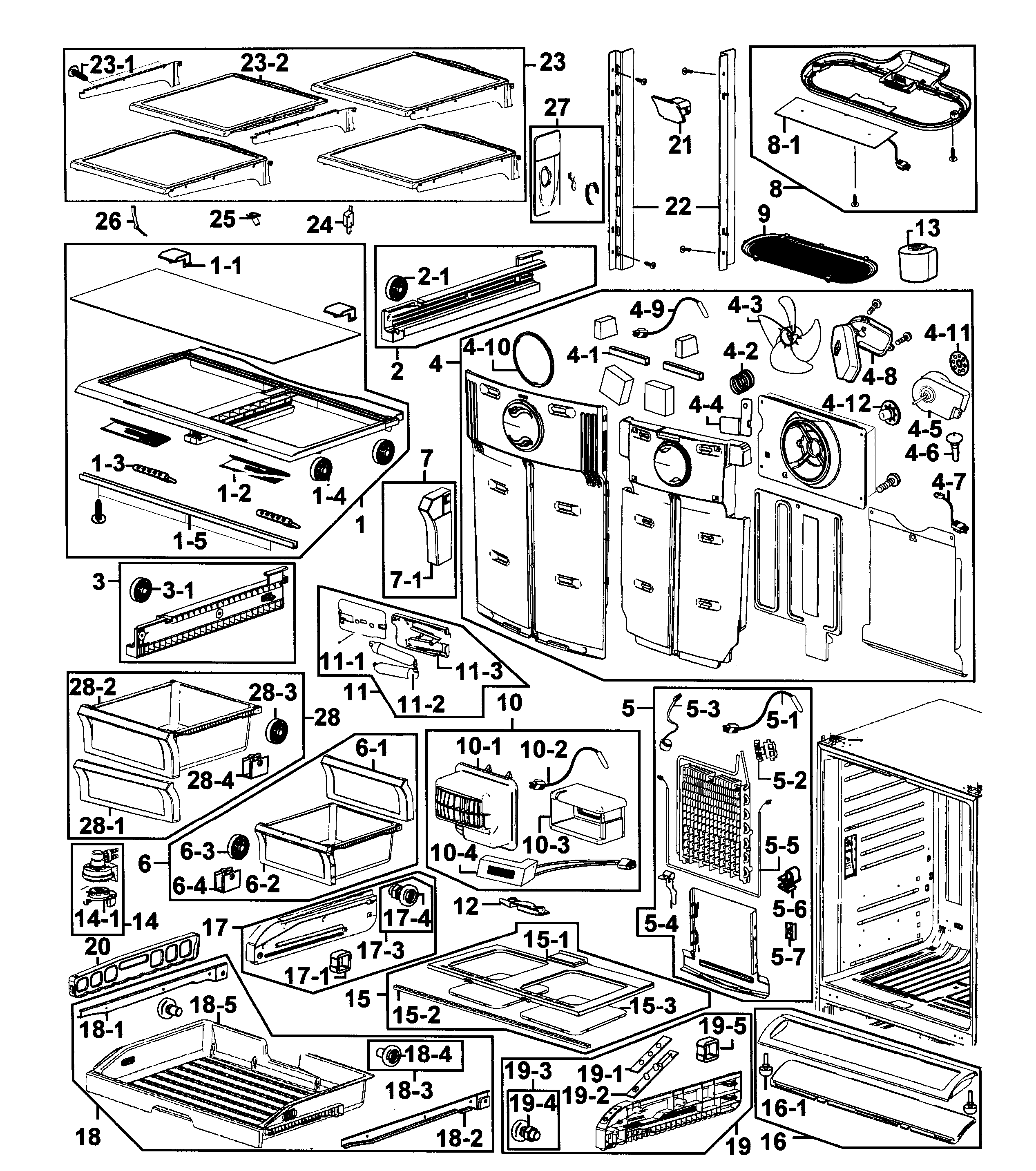

    Refrigerator Diagram

    Refrigerator protector

    Part #DA47-00243C
    Replaced by #DA47-00243K
    ?
    Manufacturer substitution
    This part replaces DA47-00243C. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Water Filter Head#14

    Refrigerator Diagram

    Refrigerator water filter head

    Part #DA97-06317A
    BEST SELLER
    In Stock
    $76.09
    Refrigerator Power Cord#28-1

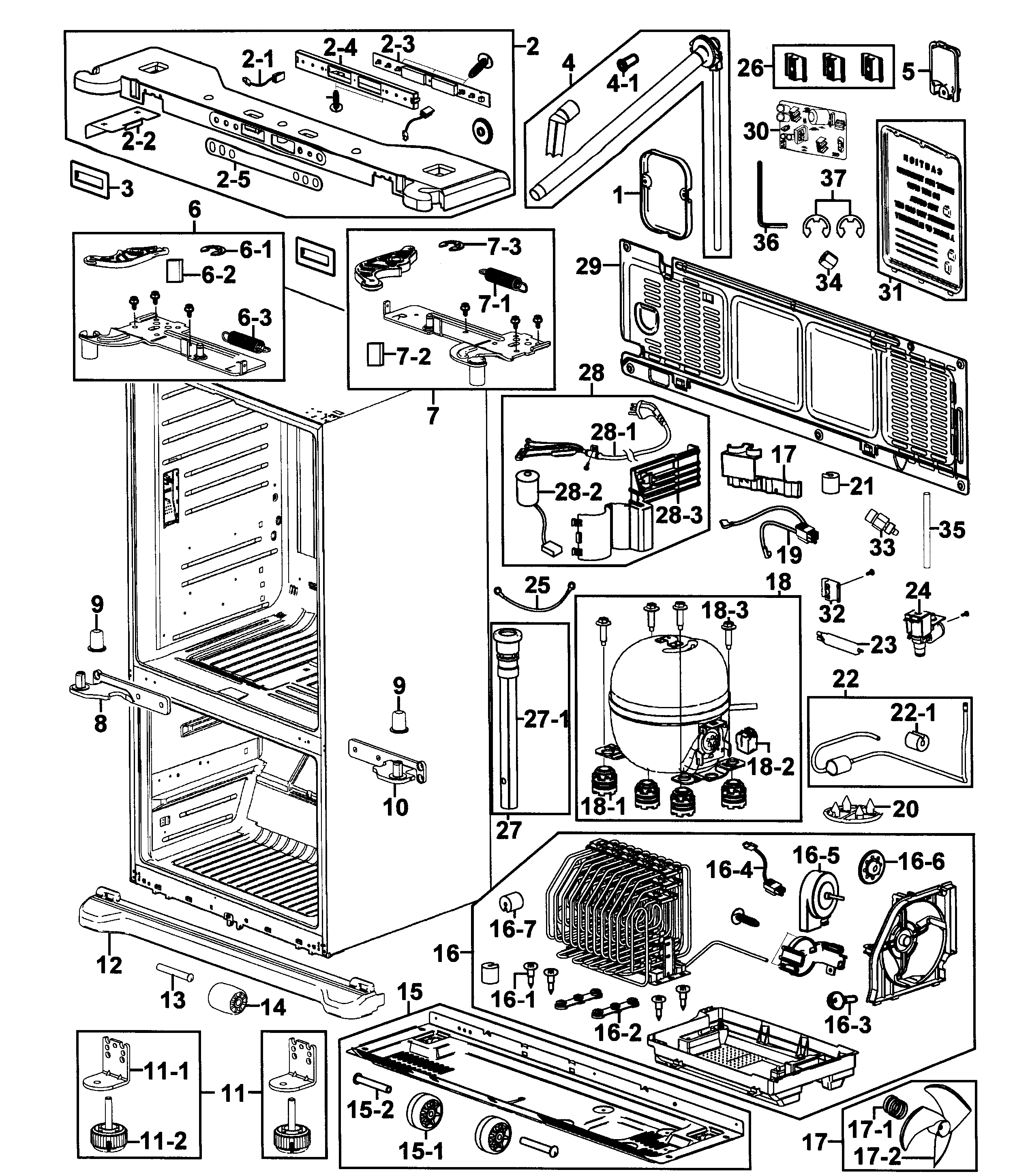

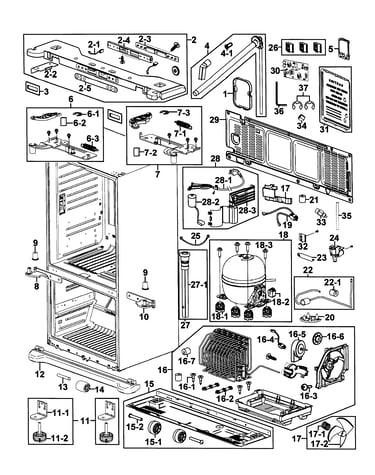

    Cabinet assy Diagram
