Model # DW80K7050US/AA-00 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80K7050US-AA-00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

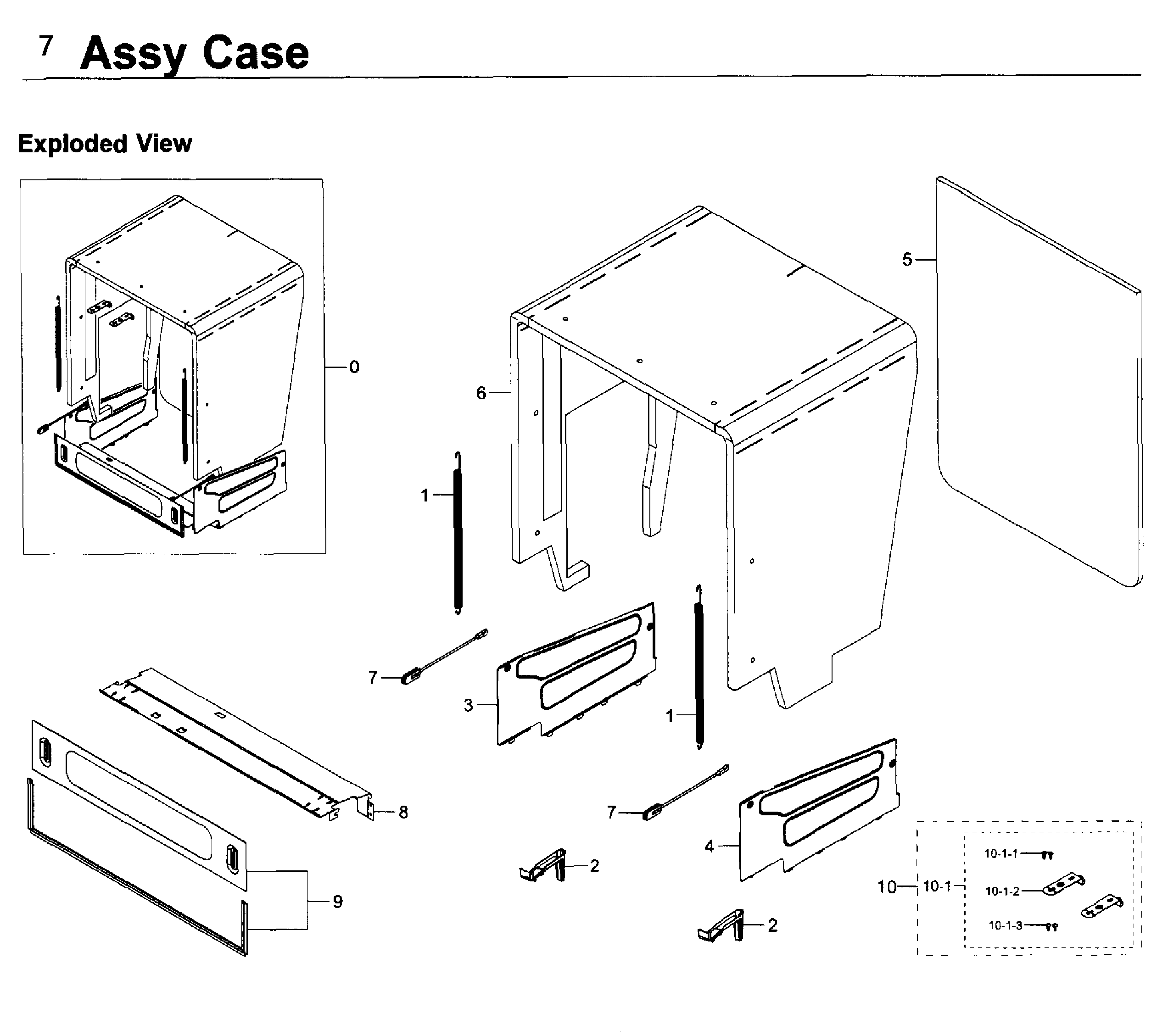

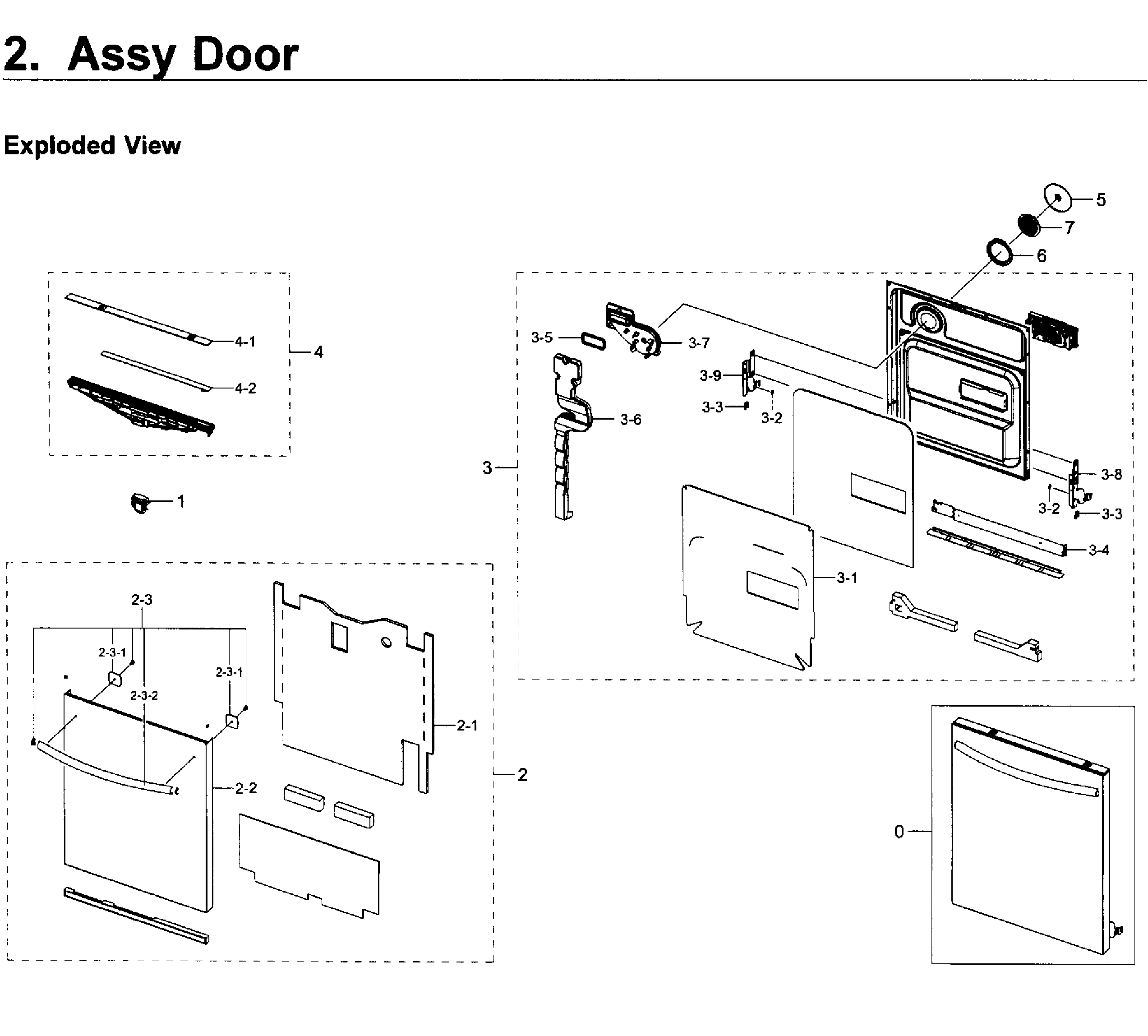

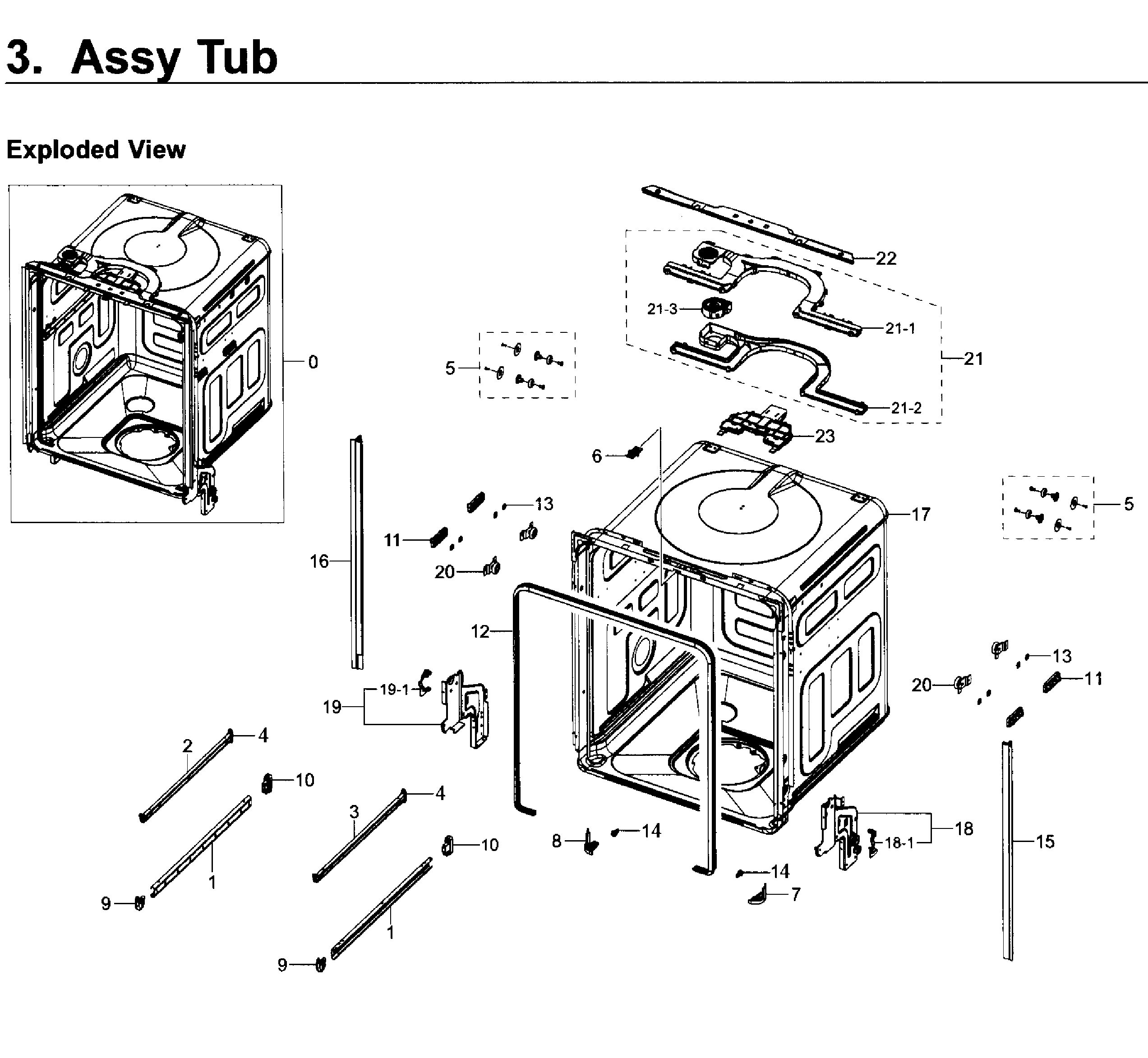

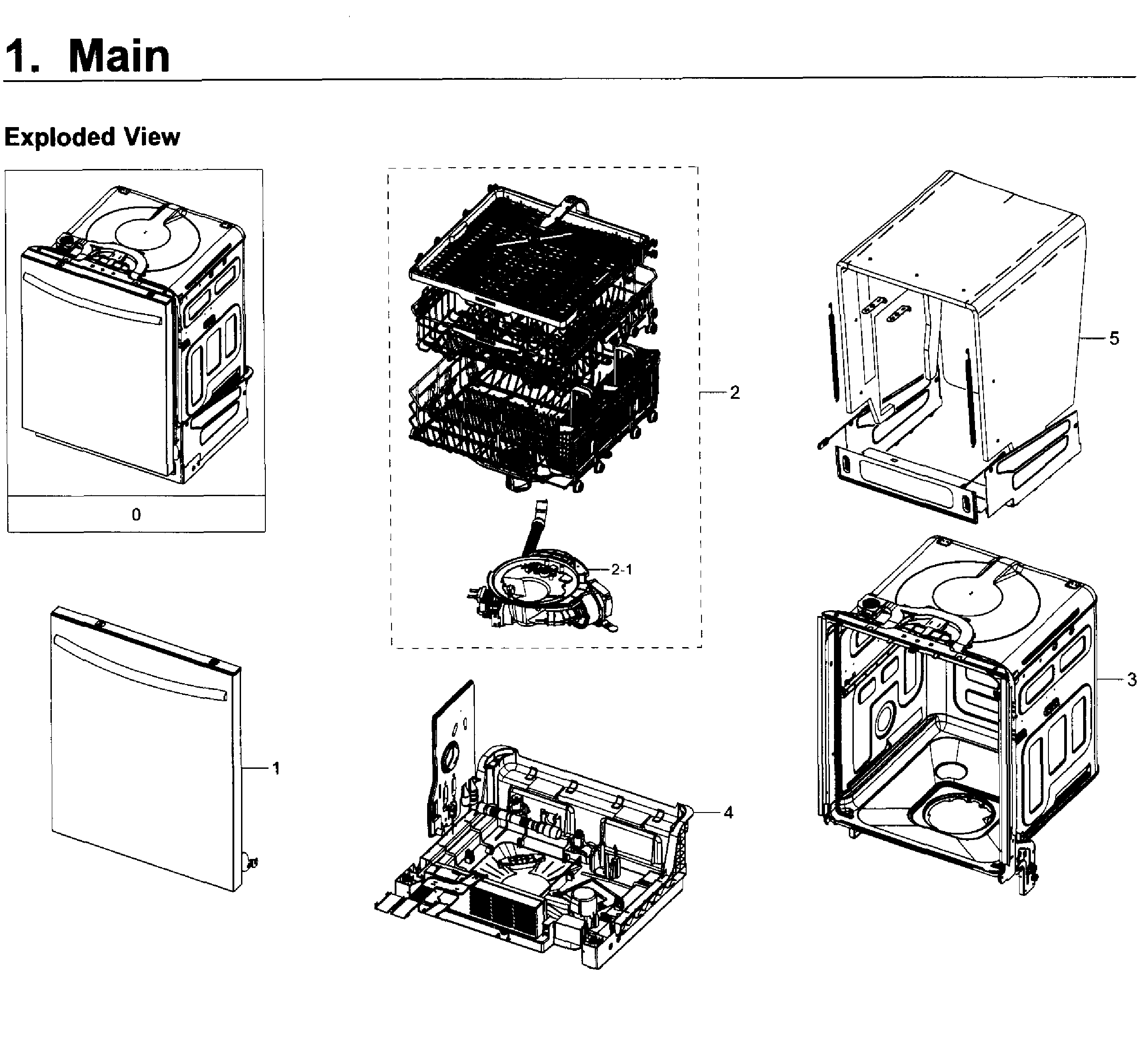

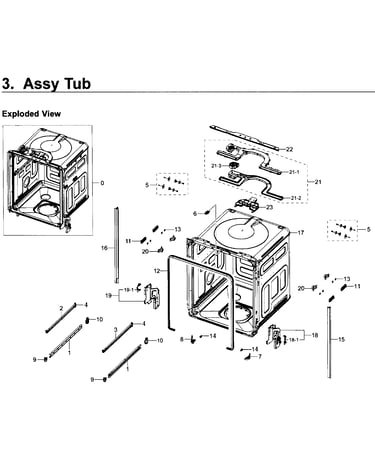

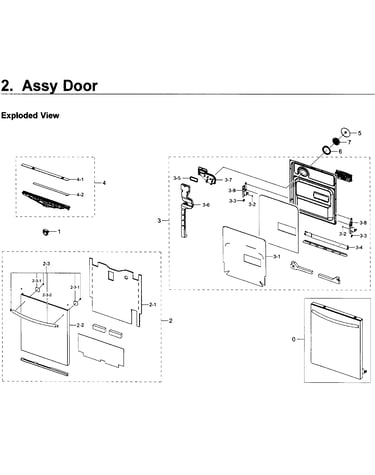

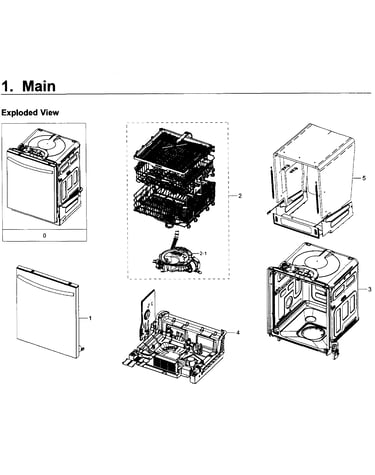

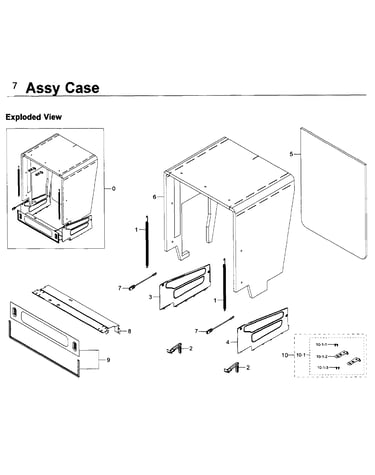

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Dishwasher Spray Arm, Upper DD82-01309A
#10-3

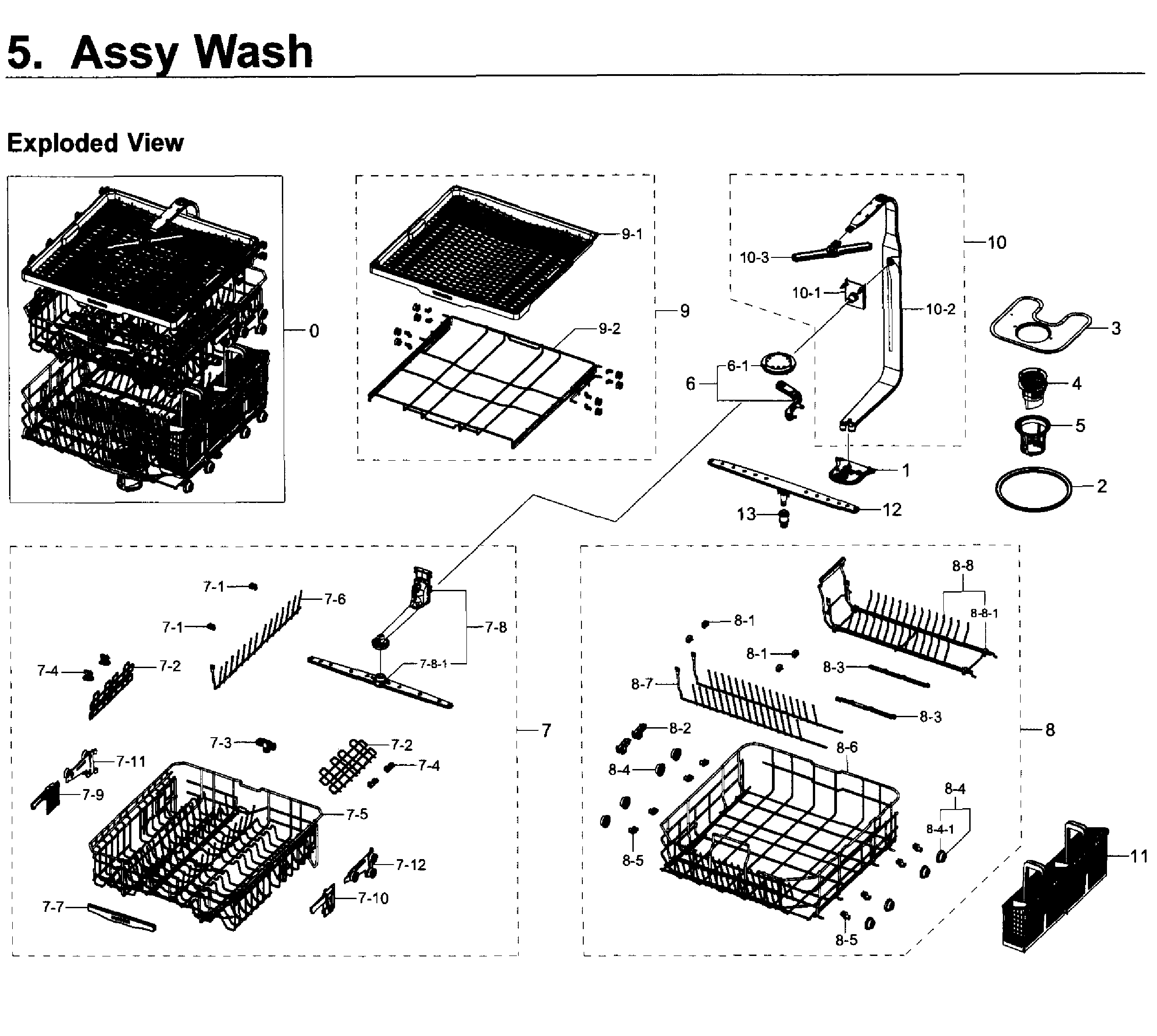

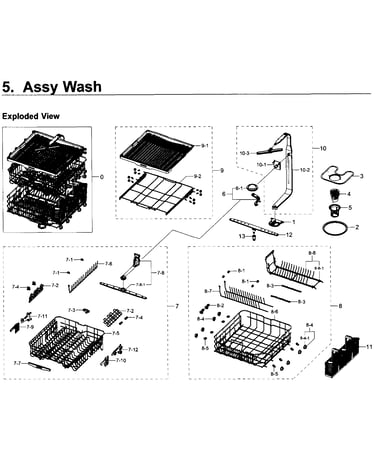

Wash asy diagram

Dishwasher spray arm, upper

Part #DD82-01309A

BEST SELLER
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Dishwasher Leak Detector Sensor DD94-01062A
#14

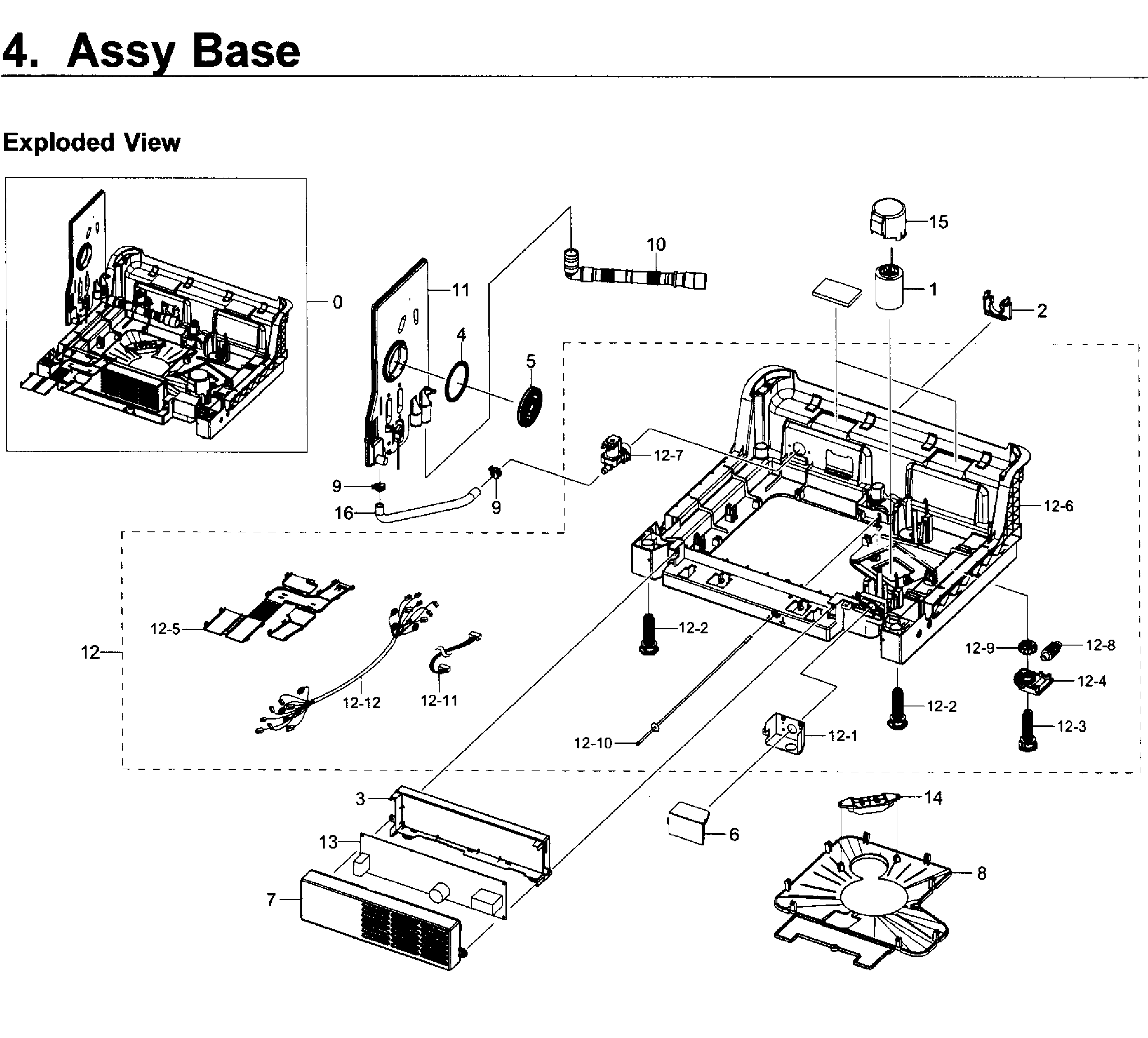

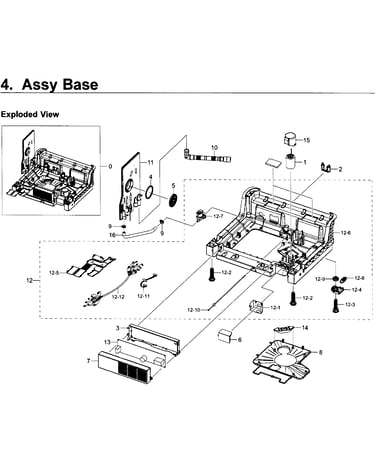

Base diagram

Dishwasher leak detector sensor

Part #DD94-01062A

BEST SELLER
$37.32 |
14% OFF Phone Price : $43.32
In Stock
Dishwasher Drain Pump (replaces Dd81-01527a) DD31-00005A
#1

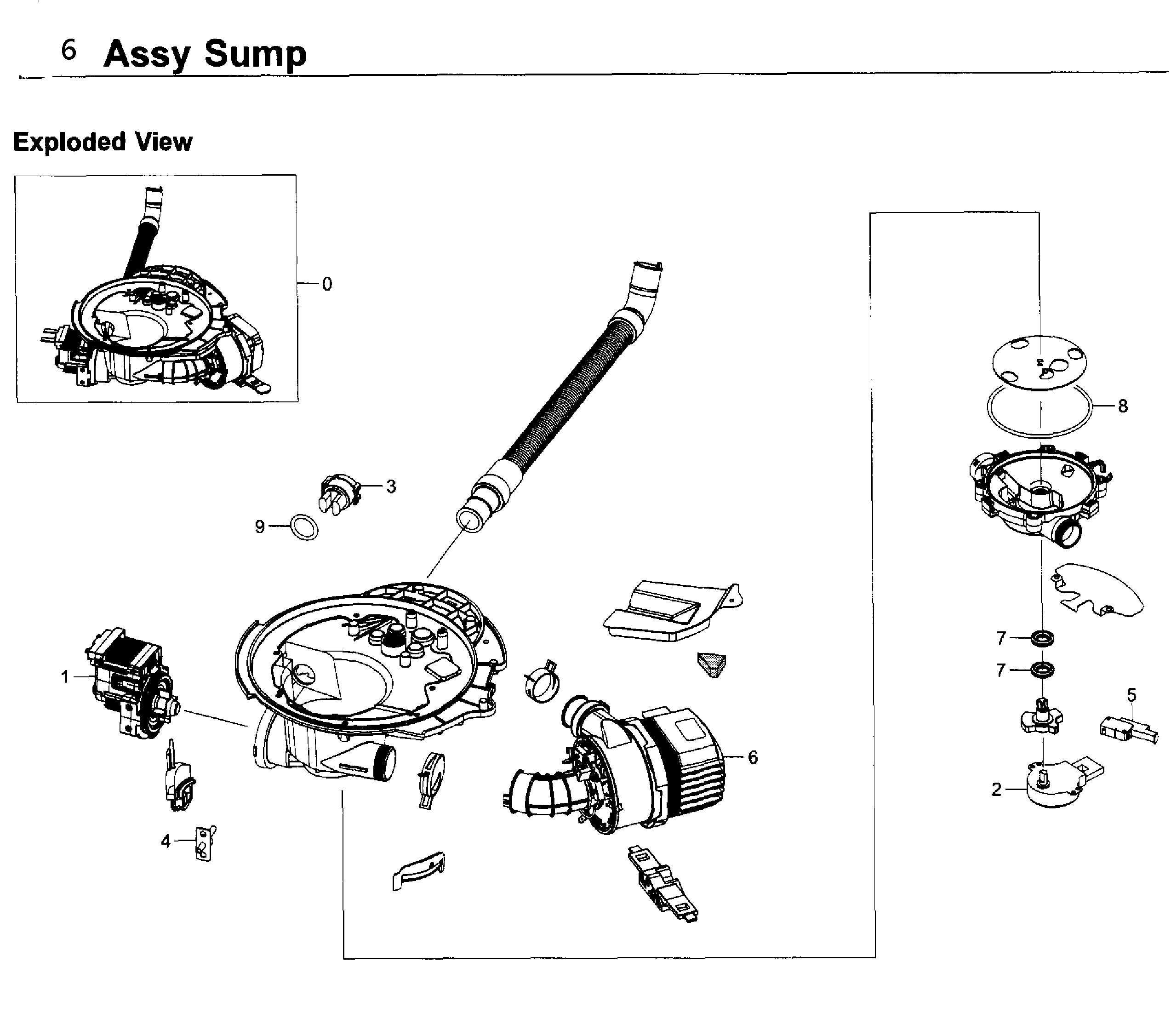

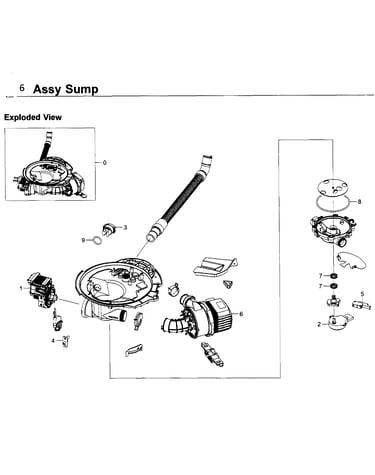

Sump diagram

Dishwasher drain pump (replaces dd81-01527a)

Part #DD31-00005A

BEST SELLER
$108.87 |
10% OFF Phone Price : $120.87
In Stock
Dishwasher Vent Seal DD63-00072A
#4

Base diagram

Dishwasher vent seal

Part #DD63-00072A

BEST SELLER
This item is not returnable
$5.64 |
15% OFF Phone Price : $6.64
In Stock
Dishwasher Drain Hose DD97-00403A
#10

Base diagram

Dishwasher drain hose

Part #DD97-00403A

Replaced by #DD97-00403E

?
Manufacturer substitution
This part replaces DD97-00403A. Substitute parts can look different from the original.
BEST SELLER
$62.15 |
9% OFF Phone Price : $68.15
In Stock
Dishwasher Tine Row Clip DD61-00217A
Dishwasher tine row clip

Part #DD61-00217A

BEST SELLER
This item is not returnable
$4.59 |
18% OFF Phone Price : $5.59
In Stock
Dishwasher Circulation Pump Motor DD82-01314A
#6

Sump diagram

Dishwasher circulation pump motor

Part #DD82-01314A

$174.77 |
10% OFF Was : $194.19
In Stock
Dishwasher Filter DD81-02011A
#5

Wash asy diagram

Dishwasher filter

Part #DD81-02011A

This item is not returnable
$22.67 |
21% OFF Phone Price : $28.67
In Stock
Dishwasher Dishrack Roller, Lower DD66-00023A
#8-4

Wash asy diagram

Dishwasher dishrack roller, lower

Part #DD66-00023A

$10.72 |
16% OFF Phone Price : $12.72
In Stock
Dishwasher Dishrack Assembly, Lower DD82-01320A
#8

Wash asy diagram

Dishwasher dishrack assembly, lower

Part #DD82-01320A

$186.13 |
6% OFF Was : $198.02
In Stock
