Model #LSR7133KQ0 Official Whirlpool washer

Here are the diagrams and repair parts for Whirlpool LSR7133KQ0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

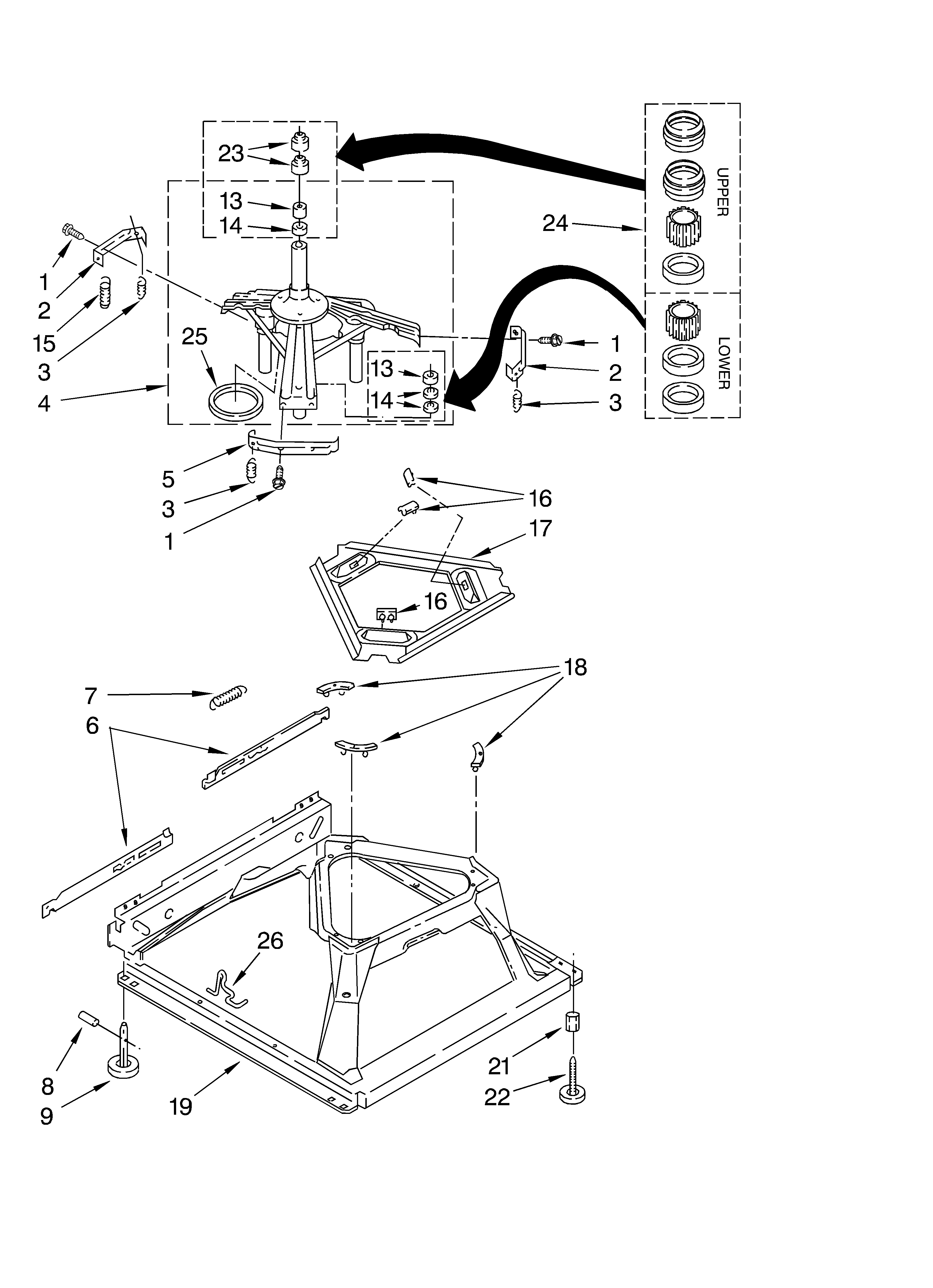

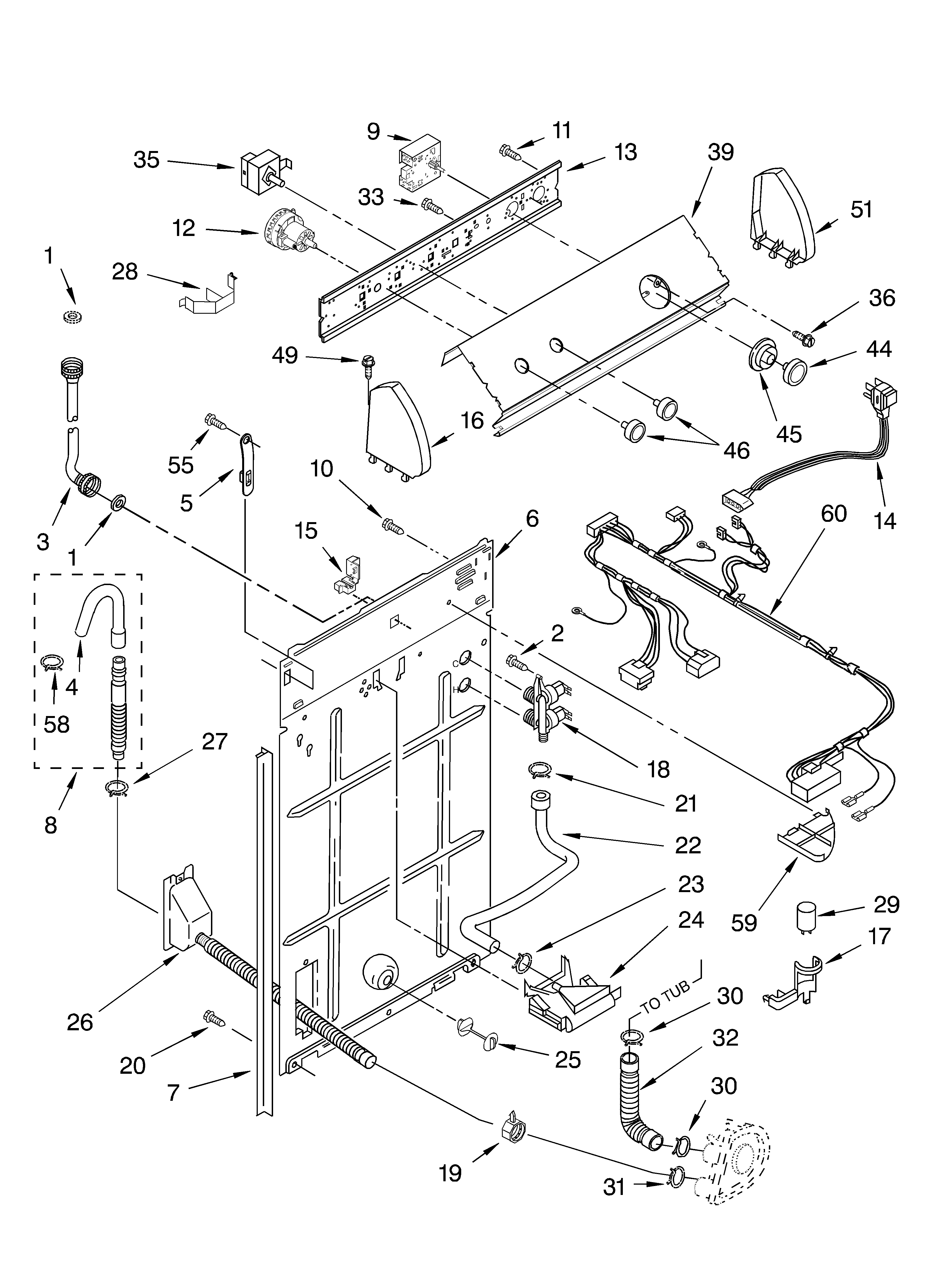

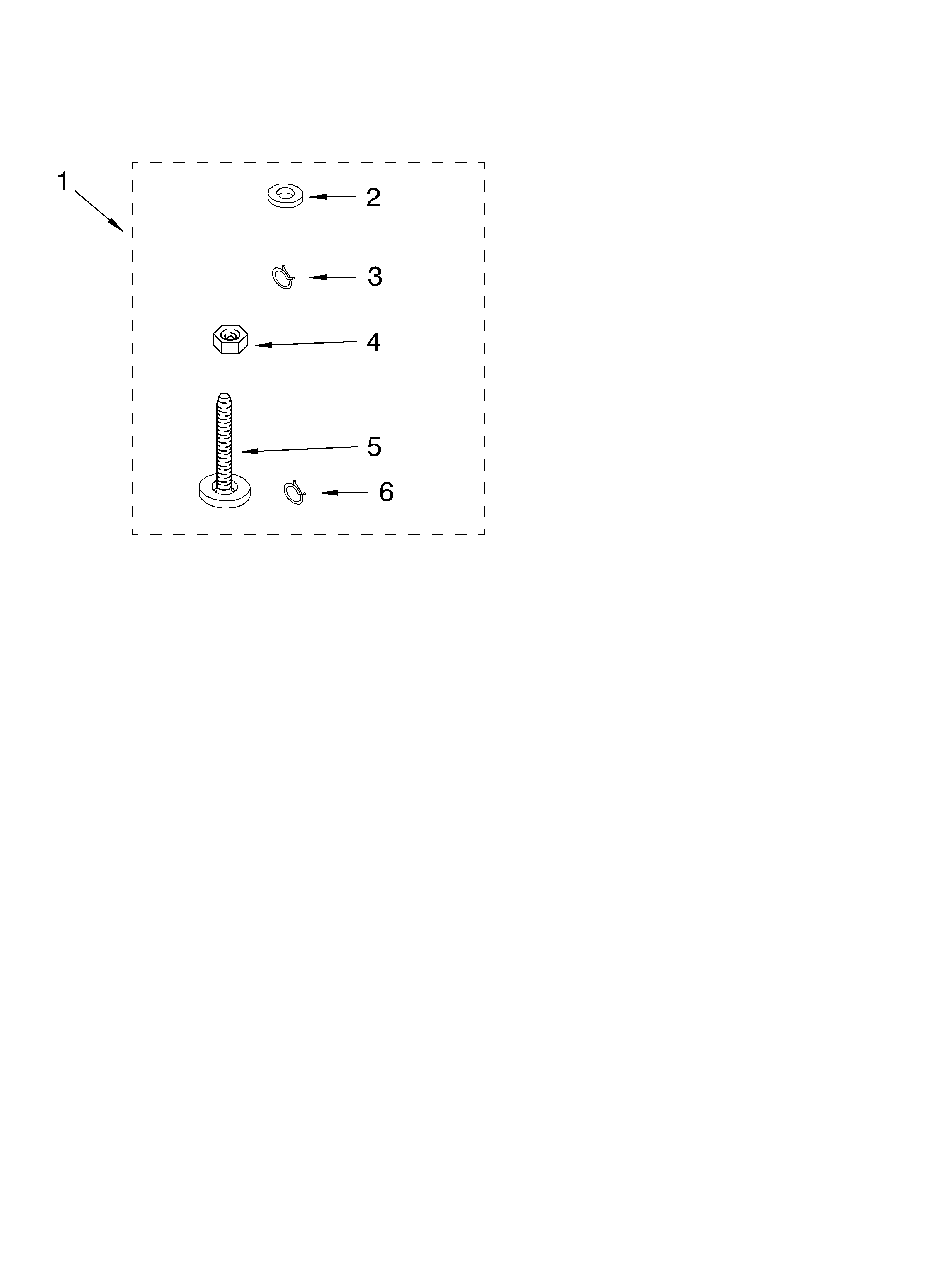

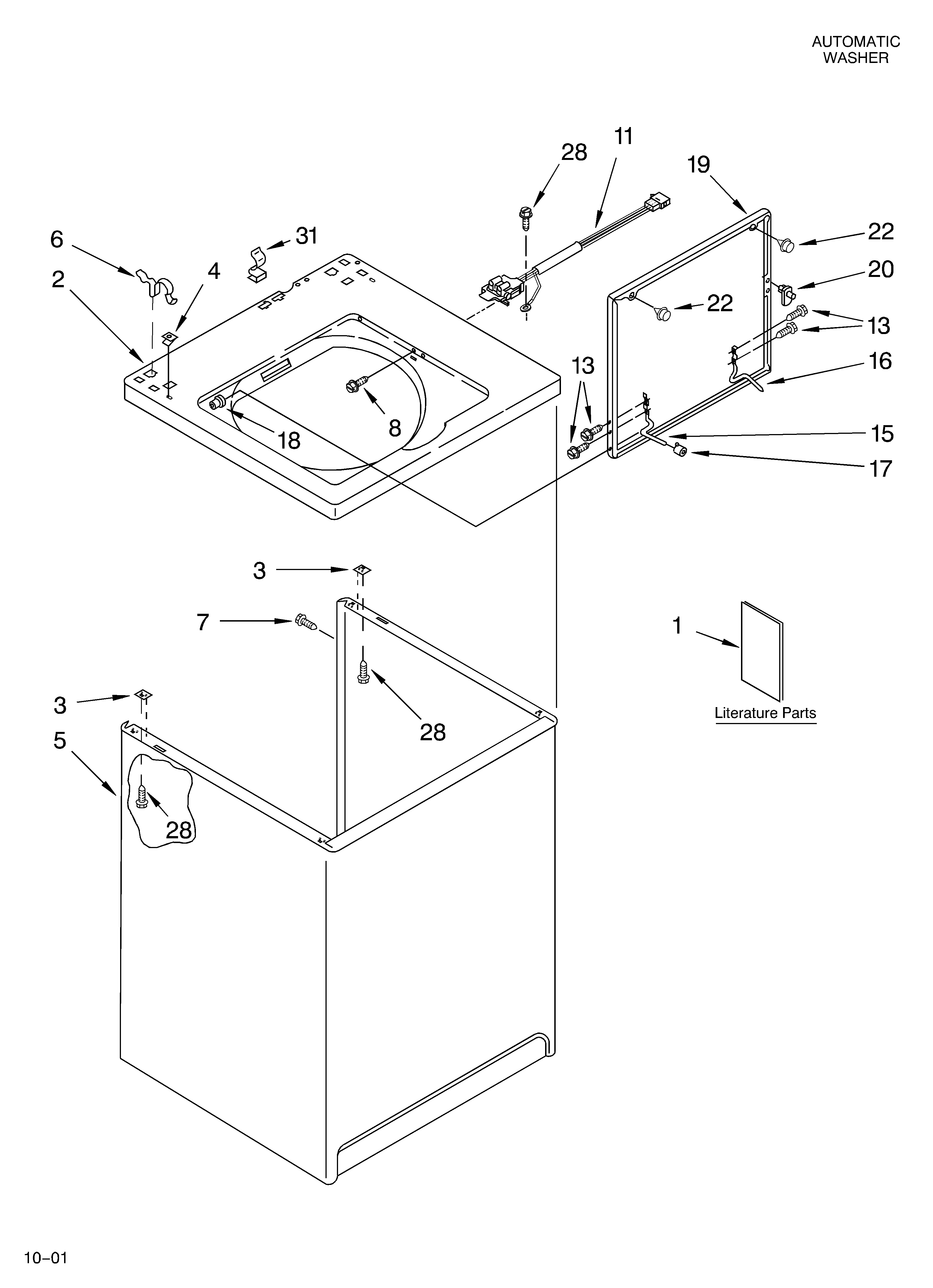

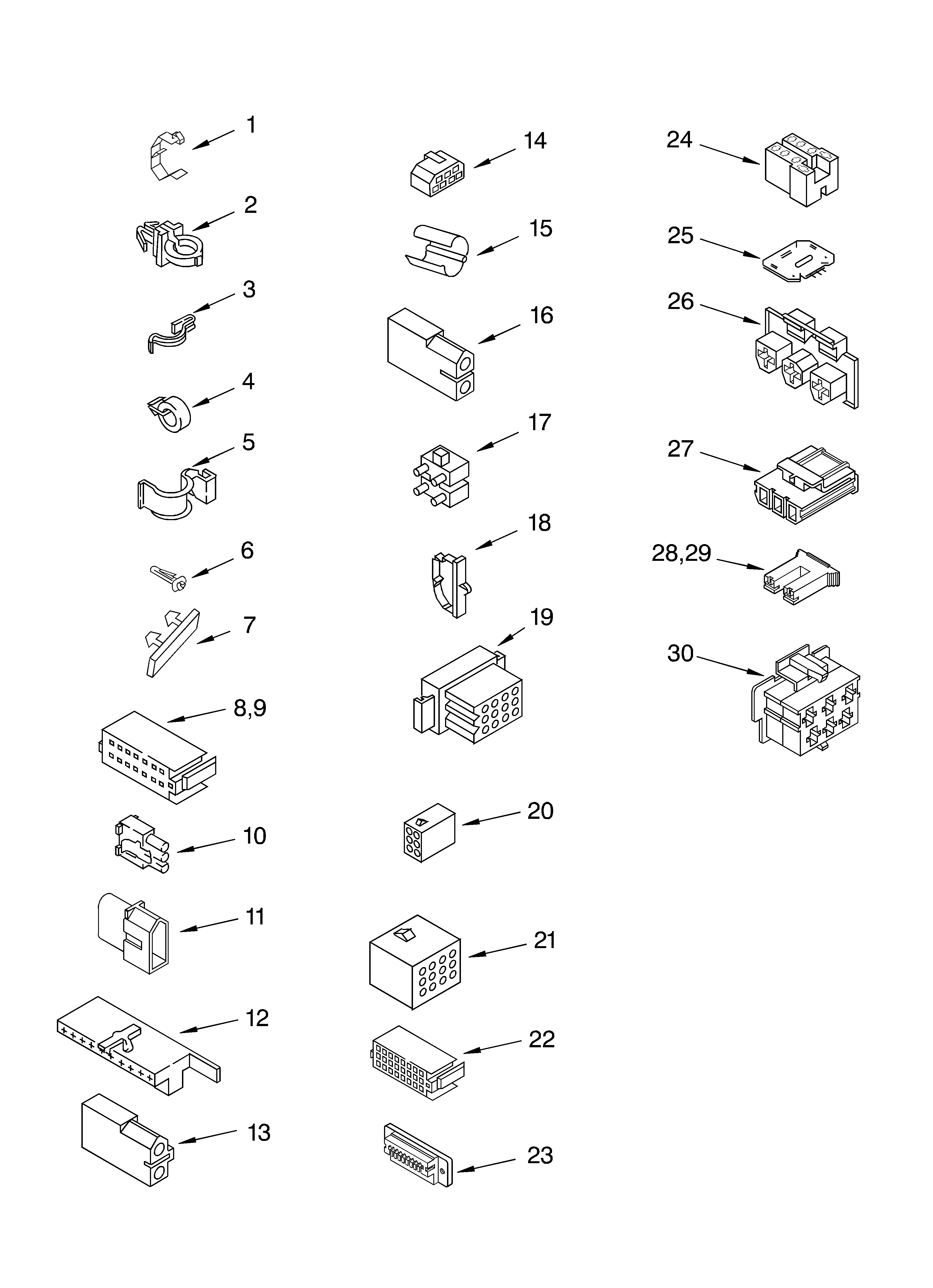

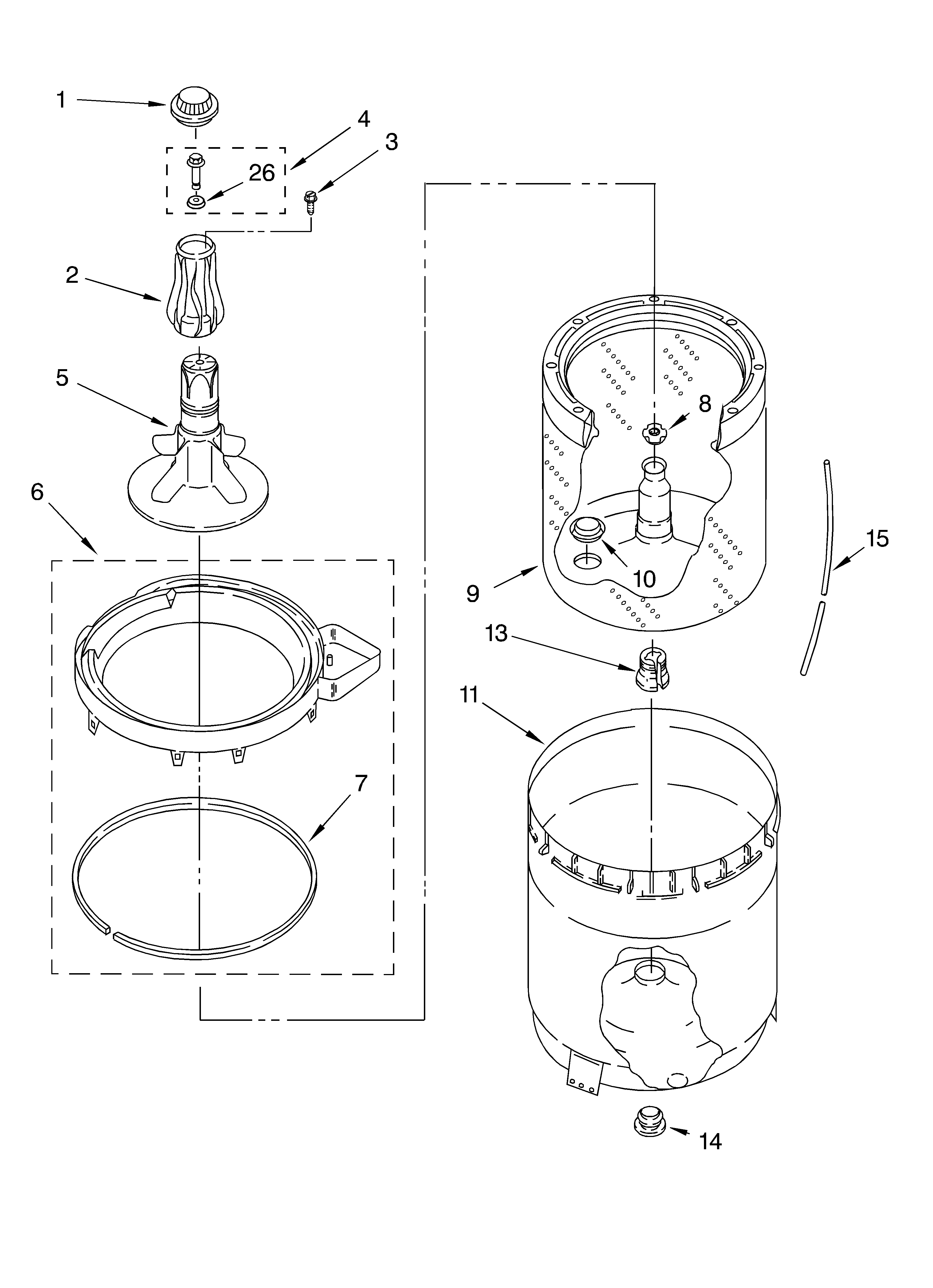

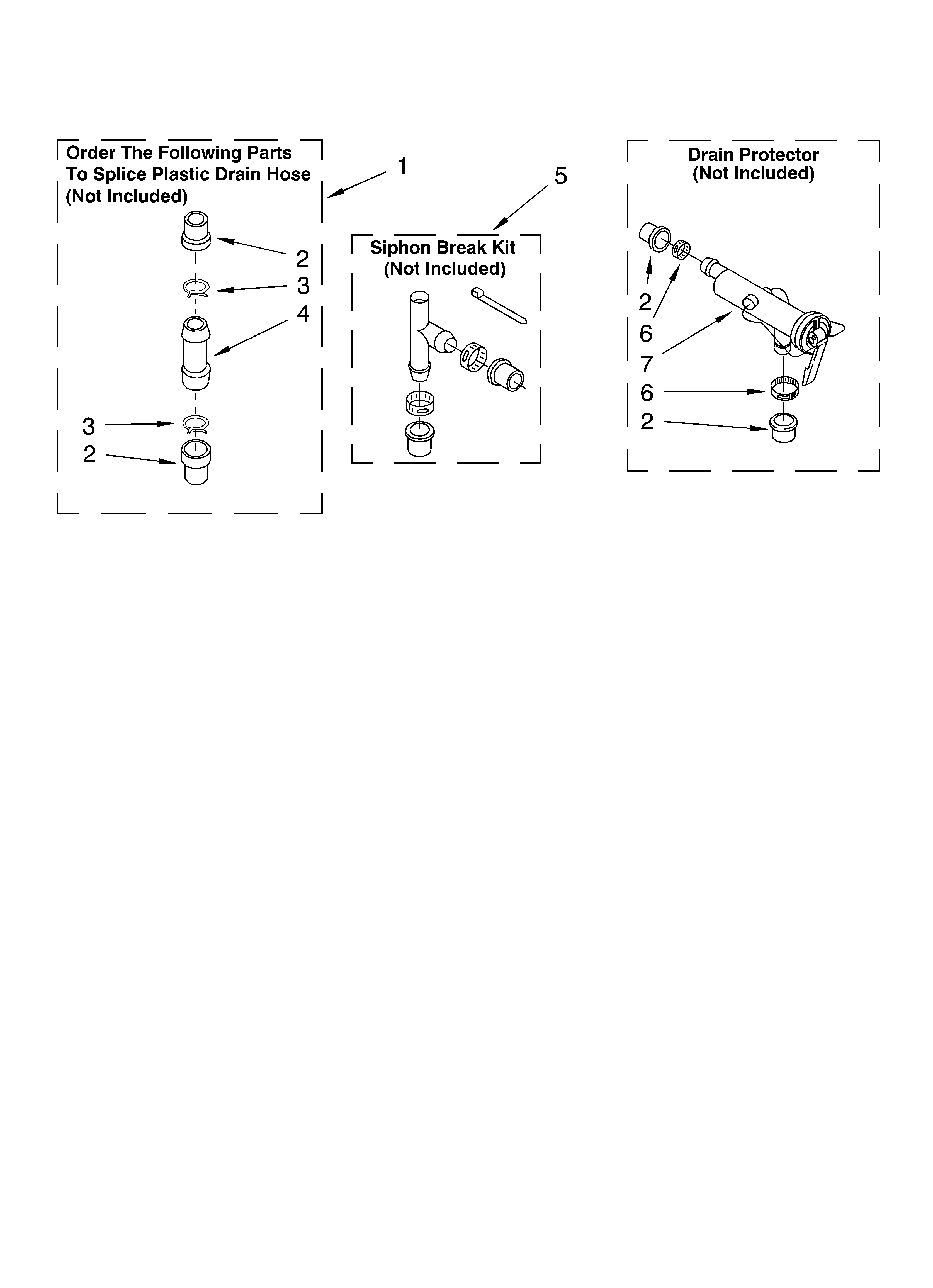

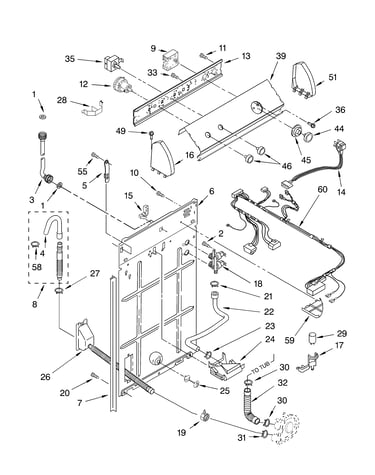

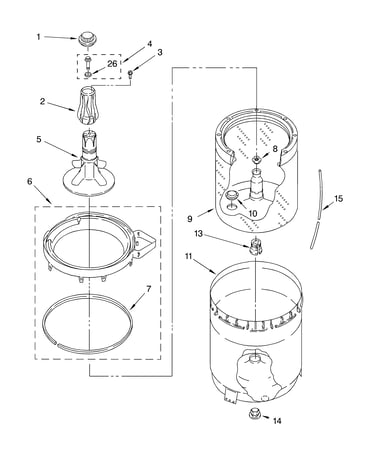

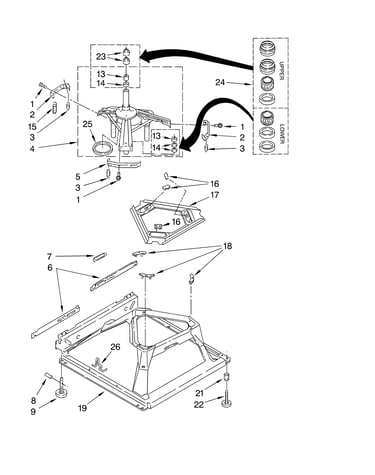

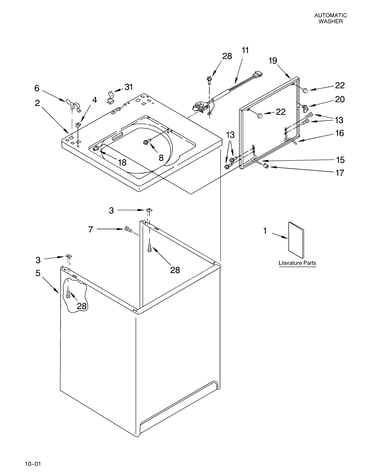

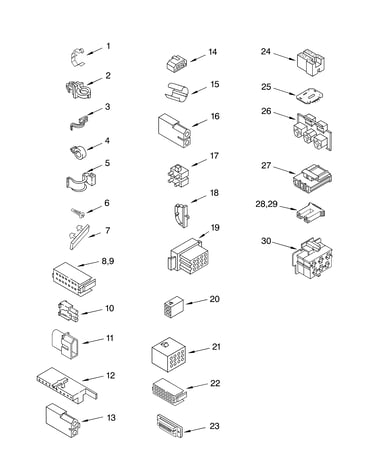

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 217 parts

Washer Motor Coupling (replaces 280152, 285753, 8559748)#13

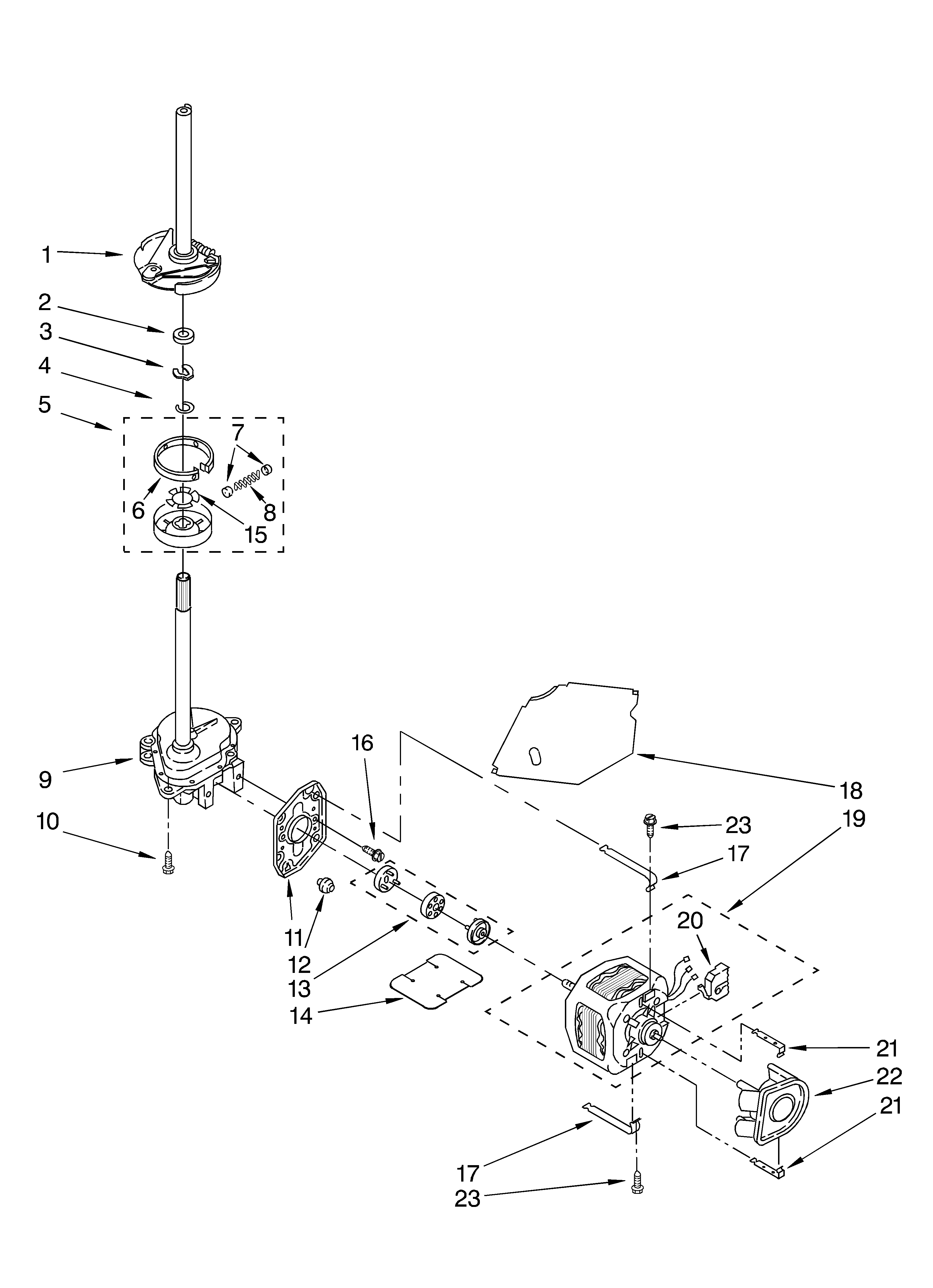

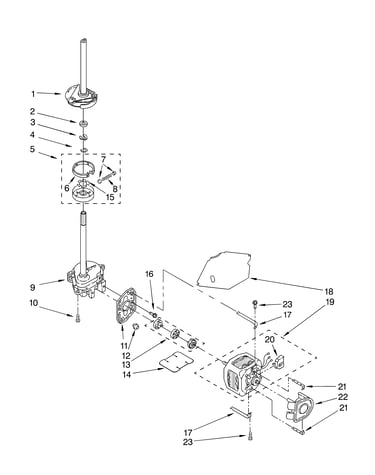

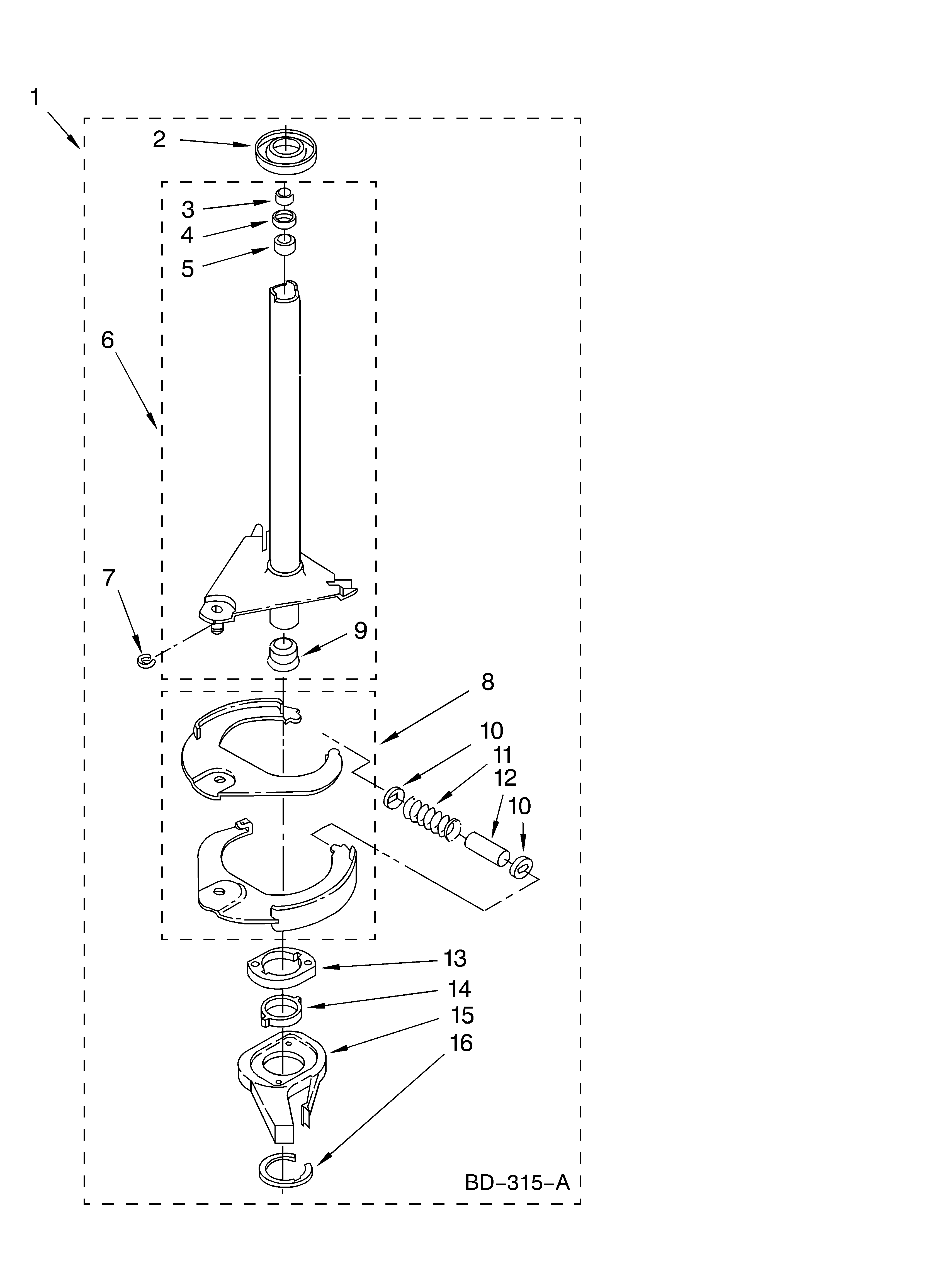

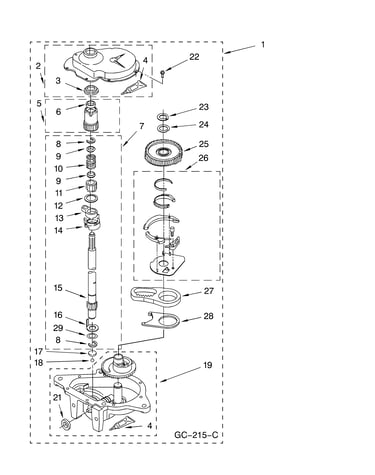

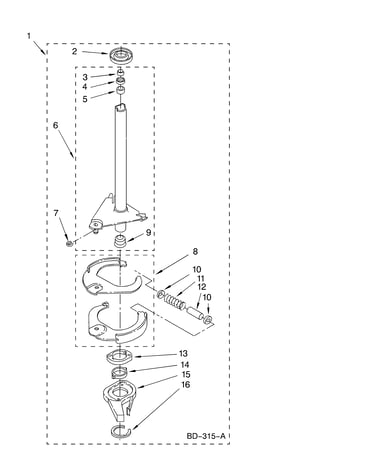

Brake, clutch, gearcase, motor and pump Diagram
