Model #EFME427UIW0 Electrolux dryer

Here are the diagrams and repair parts for Electrolux EFME427UIW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 106 parts

    Dryer High-Limit Thermostat#33

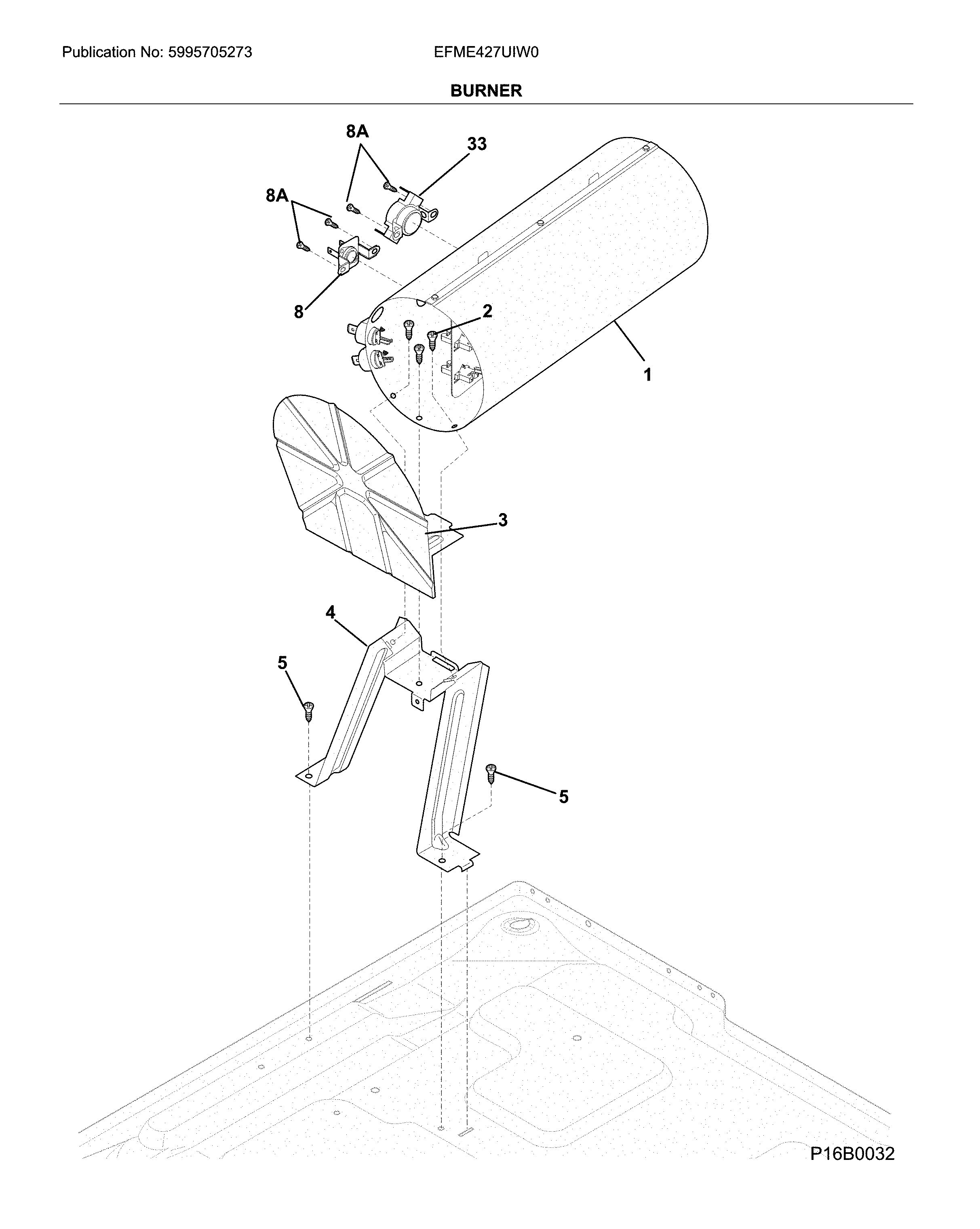

    Burner Diagram

    Dryer high-limit thermostat

    Part #3204267
    BEST SELLER
    In Stock
    $76.59
    Dryer Heating Element#1

    Burner Diagram

    Dryer heating element

    Part #137114000
    BEST SELLER
    In Stock
    $163.59 |
    14% OFF
    MSRP: $190.00
    Appliance High-Temperature Adhesive

    See All Related Diagrams

    Appliance high-temperature adhesive

    Part #5308027429
    BEST SELLER
    In Stock
    $46.27
    Dryer Moisture Sensor and Grille Assembly#8

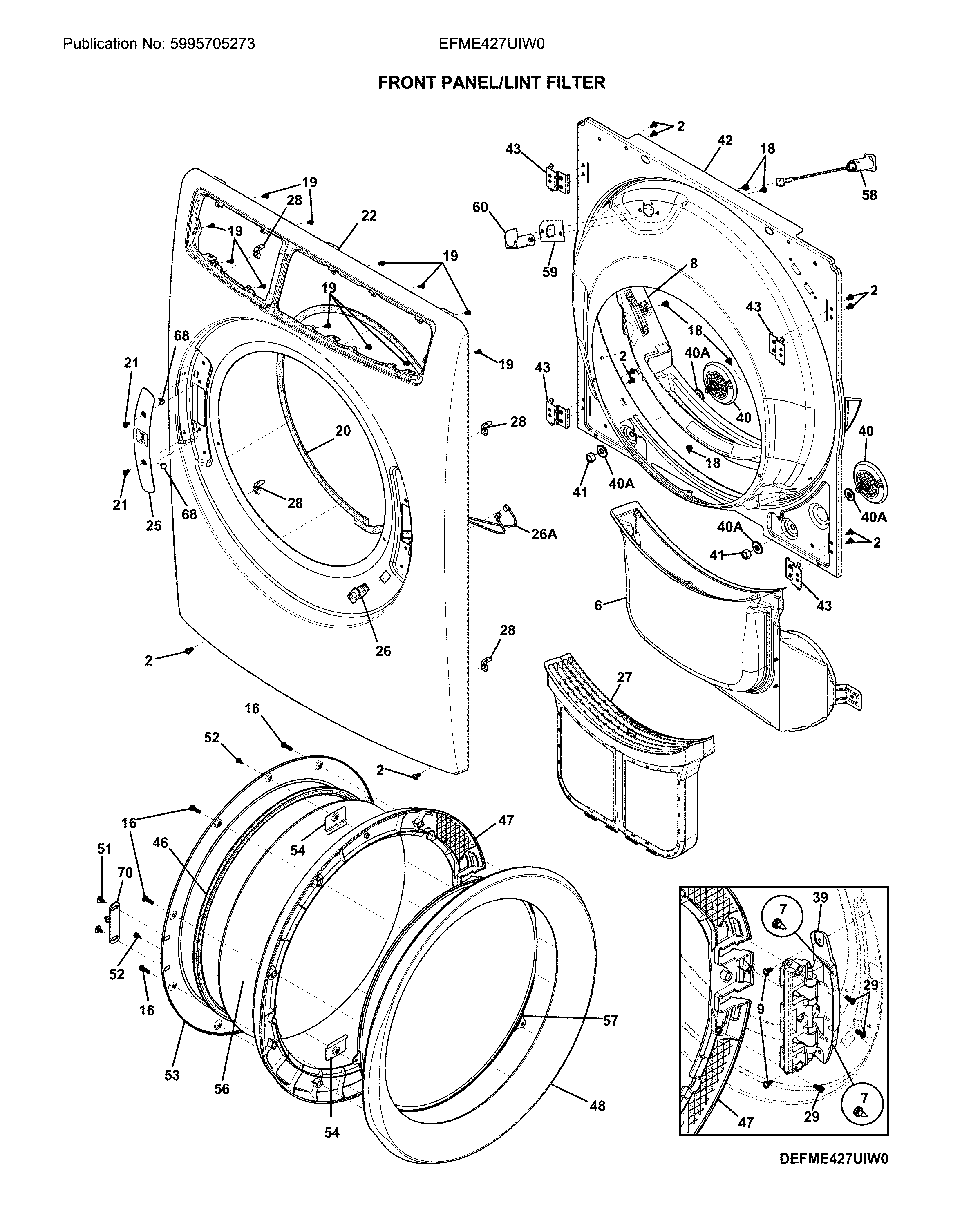

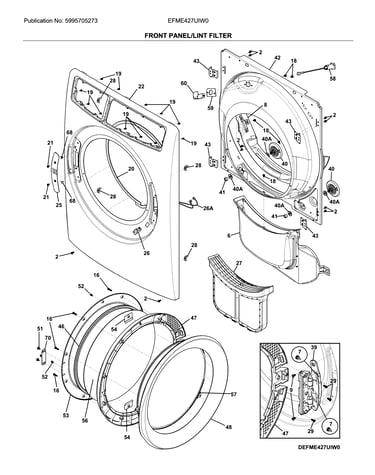

    Front panel/lint filter Diagram

    In Stock
    $81.09
    Dryer Blower Wheel#9

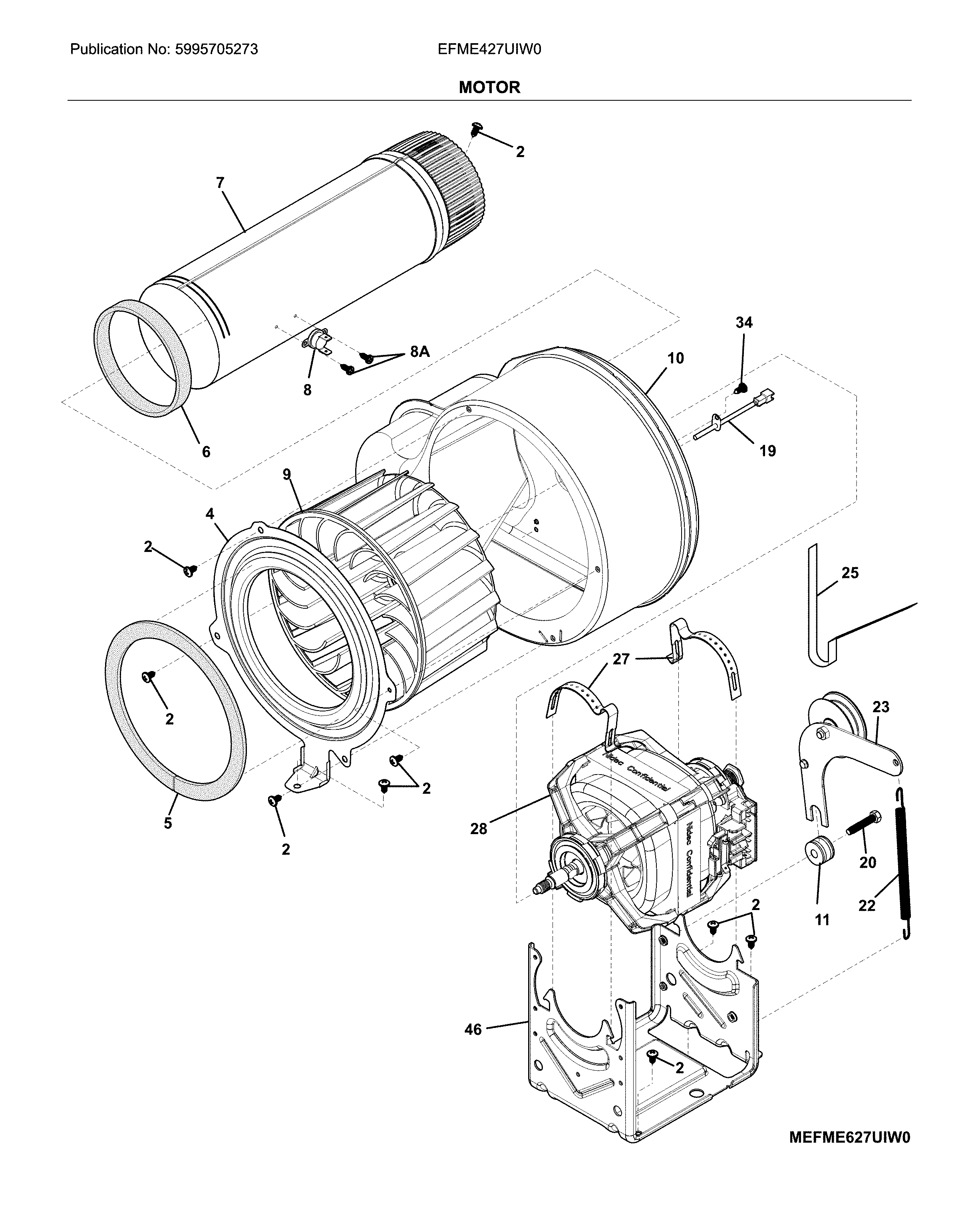

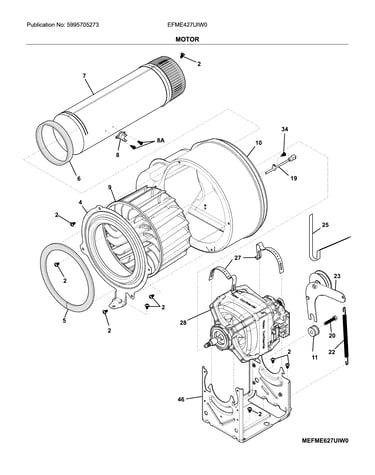

    Motor Diagram

    Dryer blower wheel

    Part #5304513609
    In Stock
    $44.64
    Dryer Idler Assembly#23

    Motor Diagram

    Dryer idler assembly

    Part #134793500
    Replaced by #134793511
    ?
    Manufacturer substitution
    This part replaces 134793500. Substitute parts can look different from the original.
    In Stock
    $38.64
    Dryer Motor Clamp#27

    Motor Diagram

    Dryer motor clamp

    Part #134242400
    This item is not returnable
    In Stock
    $18.29
    Dryer Water Inlet Valve#61

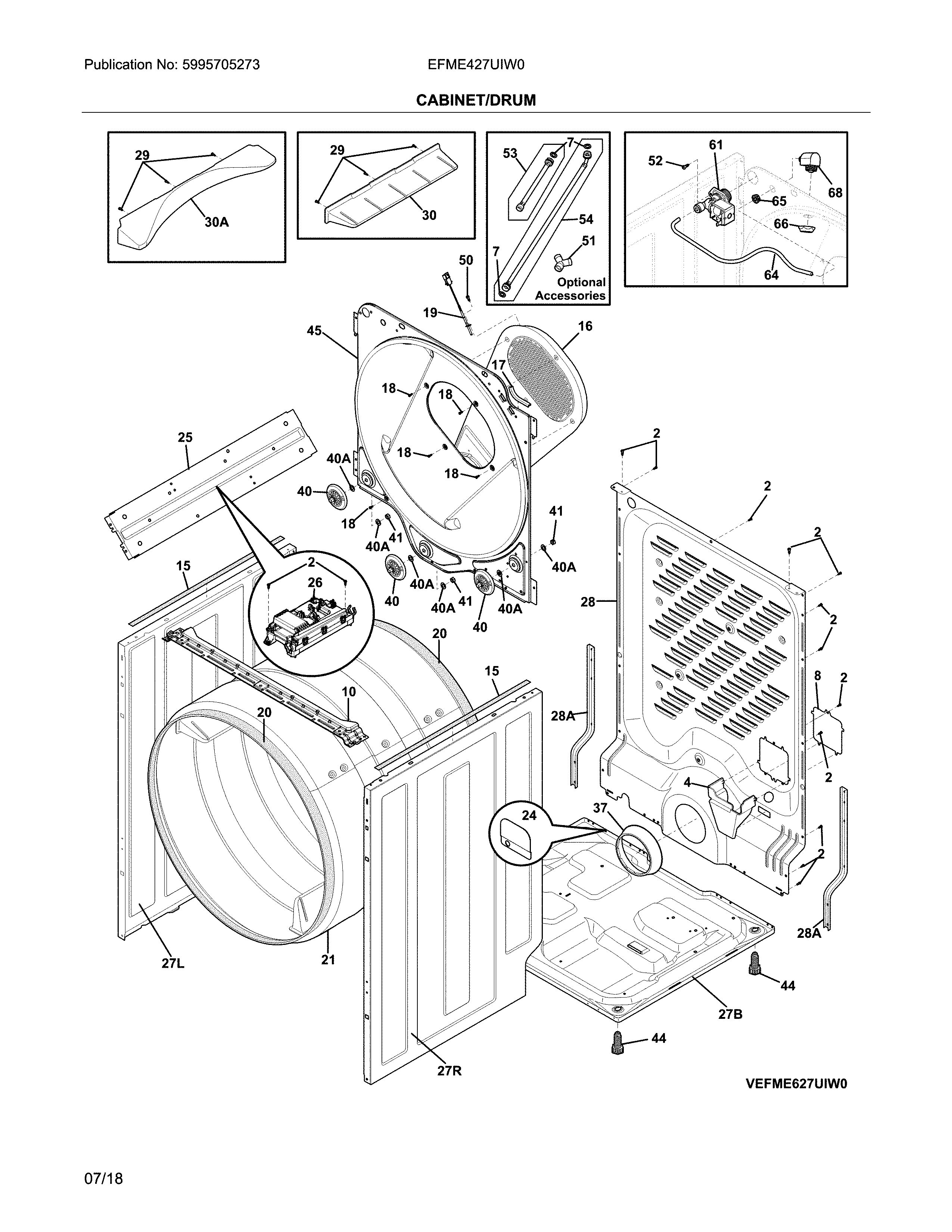

    Cabinet/drum Diagram

    In Stock
    $110.79
    Dryer Blower Housing Seal#5

    Motor Diagram

    In Stock
    $48.09
    Dryer Bolt, 0.25-20 x 1.25-in#20

    Motor Diagram

    In Stock
    $9.07

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure

    Repair guides common to all dryers

    These step-by-step repair guides will help you safely fix what’s broken on your dryer.

    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer drum support roller

    If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.

    Repair difficulty
    Time required
     90 minutes or less
    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer thermistor

    The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.

    Repair difficulty
    Time required
     30 minutes or less
    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer idler pulley

    The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.

    Repair difficulty
