Craftsman 172439830 electric chainsaw Parts

For the Craftsman electric chainsaw model 172439830, we use the model number on the nameplate to look up the correct diagrams, parts, and documentation; the serial number (if present) is typically on the same label or nearby on the housing. Use the 172439830 owner's manual to confirm the exact label location and what information it lists.

Where to find the number you need

On this model, the manual indicates the model number is on the nameplate. In most cases, you will find that nameplate:

• On the main saw body near the rear handle or motor housing
• Near the power cord entry point or cord strain relief
• On a flat area of the housing where labels are less likely to rub off
• Sometimes under the hand guard or near the oil tank window

Serial number vs. model number (what to use for parts)

For parts lookup and diagrams, the model number is the key identifier.

Identifier	What it’s used for	What it looks like
Model number	Finding the correct parts list and manual	172439830
Serial number	Tracking a specific unit (varies by tool)	Often a longer string of numbers/letters

How to “look it up” on Sears PartsDirect

Use this workflow to get to the right parts information quickly:

• Locate the nameplate and write down 172439830 exactly
• Match the product type: Craftsman electric chainsaw
• Use the model number to pull up the correct parts diagrams
• If you also have a serial number, keep it for your records, but lead with the model number
• If the label is worn, check for a second label on the opposite side of the housing

You can also search by model number on Sears PartsDirect if you are starting from the homepage.

Why it matters

Chainsaws often have similar-looking housings across multiple versions; using the exact model number helps ensure you get the correct chain/bar specs and any matching service information for your specific tool.

Last updated: February 2026

To oil your Craftsman electric chainsaw model 172439830, fill the bar-and-chain oil reservoir before use and keep the oil level up while cutting. This saw oils the chain automatically during operation, so proper filling and clean handling are the key steps (see the 172439830 owner's manual).

How to add bar and chain oil (model 172439830)

1. Set the chainsaw on a stable, level surface with the oil cap facing upward.
2. Wipe dirt and sawdust off the area around the oil filler cap.
3. Unscrew the oil filler cap by turning it counterclockwise.
4. Fill the reservoir with bar and chain oil (the manual specifies Craftsman Bar & Chain Oil, SAE30) until full.
5. Reinstall the cap and tighten it securely.
6. Wipe off any spilled oil so the handles stay clean and non-slip.

What to check while you are cutting

• Confirm the oil reservoir is filled before you start.
• Watch the oil level window regularly during use.
• Refill when the oil level gets low.
• Plan on frequent refills; a full tank typically lasts about 12 minutes depending on cutting intensity.
• Keep the oil cap tightened so it does not leak.

Storage and leak prevention

The oil tank is vented through small breather channels near the cap. To reduce leaks:

• Store the saw horizontally with the oil cap facing upward.
• Keep the cap snug, but do not overtighten.
• Clean off oil residue before storing.

Oil type guidance

What to use	What to avoid	Why
Bar and chain oil (SAE30 as specified)	Recycled or old oil	Old oil can reduce lubrication and increase wear
Clean, fresh oil	Dirty oil with debris	Debris can clog the oiler outlet and reduce flow

Why it matters

Running the 172439830 with an empty oil tank or without chain oil causes rapid bar and chain wear and can damage the saw. Good lubrication also improves cutting performance and helps reduce overheating.

If you need to look up diagrams or order replacement items for your Craftsman 172439830, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On a chainsaw chain, “72” most often refers to the drive link count (a 72-drive-link chain). On some chain brands, “72” can also appear as part of a longer code that identifies pitch and gauge, so we recommend matching the full chain/bar markings for your Craftsman 172439830 and confirming the drive links.

How to identify what “72” is telling you

Use these checks to avoid ordering the wrong chain size:

• Look for a full chain code on the box or on the chain tie straps (for example, a code that ends with the drive link count).
• Count the drive links (the tangs that ride in the guide bar groove); if you count 72, that “72” is the drive link count.
• Check the guide bar stamp for pitch, gauge, and recommended drive links.
• Match pitch and gauge first, then match drive links.
• Inspect chain direction before reinstalling; the manual shows correct cutting-tooth direction and emphasizes two-handed operation.

For model-specific assembly and tensioning steps, use the 172439830 owner's manual.

Quick reference: common chain number meanings

Marking you see	What it commonly means	What to match before buying
72 by itself	Drive link count (72 DL)	Pitch, gauge, and bar length
72 inside a longer code	Part of a manufacturer series code	The full code plus DL count
Bar stamp numbers	Bar spec callout	Use as the primary reference

Why it matters

If pitch, gauge, or drive link count is wrong, the chain can fit poorly, derail, or bind in the cut. That increases wear on the guide bar and drive sprocket and can raise kickback risk. The manual also notes new chains can stretch, so tension checks are important during early use.

Ordering tip for this model

We recommend using your model number 172439830 when searching parts and documentation. If you do not see the exact chain listed in the model parts list, you can search by model number on Sears PartsDirect and then confirm the chain specs against your bar markings.

Last updated: February 2026

To identify your Craftsman chainsaw, find the model number on the saw’s rating label and match it to the parts list. For this page, the model is Craftsman 172439830; confirming the exact model number ensures you get the right chain, bar, and electrical parts.

Where to look for the model number label

On most Craftsman electric chainsaws, the model number is printed on a label attached to the housing. Check these common spots:

• Side of the motor housing (near the handle)
• Back of the main housing
• Bottom of the saw body (near the cord entry)
• Near the oil tank cap area (on some designs)

How to record it correctly

Write the model number exactly as shown, including any extra letters or dashes. Then compare it to the model shown in your documentation.

• Copy every character in order (example: 172439830)
• Take a clear photo of the label for reference
• If the label is worn, wipe the area clean and use a flashlight at an angle
• Keep the model number with your maintenance notes (chain sharpening, bar oil type, etc.)

Match the model to the right parts

Once you have the model number, use it to select the correct parts diagram and parts list for your saw.

What you’re checking	Why it matters	Example for this page
Model number	Ensures correct fit and electrical compatibility	172439830
Product type	Confirms you are in the right category	Electric chainsaw
Brand	Helps narrow parts and documentation	Craftsman

For model-specific diagrams, safety info, and the parts list section, use the 172439830 owner's manual. For ordering, search by model number on Sears PartsDirect.

Why it matters

Chainsaw parts are model-specific; even similar-looking Craftsman saws can use different chain/bar assemblies, guards, switches, or wiring. Using the exact model number helps prevent wrong-part returns and reduces downtime.

Last updated: February 2026

On the Craftsman 172439830 electric chainsaw, the chain usually comes loose because a new chain stretches during the first uses or the chain tensioning knob and cover plate are not fully secured. Set tension with the built-in knob, then recheck after the first cuts and regularly during use.

Set chain tension the way this model specifies

Follow the tensioning method shown in the owner's manual. This model uses an automatic chain tensioning knob with a ratchet mechanism that helps prevent the tension from loosening.

• Unplug the chainsaw before adjusting chain tension.
• Place the saw on a flat surface.
• Turn the chain tensioning knob clockwise until it is hand tight.
• Double-check tension at the center of the guide bar: the chain should lift about 1/8 to 1/4 inch (approximately 3 to 6 mm) from the bar.
• Press the cover plate firmly into place and fully secure the locking knob.

Common reasons the chain keeps loosening

• Normal new-chain stretch: new chains lengthen noticeably at first; frequent retensioning is expected.
• Cover plate not fully seated: if the cover plate is not pressed on firmly, tension can change while cutting.
• Locking knob not tight: a loose cover can let the bar shift and reduce tension.
• Tension set while the chain is hot: avoid tensioning when the chain is hot; it can end up over-tensioned after cooling.
• Guide bar groove wear: a worn or damaged guide bar can let the chain ride poorly and derail more easily.

Quick check table

What to check	What “right” looks like	Why it matters
Before cutting	Tension verified	Helps prevent derailment and kickback risk
Center of guide bar	Lifts about 1/8 to 1/4 inch	Confirms proper tension for safe tracking
First few sessions	Retension often	New chains stretch quickly

Why it matters

A loose chain can jump out of the guide bar groove and increases kickback risk; it also accelerates wear on the chain, guide bar, and sprocket.

Parts and diagrams

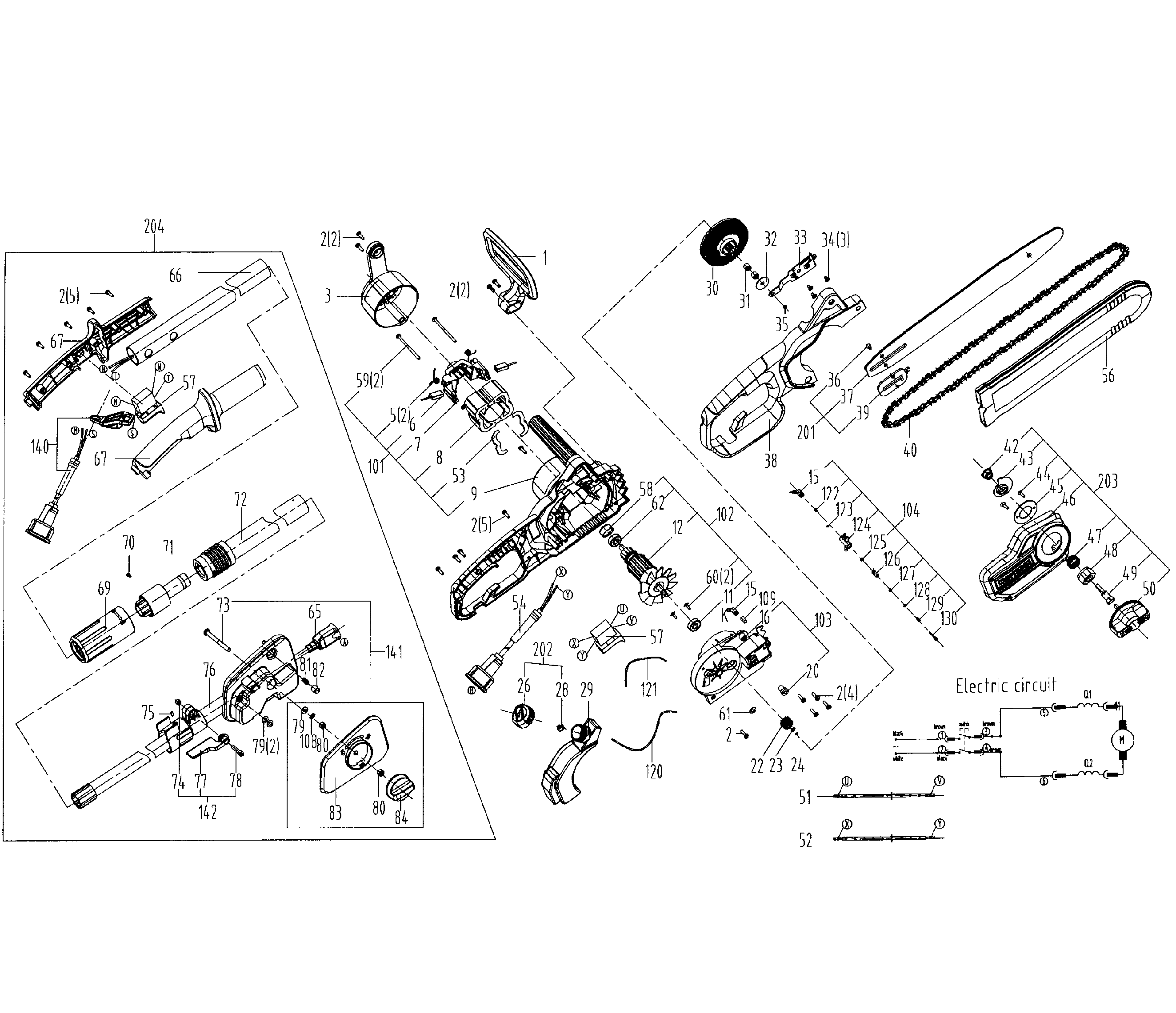

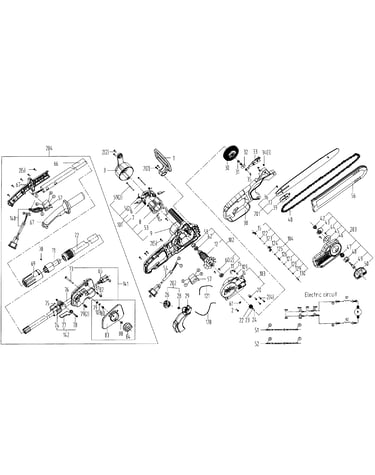

Use the model diagrams for Craftsman 172439830 to identify wear items (chain, guide bar, sprocket, tensioning hardware), then search by model number on Sears PartsDirect to order the correct replacements.

Last updated: February 2026
