Whirlpool JZ5062 freestanding ice maker Parts
Here are the diagrams and repair parts for Whirlpool JZ5062 freestanding ice maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JZ5062 Freestanding Ice Maker

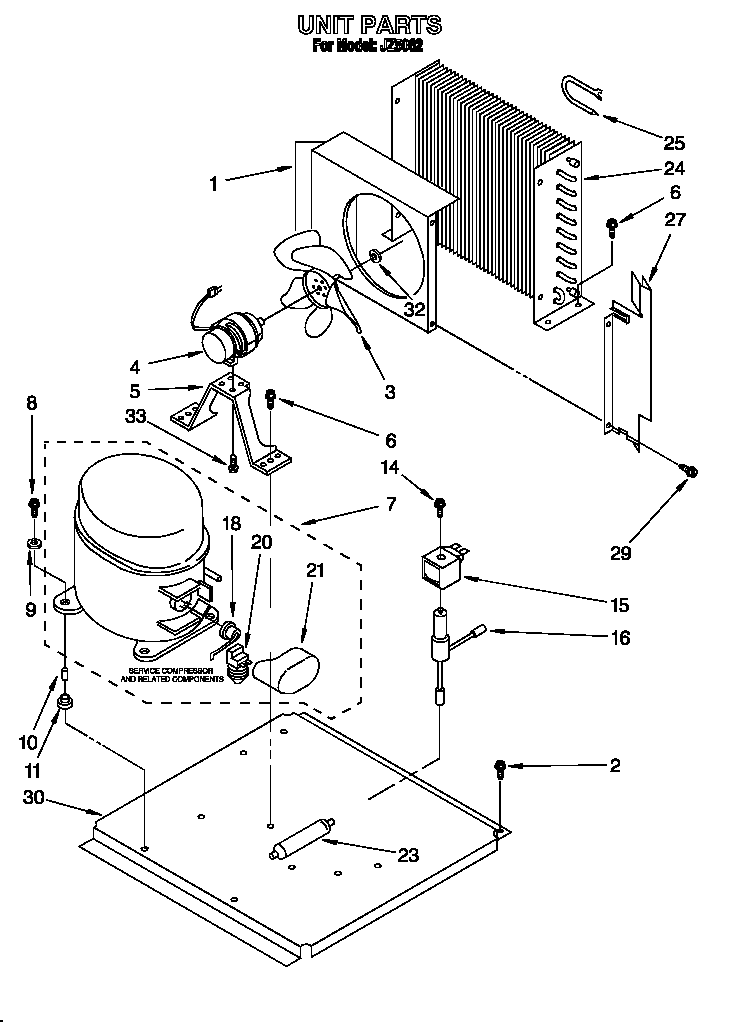

Unit diagram
Accumulator
Part #2180807
The manufacturer no longer makes this part, and there's no substitute part

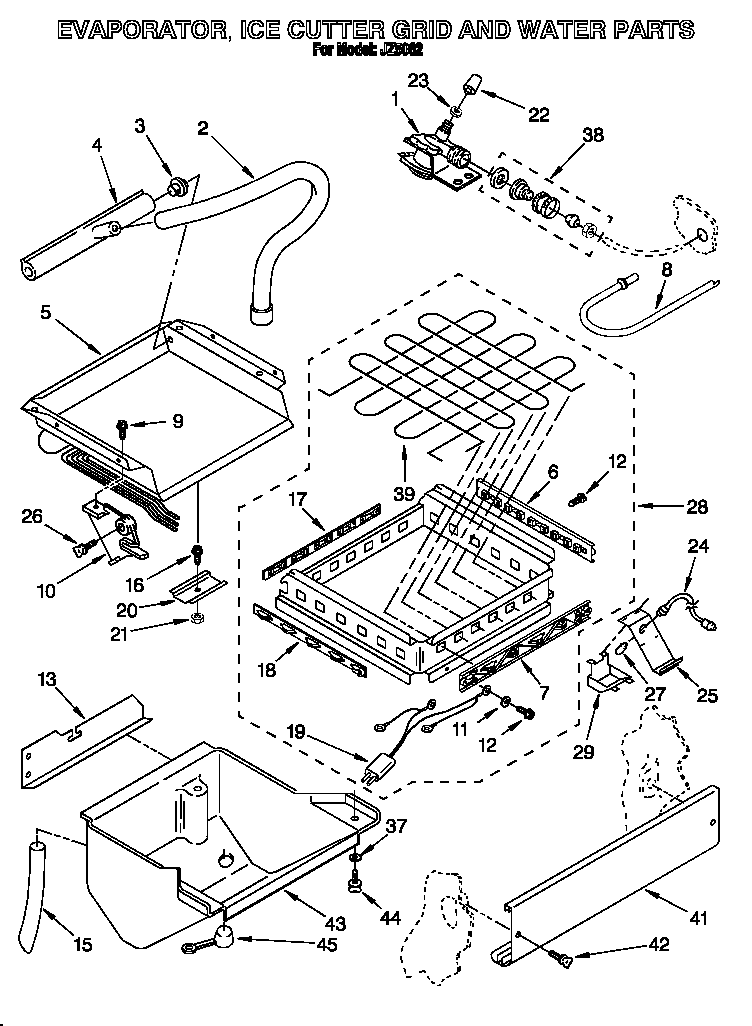

Evaporator, ice cutter grid and water diagram
Evaporator
Part #2180809
The manufacturer no longer makes this part, and there's no substitute part

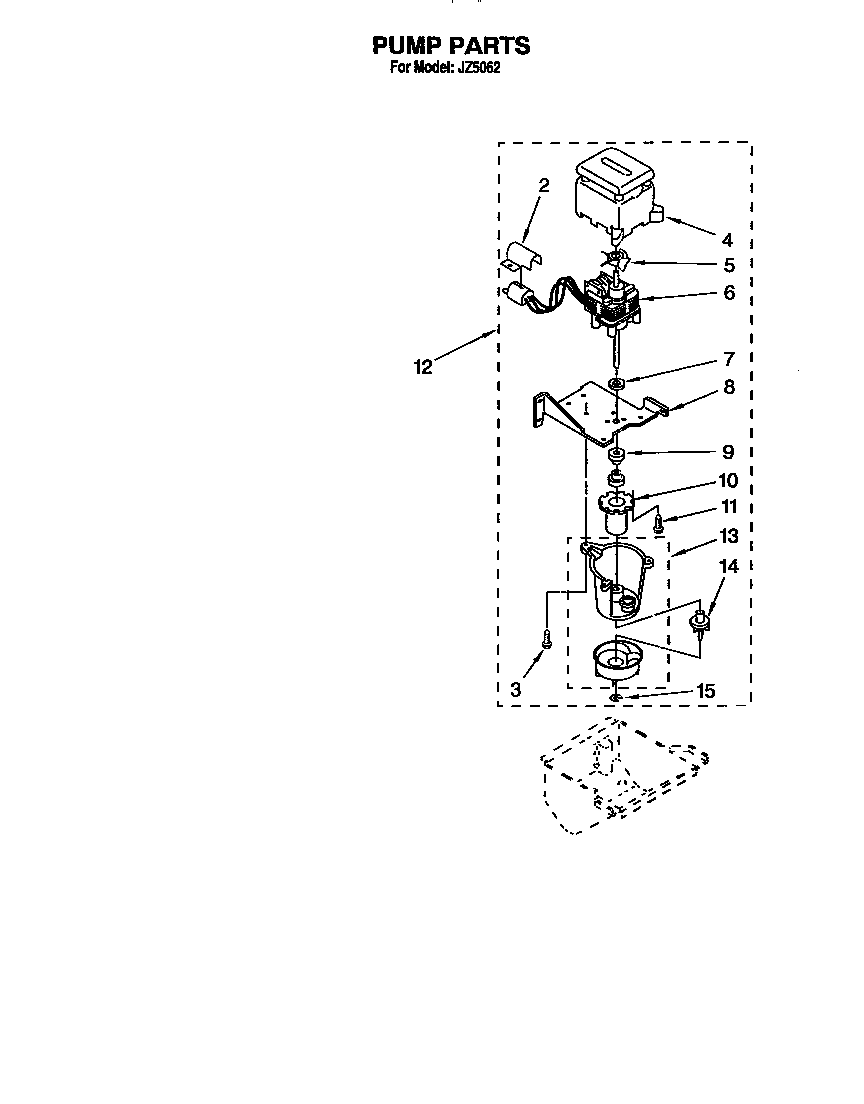

Pump diagram
Washer
Part #583424
The manufacturer no longer makes this part, and there's no substitute part
Evaporator, ice cutter grid and water diagram
Wire Harness
Part #758488
The manufacturer no longer makes this part, and there's no substitute part
#NI

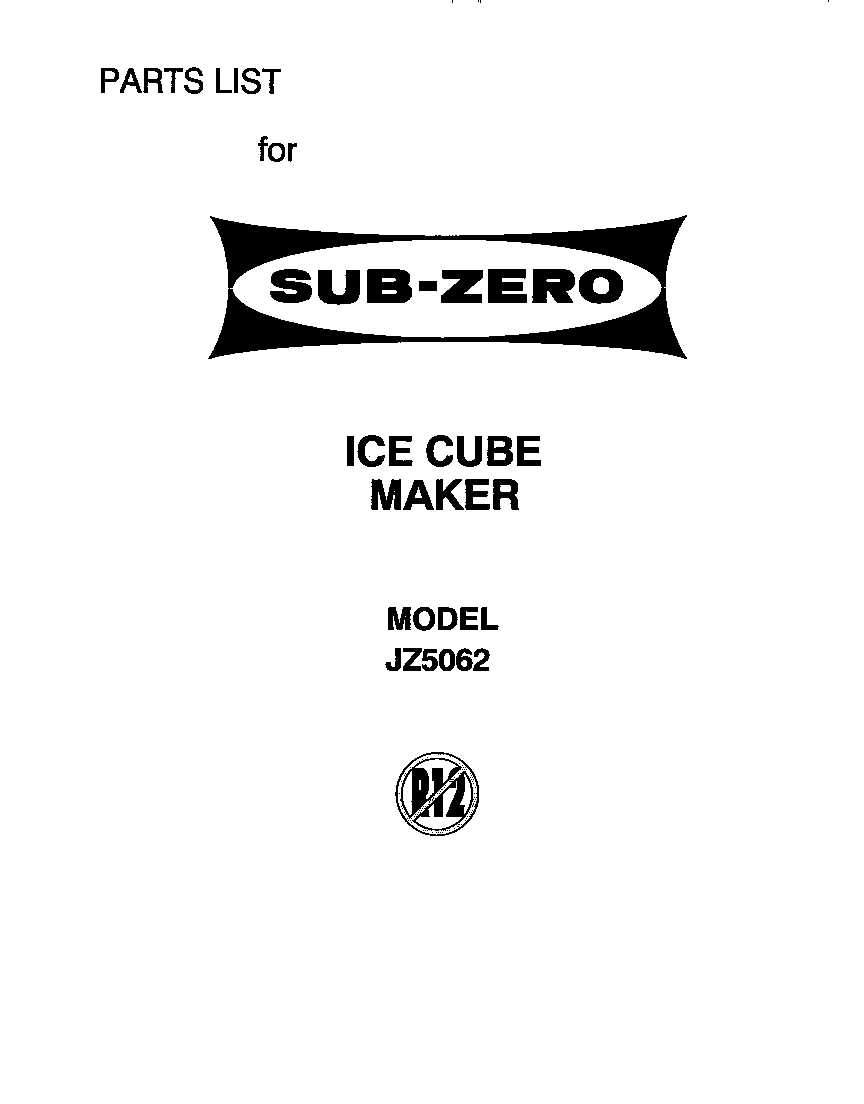

All parts diagram
Installation Instructions
Part #LIT2180635
The manufacturer no longer makes this part, and there's no substitute part

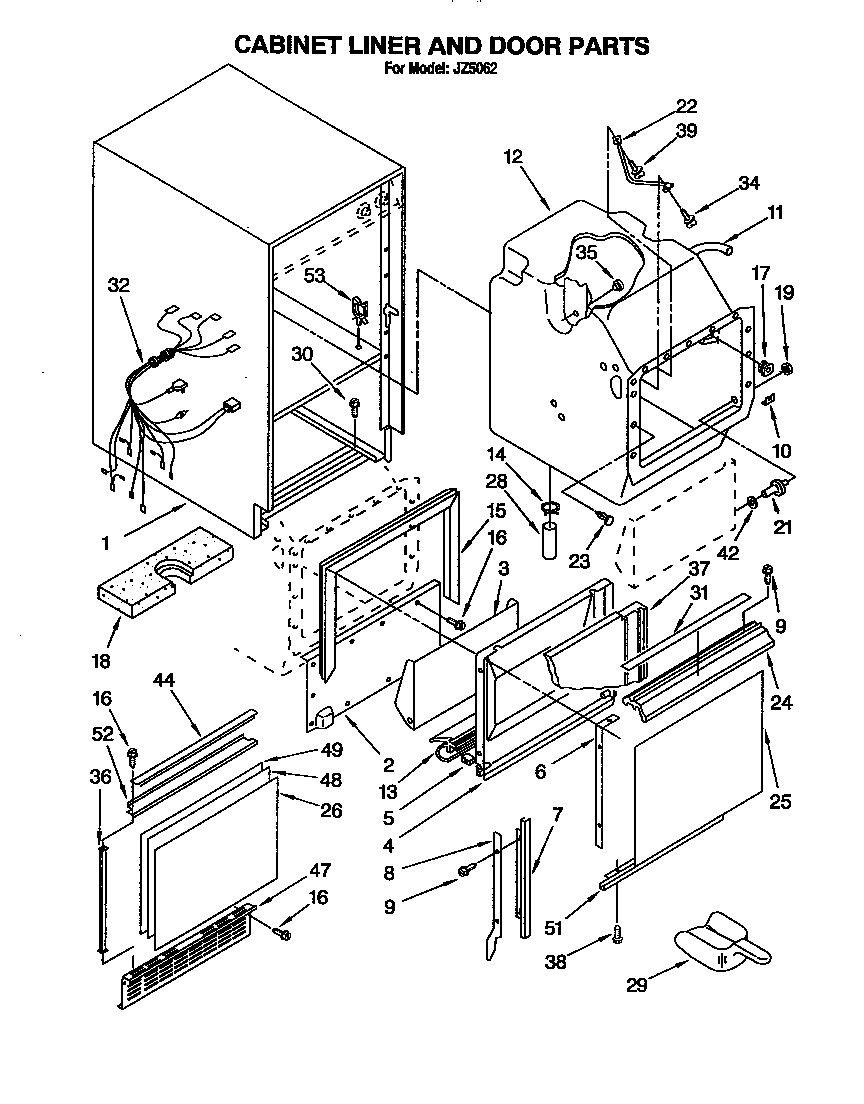

Cabinet liner and door diagram
Liner
Part #758655
The manufacturer no longer makes this part, and there's no substitute part

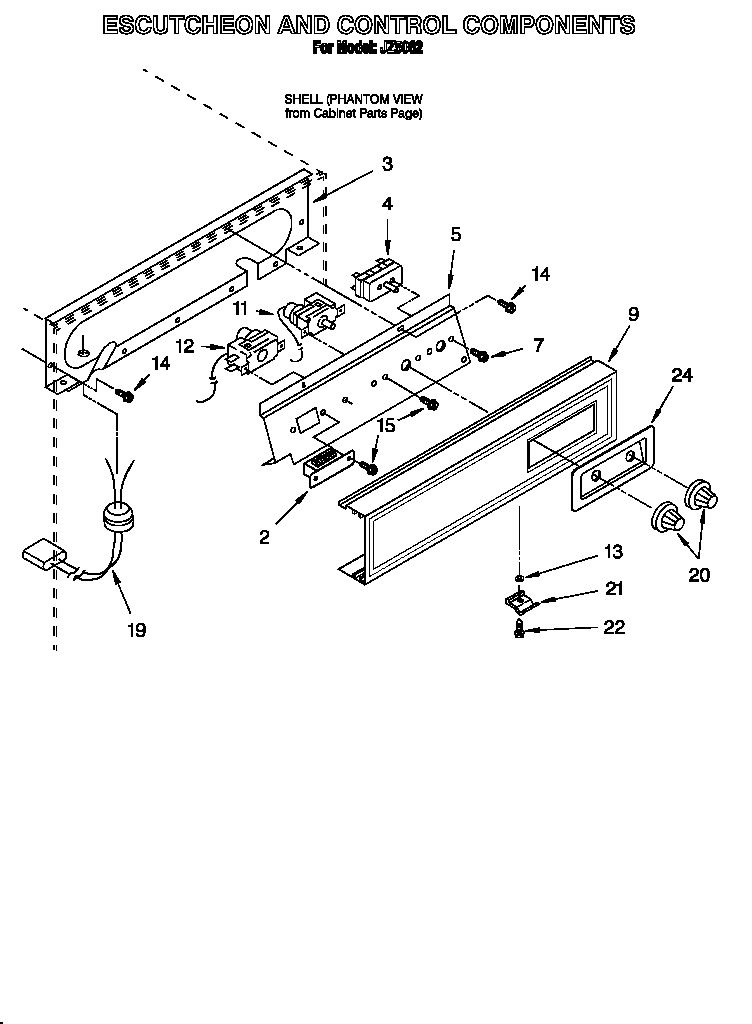

Escutcheon and control components diagram
Latch
Part #759007
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Screw
Part #680930
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Trim
Part #755677
The manufacturer no longer makes this part, and there's no substitute part
Escutcheon and control components diagram
Knob
Part #756880
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Most common symptoms to help you fix your freestanding ice makers
Choose a symptom to see related ice maker repairs.
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…
Main causes: wiring failure, broken cutting grid, faulty electronic control board…
Main causes: bad bin thermistor, condenser fan failure, faulty control board…
Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
Most common repair guides to help fix your freestanding ice makers
These step-by-step repair guides will help you safely fix what’s broken on your ice maker.
How to replace a freestanding ice maker cutter grid
When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…
Repair time and Difficulty
15 minutes or less
How to replace a freestanding ice maker recirculation pump
If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …
Repair time and Difficulty
45 minutes or less
How to replace a freestanding ice maker electronic control board
When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your freestanding ice makers
Use the advice and tips in these articles and videos to get the most out of your ice maker.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
See what troubleshooting steps to take with your freestanding ice maker before calling for repair.…
