Jenn-Air JFC2290REM00 refrigerator Parts

Common problems we see with Jenn-Air refrigerators like model JFC2290REM00 include not cooling, water leaks, ice maker or dispenser issues, and doors that do not seal. These symptoms usually trace back to airflow, temperature sensing, or water-supply components; start with the checks in the owner's manual.

Most common symptoms (and what they usually point to)

• Not cooling or warm temperatures: evaporator fan, damper, thermistor, or control issue
• Water leaking or puddles: clogged/iced defrost drain, loose water line, or inlet valve seepage

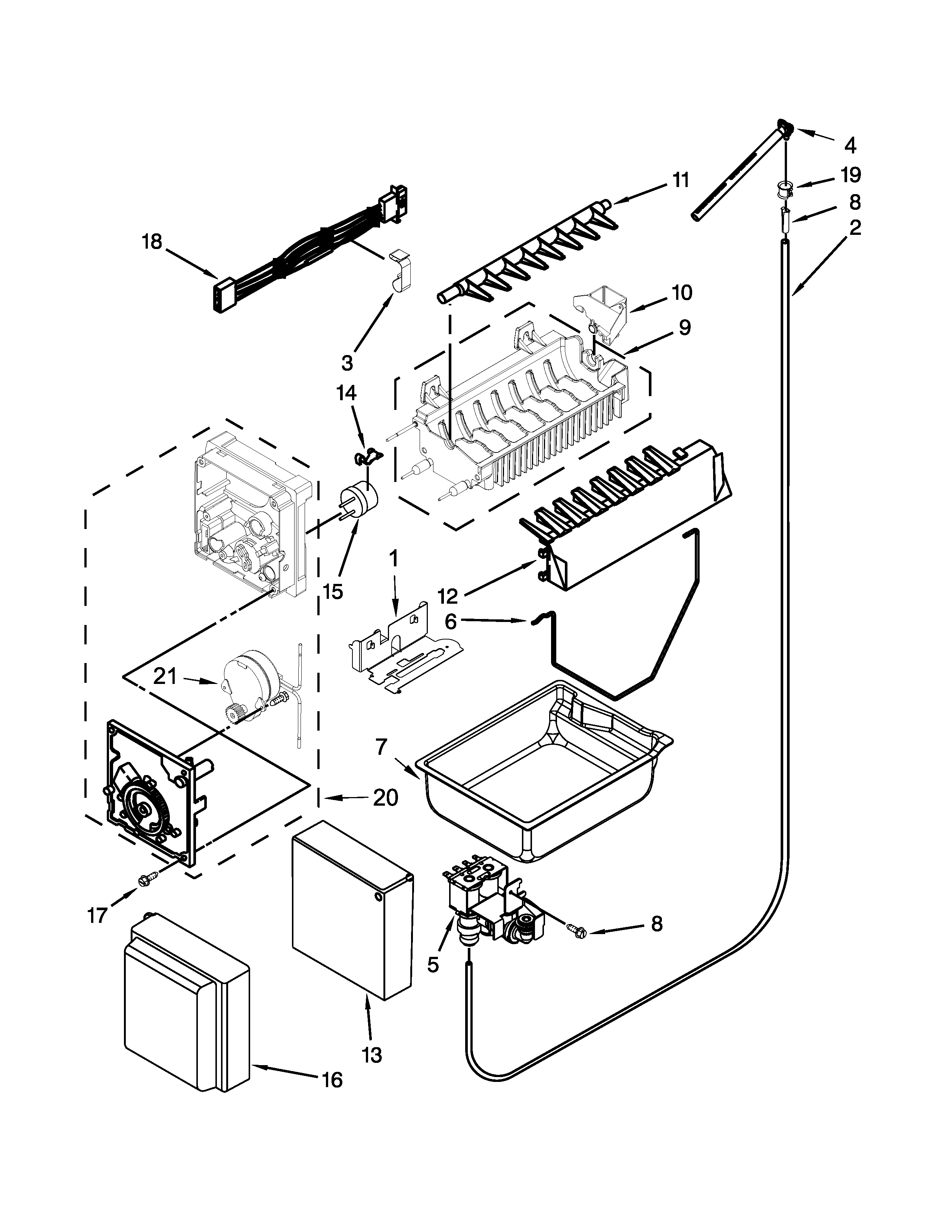

• Ice maker not working: water supply restriction, inlet valve problem, or ice maker failure
• Water dispenser not working: clogged filter, air in the line, or inlet valve issue
• Door not closing or frost buildup: door gasket not sealing, door alignment, or overpacked shelves
• Noisy operation: evaporator fan blade rubbing, fan motor wear, or condenser fan noise

Quick checks we recommend before replacing parts

1. Confirm temperatures: set fresh food to about 37°F and freezer to about 0°F.
2. Make sure vents are not blocked by food packages.
3. Check door seal contact all the way around (paper-strip test).
4. If you have a dispenser, replace the water filter on schedule and purge air after changes.
5. Inspect for visible leaks at the water inlet valve and tubing connections.

Parts commonly involved on JFC2290REM00

Symptom	Part that often relates	Example part on this model

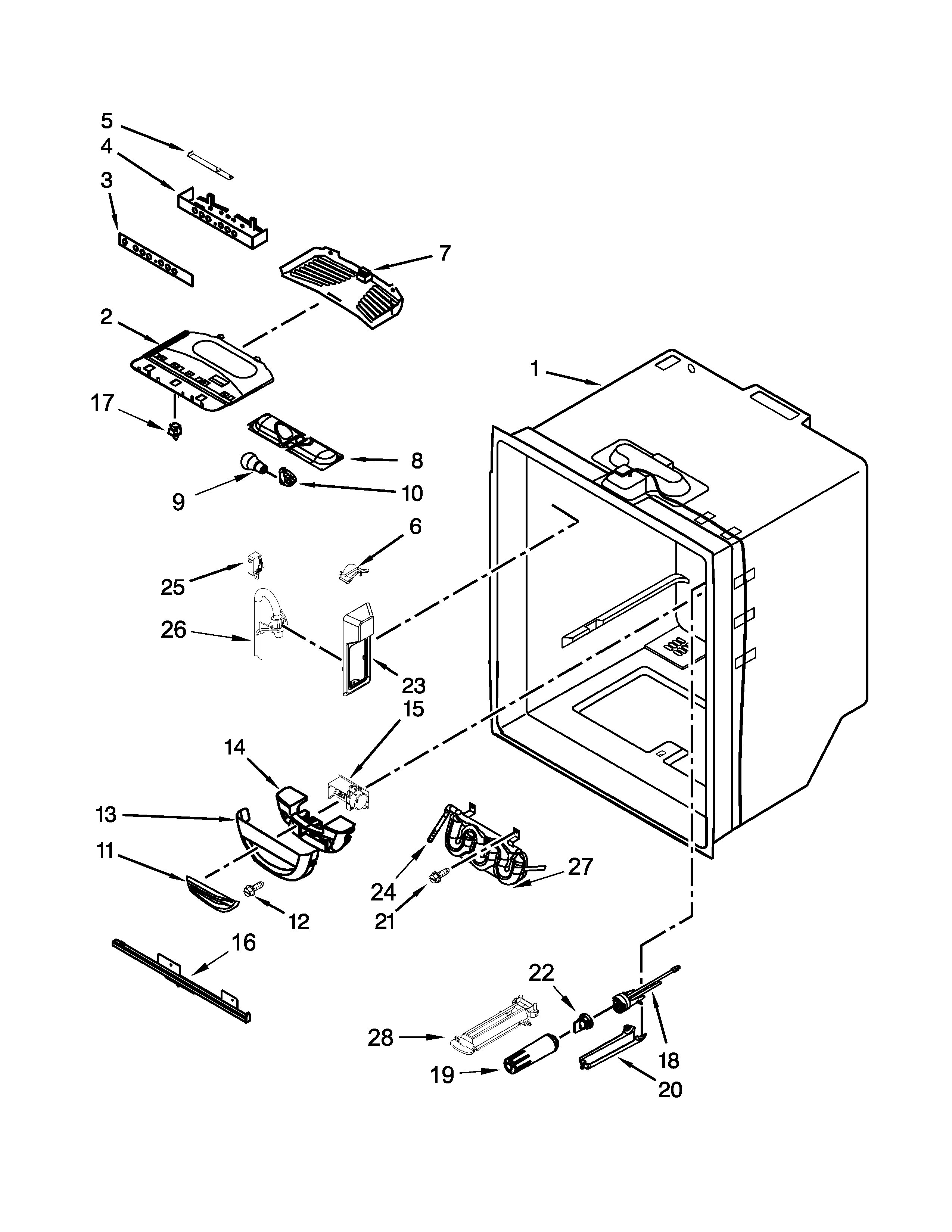

Warm fridge section	Airflow control	Refrigerator electronic damper WPW10594329
Warm temps, erratic temps	Temperature sensing	Refrigerator thermistor W10316760

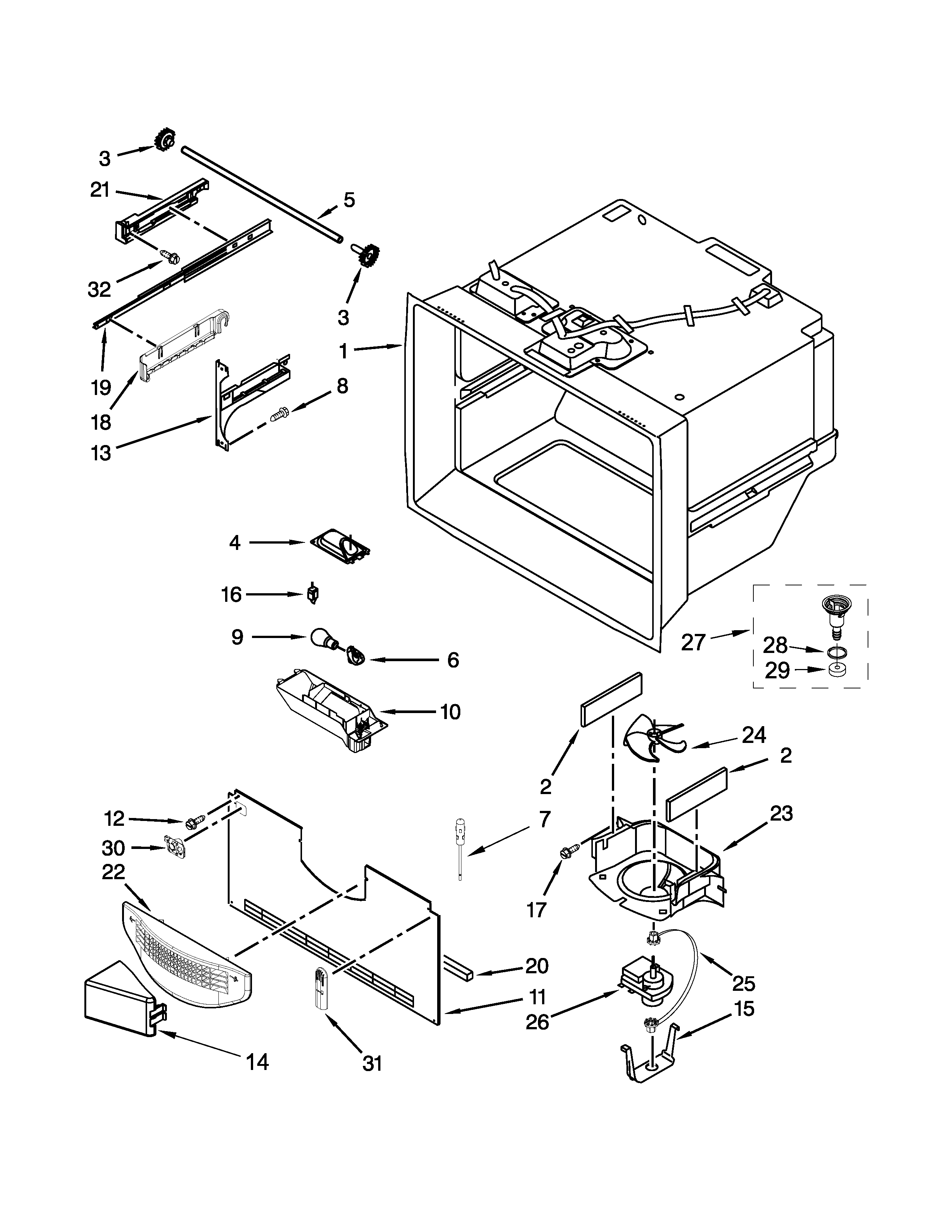

Noisy or no airflow	Evaporator fan	Refrigerator evaporator fan motor WPW10128551 and refrigerator evaporator fan blade WP2169142
No ice or weak water flow	Filtration or water supply	Refrigerator water filter EDR4RXD1 and refrigerator water inlet valve assembly WPW10420083

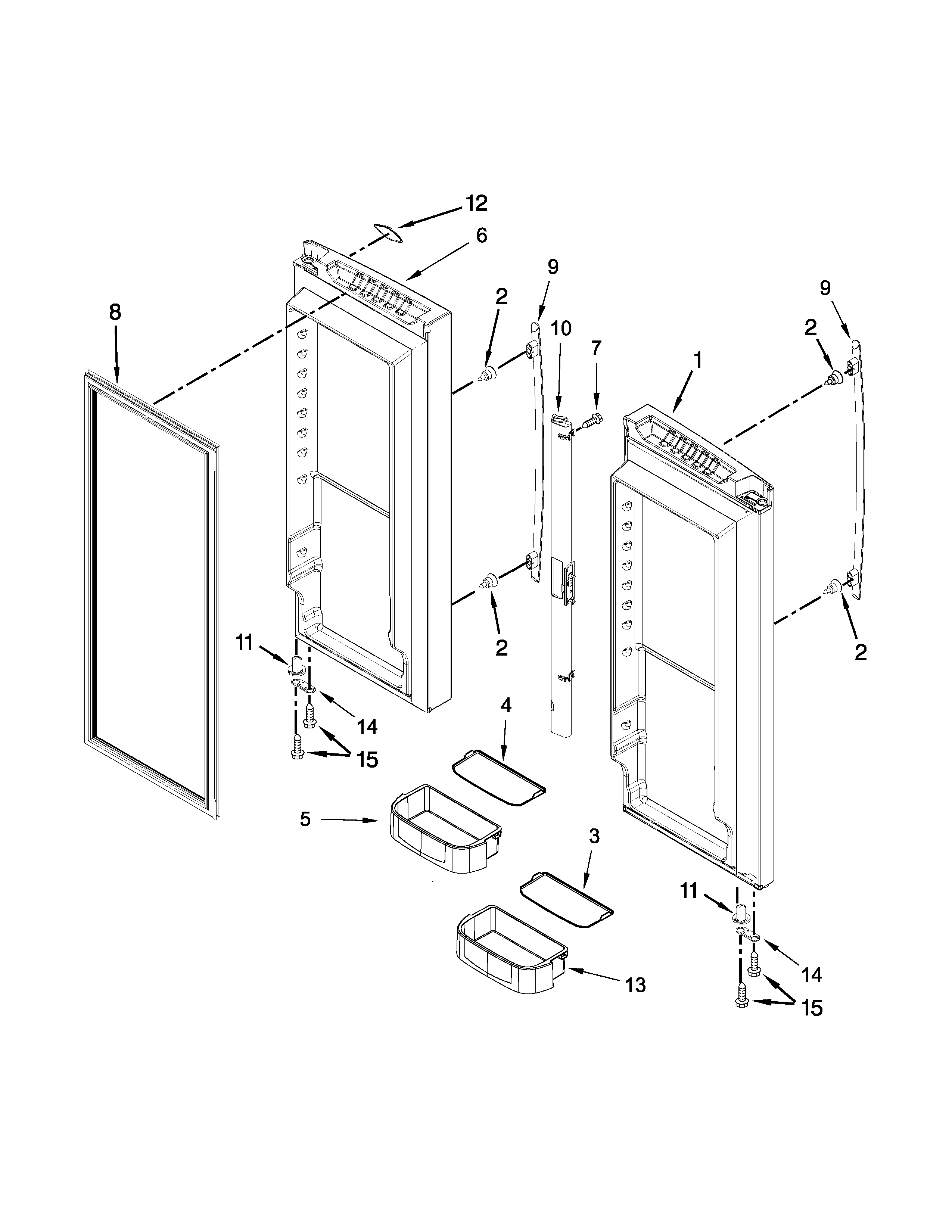

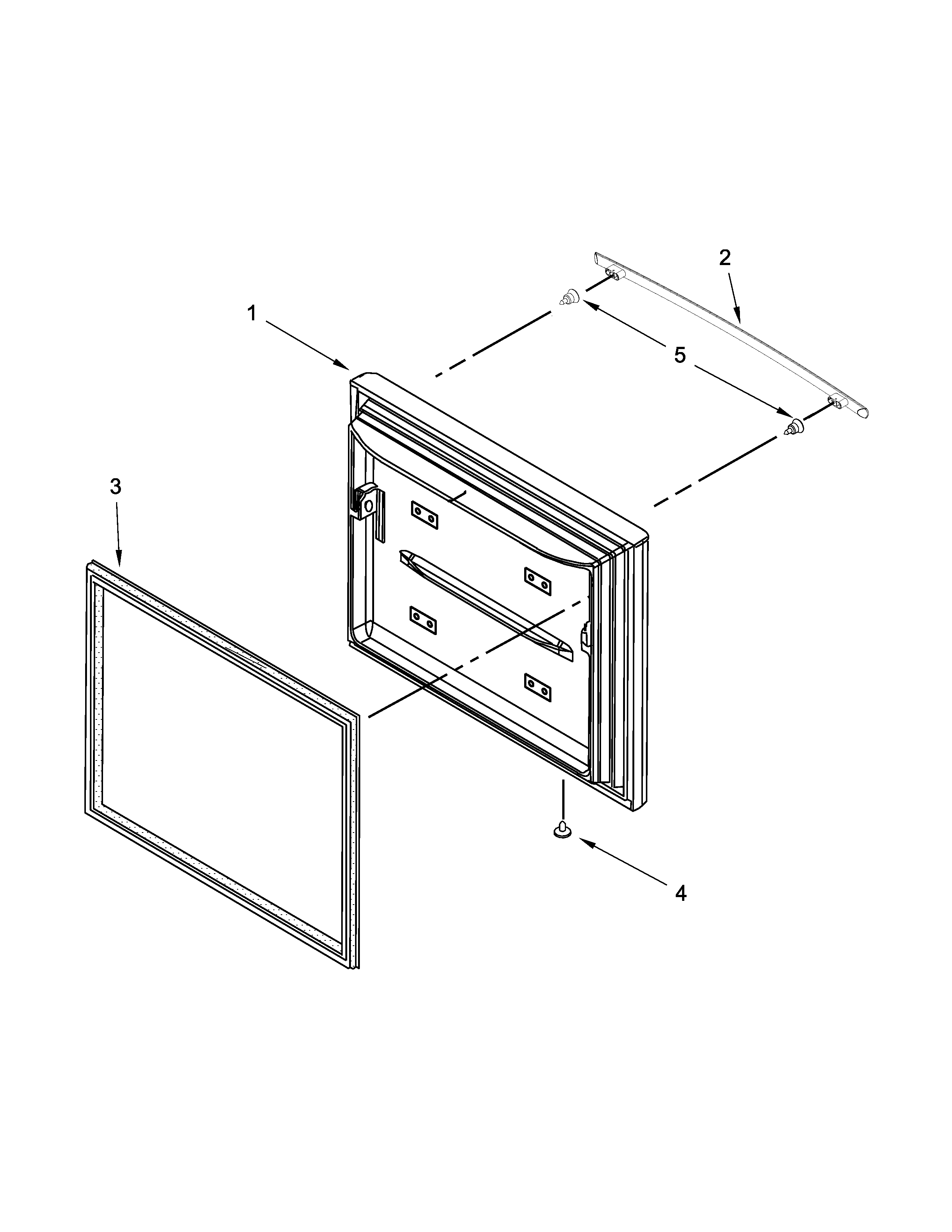

Frost, sweating, door won’t shut	Door sealing	Whirlpool refrigerator door gasket (gray) W10443320

Why it matters

A refrigerator that is even 5 to 10 degrees too warm can spoil food faster, and small water leaks can turn into floor damage. Catching airflow, gasket, and water-supply problems early helps prevent bigger repairs.

When to use DIY help

For step-by-step troubleshooting, we recommend starting with diagnosing refrigerator thermistor problems video or how to diagnose a faulty refrigerator water inlet valve. If you need to order parts beyond the list for JFC2290REM00, search by model on Sears PartsDirect.

Last updated: February 2026

Most Jenn-Air refrigerators, including model JFC2290REM00, typically last 15 years with normal household use and basic maintenance. Keeping airflow clear, seals tight, and temperatures stable helps the sealed system and controls run longer; use the JFC2290REM00 owner's manual for care and cleaning details.

Typical lifespan and what affects it

A refrigerator’s service life depends more on operating conditions and maintenance than brand name alone.

• Heat and ventilation: Dirty condenser area and tight cabinetry raise compressor run time.
• Door seal condition: Air leaks force longer run cycles and can cause frost and moisture.
• Power quality: Frequent outages or surges stress the electronic control.
• Water system upkeep: Old filters and low water flow can contribute to ice maker and valve issues.
• Loading habits: Overpacking blocks vents and creates warm spots.

Quick maintenance checklist (monthly to yearly)

• Keep interior vents unblocked in both fresh food and freezer sections.
• Clean spills promptly to prevent odors and airflow restriction.
• Inspect door gaskets for gaps, tears, or sticky spots.
• Replace the water filter on schedule; this model uses the refrigerator water filter EDR4RXD1.
• Vacuum dust from the lower front grille area and around the condenser compartment (power off first).

Common “life-shorteners” and what they look like

Issue	What you may notice	What to check first
Poor door sealing	Condensation, frost, warm temps	Gasket fit and door alignment
Airflow problems	Warm fridge, freezer OK (or vice versa)	Evaporator fan operation, blocked vents
Temperature sensing drift	Temps swing, food freezing	Thermistor and control settings
Water/ice problems	Slow fill, hollow cubes, no ice	Filter age, inlet valve flow

Why it matters

A refrigerator that runs longer than it should uses more energy and wears key components faster (compressor, fans, control board). Simple upkeep, especially gasket checks and filter changes, is the easiest way to protect the cooling system over the long term.

Last updated: February 2026

For your Jenn-Air JFC2290REM00 bottom-mount refrigerator, the most common signs of a failing unit are unstable temperatures, unusual noises, water leaks, heavy frost, or the refrigerator running almost nonstop. These symptoms usually trace back to airflow, temperature sensing, sealed-system, or water-supply components; confirm settings and diagnostics in the owner's manual.

Quick signs your refrigerator is failing

• Food spoils faster than normal or temperatures swing (warm fridge, soft ice cream, thawing freezer items).
• Runs constantly (compressor and fans seem to never shut off) or cycles very erratically.
• Unusual noises: clicking, buzzing, rattling, or a loud fan sound.
• Excess frost on the freezer back wall or condensation inside the fresh-food section.
• Water puddles under the unit or inside the refrigerator.
• Back or bottom area feels unusually hot (more than typical condenser heat).

What to check first (before buying parts)

1. Verify controls are set correctly (typical targets: 37°F fridge, 0°F freezer).
2. Make sure doors close fully; check for gaps and torn seals.
3. Clean condenser area and confirm airflow around the cabinet.
4. Listen for the evaporator fan; it should run when cooling is needed.
5. If you have a dispenser or ice maker, confirm household water supply is on and not kinked.

Common symptoms and likely parts on JFC2290REM00

Symptom	Most likely area	Parts that often relate
Warm fridge but freezer OK	Airflow/damper	Refrigerator electronic damper WPW10594329
Warm freezer or poor airflow noise	Evaporator fan	Refrigerator evaporator fan motor WPW10128551, refrigerator evaporator fan blade WP2169142
Temps fluctuate, unit seems “confused”	Temperature sensing	Refrigerator thermistor W10316760
Water/ice issues, slow fill, no ice	Water supply	Refrigerator water inlet valve assembly WPW10420083, refrigerator water filter EDR4RXD1

Why it matters

A failing refrigerator often starts as a small airflow or sensing problem that forces longer run times. That can raise energy use, shorten compressor life, and lead to food-safety issues if temperatures drift.

Ordering the right repair parts

We list model-matched replacement parts for JFC2290REM00 on this page; you can also search by model number on Sears PartsDirect if you are shopping for additional items.

Last updated: February 2026

For the Jenn-Air JFC2290REM00 bottom-mount refrigerator, plan for the refrigerator to extend past a standard 24-inch counter by several inches once you include the doors and handles. Most installations end up with roughly 4 to 8 inches of projection; confirm your exact depth and clearances in the JFC2290REM00 owner's manual.

What “stick out” should include

Measure from the front face of the countertop (not the wall) to the front-most point of the refrigerator.

• Include door thickness and any trim
• Include handle depth (often adds 1 to 3 inches)
• Include required space behind the unit for the water line and airflow
• Consider door swing; more clearance helps you fully remove crispers and bins
• Keep aisle space comfortable; many kitchens target 36 inches or more

Typical projection ranges (what most homeowners see)

These ranges help set expectations when comparing standard-depth vs counter-depth styles.

Refrigerator style	Typical cabinet depth	Typical projection past a 24-inch counter (doors/handles included)
Counter-depth	About 24 to 28 inches	About 3 to 6 inches
Standard-depth	About 30 to 34 inches	About 6 to 10 inches

How to measure quickly

Use a tape measure and write down these three numbers.

• Counter depth: wall to counter face
• Refrigerator cabinet depth: back of cabinet to front of cabinet (no doors)
• Total depth: back of cabinet to front of handle (true projection)

Why it matters

Correct projection prevents blocked walkways, ensures doors open wide enough for full drawer access, and reduces the chance of kinking the water line when you slide the refrigerator back into place.

If you need to disconnect and reconnect the water line while repositioning the refrigerator, a common fitting is the refrigerator water supply tube union, 5/16 x 5/16-in WP2300868. You can also order model-specific parts from the parts list for JFC2290REM00 or search by model number on Sears PartsDirect.

Last updated: February 2026
