Model # GFD85ESPN0DG Official GE dryer

Here are the diagrams and repair parts for Official GE GFD85ESPN0DG dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

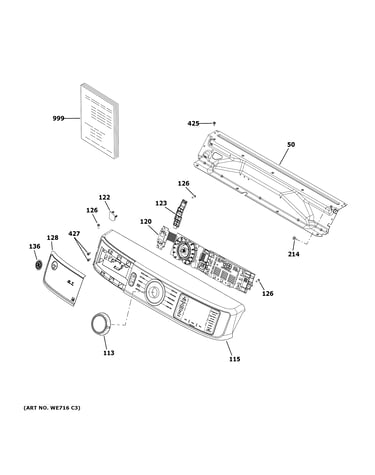

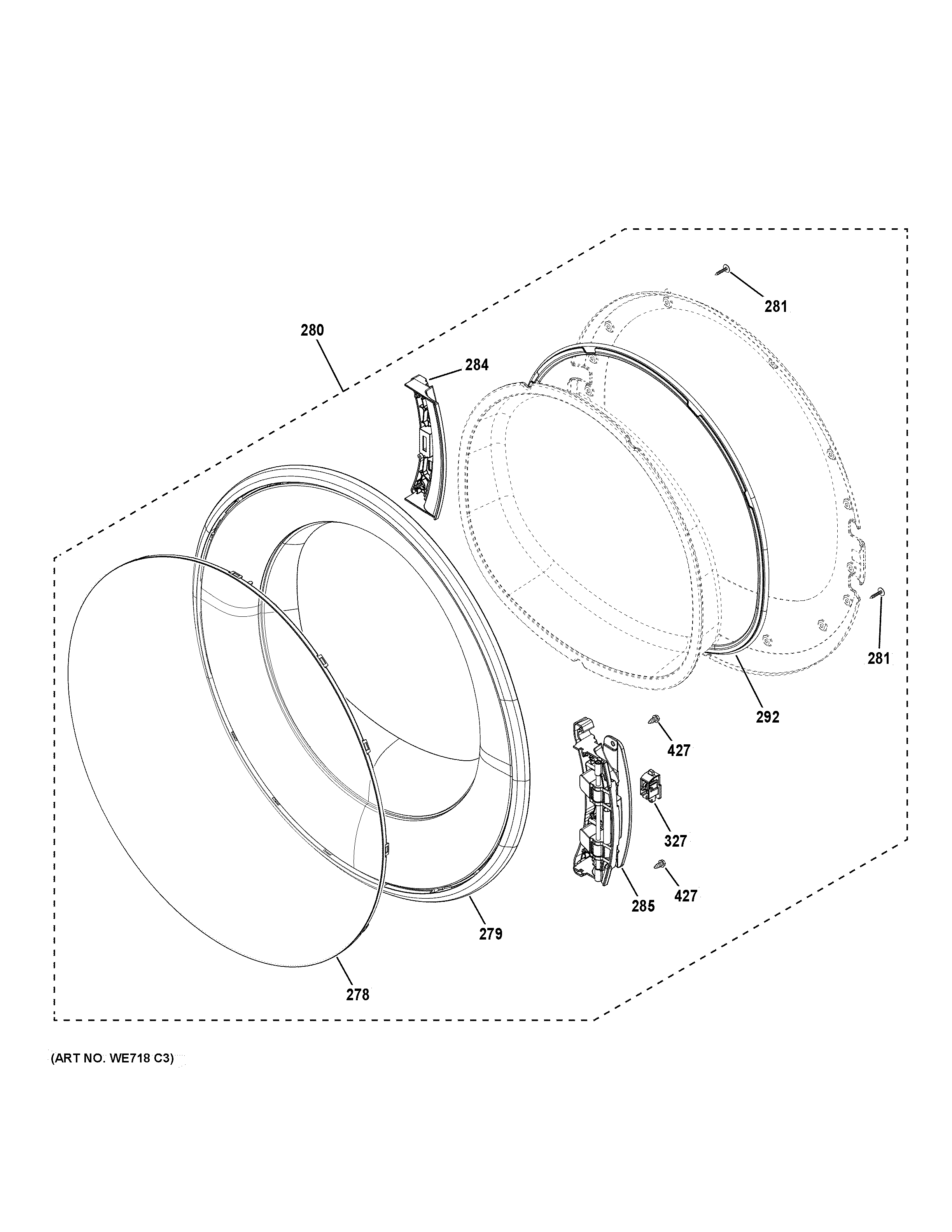

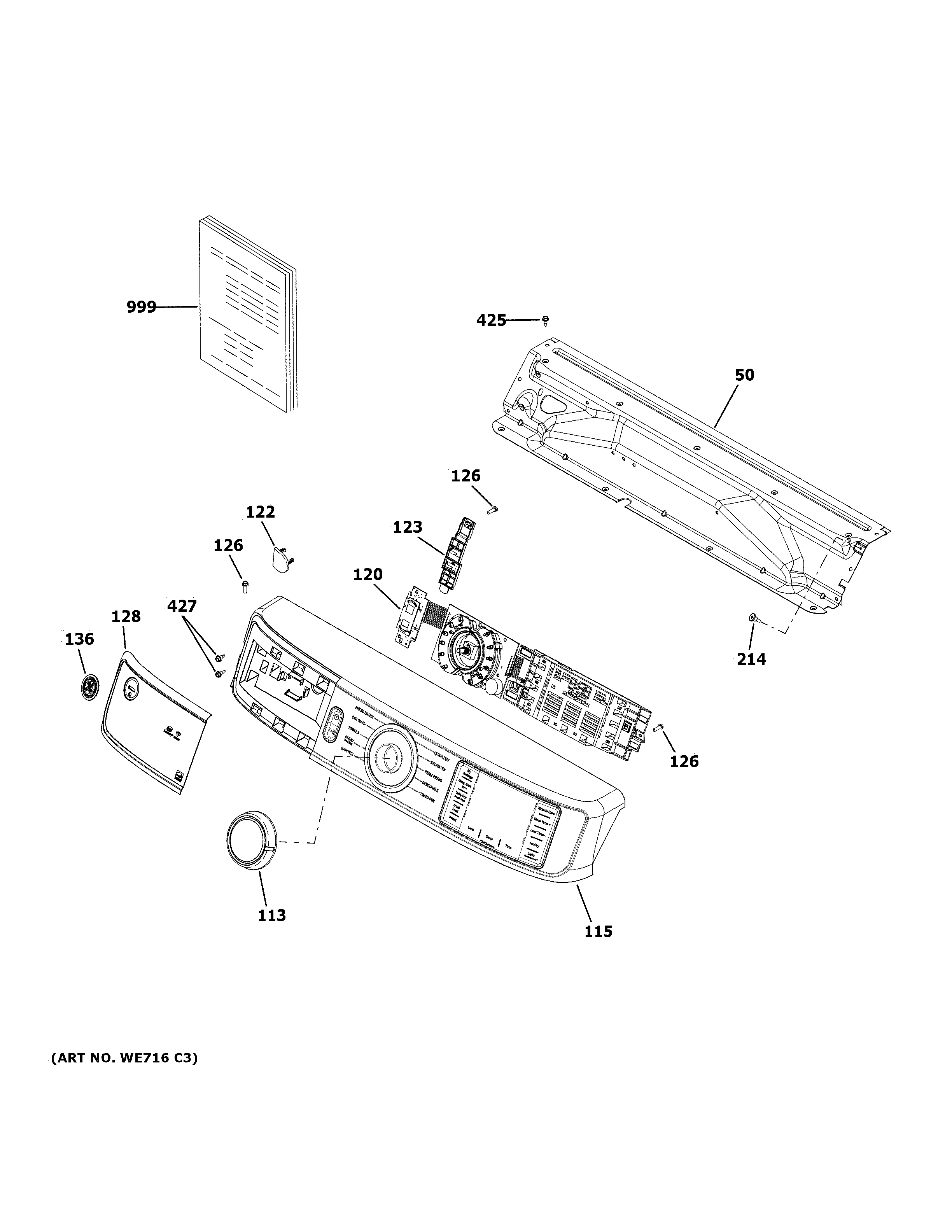

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Dryer Drum Support Roller Assembly (replaces We01x10384, We01x10385, We01x10386, We12m39) WE03X10016
Dryer drum support roller assembly (replaces we01x10384, we01x10385, we01x10386, we12m39)

Part #WE03X10016

BEST SELLER
$29.20
15% OFF Phone Price : $34.20
In Stock
Dryer Drum Belt WE03X29704
#215

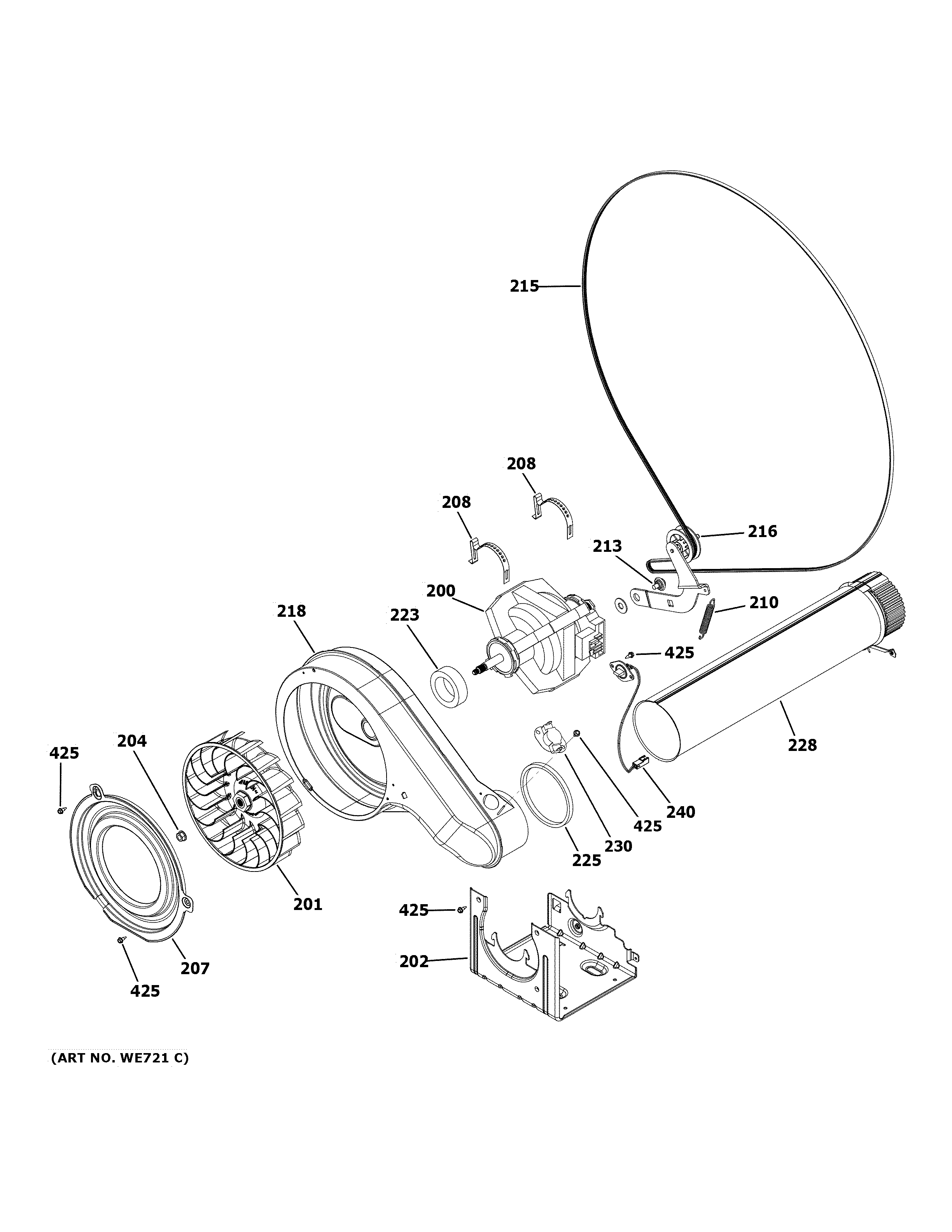

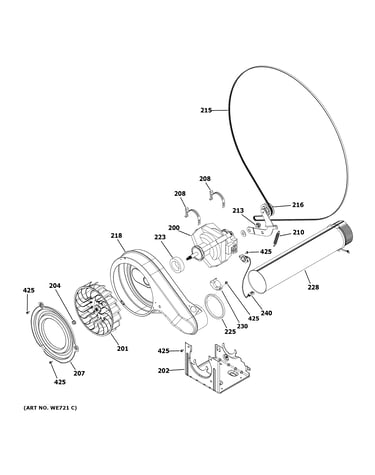

Blower & motor diagram

Dryer drum belt

Part #WE03X29704

BEST SELLER
$26.64
16% OFF Phone Price : $31.64
In Stock
Dryer Leveling Leg WE01X29697
#220

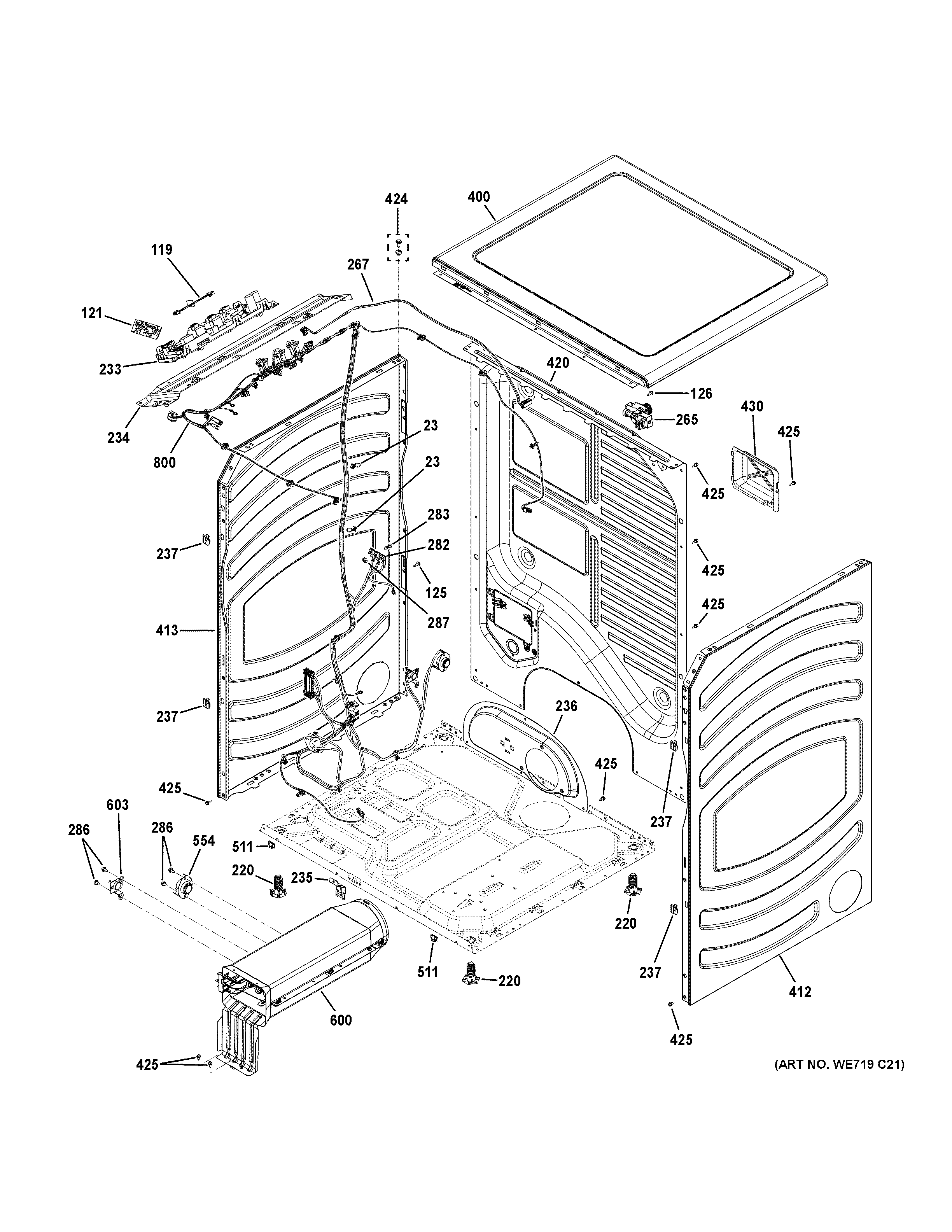

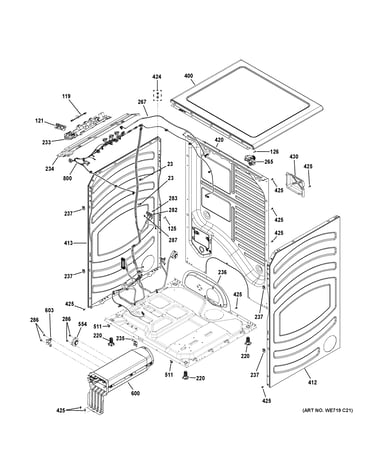

Cabinet & top panel diagram

Dryer leveling leg

Part #WE01X29697

BEST SELLER
This item is not returnable
$8.11
13% OFF Phone Price : $9.36
In Stock
Dryer Door Strike (gray) WE01X30017
#383

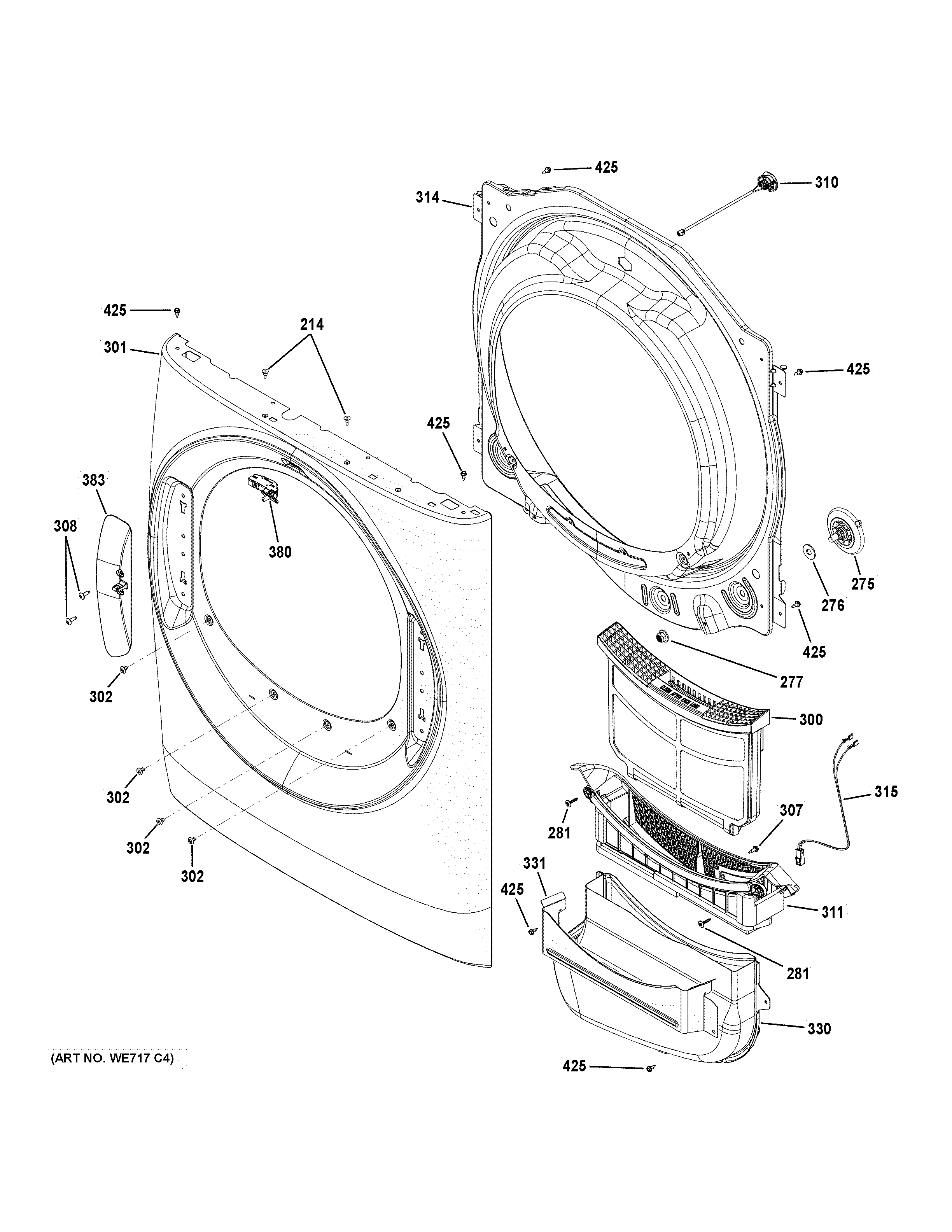

Front panel diagram

Dryer door strike (gray)

Part #WE01X30017

Replaced by #WE01X34284

?
Manufacturer substitution
This part replaces WE01X30017. Substitute parts can look different from the original.
BEST SELLER
$27.64
17% OFF Phone Price : $33.47
In Stock
Dryer Blower Thermostat WE04X29714
#240

Blower & motor diagram

Dryer blower thermostat

Part #WE04X29714

BEST SELLER
$28.07
15% OFF Phone Price : $33.07
In Stock
Dryer Outlet Backup Thermostat WE04X10190
#230

Blower & motor diagram

Dryer outlet backup thermostat

Part #WE04X10190

$22.54
18% OFF Phone Price : $27.54
In Stock
Drum Baffle WE13X29725
#509

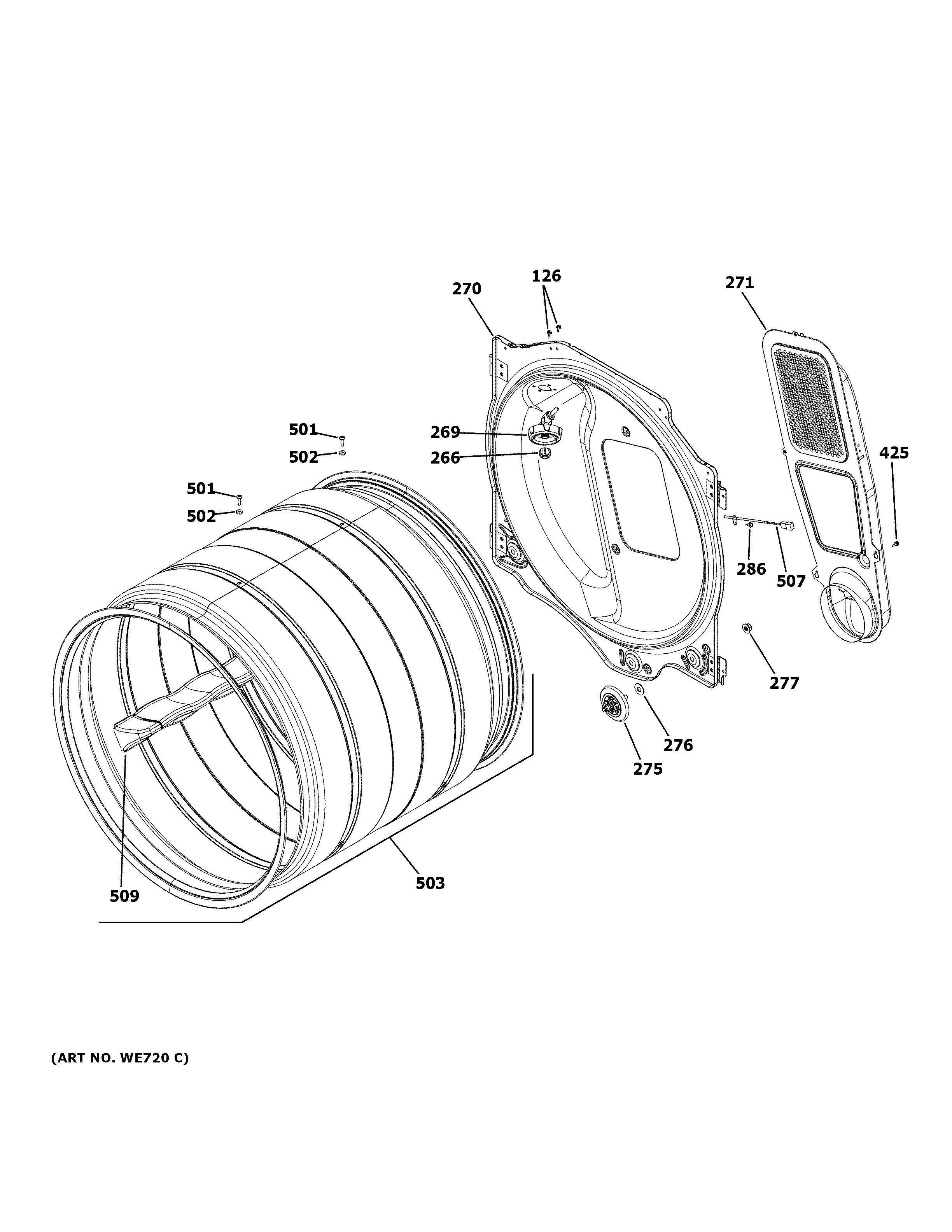

Drum diagram

Drum baffle

Part #WE13X29725

$33.71
13% OFF Phone Price : $38.71
In Stock
High Limit Thermostat WE04X29793
#603

Cabinet & top panel diagram

High limit thermostat

Part #WE04X29793

$10.24
16% OFF Phone Price : $12.24
In Stock
Dryer Drum Assembly WE21X29764
#503

Drum diagram

Dryer drum assembly

Part #WE21X29764

$402.76
$10.00 OFF Phone Price : $412.76
In Stock
Washer Screw WH2X1194
#501

Drum diagram

Washer screw

Part #WH2X1194

$7.88
11% OFF Phone Price : $8.88
In Stock
