KitchenAid KCCC151JWH0 compactor Parts
Here are the diagrams and repair parts for KitchenAid KCCC151JWH0 compactor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KCCC151JWH0 Compactor

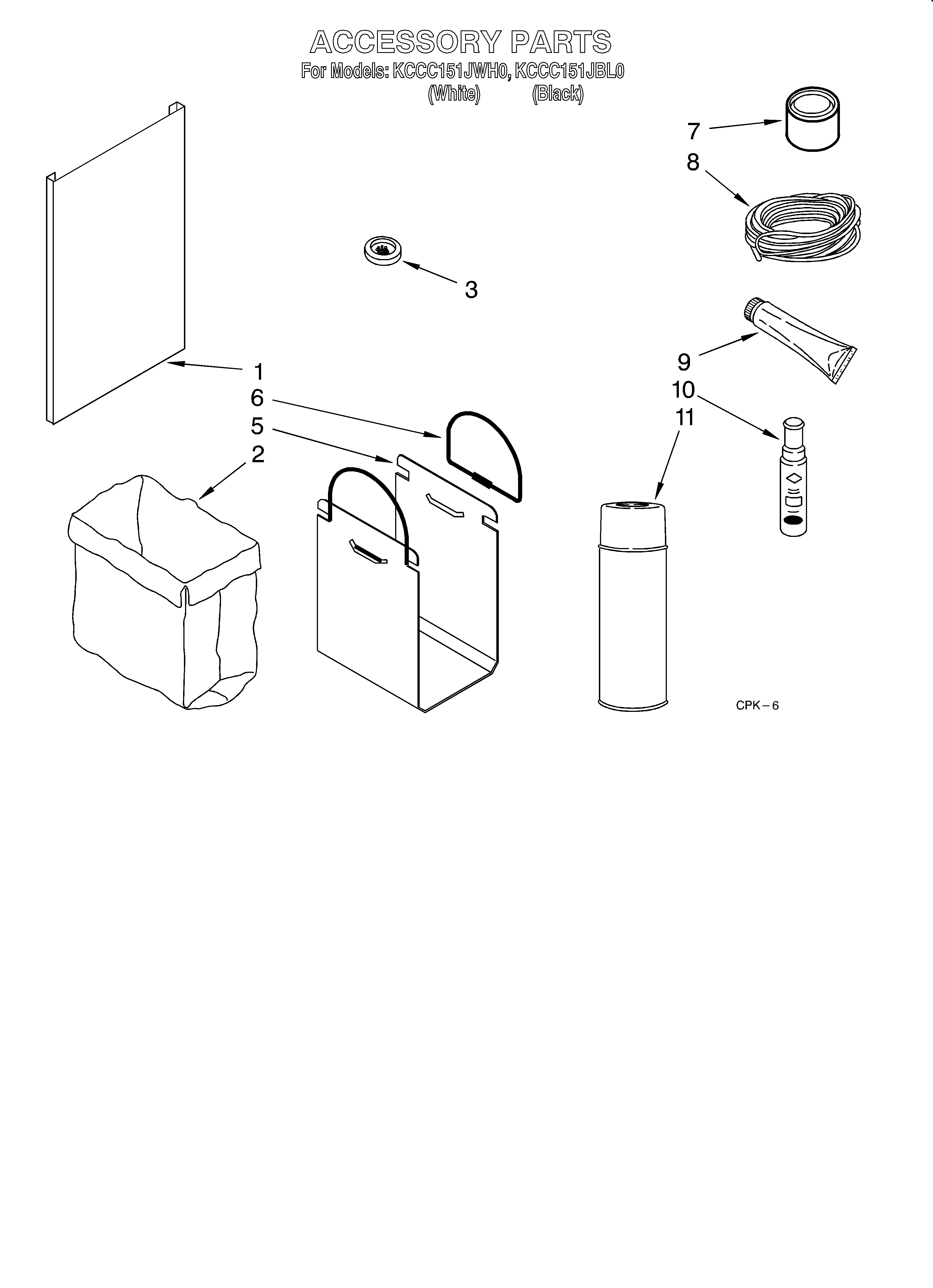

Accessory diagram
Adhesive
Part #279368Replaced by #WP279368
Manufacturer substitutionThis part replaces 279368. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18
Qty

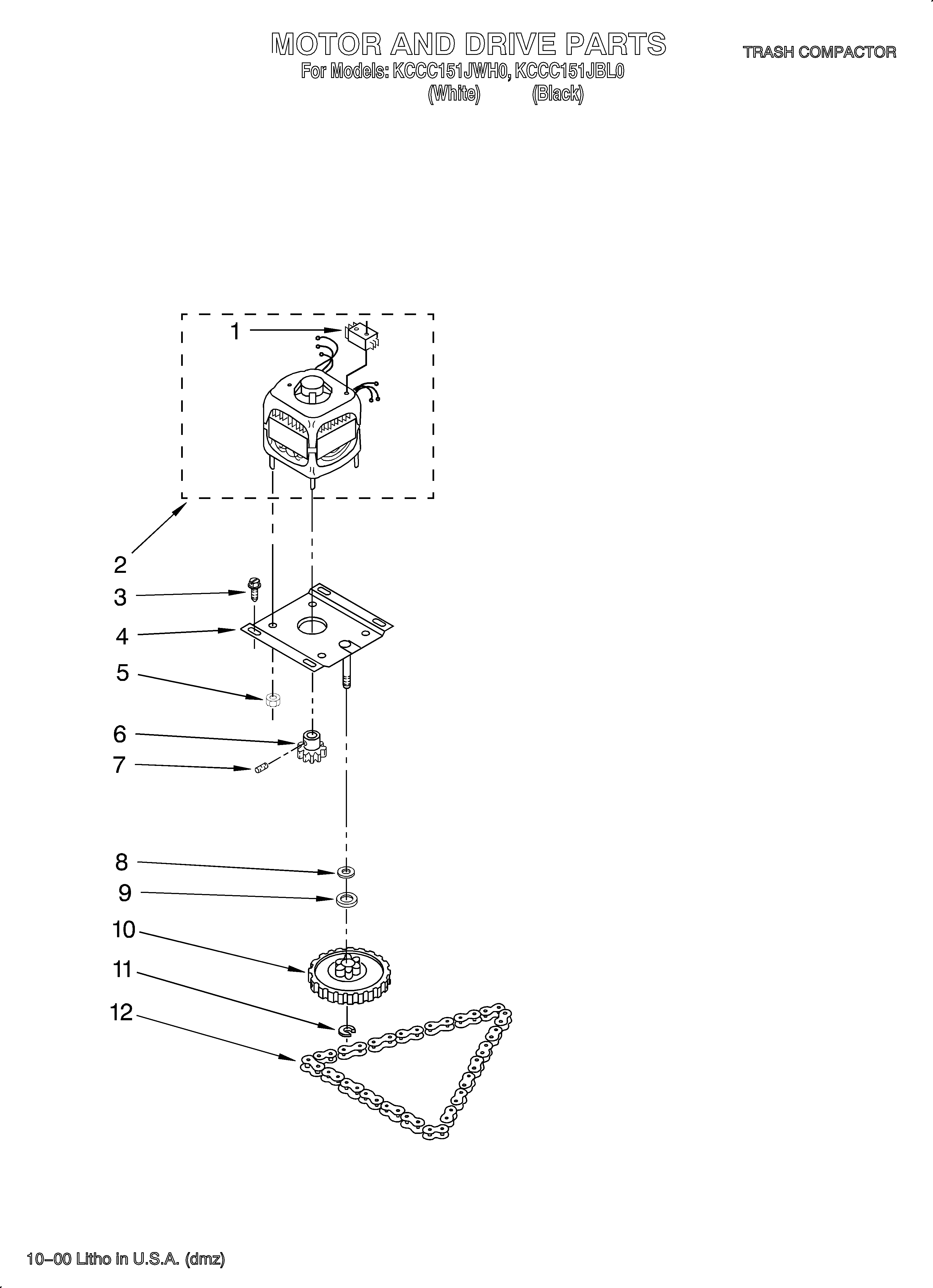

Motor and drive/literature diagram
Drive Motor
Part #9870343Replaced by #W10439651
Manufacturer substitutionThis part replaces 9870343. Substitute parts can look different from the original.In Stock$197.446% OFF Phone Price : $209.44QtyMotor and drive/literature diagram
Switch
Part #777971Replaced by #W10439651

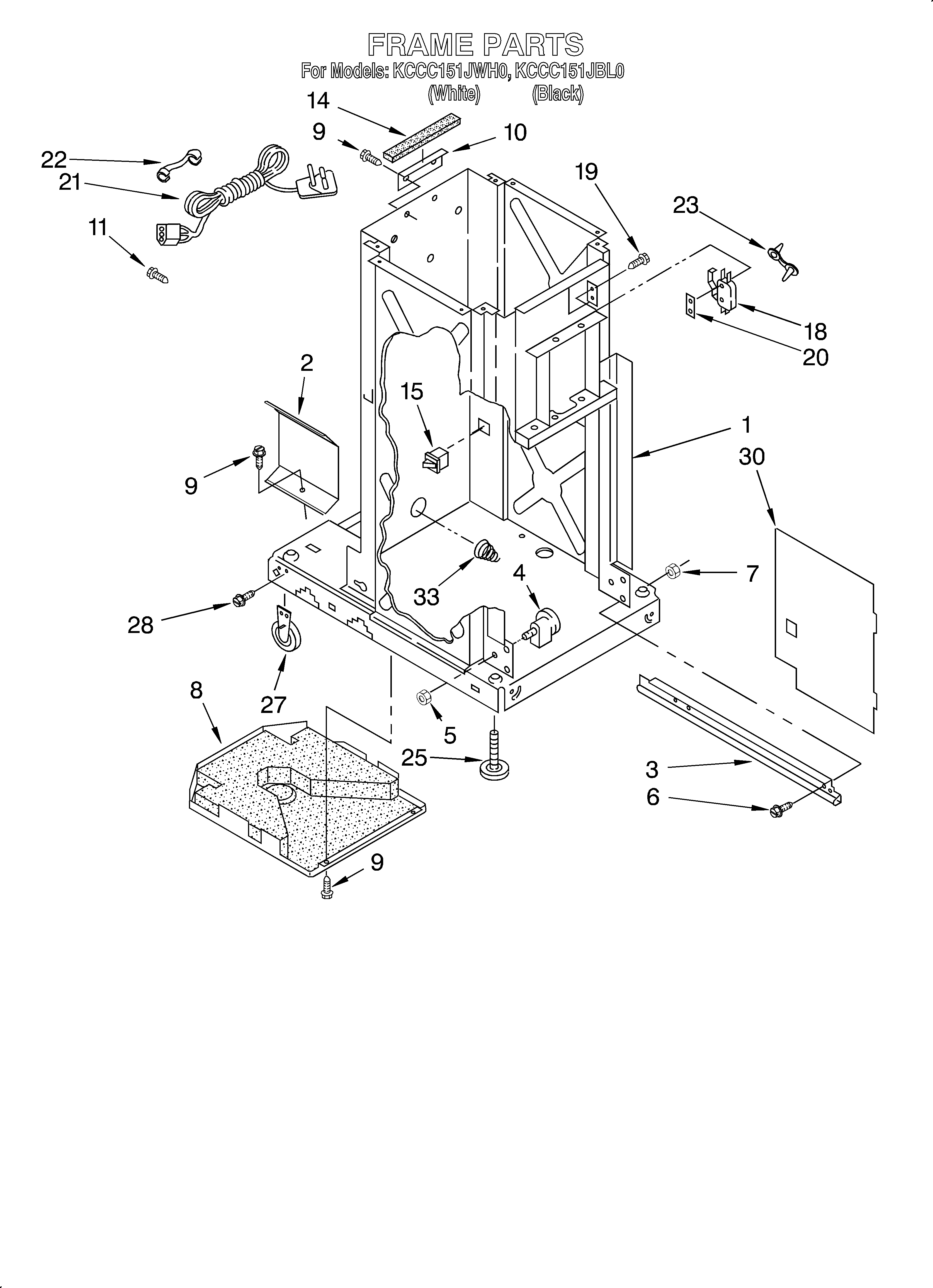

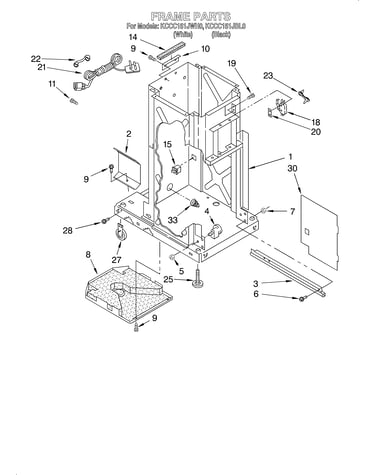

Manufacturer substitutionThis part replaces 777971. Substitute parts can look different from the original.In Stock$197.446% OFF Phone Price : $209.44QtyFrame diagram
Leveler
Part #775526Replaced by #WPW10001130

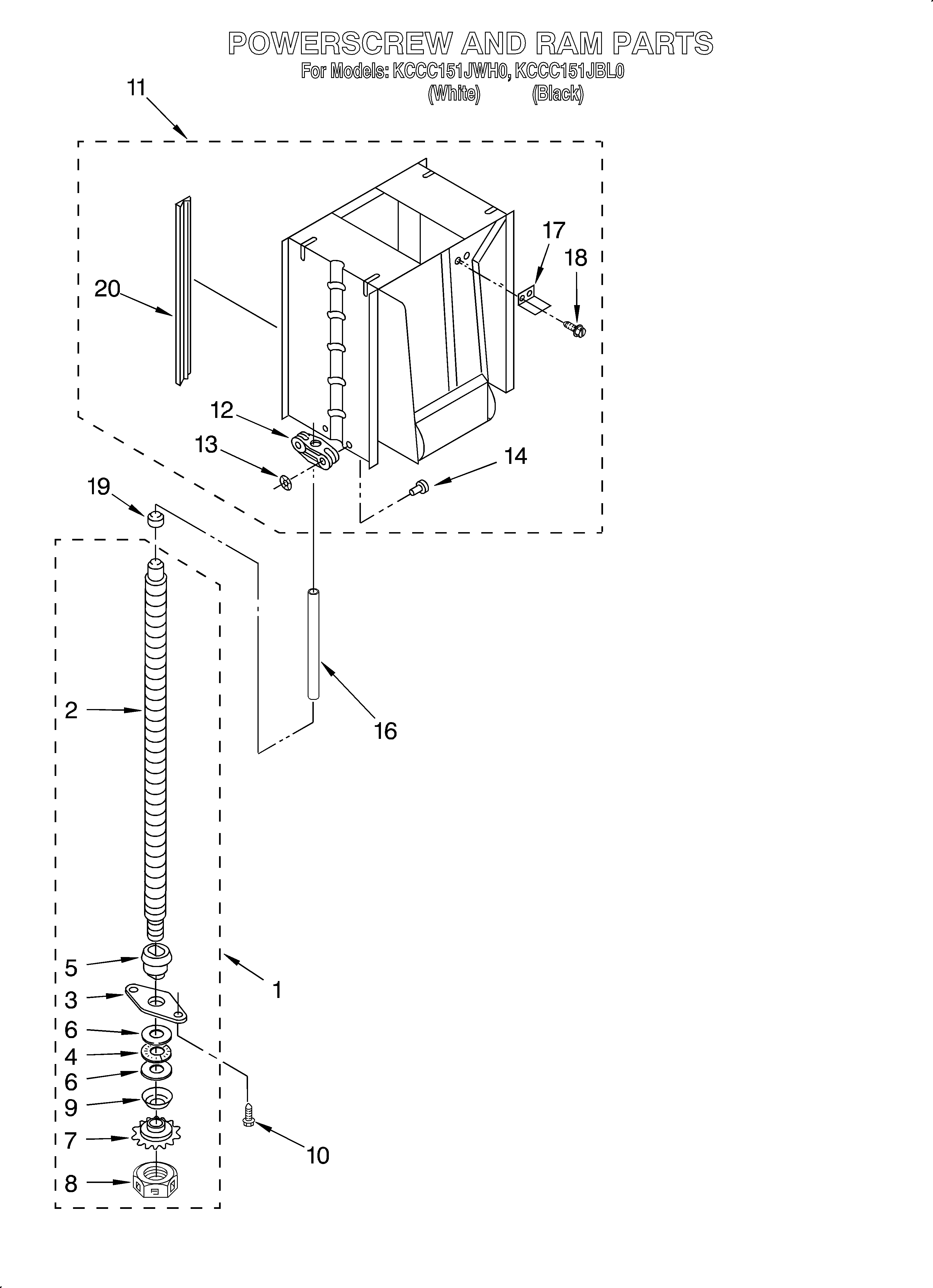

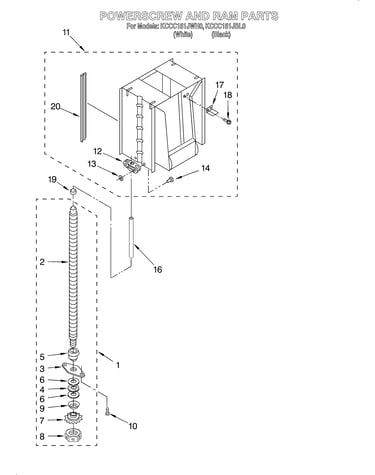

Manufacturer substitutionThis part replaces 775526. Substitute parts can look different from the original.This item is not returnableIn Stock$4.6918% OFF Phone Price : $5.69QtyPowerscrew and ram diagram
Trash Compactor Power Nut
Part #9870163Replaced by #WP9870163
Manufacturer substitutionThis part replaces 9870163. Substitute parts can look different from the original.In Stock$28.6328% OFF Was : $39.93QtyAccessory diagram
Carrier
Part #13030Replaced by #13030RP

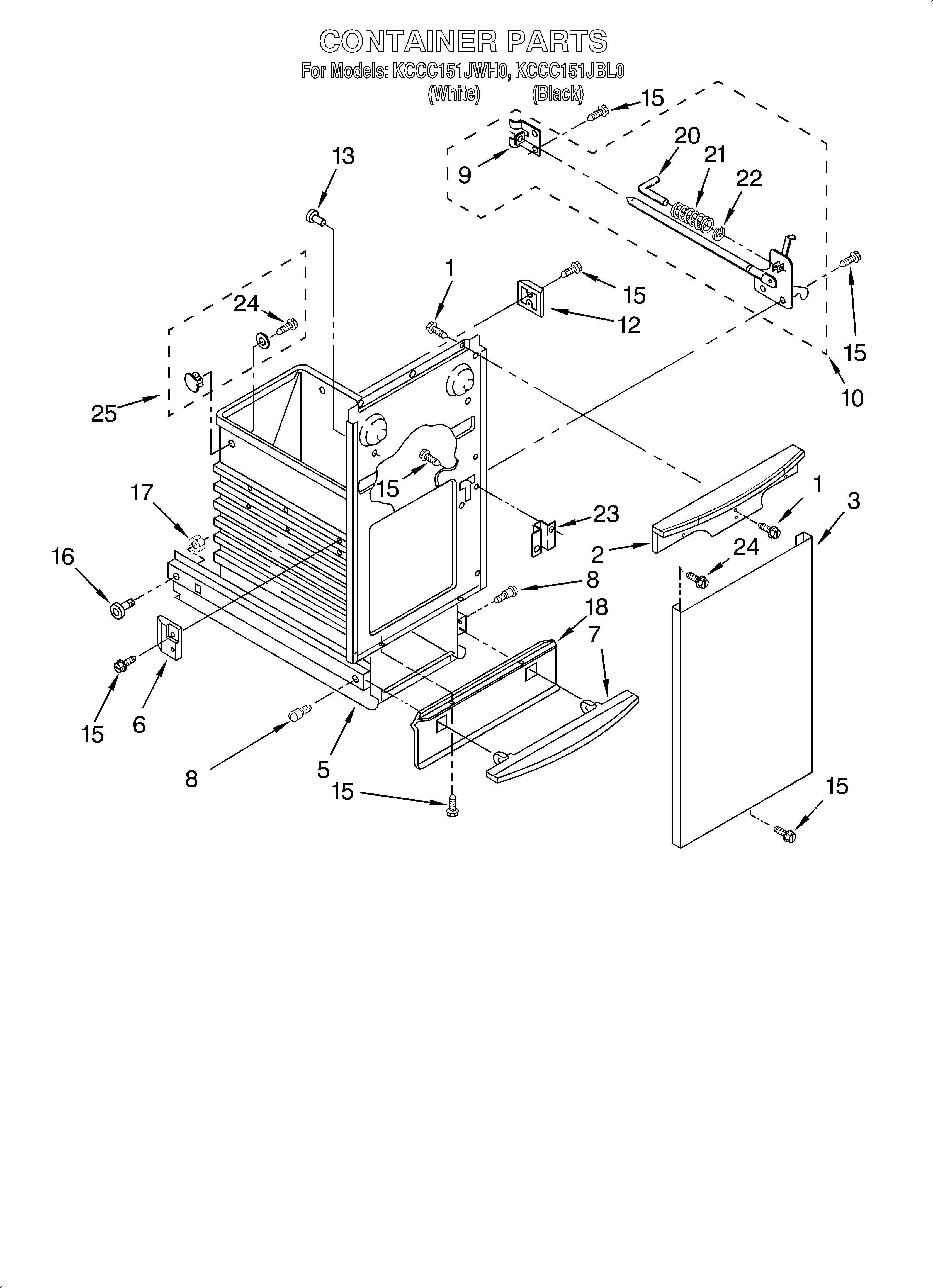

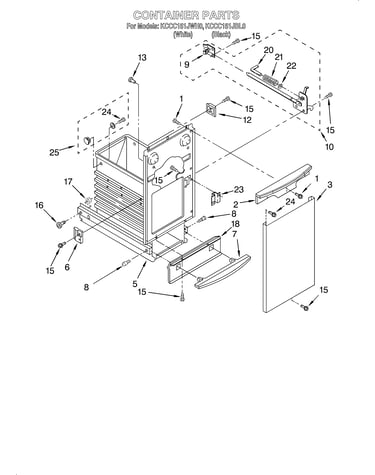

Manufacturer substitutionThis part replaces 13030. Substitute parts can look different from the original.This item is not returnableIn Stock$35.6714% OFF Phone Price : $41.67QtyContainer diagram
Bearing
Part #9871602Replaced by #WP9871602
Manufacturer substitutionThis part replaces 9871602. Substitute parts can look different from the original.This item is not returnableIn Stock$11.6515% OFF Phone Price : $13.65QtyAccessory diagram
Trash Compactor Bag, 60-pack
Part #4318922Replaced by #W10165294RB
Manufacturer substitutionThis part replaces 4318922. Substitute parts can look different from the original.In Stock$68.718% OFF Phone Price : $74.71QtyFrame diagram
Bearing
Part #4153788Replaced by #882688

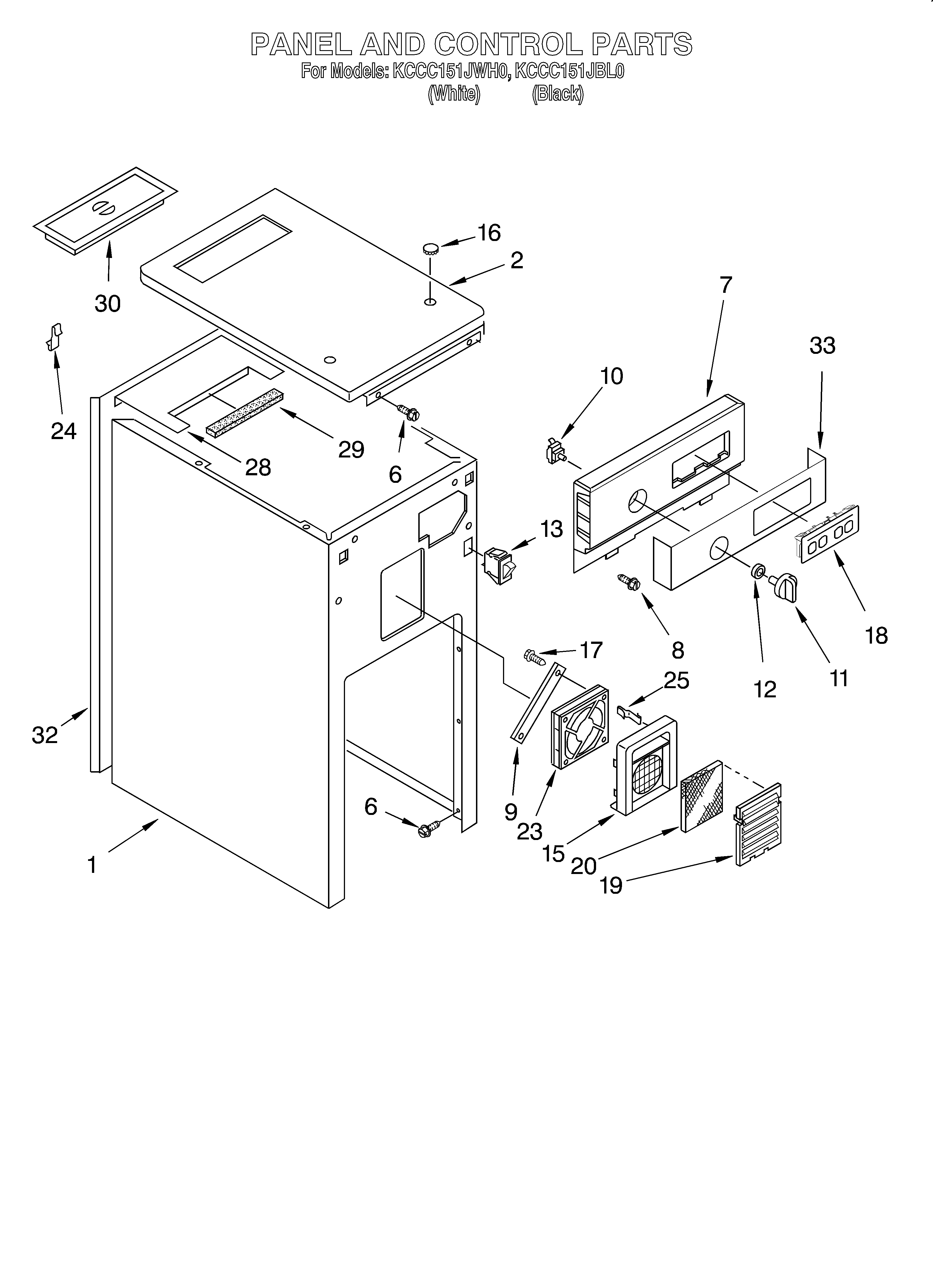

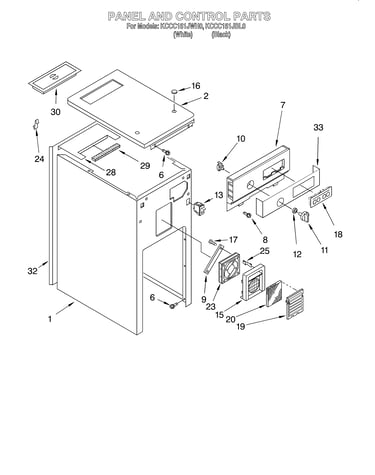

Manufacturer substitutionThis part replaces 4153788. Substitute parts can look different from the original.This item is not returnableIn Stock$24.9019% OFF Phone Price : $30.90QtyPanel and control diagram
Compactor Start Switch Knob (black)
Part #9871800Replaced by #WP9871800
Manufacturer substitutionThis part replaces 9871800. Substitute parts can look different from the original.In Stock$53.1110% OFF Phone Price : $59.11Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint, 0.6-oz (empire Red)
In Stock
$18.57
10% OFF Phone Price : $20.57
Qty
Appliance Touch-up Paint, 0.6-oz (cobalt Blue)
Part #8171571
This item is not returnable
In Stock
$20.80
22% OFF Phone Price : $26.80
Qty
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08
Qty
Most common symptoms to help you fix your trash compactors
Choose a symptom to see related trash compactor repairs.
Main cause: faulty drawer tilt switch …
Main cause: broken top limit and directional switch…
Main causes: bent drawer support rollers, damaged trash container…
Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…
Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
Main causes: stuck foot pedal, bad momentary start switch, power switch failure…
Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…
Most common repair guides to help fix your trash compactors
These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.
How to replace a trash compactor power switch
If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…
Repair time and Difficulty
30 minutes or less
How to replace a trash compactor motor centrifugal switch
If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…
Repair time and Difficulty
45 minutes or less
How to replace a trash compactor momentary start switch
The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your trash compactors
Use the advice and tips in these articles and videos to get the most out of your trash compactor.
Find out what’s wrong with your appliance by following a circuit.…
Learn what to check if you are having problems with the drawer sticking on your trash compactor.…
See what questions our experts most often get about trash compactors.…
