KitchenAid KBFS20ETBL00 bottom-mount refrigerator Parts
Here are the diagrams and repair parts for KitchenAid KBFS20ETBL00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KBFS20ETBL00 Refrigerators

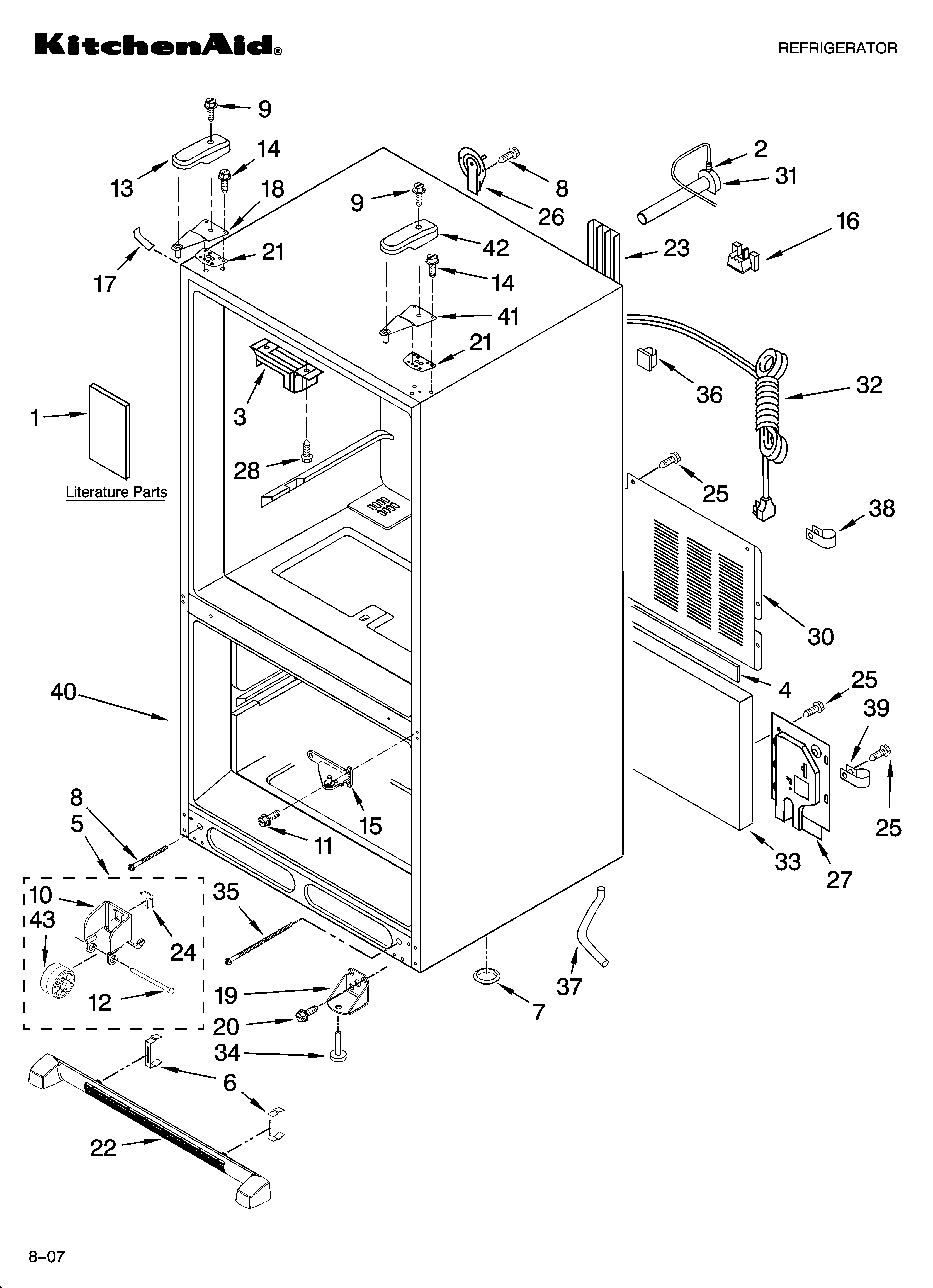

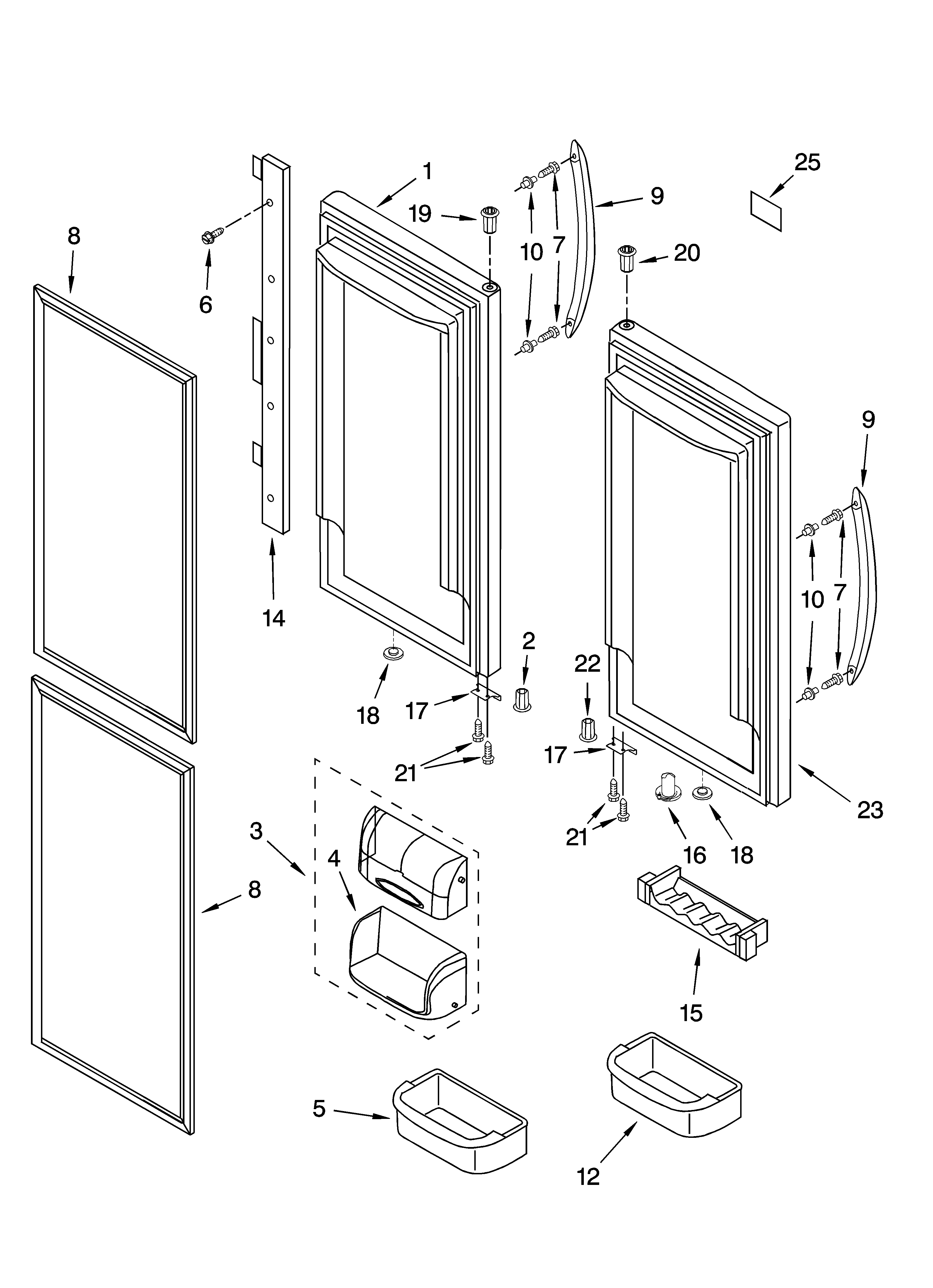

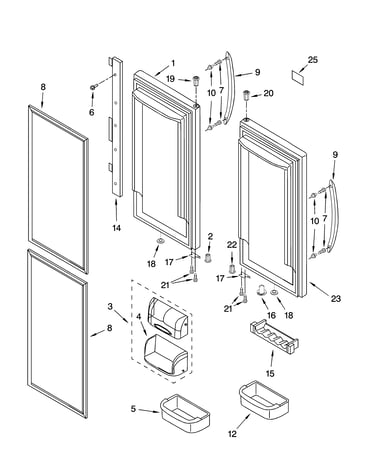

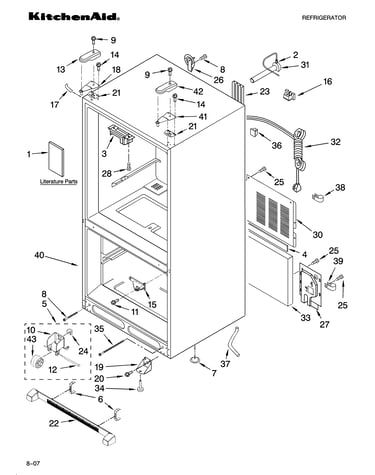

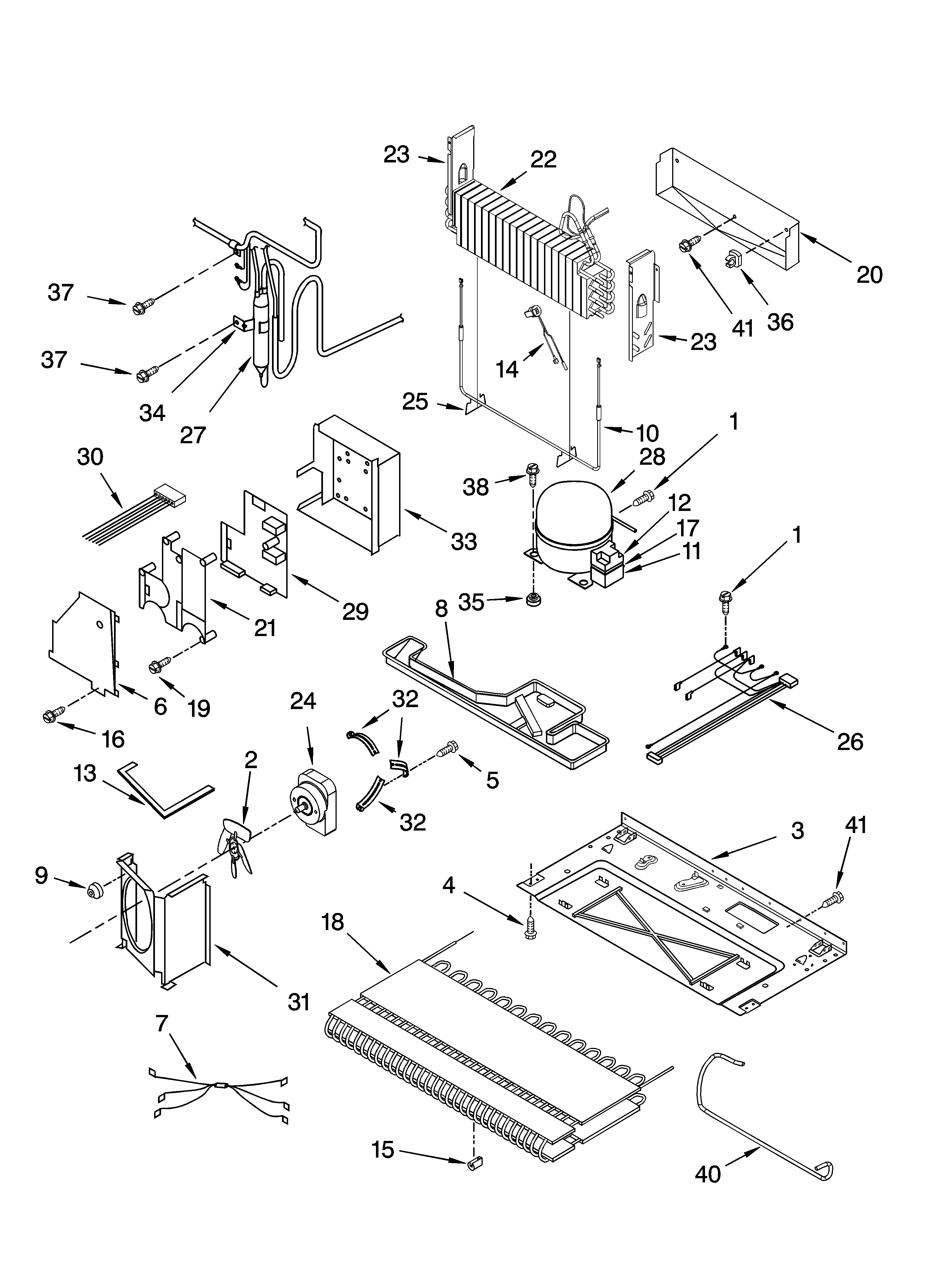

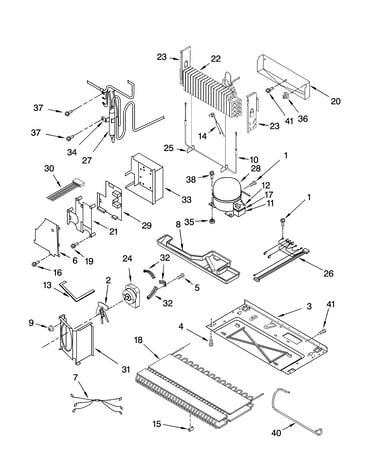

Unit parts diagram
Drier W/dye
Part #2317845Replaced by #WPW10143759
Manufacturer substitutionThis part replaces 2317845. Substitute parts can look different from the original.In Stock$22.1621% OFF Phone Price : $28.16
Qty

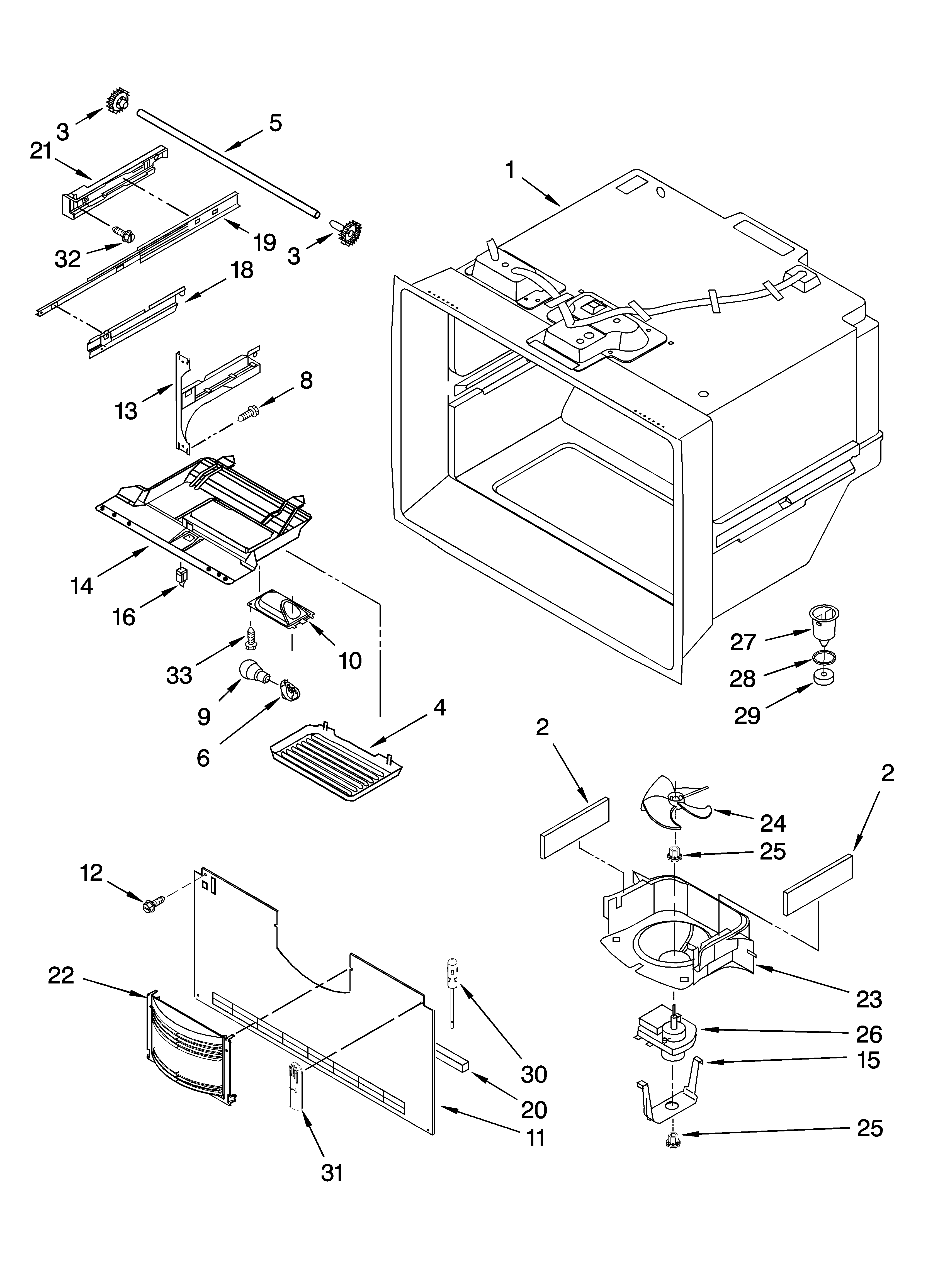

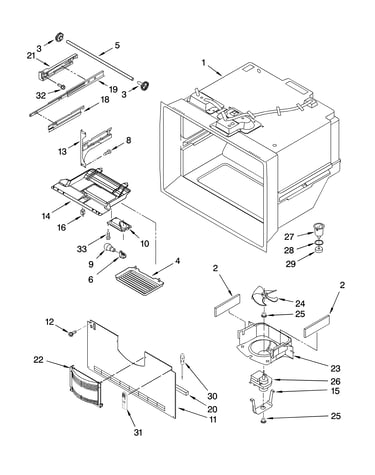

Freezer liner parts diagram
Refrigerator Door Switch
Part #12002646Replaced by #W11396033
Manufacturer substitutionThis part replaces 12002646. Substitute parts can look different from the original.In Stock$25.9119% OFF Phone Price : $31.91QtyRefrigerator Temperature Sensor
In Stock$39.9913% OFF Phone Price : $45.99QtyRefrigerator Light Bulb
Part #A0282812
The manufacturer no longer makes this part, and there's no substitute part

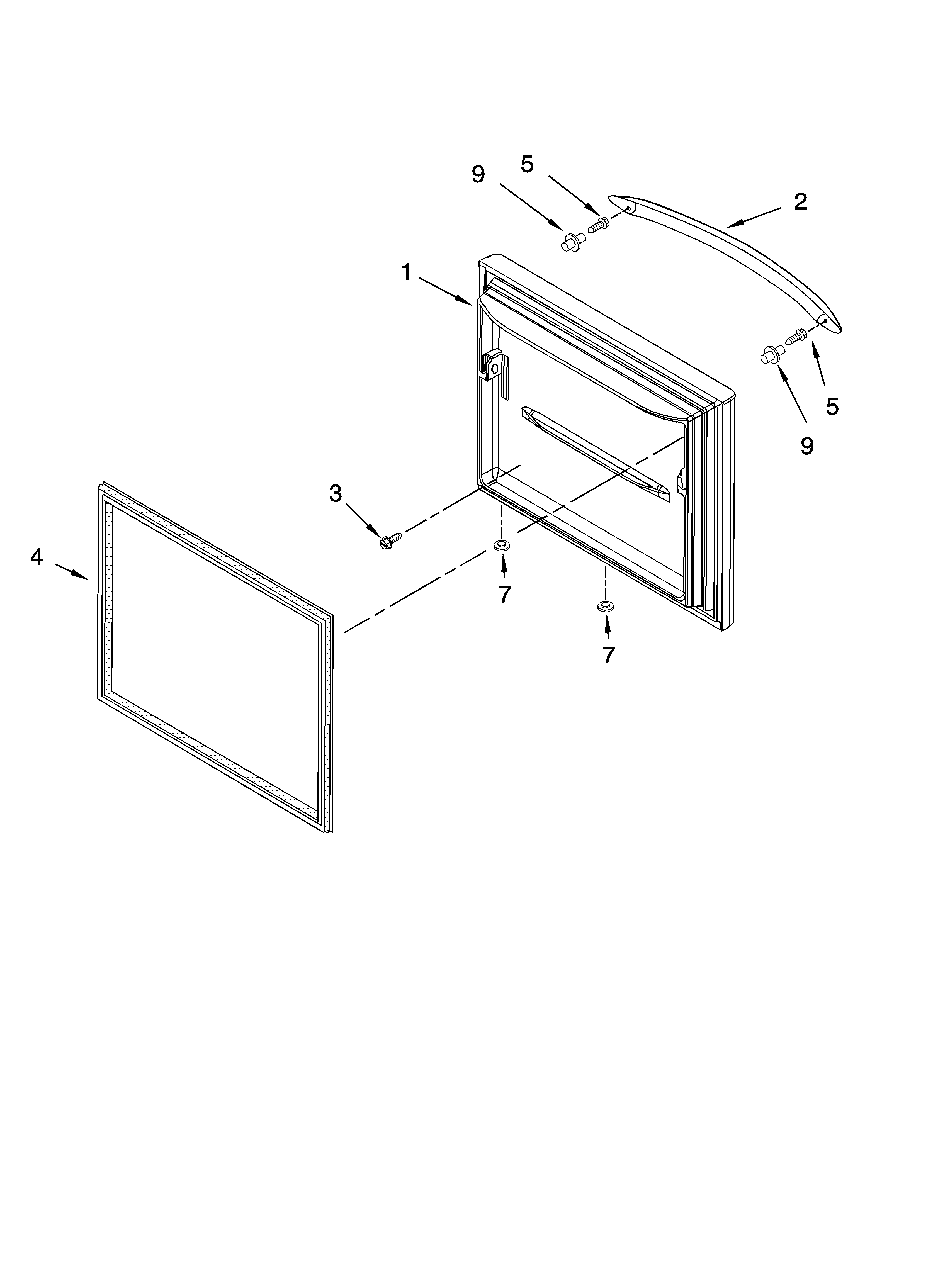

Freezer door parts diagram
Refrigerator Freezer Gasket
Part #W10131754Replaced by #W10436252

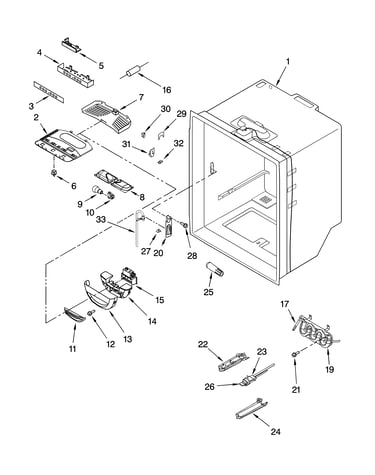

Manufacturer substitutionThis part replaces W10131754. Substitute parts can look different from the original.In Stock$160.317% OFF Phone Price : $172.31QtyRefrigerator liner parts diagram
Refrigerator Water Filter Plate
Part #67001668Get free shipping with Automatic ReorderReplaced by #WP67001668
Manufacturer substitutionThis part replaces 67001668. Substitute parts can look different from the original.In Stock$11.7015% OFF Phone Price : $13.70QtyUnit parts diagram
Refrigerator Capacitor
Part #C8931612Replaced by #WP65889-4

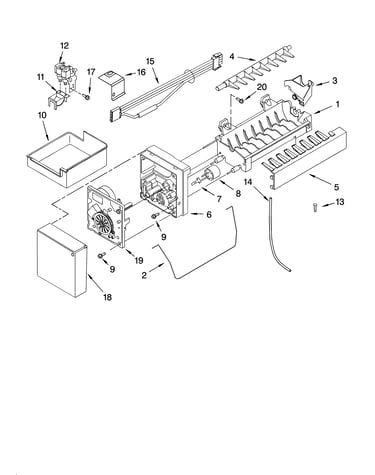

Manufacturer substitutionThis part replaces C8931612. Substitute parts can look different from the original.In Stock$64.409% OFF Phone Price : $70.40QtyIcemaker parts, optional parts (not included) diagram
Danby Appliance Touch-up Paint, 0.6-oz (white)

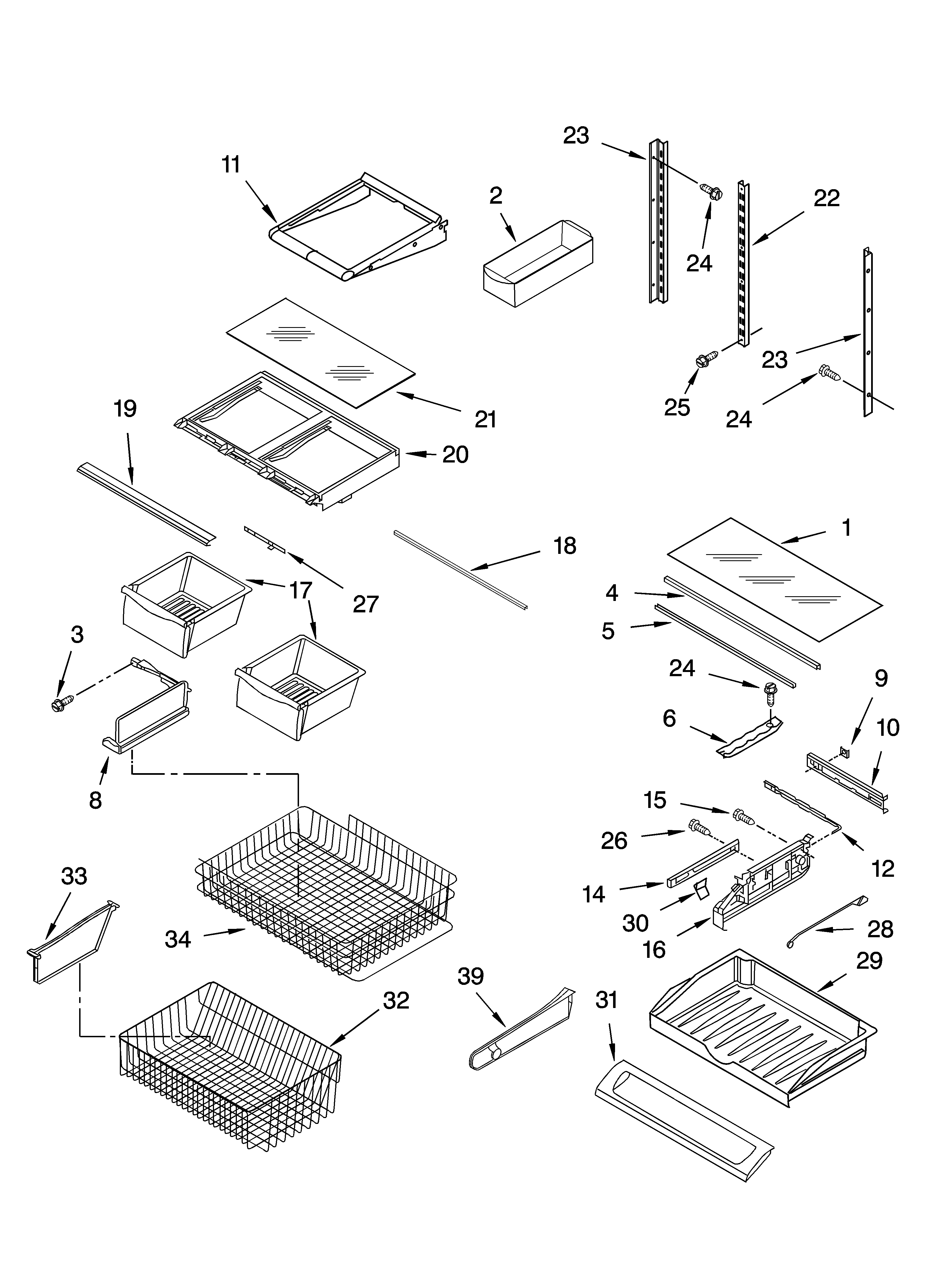

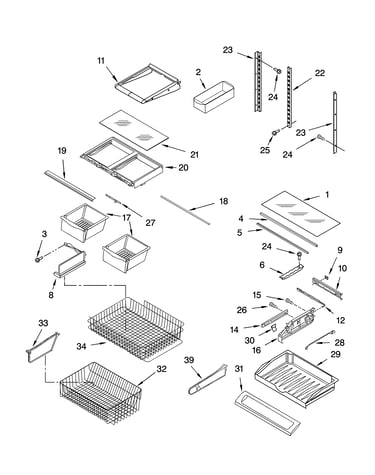

In Stock$8.4611% OFF Phone Price : $9.46QtyShelf parts diagram
Endcap, Lh P
Part #67005862Replaced by #WP12656105

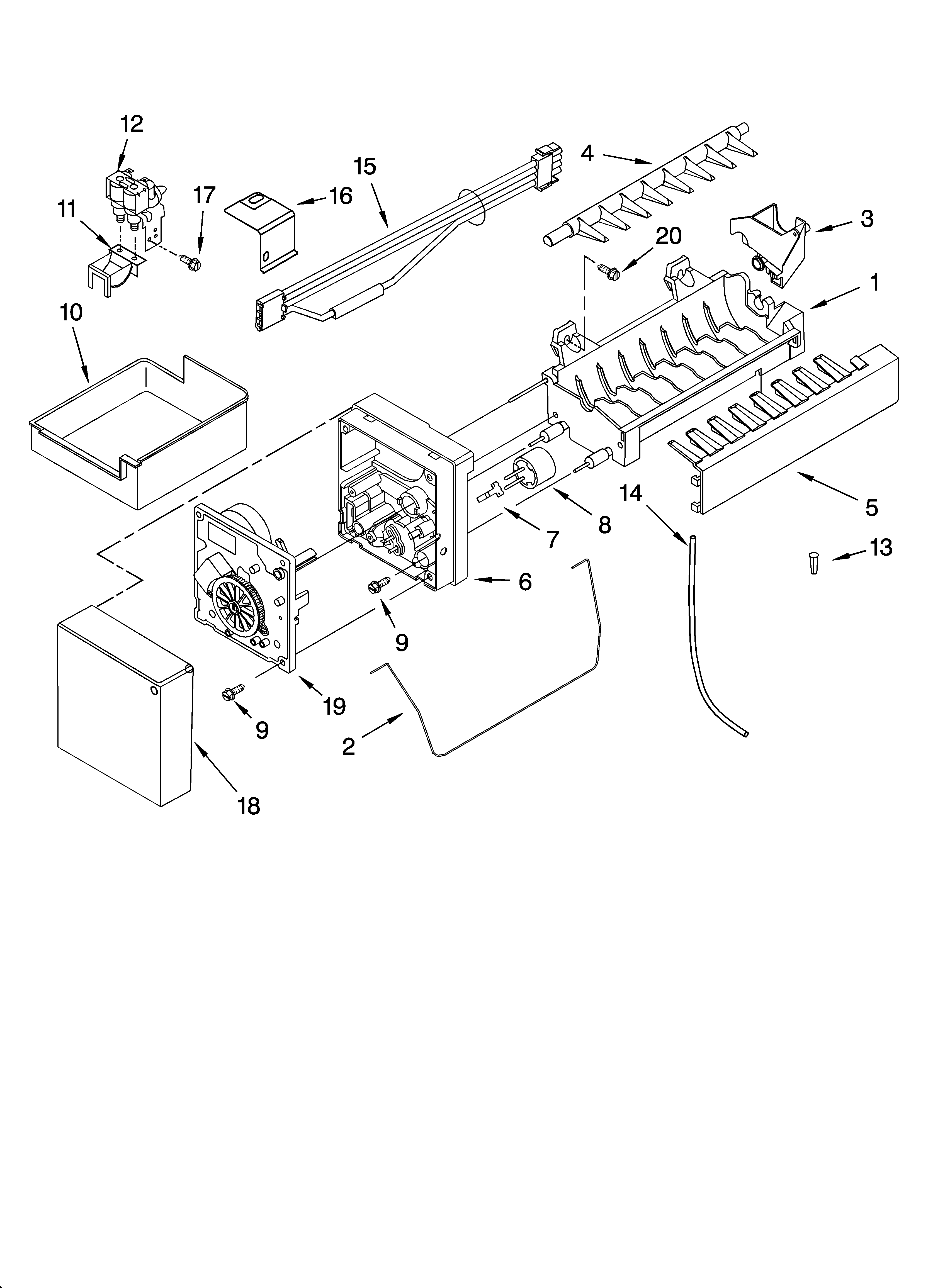

Manufacturer substitutionThis part replaces 67005862. Substitute parts can look different from the original.In Stock$47.8111% OFF Phone Price : $53.81QtyIcemaker parts, optional parts (not included) diagram
Refrigerator Ice Maker Module Housing
Part #2195914Replaced by #WP2195914
Manufacturer substitutionThis part replaces 2195914. Substitute parts can look different from the original.In Stock$50.0711% OFF Phone Price : $56.07Qty
