Kenmore Elite
Washer

Model # 11027032602 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11027032602 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

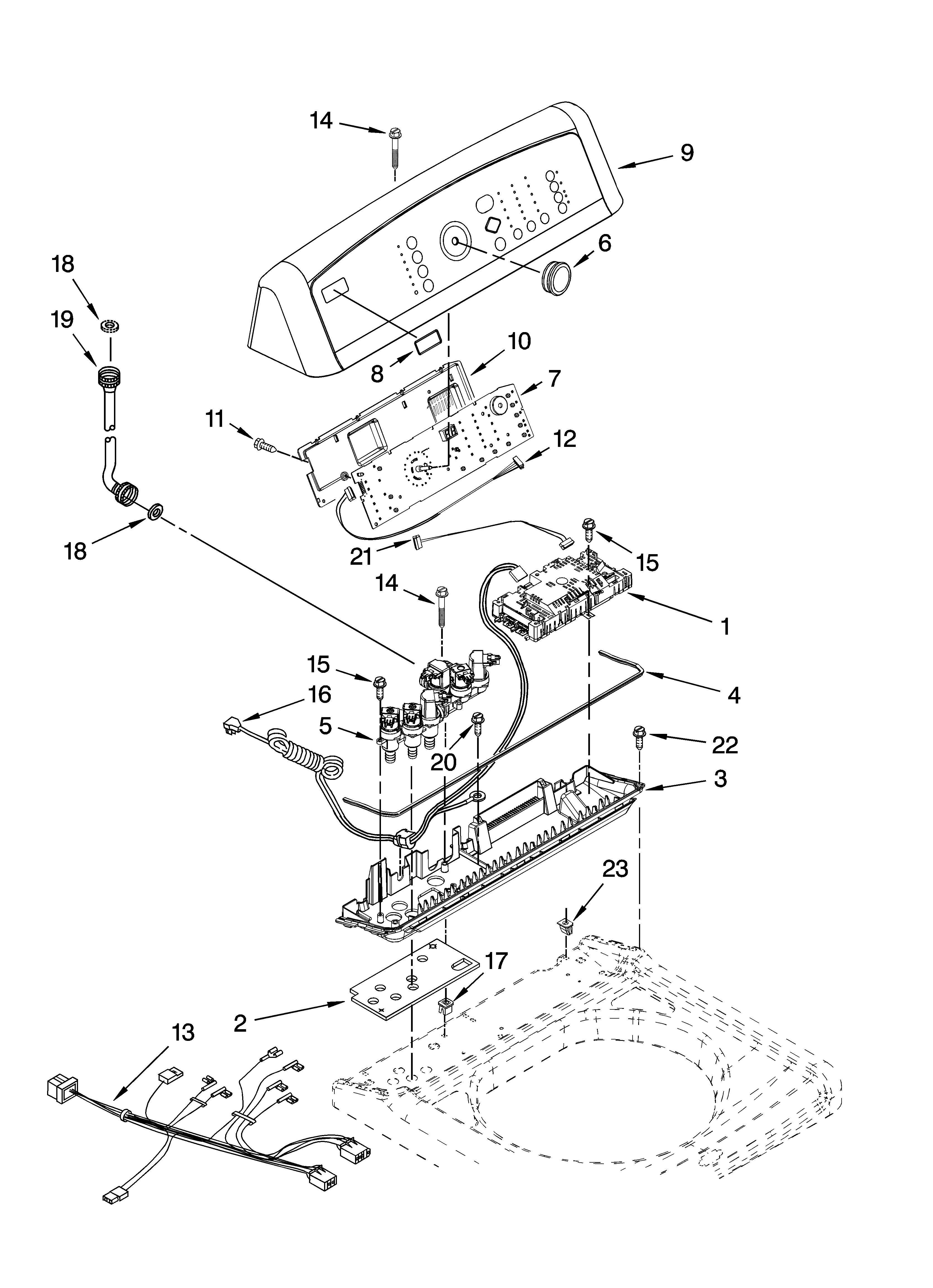

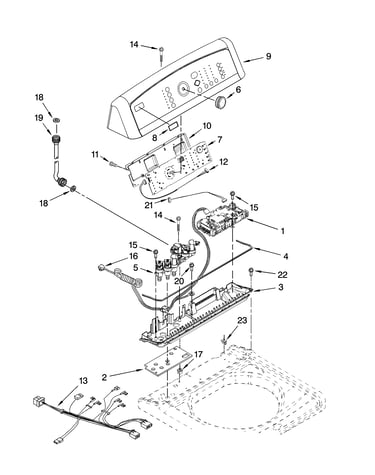

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Washer Tub Bearing And Drive Shaft Kit W10435302
#(NI)

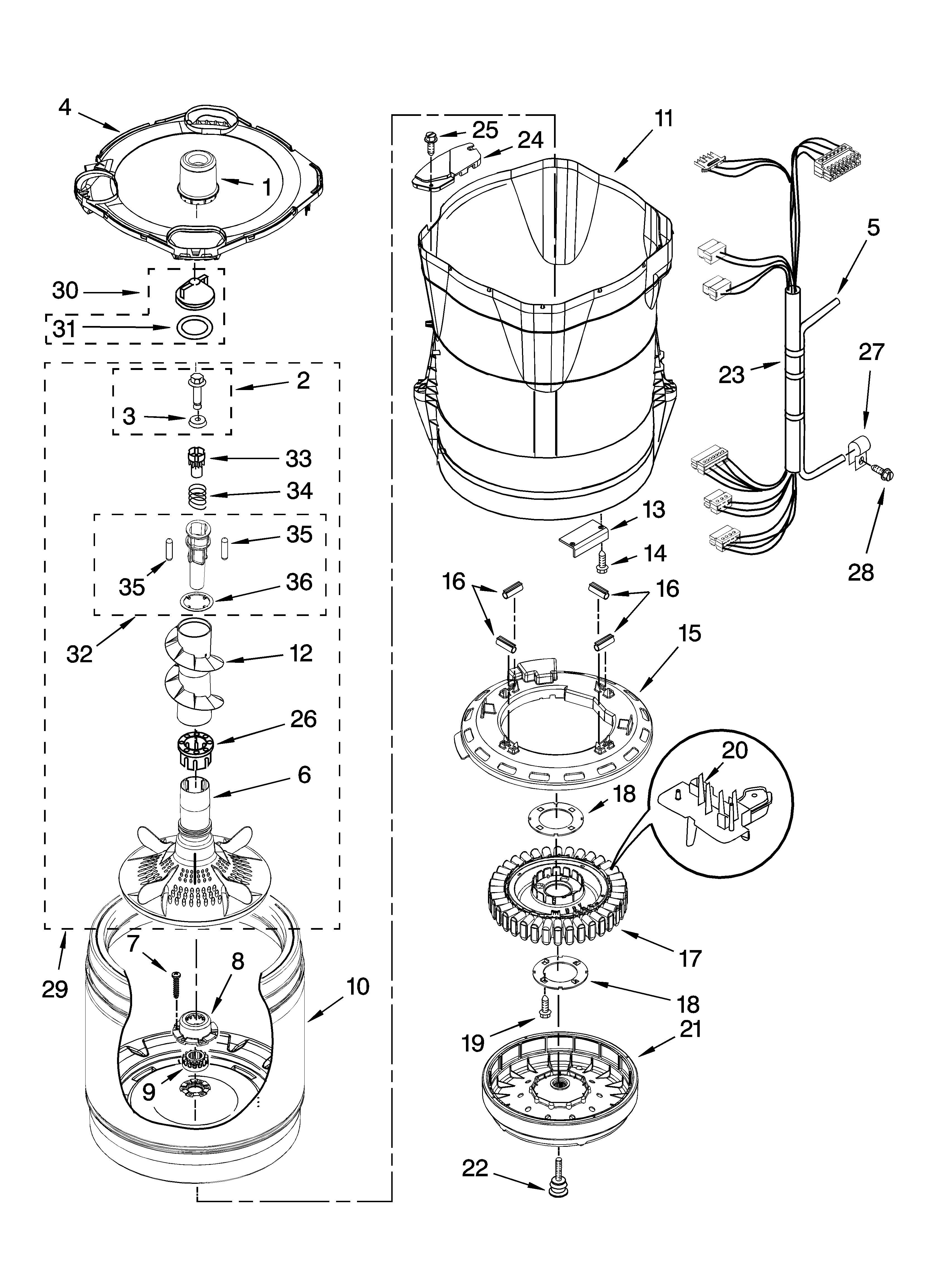

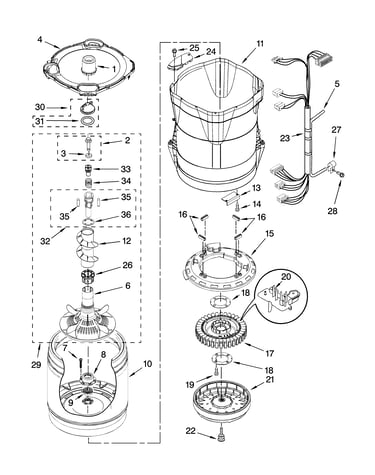

Motor, basket and tub parts diagram

Washer tub bearing and drive shaft kit

Part #W10435302

BEST SELLER
$105.12
10% OFF Phone Price : $117.12
In Stock
Stator 8565170
#17

Motor, basket and tub parts diagram

Stator

Part #8565170

Replaced by #WPW10419333

?
Manufacturer substitution
This part replaces 8565170. Substitute parts can look different from the original.
BEST SELLER
$186.43
6% OFF Phone Price : $198.43
In Stock
Rotor 8565177
#21

Motor, basket and tub parts diagram

Rotor

Part #8565177

Replaced by #280146

?
Manufacturer substitution
This part replaces 8565177. Substitute parts can look different from the original.
BEST SELLER
$188.67
6% OFF Phone Price : $200.67
In Stock
Washer Screw 8533953
#7

Motor, basket and tub parts diagram

Washer screw

Part #8533953

Replaced by #WP8533953

?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer Lid Lock W10059230
#29

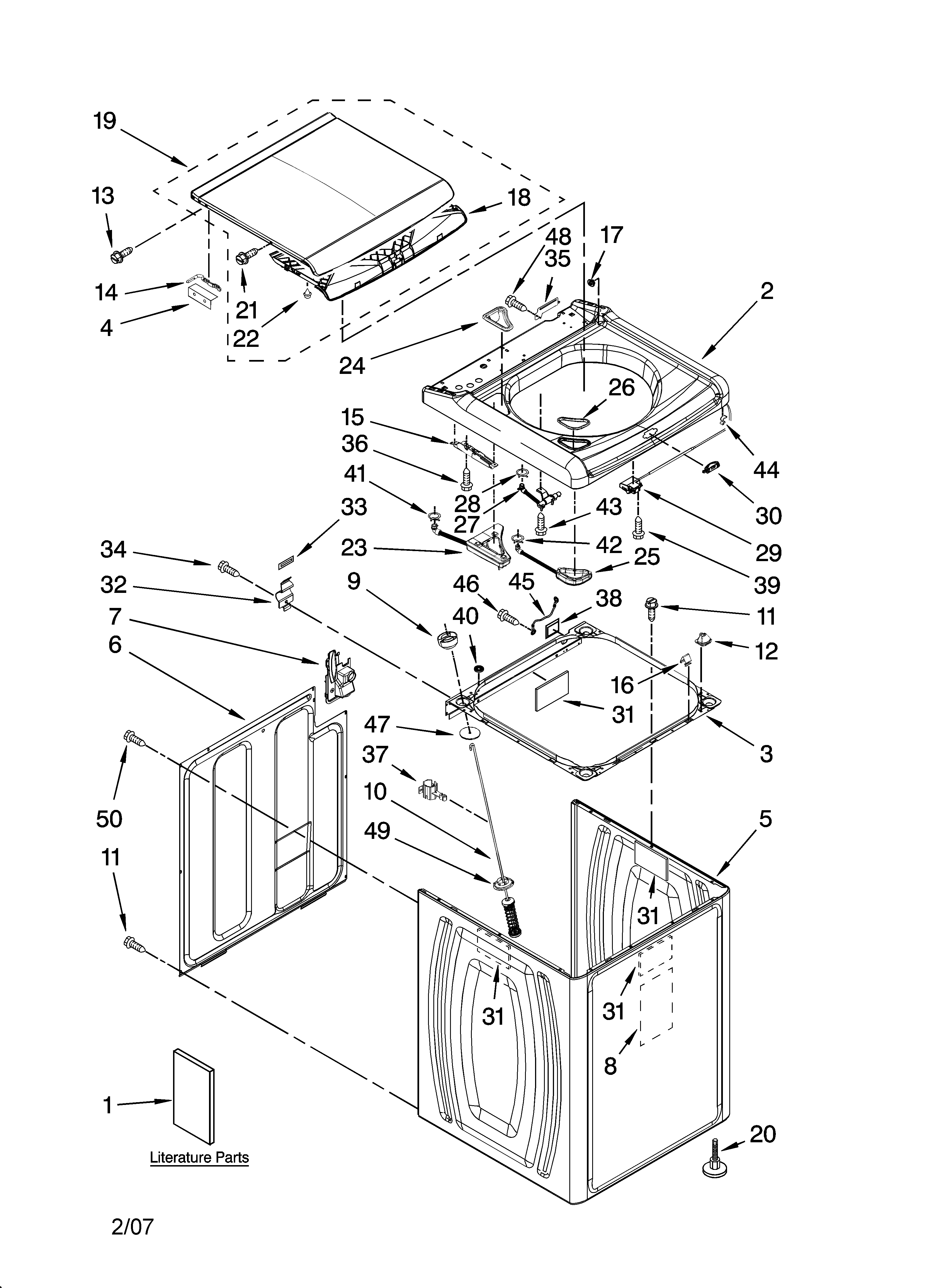

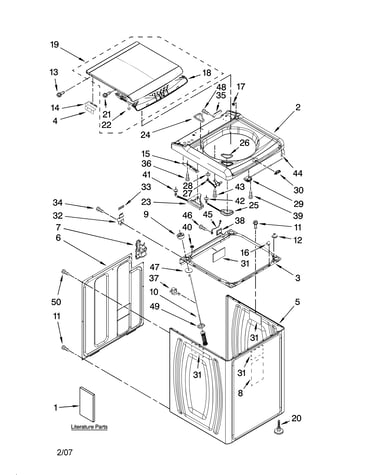

Top and cabinet parts diagram

Washer lid lock

Part #W10059230

Replaced by #WPW10619844

?
Manufacturer substitution
This part replaces W10059230. Substitute parts can look different from the original.
BEST SELLER
$83.86
7% OFF Phone Price : $89.86
In Stock
Hose 8572540
#5

Motor, basket and tub parts diagram

Hose

Part #8572540

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 8572540. Substitute parts can look different from the original.
BEST SELLER
$43.73
12% OFF Phone Price : $49.73
In Stock
Washer Agitator Cap W10074580
#30

Motor, basket and tub parts diagram

Washer agitator cap

Part #W10074580

Replaced by #WPW10074580

?
Manufacturer substitution
This part replaces W10074580. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.30
16% OFF Phone Price : $6.30
In Stock
Washer Wash Pump W10049400
#4

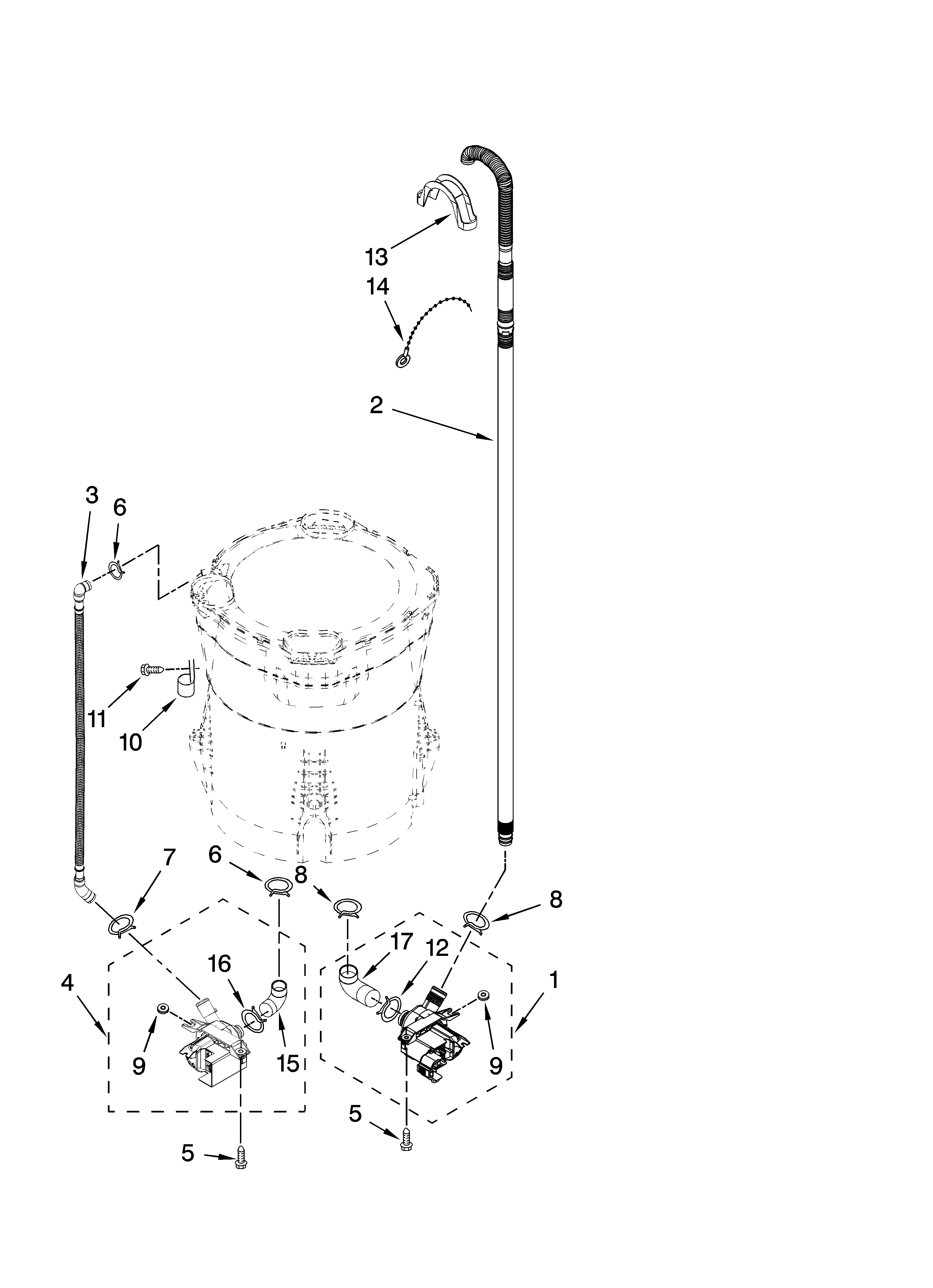

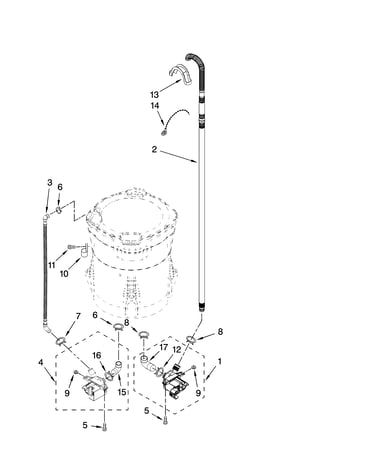

Pump parts, optional parts (not included) diagram

Washer wash pump

Part #W10049400

Replaced by #WPW10233462

?
Manufacturer substitution
This part replaces W10049400. Substitute parts can look different from the original.
BEST SELLER
$162.90
7% OFF Phone Price : $174.90
In Stock
Screw 8533928
#25

Motor, basket and tub parts diagram

Screw

Part #8533928

Replaced by #WP8533928

?
Manufacturer substitution
This part replaces 8533928. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Pump parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
