Top-Mount Refrigerator

Model # TBE25PCSKRAA Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE TBE25PCSKRAA refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

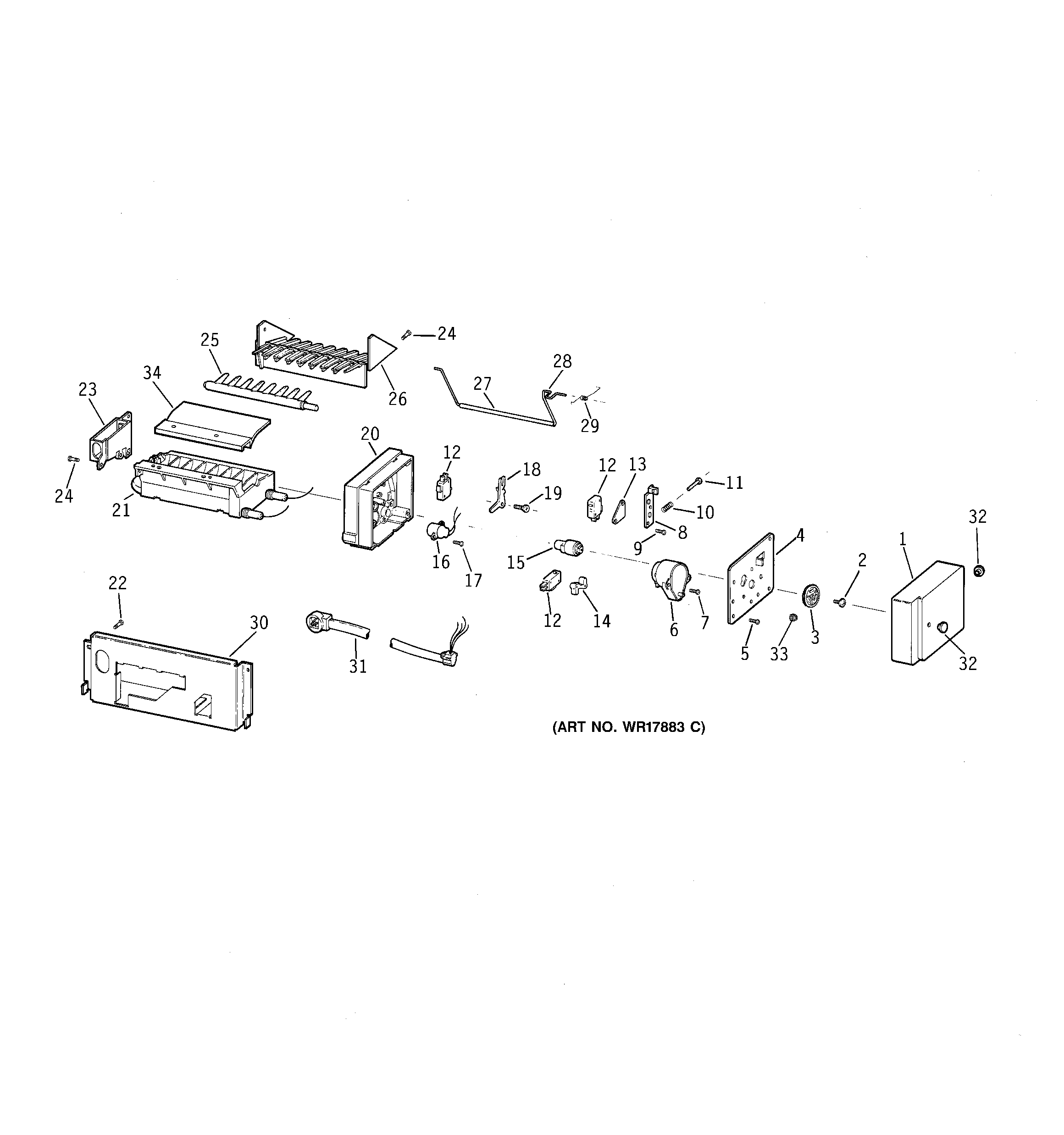

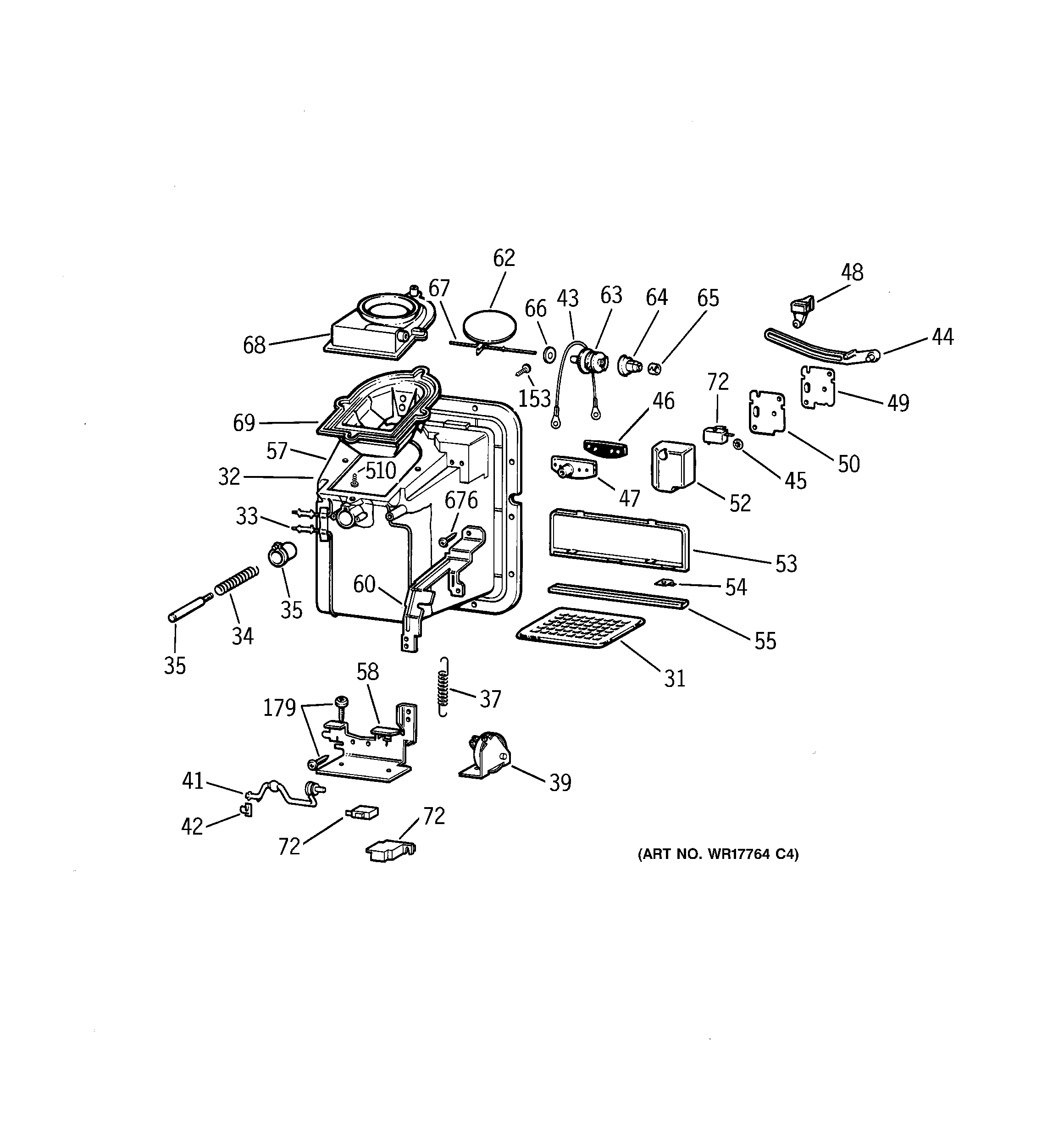

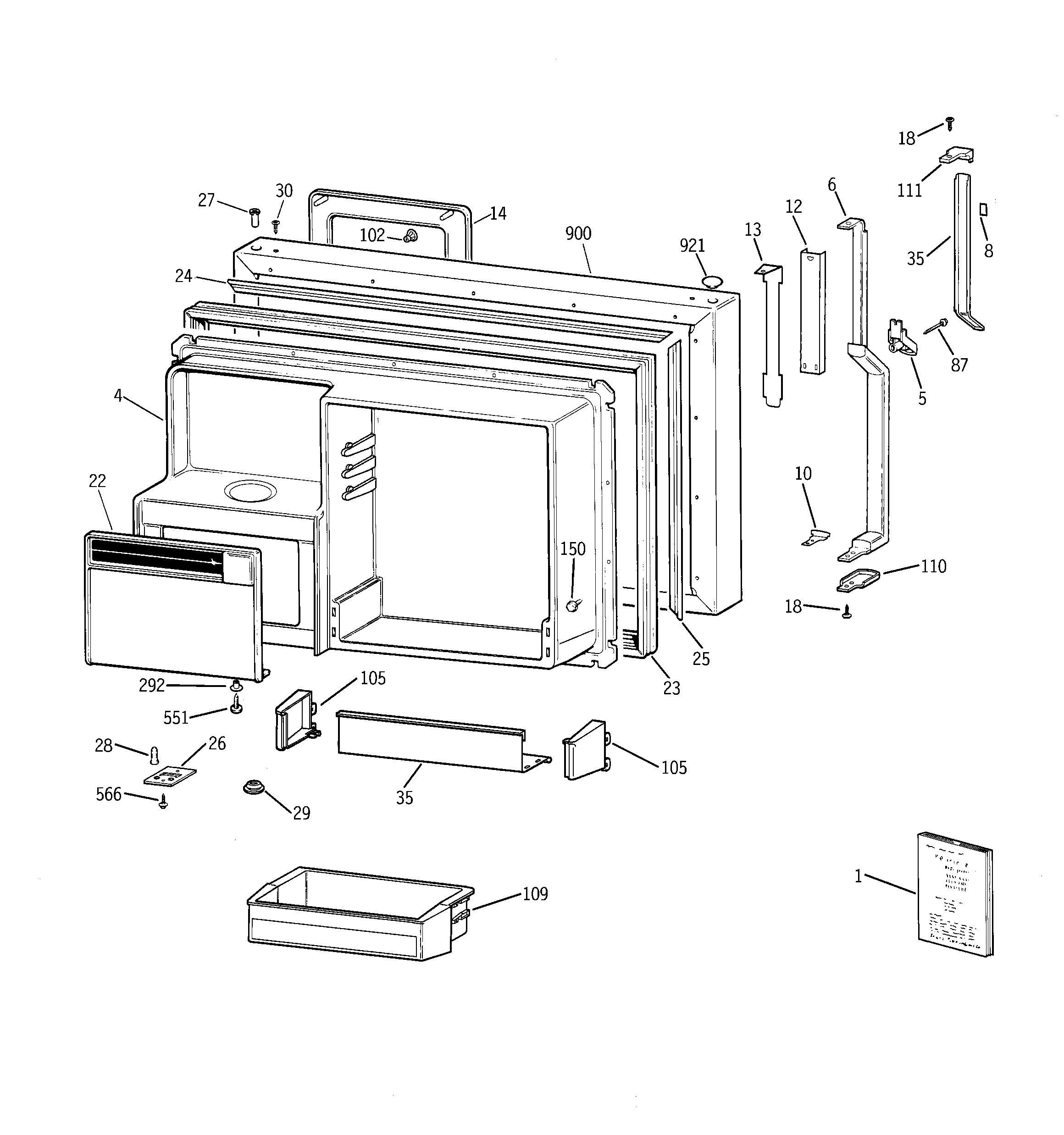

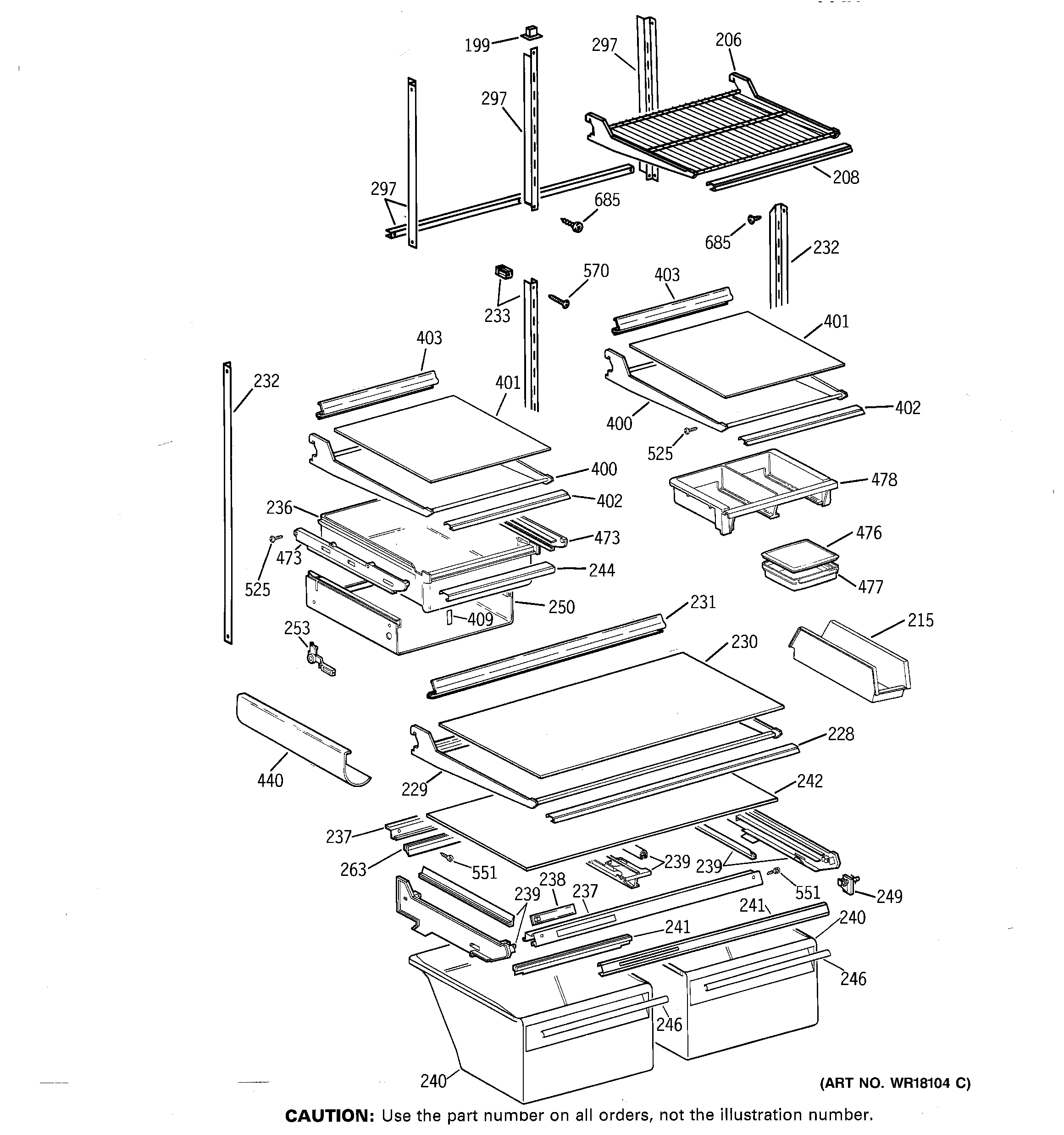

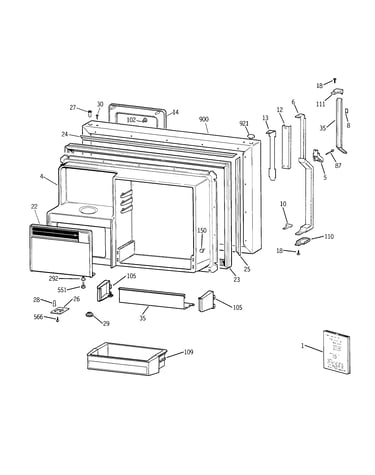

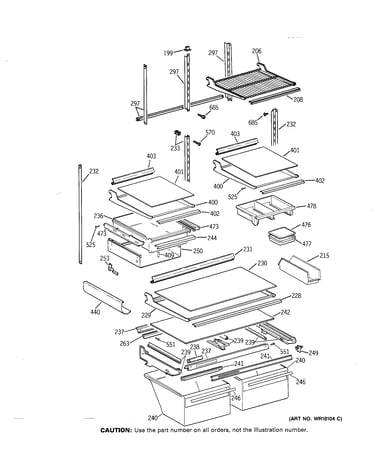

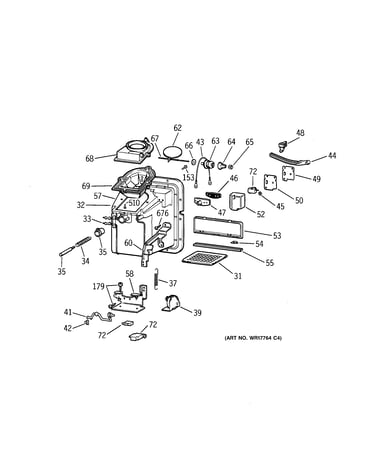

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 348 parts  |
Dryer Assembly WR86X0086
#740

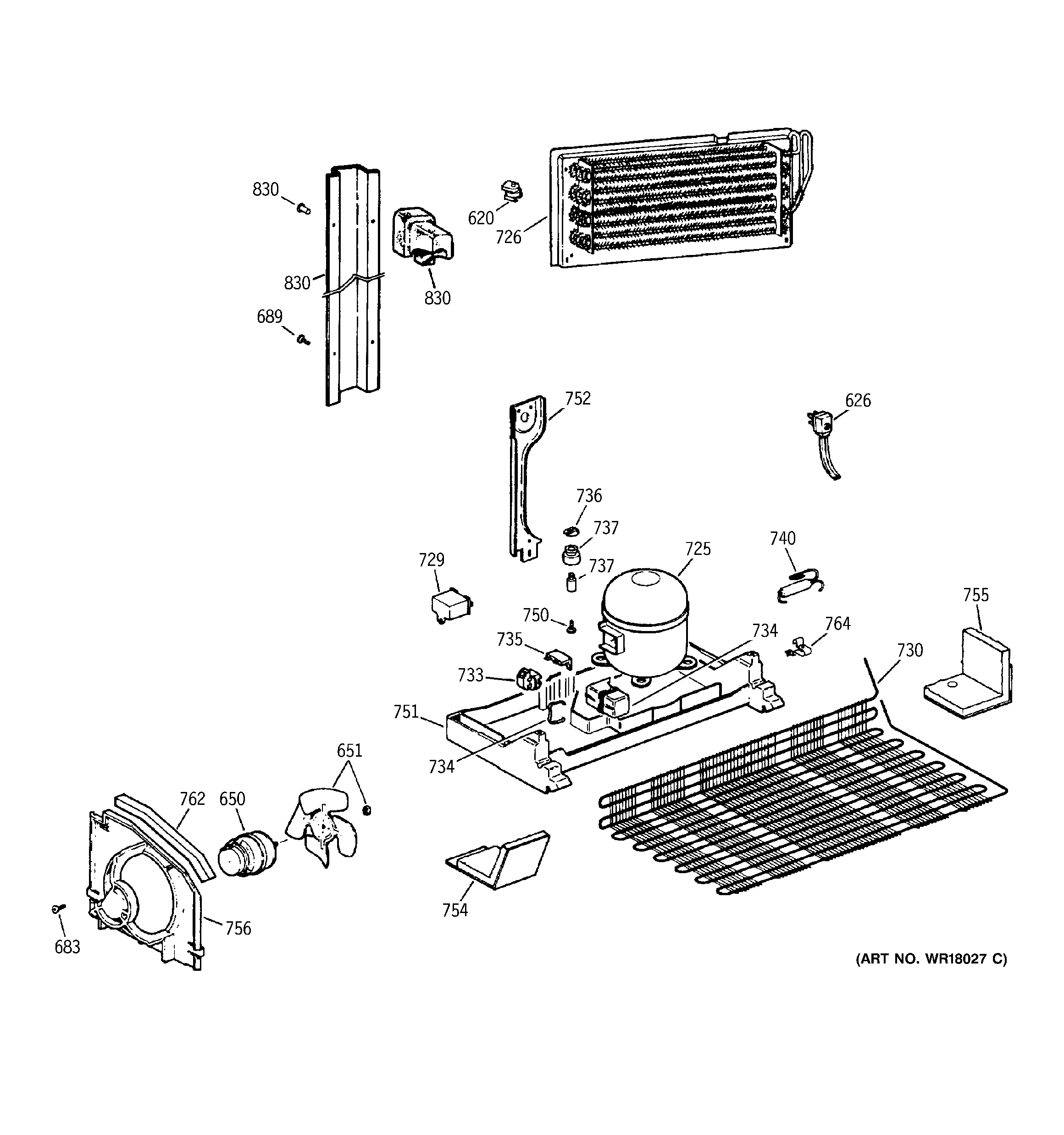

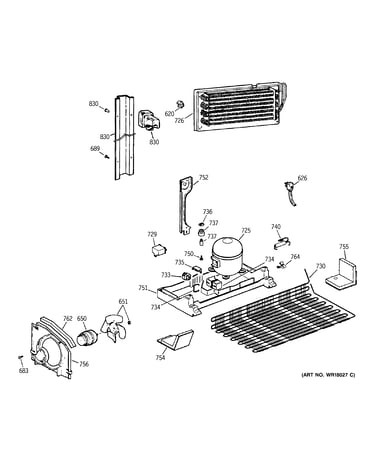

Unit parts diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Water Valve WR57X0095
#800

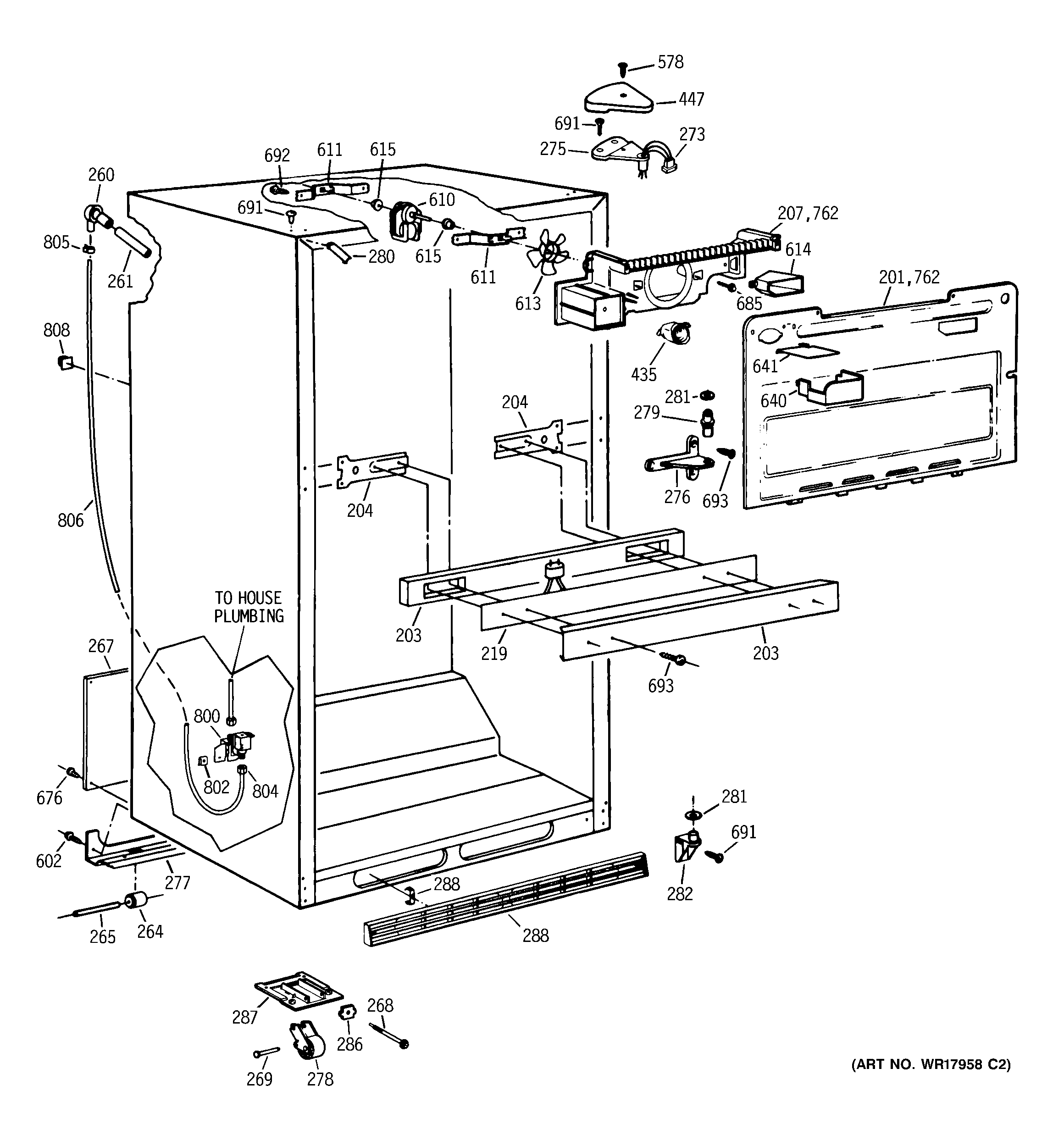

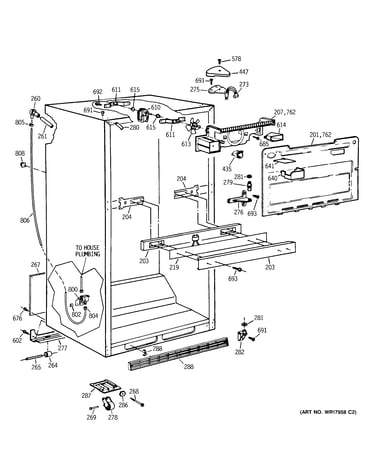

Cabinet parts diagram

Water valve

Part #WR57X0095

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X0095. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
11% OFF Phone Price : $44.92
In Stock
Light Switch WR23X0193
#609

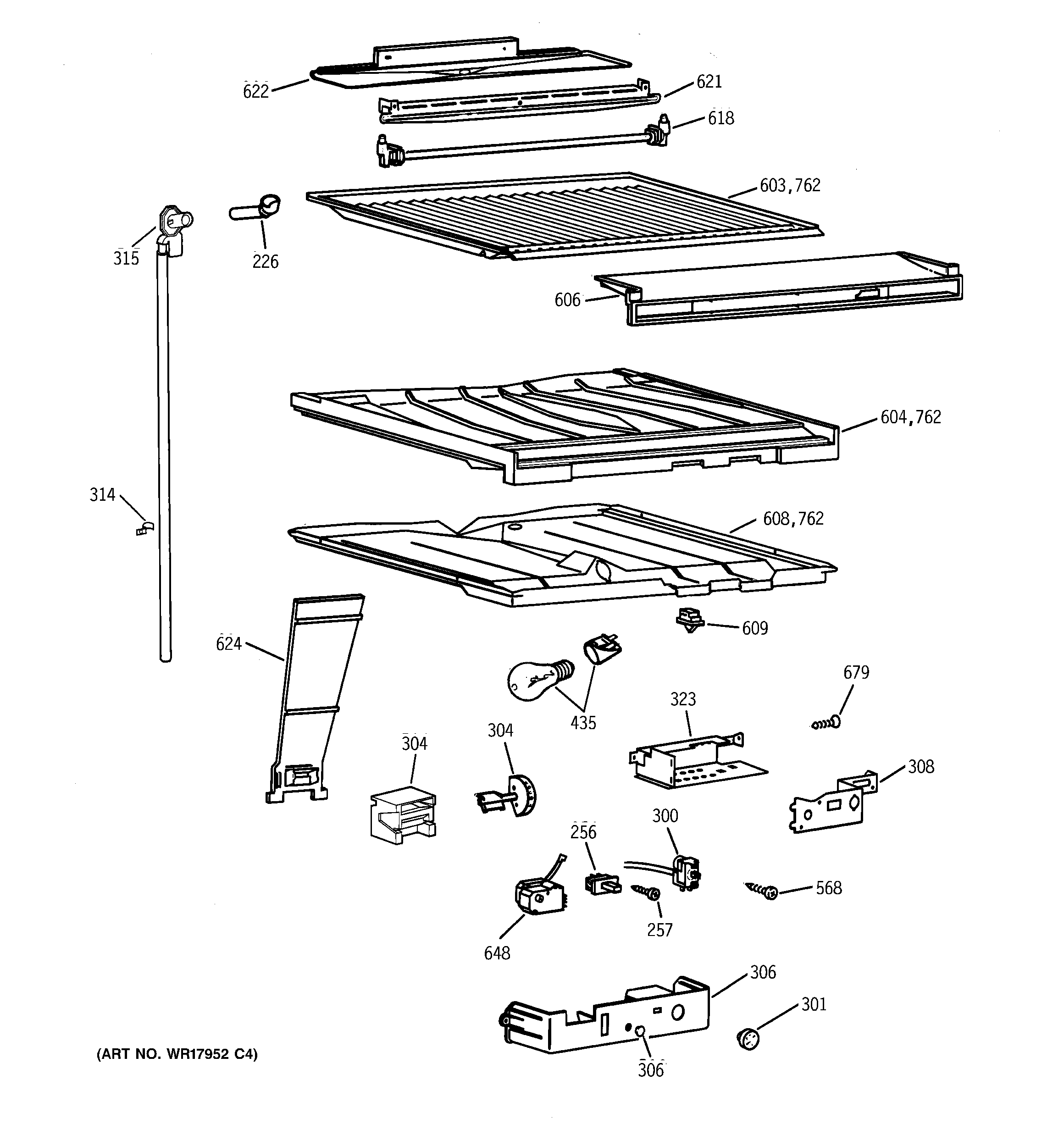

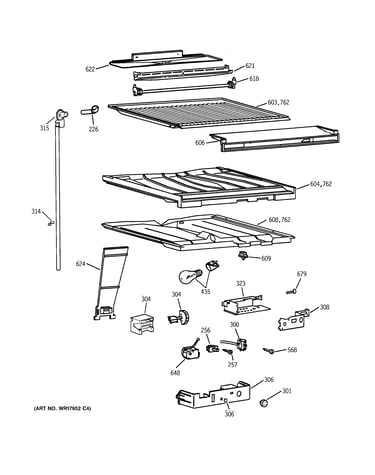

Compartment separator parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X10725

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Fan Motor WR60X0187
#650

Unit parts diagram

Fan motor

Part #WR60X0187

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X0187. Substitute parts can look different from the original.
BEST SELLER
$237.57 |
$10.00 OFF Phone Price : $247.57
In Stock
Defrost Control WR09X0502
#648

Compartment separator parts diagram

Defrost control

Part #WR09X0502

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0502. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
11% OFF Phone Price : $47.02
In Stock
Refrigerator Door Gasket WR24X0437
#104

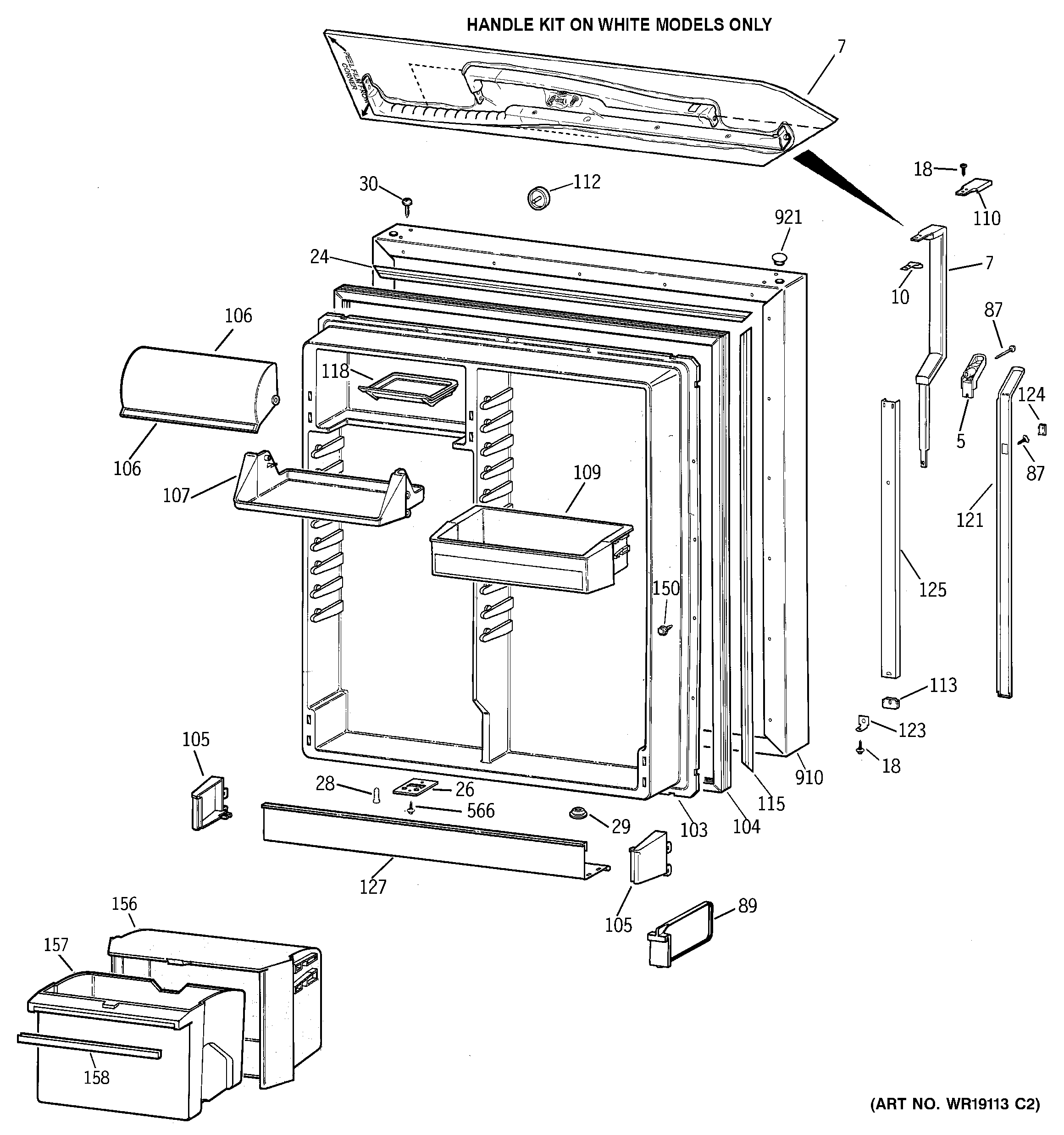

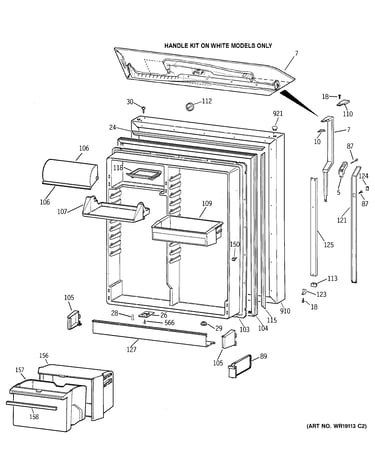

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0437

Replaced by #WR24X437

?
Manufacturer substitution
This part replaces WR24X0437. Substitute parts can look different from the original.
$65.79 |
7% OFF Phone Price : $70.79
In Stock
Refrigerator Pin WR02X4259
#385

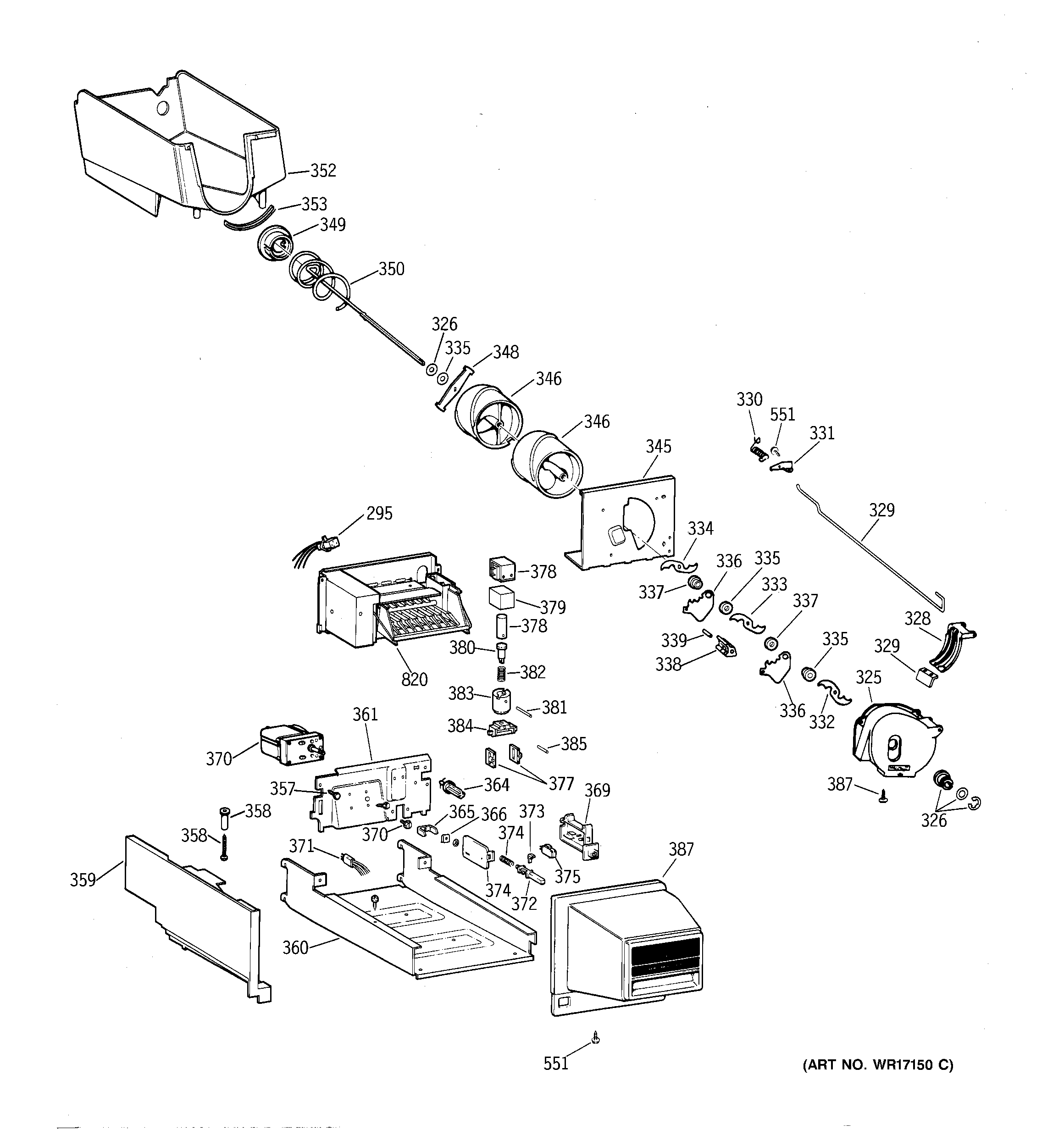

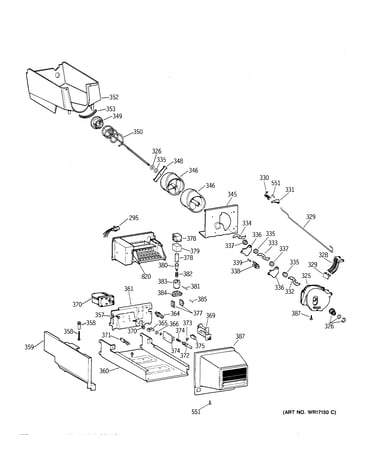

Ice bucket diagram
