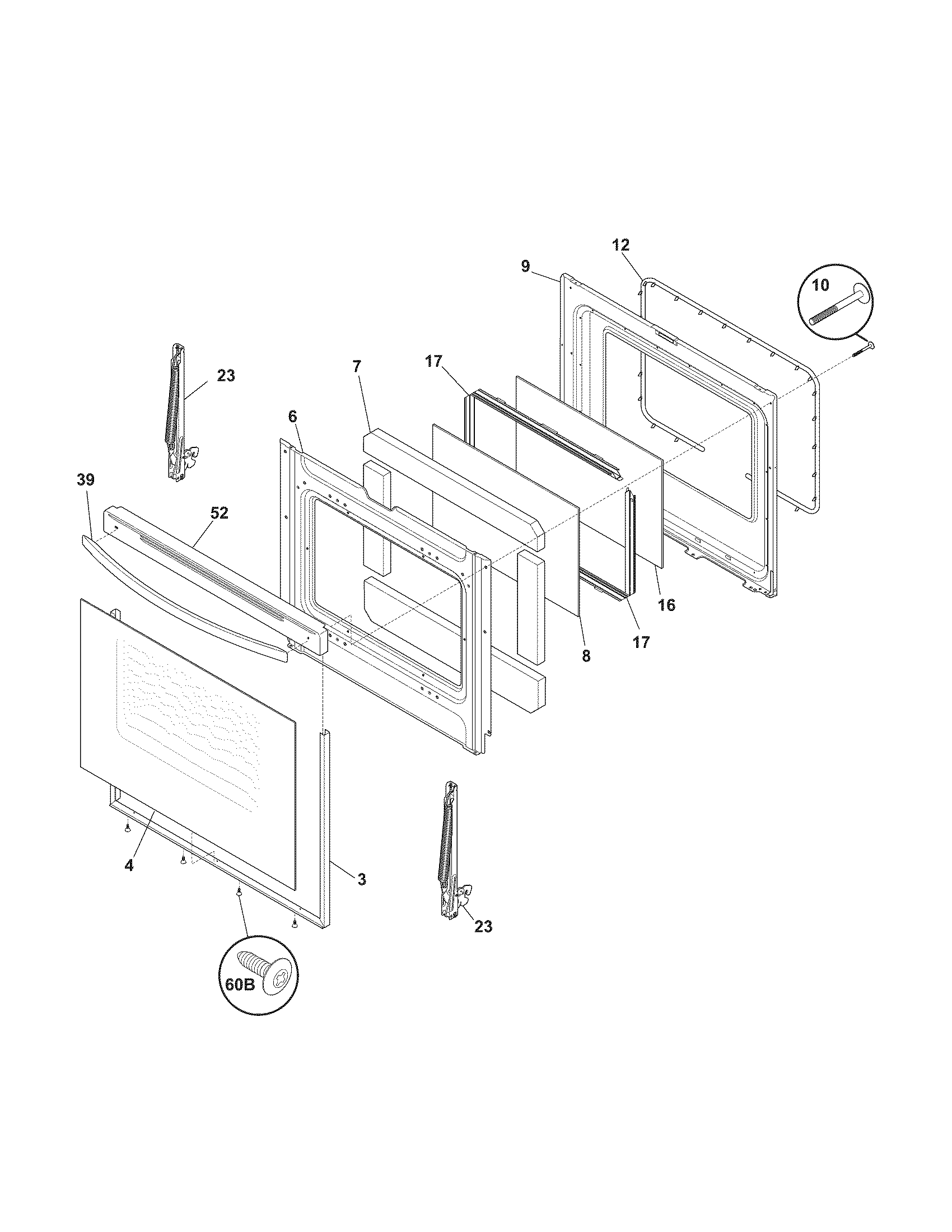

Kenmore 79094209310 electric range Parts

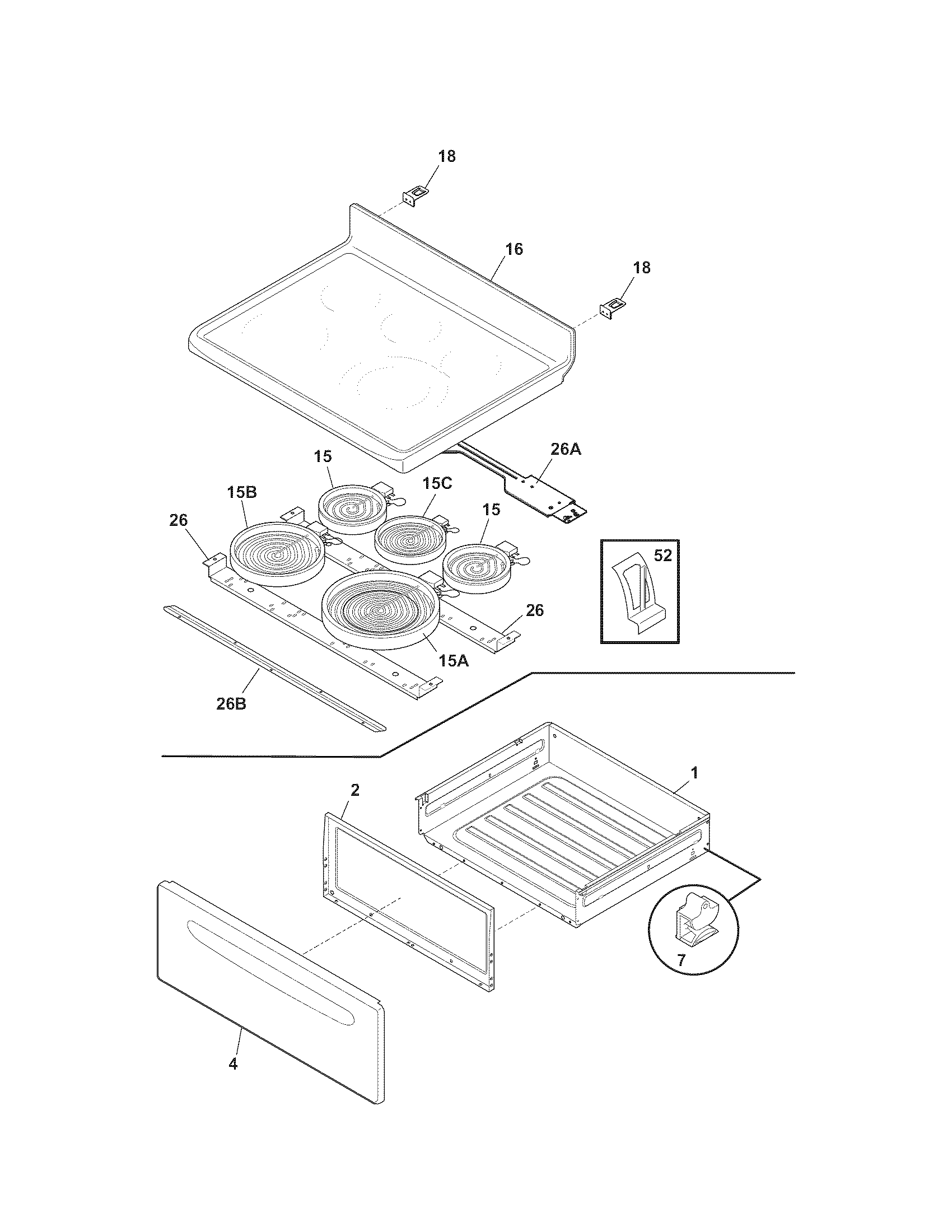

On Kenmore electric range model 79094209310, the model and serial information is on the serial plate; you can see it by opening the warmer drawer and looking on the left side of the warmer door frame. The exact location is shown in the 79094209310 owner's manual.

Quick places to check on the range

• Open the warmer drawer and look for the serial plate on the left frame (most common for this model).
• Check the oven door frame/door jamb area (some ranges place the label there).
• Look on the back panel near the power cord entry or rear cover.
• Check inside the storage drawer area if your unit has one.

What the label looks like and what to write down

The serial plate typically lists both a model number and a serial number. Record both exactly as printed.

Item on the label	Example format	Why you need it
Model number	79094209310	Ensures you get the correct Kenmore range parts and diagrams
Serial number	Letters and numbers	Helps match production changes and service information

Why it matters

Kenmore model numbers can look similar across different 790-series ranges. Using the exact model number (79094209310) prevents ordering the wrong parts such as a bake element, oven temperature sensor, or control board.

Last updated: February 2026

To tell how old your Kenmore electric range model 79094209310 is, we use the serial number (not the model number). The model number tells us the product family; the serial number contains the date code that identifies the manufacturing date.

Where to find the serial number

Check these common locations on Kenmore ranges like 79094209310:

• On the oven frame behind the storage drawer (pull the drawer out)
• On the lower front frame behind the oven door (open the door and look along the frame)
• On a side trim area near the door opening
• Sometimes on the back panel (if you can safely access it)

For diagrams and label-location notes, use the 79094209310 owner's manual.

How to decode the age once you have the serial number

Kenmore model numbers that start with 790 are typically built by Frigidaire/Electrolux, so the serial number format usually follows that manufacturer’s date coding.

Use this quick process:

• Write down the full serial number exactly as shown
• Identify the first letter and the first two digits that follow it (common Frigidaire-style date coding)
• Convert those characters into a year and week (or year and month) of manufacture
• If the label also lists an “MFG DATE,” use that as the final answer

What you will end up with

What you have	What it tells you	What it does not tell you
Model number (79094209310)	Series and configuration	Exact build date
Serial number	Manufacturing date code	Purchase date
Receipt/installation date	When it was bought/installed	Factory build date

Why it matters

Knowing the manufacturing date helps us match the right replacement parts (like an oven temperature sensor, control board, or surface element switch) and avoid ordering a similar-looking part that fits a different production run.

Last updated: February 2026

On Kenmore model 79094209310, replacing the oven control board means shutting off power, accessing the rear of the control panel, moving each wire to the matching terminal on the new board, then reassembling and restoring power. Use the wiring diagram and steps in the 79094209310 owner's manual.

Before you start (safety and prep)

• Turn OFF the range breaker (240V) and confirm the display is dark.
• Let the oven cool completely.
• Take a clear photo of the wire locations before you remove anything.
• Label connectors with tape (L1, L2, bake, broil, sensor, etc.).
• Protect the cooktop with a towel if you need to lean over the range.

Replacement steps (typical for this Kenmore electric range)

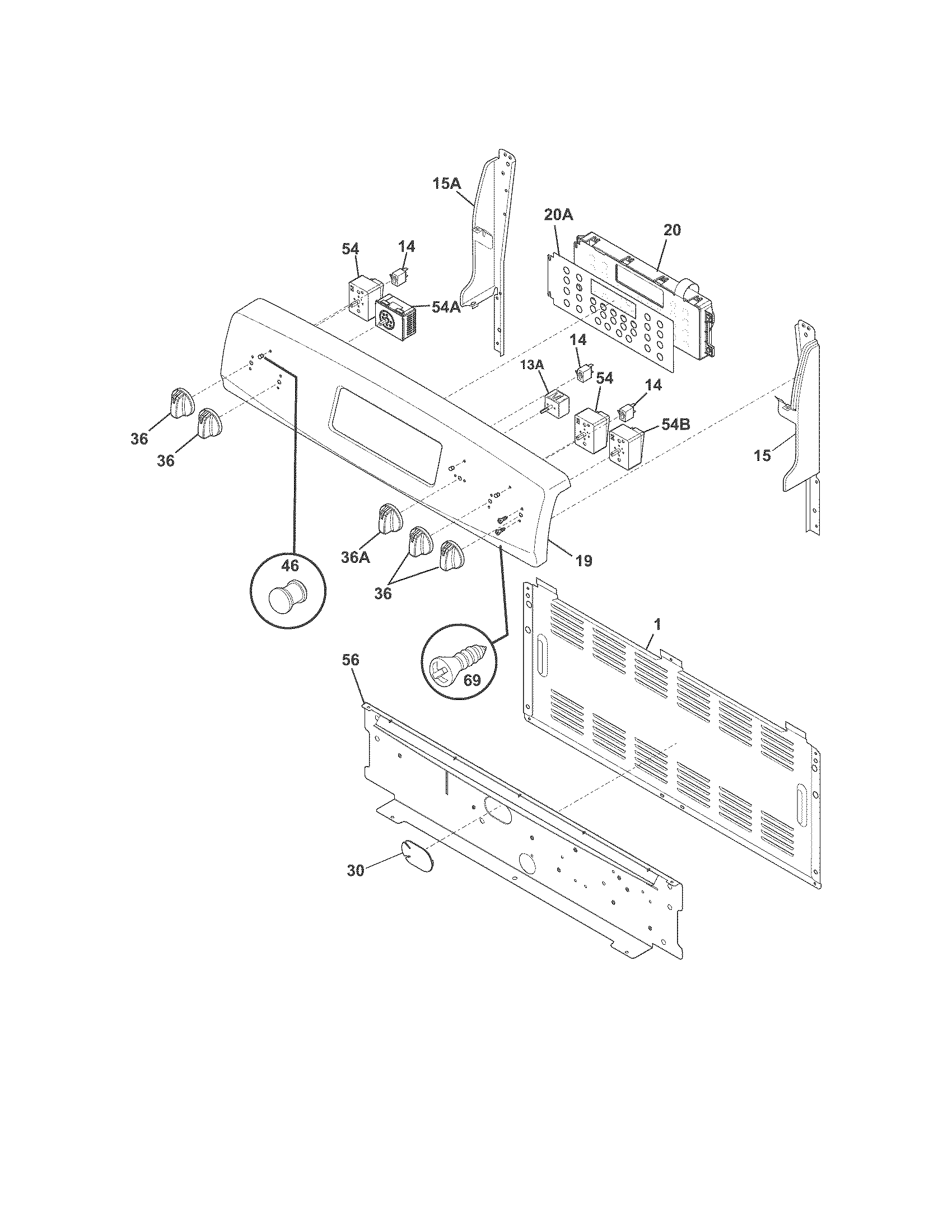

1. Remove the rear access cover behind the control panel (screws along the back).
2. Locate the control board and note any ribbon connector and multi-pin plugs.
3. Transfer wires one connector at a time from the old board to the new board (match position and color).
4. Reseat the ribbon cable fully, then lock the connector (if your board uses a locking tab).
5. Reinstall the rear cover, restore power, and set the clock.

Quick troubleshooting if the new board still acts up

• Dead display: check house breaker, terminal block connections, and harness plugs.
• Oven won’t heat: verify the oven temperature sensor connection; a failed sensor can prevent normal heating (see frigidaire range oven temperature sensor 316490000).
• Error codes: use the model-family guide to interpret the code and next checks (see Kenmore 790 range 4-digit error codes).

Common symptoms and the most likely next check

Symptom	Most likely next check	Why
Blank clock/display	Power supply, harness seating	Board needs correct L1/L2 power
Random beeping	Keypad/overlay, moisture in control area	Inputs can short or misread
Oven temp way off	Sensor resistance, sensor wiring	Sensor drives temperature control

Why it matters

The control board is the “brain” for bake, broil, convection, and timing. Correct wire placement and fully seated connectors prevent nuisance error codes, no-heat conditions, and intermittent operation.

Last updated: February 2026

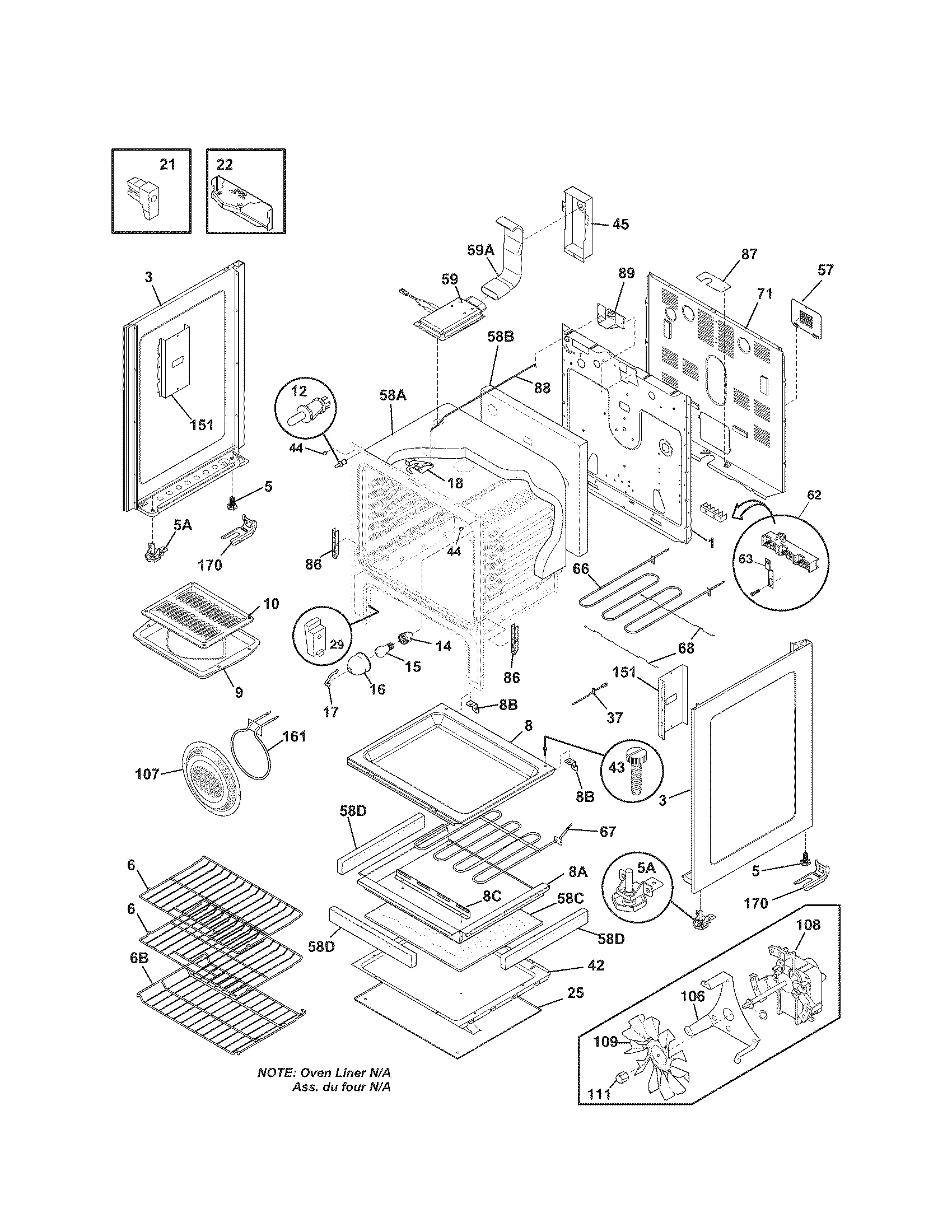

In the Kenmore 79094209310 electric range, the oven temperature sensor is mounted inside the oven cavity on the rear wall. You access it from inside the oven by removing the racks, then removing the sensor’s mounting screws (see the 79094209310 owner's manual).

What you’ll see and where to look

The sensor is a slim metal probe that sticks into the oven cavity and is held in place with screws on the back wall.

• Look at the rear wall of the oven interior
• The sensor is typically upper to mid-height, not on the floor
• It has a wire harness that passes through the rear wall
• You remove it from inside the oven, not from the back panel first

Basic replacement overview (safe, common approach)

Before servicing, we recommend shutting off power at the breaker.

1. Remove oven racks.
2. Locate the sensor on the rear wall.
3. Remove the mounting screws.
4. Gently pull the sensor toward you a few inches.
5. Disconnect the wire connector (do not let the connector fall back through the hole).
6. Reconnect the new sensor and reinstall.

Step	What matters most	Common mistake to avoid
Pull sensor forward	Pull slowly to expose the connector	Tugging hard and damaging the harness
Disconnect connector	Separate the plug straight apart	Letting the plug slip behind the insulation
Reinstall	Tighten screws snugly	Over-tightening and stripping the liner

Parts that commonly relate to sensor issues

If your oven is overheating, underheating, or showing temperature-related faults, the sensor is a top suspect.

• Frigidaire range oven temperature sensor 316490000

Why it matters

The sensor tells the control board the actual oven temperature. If it reads wrong or opens electrically, the oven can bake unevenly, take too long to preheat, or shut down with an error.

Last updated: February 2026

If your Kenmore 79094209310 electric range oven is not heating, the most common causes are an oven control setting issue (including the clock not being set), a failed heating component (bake or broil circuit), or a temperature-sensing/control problem. Start with control checks, then test the heating circuit.

Quick checks first (no tools)

• Set the clock; this model’s oven can require the time of day to be set before the oven will operate (see the 79094209310 owner's manual).
• Confirm you selected Bake (not just a timer function) and set a temperature.
• Try Broil for 2 to 3 minutes; if broil heats but bake does not, the bake circuit is the likely issue.
• Verify the range is getting full power (a tripped double breaker can leave the oven weak or dead while lights still work).
• If the cooktop heats unevenly, use flat, medium or heavy cookware and the correct knob for the element.

Parts that commonly cause “oven not heating”

If the controls are set correctly and the oven still will not heat, these parts are frequent fixes on electric ranges:

Symptom	Most likely area	Example part for this model
Oven won’t reach temp or heats erratically	Temperature sensing	Frigidaire range oven temperature sensor 316490000
No bake heat (broil may still work)	Bake heating circuit	Frigidaire range bake element 316505500
No broil heat	Broil heating circuit	Range broil element 316203301
Random shutdowns, dead display, or no heat with correct settings	Electronic control	Range oven control board and clock 316650001

Safe troubleshooting steps (basic)

1. Power off the range at the breaker before inspecting or testing.
2. If the display is on, set the time of day, then retry Bake.
3. If you have a multimeter, check the bake and broil circuits for continuity (a failed element typically reads open).
4. If elements test good, check the sensor circuit; a bad sensor can prevent proper heating.
5. If multiple functions fail or the control is unresponsive, the control board is a strong suspect.

Why it matters

An oven that will not heat is often a simple control setup issue, but it can also signal a failed bake element, broil element, or temperature sensor. Fixing the correct part restores accurate temperatures and prevents undercooking.

Last updated: February 2026
