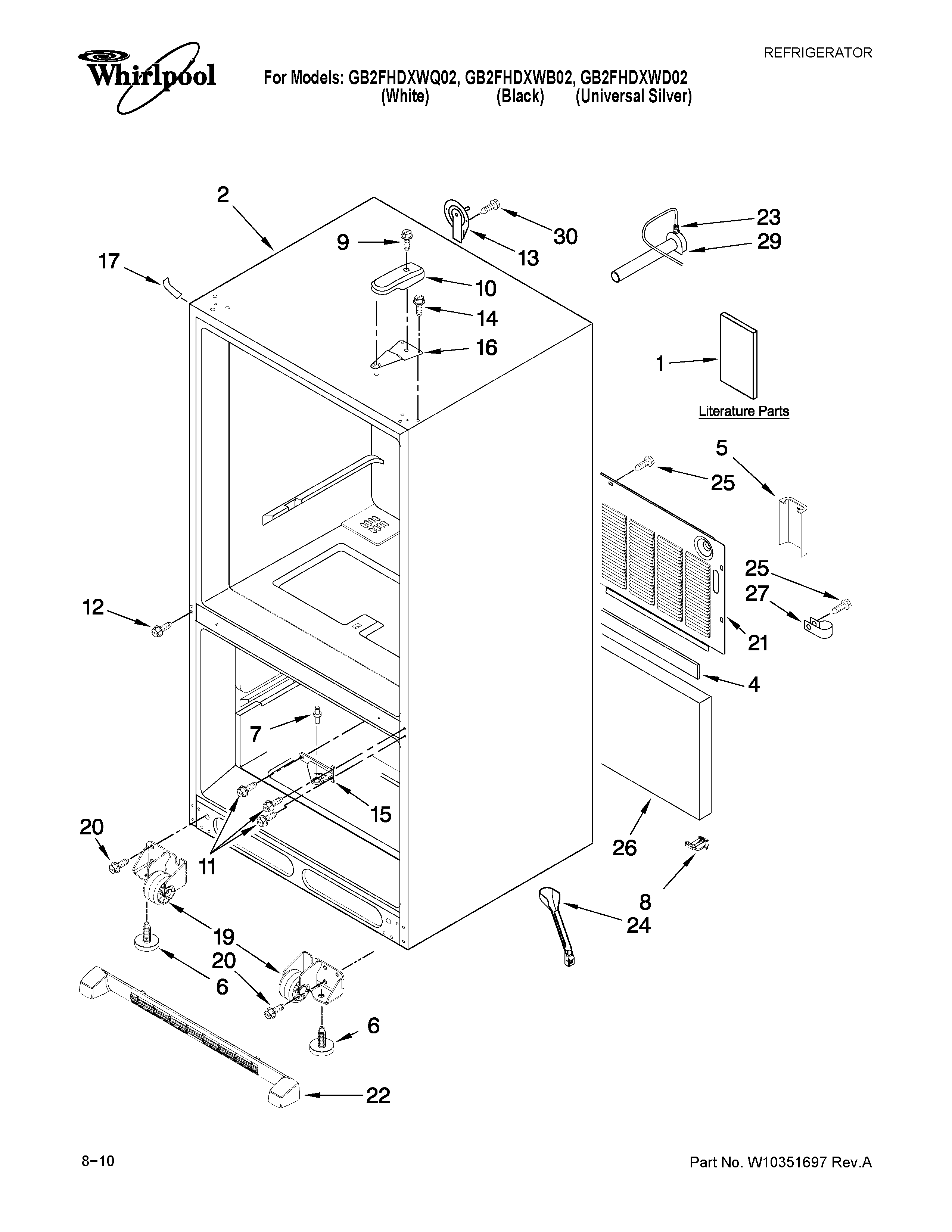

How do I remove the base grille on my Whirlpool refrigerator?
To remove the base grille on your Whirlpool GB2FHDXWB02 bottom-mount refrigerator, grasp the grille firmly at the bottom front and pull it straight toward you until it releases. Once your adjustment or cleaning is done, line it up and press it back in until it snaps into place; see the owner's manual.
Steps to remove and reinstall the base grille
- Open the refrigerator doors for easier access.
- Stand in front of the unit and grip the base grille with both hands.
- Pull the grille straight toward you (do not twist) until the clips release.
- Set the grille aside so it does not get stepped on or cracked.
- To reinstall, align the ends with the base area and push until it snaps in securely.
When you typically remove the base grille
Removing the base grille is commonly needed to access the front roller adjustment screws and brake foot for leveling, or to clean dust from the lower front area.
| Task | Why you remove the grille | Tool needed |
|---|---|---|
| Level the refrigerator | Access roller adjustment screws | 3/8-inch hex driver (typical) |
| Improve door closing | Tilt cabinet slightly to the rear | 3/8-inch hex driver (typical) |
| Basic cleaning | Clear dust and debris at the base | Vacuum/brush |
Why it matters
A properly seated base grille helps protect the lower components and keeps airflow and clearances at the front of the refrigerator consistent. It also makes future service tasks like leveling faster.
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
No. On a Whirlpool GB2FHDXWB02 bottom-mount refrigerator, any cardboard-like panel or cover at the bottom/rear is there to protect components and help direct airflow; it should stay in place during normal use. Use the owner's manual to confirm what packaging must be removed versus what is a permanent cover.
What to remove vs. what to leave
During setup, we remove all shipping materials (tape, foam, and loose cardboard spacers), but we leave any installed bottom cover or rear access panel.
- Remove: tape and glue residue from exterior surfaces
- Remove: loose packaging inside the fresh food and freezer compartments
- Remove: any cardboard used only as a shipping spacer (not fastened to the cabinet)
- Leave installed: bottom/rear cover panels that shield wiring, fans, and the compressor area
- Leave installed: anything secured with screws or clips unless the manual says otherwise
Quick check: is it packaging or a protective cover?
Use this simple guide before pulling anything off.
| What you see | Usually means | What we recommend |
|---|---|---|
| Loose cardboard you can lift out by hand | Shipping packaging | Remove and recycle it |
| A panel that is screwed/clipped on | Protective cover/airflow baffle | Leave it installed |
| Cardboard placed under the fridge while moving it | Floor protection | Remove after moving |
| A thin sheet near the compressor area | Airflow or component shield | Leave it installed |
Why it matters
That bottom/rear cover helps protect electrical and refrigeration components and supports proper airflow across the condenser area. Removing it can lead to overheating, poor cooling performance, and more dust buildup around the condenser.
When you would access the bottom area
We only remove lower panels when troubleshooting or servicing components such as the condenser fan motor, compressor, or wiring.
- Unplug the refrigerator before servicing
- Pull the refrigerator straight out to avoid floor damage
- Use cardboard or hardboard under the unit while moving it
Last updated: February 2026
What is the lifetime of a Whirlpool refrigerator?
Most Whirlpool refrigerators, including the Whirlpool GB2FHDXWB02 bottom-mount style, typically last 12 to 15 years with normal household use and basic maintenance. Keeping airflow clear, doors sealing tightly, and temperatures set correctly helps you reach that expected lifespan.
Typical lifespan and what affects it
A refrigerator’s life depends more on operating conditions than brand alone. The biggest factors are heat, airflow, and how hard the sealed system has to work.
- Dirty condenser coils or blocked airflow around the cabinet
- Door gasket leaks that let warm air and moisture in
- Frequent door openings or overpacked shelves blocking vents
- Ice buildup from defrost problems
- Power issues (outlet, breaker trips) that stress electronics
Quick maintenance that helps it last longer
These steps reduce compressor run time and prevent common failures.
- Vacuum condenser coils and the condenser fan area regularly
- Confirm the doors close easily and the gasket seals all the way around
- Keep interior vents clear so cold air can circulate
- Set temperatures to typical targets: 37°F fresh food and 0°F freezer
- Address unusual noises early (fan rubbing, clicking, buzzing)
Common “wear” parts vs. major repairs
Some parts are normal replacements over time; others usually indicate a higher-cost repair.
| Category | Examples | What it usually means |
|---|---|---|
| Routine wear items | Door gaskets, switches, ice maker components | Normal aging and use |
| Cooling airflow parts | Evaporator fan motor, condenser fan motor | Poor cooling, warm spots, noise |
| Major cooling system | Compressor, sealed system components | Bigger repair decision |
If you’re troubleshooting cooling or airflow symptoms on this model, the owner's manual troubleshooting section is the best starting point.
Why it matters
A refrigerator that is running longer than normal to hold temperature uses more energy and puts extra load on the compressor and control board. Fixing airflow, sealing, and defrost issues early often extends the service life.
Last updated: February 2026
Does the Whirlpool GB2FHDXWB02 have a water filter?
Yes. The Whirlpool GB2FHDXWB02 bottom-mount refrigerator uses a replaceable water filter for the water dispenser and ice maker; the filter is in the upper right-hand corner of the top refrigerator (fresh food) compartment behind the filter cover.
Where the water filter is located
On this bottom-mount design, the refrigerator compartment is the upper section (above the freezer drawer). The filter housing is inside that upper compartment.
- Open the upper refrigerator door(s)
- Look in the upper right interior corner
- Find the filter cover and filter head assembly
- The filter turns to lock and unlock
- A blue bypass cap can be used if you run without a filter
For the exact illustrations for your unit, use the GB2FHDXWB02 owner's manual.
Replacement and maintenance basics
The disposable water filter should be replaced at least every 6 months; replace sooner if water flow drops at the dispenser or ice production slows.
- Replace every 6 months
- Replace sooner if flow decreases noticeably
- Dispense water for at least 2 minutes before removing the filter (helps relieve pressure)
- After installing a new filter, run water to clear air from the system
Quick timing guide
| Situation | What it means | Action |
|---|---|---|
| 6 months of use | Normal service interval | Replace the filter |
| Slow dispensing or small/hollow cubes | Restricted filter or low flow | Replace the filter sooner |
| Using dispenser with no filter | Water is unfiltered | Install the bypass cap |
Why it matters
A clogged filter restricts water flow, which commonly shows up as weak water dispensing, slow ice maker fill, or poor cube quality. Keeping the filter current helps maintain normal water pressure and taste.
For prevention tips that apply to this Whirlpool refrigerator, see how to prevent water dispenser and ice maker problems.
Last updated: February 2026
