For a Craftsman riding tractor like model 917276102, a full engine replacement typically runs about $800 to $2,500 installed (parts plus labor). The biggest cost drivers are the engine brand/horsepower, whether the replacement is a direct-fit, and how much shop labor is needed.

Typical cost breakdown

• Engine (new): $600 to $1,800
• Labor: $200 to $700 (often 4 to 8 labor hours)
• Shop supplies and small parts: $20 to $100 (fuel line, clamps, hardware)
• Optional add-ons: $50 to $300 (battery, belts, pulleys, tune-up parts if worn)

Scenario	What you’re paying for	Typical total
Budget repair	Used or lower-cost replacement engine, minimal extras	$500 to $1,200
Most common	New engine, standard labor, minor parts	$800 to $2,500
Higher-end	Premium engine or extra repairs discovered during swap	$1,500 to $3,500

What can raise the price on model 917276102

• Non-direct-fit engine that needs custom wiring, exhaust, or throttle/choke linkage changes
• Worn deck or drive components found during service (belts, idlers, pulleys)
• Electrical issues such as damaged harness connectors or safety switch problems
• Fuel system contamination (old fuel, clogged lines, dirty tank)
• Mounting or crankshaft differences that require additional parts or labor

Before you replace the engine, check these items

Sometimes a “dead engine” is a no-start caused by a simpler part.

• Verify the battery and cables are clean and tight
• Confirm fresh fuel and an open fuel shutoff (if equipped)
• Check the PTO switch and safety interlocks; a faulty switch can prevent starting
• Inspect for spark and a clean air filter

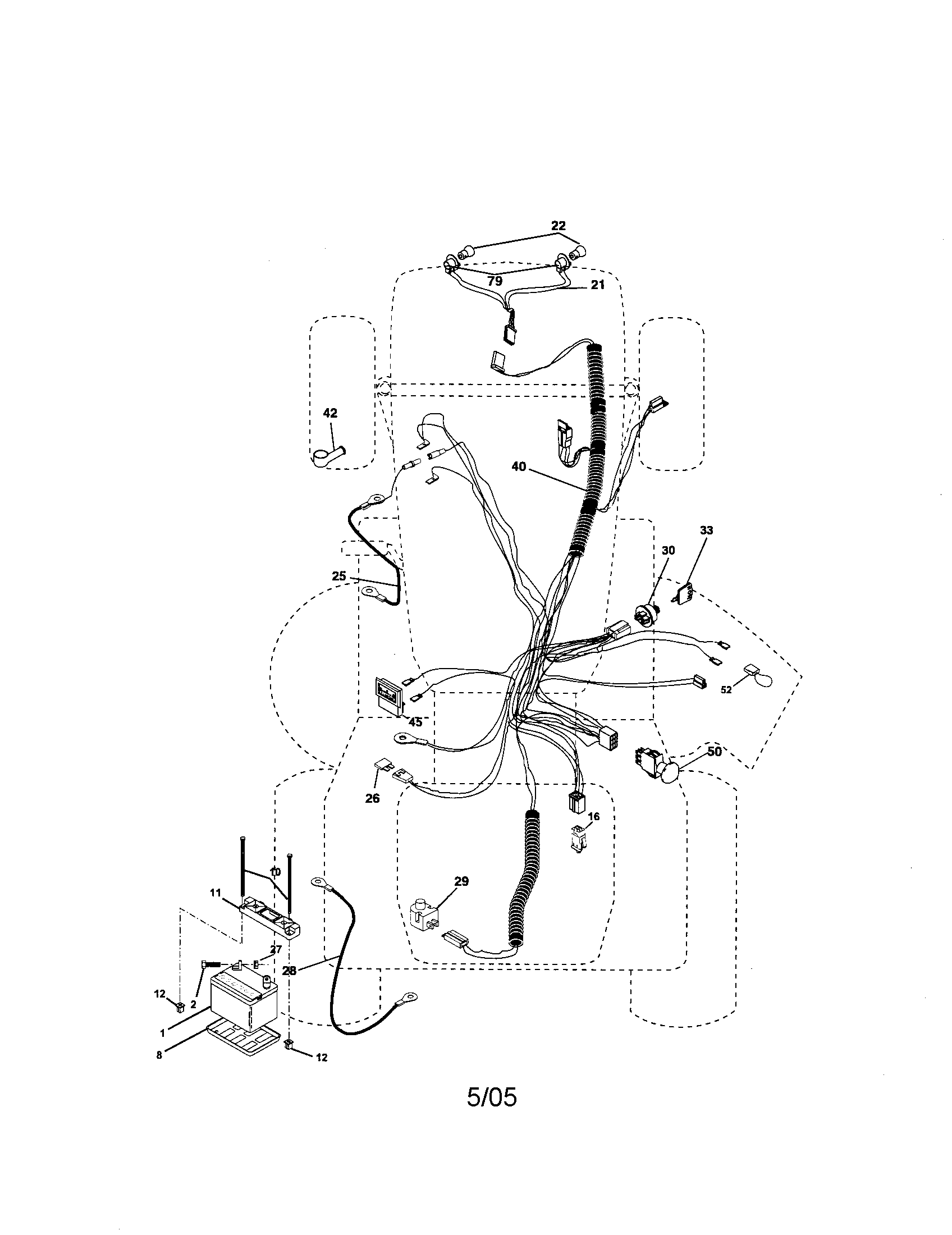

• Review the starting and safety circuit diagrams in the 917276102 owner’s manual

If your PTO engagement or safety circuit is acting up, the switch.pto 582107601 is a common related part to inspect on this tractor.

Why it matters

Engine replacement is one of the highest-cost repairs on a riding mower. A quick diagnosis first helps you avoid paying for an engine when the real issue is a switch, wiring, fuel delivery, or a worn drive component.

Last updated: January 2026

Yes, it’s usually worth repairing the engine on your Craftsman garden tractor model 917276102 when the problem is a maintenance item or a small external part; it’s usually not worth it when the repair is a major internal engine failure or the total cost approaches about half the price of a comparable replacement mower.

Quick decision checklist

• Start with basic maintenance: fresh fuel, clean air filter, good spark plug, clean battery terminals
• If it won’t crank, check the safety interlock switches and wiring before assuming the engine is bad
• If it cranks but won’t start, focus on fuel delivery (stale gas, clogged carburetor jets) and ignition
• If it starts but runs poorly, look for fuel restriction, vacuum leaks, or a dirty cooling system
• If it smokes heavily, knocks, or has low compression, plan for major engine work or replacement

Cost and effort guide (typical)

Repair type	What it usually involves	Typical “worth it” signal
Minor	tune-up parts, cleaning, adjustments	Low cost, fast DIY, big improvement
Medium	carburetor service, starter, charging system	Parts cost is reasonable and the tractor is otherwise solid
Major	internal engine rebuild, crankcase damage	Cost and downtime are high; replacement is usually smarter

Model-specific tips for 917276102

Use the 917276102 owner’s manual to follow the correct troubleshooting order and safety steps. On riding mowers, “engine problems” are often caused by PTO and seat/brake safety circuits, a weak battery, or a worn deck drive component that overloads the engine.

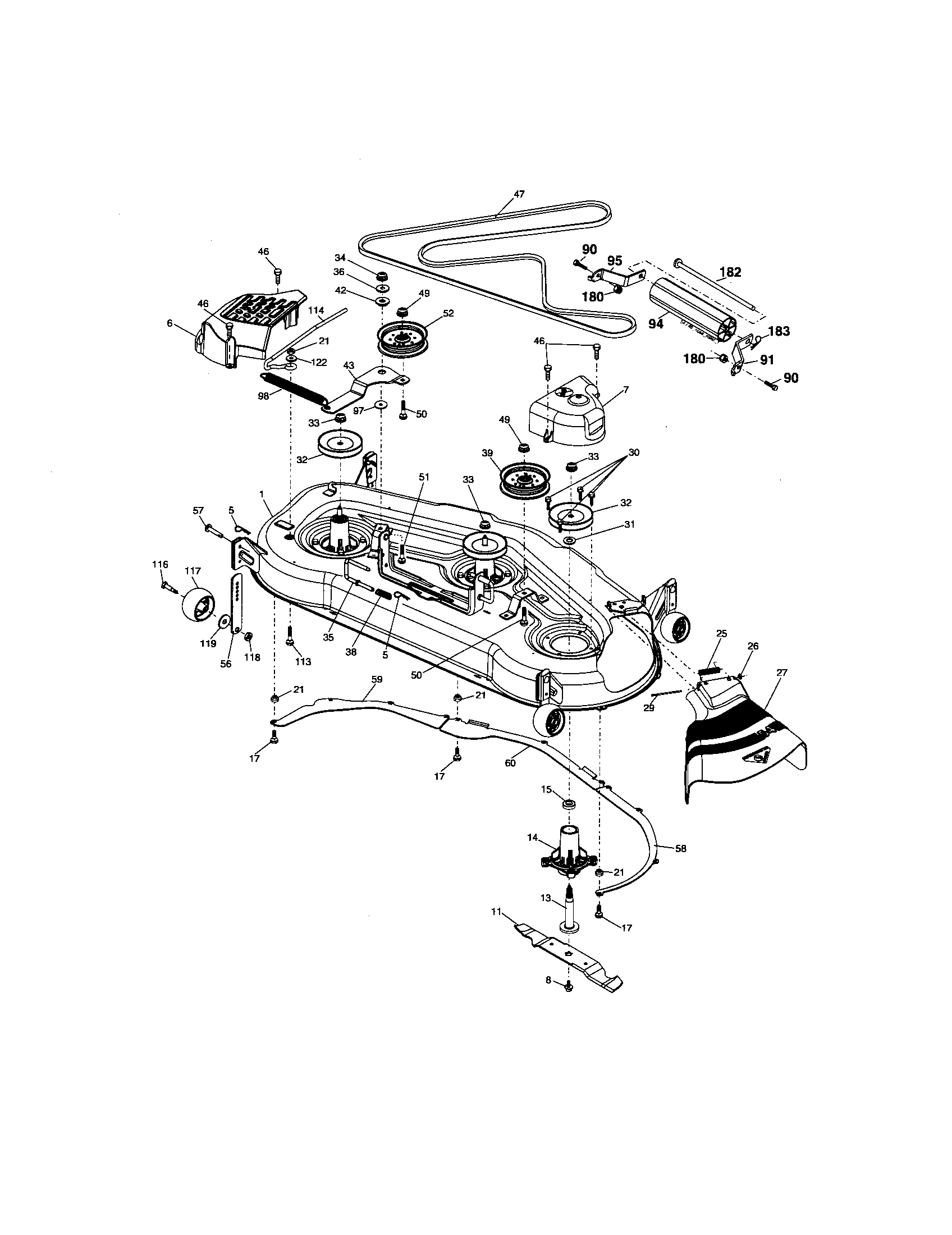

If the engine bogs or stalls only when you engage the blades, inspect the deck drive system; a worn belt or binding pulley can make the engine seem weak. For example, a damaged or stretched lawn tractor blade drive belt 584451901 can slip, overheat, and load the system unevenly.

Why it matters

A correct diagnosis prevents spending money on an engine when the real issue is fuel, ignition, safety interlocks, or deck drag. Fixing the root cause also protects the electric clutch, belts, and pulleys from repeat failures.

Last updated: January 2026

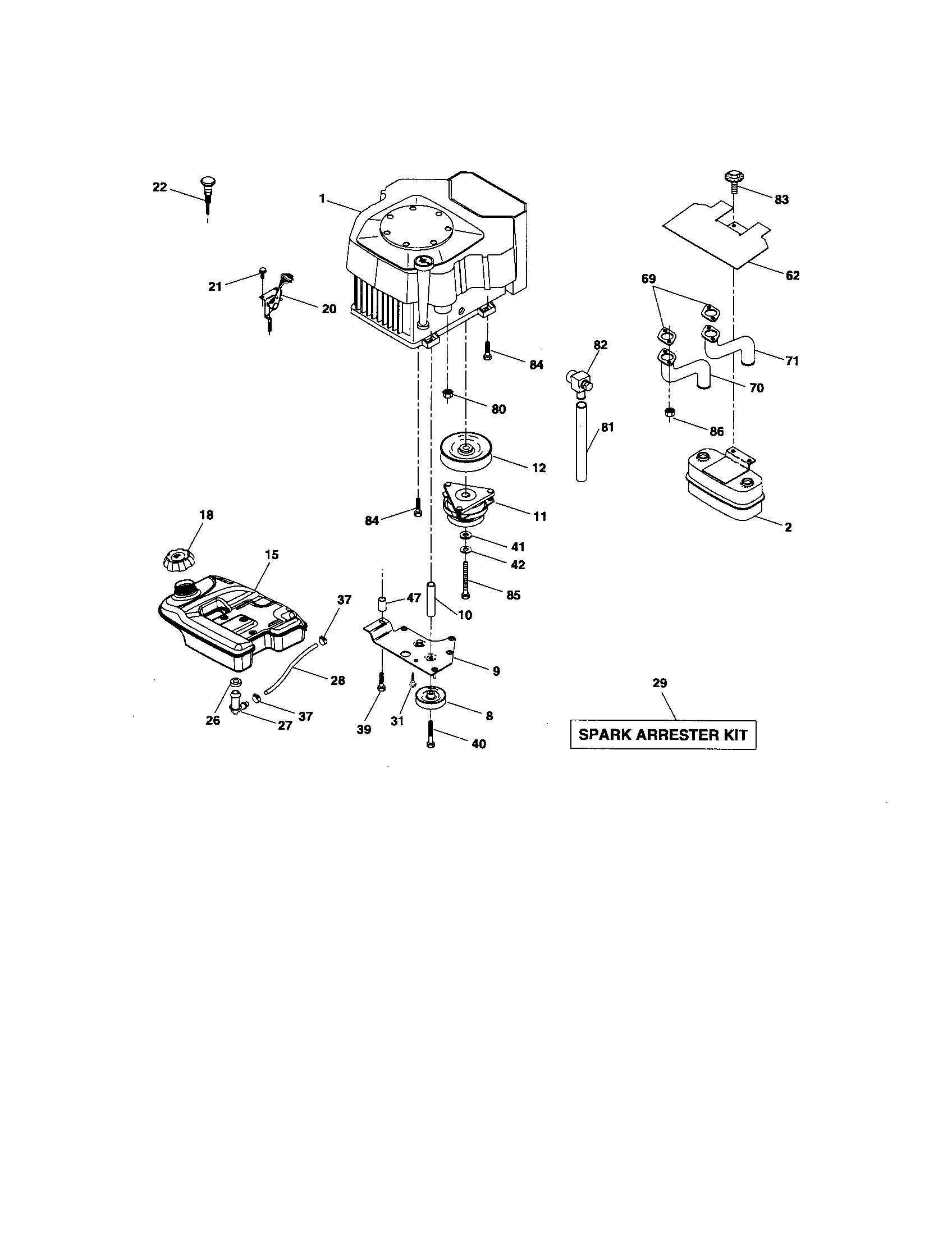

A Craftsman front-engine lawn tractor like model 917276102 uses a small gasoline engine made up of fuel, air-intake, ignition, and internal rotating parts that work together to create power. Most “engine parts” questions come down to identifying which system (fuel, spark, air, or mechanical) is causing a no-start or poor-running symptom.

Main engine systems (what each one does)

• Fuel system: stores and delivers gasoline to the engine (tank, fuel line, filter, carburetor)
• Air intake: cleans and meters air for combustion (air filter, intake tube)
• Ignition system: creates spark at the right time (ignition coil, spark plug, flywheel magnets)
• Starting system: cranks the engine (starter motor/solenoid or recoil starter, battery on riders)
• Lubrication and crankcase: holds oil and supports moving parts (crankcase, seals, gaskets)
• Internal engine assembly: converts combustion into rotation (piston, rings, connecting rod, crankshaft, camshaft, valves)
• Exhaust: routes hot gases away (muffler, exhaust tube)

Quick “what part do I check first?” guide

Symptom	Most common engine area to check	Typical first check
Won’t start	Fuel or ignition	Fresh fuel, clean air filter, spark at plug
Starts then dies	Fuel delivery	Clogged carburetor jet, restricted fuel flow
Runs rough/surges	Fuel/air mix	Dirty carburetor, air leak, dirty filter
Low power	Air, fuel, or compression	Air filter, carburetor, valve/compression issues

Parts on this tractor that are often confused with “engine parts”

On riding mowers, customers often mean deck-drive or PTO components. These are not inside the engine, but they affect blade engagement and load on the engine.

• Switch.pto 582107601 (engages the electric PTO circuit)
• Lawn tractor electric clutch 532414737 (drives the mower deck when PTO is on)
• Lawn tractor blade drive belt 584451901 (transfers power to the deck pulleys)

Why it matters

Knowing the system helps you troubleshoot faster: fuel and air issues usually cause hard starting and surging, while ignition issues cause no-spark and sudden shutdowns. Mechanical wear shows up as low compression, smoke, or persistent power loss.

For model-specific diagrams and part identification, use the 917276102 manual.

Last updated: January 2026

Craftsman riding mower model 917276102 uses a gasoline engine; the exact engine brand and model are identified by the engine’s own ID label (not the tractor model number). Use the engine model and code from that label to match tune-up parts and engine-specific diagrams in the 917276102 owner's manual.

How to find the engine model on a 917276102

Look for an engine identification sticker or metal tag on the engine itself. Common locations include:

• On the blower housing (top or side shroud)
• Near the valve cover area
• Near the starter motor
• Under or beside the air filter housing
• On the engine block near the muffler heat shield

What to write down (and why)

Record the full information exactly as shown; it is what engine parts suppliers use.

• Engine model
• Engine type/spec (if listed)
• Engine code/serial
• Any family or displacement marking

Quick label guide

Label format you see	What it tells you	Best use
Model / Type / Code	Full engine identity	Correct spark plug, air filter, carb parts
Model / Spec / Serial	Full engine identity	Correct tune-up and gasket parts
Only HP shown	Not enough to identify	Keep looking for the full ID tag

Why it matters

The tractor model 917276102 is used to match chassis and deck parts (belts, mandrels, steering). The engine ID is used to match engine maintenance parts and troubleshoot starting, surging, or stalling.

If your issue is blade engagement (blades will not turn), check the PTO control circuit and switch; a failed switch.pto 582107601 can prevent the electric clutch from engaging.

Last updated: January 2026
