How much does it cost to replace a riding lawn mower engine?
For a Craftsman riding tractor like model 917276102, a full engine replacement typically runs about $800 to $2,500 installed (parts plus labor). The biggest cost drivers are the engine brand/horsepower, whether the replacement is a direct-fit, and how much shop labor is needed.
- Engine (new): $600 to $1,800
- Labor: $200 to $700 (often 4 to 8 labor hours)
- Shop supplies and small parts: $20 to $100 (fuel line, clamps, hardware)
- Optional add-ons: $50 to $300 (battery, belts, pulleys, tune-up parts if worn)
| Scenario | What you’re paying for | Typical total |
|---|---|---|
| Budget repair | Used or lower-cost replacement engine, minimal extras | $500 to $1,200 |
| Most common | New engine, standard labor, minor parts | $800 to $2,500 |
| Higher-end | Premium engine or extra repairs discovered during swap | $1,500 to $3,500 |
- Non-direct-fit engine that needs custom wiring, exhaust, or throttle/choke linkage changes
- Worn deck or drive components found during service (belts, idlers, pulleys)
- Electrical issues such as damaged harness connectors or safety switch problems
- Fuel system contamination (old fuel, clogged lines, dirty tank)
- Mounting or crankshaft differences that require additional parts or labor
Sometimes a “dead engine” is a no-start caused by a simpler part.
- Verify the battery and cables are clean and tight
- Confirm fresh fuel and an open fuel shutoff (if equipped)
- Check the PTO switch and safety interlocks; a faulty switch can prevent starting
- Inspect for spark and a clean air filter

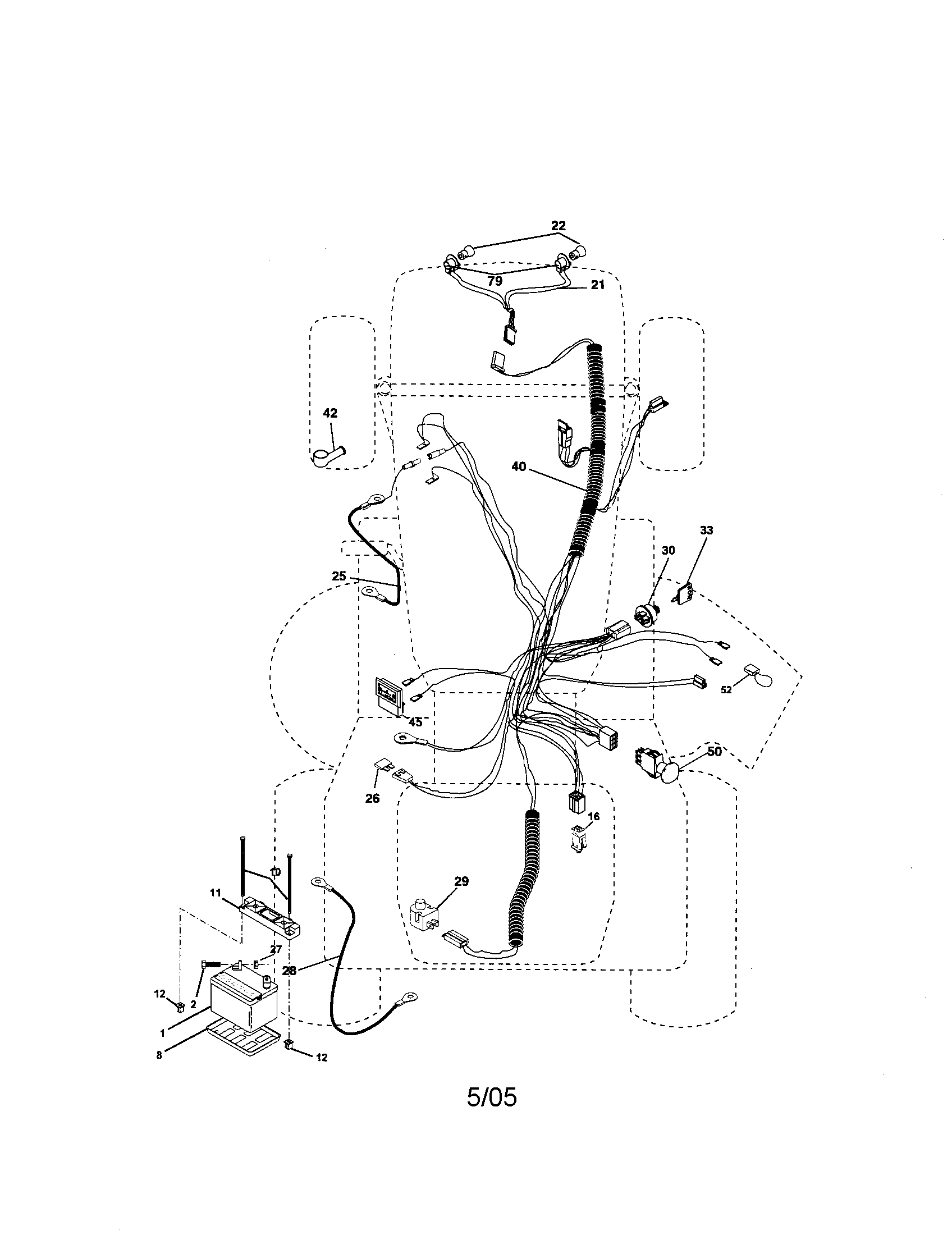

- Review the starting and safety circuit diagrams in the 917276102 owner’s manual
If your PTO engagement or safety circuit is acting up, the switch.pto 582107601 is a common related part to inspect on this tractor.
Engine replacement is one of the highest-cost repairs on a riding mower. A quick diagnosis first helps you avoid paying for an engine when the real issue is a switch, wiring, fuel delivery, or a worn drive component.
Last updated: January 2026
Is it worth repairing a lawn mower engine?
Yes, it’s usually worth repairing the engine on your Craftsman garden tractor model 917276102 when the problem is a maintenance item or a small external part; it’s usually not worth it when the repair is a major internal engine failure or the total cost approaches about half the price of a comparable replacement mower.
- Start with basic maintenance: fresh fuel, clean air filter, good spark plug, clean battery terminals
- If it won’t crank, check the safety interlock switches and wiring before assuming the engine is bad
- If it cranks but won’t start, focus on fuel delivery (stale gas, clogged carburetor jets) and ignition
- If it starts but runs poorly, look for fuel restriction, vacuum leaks, or a dirty cooling system
- If it smokes heavily, knocks, or has low compression, plan for major engine work or replacement
| Repair type | What it usually involves | Typical “worth it” signal |
|---|---|---|
| Minor | tune-up parts, cleaning, adjustments | Low cost, fast DIY, big improvement |
| Medium | carburetor service, starter, charging system | Parts cost is reasonable and the tractor is otherwise solid |
| Major | internal engine rebuild, crankcase damage | Cost and downtime are high; replacement is usually smarter |
Use the 917276102 owner’s manual to follow the correct troubleshooting order and safety steps. On riding mowers, “engine problems” are often caused by PTO and seat/brake safety circuits, a weak battery, or a worn deck drive component that overloads the engine.

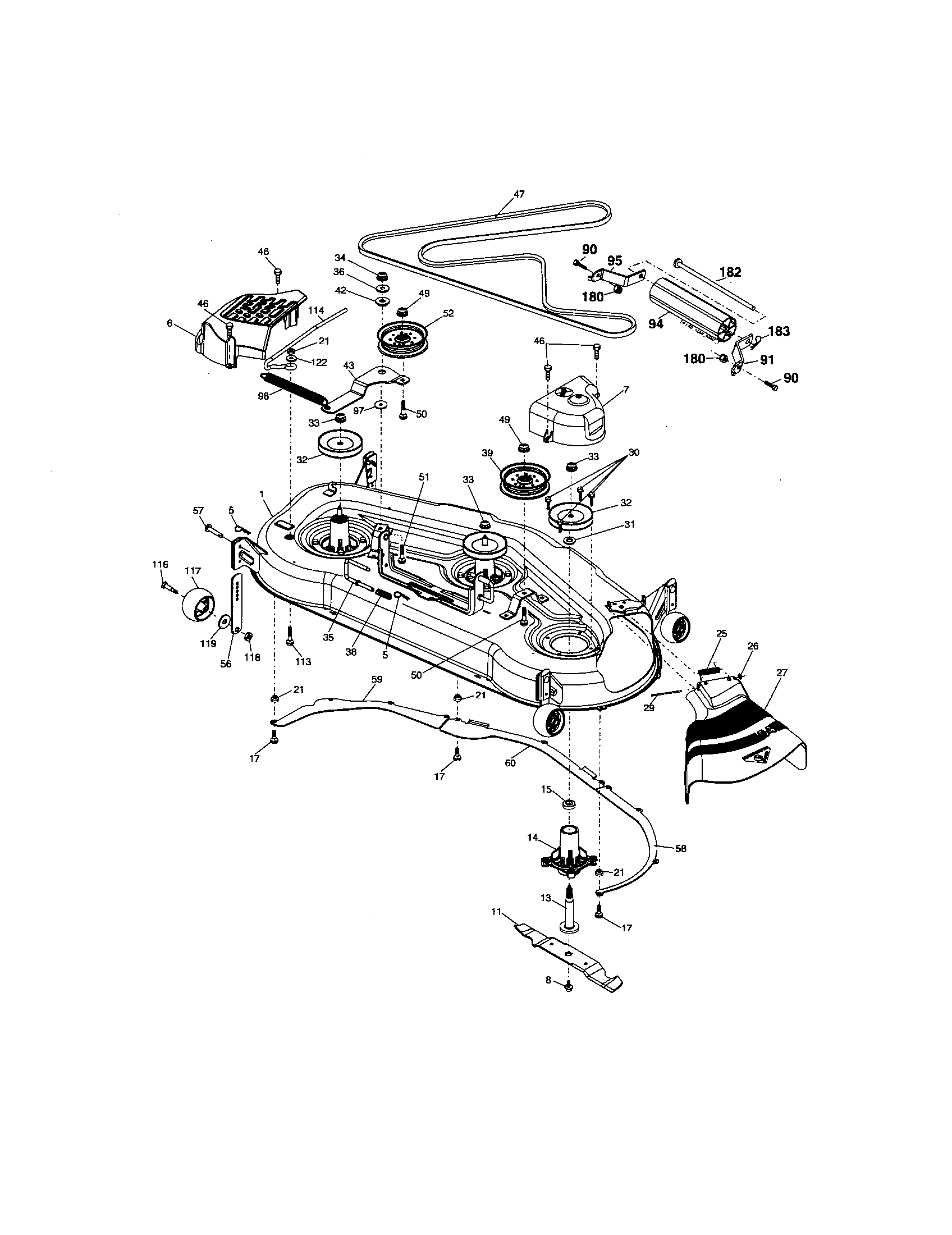

If the engine bogs or stalls only when you engage the blades, inspect the deck drive system; a worn belt or binding pulley can make the engine seem weak. For example, a damaged or stretched lawn tractor blade drive belt 584451901 can slip, overheat, and load the system unevenly.
A correct diagnosis prevents spending money on an engine when the real issue is fuel, ignition, safety interlocks, or deck drag. Fixing the root cause also protects the electric clutch, belts, and pulleys from repeat failures.
Last updated: January 2026

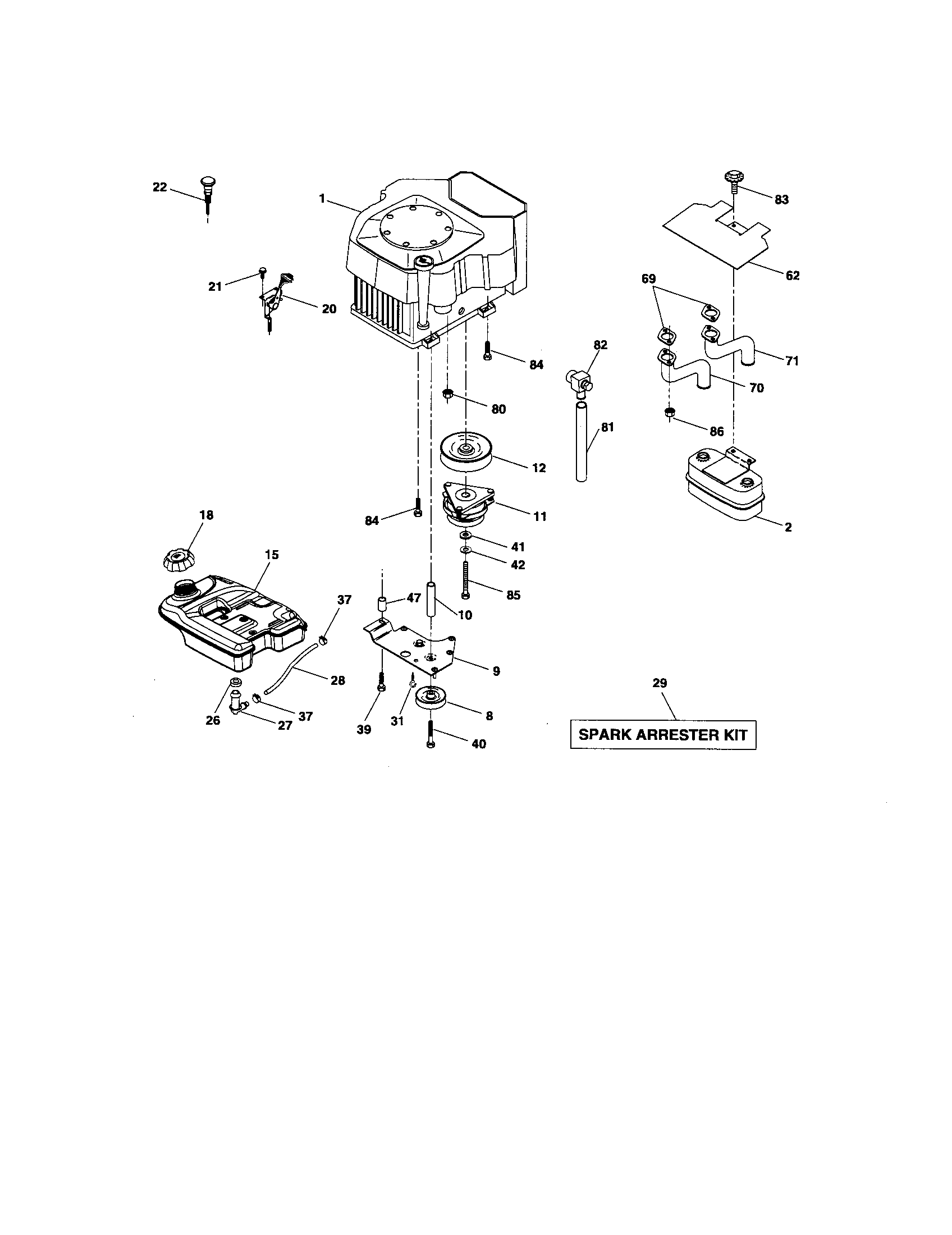

What are the parts of a lawn mower engine?
A Craftsman front-engine lawn tractor like model 917276102 uses a small gasoline engine made up of fuel, air-intake, ignition, and internal rotating parts that work together to create power. Most “engine parts” questions come down to identifying which system (fuel, spark, air, or mechanical) is causing a no-start or poor-running symptom.
- Fuel system: stores and delivers gasoline to the engine (tank, fuel line, filter, carburetor)
- Air intake: cleans and meters air for combustion (air filter, intake tube)
- Ignition system: creates spark at the right time (ignition coil, spark plug, flywheel magnets)
- Starting system: cranks the engine (starter motor/solenoid or recoil starter, battery on riders)
- Lubrication and crankcase: holds oil and supports moving parts (crankcase, seals, gaskets)
- Internal engine assembly: converts combustion into rotation (piston, rings, connecting rod, crankshaft, camshaft, valves)
- Exhaust: routes hot gases away (muffler, exhaust tube)
| Symptom | Most common engine area to check | Typical first check |
|---|---|---|
| Won’t start | Fuel or ignition | Fresh fuel, clean air filter, spark at plug |
| Starts then dies | Fuel delivery | Clogged carburetor jet, restricted fuel flow |
| Runs rough/surges | Fuel/air mix | Dirty carburetor, air leak, dirty filter |
| Low power | Air, fuel, or compression | Air filter, carburetor, valve/compression issues |
On riding mowers, customers often mean deck-drive or PTO components. These are not inside the engine, but they affect blade engagement and load on the engine.
- Switch.pto 582107601 (engages the electric PTO circuit)
- Lawn tractor electric clutch 532414737 (drives the mower deck when PTO is on)
- Lawn tractor blade drive belt 584451901 (transfers power to the deck pulleys)
Knowing the system helps you troubleshoot faster: fuel and air issues usually cause hard starting and surging, while ignition issues cause no-spark and sudden shutdowns. Mechanical wear shows up as low compression, smoke, or persistent power loss.
For model-specific diagrams and part identification, use the 917276102 manual.
Last updated: January 2026
What engine does Craftsman riding mower use?
Craftsman riding mower model 917276102 uses a gasoline engine; the exact engine brand and model are identified by the engine’s own ID label (not the tractor model number). Use the engine model and code from that label to match tune-up parts and engine-specific diagrams in the 917276102 owner's manual.
Look for an engine identification sticker or metal tag on the engine itself. Common locations include:
- On the blower housing (top or side shroud)
- Near the valve cover area
- Near the starter motor
- Under or beside the air filter housing
- On the engine block near the muffler heat shield
Record the full information exactly as shown; it is what engine parts suppliers use.
- Engine model
- Engine type/spec (if listed)
- Engine code/serial
- Any family or displacement marking
| Label format you see | What it tells you | Best use |
|---|---|---|
| Model / Type / Code | Full engine identity | Correct spark plug, air filter, carb parts |
| Model / Spec / Serial | Full engine identity | Correct tune-up and gasket parts |
| Only HP shown | Not enough to identify | Keep looking for the full ID tag |
The tractor model 917276102 is used to match chassis and deck parts (belts, mandrels, steering). The engine ID is used to match engine maintenance parts and troubleshoot starting, surging, or stalling.
If your issue is blade engagement (blades will not turn), check the PTO control circuit and switch; a failed switch.pto 582107601 can prevent the electric clutch from engaging.
