Model #WF50K7500AV/A2-11 Samsung washer

Here are the diagrams and repair parts for Samsung WF50K7500AV-A2-11 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

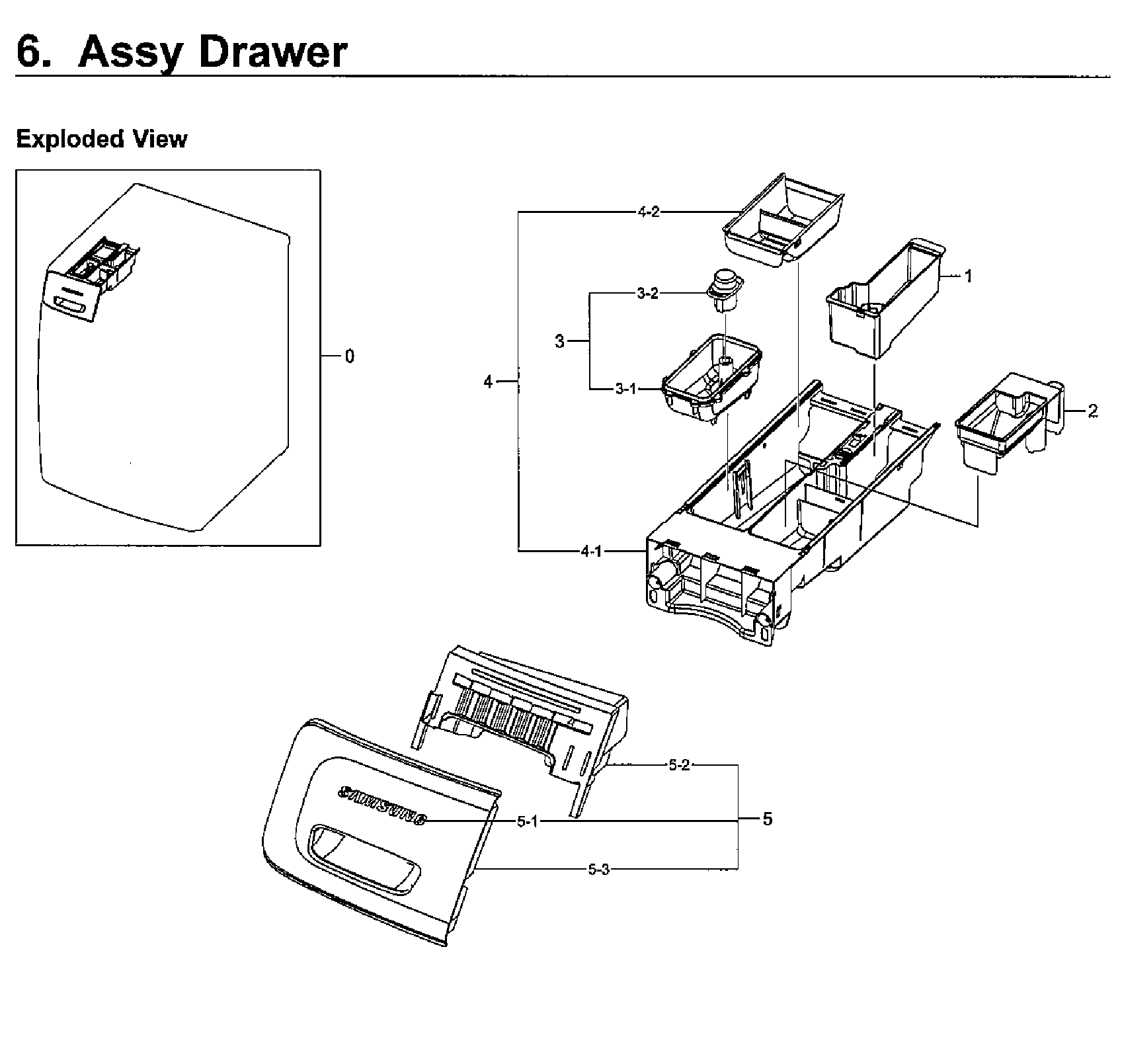

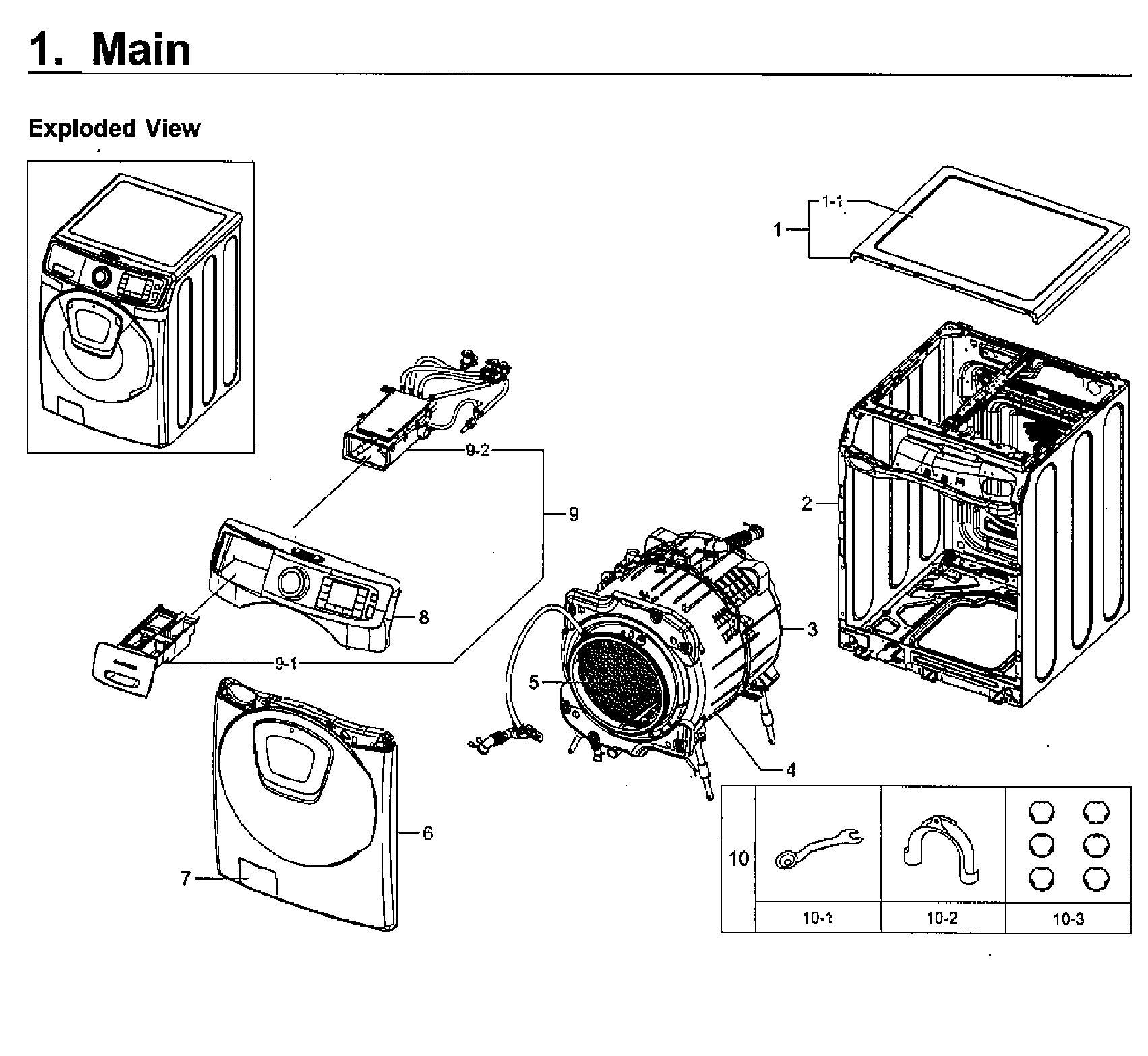

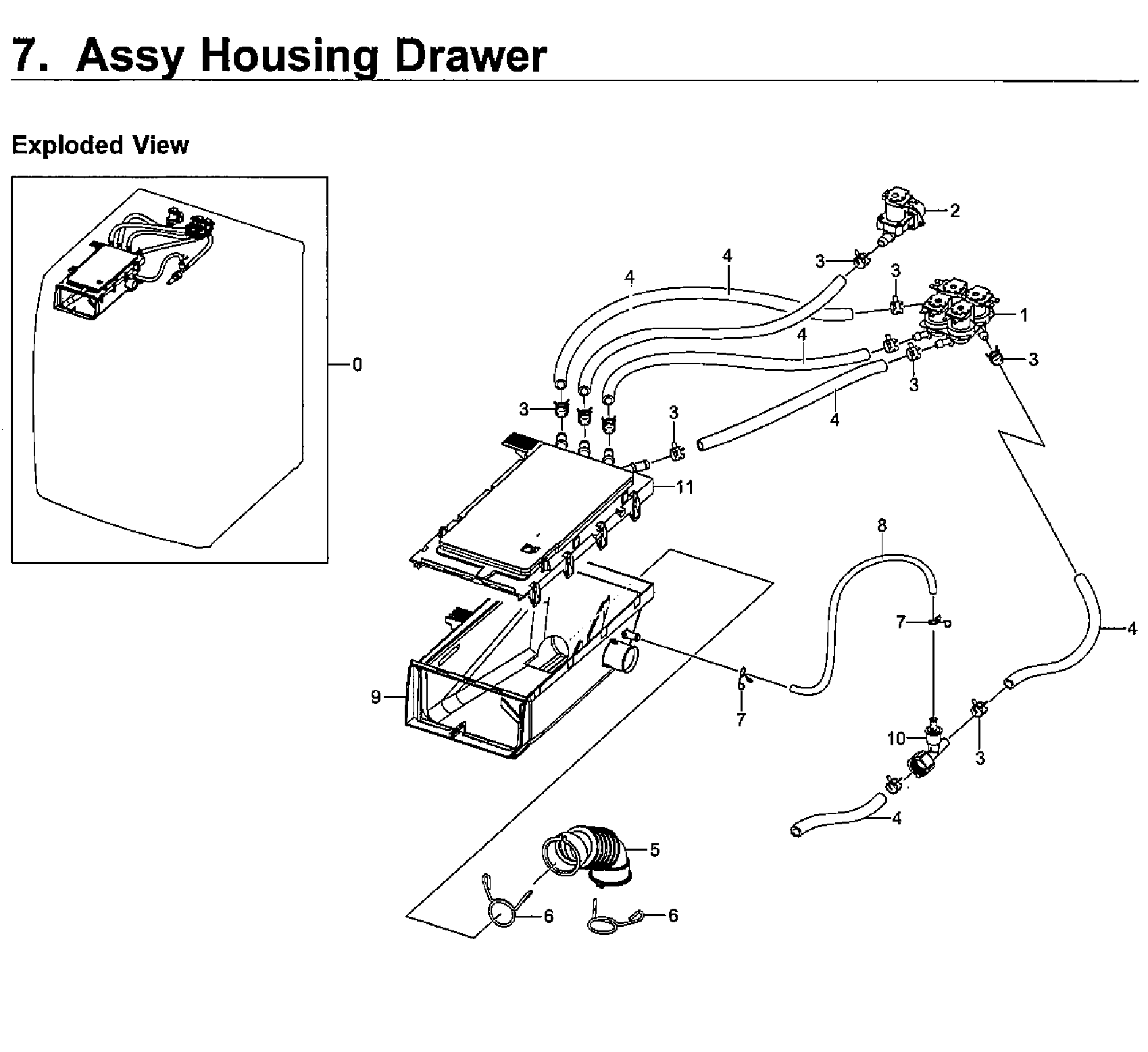

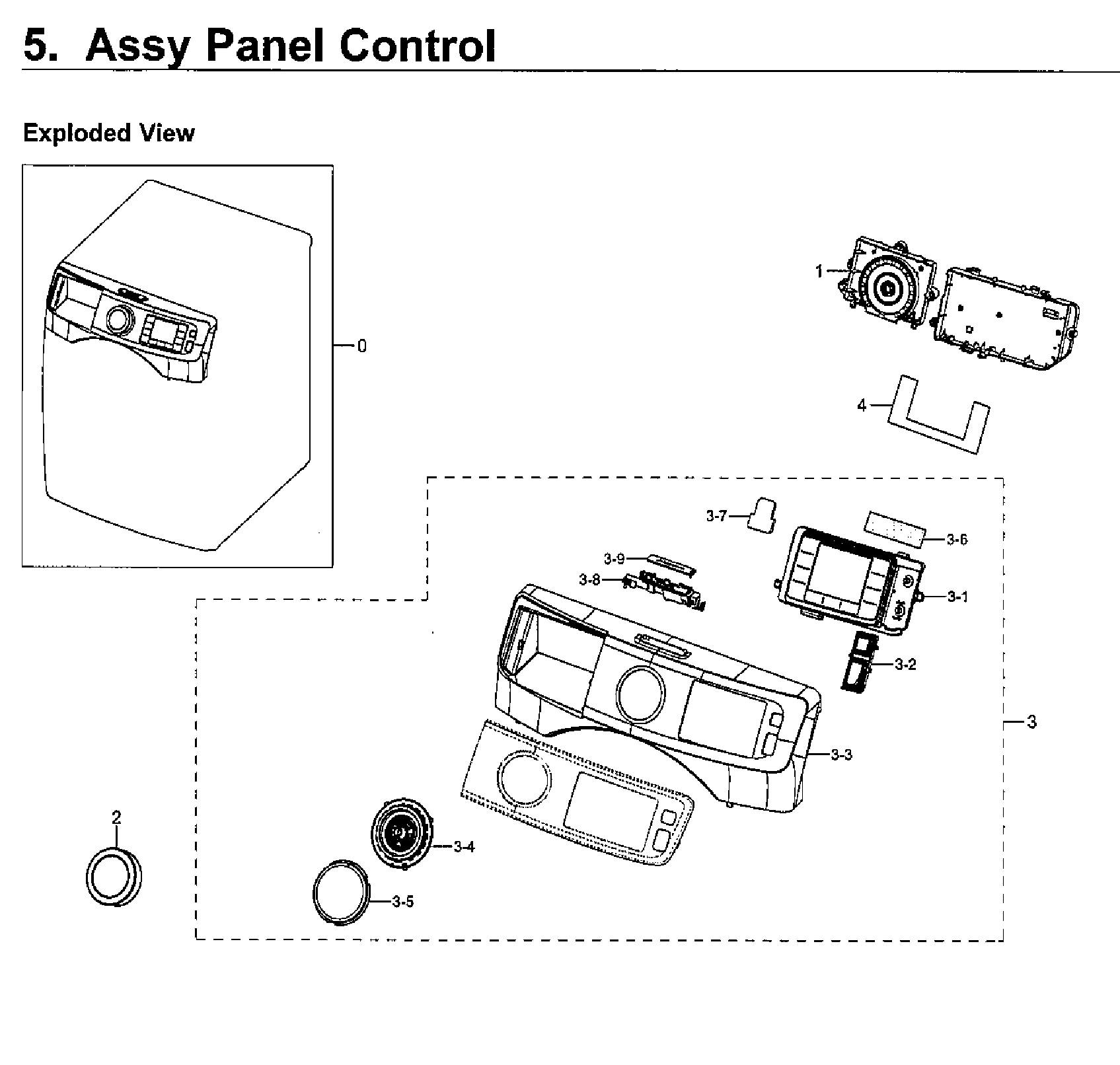

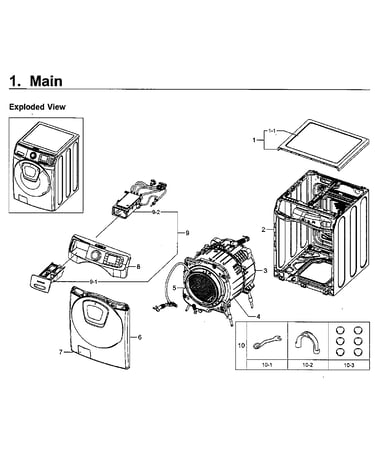

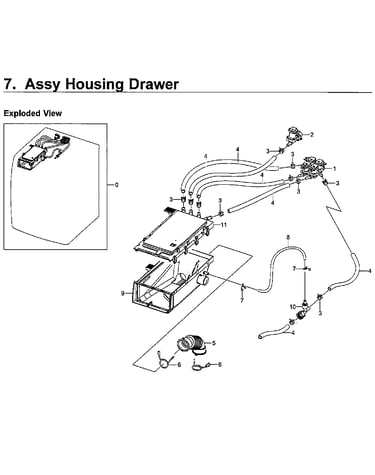

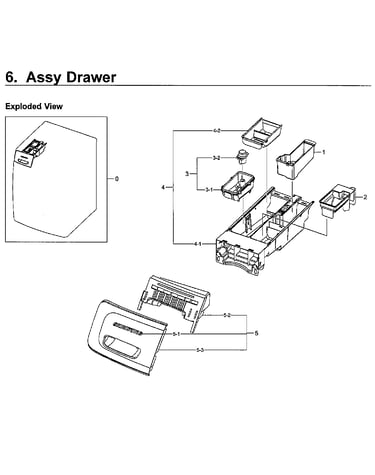

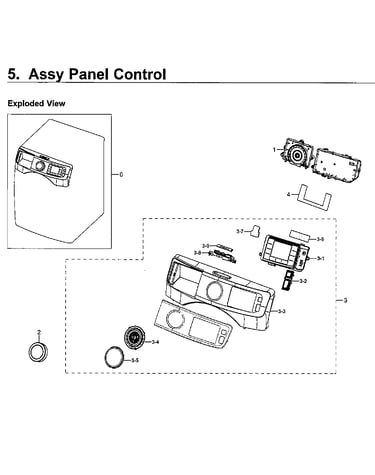

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 194 parts

    Washer Door Boot Spring Clamp

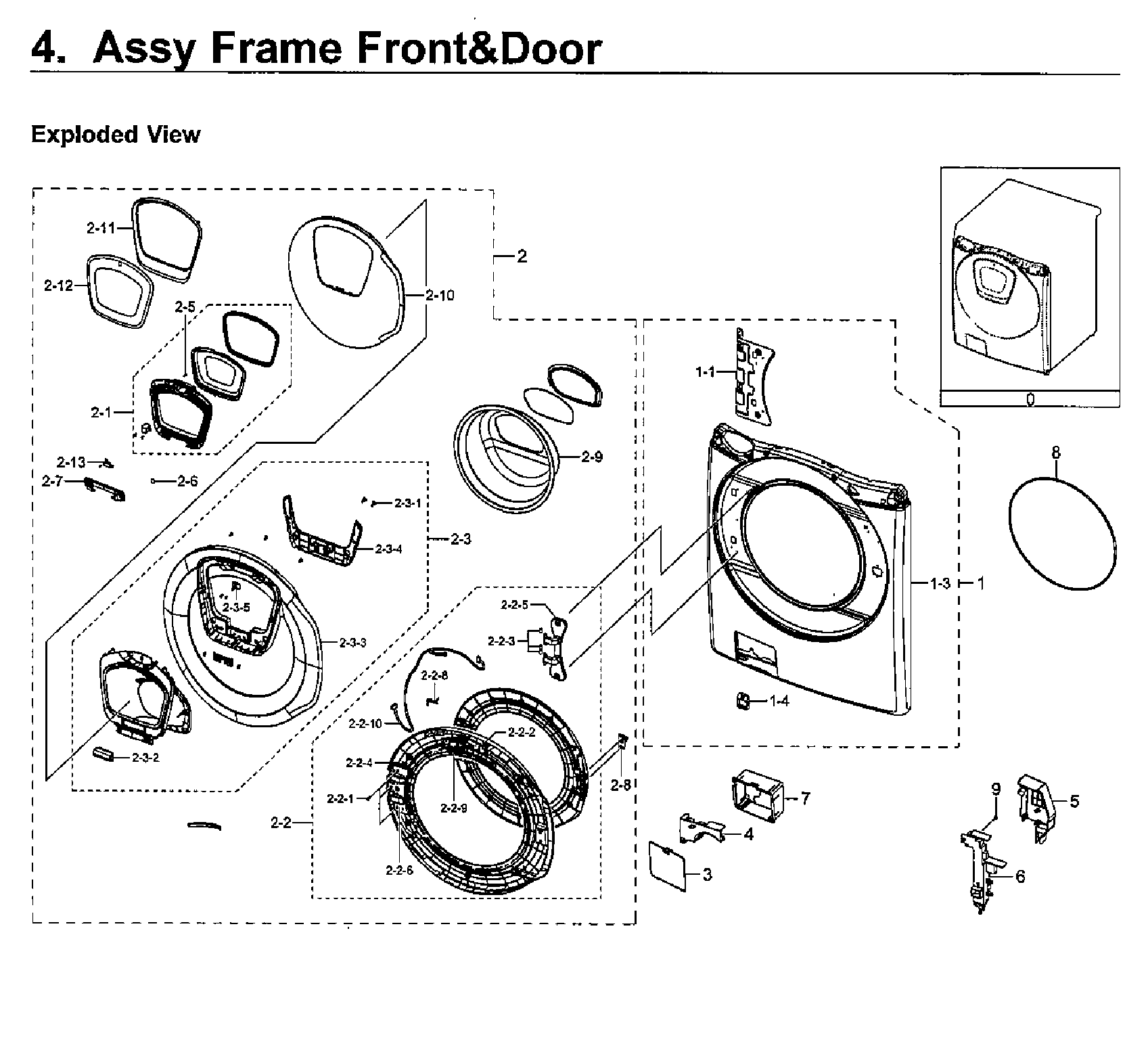

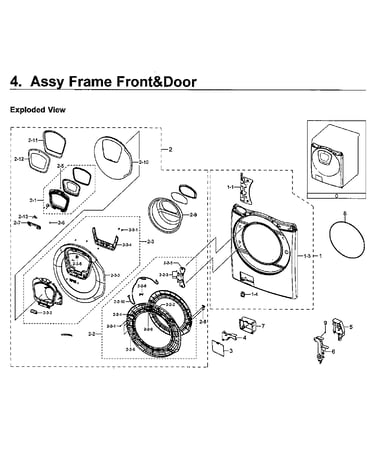

    Frame front & door Diagram


    In Stock

    Washer Bolt

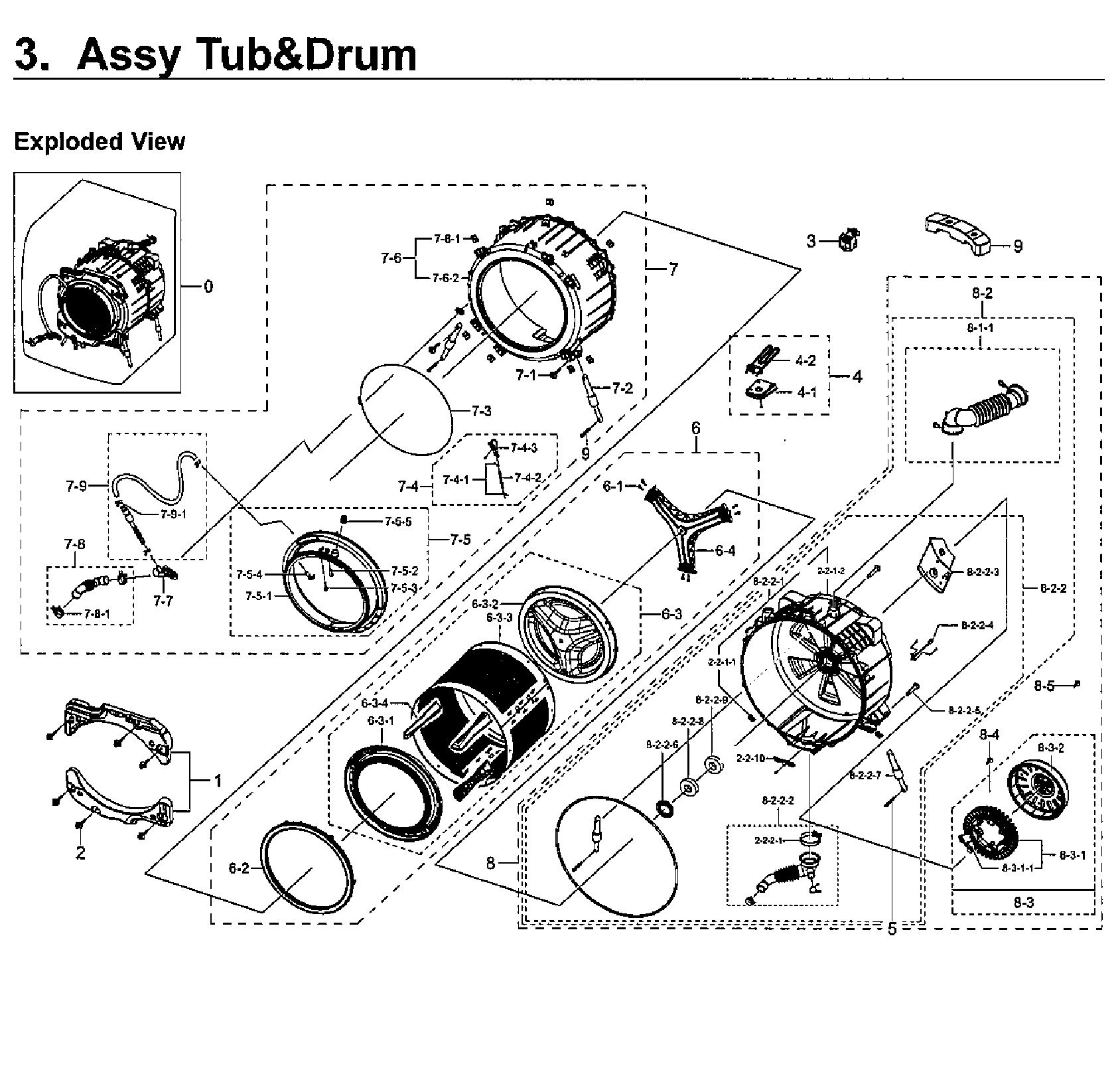

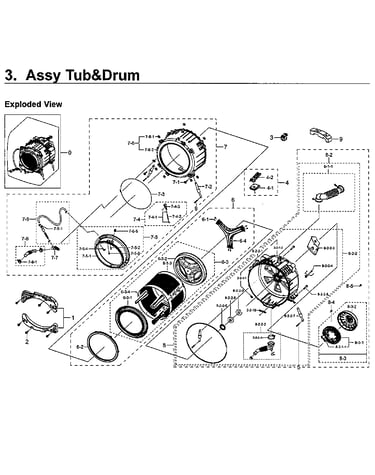

    Tub & drum Diagram

    Washer bolt

    Part #DC60-40137A
    This item is not returnable

    In Stock

    Washer Shock Absorber


    Tub & drum Diagram

    Washer shock absorber

    Part #DC66-00470B

    In Stock

    Washer Shipping Bolt

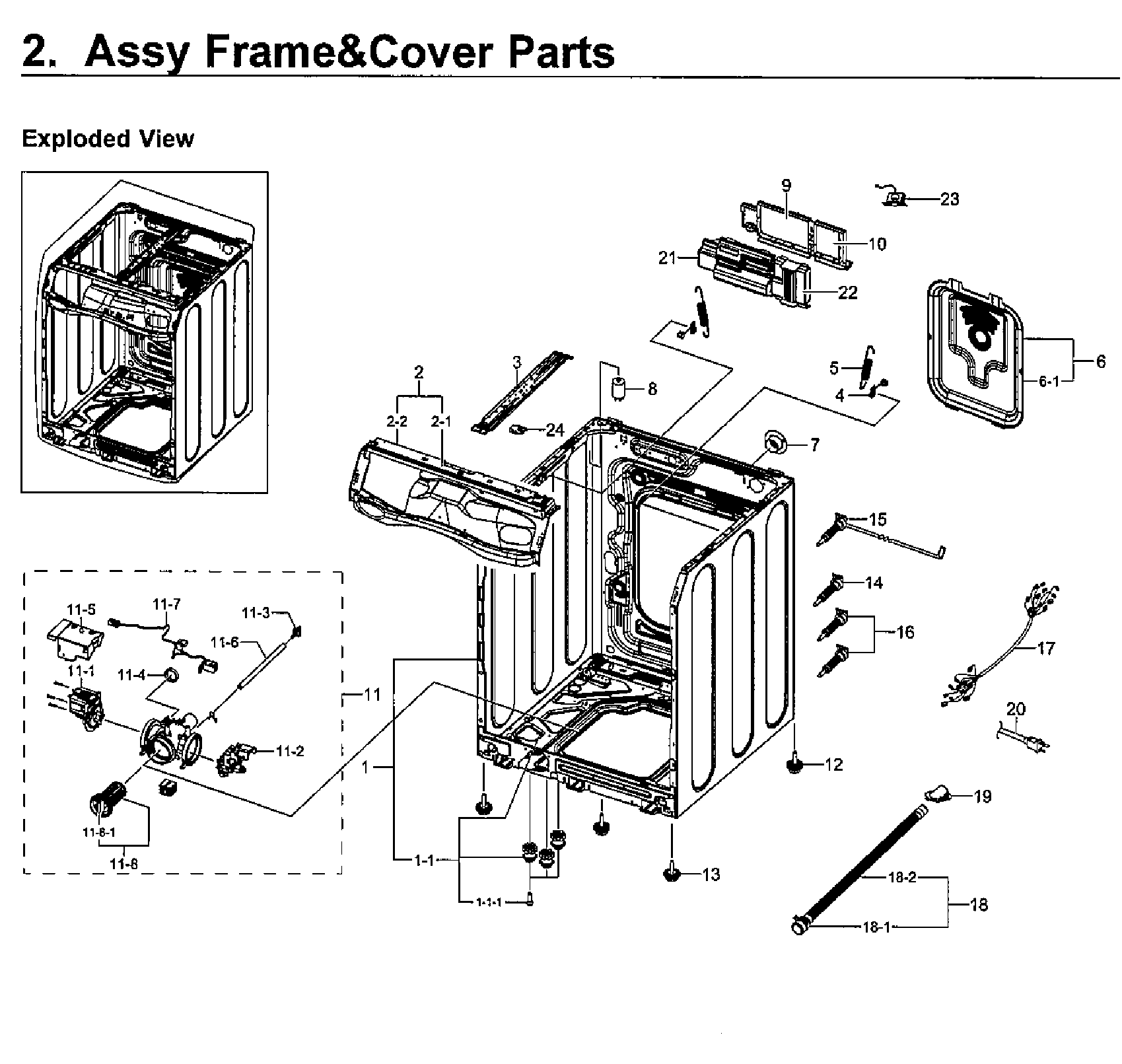

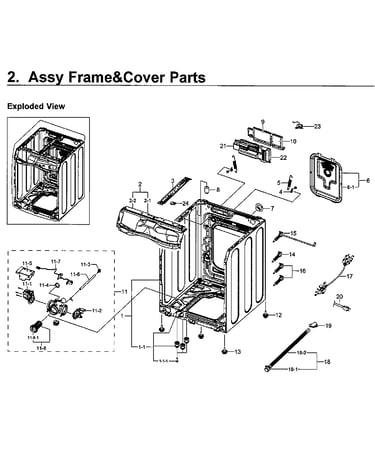

    Frame & cover parts Diagram

    Washer shipping bolt

    Part #DC97-14489A

    In Stock

    Washer Inverter Control Board


    Frame & cover parts Diagram


    In Stock

    Washer Rear Tub Gasket


    Tub & drum Diagram

    Washer rear tub gasket

    Part #DC62-00156A

    In Stock

    Washer Water-Level Pressure Switch


    Tub & drum Diagram


    In Stock

    Washer Door Boot


    Tub & drum Diagram

    Washer door boot

    Part #DC97-16140L

    In Stock

    Washer Door Boot Spring Clamp


    Tub & drum Diagram


    In Stock

    Washer Motor Rotor Position Sensor


    Tub & drum Diagram


    In Stock

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
