Craftsman 536885472 snow thrower

Craftsman 536885472 snow thrower Parts

Here are the diagrams and repair parts for Craftsman 536885472 snow thrower, as well as links to manuals and error code tables, if available.

Error Code Icon View engine
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 536885472 Snowblowers

  • Belt  Drive for Craftsman 536885472 - Part 1733324SM

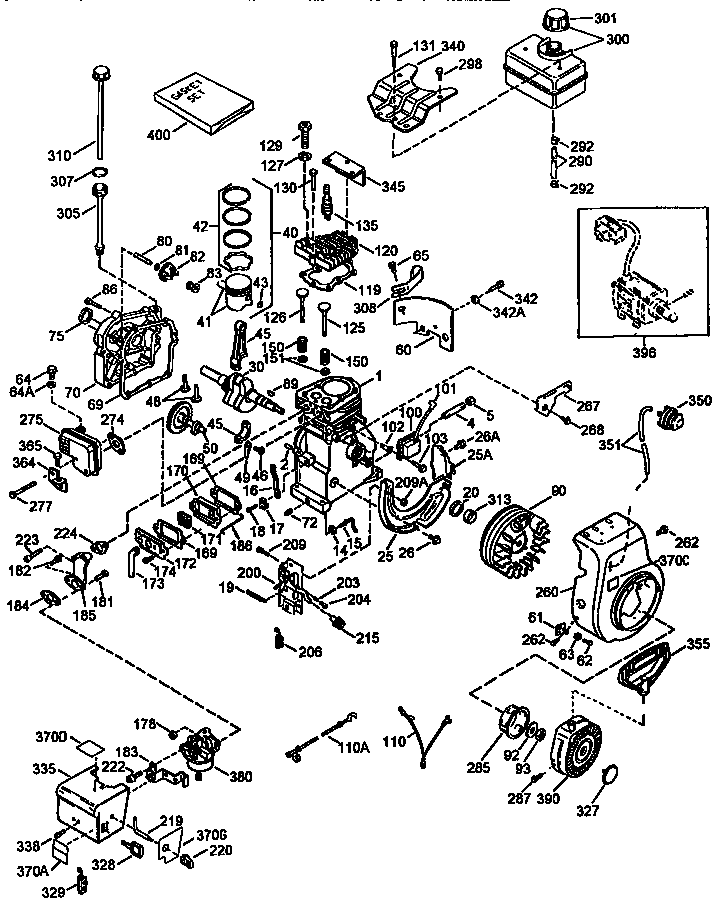

    Engine components diagram

    Snowblower Drive Belt

    Part #579932

    Replaced by #1733324SM

    Info Icon
    Manufacturer substitution
    This part replaces 579932. Substitute parts can look different from the original.
    In Stock
    $26.53
    Minus Item
    Qty
    Plus Item
  • Gear Worm for Craftsman 536885472 - Part 51405MA

    Gear box diagram

    Worm Gear

    Part #51405

    Replaced by #51405MA

    Info Icon
    Manufacturer substitution
    This part replaces 51405. Substitute parts can look different from the original.
    In Stock
    $107.42
    Minus Item
    Qty
    Plus Item
  • Ring  Retain for Craftsman 536885472 - Part 1657528SM

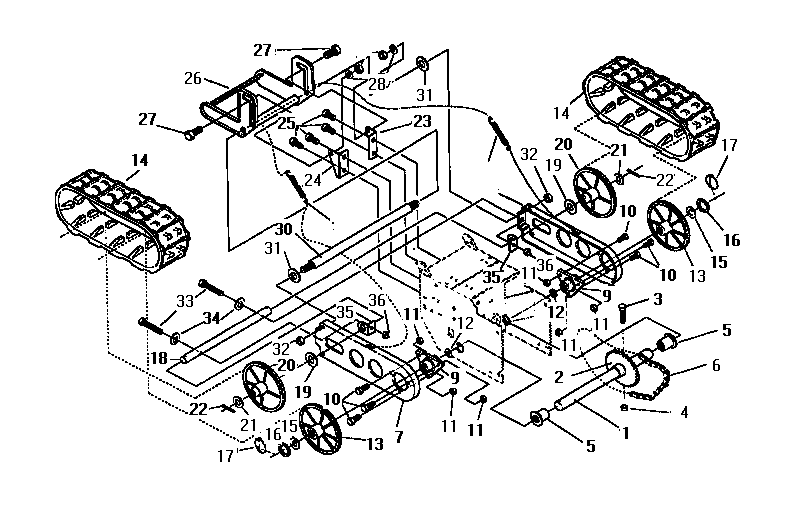

    Track assembly diagram

    Retaining Ring

    Part #239

    Replaced by #1657528SM

    Info Icon
    Manufacturer substitution
    This part replaces 239. Substitute parts can look different from the original.
    In Stock
    $8.06
    Minus Item
    Qty
    Plus Item
  • Block Univer for Craftsman 536885472 - Part 578063MA

    Chute control rod diagram

    Block

    Part #304552

    Replaced by #578063MA

    Info Icon
    Manufacturer substitution
    This part replaces 304552. Substitute parts can look different from the original.
    In Stock
    $11.00
    Minus Item
    Qty
    Plus Item
  • Spring Tensi for Craftsman 536885472 - Part 318468MA

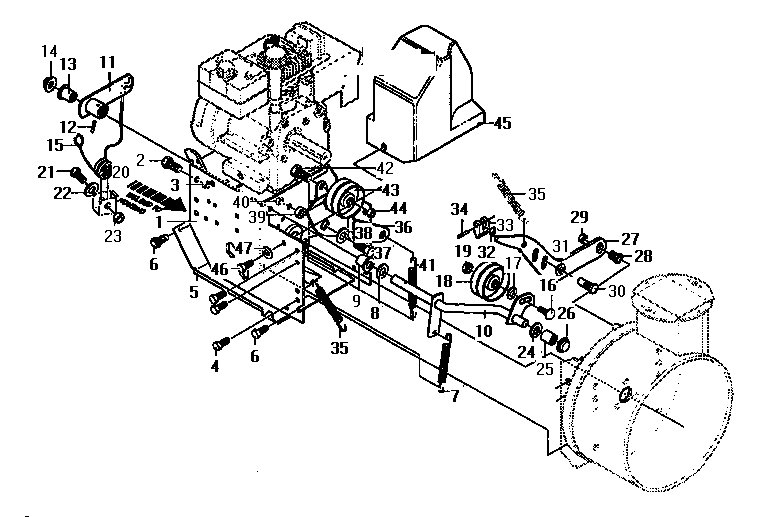

    Frame components diagram

    Spring

    Part #318468

    Replaced by #318468MA

    Info Icon
    Manufacturer substitution
    This part replaces 318468. Substitute parts can look different from the original.
    In Stock
    $16.17
    Minus Item
    Qty
    Plus Item
  • Blade, for Craftsman 536885472 - Part 1740909BMYP

    Auger housing diagram

    Blade

    Part #581397-830

    Replaced by #1740909BMYP

    Info Icon
    Manufacturer substitution
    This part replaces 581397-830. Substitute parts can look different from the original.
    In Stock
    $61.09
    Minus Item
    Qty
    Plus Item
  • Key for Craftsman 536885472 - Part 703891

    Gear box diagram

    Woodruff Key

    Part #431787

    Replaced by #703891

    Info Icon
    Manufacturer substitution
    This part replaces 431787. Substitute parts can look different from the original.
    In Stock
    $9.54
    Minus Item
    Qty
    Plus Item
  • Gasket Gear for Craftsman 536885472 - Part 51279MA

    Gear box diagram

    Gasket

    Part #51279

    Replaced by #51279MA

    Info Icon
    Manufacturer substitution
    This part replaces 51279. Substitute parts can look different from the original.
    In Stock
    $25.97
    Minus Item
    Qty
    Plus Item
  • Chain Roller for Craftsman 536885472 - Part 579868MA

    Track assembly diagram

    Roller Chain

    Part #579868

    Replaced by #579868MA

    Info Icon
    Manufacturer substitution
    This part replaces 579868. Substitute parts can look different from the original.
    In Stock
    $31.80
    Minus Item
    Qty
    Plus Item
  • Washer Flat for Craftsman 536885472 - Part 712120MA

    Track assembly diagram

    Washer

    Part #73840

    Replaced by #712120MA

    Info Icon
    Manufacturer substitution
    This part replaces 73840. Substitute parts can look different from the original.
    In Stock
    $10.06
    Minus Item
    Qty
    Plus Item

Craftsman Snow Thrower 536885472 FAQs

The most common problem we see on gas snowblowers like the Craftsman 536885472 is a no-start or hard-start condition caused by old fuel and a dirty carburetor, followed closely by chute clogs and drive or auger issues from worn belts or misadjusted controls.

Most common causes (and what to check first)
  • Stale fuel: Gas older than about 30 days can cause hard starting, surging, or stalling.
  • Carburetor varnish or blockage: Often happens after storage with fuel left in the tank.
  • Spark plug problems: Fouled, worn, or incorrectly gapped plugs cause weak spark.
  • Clogged chute or packed snow: Wet snow can plug the discharge chute quickly.
  • Worn or slipping belts: The engine runs, but the unit will not drive or the auger will not spin.
Quick symptom-to-cause guide
Symptom Most likely cause Common fix
Won’t start Old fuel, carburetor deposits Drain fuel, clean carburetor, refill with fresh gas
Starts then dies Restricted fuel flow, dirty carburetor Clean carburetor, check fuel line and tank vent
Auger won’t turn Slipping/broken auger belt Inspect and replace the auger belt 37X120MA
Wheels won’t drive Slipping/broken drive belt Inspect and replace the snowblower drive belt 1733324SM
Poor throwing distance Chute clog, impeller packed Clear chute, inspect impeller area
Why it matters

Most “snowblower problems” are maintenance-related, not major failures. Fixing fuel quality, ignition, and belt condition early prevents repeated no-starts, weak snow throwing, and premature wear on pulleys, bearings, and the drive system.

Helpful DIY video

If the auger or drive is slipping, we use this walkthrough as a reliable process reference: how to replace a snowblower belt video.

Last updated: January 2026

On Craftsman snow thrower model 536885472, the easiest way to “read” the serial number is to first find the product identification label, then copy the serial exactly as printed (including any letters). That serial identifies the specific production unit, while the model number identifies the design.

Where to find the identification label

Most Craftsman snowblowers place the product identification label on the machine frame near the rear axle area.

  • Look at the back side of the metal base between the left and right rear wheels
  • Check the rear frame near the wheel/axle area
  • Wipe off snow, salt, and grime so every character is visible
  • Use a flashlight; stamped or small print can be hard to see
  • Take a photo, then zoom in to confirm each character
How to read and record the serial number correctly

Serial numbers are typically a mix of letters and numbers. Record it exactly as shown.

  • Copy characters in order, left to right
  • Watch for look-alikes: 0 vs O, 1 vs I, 5 vs S, 8 vs B
  • Include any prefix letters and dashes if shown
  • If the label is damaged, try photographing at an angle to reveal faint print
Model number vs serial number (quick guide)
Item What it tells you Example for this unit
Model number Which design family of snowblower you have 536885472
Serial number Which exact unit you have (production identifier) Printed on the label
Why it matters

We use the model number to match diagrams and common replacement parts, and the serial number to help narrow down production variations when they exist. If you are troubleshooting drive issues, matching the correct belt is especially important, such as the snowblower drive belt 1733324SM.

Last updated: January 2026

For a Craftsman snow thrower model 536885472, it’s usually cheaper to repair when the problem is a normal wear item (belts, adjustments, basic tune-up). It’s usually smarter to replace when the repair estimate is about half the cost of a comparable new snowblower, especially if the machine has major drivetrain or engine problems.

Quick decision checklist
  • Repair if the snowblower still starts reliably and the issue is limited to drive, auger engagement, or routine maintenance.
  • Repair if the fix is a common wear part like a belt, pulley, or chute control component.
  • Replace if the engine has low compression, heavy oil burning, or repeated no-start issues after proper fuel system service.
  • Replace if the auger/drive system has multiple worn components and the machine has significant rust or structural damage.
  • Replace if you need several major parts at once (for example, impeller plus chute plus drivetrain work).
Typical repair costs vs replacement value

These are common cost patterns for gas snowblowers like the Craftsman 536885472.

Scenario Typical parts involved Usually the better value
Won’t move (drive issue) Drive belt, cable adjustment, friction drive service Repair
Auger won’t spin Auger belt, clutch adjustment Repair
Poor throwing performance Impeller wear, chute issues, shear pins, belt slip Repair first, then reassess
Major mechanical damage Gearcase/auger damage, engine internal failure Replace
Parts that often make repair affordable

If your snowblower is otherwise in good shape, these common parts can restore performance without replacing the whole unit:

Why it matters

A snowblower’s value is mostly in its engine and drivetrain. Replacing a belt or correcting an adjustment can bring the Craftsman 536885472 back to normal operation quickly, while major engine or drivetrain failures can push repair cost close to replacement cost.

A practical way to decide (fast)
  • Price a comparable new snowblower.
  • Add up parts plus labor (if you are not doing DIY).
  • If repair is under about 50% of replacement and the machine is structurally solid, repair is the better buy.

For DIY belt work, we recommend following how to replace a snowblower belt video to match routing and tensioning.

Last updated: January 2026

Most common symptoms to help you fix your snowblowers

Choose a symptom to see related snowblower repairs.

Main causes: clogged chute, damaged auger blades, broken shear pins, worn auger belt, damaged gear case, engine problems…

Things to do: replace the spark plug, change the oil, rebuild the carburetor, adjust valve lash, adjust or replace the b…

Main causes: dirty carburetor, stale fuel…

Main causes: clogged chute, snow build-up in auger housing, broken auger shear pins, auger drive belt needs adjustment, …

Main causes: broken shear pins, worn or loose auger drive belt, auger drive cable failure, damaged auger, bad gear case…

Main causes: snow build-up in chute, chute drive mechanism failure, bad chute control assembly…

Main causes: loose drive clutch cable, damaged drive clutch cable, worn friction disc, scraper blade scraping the ground…

Main causes: dirty carburetor, clogged fuel filter, dirty spark plug, incorrect valve lash, leaky engine gaskets…

Repair guides for gas snowblowers

These step-by-step repair guides will help you safely fix what’s broken on your snowblower.

How to adjust snowblower skid shoes

How to adjust snowblower skid shoes

To prevent snowblower auger and shave plate damage, adjust the skid shoes regularly to keep the shave plate ¼-inch high.…

Repair time and Difficulty

 15 minutes or less
How to rebuild a snowblower carburetor

How to rebuild a snowblower carburetor

Rebuild the carburetor on your snowblower if the engine isn't getting fuel.…

Repair time and Difficulty

 45 minutes or less
How to replace a snowblower 4-way chute control assembly

How to replace a snowblower 4-way chute control assembly

Replace the 4-way chute control assembly on your snowblower if it’s damaged.…

Repair time and Difficulty

 30 minutes or less

Effective articles & videos to help repair your snowblowers

Use the advice and tips in these articles and videos to get the most out of your snowblower.

How to find the age of your Craftsman snowblower

How to find the age of your Craftsman snowblower

If you're looking for the age of you Craftsman snowblower, our guide will help.…

How to adjust the snowblower drive control cable video

How to adjust the snowblower drive control cable video

Proper drive control cable tension is key to smooth snowblower operation, and you can learn how to test and adjust it yo…

How to lubricate a snowblower drive hex shaft video

How to lubricate a snowblower drive hex shaft video

Avoid costly snowblower repairs this season. Watch how to lubricate the drive hex shaft to prevent friction, improve tra…
