Maytag
Dishwasher

Model #MDB8959AWW2 Official Maytag undercounter dishwasher

Here are the diagrams and repair parts for Maytag MDB8959AWW2 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

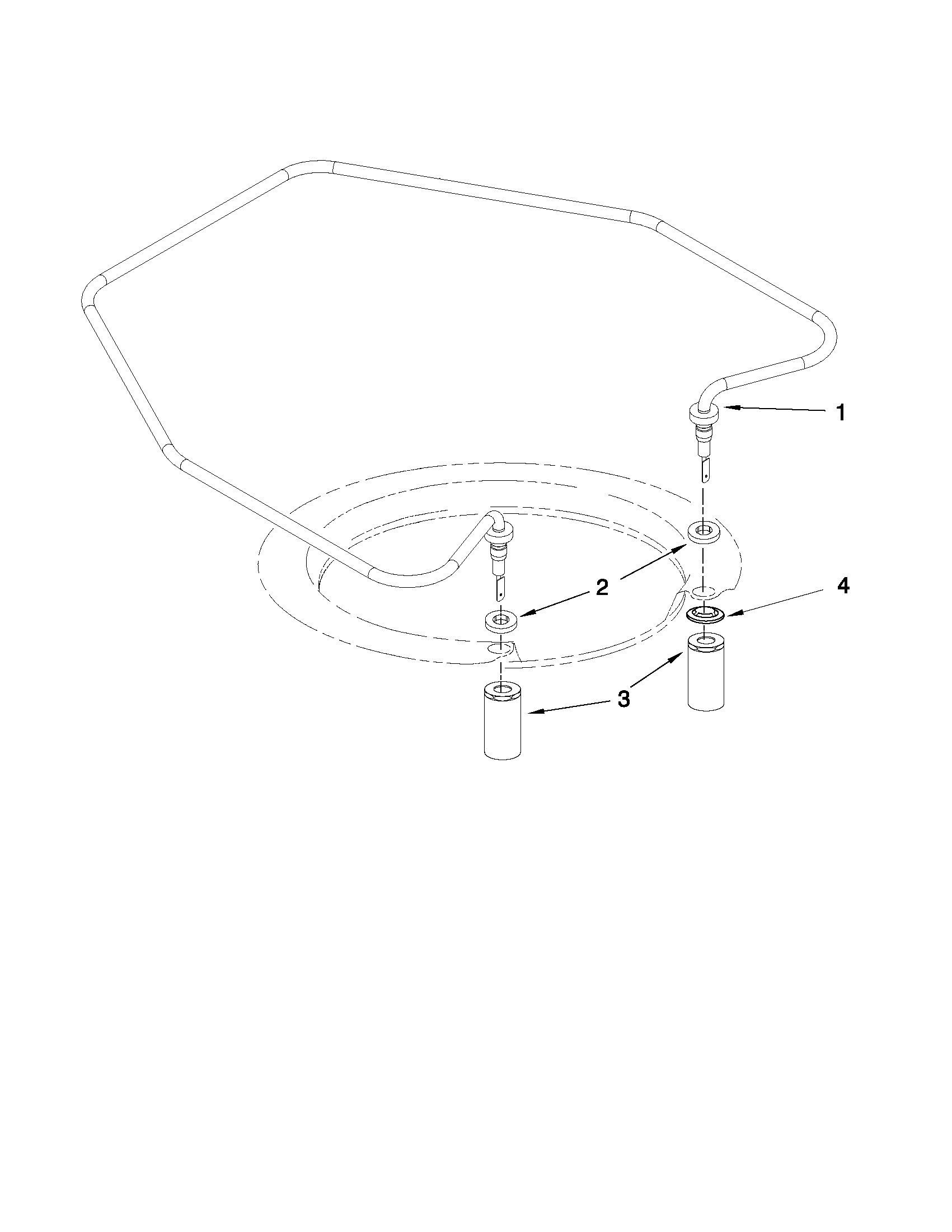

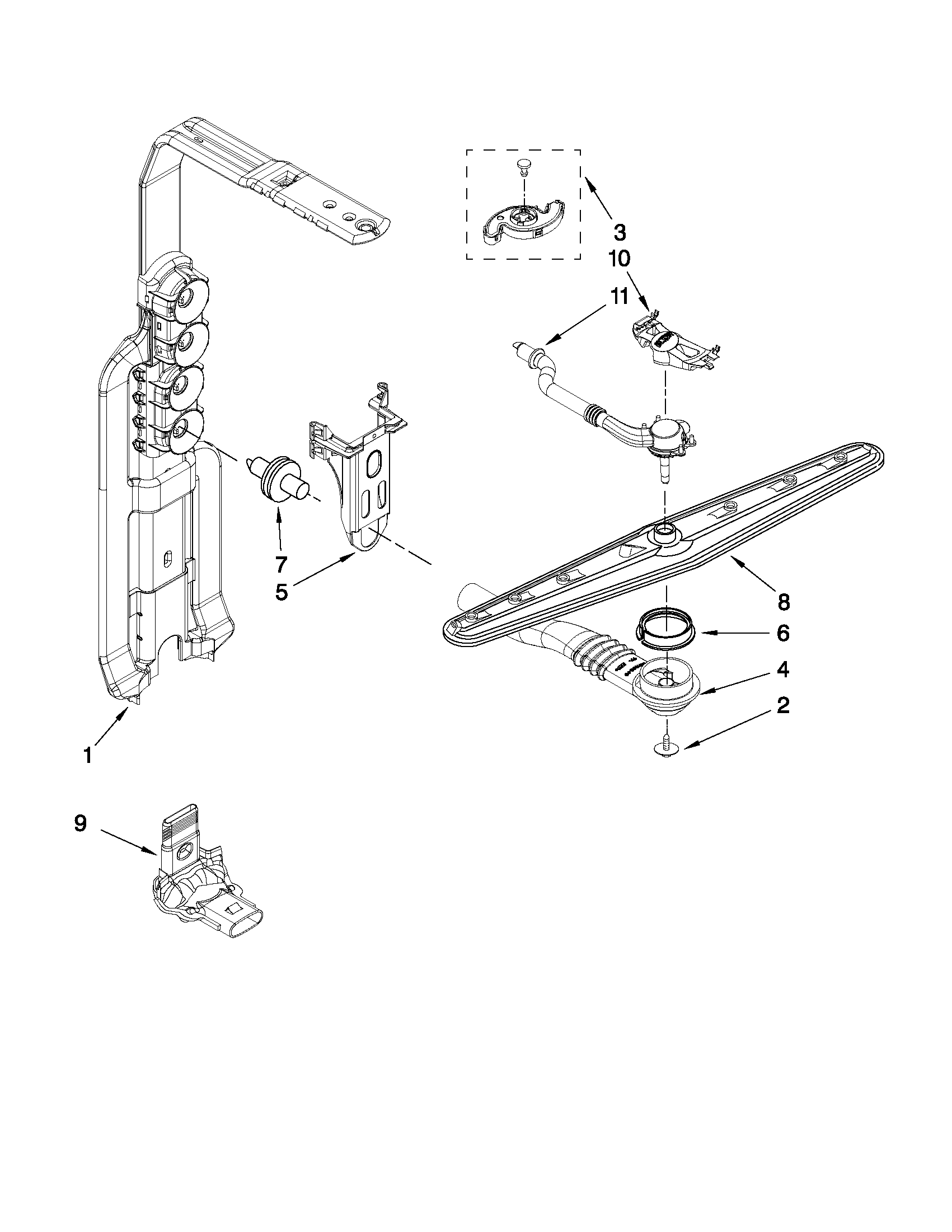

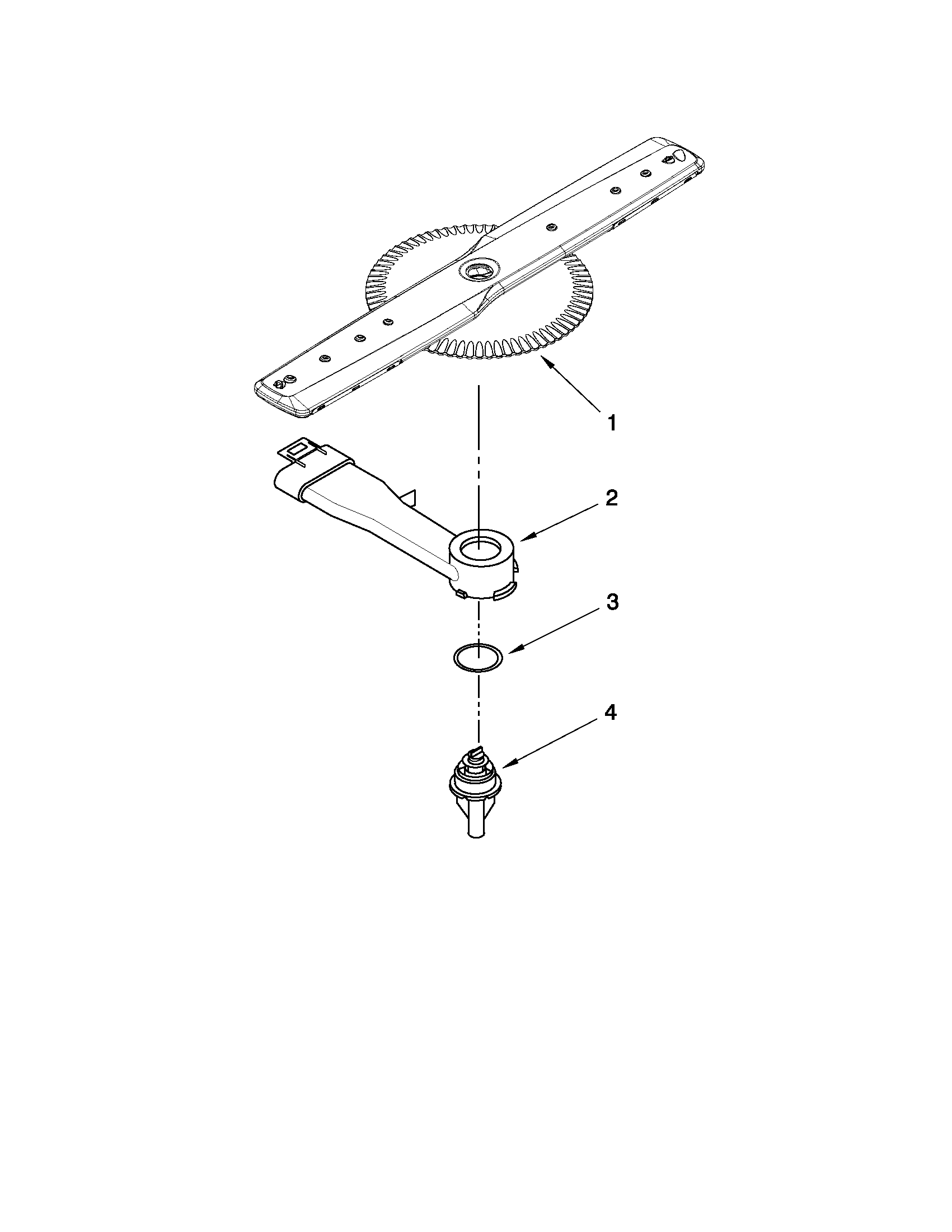

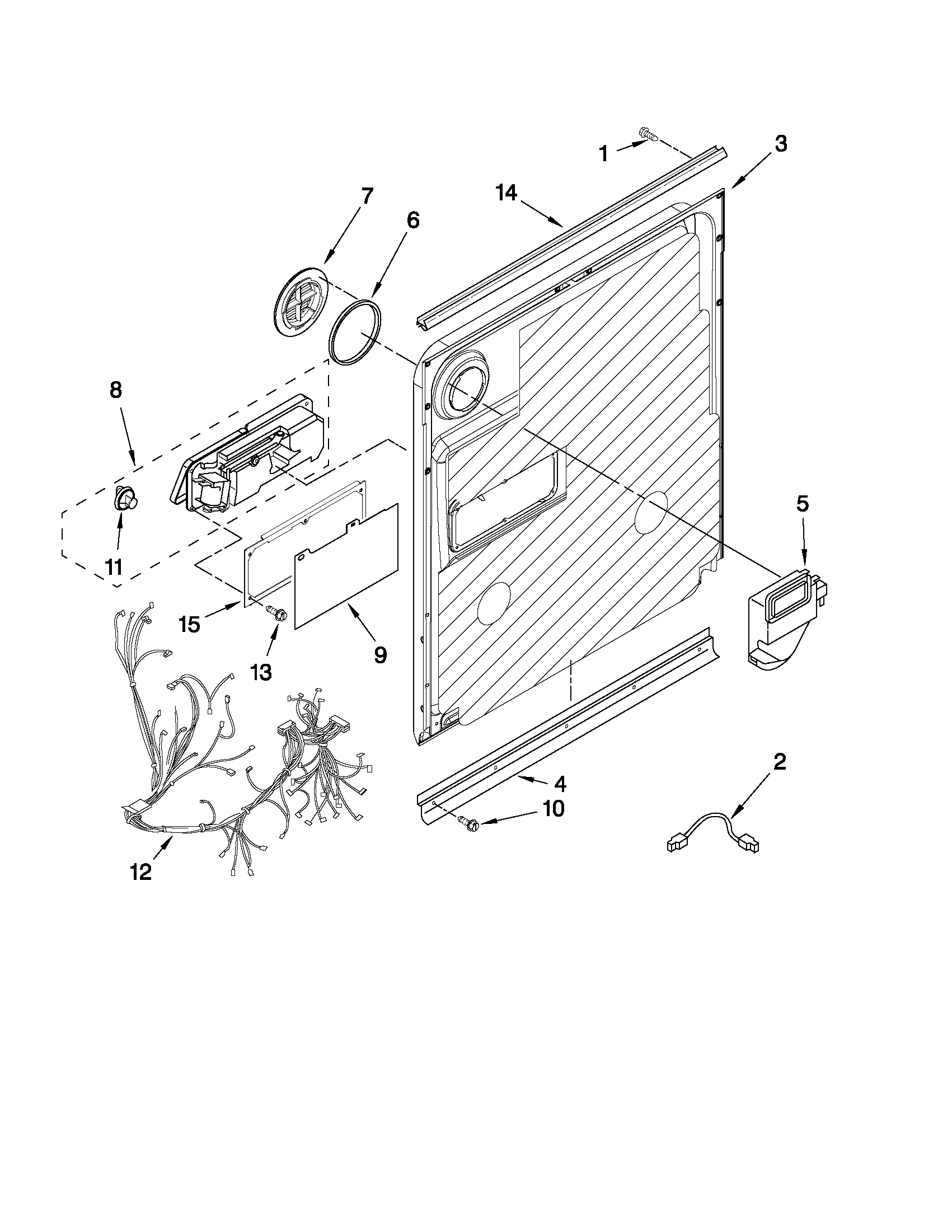

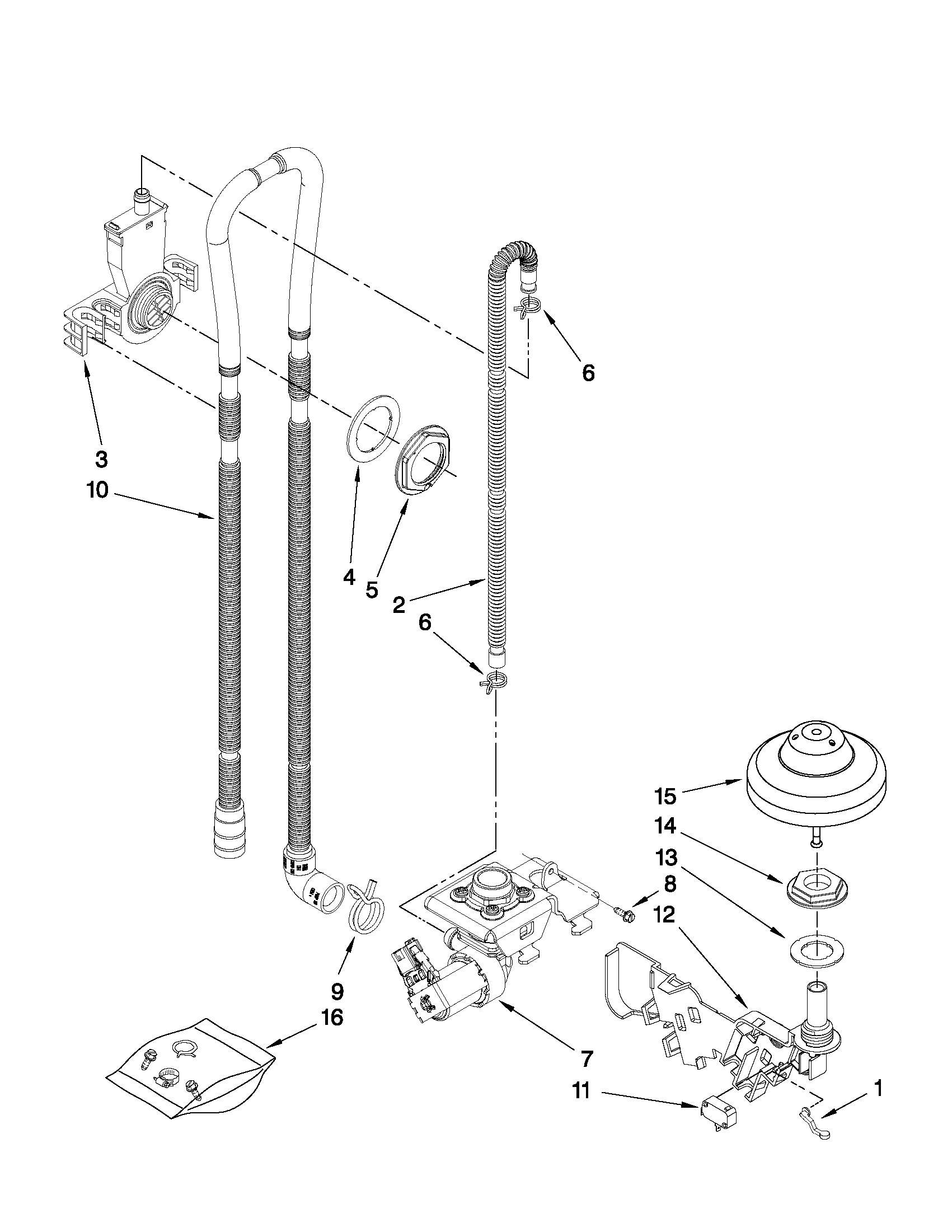

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 178 parts

Dishwasher Dishrack Slide Rail Stop, Upper#2

Upper rack and track parts Diagram

Dishwasher dishrack slide rail stop, upper

Part #8565925
Replaced by #WP8565925
?
Manufacturer substitution
This part replaces 8565925. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.40 |
14% OFF
Phone Price: $7.40
Dishwasher Door Cable Kit#3

Upper rack and track parts Diagram

Dishwasher wheel

Part #8270018
Replaced by #8194001
?
Manufacturer substitution
This part replaces 8270018. Substitute parts can look different from the original.
BEST SELLER
In Stock
$26.46 |
16% OFF
Phone Price: $31.46
Dishwasher Door Cable Kit#20

Tub and frame parts Diagram

Dishwasher door balance link

Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
BEST SELLER
In Stock
$26.46 |
16% OFF
Phone Price: $31.46
Dishwasher Dishrack, Lower#1

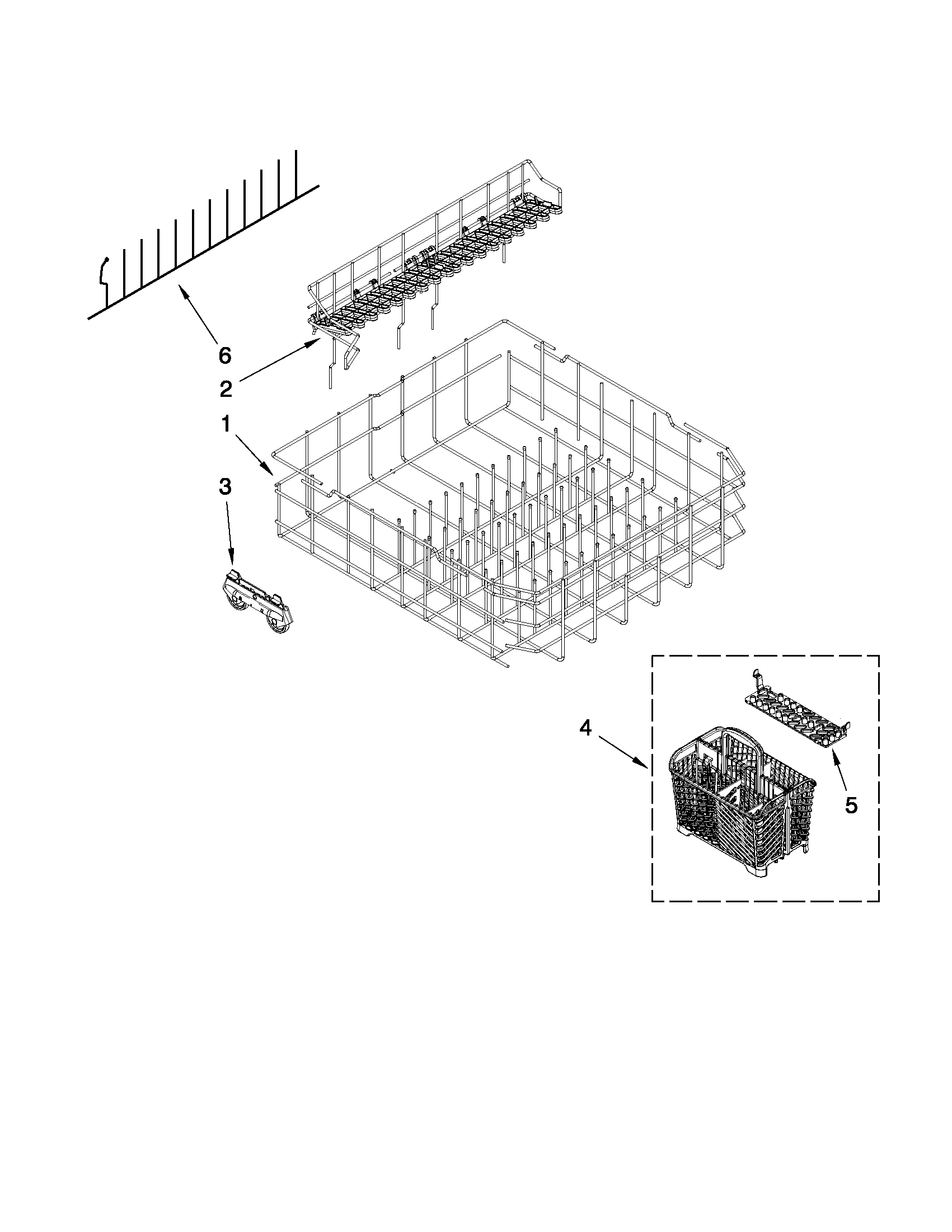

Lower rack parts Diagram

Dishwasher dishrack

Part #W10082825
Replaced by #W10728159
?
Manufacturer substitution
This part replaces W10082825. Substitute parts can look different from the original.
BEST SELLER
In Stock
$182.35 |
9% OFF
MSRP: $200.00
Dishwasher Drain Pump (replaces W10348269)#15

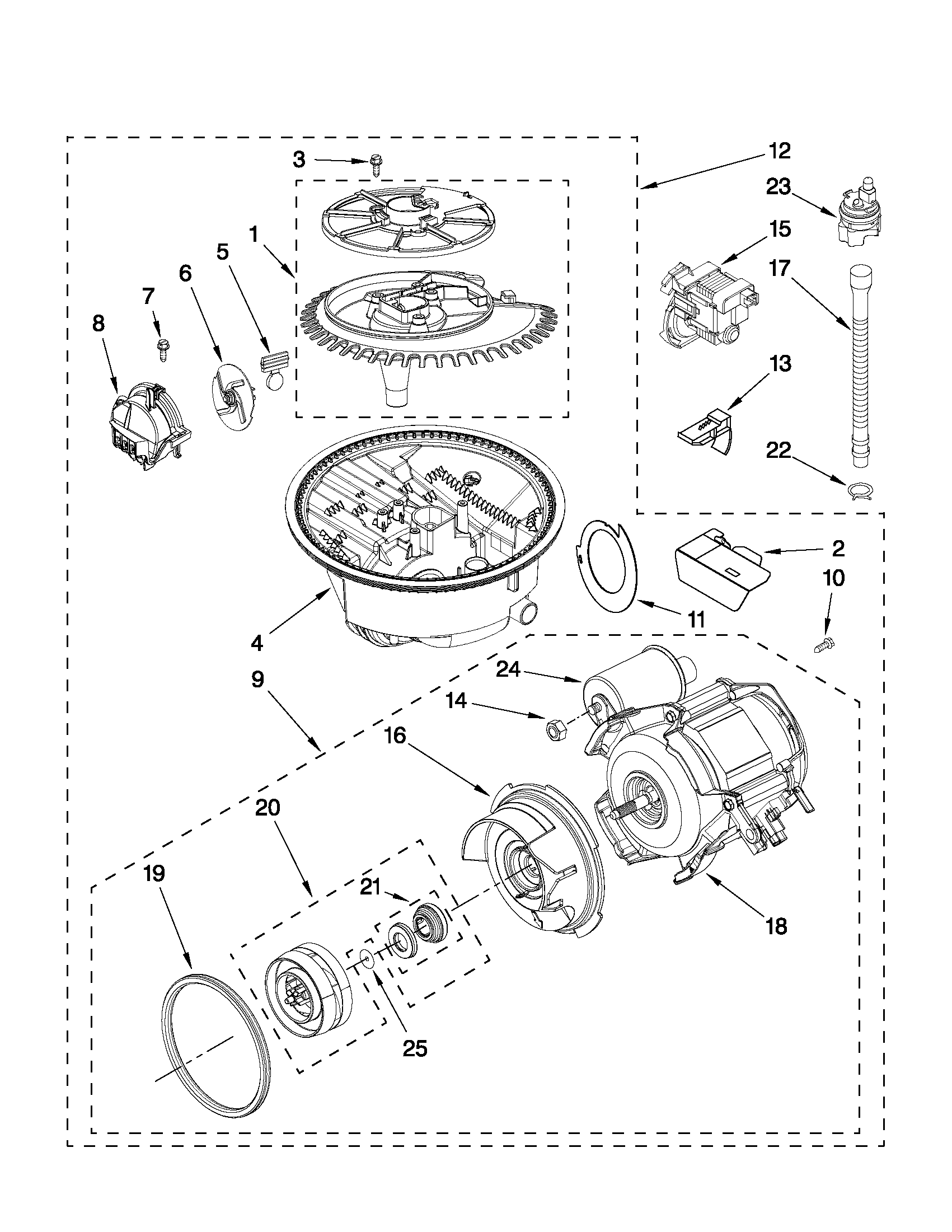

Pump and motor parts Diagram

Dishwasher drain pump

Part #8558995
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
BEST SELLER
Back Order
$68.31 |
7% OFF
Phone Price: $73.31
Dishwasher Dishrack Slide Rail Stop#5

Upper rack and track parts Diagram

Stop

Part #W10199682
Replaced by #WPW10508950
?
Manufacturer substitution
This part replaces W10199682. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.03 |
14% OFF
Phone Price: $7.03
Dishwasher Cabinet Seal (replaces W10179427, W10835073)#6

Tub and frame parts Diagram

Seal

Part #8269110
Replaced by #W10864081
?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
BEST SELLER
In Stock
$63.65 |
7% OFF
Phone Price: $68.65
Dishwasher Tine Row#6

Lower rack parts Diagram

Dishwasher tine row

Part #W10082907
Replaced by #W10728160
?
Manufacturer substitution
This part replaces W10082907. Substitute parts can look different from the original.
BEST SELLER
In Stock
$38.43 |
12% OFF
Phone Price: $43.43
Dishwasher Thermal Fuse#6

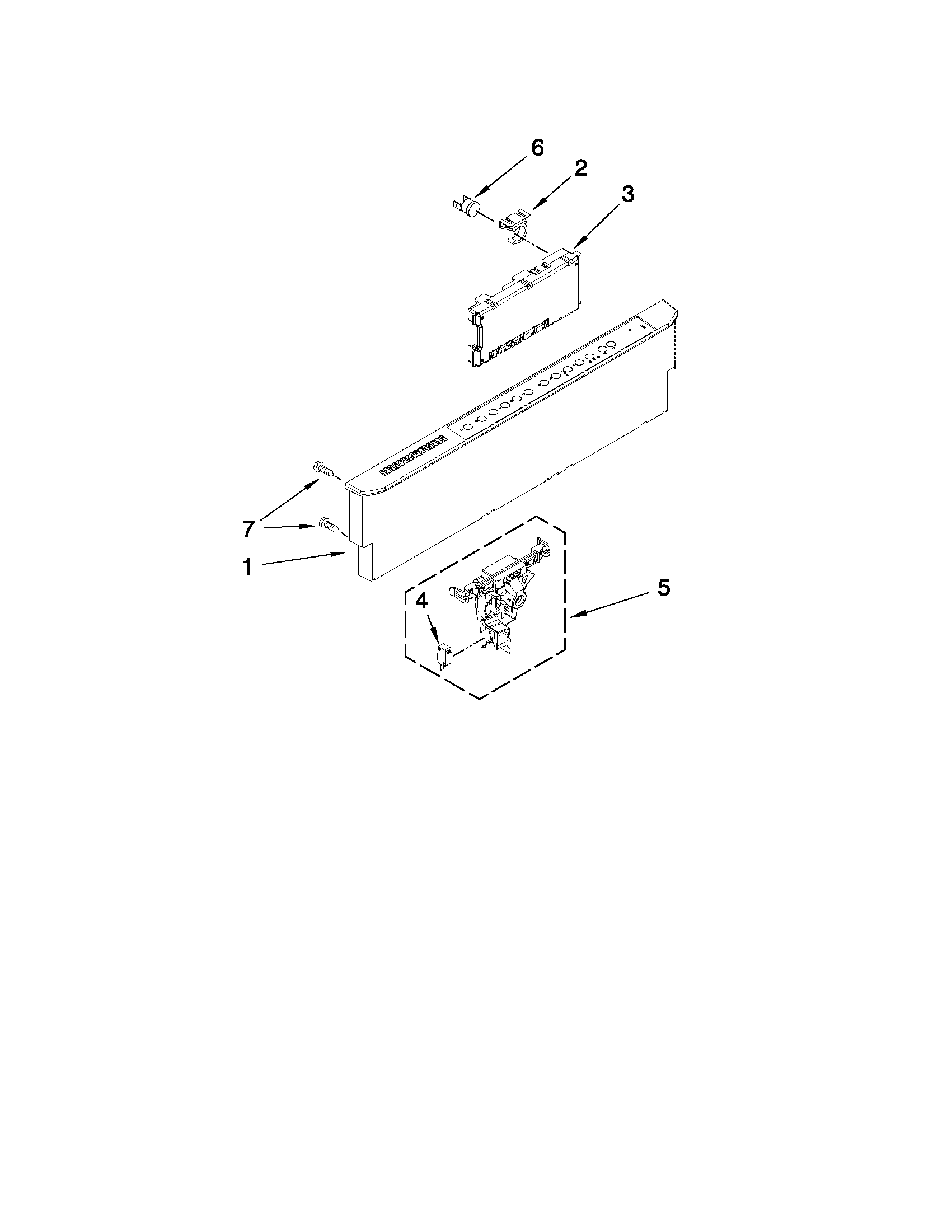

Control panel parts Diagram

Fuse

Part #661663
Replaced by #W10258275
?
Manufacturer substitution
This part replaces 661663. Substitute parts can look different from the original.
BEST SELLER
In Stock
$20.66 |
23% OFF
MSRP: $27.00
Dishwasher Chopper Assembly (replaces 8268383, W10083957)#6

Pump and motor parts Diagram

Dishwasher chopper assembly

Part #W10083957
Replaced by #W10083957V
?
Manufacturer substitution
This part replaces W10083957. Substitute parts can look different from the original.
BEST SELLER
In Stock
$18.00 |
31% OFF
MSRP: $26.00

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main cause: damaged rack height adjuster
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: broken door spring, damaged or broken door hinge
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem

Repair guides common to all dishwashers

These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
