Kenmore 66515113K211 undercounter dishwasher Parts

Your Kenmore dishwasher model number is usually printed on a sticker or metal tag inside the door opening. For most Kenmore dishwashers, we find it on the inner door frame (left or right side), along the top edge of the door, or on the tub wall near the opening.

• Open the door and look along the inner door frame on both sides
• Check the top edge of the door (the horizontal lip)
• Look on the tub wall just inside the opening
• Wipe the area with a damp cloth; soap film can hide the print
• Use a flashlight and take a photo, then zoom in

If the label is missing or unreadable, we use these backup checks:

• Look behind the toe-kick or lower access panel area
• Check the side of the cabinet opening (sometimes visible with the door open)
• Review the paperwork that came with the dishwasher
• Match the control panel style and key features to the parts list for your unit

The model number is what we use to match the correct Kenmore parts and diagrams. Even small model changes can affect fit for items like a drain pump, water inlet valve, or heating element.

If your tag shows 66515113K211, you are already on the correct Kenmore undercounter dishwasher parts listing. For installation-related label locations and safety notes, we reference the installation guide.

Last updated: February 2026

Yes. We still see replacement parts available for many Kenmore dishwashers, including model 66515113K211, as long as you match parts by the full model number and the specific component you need (for example a drain pump, heating element, or door seal). Use the 66515113K211 owner's manual to confirm the correct part location and service steps.

• Use the complete model number 66515113K211 (from the rating label) when searching.
• Match by part name + part ID, not just a description like “pump” or “seal.”
• Compare symptoms to the system involved (drain, fill, wash, heat, or leak).
• If you are replacing a hose or pump, plan to inspect clamps and grommets for leaks at the same time.
• After any repair, run a short cycle and confirm the unit fills and drains normally.

Here are examples of in-stock parts for this model that cover frequent dishwasher problems:

When you are installing or reinstalling the dishwasher, we follow the same basics called out in the installation guide:

• Use a grounded electrical supply.
• Keep wiring, water lines, and drain lines away from the motor and leveling legs.
• Do not install over carpet; keep the motor from contacting the floor.
• Level the dishwasher front-to-back and side-to-side; use shims if needed.
• Secure the dishwasher to the countertop or cabinet so it does not shift when the door opens.

Kenmore dishwashers are often built with widely available components, so parts support stays strong for common repairs. Using the exact model number 66515113K211 prevents ordering a look-alike part that does not fit, leaks, or fails early.

Last updated: February 2026

Water standing in the bottom of your Kenmore 66515113K211 dishwasher usually means the unit is not draining fully or is designed to leave a small amount of water in the sump area between cycles. If the water level is more than a thin puddle, focus on the filter, drain hose routing, and the drain pump.

• Cancel the cycle and run a drain; listen for the drain pump running.
• Remove and clean the filter area; clear food, labels, and glass.
• Check the sink drain or garbage disposal for a clog (a blocked sink drain can back up into the dishwasher).
• Inspect the drain hose for kinks, crushing, or a low spot that traps water.
• Confirm the drain hose is routed correctly under the sink (high loop or air gap if required).
• If the pump hums but water does not move, check the impeller area for debris.

A small amount of water in the sump helps keep seals from drying out; a tub-bottom pool that covers the filter area is not normal.

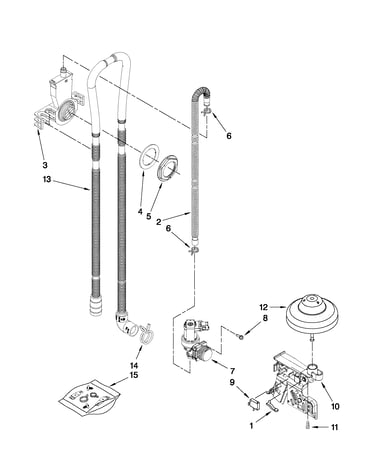

If cleaning and hose checks do not solve it, these parts are the most common drain-related culprits for the 66515113K211:

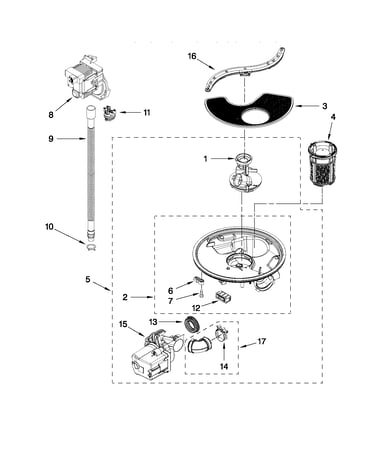

• Dishwasher drain pump WPW10348269 (won’t pump water out, may hum)
• Dishwasher drain hose 8269144A (kinked, clogged, or internally restricted)
• Dishwasher filter WPW10463906 (blocked filter slows water flow to the drain path)

Standing water can lead to odors, redeposit soil on dishes, and strain the drain pump. Fixing the restriction early helps prevent repeat clogs and improves wash performance.

During installation checks, it is normal to see water in the bottom of the tub shortly after starting a cycle. Use the installation guide to confirm proper drain hose positioning and final operation checks.

Last updated: February 2026

Yes, repairing a Kenmore undercounter dishwasher like model 66515113K211 is usually worth it when the problem is a common wear item (drain, fill, heating, seals) and the repair cost stays well below the price of a replacement. We use the 66515113K211 installation guide to confirm basic checks before spending money on parts.

• Start with the basics first: confirm power, door latch, cycle selection, and water supply.
• If it will not start or run: check the breaker or fuse, then verify the door is fully closed and latched.
• If it fills but does not clean well: suspect a clogged filter or spray issue.
• If it will not drain: suspect a drain restriction or a failing drain pump.
• If it runs but dries poorly: suspect a heating problem.

These are typical, high-impact fixes that often restore performance without replacing the dishwasher:

The installation instructions recommend checking operation by running the shortest cycle and confirming water enters the tub early in the cycle.

• Reset power at the breaker for 1 minute, then try again.
• Start the shortest cycle; after about 2 minutes, pause and confirm water is in the bottom of the tub.
• Confirm the water shutoff valve is turned on.
• Confirm the dishwasher is secured and level; shifting can affect door closing and operation.

A dishwasher that is not filling, not draining, or not heating can look “dead,” but those issues are often isolated to one serviceable part. Fixing a single component (like a pump, inlet valve, or heater) typically costs far less than replacing the entire unit.
