Model # DWXR483GA1AA Official GE gas dryer

Here are the diagrams and repair parts for Official GE DWXR483GA1AA gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

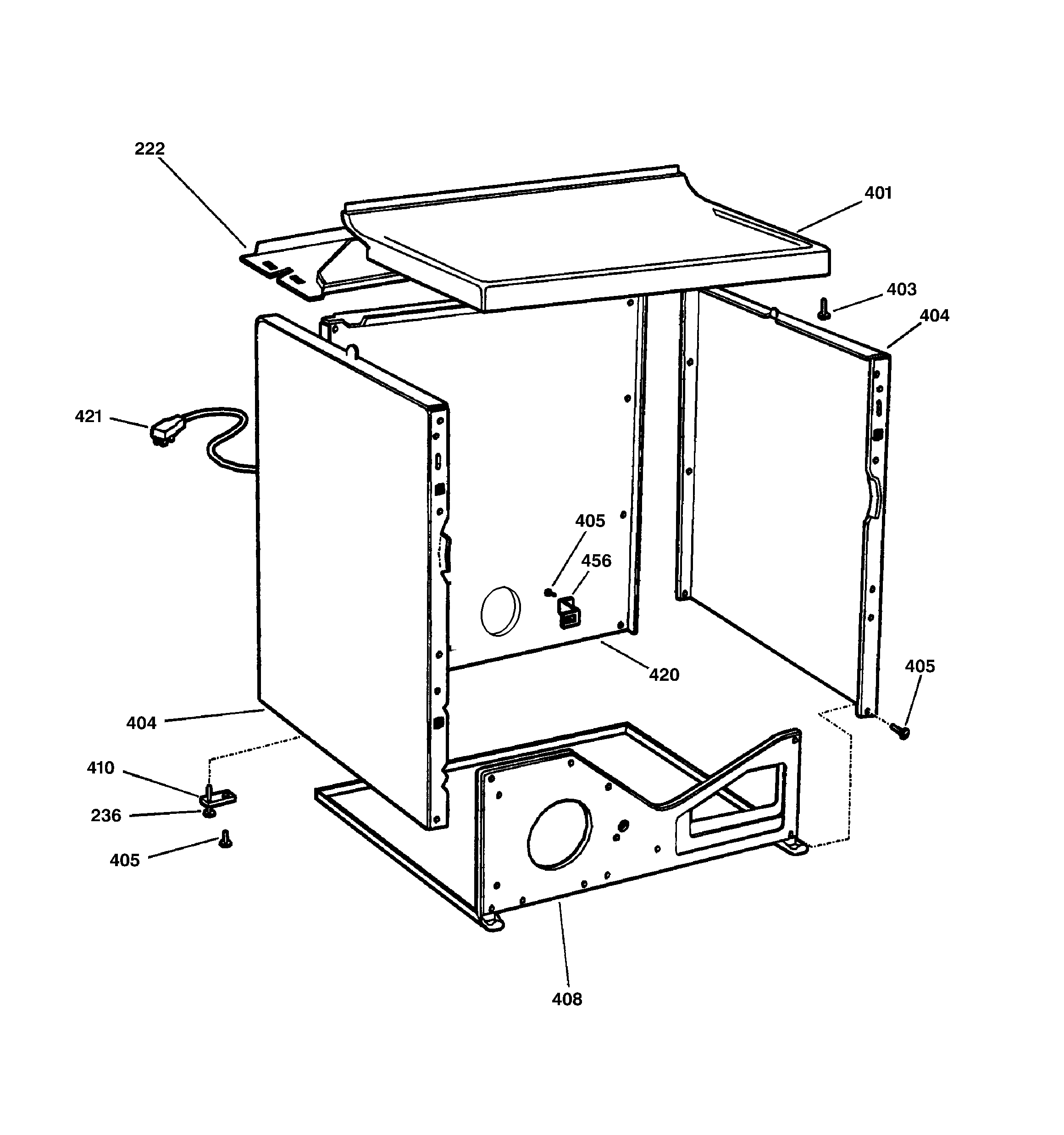

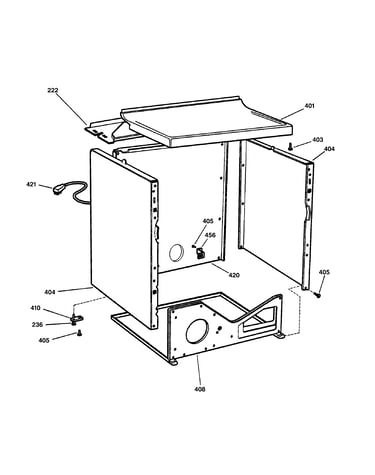

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Drive Belt WE12M0022
#213

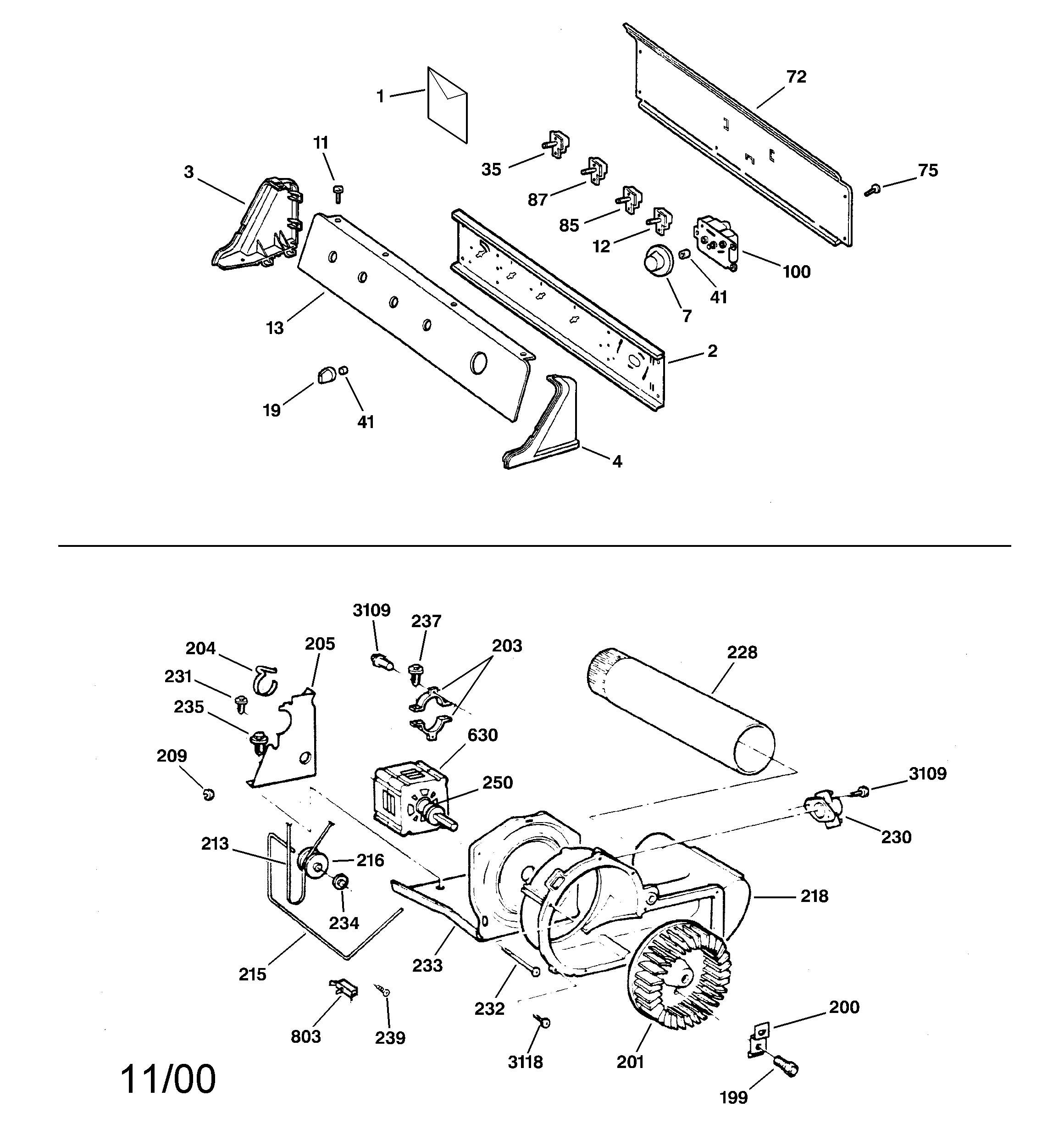

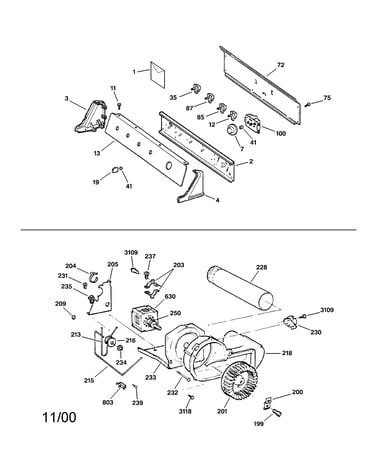

Backsplash, blower & motor diagram

Drive belt

Part #WE12M0022

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M0022. Substitute parts can look different from the original.
BEST SELLER
$27.86
15% OFF Phone Price : $32.86
In Stock
Slide Drum WE01M0333
#316

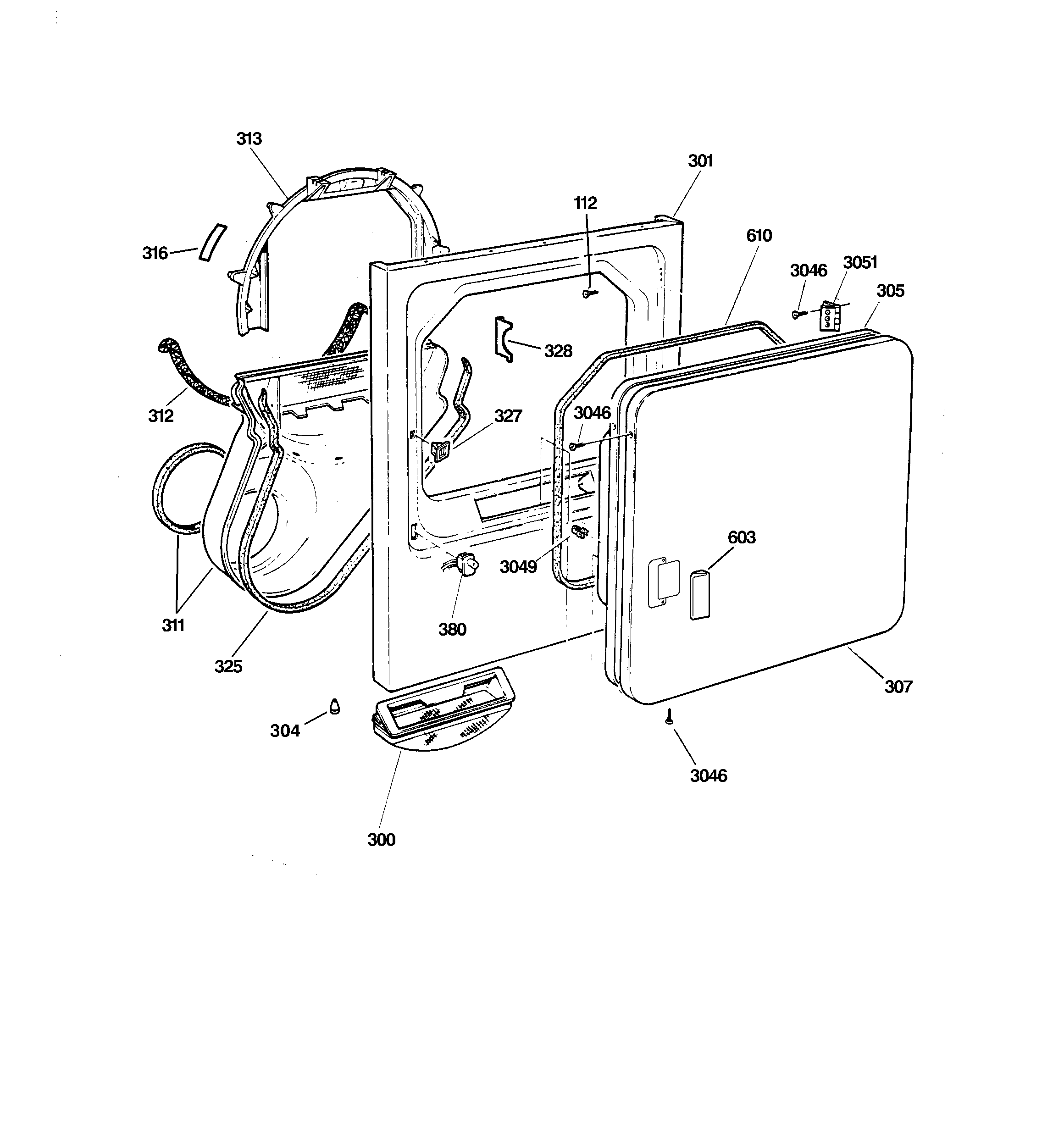

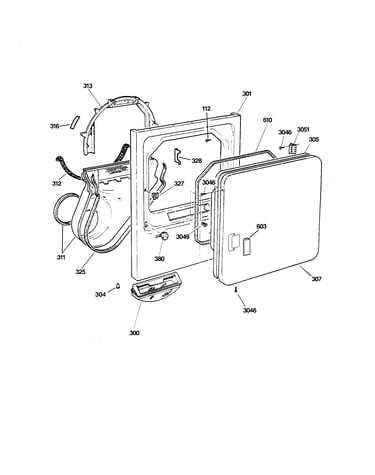

Front panel & door diagram

Slide drum

Part #WE01M0333

Replaced by #WE1M504

?
Manufacturer substitution
This part replaces WE01M0333. Substitute parts can look different from the original.
BEST SELLER
$18.21
10% OFF Phone Price : $20.21
In Stock
Drum Bearing WE03M0020
#313

Front panel & door diagram

Drum bearing

Part #WE03M0020

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE03M0020. Substitute parts can look different from the original.
BEST SELLER
$32.09
13% OFF Phone Price : $37.09
In Stock
Sleeve Bearing WE1M462
#3106

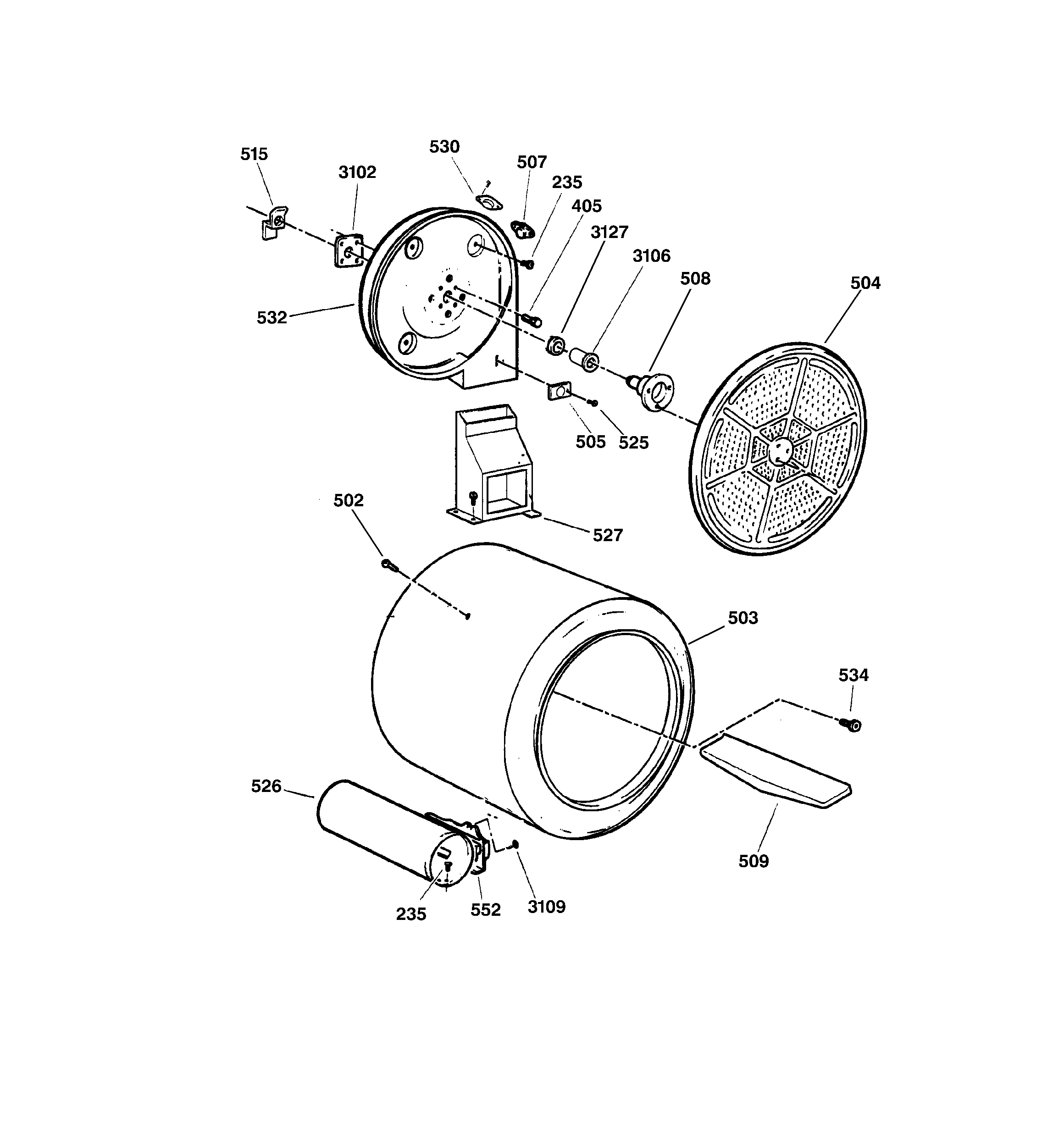

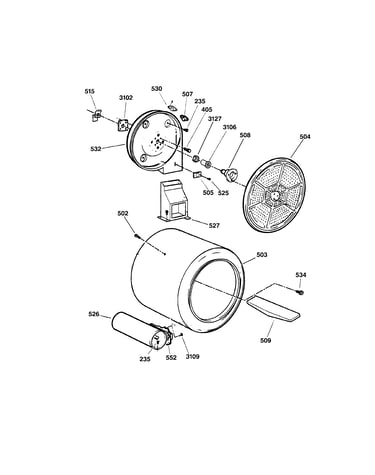

Drum diagram

Sleeve bearing

Part #WE1M462

Replaced by #WE1M462

?
Manufacturer substitution
This part replaces WE1M462. Substitute parts can look different from the original.
BEST SELLER
$24.06
17% OFF Phone Price : $29.06
In Stock
Idler Pulley WE12M0008
#216

Backsplash, blower & motor diagram

Idler pulley

Part #WE12M0008

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M0008. Substitute parts can look different from the original.
BEST SELLER
$28.34
15% OFF Phone Price : $33.34
In Stock
Igniter WE04X0739
#717

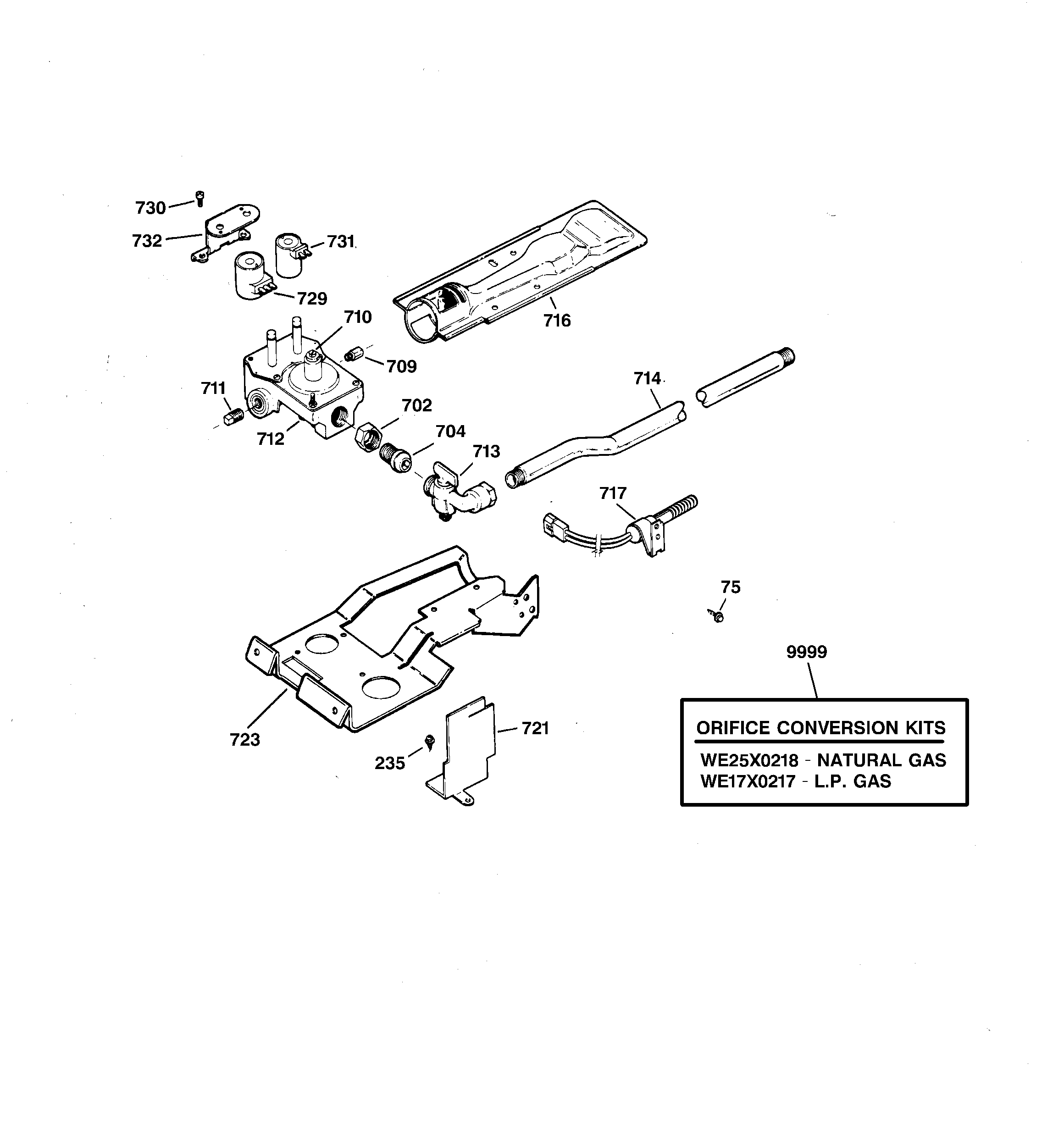

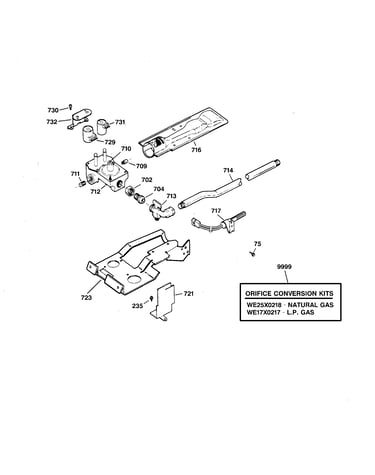

Gas valve & burner assembly diagram

Igniter

Part #WE04X0739

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE04X0739. Substitute parts can look different from the original.
BEST SELLER
$47.46
10% OFF Phone Price : $52.46
In Stock
Interlock Switch WD21X0557
#803

Backsplash, blower & motor diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69
19% OFF Phone Price : $26.69
In Stock
Main Coil WE04X0693
#731

Gas valve & burner assembly diagram

Main coil

Part #WE04X0693

Replaced by #WE4X693

?
Manufacturer substitution
This part replaces WE04X0693. Substitute parts can look different from the original.
BEST SELLER
$31.40
14% OFF Phone Price : $36.40
In Stock
Dual Coil WE04X0692
#729

Gas valve & burner assembly diagram

Dual coil

Part #WE04X0692

Replaced by #WE4X692

?
Manufacturer substitution
This part replaces WE04X0692. Substitute parts can look different from the original.
BEST SELLER
$41.23
11% OFF Phone Price : $46.23
In Stock
Door Handle WE01X1188
#603

Front panel & door diagram

Door handle

Part #WE01X1188

Replaced by #WE01X20419

?
Manufacturer substitution
This part replaces WE01X1188. Substitute parts can look different from the original.
This item is not returnable
$21.30
19% OFF Phone Price : $26.30
In Stock
