Yes; replacing the engine on your Craftsman 917256501 front-engine lawn tractor is worth it when the deck, steering, and drive system are solid and the total engine-swap cost stays well below the cost of replacing the whole tractor. Use the 917256501 owner's manual to confirm engine specs, wiring, and safety steps.

• Deck shell is straight (no rust-through or cracks)
• Mandrels/spindles spin smoothly with no grinding
• Transmission pulls strongly without slipping
• Steering is tight (no wandering or excessive play)
• You plan to keep the tractor and attachments

• Deck is heavily corroded or structurally damaged
• Multiple major systems need work (deck, steering, electrical)
• Persistent deck noise or repeated belt failures point to widespread wear
• Repair cost approaches about half the price of a comparable replacement tractor

• Starting circuit no-crank/click issues: solenoid 532146154
• Worn or missing key: molded ignition key 532140403
• Deck drive wear while you are already wrenching: lawn tractor drive belt 532144200

An engine swap restores power and reliability only if the tractor’s deck and drivetrain are not already near end-of-life; stacking several big repairs at once usually costs more than it saves.

You can order replacement parts from the parts list for Craftsman 917256501, or search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems on a Craftsman riding mower like model 917256501 are no-start or click-no-crank issues, rough running (fuel or air restriction), uneven cutting (deck or blade problems), and drive or blade engagement problems (belt, pulley, or idler wear). Our 917256501 owner's manual covers the correct starting, safety interlock, and maintenance checks.

• Engine clicks but won’t turn over: weak battery, corroded cables, bad solenoid, or a safety switch not made.
• Engine cranks but won’t start: stale fuel, dirty carburetor, fouled spark plug, clogged air filter.
• Starts then dies: fuel cap venting issue, dirty carburetor, debris in fuel line, choke not set correctly.
• Blades won’t engage or cut is poor: worn/de-glazed deck belt, bad idler pulley, damaged blade, or mandrel wear.
• Uneven cut or scalping: deck out of level, tire pressure mismatch, bent blade, worn mandrel components.
• Vibration or rumbling from the deck: bent blade, loose hardware, failing mandrel bearings.

1. Verify the PTO/blade switch is OFF, brake is fully pressed, and you are seated (safety interlocks).
2. Check battery terminals for tightness and corrosion; confirm the battery is fully charged.
3. Use fresh fuel; if fuel is old, drain and refill.
4. Inspect the deck belt for cracks, glazing, or stretching.
5. Look under the deck for packed grass around the blades and mandrels (with the key removed).

If you’re troubleshooting blade engagement, cutting quality, or deck noise on model 917256501, these are frequent wear items:

Most “won’t start” and “won’t cut” complaints come down to maintenance items (fuel, air, spark) or normal deck-drive wear (belt, idler, mandrel). Catching those early prevents hard starting, overheating belts, and premature spindle damage.

We list model-matched replacement parts for Craftsman 917256501 on this page; for broader model searches and diagrams, use Sears PartsDirect.

Last updated: February 2026

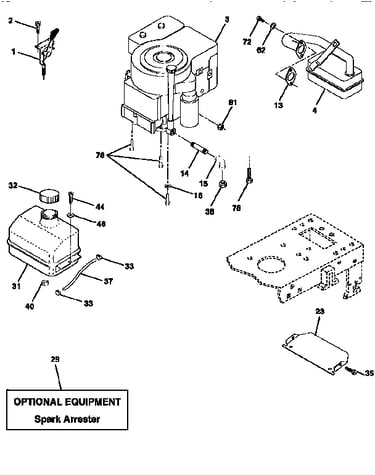

For Craftsman riding mower model 917256501, the exact engine make, model, and horsepower are listed on the tractor’s engine ID label and in the 917256501 owner's manual. Many Craftsman front-engine lawn tractors use a single-cylinder gasoline engine, but we match parts by the model and engine numbers.

Use these quick checks to get the correct engine information for tune-up and repair parts:

• Look for the engine ID label on the engine shroud, valve cover, or blower housing
• Write down the engine manufacturer (commonly Briggs & Stratton, Kohler, or Tecumseh on older units)
• Record the engine model, type, and code (or spec number)
• Confirm the mower model number 917256501 from the frame tag
• Use those numbers to cross-check the correct belts, blades, pulleys, and electrical parts

The engine family varies by production run, so the label is the deciding factor. Here’s what’s typical for this class of tractor:

Engine identification prevents wrong-part problems. For example, a no-crank issue might point you to the correct starter circuit parts like the solenoid 532146154, while cut-quality and deck performance issues often involve deck drive components like the lawn tractor drive belt 532144200 or blade system parts.

If you’re troubleshooting starting, charging, or mowing performance, these resources and parts are often involved:

• Riding lawn mower engine clicks but doesnt turn over video for click-no-start diagnostics
• Jump starting a riding lawn mower battery video for safe jump-start steps
• How to tune up a riding lawn mower video for routine maintenance guidance
• Molded ignition key 532140403 if the key is damaged or missing
• Solenoid 532146154 if you hear a click but the starter does not engage

You can order replacement parts for Craftsman 917256501 from the parts list for this model, or search by model number on Sears PartsDirect.
