Magic Chef CER1360BAW electric freestanding range Parts
Here are the diagrams and repair parts for Magic Chef CER1360BAW electric freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

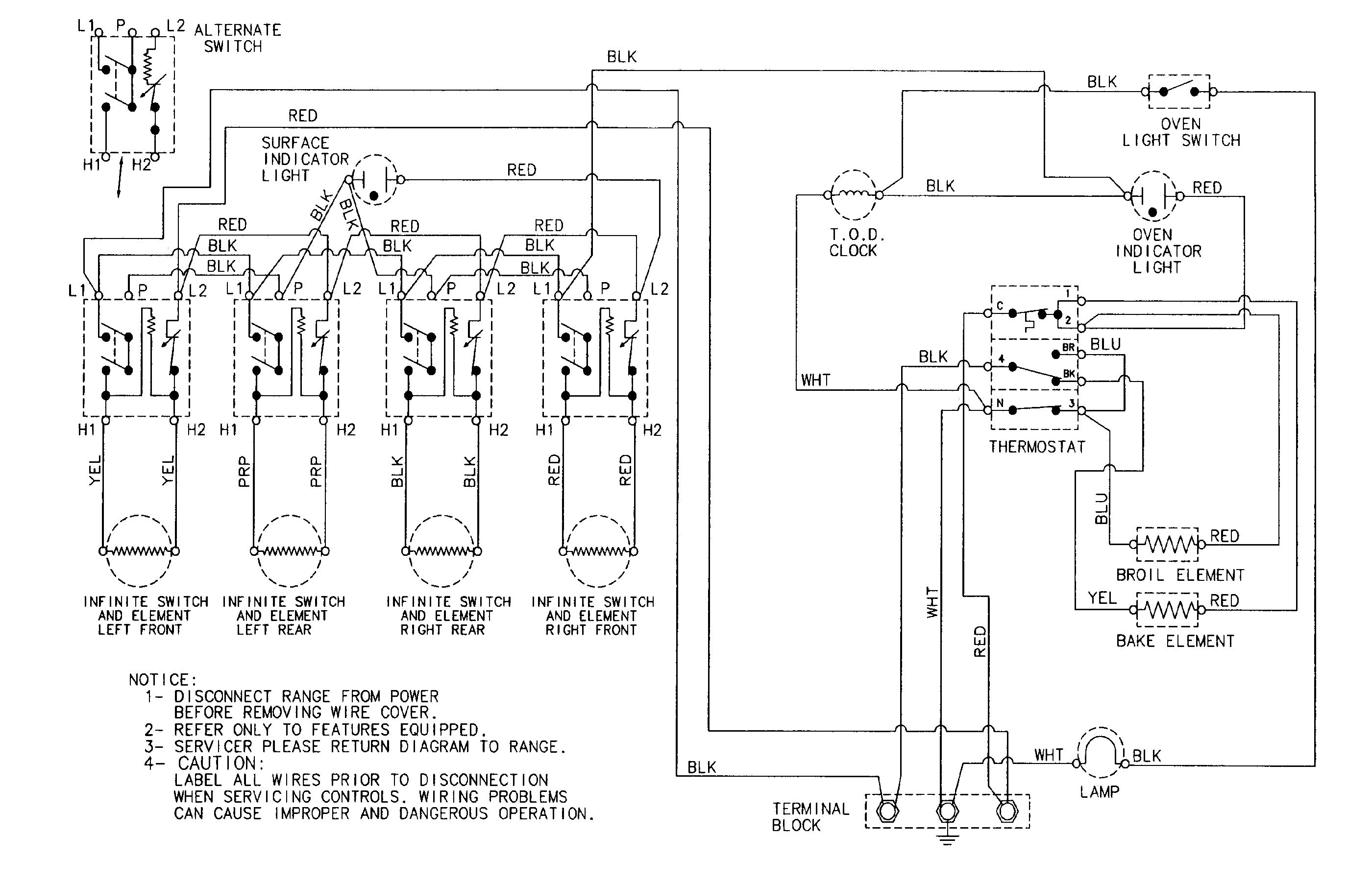

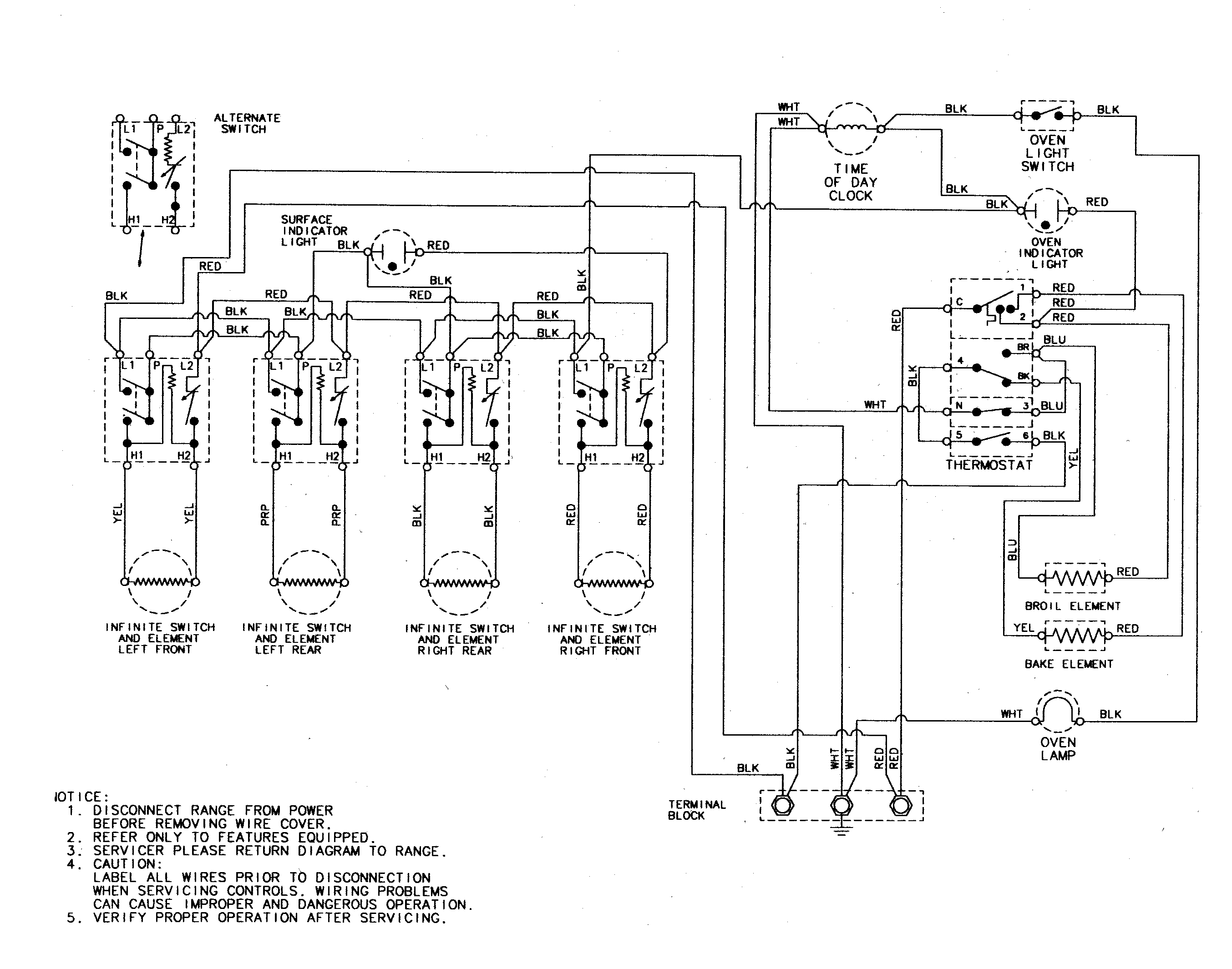

Browse Parts for CER1360BAW Ranges

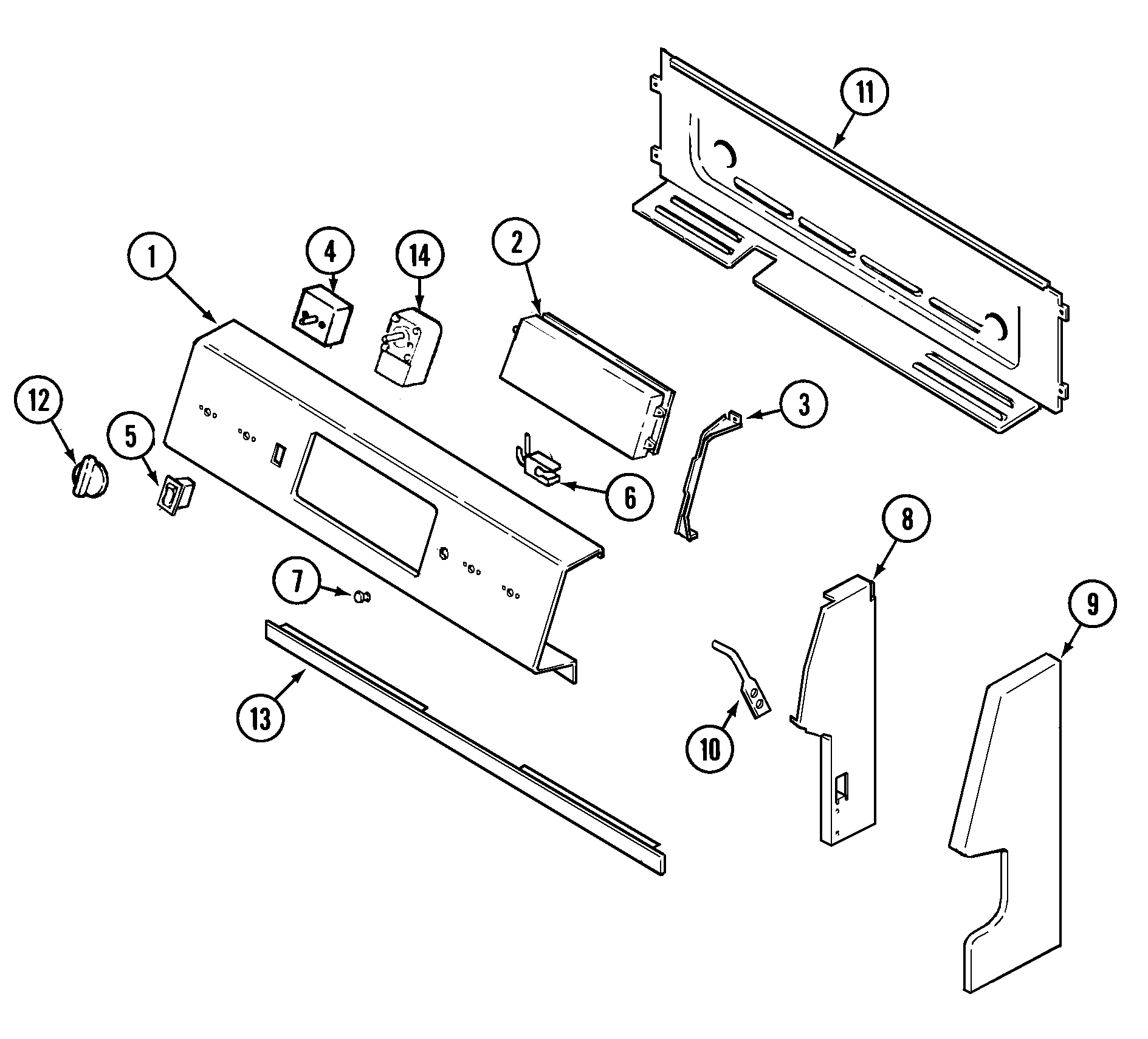

Control panel diagram
Range Oven Control Thermostat
Part #74005019Replaced by #WP74005019
Manufacturer substitutionThis part replaces 74005019. Substitute parts can look different from the original.In Stock$154.367% OFF Phone Price : $166.36
Qty

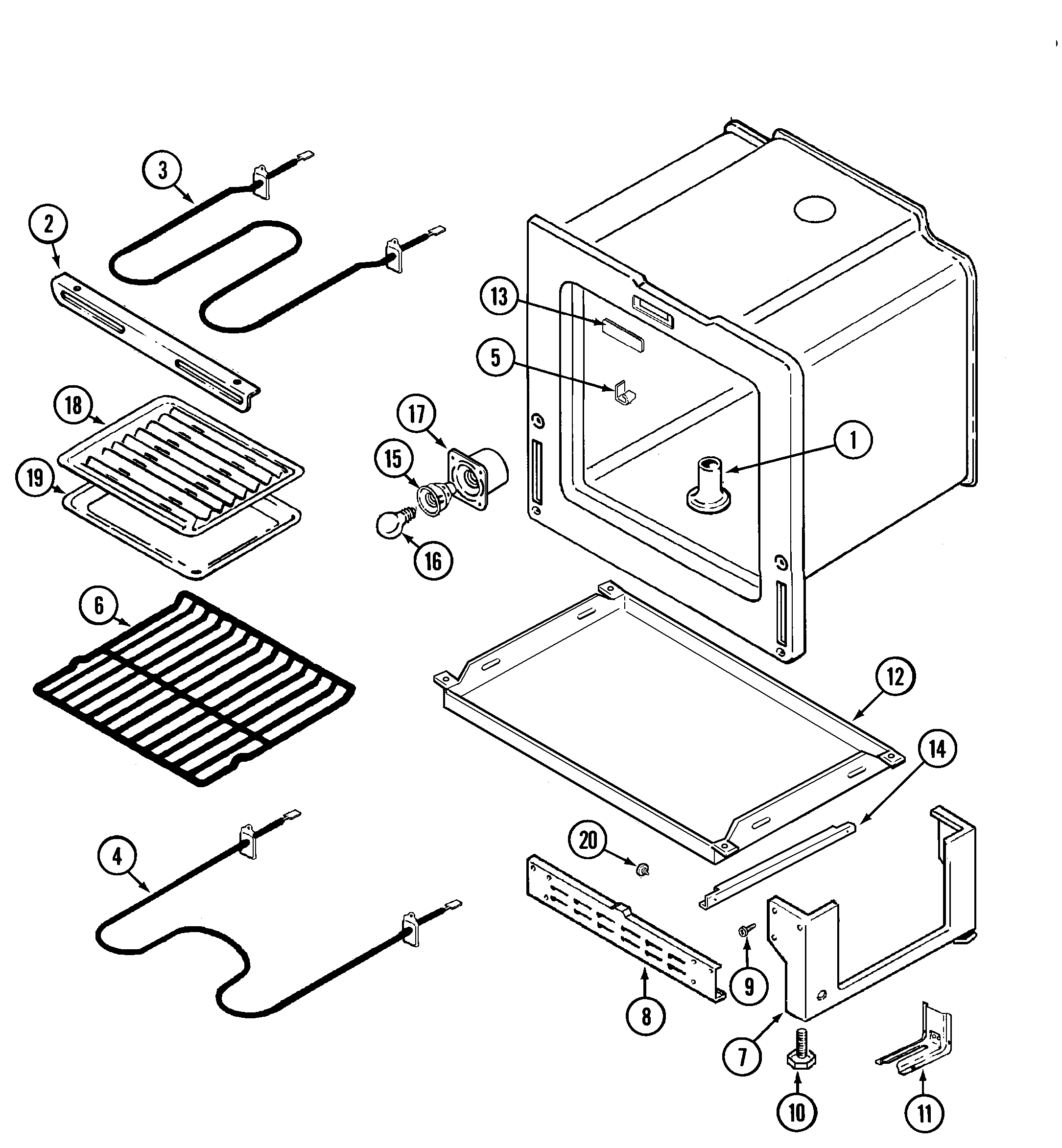

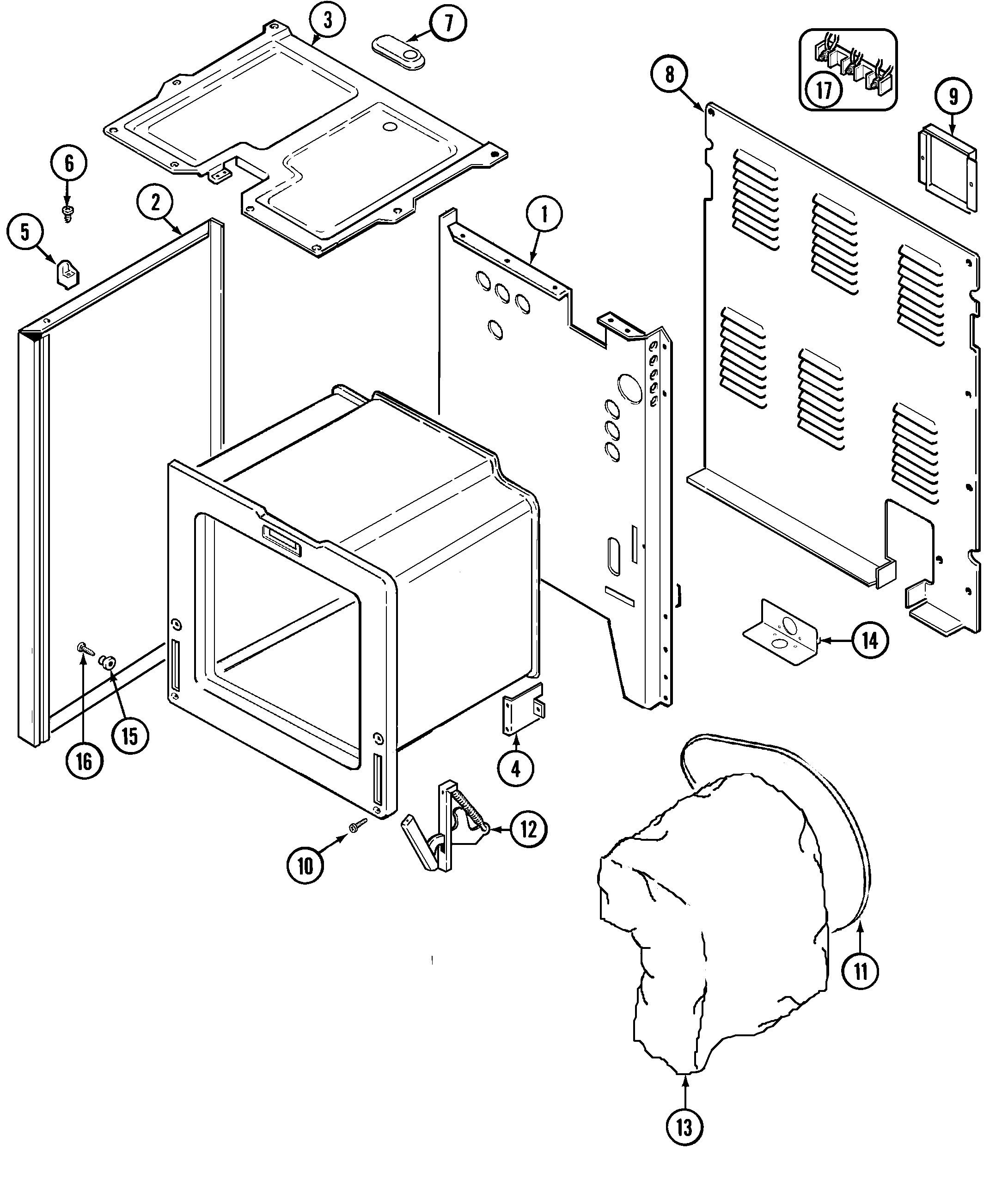

Oven/base diagram
Bracket, Ant
Part #74005564Replaced by #WP3801F656-51
Manufacturer substitutionThis part replaces 74005564. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74QtyControl panel diagram
Oven Indicator Light
Part #74004153Replaced by #WP74004153
Manufacturer substitutionThis part replaces 74004153. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyControl panel diagram
Screw (wht)
Part #7101P373-60Replaced by #WP98008544

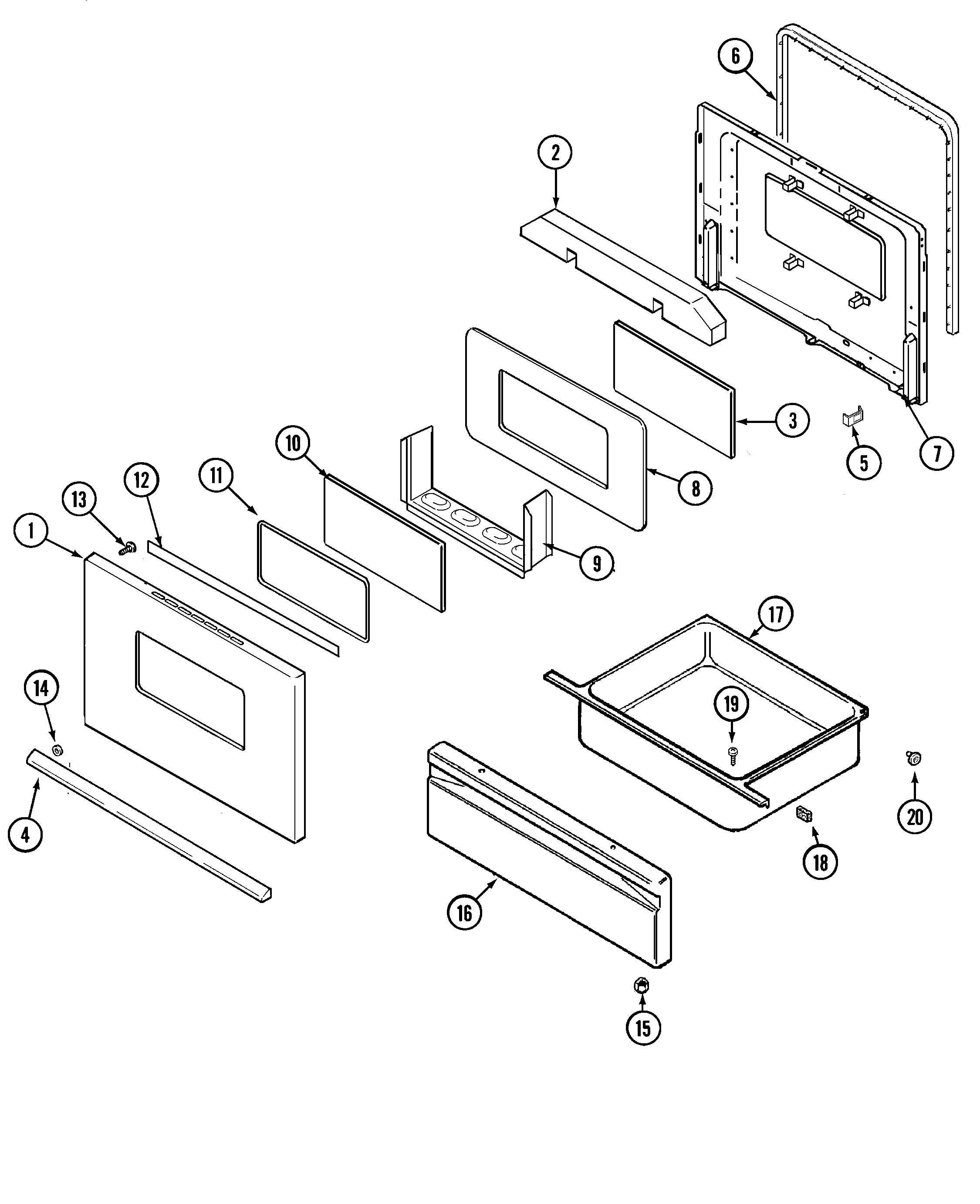

Manufacturer substitutionThis part replaces 7101P373-60. Substitute parts can look different from the original.In Stock$33.46QtyDoor/drawer diagram
Hand Spacer
Part #8010P089-60Replaced by #WP74005058
Manufacturer substitutionThis part replaces 8010P089-60. Substitute parts can look different from the original.In Stock$23.87QtyTop assembly diagram
Receptacle
Part #1430306KReplaced by #12001676
Manufacturer substitutionThis part replaces 1430306K. Substitute parts can look different from the original.In Stock$12.5214% OFF Phone Price : $14.52QtyTop assembly diagram
Surface Element
Part #74007156Replaced by #WPW10345410
Manufacturer substitutionThis part replaces 74007156. Substitute parts can look different from the original.In Stock$110.2610% OFF Phone Price : $122.26QtyRange Storage Drawer Roller
Part #74004078Replaced by #WP74004078
Manufacturer substitutionThis part replaces 74004078. Substitute parts can look different from the original.In Stock$10.3516% OFF Phone Price : $12.35QtyControl panel diagram
Range Surface Element Control Switch
Part #7403P239-60Replaced by #WP7403P239-60
Manufacturer substitutionThis part replaces 7403P239-60. Substitute parts can look different from the original.In Stock$18.9163% OFF Was : $51.10QtyControl panel diagram
Clock (wht)
Part #74004825Replaced by #W10799767
Manufacturer substitutionThis part replaces 74004825. Substitute parts can look different from the original.In Stock$305.99$12.00 OFF Phone Price : $317.99Qty
